last update: April 22, 2015

For the best durability in the Food & Beverage industry

Proven with various industrial detergents of Ecolab and Diversey

- Withstands heat shock conditions(IP68)
- Epoxy resin preventing water ingress if connector is not fixed properly

- Compact size and shape
- High grade steel housing(SUS316L)

High power red LED for max. sensing performance and & easy alignment

last update: April 22, 2015

Purchase the OMRON Built-in Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3FC Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3FC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3FCSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G6D-F4B / G3DZ-F4B Terminal Relay/Features
G70D-SOC16 / FOM16 Relay Terminal/Features
EE-SPX613 Pipe-mounting Liquid Level Photomicrosensor with Built-in Amplifier/Features
CRT1B-[]D02JS(-1) / []D04JS(-1) Bit Slave Units with Compact Connectors/Features
S8T-DCBU-02 Buffer Block/Features

OMRON E3FC specification
E3FC Photoelectric sensors in M18 stainless steel housing/Specifications
last update: April 27, 2015
Sensing method: Through-beam and Retro-reflective with MSR function

Model

Item Sensing Method Through-beam Retro-Reflective with MSR function
NPN output Pre-wired E3FC-TN11 2M E3FC-RN11 2M
M12 Connector E3FC-TN21 E3FC-RN21
PNP output Pre-wired E3FC-TP11 2M E3FC-RP11 2M
M12 Connector E3FC-TP21 E3FC-RP21
Sensing distance 20m 0.1 to 4 m
(with E39-R1S)
Spot diameter -
Standard sensing object Opaque: 7 mm dia.min. Opaque: 75 mm dia.min.
Differential travel -
Directional angle 2° min.
Light source (wavelength) Red LED (624 nm) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 40 mA max.
(Emitter 25 mA max. Receiver 15 mA max.) 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring *1.
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment Fixed
Ambient Illumination (Reciever side) Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, IP68 *2., DIN 40050-9: IP69K *3.
Weight Pre-wired cable (2M) 152 g 76 g
Connector 44 g 22 g
Material Case SUS 316L (1.4404)
Lens and Display PMMA
Adjuster -
Nut SUS 316L (1.4404)
Accessories Instruction sheet
M18 nuts (4 pcs) Instruction sheet
M18 nuts (2 pcs)

Sensing method: Diffuse-reflective

Model

Item Sensing Method Diffuse-reflective
NPN output Pre-wired E3FC-DN12 2M E3FC-DN13 2M E3FC-DN15 2M E3FC-DN16 2M
M12 Connector E3FC-DN22 E3FC-DN23 E3FC-DN25 E3FC-DN26
PNP output Pre-wired E3FC-DP12 2M E3FC-DP13 2M E3FC-DP15 2M E3FC-DP16 2M
M12 Connector E3FC-DP22 E3FC-DP23 E3FC-DP25 E3FC-DP26
Sensing distance 300 mm
(white paper:300 x 300 mm) 1 m
(white paper: 300 x 300 mm) 300 mm
(white paper:
300 x 300 mm) 1 m
(white paper:
300 x 300 mm)
Spot diameter (reference value) 40 x 50 mm
Sensing distance of 300 mm 120 x 150 mm
Sensing distance
of 1 m 40 x 50 mm
Sensing distance of 300 mm 120 x 150 mm
Sensing distance
of 1 m
Standard sensing object -
Differential travel 20% max.
Directional angle -
Light source (wavelength) Red LED (624 nm) Infrared LED (850 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring *3.
Indicator Operation indicator (orange)
Stability indicator (green)
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient Illumination Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance Destruction: 500 m/s^*2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, IP68 *2., DIN 40050-9: IP69K *3.
Weight Pre-wired cable (2M) 76 g
Connector 22 g
Material Case SUS 316L (1.4404)
Lens and Display PMMA
Adjuster POM
Nut SUS 316L (1.4404)
Accessories Instruction sheet
M18 nuts (2 pcs)

Sensing method: BGS and Transparent detected with p-opaquing function

Model

Item Sensing Method BGS (Background suppression ) Transparent detected with P-opaquing function
NPN output Pre-wired E3FC-LN11 2M E3FC-LN12 2M E3FC-BN11 2M
M12 Connector E3FC-LN21 E3FC-LN22 E3FC-BN21
PNP output Pre-wired E3FC-LP11 2M E3FC-LP12 2M E3FC-BP11 2M
M12 Connector E3FC-LP21 E3FC-LP22 E3FC-BP21
Sensing distance 100 mm
(white paper:
300 x 300 mm) 200 mm
(white paper:
300 x 300 mm) 100 to 500 mm
(with E39-RP1)
Spot diameter (reference value) 10 x 10 mm
Sensing distance of 100 mm 10 x 15 mm
Sensing distance of 200 mm -
Standard sensing object - glass (t = 1.0 mm): 150 × 150 mm
Differential travel 20% max. -
Directional angle -
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring *1.
Indicator Operation indicator (orange)
Stability indicator (green)
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment Fixed One-turn adjuster
Ambient Illumination Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -30 to 70°C(with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, IP68 *2., DIN 40050-9: IP69K *3. IEC: IP67, DIN 40050-9: IP69K *3
Weight Pre-wired cable (2M) 76 g Approx. 95 g/Approx. 65 g
Connector 22 g Approx. 50 g/Approx. 20 g
Material Case SUS 316L (1.4404)
Lens and Display PMMA
Adjuster - POM
Nut SUS 316L (1.4404)
Accessories Instruction sheet
M18 nuts (2 pcs)
^*1 L-On fixed output available for Diffuse reflective and BGS models. Please add "A" in order code (e.g. E3FC-DP11A 2M)
^*2 IP68 Degree of Protection Specifications IP68 is defined by heat shock resistance with 20 test cycles of 30 min. changing between 3° and 60° surface tensioned water.
^*3 IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards.
The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water water is 14 to 16 liters per minute.
The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Engineering Data (Reference Value)
Parallel Operating Range
Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Operating Range
Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

BGS Models

E3FC-L[]1, E3FC-L[]2

Transparent object detection models

E3FC-B[]1

Excess Gain vs. Distance
Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

Transparent object detection models

E3FC-B[]1

Sensing Distance vs. Sensing Object Material
BGS Models

E3FC-L[]1

E3FC-L[]2

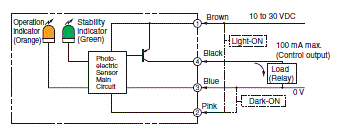

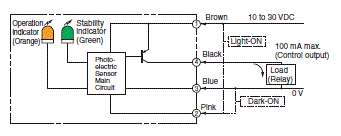

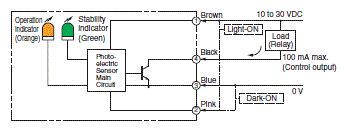

Output circuit diagram
PNP Output
MODEL: E3FC-TP[], E3FC-RP[], E3FC-DP[], E3FC-BP[]

Operation
mode Timing charts Operation
selector
Output circuit
Light-ON Connect the
pink wire
Pin(2)) to the
brown (Pin(1)) Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON Connect the
pink wire
(Pin(2)) to the
blue (Pin(3))
or open the
pink wire
(Pin(2))

MODEL: E3FC-LP[]

Operation
mode Timing charts Operation
selector
Output circuit
Light-ON Connect the
pink wire
(Pin(2)) to the
brown (Pin(1)) Background suppression
Dark-ON Connect the
pink wire
(Pin(2)) to the
blue (Pin(3))
or open the
pink wire
(Pin(2))

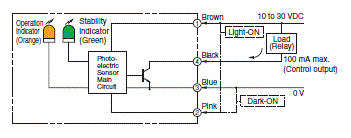

NPN Output
MODEL: E3FC-TN[], E3FC-RN[], E3FC-DN[], E3FC-BN[]

Operation
mode Timing charts Operation
selector
Output circuit
Light-ON Connect the
pink wire
(Pin(2)) to the
brown (Pin(1))
or open the
pink wire
(Pin(2)) Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON Connect the
pink wire
(Pin(2)) to the
blue (Pin(3))

MODEL: E3FC-LN[]

Operation
mode Timing charts Operation
selector
Output circuit
Light-ON Connect the
pink wire
(Pin(2)) to the
brown (Pin(1))
or open the
pink wire
(Pin(2)) Background suppression
Dark-ON Connect the
pink wire
(Pin(2)) to the
blue (Pin(3))

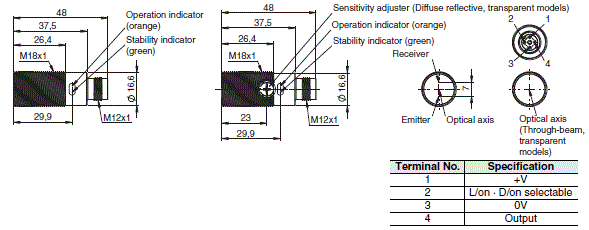

Connector Pin Arrangement

M12 Connector Pin Arrangement

Connectors (Sensor I/O connectors)

M12 4-wire Connectors

Classification Wire color Connector pin No. Application
DC Brown 1 Power supply (+V)
White 2 L/on • D/on selectable
Blue 3 Power supply (0 V)
Black 4 Output

Precautions for Safe Use

Be sure to follow the safety precautions below for added safety.

1. Do not use the sensor under the environment with explosive, flammable or corrosive gas.
2. Do not use the sensor under the oil or chemical environment exceeding specifications. Performance is assured for typical detergents and disinfectants used in Food & Beverage industry.
Refer to the following table when using these agents:
Manufacturer Product name Concen-
tration Testtime
Diversey Diverfoam SMS HD 5% 720 h
Oxofoam 5% 720 h
Acifoam 5% 720 h
Divosan Hypochlorit 1% 720 h
Divosan Forte 1% 720 h
Ecolab P3-topactive® 200 5% 720 h
P3-topax® 56 5% 720 h
P3-topactive® OKTO 3% 720 h
P3-topax® 990 3% 720 h
P3-topax® 66 3% 720 h
General H₂O₂ 6,5% 240 h
3. Do not use the sensor under the environment under the other conditions in excess of rated.
4. Do not use the sensor in place that is exposed by direct sunlight.
5. Do not use the sensor in place where the sensor may receive direct vibration or shock.
6. Do not use the thinner, alcohol, or other organic solvents.
7. Never disassemble, repair nor tamper with the sensor.
8. Please process it as industrial waste.

last update: April 27, 2015

OMRON E3FC catalog
E3FC Photoelectric sensors in M18 stainless steel housing/Catalog

Catalog

English
Singapore Edition

The following English catalog(s) was created for Singapore.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E98E-EN-02/E3FC Data Sheet
[2403KB] Apr 23, 201520150423 E98E-EN-02/E3FC Data Sheet

OMRON E3FC dimension
E3FC Photoelectric sensors in M18 stainless steel housing/Dimensions
last update: April 23, 2015
Sensors

(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

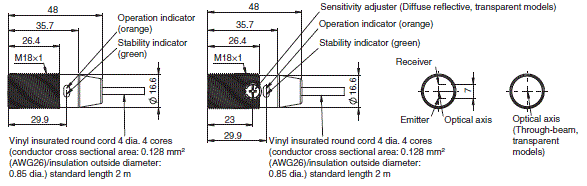

Pre-wired Models

E3FC-T[]1[]
E3FC-R[]1[]
E3FC-D[]1[]
E3FC-L[]1[]
E3FC-B[]1[]

M12 Connector Models

E3FC-T[]2[]
E3FC-R[]2[]
E3FC-D[]2[]
E3FC-L[]2[]
E3FC-B[]2[]

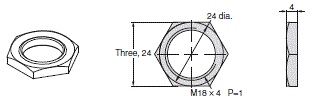

Attached nut

Accessories (Order Separately)
Reflectors

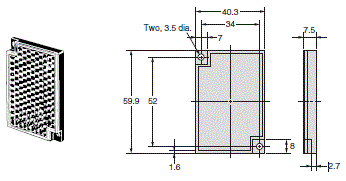

E39-R1S

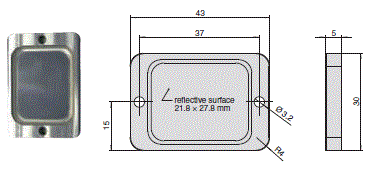

E39-R50

E39-RP1

E39-R16

Mounting brackets

E39-L183

Flush mounting nut

E39-EL16

last update: April 23, 2015

OMRON E3FC lineup
E3FC Photoelectric sensors in M18 stainless steel housing/Lineup
last update: April 27, 2015
Sensors

Sensor type Sensing distance Connection method Model
NPN output PNP output
Through-beam Red light
20 m pre-wired E3FC-TN11 2M ^*1 E3FC-TP11 2M ^*1
M12 connector E3FC-TN21 ^*1 E3FC-TP21 ^*1
Retro-reflective with MSR function ^*2

Red light
0.1 to 4m with E3P R1S pre-wired E3FC-RN11 2M E3FC-RP11 2M
M12 connector E3FC-RN21 E3FC-RP21
Diffusive-reflective^*3
Red light
300 mm pre-wired E3FC-DN12 2M E3FC-DP12 2M
M12 connector E3FC-DN22 E3FC-DP22
Red light
1 m pre-wired E3FC-DN13 2M E3FC-DP13 2M
M12 connector E3FC-DN23 E3FC-DP23
Infrared light
300 mm pre-wired E3FC-DN15 2M E3FC-DP15 2M
M12 connector E3FC-DN25 E3FC-DP25
Infrared light
1 m pre-wired E3FC-DN16 2M E3FC-DP16 2M
M12 connector E3FC-DN26 E3FC-DP26
BGS^*2(background suppression)
Red light
100 mm pre-wired E3FC-LN11 2M E3FC-LP11 2M
M12 connector E3FC-LN21 E3FC-LP21
Red light
200 mm pre-wired E3FC-LN12 2M E3FC-LP12 2M
M12 connector E3FC-LN22 E3FC-LP22
Transparent object detection
(co-axial retro-reflective with
MSR^*2)
Red light
100 to 500 mm with E39-RP1 pre-wired E3FC-BN11 2M E3FC-BP11 2M
M12 connector E3FC-BN21 E3FC-BP21
^*1 The set type includes the emitter and receiver.
^*2 The Reflector is sold separately. Select the Reflector model most suited to the application.
^*3 L-On fixed output available for Diffuse reflective and BGS models. Please add "A" in order code (e.g. E3FC-DP11A 2M)

Reflectors

Reflectors required for Retro-reflective Sensors: A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.
Sensing distance Appearance Model Material Remarks
0.1 to 4 m E39-R1S ABS, PMMA IP67
0.1 to 4 m E39-R50 PET IP67, IP69K
Ecolab tested plastic material
0 to 500 mm E39-RP1 ABS, PMMA for E3FC-B, enhanced PET detection, IP67
0.1 to 2 m E39-R16 SUS316L, glass (window) enchanced chemical resistance for pharma industry
IP67, IP68, IP69K

Mounting brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.
Sensors Appearance Model(Material) Material Remarks
all types E39-L183 SUS304 Mounting bracket
E39-EL16 SUS316L M18 Flush mounting nut

Sensor I/O connectors

Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.
Sensor Model Material Appearance Cable type Model
M12 connector types Detergent resistant
connector cable Cable: Detergent
resistant PVC
Connector:
SUS316L Straight 2 m 4-wire Y92E-S12PVC4S2M-L
5 m Y92E-S12PVC4S5M-L
Angle 2 m Y92E-S12PVC4A2M-L
5 m Y92E-S12PVC4A5M-L

last update: April 27, 2015

NO. E3FC

TYPE:Photoelectric Sensors Built-in Amplifier Copyright Statement

DATE:2021-06-07

Associated products:
E3S-R Transparent Object Detection Sensor/Features E3JK (NEW) Built-in Power Supply Photoelectric Sensor/Features

Model Item	Sensing Method	Through-beam	Retro-Reflective with MSR function
NPN output	Pre-wired	E3FC-TN11 2M	E3FC-RN11 2M
M12 Connector	E3FC-TN21	E3FC-RN21
PNP output	Pre-wired	E3FC-TP11 2M	E3FC-RP11 2M
M12 Connector	E3FC-TP21	E3FC-RP21
Sensing distance	20m	0.1 to 4 m (with E39-R1S)
Spot diameter	-
Standard sensing object	Opaque: 7 mm dia.min.	Opaque: 75 mm dia.min.
Differential travel	-
Directional angle	2° min.
Light source (wavelength)	Red LED (624 nm)	Red LED (624 nm)
Power supply voltage	10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption	40 mA max. (Emitter 25 mA max. Receiver 15 mA max.)	25 mA max.
Control output	NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode	Light-ON/Dark-ON selectable by wiring *1.
Indicator	Operation indicator (orange) Stability indicator (green) Power indicator (green): only Emitter of Through-beam
Protection circuits	Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time	0.5 ms
Sensitivity adjustment	Fixed
Ambient Illumination (Reciever side)	Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C/ Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection	IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)	152 g	76 g
Connector	44 g	22 g
Material	Case	SUS 316L (1.4404)
Lens and Display	PMMA
Adjuster	-
Nut	SUS 316L (1.4404)
Accessories	Instruction sheet M18 nuts (4 pcs)	Instruction sheet M18 nuts (2 pcs)

Model Item	Sensing Method	Diffuse-reflective
NPN output	Pre-wired	E3FC-DN12 2M	E3FC-DN13 2M	E3FC-DN15 2M	E3FC-DN16 2M
M12 Connector	E3FC-DN22	E3FC-DN23	E3FC-DN25	E3FC-DN26
PNP output	Pre-wired	E3FC-DP12 2M	E3FC-DP13 2M	E3FC-DP15 2M	E3FC-DP16 2M
M12 Connector	E3FC-DP22	E3FC-DP23	E3FC-DP25	E3FC-DP26
Sensing distance	300 mm (white paper:300 x 300 mm)	1 m (white paper: 300 x 300 mm)	300 mm (white paper: 300 x 300 mm)	1 m (white paper: 300 x 300 mm)
Spot diameter (reference value)	40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m	40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m
Standard sensing object	-
Differential travel	20% max.
Directional angle	-
Light source (wavelength)	Red LED (624 nm)	Infrared LED (850 nm)
Power supply voltage	10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption	25 mA max.
Control output	NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode	Light-ON/Dark-ON selectable by wiring *3.
Indicator	Operation indicator (orange) Stability indicator (green)
Protection circuits	Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time	0.5 ms
Sensitivity adjustment	One-turn adjuster
Ambient Illumination	Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C/ Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	Destruction: 500 m/s^*2 3 times each in X, Y and Z directions
Degree of protection	IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)	76 g
Connector	22 g
Material	Case	SUS 316L (1.4404)
Lens and Display	PMMA
Adjuster	POM
Nut	SUS 316L (1.4404)
Accessories	Instruction sheet M18 nuts (2 pcs)

Model Item	Sensing Method	BGS (Background suppression )	Transparent detected with P-opaquing function
NPN output	Pre-wired	E3FC-LN11 2M	E3FC-LN12 2M	E3FC-BN11 2M
M12 Connector	E3FC-LN21	E3FC-LN22	E3FC-BN21
PNP output	Pre-wired	E3FC-LP11 2M	E3FC-LP12 2M	E3FC-BP11 2M
M12 Connector	E3FC-LP21	E3FC-LP22	E3FC-BP21
Sensing distance	100 mm (white paper: 300 x 300 mm)	200 mm (white paper: 300 x 300 mm)	100 to 500 mm (with E39-RP1)
Spot diameter (reference value)	10 x 10 mm Sensing distance of 100 mm	10 x 15 mm Sensing distance of 200 mm	-
Standard sensing object	-	glass (t = 1.0 mm): 150 × 150 mm
Differential travel	20% max.	-
Directional angle	-
Light source (wavelength)	Red LED (624 nm)
Power supply voltage	10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption	25 mA max.
Control output	NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode	Light-ON/Dark-ON selectable by wiring *1.
Indicator	Operation indicator (orange) Stability indicator (green)
Protection circuits	Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time	0.5 ms
Sensitivity adjustment	Fixed	One-turn adjuster
Ambient Illumination	Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C/ Storage: -30 to 70°C(with no icing or condensation)
Ambient humidity range	Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection	IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.	IEC: IP67, DIN 40050-9: IP69K *3
Weight	Pre-wired cable (2M)	76 g	Approx. 95 g/Approx. 65 g
Connector	22 g	Approx. 50 g/Approx. 20 g
Material	Case	SUS 316L (1.4404)
Lens and Display	PMMA
Adjuster	-	POM
Nut	SUS 316L (1.4404)
Accessories	Instruction sheet M18 nuts (2 pcs)

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire Pin(2)) to the brown (Pin(1))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3))

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3))

Classification	Wire color	Connector pin No.	Application
DC	Brown	1	Power supply (+V)
White	2	L/on • D/on selectable
Blue	3	Power supply (0 V)
Black	4	Output

Manufacturer	Product name	Concen- tration	Testtime
Diversey	Diverfoam SMS HD	5%	720 h
Oxofoam	5%	720 h
Acifoam	5%	720 h
Divosan Hypochlorit	1%	720 h
Divosan Forte	1%	720 h
Ecolab	P3-topactive® 200	5%	720 h
P3-topax® 56	5%	720 h
P3-topactive® OKTO	3%	720 h
P3-topax® 990	3%	720 h
P3-topax® 66	3%	720 h
General	H₂O₂	6,5%	240 h

The following English catalog(s) was created for Singapore.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E98E-EN-02/E3FC Data Sheet	[2403KB]	Apr 23, 201520150423	E98E-EN-02/E3FC Data Sheet

Sensor type	Sensing distance	Connection method	Model
NPN output	PNP output
Through-beam	Red light 20 m	pre-wired	E3FC-TN11 2M ^*1	E3FC-TP11 2M ^*1
M12 connector	E3FC-TN21 ^*1	E3FC-TP21 ^*1
Retro-reflective with MSR function ^*2	Red light 0.1 to 4m with E3P R1S	pre-wired	E3FC-RN11 2M	E3FC-RP11 2M
M12 connector	E3FC-RN21	E3FC-RP21
Diffusive-reflective^*3	Red light 300 mm	pre-wired	E3FC-DN12 2M	E3FC-DP12 2M
M12 connector	E3FC-DN22	E3FC-DP22
Red light 1 m	pre-wired	E3FC-DN13 2M	E3FC-DP13 2M
M12 connector	E3FC-DN23	E3FC-DP23
Infrared light 300 mm	pre-wired	E3FC-DN15 2M	E3FC-DP15 2M
M12 connector	E3FC-DN25	E3FC-DP25
Infrared light 1 m	pre-wired	E3FC-DN16 2M	E3FC-DP16 2M
M12 connector	E3FC-DN26	E3FC-DP26
BGS^*2(background suppression)	Red light 100 mm	pre-wired	E3FC-LN11 2M	E3FC-LP11 2M
M12 connector	E3FC-LN21	E3FC-LP21
Red light 200 mm	pre-wired	E3FC-LN12 2M	E3FC-LP12 2M
M12 connector	E3FC-LN22	E3FC-LP22
Transparent object detection (co-axial retro-reflective with MSR^*2)	Red light 100 to 500 mm with E39-RP1	pre-wired	E3FC-BN11 2M	E3FC-BP11 2M
M12 connector	E3FC-BN21	E3FC-BP21

Sensing distance	Model	Material	Remarks
0.1 to 4 m	E39-R1S	ABS, PMMA	IP67
0.1 to 4 m	E39-R50	PET	IP67, IP69K Ecolab tested plastic material
0 to 500 mm	E39-RP1	ABS, PMMA	for E3FC-B, enhanced PET detection, IP67
0.1 to 2 m	E39-R16	SUS316L, glass (window)	enchanced chemical resistance for pharma industry IP67, IP68, IP69K

Sensors	Appearance	Model(Material)	Material	Remarks
all types		E39-L183	SUS304	Mounting bracket
	E39-EL16	SUS316L	M18 Flush mounting nut

Sensor	Model	Material	Appearance	Cable type	Model
M12 connector types	Detergent resistant connector cable	Cable: Detergent resistant PVC Connector: SUS316L	Straight	2 m	4-wire	Y92E-S12PVC4S2M-L
5 m	Y92E-S12PVC4S5M-L
Angle	2 m	Y92E-S12PVC4A2M-L
5 m	Y92E-S12PVC4A5M-L

Return to OMRON
