OMRON D4NS, D4NS-SK dimension

last update: February 7, 2018

(Unit: mm)

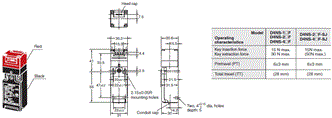

1-Conduit Types

D4NS-1[]F
D4NS-2[]F
D4NS-4[]F
D4NS-2[]F-SJ
D4NS-4[]F-SJ

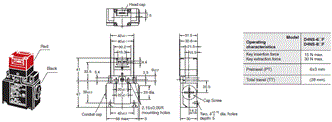

2-Conduit Types

D4NS-6[]F
D4NS-8[]F

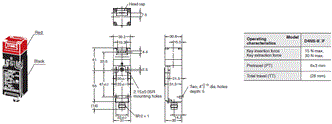

1-Conduit Connector Types

D4NS-9[]F

Note: 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC).
                Confirm performance before application.

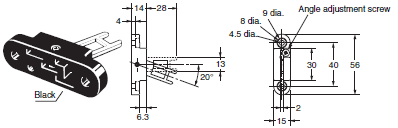

Operation Keys

D4DS-K1

D4DS-K2

D4DS-K3

D4DS-K5

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Slide Keys

D4NS-SK01

Main Body

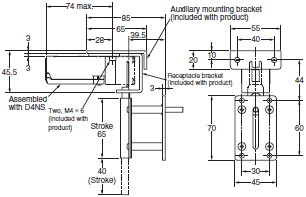

Auxiliary Mounting Bracket and Receptacle Bracket

Switch Mounting Pattern 1

Switch Mounting Pattern 2

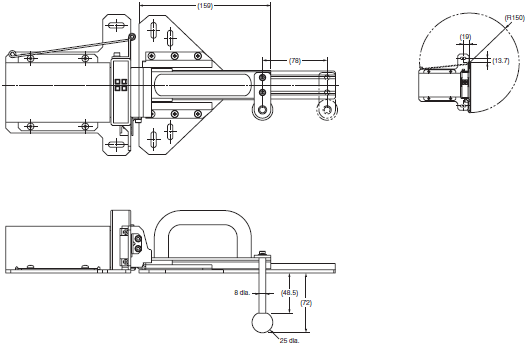

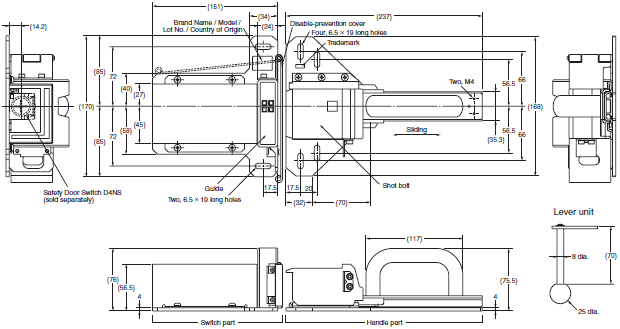

D4NS-SK30

Open Door

Closed Door

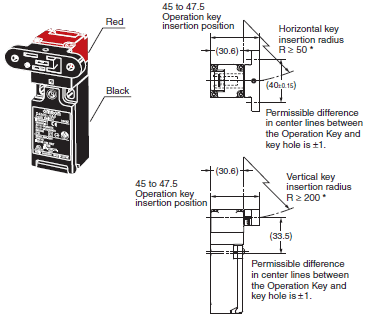

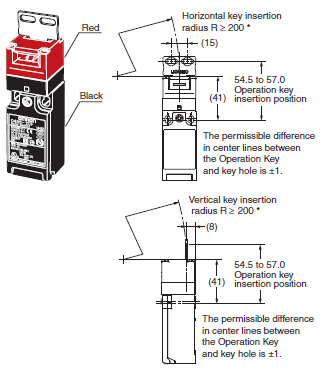

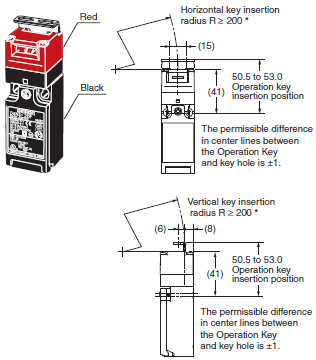

With Operation Key Inserted (Relationship between Insertion Radius and Key Hole)

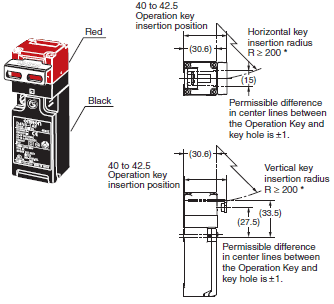

D4NS-1[]F + D4DS-K1
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K1
(with Top-inserted Operation Key)

D4NS-1[]F + D4DS-K2
(with Front-inserted Operation Key)

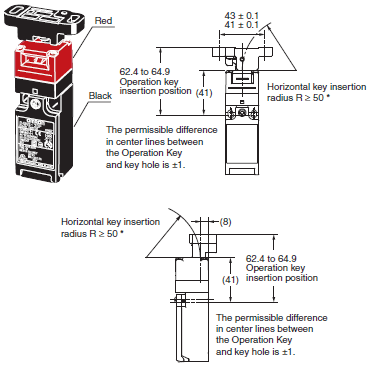

D4NS-1[]F + D4DS-K2
(with Top-inserted Operation Key)

D4NS-1[]F + D4DS-K3
(with Front-inserted Operation Key)

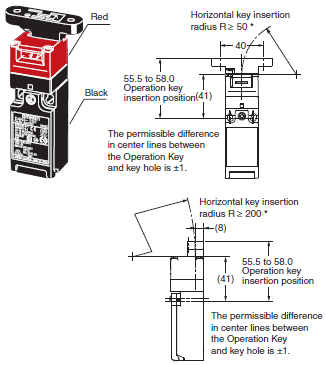

D4NS-1[]F + D4DS-K3
(with Top-inserted Operation Key)

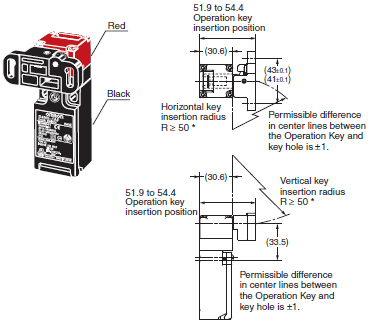

D4NS-1[]F + D4DS-K5
(with Front-inserted Operation Key)

D4NS-1[]F + D4DS-K5
(with Top-inserted Operation Key)

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top Head surface.

last update: February 7, 2018

OMRON D4NS, D4NS-SK catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
D4NS, D4NS-SK Data Sheet	- [2829KB]	Oct 05, 201820181005	D4NS, D4NS-SK Data Sheet

OMRON D4NS, D4NS-SK specification

last update: October 5, 2018

Standards and EC Directives

Conforms to the following EC Directives:

• Machinery Directive
• Low Voltage Directive
• EN50047
• EN60947-5-1
• EN ISO 14119
• GS-ET-15

Certified Standards

Certification body	Standard	File No.
TÜV SÜD	EN60947-5-1 (certified direct opening)	Consult your OMRON representative for details.
UL *1	UL508, CSA C22.2 No.14	E76675
CQC (CCC)	GB/T 14048.5	Consult your OMRON representative for details.
KOSHA *2	EN60947-5-1	Consult your OMRON representative for details.

*1. Certification for CSA C22.2 No. 14 is authorized by the UL mark.
*2. Only certain models have been certified.

Certified Standard Ratings

TÜV (EN60947-5-1), CCC (GB/T 14048.5)

Utilization category	AC-15	DC-13
Rated operating current (Ie)	3 A	0.27 A
Rated operating voltage (Ue)	240 V	250 V

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not built
           into the Switch.

UL/CSA (UL508, CSA C22.2 No. 14)

A300

Rated voltage	Carry current	Current (A)		Volt-amperes (VA)
		Make	Break	Make	Break
120 VAC	10 A	60	6	7,200	720
240 VAC		30	3

Q300

Rated voltage	Carry current	Current (A)		Volt-amperes (VA)
		Make	Break	Make	Break
125 VDC	2.5 A	0.55	0.55	69	69
250 VDC		0.27	0.27

Characteristics

Interlock type		Type 2 (EN ISO 14119)
Coding level		Low level coded (EN ISO 14119)
Degree of protection *1		IP67 (EN60947-5-1)
Durability *2	Mechanical	Standard type: 1,000,000 operations min. High pull-force type: 100,000 operations min.
	Electrical	Standard type: 500,000 operations min. (3 A resistive load at 250 VAC) *3 300,000 operations min. (10 A resistive load at 250 VAC) High pull-force type: 100,000 operations min. (10 A resistive load at 250 VAC)
Operating speed		0.05 to 0.5 m/s
Direct opening force *4		Standard type: 60 N min. High pull-force type: 80 N min.
Direct opening travel *4		10 mm min.
Contact resistance		25 mΩ max.
Minimum applicable load *5		1 mA resistive load at 5 VDC (N-level reference value)
Rated insulation voltage (Ui)		300 V
Rated frequency		50/60 Hz
Protection against electric shock		Class II (double insulation)
Pollution degree (operating environment)		3 (EN60947-5-1)
Impulse withstand voltage (Uimp) (EN60947-5-1)	Between terminals of same polarity	2.5 kV
	Between terminals of different polarity	4 kV
	Between each terminal and non-current carrying metallic parts	6 kV
Insulation resistance		100 MΩ min.
Contact gap		2 × 2 mm min.
Vibration resistance	Malfunction	10 to 55 Hz, 0.75 mm single amplitude
Shock resistance	Destruction	1,000 m/s2 min.
	Malfunction	300 m/s2 min.
Conditional short-circuit current		100 A (EN60947-5-1)
Conventional free air thermal current (Ith)		10 A (EN60947-5-1)
Ambient operating temperature		-30 to 70°C (with no icing)
Ambient operating humidity		95% max.
Weight		Approx. 96 g (D4NS-1CF)

Note: 1. The above values are initial values.
           2. The Switch contacts can be used with either standard loads or microloads. Once the contacts have been used to
                switch a load, however, they cannot be used to switch smaller loads. The contact surfaces will become rough
                once they have been used and contact reliability for smaller loads may be reduced.
*1. The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing
       properties are sufficient for the operating conditions and environment beforehand. Although the switch box is
       protected from dust or water penetration, do not use the D4NS in places where foreign material may enter through the
       key hole on the head, otherwise Switch damage or malfunctioning may occur.
*2. The durability is for an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For more details,
       consult your OMRON representative.
*3. Do not pass the 3 A, 250 VAC load through more than 2 circuits.
*4. These figures are minimum requirements for safe operation.
*5. This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is
       possible with the actual load beforehand.

last update: October 5, 2018

OMRON D4NS, D4NS-SK lineup

last update: February 7, 2018

Switches (Operation Keys are sold separately.)

Models with certified direct opening contacts.
Consult with your OMRON representative when ordering any models that are not listed in this table.

Type	Contact configuration		Conduit outlet/ Connector	Model
1-Conduit type	Slow-action	1NC/1NO	Pg13.5	D4NS-1AF *
			G1/2	D4NS-2AF *
			M20	D4NS-4AF
		2NC	Pg13.5	D4NS-1BF *
			G1/2	D4NS-2BF *
			M20	D4NS-4BF
		2NC/1NO	Pg13.5	D4NS-1CF *
			G1/2	D4NS-2CF *
			M20	D4NS-4CF
		3NC	Pg13.5	D4NS-1DF *
			G1/2	D4NS-2DF *
			M20	D4NS-4DF
	Slow-action MBB contact	1NC/1NO	Pg13.5	D4NS-1EF
			G1/2	D4NS-2EF
			M20	D4NS-4EF
		2NC/1NO	Pg13.5	D4NS-1FF
			G1/2	D4NS-2FF
			M20	D4NS-4FF
2-Conduit type	Slow-action	1NC/1NO	G1/2	D4NS-6AF
			M20	D4NS-8AF
		2NC	G1/2	D4NS-6BF
			M20	D4NS-8BF
		2NC/1NO	G1/2	D4NS-6CF
			M20	D4NS-8CF
		3NC	G1/2	D4NS-6DF
			M20	D4NS-8DF
	Slow-action MBB contact	1NC/1NO	G1/2	D4NS-6EF
			M20	D4NS-8EF
		2NC/1NO	G1/2	D4NS-6FF
			M20	D4NS-8FF
1-Conduit type, with connector	Slow-action	1NC/1NO	M12 connector	D4NS-9AF
		2NC		D4NS-9BF
	Slow-action MBB contact	1NC/1NO		D4NS-9EF
1-Conduit type (High pull-force type)	Slow-action	1NC/1NO	G1/2	D4NS-2AF-SJ *
			M20	D4NS-4AF-SJ *
		2NC	G1/2	D4NS-2BF-SJ *
			M20	D4NS-4BF-SJ *
		2NC/1NO	G1/2	D4NS-2CF-SJ *
			M20	D4NS-4CF-SJ *
		3NC	G1/2	D4NS-2DF-SJ *
			M20	D4NS-4DF-SJ *

* Models with Korean S-mark certification.

Operation Keys

Type		Model
Horizontal mounting		D4DS-K1
Vertical mounting		D4DS-K2
Adjustable mounting (Horizontal)		D4DS-K3
Adjustable mounting (Horizontal/Vertical)		D4DS-K5

Slide Keys

Appearance	Specifications	Contents	Model	Applicable Door Switch
	Weight: 422 g Mechanical durability: 20,000 operations min.	Slide Key (Operation Key included.): 1 Auxiliary mounting bracket: 1 Receptacle bracket: 1	D4NS-SK01	D4NS 1-conduit type
	Weight: 2,800 g Mechanical durability: 20,000 operations min.	Slide Key: 1 (Disable-prevention cover and Operation Key D4DS-K2 are already mounted on Slide Key) D4NS mounting tool: 1 Inner lever: 1 Inner lever mounting screws: 2 Door Switch mounting one-way screws: 2 Switch protective cover: 1 Switch protective cover screws: 4	D4NS-SK30	D4NS 1-conduit type
