OMRON ZS Series lineup

last update: April 2, 2018

Smart Sensor

ZS-HL-series Sensor Heads

Optical system	Sensing distance	Beam shape	Beam diameter	Resolution *1	Cable length	Model
Regular Reflective Models	20±1 mm	Line beam	1.0 mm × 20 μm	0.25 μm	2 m	ZS-HLDS2T 2M
					0.5 m	ZS-HLDS2T 0.5M
	25±2 mm	Line beam	2.2 mm × 45 μm	0.6 μm	2 m	ZS-HLDS2VT 2M
					0.5 m	ZS-HLDS2VT 0.5M
Diffuse Reflective Models	50±5 mm	Line beam	1.0 mm × 30 μm	0.25 μm	2 m	ZS-HLDS5T 2M
					0.5 m	ZS-HLDS5T 0.5M
	100±20 mm	Line beam	3.5 mm × 60 μm	1 μm	2 m	ZS-HLDS10 2M
					0.5 m	ZS-HLDS10 0.5M
	600±350 mm	Line beam	16 mm × 0.3 mm	8 μm	2 m	ZS-HLDS60 2M
					0.5 m	ZS-HLDS60 0.5M
	1500±500 mm	Line beam	40 mm × 1.5 mm	500 μm	2 m	ZS-HLDS150 2M
					0.5 m	ZS-HLDS150 0.5M

*1 Refer to the table of ratings and specifications for details.

ZS-HL-series Sensor Heads (For Nozzle Gaps)

Optical system	Sensing distance	Beam shape	Beam diameter	Resolution *1	Cable length	Model
Regular Reflective Models	10±0.5 mm	Line beam	900 × 25 μm	0.25 μm	2 m	ZS-LD10GT 2M
					0.5 m	ZS-LD10GT 0.5M
	15±0.75 mm	Line beam	900 × 25 μm	0.25 μm	2 m	ZS-LD15GT 2M
					0.5 m	ZS-LD15GT 0.5M

*1 Refer to the table of ratings and specifications for details.

ZS-L-series Sensor Heads

Optical system	Sensing distance	Beam shape	Beam diameter	Resolution *1	Cable length	Model
Regular Reflective Models	20±1 mm	Line beam	900 × 25 μm	0.25 μm	2 m	ZS-LD20T 2M
					0.5 m	ZS-LD20T 0.5M
		Spot beam	25 μm dia.	0.25 μm	2 m	ZS-LD20ST 2M
					0.5 m	ZS-LD20ST 0.5M
	40±2.5 mm	Line beam	2000 × 35 μm	0.4 μm	4 m	ZS-LD40T 4M
					2 m	ZS-LD40T 2M
					0.5 m	ZS-LD40T 0.5M
Diffuse Reflective Models	50±5 mm	Line beam	900 × 60 μm	0.8 μm	2 m	ZS-LD50 2M
					0.5 m	ZS-LD50 0.5M
		Spot beam	50 μm dia.	0.8 μm	2 m	ZS-LD50S 2M
					0.5 m	ZS-LD50S 0.5M
	80±15 mm	Line beam	900 × 60 μm	2 μm	2 m	ZS-LD80 2M
					1 m	ZS-LD80 1M
					0.5 m	ZS-LD80 0.5M
	130±15 mm	Line beam	600 × 70 μm	3 μm	2 m	ZS-LD130 2M
					0.5 m	ZS-LD130 0.5M
	200±50 mm	Line beam	900 × 100 μm	5 μm	2 m	ZS-LD200 2M
					0.5 m	ZS-LD200 0.5M
	350±135 mm	Spot beam	240 μm dia.	20 μm	2 m	ZS-LD350S 2M
					0.5 m	ZS-LD350S 0.5M

*1 No. of samples to average: 128 when set to High-precision Mode.

ZS-HL-series Sensor Controllers

Shape	Supply voltage	Control outputs	Model
	24 VDC	NPN outputs	ZS-HLDC11
		PNP outputs	ZS-HLDC41

ZS-L-series Sensor Controllers

Shape	Supply voltage	Control outputs	Model
	24 VDC	NPN outputs	ZS-LDC11
		PNP outputs	ZS-LDC41

Multi-Controllers

Shape	Supply voltage	Control outputs	Model
	24 VDC	NPN outputs	ZS-MDC11
		PNP outputs	ZS-MDC41

Data Storage Units

Shape	Supply voltage	Control outputs	Model
	24 VDC	NPN outputs	ZS-DSU11
		PNP outputs	ZS-DSU41

Accessories (Sold Separately)

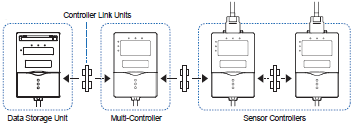

Controller Link Unit

Shape	Model
	ZS-XCN

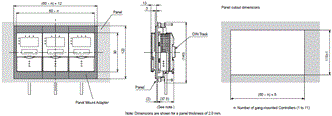

Panel Mount Adapter

Shape	Model
	ZS-XPM1	For 1st Controller
	ZS-XPM2	For expansion (from 2nd Controller on)

RS-232C Cables

Connected to	Model	Qty
Personal computer (2 m)	ZS-XRS3	1
PLC/PT (2 m)	ZS-XPT3	1

Extension Cables for Sensor Heads

Cable length	Model	Qty
1 m	ZS-XC1A	1
4 m	ZS-XC4A	1
5 m	ZS-XC5B *1, *2	1
8 m	ZS-XC8A	1
10 m	ZS-XC10B *1	1

*1. Up to two ZS-XC[]B Cables can be connected. (22 m max.)
*2. A Robot Cable (ZS-XC5BR) is also available.

Long Extension Cables for Sensor Heads (Used with a Digital Equalizer for ZS-HL Series)

Name	Model	Qty
Digital Equalizer (Relay)	ZS-XEQ	1
Extension Cable (long distance, flexible 15 m cable)	ZS-XC15CR	1
Extension Cable (long distance, flexible 25 m cable)	ZS-XC25CR	1
Digital Equalizer Connection Cable (0.2 m)	ZS-XC02D	1

Logging Software

Name	Model
SmartMonitor Professional	ZS-SW11V3E

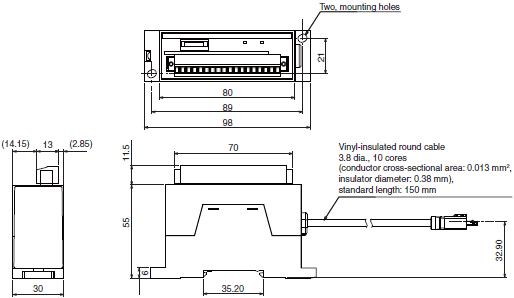

Realtime Parallel Output Unit (for ZS-HL Series)

Shape	Control outputs	Model
	NPN outputs	ZG-RPD11-N
	PNP outputs	ZG-RPD41-N

CompoNet-compatible Sensor Communications Unit

Shape	Model
	ZS-CRT

Memory Cards

Model	Capacity
HMC-EF283 HMC-EF583	256 MB 512 MB

Quick Reference for Extension Cable Connections

Extension Cable			Sensor Head		Controller		Remarks
Model	Length	Bend resistant	ZS-LD[] ZS-HLDS2V	ZS-HLDS2/ -HLDS5/ -HLDS10/ -HLDS60/ -HLDS150	ZS-LDC[]	ZS-HLDC[]
ZS-XC1A	1 m		○	○	○	○	Only one Extension Cable can be used.
ZS-XC4A	4 m		○	○	○	○
ZS-XC8A	8 m		○	○	○	○
ZS-XC5B	5 m		○	○	○	○	Up to two Extension Cables can be used. (The maximum length is 22 m.)
ZS-XC10B	10 m		○	○	○	○
ZS-XC5BR	5 m	○	○	○	○	○
ZS-XC15CR	15 m	○		○		○	A ZS-XEQ Digital Equalizar and ZS-XC02D Digital Equalizar Connecting Cable are requied.
ZS-XC25CR	25 m	○		○		○

last update: April 2, 2018

OMRON ZS Series catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
ZS Series Catalog	E375-E1-02 [6034KB]	May 07, 201820180507	ZS Series Catalog

OMRON ZS Series specification

last update: June 01, 2015

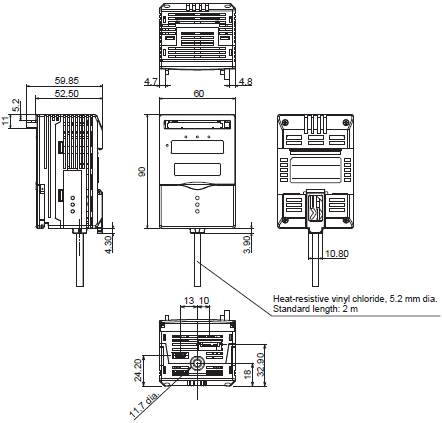

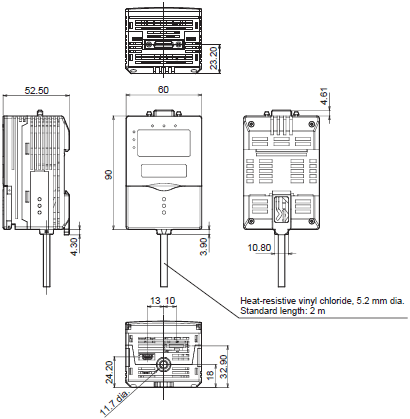

ZS-HL/L-series Sensor Controllers

Model			ZS-HLDC11/LDC11	ZS-HLDC41/LDC41
No. of samples to average			1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096
Number of mounted Sensors			1 per Sensor Controller
External interface	Connection method		Serial I/O: connector, Other: pre-wired (Standard cable length: 2 m)
	Serial I/O	USB 2.0	1 port, Full Speed (12 Mbps max.), MINI-B
		RS-232C	1 port, 115,200 bps max.
	Output	Judgment output	HIGH/PASS/LOW 3 outputs NPN open collector, 30 VDC, 50 mA max., residual voltage 1.2 V max.	HIGH/PASS/LOW: 3 outputs PNP open collector, 50 mA max., residual voltage 1.2 V max.
		Linear output	Selectable from 2 types of output, voltage or current (selected by slide switch on bottom). • Voltage output: -10 to 10 V, output impedance: 40 Ω • Current output: 4 to 20 mA, maximum load resistance: 300 Ω
	Inputs	Laser OFF, ZERO reset timing, RESET		ON: Short-circuited to supply voltage or within 1.5 V of supply voltage. OFF: Open (leakage current: 0.1 mA max.)
Functions			Display: Measured value, threshold value, voltage/current, received light amount, and resolution/terminal block output *2 Sensing: Mode, gain, measurement object, head installation Measurement point *1: Average, peak, bottom, thickness, step, and calculations Filter: Smooth, average, and differentiation Outputs: Scaling, various hold values, and zero reset I/O settings: Linear (focus/correction), judgments (hysteresis and timer), non- measurement, and bank (switching and clear) *2 System: Save, initialization, measurement information display, communications settings, key lock, language, and data load Task: ZS-HLDC[]1: Single task or multitask (up to 4), ZS-LDC[]1: Single task
Status indicators			HIGH (orange), PASS (green), LOW (orange), LDON (green), ZERO (orange), and ENABLE (green)
Segment display		Main digital	8-segment red LED, 6 digits
		Sub-digital	8-segment green LEDs, 6 digits
LCD			16 digits x 2 rows, Color of characters: green, Resolution per character: 5 x 8 pixel matrix
Setting inputs		Setting keys	Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4)
		Slide switch	Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN)
Power supply voltage			21.6 V to 26.4 VDC (including ripple)
Current consumption			0.5 A max. (when Sensor Head is connected)
Ambient temperature			Operating: 0 to 50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity			Operating and storage: 35% to 85% (with no condensation)
Degree of protection			IP20 (IEC60529)
Materials			Case: Polycarbonate (PC)
Cable length			2 m
Weight			Approx. 280 g (excluding packing materials and accessories)
Accessories			Ferrite core (1), instruction sheet

*1. Can be used with ZS-HLDC[]1 when Multitask Mode selected.
*2. Terminal block output is a function of the ZS-HLDC[]1.

ZS-HL-series Sensor Heads

Model		ZS-HLDS2T		ZS-HLDS2VT	ZS-HLDS5T
Applicable Controllers		ZS-HLDC series
Optical system		Regular reflection	Diffuse reflection	Regular reflection	Diffuse reflection	Regular reflection
Measuring center distance		20 mm	5.2 mm	25 mm	50 mm	44 mm
Measuring range		±1 mm	±1 mm	±2 mm	±5 mm	±4 mm
Light source		Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2)
Beam shape		Line beam
Beam diameter *1		1.0 mm × 20 μm		2.2 mm × 45 μm	1.0 mm × 30 μm	3.5 mm × 60 μm
Linearity *2		±0.05%F.S.		±0.2%F.S.	±0.1%F.S.
Resolution *3		0.25 μm (No. of samples to average: 256)		0.6 μm (No. of samples to average: 128)	0.25 μm (No. of samples to average: 512)	1 μm (No. of samples to average: 64)
Temperature characteristic *4		0.01%F.S./°C		0.1%F.S./°C	0.01%F.S./°C
Sampling cycle		110 μs (High-speed Mode), 500 μs (Standard Mode), 2.2 μs (High-precision Mode), 4.4 μs (High-sensitivity Mode)
LED Indicators	NEAR indicator	Lights near the measuring center distance, and closer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
	FAR indicator	Lights near the measuring center distance, and farther than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
Operating ambient illumination		Illumination on received light surface: 3000 lx or less (incandescent light)
Ambient temperature		Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no condensation)
Degree of protection *5		IP64		IP67	Cable length 0.5 m: IP66, cable length 2 m: IP67
Materials		Case: Aluminum die-cast, Front cover: Glass
Cable length		0.5 m, 2 m		2 m	0.5 m, 2 m
Weight		Approx. 350 g			Approx. 600 g
Accessories		Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (4), insure locks (2), instruction sheet		Laser labels (1 each for JIS/EN), ferrite cores (2), insure locks (2), instruction sheet	Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (4), insure locks (2), instruction sheet

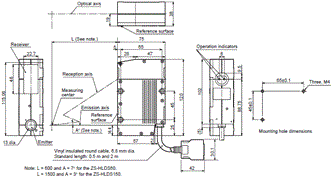

Model		ZS-HLDS10		ZS-HLDS60	ZS-HLDS150
Applicable Controllers		ZS-HLDC series
Optical system		Diffuse reflection	Regular reflection	Diffuse reflection	Diffuse reflection
Measuring center distance		100 mm	94 mm	600 mm	1500 mm
Measuring range		±20 mm	±16 mm	±350 mm	±500 mm
Light source		Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2)		Visible semiconductor laser (wavelength: 658 nm, 1 mW max., JIS Class 2)
Beam shape		Line beam
Beam diameter *1		3.5 mm × 60 μm		16 × 0.3 mm (at 500 mm)	40 × 1.5 mm (at 1,500 mm)
Linearity *2		±0.1%F.S.		±0.07%F.S. (250 to 750 mm), ±0.1%F.S. (750 to 950 mm)	±0.2%F.S.
Resolution *3		1 μm (No. of samples to average: 64)		8 μm (No. of samples to average: 64 at 250 mm), 40 μm (No. of samples to average: 64 at 600 mm)	500 μm (No. of samples to average: 64)
Temperature characteristic *4		0.01%F.S./°C
Sampling cycle		110 μs (High-speed Mode), 500 μs (Standard Mode), 2.2 μs (High-precision Mode), 4.4 μs (High-sensitivity Mode)
LED Indicators	NEAR indicator	Lights near the measuring center distance, and closer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
	FAR indicator	Lights near the measuring center distance, and farther than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
Operating ambient illumination		Illumination on received light surface: 3000 lx or less (incandescent light)		Illumination on received light surface: 1000 lx or less (incandescent light)	Illumination on received light surface: 500 lx or less (incandescent light)
Ambient temperature		Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no condensation)
Degree of protection *5		Cable length 0.5 m: IP66, cable length 2 m: IP67		IP66 *6
Materials		Case: Aluminum die-cast, Front cover: Glass
Cable length		0.5 m, 2 m
Weight		Approx. 600 g		Approx. 800 g
Accessories		Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (4), insure locks (2), instruction sheet

*1. Defined as 1/e² (13.5%) of the center optical intensity at the actual measuring center distance (effective value). The
       beam diameter is sometimes influenced by the ambient conditions of the workpiece, such as leaked light from the
       main beam.
*2. This is the error in the measured value with respect to an ideal straight line.
       Linearity may change according to the workpiece.
       The following options are available.

Model	Diffuse reflection	Mirror reflection
ZS-HLDS2T	SUS block	Glass
ZS-HLDS2VT	---	Glass
ZS-HLDS5T	White alumina ceramic	Glass
ZS-HLDS10	White alumina ceramic
ZS-HLDS60/HLDS150	White alumina ceramic	---

*3. This is the peak-to-peak displacement conversion value in the displacement output at the measuring center distance
       in high-precision mode when the number of samples to average is set to within the graph.
       The maximum resolution at 250 mm is also shown for the ZS-HLDS60. The following options are available.

Model	Diffuse reflection	Mirror reflection
ZS-HLDS2T	SUS block	Glass
ZS-HLDS2VT	---	Glass
ZS-HLDS5T	White alumina ceramic	Glass
ZS-HLDS10	White alumina ceramic
ZS-HLDS60/HLDS150	White alumina ceramic	---

*4. This is the value obtained at the measuring center distance when the Sensor and workpiece are fixed by an
　　　　aluminum jig. (typical example)
∗5. Protection structure of connector area is IP40.
∗6. Ask your OMRON representative about Sensor Heads with IP67 protection.

ZS-L-series Sensor Heads

Model		ZS-LD20T		ZS-LD20ST		ZS-LD40T		ZS- LD10GT	ZS- LD15GT
Applicable Controllers		ZS-HLDC/LDC series
Optical system		Regular reflection	Diffuse reflection	Regular reflection	Diffuse reflection	Regular reflection	Diffuse reflection	Regular reflection
Measuring center distance		20 mm	6.3 mm	20 mm	6.3 mm	40 mm	30 mm	10 mm	15 mm
Measuring range		±1 mm	±1 mm	±1 mm	±1 mm	±2.5 mm	±2 mm	±0.5 mm	±0.75 mm
Light source		Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2)
Beam shape		Line beam		Spot beam		Line beam
Beam diameter *1		900 mm x 25 μm		20 μm dia.		2000 x 35 μm		Approx 25 x 900 μm
Linearity *2		±0.1%FS
Resolution *3		0.25 μm		0.25 μm		0.4 μm		0.25 μm	0.25 μm
Temperature characteristic *4		0.04%FS/°C		0.04%FS/°C		0.02%FS/°C		0.04%FS/°C
Sampling cycle		110 μs (High-speed Mode), 500 μs (Standard Mode), 2.2 μs (High-precision Mode), 4.4 μs (High-sensitivity Mode)
LED Indicators	NEAR indicator	Lights near the measuring center distance, and closer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
	FAR indicator	Lights near the measuring center distance, and farther than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
Operating ambient illumination		Illumination on received light surface: 3000 lx or less (incandescent light)
Ambient temperature		Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no condensation)
Degree of protection *5		Cable length 0.5 m: IP66, cable length 2 m: IP67						IP40
Materials		Case: Aluminum die-cast, Front cover: Glass
Cable length		0.5 m, 2 m
Weight		Approx. 350 g						Approx. 400 g
Accessories		Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (2), insure locks (2), instruction sheet						Laser safety labels (1 each for JIS/EN), ferrite cores (2), insure locks (2)

∗1. Defined as 1/e² (13.5%) of the center optical intensity at the actual measuring center distance (effective value).
　　　　The beam diameter is sometimes influenced by the ambient conditions of the workpiece, such as leaked light
　　　　from the main beam.
∗2. This is the error in the measured value with respect to an ideal straight line.
　　　　The standard workpiece is white aluminum ceramics and glass in the regular reflection mode.
　　　　Linearity may change according to the workpiece.
∗3. This is the peak-to-peak displacement conversion value in the displacement output at the measuring center
　　　　distance in high-precision mode when the number of samples to average is set to 128 and the measuring
　　　　mode is set to the high-resolution mode.
　　　　The standard workpiece is white aluminum ceramics and glass in the regular reflection mode.
∗4. This is the value obtained at the measuring center distance when the Sensor and workpiece are fixed by an
　　　　aluminum jig. (typical example)
∗5. Protection structure of connector area is IP40.

ZS-L-series Sensor Heads

Model		ZS-LD50		ZS-LD50S		ZS-LD80
Applicable Controllers		ZS-HLDC/LDC series
Optical system		Diffuse reflection	Regular reflection	Diffuse reflection	Regular reflection	Diffuse reflection	Regular　 reflection
Measuring center distance		50 mm	47 mm	50 mm	47 mm	80 mm	78 mm
Measuring range		±5 mm	±4 mm	±5 mm	±4 mm	±15 mm	±14 mm
Light source		Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2)
Beam shape		Line beam		Spot beam		Line beam
Beam diameter *1		900 × 60 μm		50 μm dia.		900 × 60 μm
Linearity *2		±0.1% FS
Resolution *3		0.8 μm		0.8 μm		2 μm
Temperature characteristic *4		0.02% FS/°C		0.02% FS/°C		0.01% FS/°C
Sampling cycle		110 μs (High-speed Mode), 500 μs (Standard Mode), 2.2 ms (High-precision Mode), 4.4 ms (High-sensitivity Mode)
LED Indicators	NEAR indicator	Lights near the measuring center distance, and closer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
	FAR indicator	Lights near the measuring center distance, and farther than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
Operating ambient illumination		Illumination on received light surface: 3000 lx or less (incandescent light)
Ambient temperature		Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no condensation)
Degree of protection *5		Cable length 0.5 m: IP66, cable length 2 m: IP67
Materials		Case: Aluminum die-cast, Front cover: Glass
Cable length		0.5 m, 2 m
Weight		Approx. 350g
Accessories		Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (2), insure locks (2), instruction sheet

Model		ZS-LD130		ZS-LD200		ZS-LD350S
Applicable Controllers		ZS-HLDC/LDC series
Optical system		Diffuse reflection	Regular reflection	Diffuse reflection	Regular reflection	Diffuse reflection
Measuring center distance		130 mm	130 mm	200 mm	200 mm	350 mm
Measuring range		±15 mm	±12 mm	±50 mm	±48 mm	±135 mm
Light source		Visible semiconductor laser (wavelength: 650 nm, 1 mW max., JIS Class 2)
Beam shape		Line beam		Line beam		Spot beam
Beam diameter *1		600 × 70 μm		900 × 100 μm		240 μm dia.
Linearity *2		±0.1% FS	±0.25% FS	±0.1% FS	±0.25% FS	±0.1% FS
Resolution *3		3 μm		5 μm		20 μm
Temperature characteristic *4		0.02% FS/°C		0.02% FS/°C		0.04% FS/°C
Sampling cycle		110 μs (High-speed Mode), 500 μs (Standard Mode), 2.2 ms (High-precision Mode), 4.4 ms (High-sensitivity Mode)
LED Indicators	NEAR indicator	Lights near the measuring center distance, and closer than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
	FAR indicator	Lights near the measuring center distance, and farther than the measuring center distance inside the measuring range. Flashes when the measurement target is outside of the measuring range or when the received light amount is insufficient.
Operating ambient illumination		Illumination on received light surface: 2000 lx or less (incandescent light)		Illumination on received light surface: 3000 lx or less (incandescent light)
Ambient temperature		Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no condensation)
Degree of protection *5		Cable length 0.5 m: IP66, cable length 2 m: IP67
Materials		Case: Aluminum die-cast, Front cover: Glass
Cable length		0.5 m, 2 m
Weight		Approx. 350g
Accessories		Laser labels (1 each for JIS/EN, 3 for FDA), ferrite cores (2), insure locks (2), instruction sheet

∗1. Defined as 1/e2 (13.5%) of the center optical intensity at the actual measuring center distance (effective value).
　　　　The beam diameter is sometimes influenced by the ambient conditions of the workpiece, such as leaked light
　　　　from the main beam.
∗2. This is the error in the measured value with respect to an ideal straight line.
　　　　The standard workpiece is white aluminum ceramics and glass in the ZS-LD50/LD50S regular reflection mode.
　　　　Linearity may change according to the workpiece.
∗3. This is the peak-to-peak displacement conversion value in the displacement output at the measuring center
　　　　distance in high-precision mode when the number of samples to average is set to 128 and the measuring mode
　　　　is set to the high-resolution mode.
　　　　 The standard workpiece is white aluminum ceramics and glass in the ZS-LD50/LD50S regular reflection mode.
∗4. This is the value obtained at the measuring center distance when the Sensor and workpiece are fixed by an
　　　　aluminum jig.
∗5. Protection structure of connector area is IP40.

ZS-MDC[]1 Multi-Controllers

Basic specifications are the same as those for the ZS-LDC[]1 Sensor Controllers. The following points, however, are different.
1. Sensor Heads cannot be connected.
2. Control Link Units are required to connect up to 9 Controllers.
     Control Link Units are required to connect Controllers.
3. Processing functions between Controllers: Arithmetic functions

Controller Link Units

Connection Using the ZS-XCN

ZS-DSU[]1 Data Storage Unit

Model			ZS-DSU11	ZS-DSU41
Number of mounted Sensor Heads			Cannot be connected
Number of connectable Controllers			10 max. (ZS-MDC: 1, ZS-HLDC/LDC: 9 max.) *1
Connectable Controllers			ZS-HLDC[][], ZS-LDC[][], ZS-MDC[][]
External interface	Connection method		Serial I/O: connector, Other: pre-wired (standard cable length: 2 m)
	Serial I/O	USB 2.0	1 port, Full Speed (12 Mbps max.), MINI-B
		RS-232C	1 port, 115,200 bps max.
	Output		3 outputs: HIGH, PASS, and LOW; NPN open-collector, 30 VDC, 50 mA max., residual voltage: 1.2 V max.	3 outputs: HIGH, PASS, and LOW; PNP open-collector, 50 mA max., residual voltage: 1.2 V max.
	Inputs		ON: Short-circuited with 0 V terminal or 1.5 V or less; OFF: Open (leakage current: 0.1 mA max.)	ON: Short-circuited to supply voltage or within 1.5 V of supply voltage; OFF: Open (leakage current: 0.1 mA max.)
Data resolution			32 bits
Functions	Logging trigger functions		Start and stop triggers can be set separately; external triggers, data triggers (self- triggers), and time triggers
	Other functions		External banks, alarm outputs, saved data format customization, and clock
Status indicators			OUT (orange), PWR (green), ACCESS (orange), and ERR (red)
Segment display			8-segment green LEDs, 6 digits
LCD			16 digits x 2 rows, Color of characters: green, Resolution per character: 5 × 8 pixel matrix
Setting inputs	Setting keys		Direction keys (UP, DOWN, LEFT, and RIGHT), SET key, ESC key, MENU key, and function keys (1 to 4)
	Slide switch		Threshold switch (2 states: High/Low), mode switch (3 states: FUN, TEACH, and RUN)
Power supply voltage			21.6 V to 26.4 VDC (including ripple)
Current consumption			0.5 A max.
Ambient temperature			Operating: 0 to 50°C, Storage: 0 to 60°C (with no icing or condensation)
Ambient humidity			Operating and storage: 35% to 85% (with no condensation)
Degree of protection			IP20 (IEC60529)
Materials			Case: Polycarbonate (PC)
Weight			Approx. 280 g (excluding packing materials and accessories)
Accessories			Ferrite core (1), instruction sheet for Data Storage Unit: CSV File Converter for Data Storage Unit/Smart Analyzer Macro Edition

last update: June 01, 2015

OMRON ZS Series dimension

last update: April 2, 2018

(Unit: mm)

Sensor Controllers

ZS-HLDC[]1/LDC[]1

Multi-Controllers

ZS-MDC[]1

Data Storage Units

ZS-DSU[]1

Sensor Heads

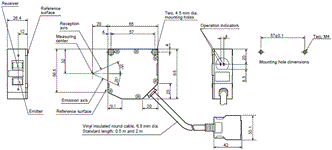

ZS-HLDS2T

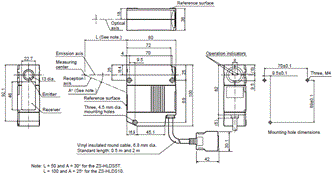

ZS-HLDS5T/HLDS10

ZS-HLDS60/HLDS150

ZS-LD10GT

ZS-LD15GT

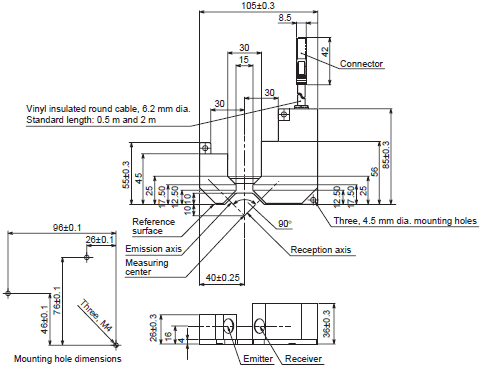

ZS-LD50/LD50S/LD80/LD130/LD200/LD350S

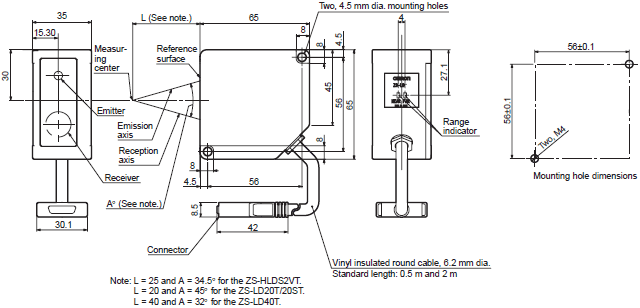

ZS-HLDS2VT/LD20T/LD20ST/LD40T

Realtime Parallel Output Unit

ZG-RPD[]1-N

Panel Mount Adapter

ZS-XPM1/XPM2 (Dimensions for Panel Mounting)

Digital Equalizer

ZS-XEQ

last update: April 2, 2018

• NO. ZS Series
• TYPE:Displacement Sensors / Measurement Sensors High Precision Measurement Sensor Copyright Statement
• DATE:2021-06-12
• Associated products:
  ZW-SQ Series Confocal Fiber Displacement Sensor Sensor Head/Features ZX2 Smart Sensors Laser Displacement Sensors CMOS Type/Features
