Round Waterproof Pressure-welded Assembly Connectors
Smartclick Connectors
It's a twist-and-click connection.
An innovative new lock structure makes connection extremely simple. The lock mechanism is internal, so it will no longer become jammed by sputtered fluids or dust. Also, the use of a movable lock bolt makes it possible to connect the Smartclick XS5 to a screw-type M12 connector.

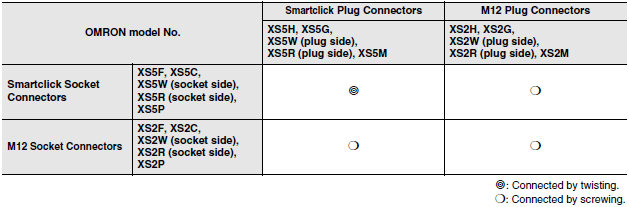

All combinations are connectable.
The Smartclick XS5 "clicks" to tell you it's connected.
A positive clicking feel tells you for sure that the Connector is securely locked.
Locking is done with approximately 1/8th of a turn.
The Smartclick XS5 has the industry's shortest locking rotation of 1/8th of a turn. There's no need to keep track of locking torque, and this greatly reduces time and effort when wiring.
A bayonet lock mechanism is used.
By using a bayonet mechanism, which is a common locking method, the Smartclick XS5 eliminates any concerns about loosening.
last update: November 12, 2013
Purchase the OMRON Sensor I/O Connectors Please fill in the following
If you have just landed here, this product OMRON XS5 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS5 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS5Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NX701-1[]20 NX-Series NX701 Database Connection CPU Units/Features
E3Z-LT / LR / LL Compact Laser Photoelectric Sensor with Built-in Amplifier/Features
E5EC-T Programmable Temperature Controller (Digital Controller) (48 × 96 mm)/Features
CS1D CS1D Overview/Features
XW2C-20G5-IN16 Connector-Terminal Block Conversion Unit with Common/Features
OMRON XS5 catalog
XS5 Round Water-resistant Connectors (M12 Smartclick)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XS5 Data Sheet | - [7981KB] | Apr 09, 201820180409 | XS5 Data Sheet |
| XS5C, XS5G (Round Waterproof Pressure-welded Assembly Connectors) Catalog | G078-E1-01 [906KB] | Nov 07, 201320131107 | XS5C, XS5G (Round Waterproof Pressure-welded Assembly Connectors) Catalog |
| Sensor I/O Connector Over | - [3203KB] | Apr 02, 201820180402 | Sensor I/O Connector Over |
OMRON XS5 dimension
XS5 Round Water-resistant Connectors (M12 Smartclick)/Dimensionslast update: April 9, 2018
(Unit: mm)
XS5W Connectors with Cables, Socket and Plug on Both Cable Ends
Straight/straight
Fire-retardant, Robot Cable
XS5W-D421-[]81-F
Oil-resistant Polyurethane Cable
XS5W-D421-[]81-P
Spatter-resistant Cable
XS5W-D421-[]81-SA

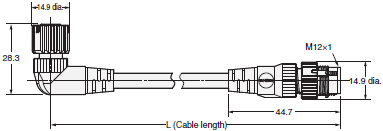

Right-angle/right-angle
Fire-retardant, Robot Cable
XS5W-D422-[]81-F
Straight (Socket)/right-angle (Plug)
Fire-retardant, Robot Cable
XS5W-D423-[]81-F
Right-angle (Socket)/straight (Plug)
Fire-retardant, Robot Cable
XS5W-D424-[]81-F
Note: Oil-resistant polyurethane cables (XS5W-D42[]-[]81-P) and spatter-resistant cables (XS5W-D421-[]81-SA) have
black covers.
Fire-retardant, robot cables (XS5W-D42[]-[]81-F), oil-resistant (polyurethane) robot cables (XS5W-D42B-[]81-PR)
have warm gray covers.
XS5F Connectors with Cables, Socket on One Cable End
Straight
Fire-retardant, Robot Cable
XS5F-D421-[]80-F
Oil-resistant Polyurethane Cable
XS5F-D421-[]80-P
Spatter-resistant Cable
XS5F-D421-[]80-SA
Oil-resistant Polyurethane Robot Cable
XS5F-D42B-[]80-PR

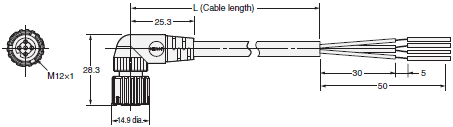

Right-angle
Fire-retardant, Robot Cable
XS5F-D422-[]80-F
Oil-resistant Polyurethane Cable
XS5F-D422-[]80-P
Oil-resistant Polyurethane Robot Cable
XS5F-D42C-[]80-PR
Note: Oil-resistant Polyurethane Cable(XS5F-D42[]-[]80-P), Spatter-resistant cables (XS5F-D421-[]80-SA) have black
covers.
Fire-retardant, robot cables (XS5F-D42[]-[]80-F), oil-resistant (polyurethane) robot cables (XS5F-D42[]-[]80-PR)
have warm gray covers.

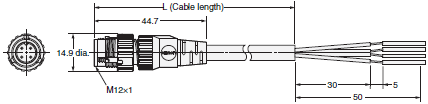

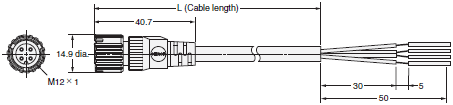

XS5H Connectors with Cables, Plug on One Cable End
Straight
Fire-retardant, Robot Cable
XS5H-D421-[]80-F
Oil-resistant Polyurethane Cable
XS5H-D421-[]80-P
Spatter-resistant Cable
XS5H-D421-[]80-SA

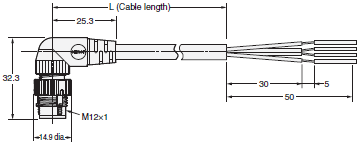

Right-angle
Fire-retardant, Robot Cable
XS5H-D422-[]80-F
Oil-resistant Polyurethane Cable
XS5H-D422-[]80-P
Note: Oil-resistant polyurethane cables (XS5H-D42[]-[]80-P) and spatter-resistant cables (XS5H-D421-[]80-SA) have black
covers.
Fire-retardant, robot cables (XS5H-D42[]-[]80-F) have warm gray covers.
XS5[] Eight-pole Connectors with Cables

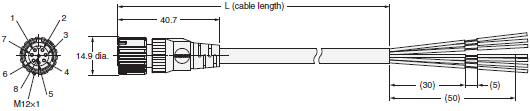

Socket on one cable end
XS5F-D821-[]H0-R

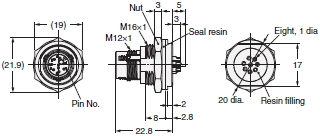

Front-locking, Panel-mounting Plug
XS5M-D827-4
XS5G Assembly Connector Plugs
Straight Connectors
XS5G-D418 (IDC Model)
XS5G-D4C[] (Crimping Model)
XS5G-D42[] (Soldering Model)
XS5G-D[]S[] (Screw-on Connectors, Suitable Cable Dia.: 7 or 8 mm)
XS5G-D[]S[] (Screw-on Connectors, Suitable Cable Dia.: 3, 4, or 6 mm)
Right-angle Connectors
XS5G-D42[] (Soldering Model)
XS5G-D[]S[] (Screw-on Connectors)
XS5U (Crimping Pin for XS5G)
XS5U-312[]
XS5C Assembly Connector Sockets
Straight Connectors
XS5C-D418 (IDC Model)
XS5C-D4C[] (Crimping Model)
XS5C-D42[] (Soldering Model)
XS5C-D[]S[] (Screw-on Connectors, Suitable Cable Dia.: 7 or 8 mm)
XS5C-D[]S[] (Screw-on Connectors, Suitable Cable Dia.: 3, 4, or 6 mm)
Right-angle Connectors
XS5C-D4C[] (Crimping Model)
XS5C-D42[] (Soldering Model)
XS5C-D[]S[] (Screw-on Connectors)
XS5U (Crimping Pin for XS5C)
XS5U-222[]
XS5R Y-Joint Plug/Socket Connectors

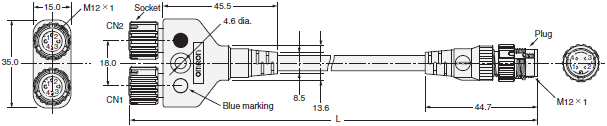

Connectors on Both Cable Ends (Y-Joint Plug/Socket)
XS5R-D426-[]11-F

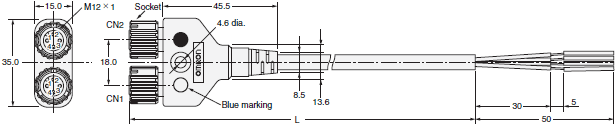

Connectors on One Cable End (Y-Joint Socket)
XS5R-D426-[]10-F
Connectors on Both Cable Ends (Y-Joint Plug/Socket)

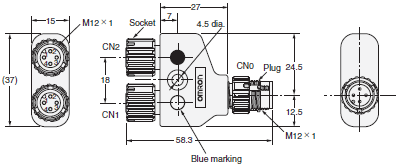

XS5R-D426-[]

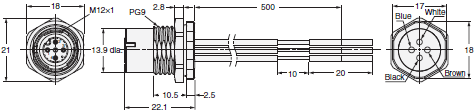

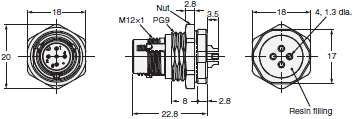

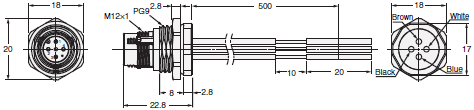

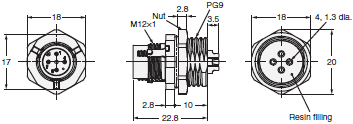

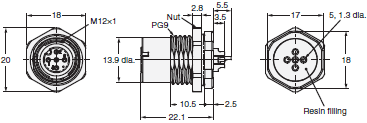

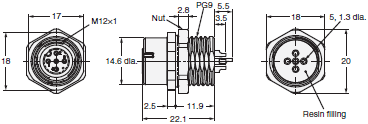

XS5P Panel-mounting Sockets
With wire
Rear lock
XS5P-D426-5
Front lock
XS5P-D427-5
Solder cup pins
Rear lock
XS5P-D426-4
XS5P-D526-4
Front lock
XS5P-D427-4
XS5P-D527-4

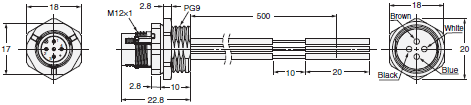

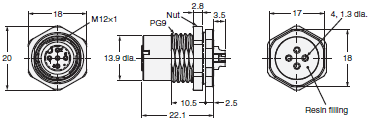

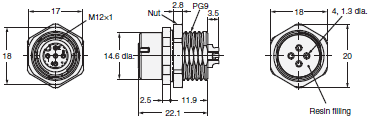

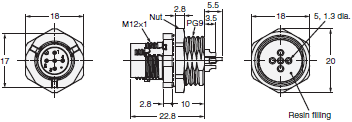

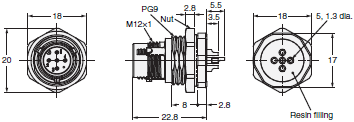

XS5M Panel-mounting Plugs
With wire
Rear lock
XS5M-D426-5
Front lock
XS5M-D427-5
Solder cup pins
Rear lock
XS5M-D426-4
XS5M-D526-4
Front lock
XS5M-D427-4
XS5M-D527-4
last update: April 9, 2018
OMRON XS5 lineup
XS5 Round Water-resistant Connectors (M12 Smartclick)/Lineuplast update: April 9, 2018
XS5W Connectors with Cables, Socket and Plug on Both Cable Ends
| Cable specifications | Cable length L (m) | Cable diameter (mm) | Straight/straight | Right-angle/ right-angle | UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant, Robot Cable | 0.5 | 6 dia. | XS5W-D421-B81-F | — | Yes |
| 1 | XS5W-D421-C81-F | — | |||
| 2 | XS5W-D421-D81-F | XS5W-D422-D81-F | |||
| 3 | XS5W-D421-E81-F | — | |||
| 4 | XS5W-D421-F81-F | — | |||
| 5 | XS5W-D421-G81-F | XS5W-D422-G81-F | |||
| 10 | XS5W-D421-J81-F | — | |||
| Oil-resistant polyurethane cable | 2 | XS5W-D421-D81-P | — | — | |
| 5 | XS5W-D421-G81-P | — | |||
| 10 | XS5W-D421-J81-P | — | |||
| Spatter-resistant Cable | 2 | 6.6 dia. | XS5W-D421-D81-SA | — | — |
| 5 | XS5W-D421-G81-SA | — | |||
| Oil-resistant polyurethane robot cable | 2 | 4.7 dia. | XS5W-D42B-D81-PR | — | — |
| 5 | XS5W-D42B-G81-PR | — | |||
| 10 | XS5W-D42B-J81-PR | — |
| Cable specifications | Cable length L (m) | Cable diameter (mm) | Straight (Socket)/ right-angle (Plug) | Right-angle (Socket)/ straight (Plug) | UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant, Robot Cable | 2 | 6 dia. | XS5W-D423-D81-F | XS5W-D424-D81-F | Yes |
| 5 | XS5W-D423-G81-F | XS5W-D424-G81-F |
Note: Ask your OMRON representative about other cable lengths.
XS5F Connectors with Cables, Socket on One Cable End
| Cable specifications | Cable length L (m) | Cable diameter (mm) | Straight Connectors | Right-angle Connectors | UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant, Robot Cable | 1 | 6 dia. | XS5F-D421-C80-F | XS5F-D422-C80-F | Yes |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | |||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | |||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | |||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F | |||
| Oil-resistant polyurethane cable | 2 | XS5F-D421-D80-P | XS5F-D422-D80-P | — | |
| 5 | XS5F-D421-G80-P | XS5F-D422-G80-P | |||
| 10 | XS5F-D421-J80-P | XS5F-D422-J80-P | |||
| Spatter-resistant Cable | 2 | 6.6 dia. | XS5F-D421-D80-SA | — | — |
| 5 | XS5F-D421-G80-SA | — | |||
| Oil-resistant polyurethane robot cable | 2 | 4.7 dia. | XS5F-D42B-D80-PR | XS5F-D42C-D80-PR | — |
| 5 | XS5F-D42B-G80-PR | XS5F-D42C-G80-PR | |||
| 10 | XS5F-D42B-J80-PR | XS5F-D42C-J80-PR |
Note: Ask your OMRON representative about other cable lengths, and about 2-core cables.
XS5H Connectors with Cables, Plug on One Cable End
| Cable specifications | Cable length L (m) | Cable diameter (mm) | Straight Connectors | Right-angle Connectors | UL |
|---|---|---|---|---|---|
| Model | Model | ||||
| Fire-retardant, Robot Cable | 0.3 | 6 dia. | XS5H-D421-A80-F | XS5H-D422-A80-F | Yes |
| 0.5 | XS5H-D421-B80-F | — | |||
| 1 | XS5H-D421-C80-F | XS5H-D422-C80-F | |||
| 2 | XS5H-D421-D80-F | XS5H-D422-D80-F | |||
| 3 | XS5H-D421-E80-F | — | |||
| 5 | XS5H-D421-G80-F | XS5H-D422-G80-F | |||
| Oil-resistant polyurethane cable | 0.3 | XS5H-D421-A80-P | XS5H-D422-A80-P | — | |
| 2 | XS5H-D421-D80-P | XS5H-D422-D80-P | |||
| 5 | XS5H-D421-G80-P | XS5H-D422-G80-P | |||
| Spatter-resistant Cable | 0.3 | 6.6 dia. | XS5H-D421-A80-SA | — | — |
| 1 | XS5H-D421-C80-SA | — |
Note: Ask your OMRON representative about other cable lengths.
XS5[] Eight-pole Connectors with Cables
| Type | Cable specifications | Cable connection direction | Number of cores | Cable length L (m) | Applicable wire gauge | Model |
|---|---|---|---|---|---|---|
| Socket on one cable end | 6.3 mm dia. AWG23 (0.25 mm2) Structure: 0.08 mm/60 wires | Straight | 10 | 2 | — | XS5F-D821-DH0-R |
| 5 | XS5F-D821-GH0-R | |||||
| 10 | XS5F-D821-JH0-R | |||||
| Panel-mounting plug | — | — | — | — | AWG22 to 28 | XS5M-D827-4 |
XS5G Assembly Connector Plugs
| No. of poles | Connection method | Suitable cable (mm) | Core conductor size (mm2) | Suitable sheath material | Straight Connectors | Right-angle Connectors |
|---|---|---|---|---|---|---|
| Model | Model | |||||
| 4 | IDC | 3 to 8 dia. | 0.14 to 0.75 *1 | PVC, PE, PUR | XS5G-D418 | — |
| Crimping | 6 dia. (5 to 6 dia.) | 0.18 to 0.3 0.5 to 0.75 *2 | XS5G-D4C1 | — | ||
| 4 dia. (4 to 5 dia.) | XS5G-D4C3 | — | ||||
| 3 dia. (3 to 4 dia.) | XS5G-D4C5 | — | ||||
| Soldering | 6 dia. (5 to 6 dia.) | 0.5 max. | XS5G-D421 | XS5G-D422 | ||
| 4 dia. (4 to 5 dia.) | XS5G-D423 | XS5G-D424 | ||||
| 3 dia. (3 to 4 dia.) | XS5G-D425 | XS5G-D426 | ||||
| Screw-on | 6 dia. (5 to 6 dia.) | 0.18 to 0.75 | XS5G-D4S1 | XS5G-D4S2 | ||
| 4 dia. (4 to 5 dia.) | XS5G-D4S3 | XS5G-D4S4 | ||||
| 3 dia. (3 to 4 dia.) | XS5G-D4S5 | XS5G-D4S6 | ||||
| 8 dia. (7 to 8 dia.) | XS5G-D4S7 | — | ||||
| 7 dia. (6 to 7 dia.) | XS5G-D4S9 | — | ||||
| 5 | Screw-on | 6 dia. (5 to 6 dia.) | XS5G-D5S1 | — | ||
| 4 dia. (4 to 5 dia.) | XS5G-D5S3 | — | ||||
| 3 dia. (3 to 4 dia.) | XS5G-D5S5 | — | ||||
| 8 dia. (7 to 8 dia.) | XS5G-D5S7 | — | ||||
| 7 dia. (6 to 7 dia.) | XS5G-D5S9 | — |
*1. Minimum wire diameter: 0.08 mm, External sheath diameter of wire covering: 0.7 to 2.6 mm, Material of wire
covering: PVC and PE
*2. There are two types of contacts.
Note: XS5G Screw-on Plugs cannot be connected to side by side to the CN1 and CN2 connectors of XS2R or XS5R Y-Joint
Sockets/Plugs.
Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
Ask your OMRON representative about selecting a cable of other than above.
XS5U (Crimping Pin for XS5G)
| Suitable core size (mm2) | Model |
|---|---|
| 0.18 to 0.3 | XS5U-3121 |
| 0.5 to 0.75 | XS5U-3122 |
* A special tool must be used for crimping. For details, refer to Data Sheet.
XS5C Assembly Connector Sockets
| No. of poles | Connection method | Suitable cable (mm) | Core conductor size (mm2) | Suitable sheath material | Straight Connectors | Right-angle Connectors |
|---|---|---|---|---|---|---|
| Model | Model | |||||
| 4 | IDC | 3 to 8 dia. | 0.14 to 0.75 *1 | PVC, PE, PUR | XS5C-D418 | — |
| Crimping | 6 dia. (5 to 6 dia.) | 0.18 to 0.3 0.5 to 0.75 *2 | XS5C-D4C1 | XS5C-D4C2 | ||
| 4 dia. (4 to 5 dia.) | XS5C-D4C3 | XS5C-D4C4 | ||||
| 3 dia. (3 to 4 dia.) | XS5C-D4C5 | XS5C-D4C6 | ||||
| Soldering | 6 dia. (5 to 6 dia.) | 0.5 max. | XS5C-D421 | XS5C-D422 | ||
| 4 dia. (4 to 5 dia.) | XS5C-D423 | XS5C-D424 | ||||
| 3 dia. (3 to 4 dia.) | XS5C-D425 | XS5C-D426 | ||||
| Screw-on | 6 dia. (5 to 6 dia.) | 0.18 to 0.75 | XS5C-D4S1 | XS5C-D4S2 | ||
| 4 dia. (4 to 5 dia.) | XS5C-D4S3 | XS5C-D4S4 | ||||
| 3 dia. (3 to 4 dia.) | XS5C-D4S5 | XS5C-D4S6 | ||||
| 8 dia. (7 to 8 dia.) | XS5C-D4S7 | — | ||||
| 7 dia. (6 to 7 dia.) | XS5C-D4S9 | — | ||||
| 5 | Screw-on | 6 dia. (5 to 6 dia.) | XS5C-D5S1 | — | ||
| 4 dia. (4 to 5 dia.) | XS5C-D5S3 | — | ||||
| 3 dia. (3 to 4 dia.) | XS5C-D5S5 | — | ||||
| 8 dia. (7 to 8 dia.) | XS5C-D5S7 | — | ||||
| 7 dia. (6 to 7 dia.) | XS5C-D5S9 | — |
*1. Minimum wire diameter: 0.08 mm, External sheath diameter of wire covering: 0.7 to 2.6 mm, Material of wire
covering: PVC and PE
*2. There are two types of contacts.
Note: Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can't be
met.
Ask your OMRON representative about selecting a cable of other than above.
XS5U (Crimping Pin for XS5C)
| Suitable core size (mm2) | Model |
|---|---|
| 0.18 to 0.3 | XS5U-2221 |
| 0.5 to 0.75 | XS5U-2222 |
* A special tool must be used for crimping. For details, refer to Data Sheet.
XS5R Y-Joint Plug/Socket Connectors
| Cable | Connector | Cable length (m) | Model |
|---|---|---|---|
| With cable | Connectors on both cable ends | 0.5 | XS5R-D426-B11-F |
| 1 | XS5R-D426-C11-F | ||
| 2 | XS5R-D426-D11-F | ||
| 3 | XS5R-D426-E11-F | ||
| Connector on one cable end | 2 | XS5R-D426-D10-F | |
| 5 | XS5R-D426-G10-F |
| Cable | Connector | Cable length (m) | Model |
|---|---|---|---|
| Without cable | Connectors on both cable ends | - | XS5R-D426-1 |
| XS5R-D426-5 |
Note 1. Ask your OMRON representative about other specifications.
2. XS2G/XS5G Assembled Connectors with screw-on connections cannot be connected to both CN1 and CN2 at the
same time.
XS5P Panel-mounting Sockets
| Type | No. of poles | Lock | Wire length (m) | Model |
|---|---|---|---|---|
| With wire | 4 | Rear lock | 0.5 | XS5P-D426-5 |
| Front lock | XS5P-D427-5 |
| Type | No. of poles | Lock* | Applicable wires | Model |
|---|---|---|---|---|
| Solder cup pins | 4 | Rear lock | AWG20 to AWG28 | XS5P-D426-4 |
| Front lock | XS5P-D427-4 | |||
| 5 | Rear lock | XS5P-D526-4 | ||
| Front lock | XS5P-D527-4 |
* Install the rear lock type from the front of the panel and tighten the nut from the rear.
Install the front lock type from the rear of the panel and tighten the nut from the front.
XS5M Panel-mounting Plugs
| Type | No. of poles | Lock | Wire length (m) | Model |
|---|---|---|---|---|
| With wire | 4 | Rear lock | 0.5 | XS5M-D426-5 |
| Front lock | XS5M-D427-5 |
| Type | No. of poles | Lock* | Applicable wires | Model |
|---|---|---|---|---|
| Solder cup pins | 4 | Rear lock | AWG20 to AWG28 | XS5M-D426-4 |
| Front lock | XS5M-D427-4 | |||
| 5 | Rear lock | XS5M-D526-4 | ||
| Front lock | XS5M-D527-4 |
* Install the rear lock type from the front of the panel and tighten the nut from the rear.
Install the front lock type from the rear of the panel and tighten the nut from the front.
Connector Covers
Waterproof Covers
The Waterproof Cover ensures IP67. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49 N·m to tighten the Water-resistive Cover.
XS5Z-11 is Smartclick mechanism. There’s no need to keep track of locking torque.
| Model | Material | Suitable connector | |
|---|---|---|---|
| Model | Mounting portion | ||
| XS2Z-11 | Brass/nickel plated | XS5G/XS5H/XS5M/XS5R/XS5W/XS2G/XS2H/XS2M/XS2R/XS2W | M12 male screw |
| XS5Z-11 | PBT | XS5C/XS5F/XS5P/XS5R/XS5W/XW3D | M12 female screw |
Dust Covers
The Dust Cover is for dust prevention and does not ensure IP67 degree of protection.
When mounting the Dust Cover to a Connector, be sure to press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover.
| Model | Material | Suitable connector | |
|---|---|---|---|
| Model | Mounting portion | ||
| XS2Z-13 | Rubber/black | XS5G/XS5H/XS5M/XS5R/XS5W/XS2G/XS2H/XS2M/XS2R | M12 male screw |
| XS2Z-14 | XS5C/XS5F/XS5P/XS5R/XS5W/XS2C/XS2F/XS2P/XS2R/XS2W/ XW3B/XW3D | Pin block (female pins) | |
| XS2Z-15 | M12 female screw | ||
Sputter Protective Cover
The Sputter Protective Cover protects the connector from weld sputter.
Make sure it covers the entire connector.
| Model | Material | Suitable connector |
|---|---|---|
| XS2Z-31 | Silicone rubber/black | XS5F/XS5H/XS5W/XS2F/XS2H/XS2W |
Tools
Crimp Tool/Locator
Use the Crimp Tool to crimp a cable core to the XS5U or XS2U Crimping Pin used with the XS[]C or XS[]G Crimping Connector.
• The XY2F-0002 Crimp Tool is DMC's AFM8 (M22520/2-01).
• Mount the XY2F-0003 Locator (sold separately) to the locator guide of the Crimp Tool with a screw provided with the XY2F-0003 Locator.
| Model | |
|---|---|
| Crimp Tool | XY2F-0002 |
| Locator | XY2F-0003 |
Pin-block Extraction Tool
Use this tool to extract a Pin Block from the covers in order to make wiring changes or corrections after the cover has been mounted to the pin block for Connector Assemblies (XS[]C/XS[]G, soldering/crimping).
| Model |
|---|
| XY2F-0001 |
last update: April 9, 2018
OMRON XS5 specification
XS5 Round Water-resistant Connectors (M12 Smartclick)/Specificationslast update: April 9, 2018
Ratings and Specifications
| Rated current | 4 A |
|---|---|
| Rated voltage | 250 VDC |
| Contact resistance (connector) | 40 mW max. (20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MW min. (at 500 VDC) |
| Dielectric strength (connector) | 1,500 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) |
| Insertion tolerance | 50 times |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s (for cable diameter of 6 mm) *2 |
| Lock operating force | 0.1 to 0.25 N·m |
| Ambient operating temperature range | -25 to 70°C *3 |
| Ambient humidity range | 20% to 85% |
| Number of pressure-weld repairs *1 | 10 times max. (Limited to the same external diameter and wire diameter.) |
*1. Only XS5C/G (IDC models)
*2. Refer to product specifications for details.
*3. Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from being
broken when bending it.
Materials and Finishes
| Model | XS5F/H/W | XS5R | XS5M/P | XS5C/G (Crimping, Soldering) | XS5C/G (Screw-on) | XS5C/G (IDC) | |
|---|---|---|---|---|---|---|---|
| Contacts | Material | Phosphor bronze | Phosphor bronze or Brass | Phosphor bronze | Brass | Phosphor bronze or Brass | Phosphor bronze |
| Finish | Nickel base, 0.4-μm gold plating | Nickel base, 0.15-μm gold plating | |||||
| Fixture | Nickel plated zinc alloy | ||||||
| Fixtures (Lock) * | Stainless | ||||||
| Pin block | PBT resin (UL94V-0) | ||||||
| O-ring | Rubber | ||||||
| Cover | Soft PBT resin (UL94V-0) | — | PBT resin (UL94V-0) | ||||
| Cable | Fire- retardant, robot cable | UL AWM2464 CL3, 6 mm dia., AWG20 (0.5 mm2) Structure: 0.08 mm/110 wires | — | ||||
| Oil-resistant polyurethane cable | 6 mm dia. AWG20 (0.5 mm2) Structure: 0.12mm/45 wires | — | |||||
| Spatter- resistant Cable | 6.6 mm dia. AWG20 (0.5 mm2) Structure: 0.08 mm/100 wires | — | |||||
| Oil-resistant polyurethane robot cable | 4.7 mm dia. AWG23 (0.3 mm2) Structure: 0.08 mm/60 wires | — | |||||
* Only plug

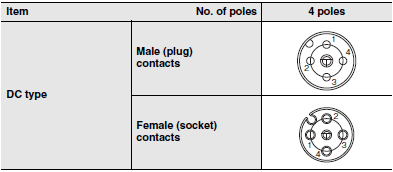

Pin Arrangement (Engaged Side)
Connection Combinations
Note: The XS[]M and XS[]P cannot mate with each other.
XS5[] Eight-pole Connectors with Cables
Ratings and Specifications
| Rated current | 1.5 A |
|---|---|
| Rated voltage | 36 VDC |
| Contact resistance | 40 mΩ max. (at 20 mVDC max. and 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) |
| Dielectric strength | 1,000 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) |
| Insertion tolerance | 50 times |
| Ambient operating temperature range | -25 to 70°C |
| Ambient humidity range | 20% to 85% |
Materials and Finish
| Contacts | Brass/nickel base, 0.4-μm gold plating |
|---|---|
| Fixture | Nickel plated zinc alloy *1 |
| Body | Nickel plated zinc alloy *2 |
| Nut | Nickel plated brass *2 |
| Fixtures (lock) | Stainless *2 |
| Pin block | PBT resin (UL94V-0), light gray |
| Cover *1 | Soft PBT resin (UL94V-0) |
| Seal resin *2 | Rubber |
| O-ring *1 |
*1. XS5F only.
*2. XS5M only.
last update: April 9, 2018
- NO. XS5
- TYPE:Sensor I/O Connectors / Sensor Controllers Sensor I/O Connectors
Copyright Statement - DATE:2021-06-08
- Associated products:
XS2 Round Water-resistant Connectors (M12 Threads)/Features XW3D Connector Terminal Boxes/Features
