World's Smallest Class of Global Power Supplies* New 240- and 480-W Models Join the S8VK-S Series
Save on space and work, and achieve resistance to environments with the S8VK-S series: and now the new 240-and 480-W models join.
Its extended product line-up provides greater design flexibility.
*According to OMRON investigation in September 2016.
World's Smallest Class of Compact Body*1 and Side-by-side Mounting for More Design Flexibility
Downsizing achieved with high-efficiency, low-loss technology. OMRON's unique thermal control technology enables side-by-side mounting. Less installation area helps you downsize control panels.
*1. According to OMRON investigation in September 2016.
*2. Comparison to previous OMRON Power Supply.
*3. Conditions apply to models and derating for side-by-side mounting. Refer to the S8VK-S series datasheet for details.
[Technology for Greater Efficiency and Less Loss]
Technology developed for the S8VK-G has been advanced even further to reduce switching loss and to reduce the loss from heat-generating components, such as transformers and diodes. This has enabled downsizing and high-density mounting of mounted components.
[Sophisticated Thermal Control Technology]
OMRON’s unique thermal modeling knowhow was used to establish fast and accurate thermal simulation methods. The result is optimum component layout with controlling heat flow. By optimizing the shape and size of the heat sink, both downsizing and side-by-side mounting of the Power Supplies was achieved.
Greater Environment Resistance for Application in More Various Locations
Note: These images are for illustration purposes only.
Push-In Plus Terminal Blocks for Easy Wiring
Just Insert Wires: No Tools Required
Now you can use Push-In Plus terminal blocks to reduce the time and work involved in wiring.
Greatly Reduce Wiring Work with Push-In Plus Terminal Blocks
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
Screwdriver Held in Place to Free Both Your Hands
Optimized shape to hold the screwdriver was created by the resin parts and the spring.
Work goes smoothly when connecting stranded wires directly to the terminal because it’s easier to aim at the desired terminal.
Easy to Insert
OMRON’s Push-In Plus terminal blocks are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.
Note: The sense of insertion for connecting the wire to the terminal block depends on the wire diameter.
Held Firmly in Place
Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism design technology and manufacturing technology produced a spring that ensures better workability and reliability.
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
Ideas to Save Space in Control Panels
Eliminating Transformers for Control Circuits
(For applications with Switch Mode Power Supplies that use a IEC 61558-2-16-compliant transformer)
IEC 60204-1 in the Machinery Directive specifies that, if AC power is supplied to a control circuit, a transformer must be used in the control circuit and the transformer must have separate (compound) windings.
The Control Circuit Transformer Built into the S8VK Eliminates the Need for an Independent Transformer
IEC 60204-1 also states that a switch mode power supply that uses a transformer with separate (compound) windings satisfies the above condition. That means that a transformer in a control circuit can be eliminated by using this type of switch mode power supply.
last update: April 3, 2017
Purchase the OMRON Switch mode power supplies Please fill in the following
If you have just landed here, this product OMRON S8VK-S Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VK-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VK-SPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
V400-R2 Multi Code Reader/Features
D4F Small Safety Limit Switch/Features
CP1L CP series CP1L CPU Unit/Features
VT-S730 PCB Inspection System/Features
K8DT-LS Conductive Level Controller/Features
OMRON S8VK-S catalog
S8VK-S S8VK-S (30/60/120/240/480-W Models)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 S8VK-S Data Sheet | T205-E1-04 [8901KB] | Nov 12, 201820181112 | S8VK-S Data Sheet |
| S8VK-S Brochure | T206-E1-03 [18009KB] | Jul 18, 201820180718 | S8VK-S Brochure |
| S8VK-S/S8FS-G Power Supply Guide Catalog | T209-E1-01 [2003KB] | Aug 27, 201820180827 | S8VK-S/S8FS-G Power Supply Guide Catalog |
| Innovation in Control Panel Building | Y218-E1-03 [13592KB] | Oct 02, 201720171002 | Innovation in Control Panel Building |
OMRON S8VK-S dimension
S8VK-S S8VK-S (30/60/120/240/480-W Models)/Dimensionslast update: April 2, 2018
(Unit: mm)

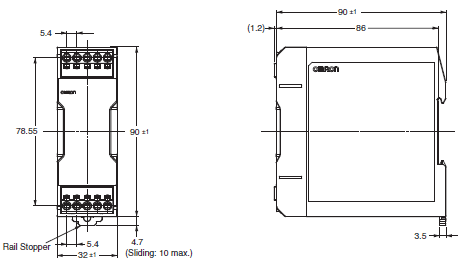

S8VK-S03024 (30 W)

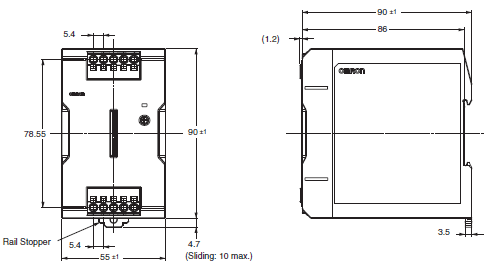

S8VK-S06024 (60 W)
S8VK-S12024 (120 W)

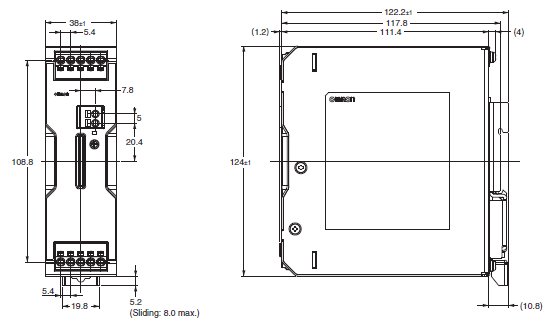

S8VK-S24024 (240 W)

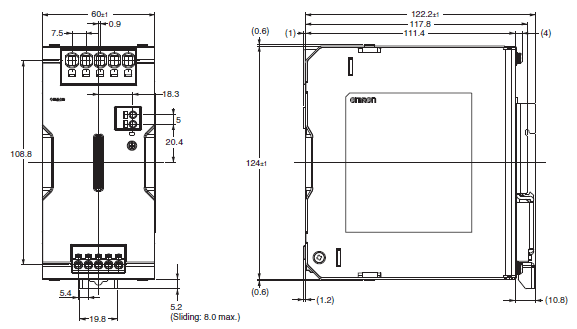

S8VK-S48024 (480 W)
DIN Rail (Order Separately)
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

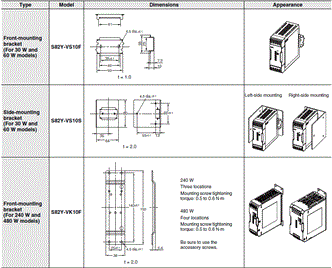

Mounting Brackets

last update: April 2, 2018
OMRON S8VK-S specification
S8VK-S S8VK-S (30/60/120/240/480-W Models)/Specificationslast update: April 2, 2018
Ratings, Characteristics, and Functions
| Power rating | 30 W | 60 W | 120 W | ||
|---|---|---|---|---|---|
| Output voltage | 24 V | 24 V | 24 V | ||
| Efficiency | 115 VAC input *1 | 87% typ. | 87% typ. | 90% typ. | |
| 230 VAC input *1 | 86% typ. | 89% typ. | 92% typ. | ||
| Input | Voltage range *2 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *12, 265 to 300 VAC (1 second) | |||
| Frequency *2 | 50/60 Hz (47 to 450 Hz) | 50/60 Hz (47 to 63 Hz) | |||
| Input current | 115 VAC input *1 | 0.58A typ. | 1.1 A typ. | 1.2 A typ. | |
| 230 VAC input *1 | 0.36A typ. | 0.66 A typ. | 0.63 A typ. | ||
| Power factor | --- | 0.9 min. | |||
| Leakage current *3 | 115 VAC input | 0.5 mA max. | |||
| 230 VAC input | 1 mA max. | ||||
| Inrush current *4 (for a cold start at 25°C) | 115 VAC input | 16 A typ. | |||
| 230 VAC input | 32 A typ. | ||||
| Output | Rated output current | 1.3 A | 2.5 A | 5 A | |
| Rated output electric power | 31.2 W | 60 W | 120 W | ||
| Maximum boost current | 1.56 A | 3 A | 6 A | ||
| Voltage adjustment range *5 | 21.6 to 28 V (with V.DJ) | ||||
| Ripple & Noise voltage *6 | 100 to 240 VAC input *1 | 190 mVp-p max. at 20 MHz of bandwidth | 190 mVp-p max. at 20 MHz of bandwidth | 110 mVp-p max. at 20 MHz of bandwidth | |
| Input variation influence *7 | 0.5% max. | ||||
| Load variation influence *8 | 1.5% max. | ||||
| Temperature variation influence | 115 to 230 VAC input | 0.05%/°C max. | |||
| Start up time *4 | 115 VAC input *1 | 1000 ms max. | 1000 ms max. | 1000 ms max. | |
| 230 VAC input *1 | 1000 ms max. | 1000 ms max. | 1000 ms max. | ||
| Hold time *6 | 115 VAC input *1 | 30 ms typ. | 20 ms typ. | 45 ms typ. | |
| 230 VAC input *1 | 140 ms typ. | 95 ms typ. | 45 ms typ. | ||
| Additional functions | Overload protection | Yes, automatic reset | |||
| Overvoltage protection *9 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) | ||||
| Series operation | Yes (For up to two Power Supplies, external diodes are required.) | ||||
| Parallel operation | Yes (For up to two Power Supplies), Refer to Parallel Operation on catalog for details. | ||||
| Output indicator | Yes (LED: Green) | ||||
| Low-voltage detection output | No | ||||
| Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 10 mA | |||
| 2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 10 mA | |||||
| 1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA | |||||
| Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC | ||||
| Environ- ment | Ambient operating temperature *10 | -40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) | |||
| Storage temperature | -40 to 85°C (with no condensation or icing) | ||||
| Ambient operating humidity | 95% RH max. (Storage humidity: 95% RH max.) | ||||
| Vibration resistance | 10 to 55 Hz, maximum 5G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions | ||||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions | ||||
| Reliability | MTBF | 135,000 hrs min. (Refer to Data Sheet Reference Value) | |||
| Life expectancy *11 | 10 years min. | ||||
| Con- struction | Weight | 250 g max. | 250 g max. | 400 g max. | |
| Cooling fan | No | ||||
| Degree of protection | IP20 by EN/IEC 60529 | ||||
| Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | |||
| EMI | Conducted Emissions | Conforms to EN 61204-3 Class B, EN 55011 Class B | |||
| Radiated Emissions | Conforms to EN 61204-3 Class B, EN 55011 Class B | ||||
| EMS | Conforms to EN 61204-3 high severity levels | ||||
| Approved Standards | UL Listing: UL 508,ANSI/ISA 12.12.01 (For 30 W and 60 W only Class2 Output: Per UL 1310) cUL: CSA C22.2 No107.1, CSA C22.2 No213 (For 30 W and 60 W only Class2 Output: Per CSA C22.2 No.223) UL UR: UL 60950-1 (Recognition) OVCII (≤ 3000 m) Pol2 cUR: CSA C22.2 No. 60950-1 OVCII (≤ 3000 m) Pol2 EN: EN 50178 OVCIII (≤ 2000 m) OVCII (2000 m≤ and≤3000) Pol2, EN 60950-1 OVCII (≤ 3000 m) Pol2 ATEX: EN 60079-0, EN 60079-15 Cert. DEMKO 16 ATEX 1708X (Except 30 W) Ex II 3G Ex nA IIC T3 Gc IECEx: IEC 50079-0, IEC60079-15 Cert. IECEx UL 16.0082X (Except 30 W) Ex nA IIC T3 Gc | ||||
| Conformed Standards | PELV (EN/IEC 60204-1) *12 | ||||
| EN/IEC 61558-2-16:2009+A1:2013 *12 | |||||
| Marine Standards *12 | Lloyd's register (Except 30 W) DNV GL (Except 30 W) | ||||
| SEMI | Conforms to F47-0706 (200 to 240 VAC input) | ||||
| Power rating | 240 W | 480 W | ||
|---|---|---|---|---|
| Output voltage | 24 V | 24 V | ||
| Efficiency | 115 VAC input *1 | 91% typ. | 91% typ. | |
| 230 VAC input *1 | 93% typ. | 93% typ. | ||
| Input | Voltage range *2 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *12, 265 to 300 VAC (1 second) | ||
| Frequency *2 | 50/60 Hz (47 to 63 Hz) | |||
| Input current | 115 VAC input *1 | 2.4 A typ. | 4.6 A typ. | |
| 230 VAC input *1 | 1.3 A typ. | 2.3 A typ. | ||
| Power factor | 0.9 min. | 0.9 min. | ||
| Leakage current *3 | 115 VAC input | 0.5 mA max. | ||
| 230 VAC input | 1 mA max. | |||
| Inrush current *4 (for a cold start at 25°C) | 115 VAC input | 16 A typ. | ||
| 230 VAC input | 32 A typ. | |||
| Output | Rated output current | 10 A | 20 A | |
| Rated output electric power | 240 W | 480 W | ||
| Maximum boost current | 15 A | 30 A | ||
| Voltage adjustment range *5 | 21.6 to 28 V (with V.ADJ) | |||
| Ripple & Noise voltage *6 | 100 to 240 VAC input *1 | 100 mVp-p max. at 20 MHz of bandwidth | 130 mVp-p max. at 20 MHz of bandwidth | |
| Input variation influence *7 | 0.5% max. | |||
| Load variation influence *8 | 1.5% max. | |||
| Temperature variation influence | 115 to 230 VAC input | 0.05%/°C max. | ||
| Start up time *4 | 115 VAC input *1 | 1000 ms max. | 1000 ms max. | |
| 230 VAC input *1 | 1000 ms max. | 1000 ms max. | ||
| Hold time *6 | 115 VAC input *1 | 35 ms typ. | 30 ms typ. | |
| 230 VAC input *1 | 35 ms typ. | 30 ms typ. | ||
| Additional functions | Overload protection | Yes, automatic reset | ||
| Overvoltage protection *9 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) | |||
| Series operation | Yes (For up to two Power Supplies, external diodes are required.) | |||
| Parallel operation | Yes (For up to two Power Supplies), Refer to Parallel Operation on catalog for details. | |||
| Output indicator | Yes (LED: Green) | |||
| Low-voltage detection output | Yes (Photoswitch output: 30 VDC max., 50 mA max.) | |||
| Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA | ||
| 2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA | ||||
| 1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA | ||||
| 500 VAC for 1 min (between all output terminals and all low-voltage detection output terminals), current cutoff 10 mA | ||||
| Insulation resistance | 100 MΩ min. (between all output terminals/all low-voltage detection output terminals and all input terminals/PE terminals) at 500 VDC | |||
| Environ- ment | Ambient operating temperature *10 | -40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) | ||
| Storage temperature | -40 to 85°C (with no condensation or icing) | |||
| Ambient operating humidity | 95% RH max. (Storage humidity: 95% RH max.) | |||
| Vibration resistance | 10 to 55 Hz, maximum 5G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions | |||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions | |||
| Reliability | MTBF | 135,000 hrs min. (Refer to Data Sheet Reference Value) | ||
| Life expectancy *11 | 10 years min. | |||
| Con- struction | Weight | 700 g max. | 1150 g max. | |
| Cooling fan | No | |||
| Degree of protection | IP20 by EN/IEC 60529 | |||
| Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | ||
| EMI | Conducted Emissions | Conforms to EN 61204-3 Class B, EN 55011 Class B | ||
| Radiated Emissions | Conforms to EN 61204-3 Class B, EN 55011 Class B | |||
| EMS | Conforms to EN 61204-3 high severity levels | |||
| Approved Standards | UL Listing: UL 508,ANSI/ISA 12.12.01 cUL: CSA C22.2 No107.1, CSA C22.2 No213 UL UR: UL 60950-1 (Recognition) OVCII (≤ 3000 m) Pol2 cUR: CSA C22.2 No.60950-1 OVCII (≤ 3000 m) Pol2 EN: EN 50178 OVCIII (≤ 2000 m) OVCII (2000 m≤ and≤3000) Pol2, EN 60950-1 OVCII (≤ 3000 m) Pol2 ATEX: EN 60079-0, EN 60079-15 Cert. DEMKO 16 ATEX 1737X 240W: Ex II3G Ex nA IIC T3 Gc, 480W: Ex II3G Ex nA nC IIC T3 Gc IECEx: IEC 60079-0, IEC60079-15 Cert. IECEx UL 16.0105X 240W: Ex nA IIC T3 Gc, 480W: Ex nA nC IIC T3 Gc | |||
| Conformed Standards | PELV (EN/IEC 60204-1) *12 | |||
| EN/IEC 61558-2-16:2009+A1:2013 *12 | ||||
| Marine Standards *12 | Lloyd's register DNV GL | |||
| SEMI | Conforms to F47-0706 (200 to 240 VAC input) | |||
*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise
in the internal temperature of the product may result in ignition or burning.
If the input is connected to a UPS, do not connect a UPS with a square-wave output.
Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
*3. The value for the leakage current is determined according to the Electrical Appliances and Material Safety Act.
*4. Refer to Inrush Current, Startup Time, Output Hold Time on Catalog for details.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than 28 V min of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the product and be sure
that the load is not damaged.
*6. A characteristic when the ambient operating temperature of 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable
input voltage range at the rated output voltage and rated output current.
*8. 100 to 240 VAC input, in the range of 0 A to the rated output current.
*9. Refer to Overvoltage Protection on Catalog for the time when input voltage shuts off and input turns on again.
*10.At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
Also, the ripple noise value may exceed the value shown in the above table.
*11.Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Catalog
for details.
*12.Refer to Standard Compliance, below.
Standard Compliance
• EN/IEC 61558-2-16
The S8VK-S was designed based on EN/IEC 61558-2-16.
Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control
transformer to the control circuits. However, a control transformer is not always necessary for product that have been
certified for the safety standard for OVCIII or for product that use a transformer that conforms to EN/IEC 61558-2-16.
• Safety Standards for a DC Input
The following safety standards are applicable for when a DC input is used: UL 60950-1, cUR (CSA C22.2 No. 60950-1),
EN 50178, EN 60950-1, Lloyd's, and DNV GL. (Certification pending for 240- and 480-W models)
Safety standard compliance is achievable by connecting a UL-certified fuse as specified below.
Select an external fuse that satisfies the following conditions:
S8VK-S03024: 350 VDC min., 6 A
S8VK-S06024: 350 VDC min., 6 A
S8VK-S12024: 350 VDC min., 8 A
S8VK-S24024: 350 VDC min., 8 A
S8VK-S48024: 350 VDC min., 12 A
• Conformance to Marine Standards
Noise filter “FN2080-10-06” manufactured by SCHAFFNER Corporation. or equivalent should be connected to the Input
terminals of S8VK-S series (Except 60 W).
End Plate (PFP-M) to both sides of the Power Supply to hold the Power Supply in place.
Install clamp filters (“ZCAT2035-0930” manufactured by TDK) on the cables connected to the input and output terminals
for 240- and 480-W models.
• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective
earth (PE).
• ATEX/IECEx
The Power Supply must be built-in an IP54 enclousure.
last update: April 2, 2018
OMRON S8VK-S lineup
S8VK-S S8VK-S (30/60/120/240/480-W Models)/Lineuplast update: April 2, 2018
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
Ordering Information
Note: For details on normal stock models, contact your nearest OMRON representative.
| Power ratings | Rated input voltage | Rated output voltage | Rated output current | Maximum boost current | Model number |
|---|---|---|---|---|---|
| 30 W | 100 to 240 VAC allowable range: 85 to 264 VAC or 90 to 350 VDC) | 24 V | 1.3 A | 1.56 A | S8VK-S03024 |
| 60 W | 24 V | 2.5 A | 3 A | S8VK-S06024 | |
| 120 W | 24 V | 5 A | 6 A | S8VK-S12024 | |
| 240 W | 24 V | 10 A | 15 A | S8VK-S24024 | |
| 480 W | 24 V | 20 A | 30 A | S8VK-S48024 |
Mounting Brackets
| Name | Model |
|---|---|
| Front-mounting bracket (for 30 W and 60 W models) | S82Y-VS10F |
| Side-mounting bracket (for 30 W and 60 W models) | S82Y-VS10S |
| Front-mounting bracket (for 240 W and 480 W models) | S82Y-VK10F |
Note: Be sure to use the accessory screws.
Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 N·m)
Recommended Noise Filter
Noise filter
S8V-NF
Listed on Data Sheet.
