Space-saving

Downsized Equipment and Control Panels

This new 2-ch fiber amplifier unit has two-unit functions in the dimensions of the general one-unit. You need only half the number of units, substantially contributing to downsizing your equipment and control panels. More over, you can substantially reduce the purchase cost, wiring work, and power consumption.

Stable detection

From transparent objects to low-reflective workpieces Performance with Highly Stable Detection even with Two Channels

High Performance

Technologies That Realize Basic Performance

Powerful and Uniform Emission without Lost Light [HIGH-EFFECIENCY COUPLING ELEMENT GIGA RAY2S] [PAT]

[Optical Coupling Efficiency of 40%]
Since the distance between the fiber and the LED is short, light is transmitted without loss.
The lens and reflector emit powerful, uniform emission.

Low Noise to Accurately Capture Signals [LIGHT RECEPTION ALGORITHM Smart Noise Reduction]

The influences of noise are reduced to achieve stable incident light levels by increasing the number of samples taken.
This increases the margin for threshold values to achieve stable detection.

Easy operation

With the Press of a Single Button Anyone can Easily Set the Light Intensity and Threshold Automatically

Consistent Settings for All Users Smart Tuning Settings [PAT]

Reliable function

Two Decision Support Functions to Help You

Visual Displays of the Passing Time and Difference in Incident Levels. Solution Viewer [PAT]

Visual Information for Fast Workpieces Change Finder [PAT]

You can confirm changes in displayed values for fast workpieces to accurately set the threshold.

Wire-saving and work-saving

Wire-saving Connector Models Reduce Wiring Work

Power is supplied from the Master Connector; the Slave Connectors have output lines only. Since there are no Master/Slave distinctions in amplifier units, you can unify the stock into one model type.

More Wire-saving and Improved Productivity with Network Communications

Use Sensor Communications Units to save more wiring and remotely control up to 15 amplifier units (total 30 channels). Full-view screen for 2-ch threshold and light intensity is available; Collective setting reduces equipment commissioning time. The system monitors equipment conditions for preventive maintenance, and reduces downtime in case of trouble, enabling safe and stable operation of equipment.

Easy detection

Control outputs through numerical or logical operations are possible. A Single Sensor can Handle a Wide Range of Applications

Discrimination through numerical operations

Control output through logical operations

Output of the logical operation results between 1-ch and 2-ch sensing is possible.

[Reference] Output pattern of logical operations

Outputs discriminating the combination of operational results are possible: AND operation outputs when both 1ch and 2ch are turned ON, OR operation outputs when either 1ch or 2ch is turned ON, or when both 1ch and 2ch are turned ON, and XOR operation outputs when only either 1ch or 2ch is turned ON.

last update: April 2, 2018

Purchase the OMRON Fiber Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3NX-MA Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3NX-MA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3NX-MASensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4N Safety Limit Switch/Features
V680 Series RFID System/Features
CJ1W-INT01 CJ-series Interrupt Input Units/Features
SRT2-DA02 Analog Output Terminal/Features
eCobra 600 Lite / Standard / Pro SCARA Robots/Features

OMRON E3NX-MA dimension
E3NX-MA Smart Fiber Amplifier Units/Dimensions
last update: December 1, 2017

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

Pre-wired Amplifier Units

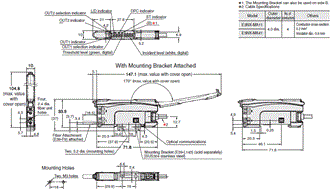

E3NX-MA11
E3NX-MA41

Amplifier Units with Wire-saving Connectors

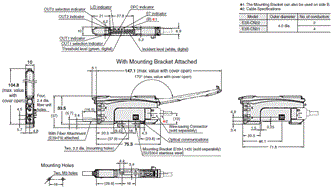

E3NX-MA6
E3NX-MA8

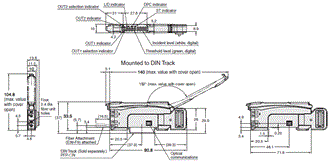

Amplifier Unit with Connector for
Sensor Communications Unit
E3NX-MA0

Accessories (Sold Separately)

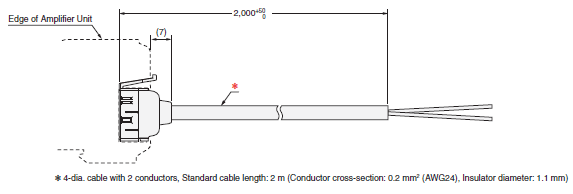

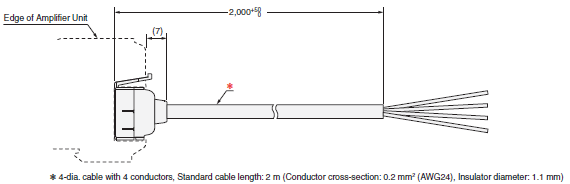

Wire-saving Connectors

Master Connector
E3X-CN21

Slave Connector
E3X-CN22

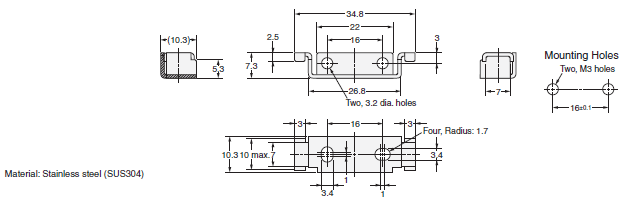

Mounting Bracket
E39-L143

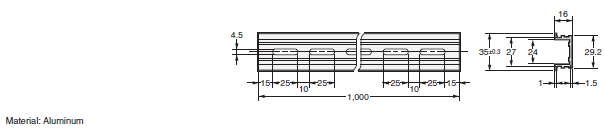

DIN Track
PFP-100N
PFP-50N

PFP-100N2

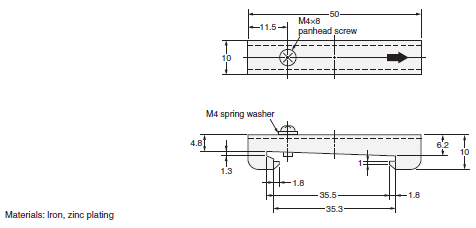

End Plate
PFP-M

last update: December 1, 2017

OMRON E3NX-MA specification
E3NX-MA Smart Fiber Amplifier Units/Specifications
last update: December 6, 2018
Ratings and Specifications

Type Standard Type Model for Sensor
Communications Unit
NPN output E3NX-MA11 E3NX-MA6 E3NX-MA0
PNP output E3NX-MA41 E3NX-MA8
Connecting method Pre-wired Wire-saving Connector Connector for Sensor
Communications Unit
Inputs/
outputs Outputs 2 outputs ---*1
External inputs --- ---
Light source (wavelength) Red, 4-element LED (625 nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p) Supplied from the connector through the Sensor Communications Unit
Power consumption *2 At Power supply voltage of 24 VDC
Normal mode: 960 mW max. (Current consumption at 40 mA max.)
Eco function ON: 770 mW max. (Current consumption at 32 mA max.)
Eco function LO: 870 mW max. (Current consumption at 36 mA max.)
Control output Load power supply voltage: 30 VDC max., open-collector output
(depends on the NPN/PNP output format)
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max.,
Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max. ---
Indicators 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange)
Protection circuits Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection Power supply reverse polarity protection and output shortcircuit protection
Response
time Super-high-speed mode (SHS) Operate or reset: 100 μs
High-speed mode (HS) Operate or reset: 450 μs
Standard mode (Stnd) Operate or reset: 1ms
Giga-power mode (GIGA) Operate or reset: 16ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units 30 With E3NW-ECT: 30 units *3
With E3NW-CCL: 16 units
No. of Units for mutual
interference prevention *4 9
Note: The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.
Functions Automatic power control (APC) Always enabled.
Dynamic power control (DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *5 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching Select from banks 1 to 4.
Power tuning Select from ON or OFF.
Output 1 Select from normal detection mode or area detection mode.
Output 2 Select from normal detection mode, AND output mode, OR output mode, XOR output mode, GAP output mode, Falling synchronization mode, Rising synchronization mode or area detection mode.
Hysteresis width Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side) Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range *6 Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C,
Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C,
Groups of 17 to 30 Amplifier Units: -25 to 40°C
Storage: -30 to 70°C
(with no icing or condensation) Operating:
Groups of 1 or 2 Amplifier Units: 0 to 55°C,
Groups of 3 to 10 Amplifier Units: 0 to 50°C,
Groups of 11 to 16 Amplifier Units: 0 to 45°C,
Groups of 17 to 30 Amplifier Units: 0 to 40°C
Storage: -30 to 70°C
(with no icing or condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude 2,000 m max.
Installation environment Pollution degree 3
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance
(destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z directions 150 m/s² for 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Weight
(packed state/Sensor only) Approx. 115 g/
approx. 75 g Approx. 60g/
approx. 20g Approx. 65 g/
approx. 25 g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

*1. Two sensor outputs are allocated in the programmable logic controller PLC I/O table.
PLC operation via Communications Unit enables reading detected values and changing settings.
*2. Power consumption
At Power supply voltage of 10 to 30 VDC
Standard Models:
Normal mode : 1080 mW max. (Current consumption: 36 mA max. at 30 VDC, 75 mA max. at 10 VDC)
Eco function ON: 840 mW max. (Current consumption: 28 mA max. at 30 VDC, 55 mA max. at 10 VDC)
Eco function LO : 960 mW max. (Current consumption: 32 mA max. at 30 VDC, 65 mA max. at 10 VDC)
*3. When connected to an OMRON NJ-series Controller.
*4. The tuning will not change the number of units.
The least unit count among the mutual interference prevention units of E3NX and E3NC.
Check the mutual interference prevention unit count and response speed of each model.
*5. The bank is not reset by the user reset function or saved by the user save function.
*6. When the number of connected units is 11 or more, the ambient temperature is less than 50°C.

Sensing Distances
Threaded Models

Sensing
method Size Sensing
direction Aperture
angle Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam M4 Right-angle 60° E32-T11N 2M 1,870 910 700 180
Straight E32-T11R 2M 1,870 910 700 180
15° E32-LT11 2M 4,000 *1 3,510 2,700 700
Right-angle E32-LT11N 2M 4,000 *1 2,990 2,300 590
Straight E32-LT11R 2M 4,000 *1 2,990 2,300 590
Reflective M3 Right-angle 60° E32-C31N 2M 100 44 32 9
E32-C21N 2M 480 190 140 43
M4 E32-D21N 2M 800 320 240 72
M6 E32-C11N 2M 740 310 240 66
15° E32-LD11N 2M 790 310 240 71
M3 Straight 60° E32-D21R 2M 130 57 40 11
E32-C31 2M 330 130 100 30
E32-C31M 1M 330 130 100 30
M4 E32-D211R 2M 130 57 40 11
M6 E32-D11R 2M 800 320 240 72
E32-CC200 2M 1,340 540 400 120
15° E32-LD11 2M 820 330 250 74
E32-LD11R 2M 790 310 240 71

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Cylindrical Models

Sensing
method Size Sensing
direction Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam 1 dia. Top-view E32-T223R 2M 520 260 150 45
1.5 dia. E32-T22B 2M 750 370 220 65
3 dia. E32-T12R 2M 1,870 910 700 180
Side-view E32-T14LR 2M 690 330 260 67
Reflective 1.5 dia. Top-view E32-D22B 2M 130 57 40 11
1.5 dia. + 0.5 dia. E32-D43M 1M 29 12 8 2
3 dia. E32-D22R 2M 130 57 40 11
E32-D221B 2M 310 120 90 26
E32-D32L 2M 680 280 200 58
3 dia. + 0.8 dia. E32-D33 2M 68 28 20 5

Flat Models

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam Top-view E32-T15XR 2M 1,870 910 700 180
Side-view E32-T15YR 2M 690 330 260 67
Flat-view E32-T15ZR 2M 690 330 260 67
Reflective Top-view E32-D15XR 2M 800 320 240 72
Side-view E32-D15YR 2M 180 76 52 16
Flat-view E32-D15ZR 2M 180 76 52 16

Sleeve Models

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam Side-view E32-T24R 2M 140 71 50 12
E32-T24E 2M 450 220 150 39
Top-view E32-T21-S1 2M 510 250 170 44
E32-TC200BR 2M 1,870 910 700 180
Reflective Side-view E32-D24R 2M 68 28 20 5
E32-D24-S2 2M 150 64 45 13
Top-view E32-D43M 1M 29 12 8 2
E32-D331 2M 13 5 4 1
E32-D33 2M 68 28 20 5
E32-D32-S1 0.5M 68 28 18 5
E32-D31-S1 0.5M 68 28 20 5
E32-DC200F4R 2M 130 57 40 11
E32-D22-S1 2M 220 96 72 19
E32-D21-S3 2M 220 96 72 19
E32-DC200BR 2M 800 320 240 72
E32-D25-S3 2M 220 96 72 19

Small-spot, Reflective Models

Type Spot
diameter Center
distance
(mm) Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Variable
spot 0.1 to 0.6 dia. 6 to 15 E32-C42 1M + E39-F3A Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to 1.6 dia. 10 to 30 E32-C42 1M + E39-F17 Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel
light 4 dia. 0 to 20 E32-C31 2M + E39-F3C Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C21N 2M + E39-F3C Spot diameter of 0.2 mm at 17 mm.
Integrated
lens 0.1 dia. 5 E32-C42S 1M Spot diameter of 0.1 mm at 5 mm.
6 dia. 50 E32-L15 2M Spot diameter of 6 mm at 50 mm.
(For all the sensing distance modes (40 to 100mm))
Small-
spot 0.1 dia. 7 E32-C41 1M + E39-F3A-5 Spot diameter of 0.1 mm at 7 mm.
0.5 dia. E32-C31 2M + E39-F3A-5 Spot diameter of 0.5 mm at 7 mm.
E32-C21N 2M + E39-F3A-5
0.2 dia. 17 E32-C41 1M + E39-F3B Spot diameter of 0.2 mm at 17 mm.
0.5 dia. E32-C31 2M + E39-F3B Spot diameter of 0.5 mm at 17 mm.
E32-C21N 2M + E39-F3B
3 dia. 50 E32-CC200 2M + E39-F18 Spot diameter of 3 mm at 50 mm.
E32-C11N 2M + E39-F18

High-power Beam Models

Type Sensing
direction Aperture
angle Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam
models with
integrated
lens Right-angle 15° E32-LT11N 2M 4,000 *2 2,990 2,300 590
Top-view 10° E32-T17L 10M 20,000 *1 20,000 *1 20,000 *1 5,200
15° E32-LT11 2M 4,000 *2 3,510 2,700 700
E32-LT11R 2M 4,000 *2 2,990 2,300 590
Side-view 30° E32-T14 2M 4,000 *2 4,000 *2 4,000 *2 1,160
Through-
beam
models with
lenses Right-angle 12° E32-T11N 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,270
6° E32-T11N 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 2,290
Top-view 12° E32-T11R 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,270
6° E32-T11R 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 2,290
Side-view 60° E32-T11R 2M + E39-F2 1,680 810 630 160
Top-view 12° E32-T11 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,630
6° E32-T11 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 2,940
Side-view 60° E32-T11 2M + E39-F2 2,170 1,050 810 210
Top-view 12° E32-T51R 2M + E39-F1 4,000 *2 2,850 2,190 570
6° E32-T51R 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 1,830
Side-view 60° E32-T51R 2M + E39-F2 1,430 690 530 130
Top-view 12° E32-T81R-S 2M + E39-F1 4,000 *2 3,270 2,520 650
6° E32-T81R-S 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 1,170
Side-view 60° E32-T81R-S 2M + E39-F2 860 420 320 84
Top-view 12° E32-T61-S 2M + E39-F1 4,000 *2 4,000 *2 4,000 *2 1,090
6° E32-T61-S 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 1,960
Side-view 60° E32-T61-S 2M + E39-F2 1,440 700 540 140
Top-view 12° E32-T51 2M + E39-F1-33 4,000 *2 2,990 2,300 590
6° E32-T51 2M + E39-F16 4,000 *2 4,000 *2 4,000 *2 3,270
Reflective
models with
integrated
lens Top-view 4° E32-D16 2M 40 to 4,000 *2 40 to 2,100 40 to 1,350 40 to 480

*1. The fiber length is 10 m on each side, so the sensing distance is given as 20,000 mm.
*2. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Narrow View Models

Sensing
method Sensing
direction Aperture
angle Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam Side-view 1.5° E32-A03 2M 3,210 1,560 1,200 310
E32-A03-1 2M 3,210 1,560 1,200 310
3.4° E32-A04 2M 1,200 580 450 110
4° E32-T24SR 2M 3,930 1,910 1,460 380
E32-T24S 2M 4,000 *1 2,270 1,740 450
E32-T22S 2M 4,000 *1 3,250 2,500 650

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Models for Detection without Background Interference

Sensing
method Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Limited-
reflective Flat-view E32-L16-N 2M 0 to 15 0 to 12
E32-L24S 2M 0 to 4
Side-view E32-L25L 2M 5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective Models)

Sensing
method Feature Size Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Retro-
reflective Film detection M3 E32-C31 2M+
E39-F3R+E39-RP37 230 200 ---
Square --- E32-R16 5M 150 to 1,500
Threaded M6 E32-R21 2M 10 to 250
Hex-shaped E32-LR11NP 2M+
E39-RP1 1,280 1,080 1,000 360

Transparent Object Detection (Limited-reflective Models)

Sensing
method Feature Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Limited-
reflective Small size Flat-view E32-L24S 2M 0 to 4
Standard E32-L16-N 2M 0 to 15 0 to 12
Glass substrate
alignment, 70°C E32-A08 2M 15 to 25 ---
Standard/
long-distance E32-A12 2M 12 to 30 ---
Side-view form Side-view E32-L25L 2M 5.4 to 9 (center 7.2)
Glass substrate
mapping, 70°C Top-view E32-A09 2M 15 to 38 ---

Chemical-resistant, Oil-resistant Models

Sensing
method Type Sensing
direction Model Sensing distance (mm)
Giga mode Standard mode High-speed
mode Super-high-
speed mode
Through-
beam Oil-resistant Right-angle E32-T11NF 2M 4,000 *1 4,000 *1 4,000 *1 1,340
Chemical/
oil-resistant Top-view E32-T12F 2M 4,000 *1 4,000 *1 4,000 *1 1,040
E32-T11F 2M 4,000 *1 3,380 2,600 670
Side-view E32-T14F 2M 1,340 650 500 130
Chemical/
oil-resistant
at 150°C Top-view E32-T51F 2M 4,000 *1 2,340 1,800 460
Reflective Semiconductors:
Cleaning,
developing,
and etching; 60°C Top-view E32-L11FP 2M 8 to 20 mm from tip of lens
(Recommended sensing distance: 11 mm),
19 to 31 mm from center of mounting hole A
(Recommended sensing distance: 22 mm)
Semiconductors:
Resist
stripping; 85°C E32-L11FS 2M 8 to 20 mm from tip of lens
(Recommended sensing distance: 11 mm),
32 to 44 mm from center of mounting hole A
(Recommended sensing distance: 35 mm)
Chemical/
oil-resistant E32-D12F 2M --- *2 170 130 39
Chemical-
resistant
cable E32-D11U 2M 800 320 240 72

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.
*2. Even if there is no sensing object, the Sensor will detect light that is reflected by the fluororesin.

Bending-resistant Models

Sensing
method Size Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam 1.5 dia. E32-T22B 2M 750 370 220 65
M3 E32-T21 2M 670 330 220 58
M4 E32-T11 2M 2,410 1,170 900 230
Square E32-T25XB 2M 500 250 170 43
Reflective 1.5 dia. E32-D22B 2M 130 57 40 11
M3 E32-D21 2M 130 57 40 11
3 dia. E32-D221B 2M 310 120 90 26
M4 E32-D21B 2M 310 120 90 26
M6 E32-D11 2M 800 320 240 72
Square E32-D25XB 2M 220 92 60 18

Heat-resistant Models

Sensing
method Heat-resistant
temperature Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam 100°C E32-T51R 2M 1,500 720 560 140
150°C E32-T51 2M 2,680 1,300 1,000 260
200°C E32-T81R-S 2M 960 460 360 93
350°C E32-T61-S 2M 1,600 780 600 150
Reflective 100°C E32-D51R 2M 640 250 190 57
150°C E32-D51 2M 1,070 430 320 96
200°C E32-D81R-S 2M 380 150 120 34
300°C E32-A08H2 2M 15 to 25 ---
E32-A09H2 2M 20 to 30 (center 25) ---
350°C E32-D61-S 2M 380 150 120 34
400°C E32-D73-S 2M 250 100 80 22

Area Detection Models

Sensing
method Type Sensing
width Model Sensing distance (mm)
Giga mode Standard mode High-speed mode Super-high-
speed mode
Through-
beam Area 11 mm E32-T16PR 2M 3,010 1,460 1,120 290
E32-T1s6JR 2M 2,610 1,260 970 250
30 mm E32-T16WR 2M 4,000 *1 2,240 1,720 440
Reflective Array 11 mm E32-D36P1 2M 670 270 200 60

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Liquid-level Detection Models

Sensing
method Tube
diameter Feature Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Tube-
mounting 3.2, 6.4,
or 9.5 dia Stable residual
quantity detection E32-A01 5M Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm,
Recommended wall thickness: 1 mm
8 to 10 dia Mounting at
multiple levels E32-L25T 2M Applicable tube: Transparent tube with a diameter of 8 to 10 mm,
Recommended wall thickness: 1 mm
No restrictions Large tubes E32-D36T 2M Applicable tube: Transparent tube (no restrictions on diameter)
Liquid contact
(heat-resistant
up to 200°C) --- --- E32-D82F1 4M Liquid-contact type

Vacuum-resistant Models

Sensing
method Heat-resistant
temperature Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Through-
beam 120°C E32-T51V 1M 690 330 260 67
E32-T51V 1M+E39-F1V 2,000 *1 1,760 1,360 350
200°C E32-T84SV 1M 1,710 830 640 160

*1. The fiber length is 1 m on each side, so the sensing distance is given as 2,000 mm.

Models for FPD, Semiconductors, and Solar Cells

Sensing
method Application Operating
temperature Model Sensing distance (mm)
Giga
mode Standard
mode High-speed
mode Super-high-
speed mode
Limited-
reflective Glass
presence
detection 70°C E32-L16-N 2M 0 to 15 0 to 12
Glass
substrate
alignment E32-A08 2M 15 to 25 ---
300°C E32-A08H2 2M 15 to 25 ---
70°C E32-A12 2M 12 to 30 ---
Glass
substrate
mapping E32-A09 2M 15 to 38 ---
300°C E32-A09H2 2M 20 to 30 (center 25) ---
Wet processes:
Cleaning, Resist
developing
and etching 60°C E32-L11FP 2M 8 to 20 mm from tip of lens
(Recommended sensing distance: 11 mm),
19 to 31 mm from center of mounting hole A
(Recommended sensing distance: 22 mm)
Wet process:
Resist
stripping 85°C E32-L11FS 2M 8 to 20 mm from tip of lens
(Recommended sensing distance: 11 mm),
32 to 44 mm from center of mounting hole A
(Recommended sensing distance: 35 mm)
Through-
beam Wafer mapping 70°C E32-A03 2M 3,210 1,560 1,200 310
E32-A03-1 2M 3,210 1,560 1,200 310
E32-A04 2M 1,200 580 450 110
E32-T24SR 2M 3,930 1,910 1,460 380
E32-T24S 2M 4,000 *1 2,270 1,740 450

*1. The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

last update: December 6, 2018

OMRON E3NX-MA lineup
E3NX-MA Smart Fiber Amplifier Units/Lineup
last update: June 15, 2018
Fiber Amplifier Units

Type Connecting
method Appearance Inputs/
outputs Model
NPN output PNP output
2-channel
models
*2 Standard Type Pre-wired (2 m) 2 outputs E3NX-MA11 E3NX-MA41
Wire-saving
Connector 2 outputs E3NX-MA6 E3NX-MA8
Model for Sensor
Communications
Unit *1 Connector for Sensor
Communications Unit --- E3NX-MA0

*1. A Sensor Communications Unit is required if you want to use the Fiber Amplifier Unit on a network.
*2. Two Fiber Units can be connected to one Fiber Amplifier Unit.

Accessories (Sold Separately)
Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately. *Protective stickers are provided.

Type Appearance Cable
length No. of
conductors Model Applicable Fiber
Amplifier Units
Master Connector 2 m 4 E3X-CN21 E3NX-MA6
E3NX-MA8
Slave Connector 2 E3X-CN22

Mounting Bracket

A Mounting Bracket is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

Appearance Model Quantity
E39-L143 1

DIN Track

A DIN Track is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

Appearance Type Model Quantity
Shallow type, total length: 1 m PFP-100N 1
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m PFP-100N2

End Plate

Two End Plates are provided with the Sensor Communications Unit. End Plates are not provided with the Fiber Amplifier Unit. They must be ordered separately as required.

Appearance Model Quantity
PFP-M 1

Related Products
Sensor Communications Units

Type Appearance Model
Sensor Communications Unit for EtherCAT E3NW-ECT
Sensor Communications Unit for CC-Link E3NW-CCL
Distributed Sensor Unit * E3NW-DS

Refer to your OMRON website for details.
* The Distributed Sensor Unit can be connected to any of the Sensor Communications Units.

EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
CC-Link is a registered trademark of Mitsubishi Electric Corporation.
The trademark is managed by the CC-Link Partner Association.

last update: June 15, 2018

OMRON E3NX-MA catalog
E3NX-MA Smart Fiber Amplifier Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E3NX-MA Data Sheet E467-E1-01
[2652KB] Dec 06, 201820181206 E3NX-MA Data Sheet

E3NX-MA Catalog E466-E1-02
[3243KB] Jun 15, 201820180615 E3NX-MA Catalog

NO. E3NX-MA

TYPE:Fiber Sensors Fiber Amplifier Copyright Statement

DATE:2021-06-07

Associated products:
E3NX-FA Smart Fiber Amplifier Units/Features E3X-HD Smart Fiber Sensor/Features

Type	Standard Type	Model for Sensor Communications Unit
NPN output	E3NX-MA11	E3NX-MA6	E3NX-MA0
PNP output	E3NX-MA41	E3NX-MA8
Connecting method	Pre-wired	Wire-saving Connector	Connector for Sensor Communications Unit
Inputs/ outputs	Outputs	2 outputs	---*1
External inputs	---	---
Light source (wavelength)	Red, 4-element LED (625 nm)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)	Supplied from the connector through the Sensor Communications Unit
*Power consumption 2**	At Power supply voltage of 24 VDC Normal mode: 960 mW max. (Current consumption at 40 mA max.) Eco function ON: 770 mW max. (Current consumption at 32 mA max.) Eco function LO: 870 mW max. (Current consumption at 36 mA max.)
Control output	Load power supply voltage: 30 VDC max., open-collector output (depends on the NPN/PNP output format) Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection	Power supply reverse polarity protection and output shortcircuit protection
Response time	Super-high-speed mode (SHS)	Operate or reset: 100 μs
High-speed mode (HS)	Operate or reset: 450 μs
Standard mode (Stnd)	Operate or reset: 1ms
Giga-power mode (GIGA)	Operate or reset: 16ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to 99%)) or manual adjustment
Maximum connectable Units	30	With E3NW-ECT: 30 units *3 With E3NW-CCL: 16 units
No. of Units for mutual interference prevention *4	9 Note: The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.
Functions	Automatic power control (APC)	Always enabled.
Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
*Resetting settings 5**	Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode	Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO (digital display dimmed).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON or OFF.
Output 1	Select from normal detection mode or area detection mode.
Output 2	Select from normal detection mode, AND output mode, OR output mode, XOR output mode, GAP output mode, Falling synchronization mode, Rising synchronization mode or area detection mode.
Hysteresis width	Select from standard setting or user setting. For a user setting, the hysteresis width can be set from 0 to 9,999.
Ambient illumination (Receiver side)	Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
*Ambient temperature range 6**	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)	Operating: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C, Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units: 0 to 40°C Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude	2,000 m max.
Installation environment	Pollution degree 3
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions	150 m/s² for 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP50 (with Protective Cover attached)
Weight (packed state/Sensor only)	Approx. 115 g/ approx. 75 g	Approx. 60g/ approx. 20g	Approx. 65 g/ approx. 25 g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

Sensing method	Size	Sensing direction	Aperture angle	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	M4	Right-angle	60°	E32-T11N 2M	1,870	910	700	180
Straight	E32-T11R 2M	1,870	910	700	180
15°	E32-LT11 2M	4,000 *1	3,510	2,700	700
Right-angle	E32-LT11N 2M	4,000 *1	2,990	2,300	590
Straight	E32-LT11R 2M	4,000 *1	2,990	2,300	590
Reflective	M3	Right-angle	60°	E32-C31N 2M	100	44	32	9
E32-C21N 2M	480	190	140	43
M4	E32-D21N 2M	800	320	240	72
M6	E32-C11N 2M	740	310	240	66
15°	E32-LD11N 2M	790	310	240	71
M3	Straight	60°	E32-D21R 2M	130	57	40	11
E32-C31 2M	330	130	100	30
E32-C31M 1M	330	130	100	30
M4	E32-D211R 2M	130	57	40	11
M6	E32-D11R 2M	800	320	240	72
E32-CC200 2M	1,340	540	400	120
15°	E32-LD11 2M	820	330	250	74
E32-LD11R 2M	790	310	240	71

Sensing method	Size	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	1 dia.	Top-view	E32-T223R 2M	520	260	150	45
1.5 dia.	E32-T22B 2M	750	370	220	65
3 dia.	E32-T12R 2M	1,870	910	700	180
Side-view	E32-T14LR 2M	690	330	260	67
Reflective	1.5 dia.	Top-view	E32-D22B 2M	130	57	40	11
1.5 dia. + 0.5 dia.	E32-D43M 1M	29	12	8	2
3 dia.	E32-D22R 2M	130	57	40	11
E32-D221B 2M	310	120	90	26
E32-D32L 2M	680	280	200	58
3 dia. + 0.8 dia.	E32-D33 2M	68	28	20	5

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Top-view	E32-T15XR 2M	1,870	910	700	180
Side-view	E32-T15YR 2M	690	330	260	67
Flat-view	E32-T15ZR 2M	690	330	260	67
Reflective	Top-view	E32-D15XR 2M	800	320	240	72
Side-view	E32-D15YR 2M	180	76	52	16
Flat-view	E32-D15ZR 2M	180	76	52	16

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Side-view	E32-T24R 2M	140	71	50	12
E32-T24E 2M	450	220	150	39
Top-view	E32-T21-S1 2M	510	250	170	44
E32-TC200BR 2M	1,870	910	700	180
Reflective	Side-view	E32-D24R 2M	68	28	20	5
E32-D24-S2 2M	150	64	45	13
Top-view	E32-D43M 1M	29	12	8	2
E32-D331 2M	13	5	4	1
E32-D33 2M	68	28	20	5
E32-D32-S1 0.5M	68	28	18	5
E32-D31-S1 0.5M	68	28	20	5
E32-DC200F4R 2M	130	57	40	11
E32-D22-S1 2M	220	96	72	19
E32-D21-S3 2M	220	96	72	19
E32-DC200BR 2M	800	320	240	72
E32-D25-S3 2M	220	96	72	19

Type	Spot diameter	Center distance (mm)	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Variable spot	0.1 to 0.6 dia.	6 to 15	E32-C42 1M + E39-F3A	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to 1.6 dia.	10 to 30	E32-C42 1M + E39-F17	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel light	4 dia.	0 to 20	E32-C31 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C21N 2M + E39-F3C	Spot diameter of 0.2 mm at 17 mm.
Integrated lens	0.1 dia.	5	E32-C42S 1M	Spot diameter of 0.1 mm at 5 mm.
6 dia.	50	E32-L15 2M	Spot diameter of 6 mm at 50 mm. (For all the sensing distance modes (40 to 100mm))
Small- spot	0.1 dia.	7	E32-C41 1M + E39-F3A-5	Spot diameter of 0.1 mm at 7 mm.
0.5 dia.	E32-C31 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.
E32-C21N 2M + E39-F3A-5
0.2 dia.	17	E32-C41 1M + E39-F3B	Spot diameter of 0.2 mm at 17 mm.
0.5 dia.	E32-C31 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.
E32-C21N 2M + E39-F3B
3 dia.	50	E32-CC200 2M + E39-F18	Spot diameter of 3 mm at 50 mm.
E32-C11N 2M + E39-F18

Type	Sensing direction	Aperture angle	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam models with integrated lens	Right-angle	15°	E32-LT11N 2M	4,000 *2	2,990	2,300	590
Top-view	10°	E32-T17L 10M	20,000 *1	20,000 *1	20,000 *1	5,200
15°	E32-LT11 2M	4,000 *2	3,510	2,700	700
E32-LT11R 2M	4,000 *2	2,990	2,300	590
Side-view	30°	E32-T14 2M	4,000 *2	4,000 *2	4,000 *2	1,160
Through- beam models with lenses	Right-angle	12°	E32-T11N 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,270
6°	E32-T11N 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,290
Top-view	12°	E32-T11R 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,270
6°	E32-T11R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,290
Side-view	60°	E32-T11R 2M + E39-F2	1,680	810	630	160
Top-view	12°	E32-T11 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,630
6°	E32-T11 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,940
Side-view	60°	E32-T11 2M + E39-F2	2,170	1,050	810	210
Top-view	12°	E32-T51R 2M + E39-F1	4,000 *2	2,850	2,190	570
6°	E32-T51R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,830
Side-view	60°	E32-T51R 2M + E39-F2	1,430	690	530	130
Top-view	12°	E32-T81R-S 2M + E39-F1	4,000 *2	3,270	2,520	650
6°	E32-T81R-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,170
Side-view	60°	E32-T81R-S 2M + E39-F2	860	420	320	84
Top-view	12°	E32-T61-S 2M + E39-F1	4,000 *2	4,000 *2	4,000 *2	1,090
6°	E32-T61-S 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,960
Side-view	60°	E32-T61-S 2M + E39-F2	1,440	700	540	140
Top-view	12°	E32-T51 2M + E39-F1-33	4,000 *2	2,990	2,300	590
6°	E32-T51 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	3,270
Reflective models with integrated lens	Top-view	4°	E32-D16 2M	40 to 4,000 *2	40 to 2,100	40 to 1,350	40 to 480

Sensing method	Sensing direction	Aperture angle	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Side-view	1.5°	E32-A03 2M	3,210	1,560	1,200	310
E32-A03-1 2M	3,210	1,560	1,200	310
3.4°	E32-A04 2M	1,200	580	450	110
4°	E32-T24SR 2M	3,930	1,910	1,460	380
E32-T24S 2M	4,000 *1	2,270	1,740	450
E32-T22S 2M	4,000 *1	3,250	2,500	650

Sensing method	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Flat-view	E32-L16-N 2M	0 to 15	0 to 12
E32-L24S 2M	0 to 4
Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)

Sensing method	Feature	Size	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Retro- reflective	Film detection	M3	E32-C31 2M+ E39-F3R+E39-RP37	230	200	---
Square	---	E32-R16 5M	150 to 1,500
Threaded	M6	E32-R21 2M	10 to 250
Hex-shaped	E32-LR11NP 2M+ E39-RP1	1,280	1,080	1,000	360

Sensing method	Feature	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Small size	Flat-view	E32-L24S 2M	0 to 4
Standard	E32-L16-N 2M	0 to 15	0 to 12
Glass substrate alignment, 70°C	E32-A08 2M	15 to 25	---
Standard/ long-distance	E32-A12 2M	12 to 30	---
Side-view form	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)
Glass substrate mapping, 70°C	Top-view	E32-A09 2M	15 to 38	---

Sensing method	Type	Sensing direction	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Oil-resistant	Right-angle	E32-T11NF 2M	4,000 *1	4,000 *1	4,000 *1	1,340
Chemical/ oil-resistant	Top-view	E32-T12F 2M	4,000 *1	4,000 *1	4,000 *1	1,040
E32-T11F 2M	4,000 *1	3,380	2,600	670
Side-view	E32-T14F 2M	1,340	650	500	130
Chemical/ oil-resistant at 150°C	Top-view	E32-T51F 2M	4,000 *1	2,340	1,800	460
Reflective	Semiconductors: Cleaning, developing, and etching; 60°C	Top-view	E32-L11FP 2M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
Semiconductors: Resist stripping; 85°C	E32-L11FS 2M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
Chemical/ oil-resistant	E32-D12F 2M	--- *2	170	130	39
Chemical- resistant cable	E32-D11U 2M	800	320	240	72

Sensing method	Size	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	1.5 dia.	E32-T22B 2M	750	370	220	65
M3	E32-T21 2M	670	330	220	58
M4	E32-T11 2M	2,410	1,170	900	230
Square	E32-T25XB 2M	500	250	170	43
Reflective	1.5 dia.	E32-D22B 2M	130	57	40	11
M3	E32-D21 2M	130	57	40	11
3 dia.	E32-D221B 2M	310	120	90	26
M4	E32-D21B 2M	310	120	90	26
M6	E32-D11 2M	800	320	240	72
Square	E32-D25XB 2M	220	92	60	18

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	100°C	E32-T51R 2M	1,500	720	560	140
150°C	E32-T51 2M	2,680	1,300	1,000	260
200°C	E32-T81R-S 2M	960	460	360	93
350°C	E32-T61-S 2M	1,600	780	600	150
Reflective	100°C	E32-D51R 2M	640	250	190	57
150°C	E32-D51 2M	1,070	430	320	96
200°C	E32-D81R-S 2M	380	150	120	34
300°C	E32-A08H2 2M	15 to 25	---
E32-A09H2 2M	20 to 30 (center 25)	---
350°C	E32-D61-S 2M	380	150	120	34
400°C	E32-D73-S 2M	250	100	80	22

Sensing method	Type	Sensing width	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	Area	11 mm	E32-T16PR 2M	3,010	1,460	1,120	290
E32-T1s6JR 2M	2,610	1,260	970	250
30 mm	E32-T16WR 2M	4,000 *1	2,240	1,720	440
Reflective	Array	11 mm	E32-D36P1 2M	670	270	200	60

Sensing method	Tube diameter	Feature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Tube- mounting	3.2, 6.4, or 9.5 dia	Stable residual quantity detection	E32-A01 5M	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm
8 to 10 dia	Mounting at multiple levels	E32-L25T 2M	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm
No restrictions	Large tubes	E32-D36T 2M	Applicable tube: Transparent tube (no restrictions on diameter)
Liquid contact (heat-resistant up to 200°C)	---	---	E32-D82F1 4M	Liquid-contact type

Sensing method	Heat-resistant temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Through- beam	120°C	E32-T51V 1M	690	330	260	67
E32-T51V 1M+E39-F1V	2,000 *1	1,760	1,360	350
200°C	E32-T84SV 1M	1,710	830	640	160

Sensing method	Application	Operating temperature	Model	Sensing distance (mm)
Giga mode	Standard mode	High-speed mode	Super-high- speed mode
Limited- reflective	Glass presence detection	70°C	E32-L16-N 2M	0 to 15	0 to 12
Glass substrate alignment	E32-A08 2M	15 to 25	---
300°C	E32-A08H2 2M	15 to 25	---
70°C	E32-A12 2M	12 to 30	---
Glass substrate mapping	E32-A09 2M	15 to 38	---
300°C	E32-A09H2 2M	20 to 30 (center 25)	---
Wet processes: Cleaning, Resist developing and etching	60°C	E32-L11FP 2M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 19 to 31 mm from center of mounting hole A (Recommended sensing distance: 22 mm)
Wet process: Resist stripping	85°C	E32-L11FS 2M	8 to 20 mm from tip of lens (Recommended sensing distance: 11 mm), 32 to 44 mm from center of mounting hole A (Recommended sensing distance: 35 mm)
Through- beam	Wafer mapping	70°C	E32-A03 2M	3,210	1,560	1,200	310
E32-A03-1 2M	3,210	1,560	1,200	310
E32-A04 2M	1,200	580	450	110
E32-T24SR 2M	3,930	1,910	1,460	380
E32-T24S 2M	4,000 *1	2,270	1,740	450

Type	Connecting method	Appearance	Inputs/ outputs	Model
NPN output	PNP output
2-channel models *2	Standard Type	Pre-wired (2 m)		2 outputs	E3NX-MA11	E3NX-MA41
Wire-saving Connector		2 outputs	E3NX-MA6	E3NX-MA8
Model for Sensor Communications Unit *1	Connector for Sensor Communications Unit		---	E3NX-MA0

Type	Appearance	Cable length	No. of conductors	Model	Applicable Fiber Amplifier Units
Master Connector		2 m	4	E3X-CN21	E3NX-MA6 E3NX-MA8
Slave Connector		2	E3X-CN22

Appearance	Model	Quantity
	E39-L143	1

Appearance	Type	Model	Quantity
	Shallow type, total length: 1 m	PFP-100N	1
Shallow type, total length: 0.5 m	PFP-50N
Deep type, total length: 1 m	PFP-100N2

Appearance	Model	Quantity
	PFP-M	1

Type	Appearance	Model
Sensor Communications Unit for EtherCAT		E3NW-ECT
Sensor Communications Unit for CC-Link		E3NW-CCL
Distributed Sensor Unit *		E3NW-DS

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E3NX-MA Data Sheet	E467-E1-01 [2652KB]	Dec 06, 201820181206	E3NX-MA Data Sheet
E3NX-MA Catalog	E466-E1-02 [3243KB]	Jun 15, 201820180615	E3NX-MA Catalog

Return to OMRON
