The NV Series of compact Programmable Terminals meet the basic needs for enhanced visibility, simplicity, and cost, and they go even further to provide superior PLC compatibility, easy operation, and cost performance.

Beautiful, Easy-to-understand Displays

Instantly know the system status
It is obvious in three color LED backlight

The monochrome models provide three backlight colors to perform status displays. For example, use green for normal operation, orange for user controls, and red for errors so that the operating status can be seen at a glance.

Easy Visual Recognition
True Type Fonts for Flexible Screen Designs

You can use True Type fonts in a wide range of sizes from 10 to 240 dots to flexibly design beautiful screens.
* The maximum font size depends on the model.

True Type Fonts

You can select the best Windows® fonts to create the desired screen images or emphasize screen appearance.

Easy Designing

The slim design of NV-series PTs requires very little installation space.
Vertical Installation

The PT can be installed vertically to enable more applications.This enables more flexible designs.

Global Application
Multi-language Support and Safety Standard Compliance

You can switch parts labels and languages. Record up to sixteen character strings in different languages and change all labels at the same time. Switching the language during operation is also very easy. International safety standards have also been met so that you can easily export equipment or transport equipment overseas.

Handle Devices from Various Manufacturers
Global Multivendor Support

You can connect the PT to OMRON or Mitsubishi Electric PLCs or to PLCs from many other global manufacturers.This lets you connect the NV-series PTs without changing the PLC. You can easily use a different PLC manufacturer for each project.

Applicable PLCs

OMRON, Mitsubishi Electric, Keyence, Hitachi, Allen-Bradley, Siemens, etc.

A Lineup of 14 Models That Form a New Standard for Small PTs

The lineup includes compact and horizontal models from 3.8-inch to 4.6-inch and QVGA models.
Select the size and price that are best for each system.

3.8 inch
Compact Horizontal Models
NV3W-V1
Monochrome TFT
Note: A 5-V model is available that can be powered from an OMRON PLC

4.6inch
Compact Horizontal Models
NV4W
Monochrome TFT

3.6 inch
QVGA Models
NV3Q
Monochrome TFT
Color TFT

last update: March 1, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON NV Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NV Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NV SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2EQ-[]-IL[] IO-Link Proximity Sensor (Spatter-resistant Models)/Features
F39-TC5 Connector Terminal Box (Muting Terminals)/Features
E5L Electronic Thermostat/Features
ZN-PD Air Particle Sensor/Features
S82S Switch Mode Power Supply (3/7.5-W Models)/Features

OMRON NV Series catalog
NV Series Programmable Terminal/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NV Series Catalog V410-E1-04
[2450KB] Oct 02, 201720171002 NV Series Catalog

OMRON NV Series dimension
NV Series Programmable Terminal/Dimensions
last update: May 19, 2016

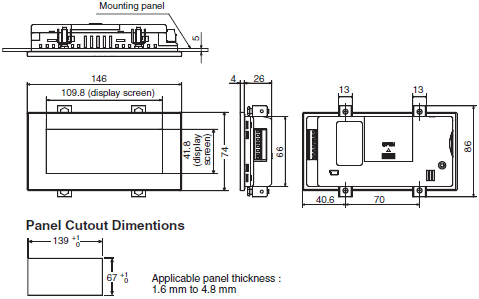

NV3W-V1

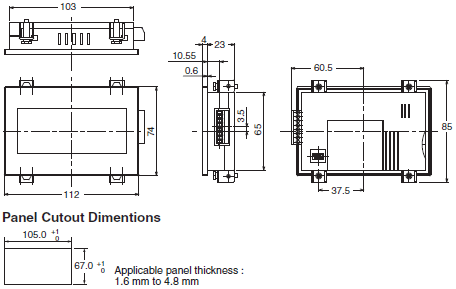

NV4W

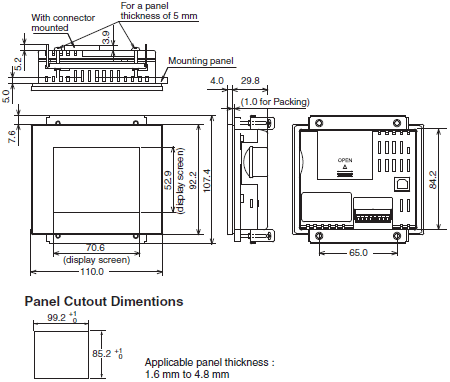

NV3Q

last update: May 19, 2016

OMRON NV Series specification
NV Series Programmable Terminal/Specifications
last update: October 2, 2017
General Specifications

Item Specifications
Model NV3W-M[]20-V1/
M[]40-V1 NV3W-M[]20L-V1 NV4W-M[]21/M[]41 NV3Q-MR[]1 NV3Q-SW[]1
Rated power supply 24 VDC 5 VDC 24 VDC
Operating voltage range 21.6 to 26.4 VDC 4.5 to 5.5 VDC 21.6 to 26.4 VDC
Current consumption 1.9 W max.
(80 mA max.) 1 W max.
(200 mA max.) 1.7 W max.
(70 mA max.) 2.4 W max.
(100 mA max.) 3.6 W max.
(150 mA max.)
Ambient operating
temperature 0 to 50°C
Ambient operating
humidity 20% to 85% (with no condensation)
Ambient storage
temperature -20 to 60°C
Ambient storage humidity 10% to 85% (with no condensation)
Dielectric strength Between the power supply terminals and the case 500 VAC for 1 min with a cutoff current
of 10 mA (at initial state)
Insulation resistance Between the power supply terminals and the case 100 MΩ (at 500 VDC) (at initial state)
Vibration resistance 5 to 8.4 Hz, 3.5-mm single
amplitude, 8.4 to 150 Hz, 9.8 m/s²,
10 times each in X, Y, and Z
directions
(1 octave/min) 5 to 9 Hz, 3.5-mm
single amplitude, 9
to 150 Hz, 9.8 m/s²,
10 times each in X,
Y, and Z directions
(1 octave/min) 10 to 55 Hz with 0.75-
amplitude for 10 min each in
X, Y, and Z directions, 1
sweep per min
Shock resistance 147m/s² 3 times each in X, Y, and Z directions 98m/s² 4 times each in X, Y,
and Z directions
Noise immunity 1,000 Vp-p with pulse widths of 50 ns and 1 μs between power supply terminals (via
simulator)
Resistance to
environment For NV3Q IP65 (at initial state), For NV3W-V1, NV4W IP67 (at initial state)
Dust proof and drip proof only from the front of the panel (using Waterproof Packing at the
contact surface with the panel)
Replace the Waterproof Packing each time you reinstall the PT.
Battery life expectancy --- Battery life expectancy: 5 yr
(at 25°C) * Battery life
expectancy:
3 yr
(at 25°C) *
Safety standards UL 508, EC Directives and KC UL 508 and EC Directives
Weight 170 g max. 240 g max. 210 g max.

* The SRAM (internal RAM) is backed up by the battery. If backing up the data is required, purchase the NV-BAT01 Battery
separately.

Performance Specifications

Item Specifications
Model NV3W-MG[][](L)-V1/
MR[][](L)-V1 NV4W-M[]21/M[]41 NV3Q-MR[]1/SW[]1
Display device TFT monochrome LCD *8 TFT monochrome LCD *9 NV3Q-MR: TFT monochrome
LCD *6
NV3Q-SW: TFT color LCD *7
Number of dots 240 × 96 dots (H × V) 320 × 120 dots (H × V) 320 × 240 dots (H × V)
Effective display size 88.5 × 35.4 mm (H × V) 109 × 41 mm (H × V) 70.6 × 52.9 mm (H × V)
Service Life 50,000 hours min. *1
Backlights NV3W-MG-V1:
LED backlights, 3 colors
(green, orange, and red)
NV3W-MR-V1:
LED backlights, 3 colors
(white, pink, and red) NV4W-MG:
LED backlights, 3 colors
(green, orange, and red)
NV4W-MR:
LED backlights, 3 colors
(white, pink, and red) NV3Q-MR:
LED backlights, 3 colors
(white, pink, and red)
NV3Q-SW:
LED backlight, 1 color (white)
Touch
switches Method Analog resistive membrane type
Operating
force 0.8 N max.
Life
expectancy 100 million operations min. (at 25°C)
Switches 50 max. per screen *2 100 max. per screen *2
Size 8 dots × 8 dots min. *3
External memory --- SD memory card (32 MB to 2 GB) *4
Manufacturers for which operation has been confirmed:
Panasonic SD standard *5
Host
commu-
nications COM Port NV3W-M[]20(L)-V1:
RS-232C (not isolated),
Transmission distance:
15 m, Connector: 8-pin
NV3W-M[]40-V1:
RS-422A/485 (not isolated),
Transmission distance:
500 m, Connector: 8-pin NV4W-M[]21:
RS-232C (not isolated),
Transmission distance: 15 m,
Connector: 8-pin
NV4W-M[]41:
RS-422A/485 (not isolated),
Transmission distance: 500 m,
Connector: 8-pin NV3Q-[]21:
RS-232C (not isolated),
Transmission distance: 15 m,
Connector: 8-pin
NV3Q-[]41:
RS-422A/485 (not isolated),
Transmission distance: 500 m,
Connector: 8-pin
Support
Software
commu-
nications USB port USB 1.1 Mini-B, Transmission distance: 5 m max. USB 1.1 TYPE-B,
Transmission distance:
5 m max.
Applicable Support
Software NV-Designer version 2.0 or
higher (NV-Designer can be
upgraded to version 2.0 by
using the CX-One Auto-
update.) NV-Designer version 1.1 or
higher (Included with CX-One
version 4.03 or in CX-One
Lite version 4.03.) NV-Designer version 1.0 or
higher (Included with CX-One
version 3.2 or in CX-One Lite
version 4.0.)

*1. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a guaranteed
value.
*2. The estimate applies to operation when only custom switches are placed on the screen.
*3. This value does not include 1-dot box of frame line.
*4. The capacity of the SD memory card is 32 MB to 1 GB for PT system program version 1.0[].
*5. SD memory cards are shipped pre-formatted from the factory, so there is normally no need to format them. If an SD
memory card is formatted with the standard formatting utility provided with a personal computer, its file system will not
conform to the SD memory card standard. Always use the formatting software provided by SD memory card makers.
*6. The display device of NV3Q-MR[]1 of the Lot No. 160430 or earlier is STN, and the Lot No. 160501 or later is TFT.
*7. The display device of NV3Q-SW[]1 of the Lot No. 110999 or earlier is STN, and the Lot No. 111000 or later is TFT.
*8. The display device of NV3W-MG[][](L)-V1/MR[][](L)-V1 of the Lot No. 161231 or earlier is STN, and the Lot No. 170101
or later is TFT.
*9. The display device of NV4W-M[]21/M[]41 of the Lot No. 170221 or earlier is STN, and the Lot No. 170222 or later is TFT.

last update: October 2, 2017

OMRON NV Series lineup
NV Series Programmable Terminal/Lineup
last update: March 1, 2017
Programmable Terminals

Product
name Specifications Model
Screen size Number of dot Communi-
cations Power
supply
voltage Backlight
NV3W-V1 3.8-in, TFT
monochrome 240 × 96 dots RS-232C 5 VDC LEDs, 3 colors
(green, orange, and red) NV3W-MG20L-V1
RS-232C 24 VDC NV3W-MG20-V1
RS-422A/485 24 VDC NV3W-MG40-V1
3.8-in, TFT
monochrome 240 × 96 dots RS-232C 5 VDC LEDs, 3 colors
(white, pink, and red) NV3W-MR20L-V1
RS-232C 24 VDC NV3W-MR20-V1
RS-422A/485 24 VDC NV3W-MR40-V1
NV4W 4.6-in, TFT
monochrome 320 × 120 dots RS-232C 24 VDC LEDs, 3 colors
(green, orange, and red) NV4W-MG21
RS-422A/485 24 VDC NV4W-MG41
4.6-in, TFT
monochrome 320 × 120 dots RS-232C 24 VDC LEDs, 3 colors
(white, pink, and red) NV4W-MR21
RS-422A/485 24 VDC NV4W-MR41
NV3Q 3.6-in, TFT
monochrome 320 × 240 dots
(QVGA) RS-232C 24 VDC LEDs, 3 colors
(white, pink, and red) NV3Q-MR21
RS-422A/485 24 VDC NV3Q-MR41
3.6-in, TFT
color 320 × 240 dots
(QVGA) RS-232C 24 VDC White LED NV3Q-SW21
RS-422A/485 24 VDC NV3Q-SW41

Programming Devices

Product
name Specifications Model
Number of
licenses Media
FA
Integrated
Tool
Package
CX-One
Lite
Ver.4.[] CX-One Lite is a subset of the complete CX-One package
that provides only the Support Software required for micro
PLC applications. *1
CX-One Lite runs on the following OS.
Windows XP (Service Pack 3 or higher, 32-bit version)/
Windows Vista (32-bit/64-bit version)/Windows 7 (32-bit/64-
bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1
(32-bit/64-bit version)/Windows 10 (32-bit/64-bit version)
CX-One Lite Ver. 4.[] includes NV-Designer Ver.1.[]. 1 license DVD CXONE-LT01D-V4
FA
Integrated
Tool
Package
CX-One
Ver.4.[] CX-One is a comprehensive software package that integrates
the Support Software for OMRON PLCs and components. *2
CX-One runs on the following OS.
Windows XP (Service Pack 3 or higher, 32-bit version)/
Windows Vista (32-bit/64-bit version)/Windows 7 (32-bit/64-
bit version)/Windows 8 (32-bit/64-bit version) / Windows 8.1
(32-bit/64-bit version)/Windows 10 (32-bit/64-bit version)
CX-One Ver. 4.[] includes NV-Designer Ver.1.[]. 1 license
*4 DVD CXONE-AL01D-V4

Note: 1. NV-Designer version 2.0 or higher is required to use the NV3W-V1.
NV-Designer version 1.0 or higher is required to use the NV3Q.
NV-Designer version 1.1 or higher is required to use the NV4W.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*1. CX-One Lite Ver.4.[] provides the following Support Software : Micro PLC Edition CX-Programmer Ver.9.[],
CX-Integrator Ver.2.[], Switch Box Utility Ver.1.[], CX-Simulator Ver.1.[], CX-Drive Ver.2.[], CX-Designer Ver.3.[],
NV-Designer Ver.1.[] or higher, CX-Thermo Ver.4.[], CX-ConfiguratorFDT Ver.1.[], Network Configurator Ver.3.[], and
CX-Server Ver.4.[].
*2. For details, refer to the CX-One Catalog (Cat. No : R134).
*3. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Options (Sold separately)

Product name Specifications Model
PT-to-PLC
Connecting Cable For the NV3W with 5-V power
(NV3W-MG20L-V1/MR20L-V1 only) Length: 2m XW2Z-200T-4 *1
For the NV3W-V1, NV4W, and NV3Q Length: 2m XW2Z-200T-3
For the NV3W-V1, NV4W, and NV3Q Length: 5m XW2Z-500T-3
Battery *2 For the NV4W and NV3Q NV-BAT01
Display Protective Sheets For the NV3W-V1, contains 10 sheets NV3W-KBA04-V1
For the NV4W, contains 10 sheets NV4W-KBA04
For the NV3Q, contains 10 sheets NV3Q-KBA04
Attachment NP3 Series to NV3Q Series NV3Q-ATT02

Note: For NV3W-V1 and NV4W, use commercially available USB cable (Mini B).
For NV3Q, use commercially available USB cable (TYPE-B).
*1. If the XW2Z-200T-4 Cable is used with the NV3W-V1, 5 V can be supplied from the CS/CJ/CP-series PLCs instead of
from an external power supply. Refer to the NV-series PT Setup Manual (Cat.No V103) for details.
*2. Cannot be used for the NV3W-V1.

last update: March 1, 2017

NO. NV Series

TYPE:Programmable Terminals Copyright Statement Copyright Statement

DATE:2021-06-08

Associated products:
NS Series Programmable Terminals/Features NS-NSRCL1 / 3 / 10 Machine Monitoring Software NS-Runtime/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
NV Series Catalog	V410-E1-04 [2450KB]	Oct 02, 201720171002	NV Series Catalog

Item	Specifications
Model	NV3W-M[]20-V1/ M[]40-V1	NV3W-M[]20L-V1	NV4W-M[]21/M[]41	NV3Q-MR[]1	NV3Q-SW[]1
Rated power supply	24 VDC	5 VDC	24 VDC
Operating voltage range	21.6 to 26.4 VDC	4.5 to 5.5 VDC	21.6 to 26.4 VDC
Current consumption	1.9 W max. (80 mA max.)	1 W max. (200 mA max.)	1.7 W max. (70 mA max.)	2.4 W max. (100 mA max.)	3.6 W max. (150 mA max.)
Ambient operating temperature	0 to 50°C
Ambient operating humidity	20% to 85% (with no condensation)
Ambient storage temperature	-20 to 60°C
Ambient storage humidity	10% to 85% (with no condensation)
Dielectric strength	Between the power supply terminals and the case 500 VAC for 1 min with a cutoff current of 10 mA (at initial state)
Insulation resistance	Between the power supply terminals and the case 100 MΩ (at 500 VDC) (at initial state)
Vibration resistance	5 to 8.4 Hz, 3.5-mm single amplitude, 8.4 to 150 Hz, 9.8 m/s², 10 times each in X, Y, and Z directions (1 octave/min)	5 to 9 Hz, 3.5-mm single amplitude, 9 to 150 Hz, 9.8 m/s², 10 times each in X, Y, and Z directions (1 octave/min)	10 to 55 Hz with 0.75- amplitude for 10 min each in X, Y, and Z directions, 1 sweep per min
Shock resistance	147m/s² 3 times each in X, Y, and Z directions	98m/s² 4 times each in X, Y, and Z directions
Noise immunity	1,000 Vp-p with pulse widths of 50 ns and 1 μs between power supply terminals (via simulator)
Resistance to environment	For NV3Q IP65 (at initial state), For NV3W-V1, NV4W IP67 (at initial state) Dust proof and drip proof only from the front of the panel (using Waterproof Packing at the contact surface with the panel) Replace the Waterproof Packing each time you reinstall the PT.
Battery life expectancy	---	Battery life expectancy: 5 yr (at 25°C) *	Battery life expectancy: 3 yr (at 25°C) *
Safety standards	UL 508, EC Directives and KC	UL 508 and EC Directives
Weight	170 g max.	240 g max.	210 g max.

Item	Specifications
Model	NV3W-MG[][](L)-V1/ MR[][](L)-V1	NV4W-M[]21/M[]41	NV3Q-MR[]1/SW[]1
Display device	TFT monochrome LCD *8	TFT monochrome LCD *9	NV3Q-MR: TFT monochrome LCD 6 NV3Q-SW: TFT color LCD 7
Number of dots	240 × 96 dots (H × V)	320 × 120 dots (H × V)	320 × 240 dots (H × V)
Effective display size	88.5 × 35.4 mm (H × V)	109 × 41 mm (H × V)	70.6 × 52.9 mm (H × V)
Service Life	50,000 hours min. *1
Backlights	NV3W-MG-V1: LED backlights, 3 colors (green, orange, and red) NV3W-MR-V1: LED backlights, 3 colors (white, pink, and red)	NV4W-MG: LED backlights, 3 colors (green, orange, and red) NV4W-MR: LED backlights, 3 colors (white, pink, and red)	NV3Q-MR: LED backlights, 3 colors (white, pink, and red) NV3Q-SW: LED backlight, 1 color (white)
Touch switches	Method	Analog resistive membrane type
Operating force	0.8 N max.
Life expectancy	100 million operations min. (at 25°C)
Switches	50 max. per screen *2	100 max. per screen *2
Size	8 dots × 8 dots min. *3
External memory	---	SD memory card (32 MB to 2 GB) 4 Manufacturers for which operation has been confirmed: Panasonic SD standard 5
Host commu- nications	COM Port	NV3W-M[]20(L)-V1: RS-232C (not isolated), Transmission distance: 15 m, Connector: 8-pin NV3W-M[]40-V1: RS-422A/485 (not isolated), Transmission distance: 500 m, Connector: 8-pin	NV4W-M[]21: RS-232C (not isolated), Transmission distance: 15 m, Connector: 8-pin NV4W-M[]41: RS-422A/485 (not isolated), Transmission distance: 500 m, Connector: 8-pin	NV3Q-[]21: RS-232C (not isolated), Transmission distance: 15 m, Connector: 8-pin NV3Q-[]41: RS-422A/485 (not isolated), Transmission distance: 500 m, Connector: 8-pin
Support Software commu- nications	USB port	USB 1.1 Mini-B, Transmission distance: 5 m max.	USB 1.1 TYPE-B, Transmission distance: 5 m max.
Applicable Support Software	NV-Designer version 2.0 or higher (NV-Designer can be upgraded to version 2.0 by using the CX-One Auto- update.)	NV-Designer version 1.1 or higher (Included with CX-One version 4.03 or in CX-One Lite version 4.03.)	NV-Designer version 1.0 or higher (Included with CX-One version 3.2 or in CX-One Lite version 4.0.)

Product name	Specifications	Model
Screen size	Number of dot	Communi- cations	Power supply voltage	Backlight
NV3W-V1	3.8-in, TFT monochrome	240 × 96 dots	RS-232C	5 VDC	LEDs, 3 colors (green, orange, and red)	NV3W-MG20L-V1
RS-232C	24 VDC	NV3W-MG20-V1
RS-422A/485	24 VDC	NV3W-MG40-V1
3.8-in, TFT monochrome	240 × 96 dots	RS-232C	5 VDC	LEDs, 3 colors (white, pink, and red)	NV3W-MR20L-V1
RS-232C	24 VDC	NV3W-MR20-V1
RS-422A/485	24 VDC	NV3W-MR40-V1
NV4W	4.6-in, TFT monochrome	320 × 120 dots	RS-232C	24 VDC	LEDs, 3 colors (green, orange, and red)	NV4W-MG21
RS-422A/485	24 VDC	NV4W-MG41
4.6-in, TFT monochrome	320 × 120 dots	RS-232C	24 VDC	LEDs, 3 colors (white, pink, and red)	NV4W-MR21
RS-422A/485	24 VDC	NV4W-MR41
NV3Q	3.6-in, TFT monochrome	320 × 240 dots (QVGA)	RS-232C	24 VDC	LEDs, 3 colors (white, pink, and red)	NV3Q-MR21
RS-422A/485	24 VDC	NV3Q-MR41
3.6-in, TFT color	320 × 240 dots (QVGA)	RS-232C	24 VDC	White LED	NV3Q-SW21
RS-422A/485	24 VDC	NV3Q-SW41

Product name	Specifications	Model
	Number of licenses	Media
FA Integrated Tool Package CX-One Lite Ver.4.[]	CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. *1 CX-One Lite runs on the following OS. Windows XP (Service Pack 3 or higher, 32-bit version)/ Windows Vista (32-bit/64-bit version)/Windows 7 (32-bit/64- bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes NV-Designer Ver.1.[].	1 license	DVD	CXONE-LT01D-V4
FA Integrated Tool Package CX-One Ver.4.[]	CX-One is a comprehensive software package that integrates the Support Software for OMRON PLCs and components. *2 CX-One runs on the following OS. Windows XP (Service Pack 3 or higher, 32-bit version)/ Windows Vista (32-bit/64-bit version)/Windows 7 (32-bit/64- bit version)/Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes NV-Designer Ver.1.[].	1 license *4	DVD	CXONE-AL01D-V4

Product name	Specifications	Model
PT-to-PLC Connecting Cable	For the NV3W with 5-V power (NV3W-MG20L-V1/MR20L-V1 only)	Length: 2m	*XW2Z-200T-4 1**
For the NV3W-V1, NV4W, and NV3Q	Length: 2m	XW2Z-200T-3
For the NV3W-V1, NV4W, and NV3Q	Length: 5m	XW2Z-500T-3
*Battery 2**	For the NV4W and NV3Q	NV-BAT01
Display Protective Sheets	For the NV3W-V1, contains 10 sheets	NV3W-KBA04-V1
For the NV4W, contains 10 sheets	NV4W-KBA04
For the NV3Q, contains 10 sheets	NV3Q-KBA04
Attachment	NP3 Series to NV3Q Series	NV3Q-ATT02

Return to OMRON

OMRON NV SeriesAutomation Systems/ Programmable Terminals/Copyright Statement

OMRON NV Series Dimensions

Beautiful, Easy-to-understand Displays

Instantly know the system statusIt is obvious in three color LED backlight

Easy Visual RecognitionTrue Type Fonts for Flexible Screen Designs

True Type Fonts

Easy Designing

The slim design of NV-series PTs requires very little installation space.Vertical Installation

Global ApplicationMulti-language Support and Safety Standard Compliance

Handle Devices from Various ManufacturersGlobal Multivendor Support

Applicable PLCs

A Lineup of 14 Models That Form a New Standard for Small PTs

Purchase the OMRON Copyright Statement Please fill in the following

OMRON NV Series catalog

English

Global Edition

OMRON NV Series dimension

NV3W-V1

NV4W

NV3Q

OMRON NV Series specification

General Specifications

Performance Specifications

OMRON NV Series lineup

Programmable Terminals

Programming Devices

Options (Sold separately)

Instantly know the system status
It is obvious in three color LED backlight

Easy Visual Recognition
True Type Fonts for Flexible Screen Designs

The slim design of NV-series PTs requires very little installation space.
Vertical Installation

Global Application
Multi-language Support and Safety Standard Compliance

Handle Devices from Various Manufacturers
Global Multivendor Support
