OMRON NS Series lineup

last update: October 1, 2018

International Standards

• The standards are availabled as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Programmable Terminals

Product name	Specifications				Model	Standards
	Effective display area	Number of dots	Ethernet	Case color
NS5-V2 *1	5.7-inch *2 TFT color LED backlight	320 × 240 dots	No	Ivory	NS5-SQ10-V2	UC1, CE, N, L, UL Type4
				Black	NS5-SQ10B-V2
			Yes	Ivory	NS5-SQ11-V2
				Black	NS5-SQ11B-V2
	5.7-inch *2 High-luminance TFT color LED backlight		No	Ivory	NS5-TQ10-V2
				Black	NS5-TQ10B-V2
			Yes	Ivory	NS5-TQ11-V2
				Black	NS5-TQ11B-V2
NS8-V2	8.4-inch *2 TFT LED backlight	640 × 480 dots	No	Ivory	NS8-TV00-V2	UC1, CE, N, L
				Black	NS8-TV00B-V2
			Yes	Ivory	NS8-TV01-V2
				Black	NS8-TV01B-V2
NS10-V2	10.4-inch *2 TFT LED backlight	640 × 480 dots	No	Ivory	NS10-TV00-V2	UC1, CE, N, L, UL Type4
				Black	NS10-TV00B-V2
			Yes	Ivory	NS10-TV01-V2
				Black	NS10-TV01B-V2
NS12-V2	12.1-inch *2 TFT LED backlight	800 × 600 dots	No	Ivory	NS12-TS00-V2
				Black	NS12-TS00B-V2
			Yes	Ivory	NS12-TS01-V2
				Black	NS12-TS01B-V2
NS15-V2	15-inch TFT	1,024 × 768 dots	Yes	Silver	NS15-TX01S-V2
				Black	NS15-TX01B-V2
NSH5-V2 *1 Hand-held	5.7-inch TFT	320 × 240 dots	No	Black (Emergency stop button: Red)	NSH5-SQR10B-V2	UC, CE
				Black (Stop button: Gray)	NSH5-SQG10B-V2

*1. As of July 2008, the image memory has been increased to 60 MB.
*2. Lot No. 15Z0 or later of NS5 color-type models, Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10
       models, Lot No. 14Z1 or later of NS12 models, Lot No. 31114K or later of NS15 models.

NS-Runtime

Product name	Specifications		Media	Model	Standards
NS-Runtime	NS-Runtime Installer, PDF manual, hardware key *	1 license	CD	NS-NSRCL1	---
		3 licenses		NS-NSRCL3
		10 licenses		NS-NSRCL10

Note: A hardware key (USB dongle) is required for NS-Runtime operation.

System Requirements

Item	Specifications
OS *	Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version)
CPU	Celeron, 1.3 GHz or higher (Recommended)
Memory size	HDD: 50 MB min., RAM: 512 MB min. (Windows 7: 1 GB min.). 50 MB is required for the Runtime alone. (An additional 280 MB is required if CX-Server is not already installed.)

* Ver. 1.30 or later of NS Runtime do not support Windows XP (Service Pack 3 or higher) and Windows Vista.

Software

How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

Item	Omron PLC System	Omron Machine Automation Controller System
Controller	CS, CJ, CP, and other series	NJ-series and NX-series
Programmable Terminals	NS-series	NS-series with an Ethernet port
Software	FA Integrated Tool Package CX-One	Automation Software Sysmac Studio

FA Integrated Tool Package CX-One

Product name	Specifications			Model	Stand- ards
		Number of licenses	Media
FA Integrated Tool Package CX-One Ver.4.[]	The CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on the following OS. Windows XP (Service Pack 3 or higher, 32-bit version)/ Windows Vista (32-bit/64-bit version)/ Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) CX-One Version 4.[] includes CX-Designer Ver.3.[]. For details, refer to the CX-One catalog (Cat. No. R134)	1 license *	DVD	CXONE-AL01D-V4	---

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product name	Specifications			Model	Stand- ards
		Number of licenses	Media
Sysmac Studio Standard Edition Ver.1.[]	The Sysmac Studio provides an integrated development environment to set up, program, debug, and maintain NJ/NX Series CPU Units, NY-series Industrial PC, Controllers and other Machine Automation Controllers, as well as EtherCAT slaves. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/ 64-bit version)/Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) The Sysmac Studio Standard Edition DVD includes Support Software to set up EtherNet/IP Units, DeviceNet slaves, Serial Communications Units, and Support Software for creating screens on HMIs (CX- Designer). Refer to your OMRON website for details.	- (Media only)	DVD	SYSMAC-SE200D	---
		1 license *	---	SYSMAC-SE201L	---

Note: To connect the NJ5 Controller, NS system version 8.5 or higher is required. CX-Designer version 3.3 or higher is
          also required.
          To connect the NJ1/NJ3 Controller, NS system version 8.61 or higher is required. CX-Designer version 3.4 or higher
          is also required.
          To connect the NX7 Controller, NS system version 8.9 or higher is required. CX-Designer version 3.64 or higher is
          also required.
          To connect the NX1 controller, NS system version 8.96 or higher is required. CX-Designer version 3.70 or higher is
          also required.
          To connect the NX1P controller, NS system version 8.93 or higher is required. CX-Desiner version 3.70 or higher is
          also required.
* Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

Cable

Product name		Specifications		Model	Stand- ards
Cable *1		Screen transfer cable for DOS/V (CX-Designer ↔ PT)	Length: 2 m	XW2Z-S002	---
		USB-Serial Conversion Cable	Length: 0.5 m	CS1W-CIF31	N
		USB relay cable	Length: 1 m	NS-USBEXT-1M	---
NSH5 Cables		RS-422A cable (loose wires + D-Sub 9-pin)	Length: 10 m	NSH5-422CW-10M
		RS-232C cable (loose wires + D-Sub 9-pin)	Length: 3 m	NSH5-232CW-3M
		RS-232C cable (loose wires + D-Sub 9-pin)	Length: 10 m	NSH5-232CW-10M
UL-compliant NSH5 Cable		RS-422A cable (loose wires)	Length: 10 m	NSH5-422UL-10M	CU
		RS-232C cable (loose wires + relay cable)	Length: 3 m	NSH5-232UL-3M
		RS-232C cable (loose wires + relay cable)	Length: 10 m	NSH5-232UL-10M
PT-to-PLC Connecting Cable *2		PT connection: 9 pins PLC connection: 9 pins	Length: 2 m	XW2Z-200T	---
			Length: 5 m	XW2Z-500T
		PT connection: 9 pins PLC peripheral port	Length: 2 m	XW2Z-200T-2
			Length: 5 m	XW2Z-500T-2
NSH5 Removable Box Cable		RS-232C Cable (connectors)	Length: 3 m	NSH5-232CN-3M
			Length: 10 m	NSH5-232CN-10M
NSH5 Removable Box		---		NSH5-AL001
NSH5 Wall-mounting Bracket		---		NSH5-ATT02
NSH5 Visor		---		NSH5-ATT01

*1. Use a standard USB Type A male to Type B type male Cable to connect the NS series PT to a personal computer
       (CX-Designer).
       We recommend that you use a USB cable with a ferrite core attached to ensure stable communications.
       (Examples: FH-VUAB from OMRON and U2C-BF series (US2-BF[][]BK) from ELECOM as of February 2016)
       Use a standard USB cable to connect the NS series PT to a PictBridge-compatible printer. USB cable type depends
       on the printer.
*2. To connect the NS series PT to NJ series Controller, using a commercially available 10/100-BASE-TX twisted-pair
       cable.
       For detail, refer to the NS series SETUP MANUAL (Cat. No.V083).

Options

Product name		Specifications		Model	Stand- ards
Video Input Unit		Inputs: 4 channels Signal type: NTSC/PAL		NS-CA001	UC1, CE
		Input channels: 2 video channels and 1 RGB channel *1 Signal type: NTSC/PAL		NS-CA002
Controller Link Interface Unit		For Controller Link Communications		NS-CLK21	UC1, CE
RS-422A Adapter		Transmission distance: 500 m total length Note: Use this model when connecting PT models without a V[] suffix. Note: PT models with the V[] suffix can also be connected.		NS-AL002	---
		Transmission distance: 50 m total length Note: Only PT models with a suffix of V[] are connectable. Use the NS-AL002 to connect models without a V[] suffix.		CJ1W-CIF11	UC1, N, L, CE
Sheet/ Cover *2		Anti-reflection Sheets (5 surface sheets)	NS15	NS15-KBA04	---
			NS12/10	NS12-KBA04
			NS8	NS7-KBA04
			NS5	NT30-KBA04
		Protective Covers (5 pack) (anti-reflection coating)	NS12/10	NS12-KBA05
			NS8	NS7-KBA05
			NS5	NT31C-KBA05
		Protective Covers (1 cover included) (Transparent)	NS15	NS15-KBA05N
		Protective Covers (5 covers included) (Transparent)	NS12/10	NS12-KBA05N
			NS8	NS7-KBA05N
			NS5	NT31C-KBA05N
Attachment		NT625C/631/631C Series to NS12/10 Series		NS12-ATT01
		NT625C/631/631C Series to NS12/NS10 Series (Black)		NS12-ATT01B
		NT610C Series to NS12/10 Series		NS12-ATT02
		NT620S/620C/600S Series to NS8 Series		NS8-ATT01
		NT600M/600G/610G/612G Series to NS8 Series		NS8-ATT02
Memory Card		128 MB		HMC-EF183
		256 MB		HMC-EF283
		512 MB		HMC-EF583
Memory Card Adapter		---		HMC-AP001	CE
Replacement Battery		Battery life: 5 years (at 25°C)		CJ1W-BAT01	---
Bar Code Reader *3		CCD handheld bar code reader (RS-232C interface)		V520-RH21-6

*1. One screen cannot display two video inputs simultaneously.
*2. A Chemical-resistant Cover (NT30-KBA01) is available only for the NS5.
*3. Bar Code Reader (V520-RH21-6) was discontinued at the end of August 2016.

last update: October 1, 2018

OMRON NS Series dimension

last update: October 12, 2012

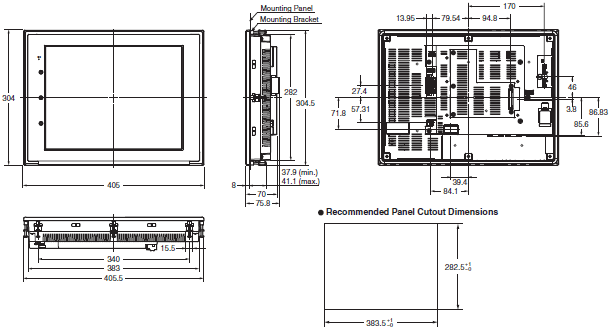

NS15

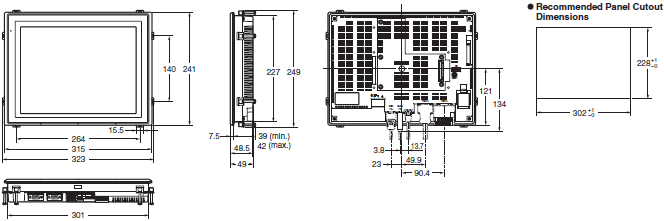

NS12/10

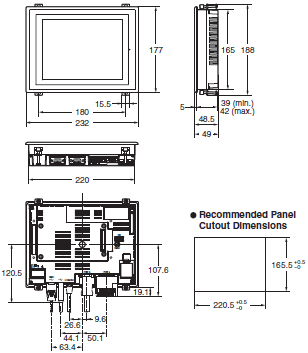

NS8

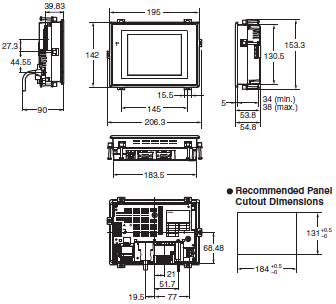

NS5

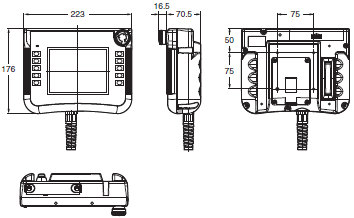

Hand-held NS5

NS-CA001
Video Input Unit

NS-CA002
Video Input Unit

NS-CLK21
Controller Link Interface Unit

last update: October 12, 2012

OMRON NS Series specification

last update: February 1, 2018

General Specifications

NS5/NS8/NS10/NS12/NS15

Series	NS5-V2	NS8-V2	NS10-V2	NS12-V2	NS15-V2
Rated power supply voltage	24 VDC
Allowable voltage range	20.4 to 27.6 VDC (24 VDC ± 15%)
Power consumption	15 W max.	25 W max.			45 W max.
Ambient operating temperature	0 to 50 °C Note: The ambient operating temperature is subject to the following restrictions according to the mounting angle. Mounting angle of 0 to 30° to the horizontal: When no Expansion Units are mounted, the operating temperature range is 0 to 45 °C. When a Video Input Unit or a Controller Link Interface Unit is mounted, the ambient operating temperature is 0 to 35 °C. Mounting angle of 30 to 90 ° to the horizontal: Operating temperature range of 0 to 50 °C
Storage temperature	-20 to 60 °C *1
Ambient operating humidity	35 to 85% (0 to 40 °C), 35 to 60% (40 to 50 °C) (with no condensation)
Operating environment	No corrosive gases.
Noise immunity	Conforms to IEC61000-4-4, 2 kV (power lines).
Vibration resistance (during operation)	10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8 m/s2 30 min each in X, Y, and Z directions				5 to 8.4 Hz, 3.5 mm single amplitude, 8.4 to 150 Hz, 9.8 m/s2 10 min times each in X, Y, and Z directions
Shock resistance (during operation)	147 m/s2 3 times each in direction of X, Y, and Z
Weight	1.0 kg max.	2.0 kg max.	2.3 kg max.	2.5 kg max.	4.2 kg max.
Degree of protection	Front operating panel: IP65 oil-proof type and NEMA4 UL type 4. *2 May not be applicable in locations with long-term exposure to oil.
Ground	Ground to 100 Ω or less.
Battery life	5 years (at 25 °C): Replace battery within 5 days after the battery runs low (indicator lights orange).
Applicable standards	Certified for conformance to UL 508, UL 1604, EMC Directive, NK, and LR Standards.

*1. Operate the PT within the temperature and humidity ranges shown in the right diagram.
*2. Support for NS5, NS10, NS12 and NS15.

NSH5 Hand-held PT

Series	NSH5-V2
Type	5.7-inch Color TFT (Hand-held Version)
Case color	Black
Built-in Ethernet port	No
Model	NSH5-SQR10B-V2 (Emergency stop button: Red)	NSH5-SQG10B-V2 (Stop button: Gray)
Rated power supply voltage	24 VDC
Allowable voltage range	20.4 to 27.6 VDC (24 VDC ±15%)
Power consumption	10 W max.
Ambient operating temperature	0 to 40°C
Storage temperature	-20 to 60°C
Ambient operating humidity	35% to 85% (0 to 40°C) with no condensation
Operating environment	No corrosive gases.
Noise immunity	Common mode: 1,000 Vp-p (between power supply terminals and panel) Normal mode: 300 Vp-p Pulse width: 100 ns to 1 μs, Rise time: 1-ns pulse
Vibration resistance (during operation)	10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8 m/s2 30 min each in X, Y, and Z directions
Shock resistance (during operation)	147 m/s2 3 times each in direction of X, Y, and Z
Weight	1 kg max.
Degree of protection	Equivalent to IP65.
Ground	Ground to 100 Ω or less.
Battery life	5 years (at 25°C): Replace battery within 5 days after the battery runs low (indicator lights orange).
Applicable standards	Certified for conformance to UL 508, EMC Directive, and EN 60204-1.

Performance/Specifications

NS5

Series		NS5-V2
Model		NS5- SQ10- V2	NS5- SQ11- V2	NS5- SQ10B- V2	NS5- SQ11B- V2	NS5- TQ10- V2	NS5- TQ11- V2	NS5- TQ10B- V2	NS5- TQ11B- V2
Built-in Ethernet port		No	Yes	No	Yes	No	Yes	No	Yes
Case color		Ivory		Black		Ivory		Black
Display device		TFT color LCD				Color High-luminance TFT *1
Effective display area		Width 117.2 × height 88.4 mm (5.7 inches)
Display colors		256 colors
Number of dots		320 dot horizontal × 240 dot vertical
View angle		Left/right: 80 ° , Top: 80 ° , Bottom: 60 °
Screen data capacity		60 Mbytes
Image data (BMP or JPG images)		32,768 colors
Memory Card		Supported
Ladder Monitor function		Not supported
Video Input Unit support		Not supported
Controller Link Interface Unit (Wired) support		Not supported
Backlight *2	Service life *3	75,000 hours min.
	Brightness adjustment	Three-level or 32-level brightness adjustment from the touch panel screen. *4
	Backlight error detection *5	Error is detected automatically, and the RUN indicator flashes green as notification.
Touch panel (matrix type)	Method	Matrix resistive membrane type
	Number of switches/ resolution	300 (20 horizontal × 15 vertical) 16 × 16 dots for each switch
	Input	Pressure-sensitive
	Service life	1,000,000 touch operations.
Display text	Labels	Can be specified in CX-Designer. Font, style, and size can be specified.
	Numerals, alarms, and character strings	Scalable Gothic: Magnification: 6 to 255 points Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 7-segment display: Can display only numerals, dates, and times.
	Supported languages (42 languages)	Scalable Gothic, rough, standard, and fine can be used for 42 languages. Japanese, simplified Chinese, traditional Chinese, Korean, English, French, German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque, Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian, Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian, Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text attributes	Color	256 colors
	Font style (only when vector font is specified)	Bold or italic
	Vertical alignment	Top, center, or bottom
	Horizontal alignment	Left-justified, centered, or right-justified
Flicker	Objects supporting flicker	Functional objects: Select from up to 10 types of registered flicker settings. The flicker speed and flicker range can be set. Fixed objects: Select from three flicker types.
Numeral units and scale settings		1.000 max.
Alarm/event settings		5,000 max.
Expansion interface		For Expansion Interface Units (Beginning with units produced in Feb. 2018, connectors are not mounted)

*1. NS5-TQ series (high luminance TFT) luminance is better than that of NS5-SQ series by about 110 cd/m².
*2. Contact your nearest OMRON representative to replace the backlight.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
       guaranteed value.
       The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
       temperatures of 0°C will reduce the service life to approximately 10,000 hours (reference value).
*4. Lot No. 15Z0 or later of NS5 models.
*5. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
       disconnection or other errors.
       Backlight error detection indicates that all backlights (2) are OFF.

NS8/NS10/NS12/NS15

Series		NS8-V2				NS10-V2
Model		NS8- TV00- V2	NS8- TV01- V2	NS8- TV00B- V2	NS8- TV01B- V2	NS10- TV00- V2	NS10- TV01- V2	NS10- TV00B- V2	NS10- TV01B- V2
Built-in Ethernet port		No	Yes	No	Yes	No	Yes	No	Yes
Case color		Ivory		Black		Ivory		Black
Display device		High-definition TFT color LCD				High-definition TFT color LCD
Effective display area		Width 170.9 × height 128.2 mm (8.4 inches)				Width 215.2 × height 162.4 mm (10.4 inches)
Display colors		256 colors
Number of dots		640 dot horizontal × 480 dot vertical
View angle		Left/right: 80°, Top: 80°, Bottom: 60° *3				Left/right: 70°, Top: 65°, Bottom: 65° *3
Screen data capacity		60 Mbytes
Image data (BMP or JPG images)		32,768 colors
Memory Card		Supported
Ladder Monitor function		Supported
Video Input Unit support		Supported (Image displayed via video input is 260,000 colors)
Controller Link Interface Unit (Wired) support		Not supported				Supported
Backlight *1	Service life *2	50,000 hours min.
	Brightness adjustment	Three-level or 32-level brightness adjustment from the touch panel screen. *3
	Backlight error detection *4	Error is detected automatically, and the RUN indicator flashes green as notification.
Touch panel (matrix type)	Method	Matrix resistive membrane type
	Number of switches/ resolution	768 (32 horizontal × 24 vertical) 20 × 20 dots for each switch				1,200 (40 horizontal × 30 vertical) 16 × 16 dots for each switch
	Input	Pressure-sensitive
	Service life	1,000,000 touch operations.
Display text	Labels	Can be specified in CX-Designer. Font, style, and size can be specified.
	Numerals, alarms, and character strings	Scalable Gothic: Magnification: 6 to 255 points Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 7-segment display: Can display only numerals, dates, and times.
	Supported languages (42 languages)	Scalable Gothic, rough, standard, and fine can be used for 42 languages. Japanese, simplified Chinese, traditional Chinese, Korean, English, French, German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque, Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian, Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian, Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text attributes	Color	256 colors
	Font style (only when vector font is specified)	Bold or italic
	Vertical alignment	Top, center, or bottom
	Horizontal alignment	Left-justified, centered, or right-justified
Flicker	Objects supporting flicker	Functional objects: Select from up to 10 types of registered flicker settings. The flicker speed and flicker range can be set. Fixed objects: Select from three flicker types.
Numeral units and scale settings		1.000 max.
Alarm/event settings		5,000 max.
Expansion interface		For Expansion Interface Units

Series		NS12-V2				NS15-V2
Model		NS12- TS00-V2	NS12- TS01-V2	NS12- TS00B- V2	NS12- TS01B- V2	NS15- TX01S-V2	NS15- TX01B-V2
Built-in Ethernet port		No	Yes	No	Yes	Yes	Yes
Case color		Ivory		Black		Silver	Black
Display device		High-definition TFT color LCD				High-definition TFT color LCD
Effective display area		Width 246.0 × height 184.5 mm (12.1 inches)				Width 304.1 × height 228.1 mm (15 inches)
Display colors		256 colors
Number of dots		800 dot horizontal × 600 dot vertical				1,024 dot horizontal × 768 dot vertical
View angle		Left/right: 80°, Top: 80°, Bottom: 80° *3				Left/right: 80 °, Top: 70 °, Bottom: 60 °
Screen data capacity		60 Mbytes
Image data (BMP or JPG images)		32,768 colors
Memory Card		Supported
Ladder Monitor function		Supported
Video Input Unit support		Supported (Image displayed via video input is 260,000 colors)				(Only RGB input is enabled.)
Controller Link Interface Unit (Wired) support		Supported
Backlight *1	Service life *2	50,000 hours min.
	Brightness adjustment	Three-level or 32-level brightness adjustment from the touch panel screen. *3
	Backlight error detection *4	Error is detected automatically, and the RUN indicator flashes green as notification.
Touch panel (matrix type)	Method	Matrix resistive membrane type				Analog resistive membrane type *5
	Number of switches/ resolution	1,900 (50 horizontal × 38 vertical) 16 × 16 dots for each switch				Resolution: 1,024 (horizontal) × 1,024 (vertical)
	Input	Pressure-sensitive
	Service life	1,000,000 touch operations.
Display text	Labels	Can be specified in CX-Designer. Font, style, and size can be specified.
	Numerals, alarms, and character strings	Scalable Gothic: Magnification: 6 to 255 points Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 7-segment display: Can display only numerals, dates, and times.
	Supported languages (42 languages)	Scalable Gothic, rough, standard, and fine can be used for 42 languages. Japanese, simplified Chinese, traditional Chinese, Korean, English, French, German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque, Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak, Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian, Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian, Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text attributes	Color	256 colors
	Font style (only when vector font is specified)	Bold or italic
	Vertical alignment	Top, center, or bottom
	Horizontal alignment	Left-justified, centered, or right-justified
Flicker	Objects supporting flicker	Functional objects: Select from up to 10 types of registered flicker settings. The flicker speed and flicker range can be set. Fixed objects: Select from three flicker types.
Numeral units and scale settings		1.000 max.
Alarm/event settings		5,000 max.
Expansion interface		For Expansion Interface Units

*1. Contact your nearest OMRON representative to replace the backlight.
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
       guaranteed value.
       The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
       temperatures of 0 °C will reduce the service life to approximately 10,000 hours (reference value).
*3. Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10 models, Lot No. 14Z1 or later of NS12 models,
       Lot No. 31114K or later of NS15 models.
*4. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
       disconnection or other errors.
       Backlight error detection indicates that all backlights (2) are OFF.
*5. An analog touch panel is used with the NS15. Do not press the touch panel in two or more places simultaneously.
       If the touch panel is pressed in two or more places simultaneously, it may activate a switch between the points that
       are pressed.

Communications

NS5/NS8/NS10/NS12/NS15

Memory Card		Interface	One ATA-Compact Flash interface slot
		Functions	Used to transfer and store screen data, store logging data, and store history data. (Alarm/Event History, Operation Log, and Error Log generated during Macro execution).
Serial Commu- nications	Port A	Connector	Conforms to EIA RS-232C. D-Sub female 9-pin connector 5-V output (250 mA max.) through pin 6. The 5-V outputs of serial ports A and B cannot be used at the same time.
		Functions	Host (PLC) access: 1:N NT Links (connections with CS/CJ/CP-series PLCs and C200HX/HG/HE(-Z) PLCs), 1:1 NT Links, or Host Link (connections with C Series or CVM1/CV-series PLCs) Direct access to Temperature Controllers using Smart Active Parts: CompoWay/F and bar code reader connections (Read directly from display.)
	Port B	Connector	Conforms to EIA RS-232C. D-Sub female 9-pin connector. 5-V output (250 mA max.) through pin 6. The 5-V outputs of serial ports A and B cannot be used at the same time.
		Functions	Host (PLC) access: 1:N NT Links (connections with CS/CJ/CP-series PLCs and C200HX/HG/HE(-Z) PLCs) or 1:1 NT Links (connections with C Series or CVM1/CV-series PLCs) Direct access to Temperature Controllers using Smart Active Parts: CompoWay / F and bar code reader connections (Read directly from display.)
USB SLAVE Specifications		USB rating	USB1.1
		Connector	TYPE-B (Slave)
		Functions	Connection with the CX-Designer (for screen data transfers) Connecting to a PictBridge-compatible Printer Recommended printers: EPSON: PM-G4500, PX-G5300, PX-5600, EP-901F Canon: PIXUS MX7600, PIXUS iP100, PIXUS iX5000
USB HOST Specifications *1		USB rating	USB1.1
		Connector	TYPE-A (Host)
		Functions	Connection with a printer (for hard copies) Recommended printers: EPSON: PX-G930
Built-in Ethernet Specifications *2		Conformance standards	Conforms to IEEE 802.3/Ethernet (10 Base-T/100 Base-TX).
		Functions	Host (PLC) access and connection with the CX-Designer (for screen data transfers)
Controller Link (Wired-type) Specifications *3		Baud rate	2 M/1 M/500 K bps
		Transmission path	Shielded twisted-pair cable (special cable)
		Functions	Host (PLC) access and data links
Video Input Specifications *4		Resolution	NS-CA001: 320×240, 640×480, 800×600 dots NS-CA002: User-defined size
		Input signal	NS-CA001: NTSC composite video or PAL NS-CA002: NTSC composite video or PAL
		Number of video inputs	NS-CA001: Number of cameras: 4 max. NS-CA002: 2 cameras + RGB

*1. Except NS5.
*2. NS[]-[][][]1-V2 only.
*3. Except NS5 and NS8.
*4. Except NS5 and NS15. NS15 provides RGB input. (NS-CA002)

last update: February 1, 2018

OMRON NS Series catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
NS Series Catalog	V405-E1-16 [35366KB]	Oct 01, 201820181001	NS Series Catalog
HMC-EF183 Data Sheet	- [232KB]	Jun 06, 201220120606	HMC-EF183 Data Sheet

• NO. NS Series
• TYPE:Programmable Terminals Copyright Statement Copyright Statement
• DATE:2021-06-08
• Associated products:
  NB Series Programmable Terminals/Features NV Series Programmable Terminal/Features
