OMRON EE-SX97Sensors/ Photomicro Sensors/Slot-type
OMRON EE-SX97 Sensors
OMRON EE-SX97 Dimensions
/Images/l_2716-25-118812-198x198.jpglast update: December 19, 2013
Built-in Connector for Downsizing and Easier Connection
A built-in connector minimizes the shape and dimensional requirements. And wiring costs can be reduced by using commercially available connectors.
Safer Operation with Built-in Power Supply Reverse Polarity Protection
The built-in power supply reverse polarity protection protects against reverse connection of the power supply or outputs for safer operation at the assembly site.
Easy-to-see Indicator
The indicator can be seen from up to four directions to enable installation in more locations.
Built-in Thermal Shutdown Circuit
Control output 2 on models with NPN outputs is protected from output overcurrents by a built-in thermal shutdown circuit.
Two Outputs: Light-ON and Dark-ON
All models provide both a light-ON and dark-ON output so that the output can be switched according to the application simply by changing the wiring.
last update: December 19, 2013
Purchase the OMRON Slot-type Please fill in the following
If you have just landed here, this product OMRON EE-SX97 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SX97 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SX97Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
PYF-[][]-PU / P2RF-[][]-PU Sockets with Push-In Plus technology/Features
G3TA Solid State Relays/Features
NJ NJ Overview/Features
SmartController EX Robot Controllers/Features
XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Features
OMRON EE-SX97 dimension

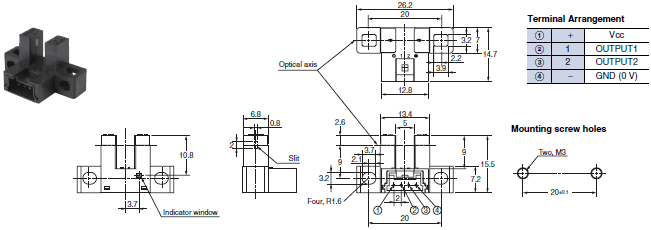

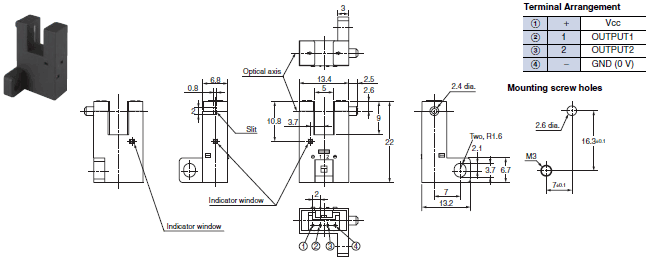

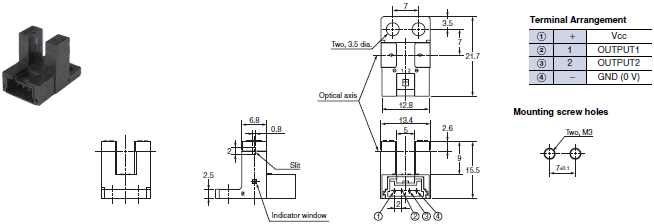

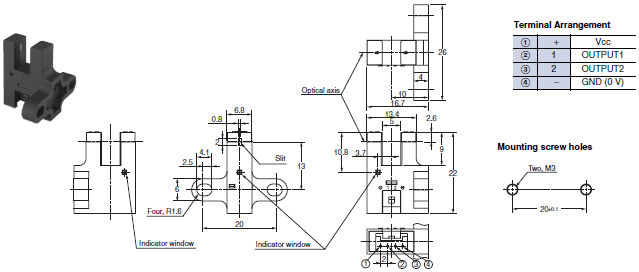

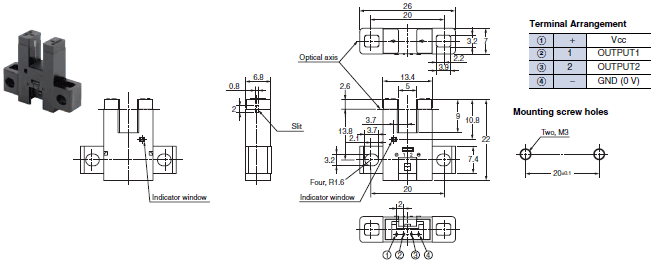

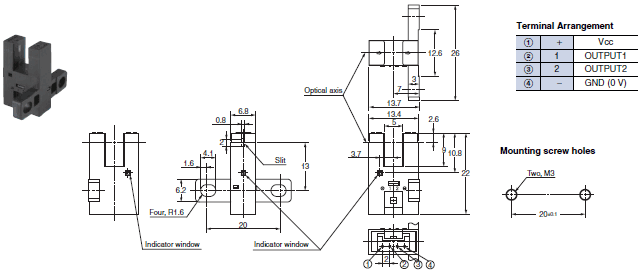

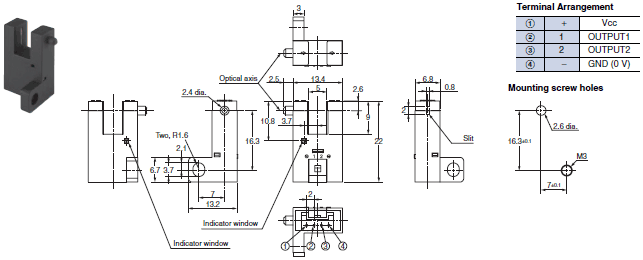

EE-SX97 Slot-type Photomicrosensor/Dimensionslast update: December 19, 2013
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors
EE-SX970-C1
EE-SX970P-C1
EE-SX971-C1
EE-SX971P-C1
EE-SX972-C1
EE-SX972P-C1
EE-SX974-C1
EE-SX974P-C1
EE-SX975-C1
EE-SX975P-C1
EE-SX976-C1
EE-SX976P-C1
EE-SX977-C1
EE-SX977P-C1
Accessories (Order Separately)
Connector
Connector with Cable
EE-1017
Connector with Robot Cable
EE-1017-R
last update: December 19, 2013
OMRON EE-SX97 specification
EE-SX97 Slot-type Photomicrosensor/Specificationslast update: August 06, 2013
| Type | Standard | L-shaped | T-shaped, slot center 7 mm | Close- mounting | T-shaped, slot center 10 mm | F-shaped | R-shaped | |
|---|---|---|---|---|---|---|---|---|
| NPN | EE- SX970-C1 | EE- SX971-C1 | EE- SX972-C1 | EE- SX974-C1 | EE- SX975-C1 | EE- SX976-C1 | EE- SX977-C1 | |
| PNP | EE- SX970P- C1 | EE- SX971P- C1 | EE- SX972P- C1 | EE- SX974P- C1 | EE- SX975P- C1 | EE- SX976P- C1 | EE- SX977P- C1 | |
| Sensing distance | 5 mm (slot width) | |||||||
| Sensing object | Opaque: 2 × 0.8 mm min. | |||||||
| Differential distance | 0.025 mm max. *1 | |||||||
| Light source (Peak wavelength) | Infrared LED with a peak wavelength of 940 nm | |||||||
| Indicator | Light indicator (orange LED) | |||||||
| Supply voltage | 5 to 24 VDC ±10%, ripple (p-p): 10% max. | |||||||
| Current consumption | 21 mA max. | |||||||
| Control output | Load power supply voltage: 5 to 24 VDC, Load current: 50 mA max., Off-state current: 0.5mA max, 50 mA load current with a residual voltage of 1.0 V max., 5 mA load current with a residual voltage of 0.4 V max. | |||||||
| Protection circuit | Power supply reverse polarity protection; output reverse polarity protection; overcurrent protection (only OUT2 on models with NPN output) | |||||||
| Response frequency | 1 kHz min. (3 kHz average) *2 | |||||||
| Ambient illumination | 1,000 lx max. with fluorescent light on the surface of the receiver | |||||||
| Ambient temperature range | Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation) | |||||||
| Ambient humidity range | Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation) | |||||||
| Vibration resistance (Destruction) | 10 to 2,000 Hz 0.75-mm single amplitude (15-min periods, 10 cycles) each in X, Y, and Z directions | |||||||
| Shock resistance (Destruction) | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |||||||
| Degree of protection | IEC 60529 IP50 | |||||||
| Connecting method | Connector | |||||||
| Weight (Packed state) | Approx. 3 g | |||||||
| Materia | Case/Cover | Polybutylene terephthalate (PBT) | ||||||
| Emitter/ receiver | Polycarbonate (PC) | |||||||
*1. The differential distance is the value when a sensing object is moved in a lateral direction to the slot.
*2. The response frequency was measured by detecting the following rotating disk.
Connector
| Product | Connector with Cable | Connector with Robot Cable | |
|---|---|---|---|
| Model | EE-1017 | EE-1017-R | |
| Appearance |  | ||
| Contact resistance | 25 mΩ max. (at 10 mA DC and 20 mV max.) | ||
| Insertion strength | 20 N max. | ||
| Surplus strength | 1.5 N min. | ||
| Cable length | 1 m, 3 m | ||
| Ambient temperature range | -10 to +60°C | ||
| Materials | Housing | Nylon | |
| Contact | Phosphor bronze | ||
last update: August 06, 2013
OMRON EE-SX97 catalog
EE-SX97 Slot-type Photomicrosensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 EE-SX97 Data Sheet | - [1194KB] | Aug 24, 201220120824 | EE-SX97 Data Sheet |
OMRON EE-SX97 lineup
EE-SX97 Slot-type Photomicrosensor/Lineuplast update: August 06, 2013
Sensors
| Appearance | Sensing method | Con- necting method | Sensing distance | Operating mode | Indicator mode | Model | ||
|---|---|---|---|---|---|---|---|---|
| NPN output | PNP output | |||||||
| Standard |  | Through- beam type (with slot) | Connector model (4 poles) | 5 mm (slot width) (Infrared light) | Dark-ON/ Light-ON (2 outputs) | Incident light | EE-SX970-C1 | EE-SX970P-C1 |
| L-shaped |  | EE-SX971-C1 | EE-SX971P-C1 | |||||
| T-shaped, slot center 7 mm |  | EE-SX972-C1 | EE-SX972P-C1 | |||||
| Close- mounting |  | EE-SX974-C1 | EE-SX974P-C1 | |||||
| T-shaped, slot center 10 mm |  | EE-SX975-C1 | EE-SX975P-C1 | |||||
| F-shaped |  | EE-SX976-C1 | EE-SX976P-C1 | |||||
| R-shaped |  | EE-SX977-C1 | EE-SX977P-C1 | |||||
Accessories (Order Separately)
| Type | Cable length | Model |
|---|---|---|
| Connector with Cable | 1 m | EE-1017 1M |
| 3 m | EE-1017 3M | |
| Connector with Robot Cable | 1 m | EE-1017-R 1M |
| 3 m | EE-1017-R 3M |
last update: August 06, 2013
- NO. EE-SX97
- TYPE:Photomicro Sensors Slot-type
Copyright Statement - DATE:2021-06-08
