last update: November 1, 2018

New Value For Control Panels

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.

*1 Value Design for Panel
Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

Push-In Plus technology for Easy Wiring

Just Insert Wires: No Tools Required
Now you can use Push-In Plus technology to reduce the time and work involved in wiring.

Greatly Reduce Wiring Work with Push-In Plus technology

Screwdriver Held in Place to Free Both Your Hands

Optimized shape to hold the screwdriver was created by the resin parts and the spring.
Work goes smoothly when connecting stranded wires directly to the terminal because it’s easier to aim at the desired terminal.

Easy to Insert

OMRON’s Push-In Plus technology are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.

Held Firmly in Place

Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism design technology and manufacturing technology produced a spring that ensures better workability and reliability. The same strength as screw terminal blocks is provided.

No Retightening Required

Tightening screws is necessary for screw terminal blocks, but with Push-In Plus technology, there is no need for retightening. This reduces works for wirings, inspections, delivery (shipping), or maintenance.

Installation with Either Top or Bottom Facing Up for More Flexible In-panel Designing

There are no installation direction restrictions, which enables flexible, efficient wiring inside panels.

Sockets with Push-In Plus technology Features

Standard-feature Release Levers

All Sockets with Push-In Plus technology come with release levers as standard for easy Relay locking and releasing.

Certified for Main Safety Standards

Globally applicable design for reliable use in most countries around the world.

last update: November 1, 2018

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON PYF-[][]-PU / P2RF-[][]-PU Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the PYF-[][]-PU / P2RF-[][]-PU We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON PYF-[][]-PU / P2RF-[][]-PUPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

R88M-G, R88D-GN[]-ML2 G-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communic...
H7CN Solid-state Counter/Features
CK3E Programmable Multi-Axis Controller/Features
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Featu...
VT-S500-02 Inline PCB inspection system/Features

OMRON PYF-[][]-PU / P2RF-[][]-PU catalog
PYF-[][]-PU / P2RF-[][]-PU Sockets with Push-In Plus technology/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

PYF-[][]-PU/P2RF-[][]-PU Data Sheet J212-E1-02
[1543KB] Dec 14, 201820181214 PYF-[][]-PU/P2RF-[][]-PU Data Sheet

Push-In Plus Terminal Block Series Pamphlet J213-E1-05
[7147KB] Nov 01, 201820181101 Push-In Plus Terminal Block Series Pamphlet

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

OMRON PYF-[][]-PU / P2RF-[][]-PU dimension
PYF-[][]-PU / P2RF-[][]-PU Sockets with Push-In Plus technology/Dimensions
last update: November 1, 2018

(Unit: mm)

Sockets
PYF-08-PU(-L)

* The PYF-08-PU-L Sockets do not have release levers.

PYF-14-PU(-L)

* The PYF-14-PU-L Sockets do not have release levers.

Mounting Heights
PYF-08-PU

PYF-14-PU

P2RF-05-PU

P2RF-08-PU

Mounting Heights

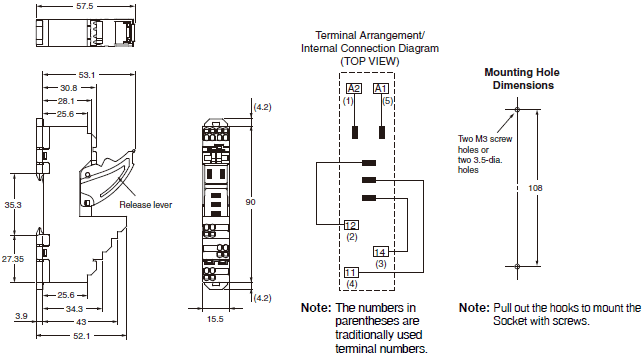

P2RF-05-PU

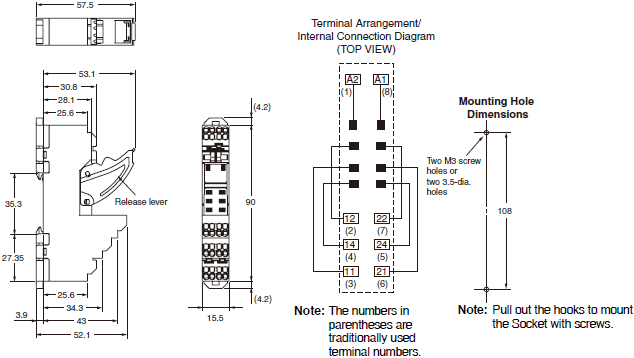

P2RF-08-PU

Short Bars
PYDN-7.75-[][] (7.75 mm)

PYDN-31.0-080[] (31mm)

PYDN-15.5-080[] (15.5mm)

* Replace the box ([]) in the model number with the code for the covering color.
Note: 1. Use the Short Bars for crossover wiring within one Socket or between Sockets.
2. When using short bar to coil terminals of PYF-[][]-PU, make sure to use PYDN-31.0-080[] (31 mm).
When using short bar to coil terminals of P2RF-[][]-PU, make sure to use PYDN-15.5-080[] (15.5 mm).

last update: November 1, 2018

OMRON PYF-[][]-PU / P2RF-[][]-PU lineup
PYF-[][]-PU / P2RF-[][]-PU Sockets with Push-In Plus technology/Lineup
last update: November 1, 2018
Sockets
PYF Series

Applicable model (typical example) Socket
No. of poles Model *
General Purpose Relays MY Series MY2[]
MY2IN(S) 2 PYF-08-PU
MY4[]
MY4H
MYQ4[]
MY4[](S)
MY2K 4 PYF-14-PU
SSR G3FM Series G3FM 1 PYF-08-PU
G3F/G3FD Series G3F
G3FD
Timers H3Y Series
H3YN Series H3Y(N)-2-B 2 PYF-08-PU-L
H3Y(N)-4-B 4 PYF-14-PU-L

* The PYF-[][]-PU-L Sockets do not have release levers.

P2RF Series

Applicable model (typical example) Socket
No. of poles Model
General Purpose Relays G2R-[]-S (S) Series G2R-1-S (S) 1 P2RF-05-PU
SSR G3R-I/O Series G3R
G3RZ Series G3RZ
Timers H3RN Series H3RN-1-B
General Purpose Relays G2R-[]-S (S) Series G2R-2-S (S) 2 P2RF-08-PU
Timers H3RN Series H3RN-2-B
Liquid Leakage Sensors K7L Series K7L-[]B

Accessories (Order Separately)
Short Bars

Pitch Applicable
models No. of poles Colors Model * Minimum order
(quantity)
7.75 mm PYF-[][]-PU and
P2RF-[][]-PU 2 Red (R)
Blue (S)
Yellow (Y) PYDN-7.75-020[] 10
3 PYDN-7.75-030[]
4 PYDN-7.75-040[]
20 PYDN-7.75-200[]
31.0 mm PYF-[][]-PU 8 PYDN-31.0-080[]
15.5 mm P2RF-[][]-PU 8 PYDN-15.5-080[]

Note: Use the Short Bars for crossover wiring within one Socket or between Sockets.
* Replace the box ([]) in the model number with the code for the covering color.

Labels

Applicable models Model Minimum order
(sheet)
(quantity per sheet)
PYF-[][]-PU and
P2RF-[][]-PU XW5Z-P4.0LB1 5
(1 sheet/60 pieces)

Parts for DIN Track Mounting

Type Model Minimum order (quantity)
DIN Tracks 1 m PFP-100N 1
0.5 m PFP-50N
End Plate * PFP-M 10
Spacer PFP-S

* When mounting DIN rail, please use End Plate (Model PFP-M).

last update: November 1, 2018

OMRON PYF-[][]-PU / P2RF-[][]-PU specification
PYF-[][]-PU / P2RF-[][]-PU Sockets with Push-In Plus technology/Specifications
last update: November 1, 2018
Characteristics
Sockets
PYF-[][]-PU(-L)

Item PYF-08-PU (-L) PYF-14-PU (-L)
Ambient operating temperature -40 to 70°C
Ambient operating humidity 5 to 85%
Continuous carry current * 10 A 6 A
Dielectric
strength Between contact terminals of same polarity 2,000 VAC, 1 min 2,000 VAC, 1 min
Between contact terminals of different polarity 2,000 VAC, 1 min 2,000 VAC, 1 min
Between coil and contact terminals 2,000 VAC, 1 min 2,000 VAC, 1 min
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Weight (approx.) 80 g 87 g

* The continuous carry current of 10 A for PYF-08-PU(-L) is for an ambient temperature of 55°C. At an ambient
   temperature of 70°C, the value is 7 A.

P2RF-[][]-PU

Item P2RF-05-PU P2RF-08-PU
Ambient operating temperature -40 to 70°C
Ambient operating humidity 5 to 85%
Continuous carry current * 10 A 6 A
Dielectric
strength Between contact terminals of same polarity 1,000 VAC, 1 min 1,000 VAC, 1 min
Between contact terminals of different polarity --- 3,000 VAC, 1 min
Between coil and contact terminals 4,000 VAC, 1 min 4,000 VAC, 1 min
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Weight (approx.) 40 g 45 g

* The continuous carry current of 10 A for P2RF-05-PU is for an ambient temperature of 55°C. At an ambient temperature
   of 70°C, the value is 7 A. The continuous carry current of 6 A for P2RF-08-PU is for an ambient temperature of 55°C. At
   an ambient temperature of 70°C, the value is 5 A.

Accessories (Order Separately)
Short Bars

Application Applicable
sockets Model Maximum
carry current Ambient
operating
temperature Ambient
operating
humidity
For Contact terminals
(common) PYF-08-PU(-L)
PYF-14PU(-L)
P2RF-05-PU
P2RF-08-PU PYDN-7.75-020[] 20 A -40 to 70°C 5 to 85% Rh
PYDN-7.75-030[]
PYDN-7.75-040[]
PYDN-7.75-200[]
For Coil terminals PYF-08-PU(-L)
PYF-14PU(-L) PYDN-31.0-080[] 20 A -40 to 70°C 5 to 85% Rh
P2RF-05-PU
P2RF-08-PU PYDN-15.5-080[] 20 A -40 to 70°C 5 to 85% Rh

Approved Standards
CSA certification (File No. LR031928)

Model Ratings Class No. Standard No.
PYF-08-PU 10 A 250 V 3211 07 CSA C22.2 No14
PYF-14-PU 6 A 250 V *

* When power is supplied to all four poles, use with a total power current that does not exceed 20 A.

UL standard certification (File No. E87929)

Model Ratings Standard No. Category Listed/Recognized
PYF-08-PU 10 A 250 V UL508 SWIV2 Recognized
PYF-14-PU 6 A 250 V *

* When power is supplied to all four poles, use with a total power current that does not exceed 20 A.

TÜV Rheinland certification

Model Ratings Standard No. Certification No.
PYF-08-PU 10 A 250 V * EN 61984 R50327595
PYF-14-PU 6 A 250 V

* Ratings are for an ambient temperature of 55°C. At an ambient temperature of 70°C, the value is 7 A.

last update: November 1, 2018

NO. PYF-[][]-PU / P2RF-[][]-PU

TYPE:Common Accessories Copyright Statement Copyright Statement

DATE:2021-06-08

Associated products:
MX-Z2000H Series Fiber Laser Marker/Features PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
PYF-[][]-PU/P2RF-[][]-PU Data Sheet	J212-E1-02 [1543KB]	Dec 14, 201820181214	PYF-[][]-PU/P2RF-[][]-PU Data Sheet
Push-In Plus Terminal Block Series Pamphlet	J213-E1-05 [7147KB]	Nov 01, 201820181101	Push-In Plus Terminal Block Series Pamphlet
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building

Applicable model (typical example)	Socket
No. of poles	Model *
General Purpose Relays	MY Series	MY2[] MY2IN(S)	2	PYF-08-PU
MY4[] MY4H MYQ4[] MY4[](S) MY2K	4	PYF-14-PU
SSR	G3FM Series	G3FM	1	PYF-08-PU
G3F/G3FD Series	G3F
G3FD
Timers	H3Y Series H3YN Series	H3Y(N)-2-B	2	PYF-08-PU-L
H3Y(N)-4-B	4	PYF-14-PU-L

Applicable model (typical example)	Socket
No. of poles	Model
General Purpose Relays	G2R-[]-S (S) Series	G2R-1-S (S)	1	P2RF-05-PU
SSR	G3R-I/O Series	G3R
G3RZ Series	G3RZ
Timers	H3RN Series	H3RN-1-B
General Purpose Relays	G2R-[]-S (S) Series	G2R-2-S (S)	2	P2RF-08-PU
Timers	H3RN Series	H3RN-2-B
Liquid Leakage Sensors	K7L Series	K7L-[]B

Pitch	Applicable models	No. of poles	Colors	Model *	Minimum order (quantity)
7.75 mm	PYF-[][]-PU and P2RF-[][]-PU	2	Red (R) Blue (S) Yellow (Y)	PYDN-7.75-020[]	10
3	PYDN-7.75-030[]
4	PYDN-7.75-040[]
20	PYDN-7.75-200[]
31.0 mm	PYF-[][]-PU	8	PYDN-31.0-080[]
15.5 mm	P2RF-[][]-PU	8	PYDN-15.5-080[]

Applicable models	Model	Minimum order (sheet) (quantity per sheet)
PYF-[][]-PU and P2RF-[][]-PU	XW5Z-P4.0LB1	5 (1 sheet/60 pieces)

Type	Model	Minimum order (quantity)
DIN Tracks	1 m	PFP-100N	1
0.5 m	PFP-50N
End Plate *	PFP-M	10
Spacer	PFP-S

Item	PYF-08-PU (-L)	PYF-14-PU (-L)
Ambient operating temperature	-40 to 70°C
Ambient operating humidity	5 to 85%
Continuous carry current *	10 A	6 A
Dielectric strength	Between contact terminals of same polarity	2,000 VAC, 1 min	2,000 VAC, 1 min
Between contact terminals of different polarity	2,000 VAC, 1 min	2,000 VAC, 1 min
Between coil and contact terminals	2,000 VAC, 1 min	2,000 VAC, 1 min
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Weight (approx.)	80 g	87 g

Item	P2RF-05-PU	P2RF-08-PU
Ambient operating temperature	-40 to 70°C
Ambient operating humidity	5 to 85%
Continuous carry current *	10 A	6 A
Dielectric strength	Between contact terminals of same polarity	1,000 VAC, 1 min	1,000 VAC, 1 min
Between contact terminals of different polarity	---	3,000 VAC, 1 min
Between coil and contact terminals	4,000 VAC, 1 min	4,000 VAC, 1 min
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Weight (approx.)	40 g	45 g

Application	Applicable sockets	Model	Maximum carry current	Ambient operating temperature	Ambient operating humidity
For Contact terminals (common)	PYF-08-PU(-L) PYF-14PU(-L) P2RF-05-PU P2RF-08-PU	PYDN-7.75-020[]	20 A	-40 to 70°C	5 to 85% Rh
PYDN-7.75-030[]
PYDN-7.75-040[]
PYDN-7.75-200[]
For Coil terminals	PYF-08-PU(-L) PYF-14PU(-L)	PYDN-31.0-080[]	20 A	-40 to 70°C	5 to 85% Rh
P2RF-05-PU P2RF-08-PU	PYDN-15.5-080[]	20 A	-40 to 70°C	5 to 85% Rh

Model	Ratings	Class No.	Standard No.
PYF-08-PU	10 A 250 V	3211 07	CSA C22.2 No14
PYF-14-PU	6 A 250 V *

Model	Ratings	Standard No.	Category	Listed/Recognized
PYF-08-PU	10 A 250 V	UL508	SWIV2	Recognized
PYF-14-PU	6 A 250 V *

Model	Ratings	Standard No.	Certification No.
PYF-08-PU	10 A 250 V *	EN 61984	R50327595
PYF-14-PU	6 A 250 V
