OMRON FL Series Dimensions

/Images/l_3040-25-118835-198x198.jpg

last update: August 1, 2018

MDMC Light
FL-MD Series

• Combination of illumination directions, colors, and light intensities.

• Flexible illumination patterns for additional objects or inspection items.

Illumination Structure

Applications

Photometoric Stereo Light
FL-PS Series

• Captures images under different illumination directions to extract “characters” and “scratches and dents“.

Illumination Structure

Four lights are lit in turn, and variations in brightness are analyzed.
Printed characters with little variation in brightness even under different illumination directions are extracted as texture, and a dent with huge variation in brightness is extracted as a shape.

Applications

Inspection of dents on characters

Bar Light
FL-BR Series

• High-brightness ODR lighting beyond the limitations of LEDs.
• Stable inspection even for high-speed applications.
• Bright even through a polarizing filter.
• Easy wiring, mounting, and adjustment.

Wiring

The cable can extend from either direction, allowing for horizontal or vertical wiring layouts on the mounting surface.

Mounting and Adjustment

The light is structured for mounting with nuts to an arm on the back or side surfaces.
Minute changes in the position can be achieved by sliding the light.

Specialized mounting brackets enable mounting at a flexible angle.

Illumination Structure

Lighting Intensity Distribution Characteristics

Applications

Direct Ring Light
FL-DR Series

• High brightness in a small package.
•Wide range of working distance.

Illumination Structure

Lighting Intensity Distribution Characteristics

Applications

Camera-mount Lighting Controller for FL Series
FL-TCC Series

• No separate power supply is required because the power is supplied from the Camera.
• Light is emitted when a trigger signal is received from the Camera.
• Simple connection between the Camera and the Lighting with a single cable.

Digital Lighting Controller for FL series
FL-STC Series

Easy Control and Adjustment of the Lighting

With a compact design small enough to fit in the palm of your hand, the Controller can be built into the control panel or in the gap between production lines.
By using the longest lighting cable in the industry (25 m), the Controller can be installed along with the image processing monitor in a variety of locations. It is possible to adjust the lighting while looking at the screen.

Connect to a Remote Control Panel

Mount to a DIN Rail underneath the Line or in the Gap between Tables

Lighting Control without Programming

This enables light emission synchronized with the camera using essentially any trigger, such as a photoelectric sensor.
The Controller can be connected to an image processing device to control lighting without any programming on a PLC.

[ Control Output ]
• PNP/NPN models
• Power source: 24 V

[ Lighting Emission Controls ]
• Lighting triggers can be used individually for each channel.
• Lighting delay and lighting time can be controlled.

Intuitive Digital Light Controls

Digital adjustment of light emission makes it easy to reproduce the lighting environment after line switchovers.

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

• No need to control light emission timing.

• Simple wiring from a vision system controller.

• Light intensity and luminance control are set through the vision system controller.

last update: August 1, 2018

Purchase the OMRON Lighting System Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON FL Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the FL Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON FL SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

FJ Series (Camera and Software Vision Package) PC Vision System/Features
H7CN Solid-state Counter/Features
NJ NJ Overview/Features
CJ1W-PRM21 PROFIBUS-DP Master unit/Features
S8TS Switch Mode Power Supply/Features

OMRON FL Series dimension
FL Series Lighting for Image Processing/Dimensions
last update: December 6, 2018

(Unit: mm)

MDMC Light
FL-MD Series
FL-MD90MC

FL-MD180MC

Photometoric Stereo Light
FL-PS Series

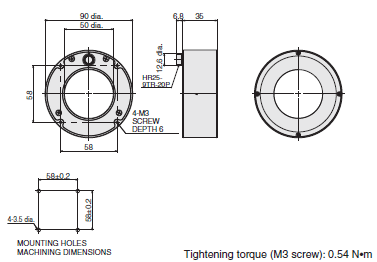

FL-PS90W

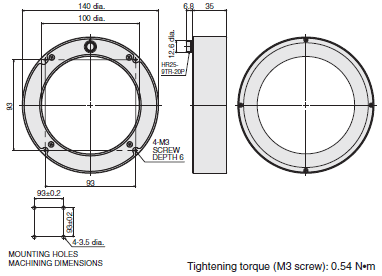

FL-PS140W

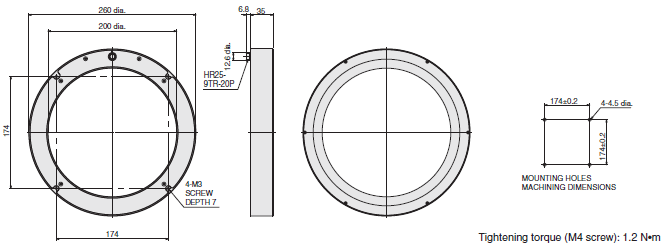

FL-PS260W

Bar Light
FL-BR Series

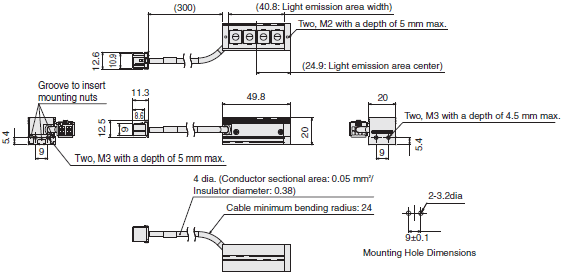

FL-BR5020W(-H)

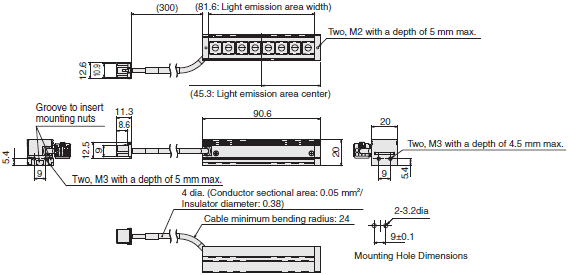

FL-BR9120W(-H)

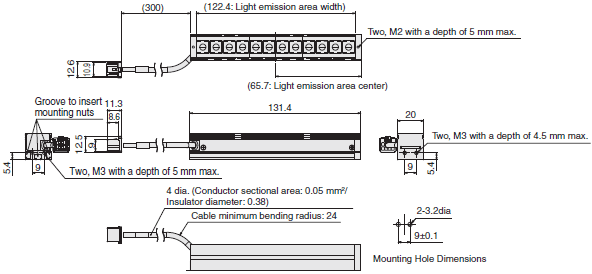

FL-BR13120W(-H)

Direct Ring Light
FL-DR Series

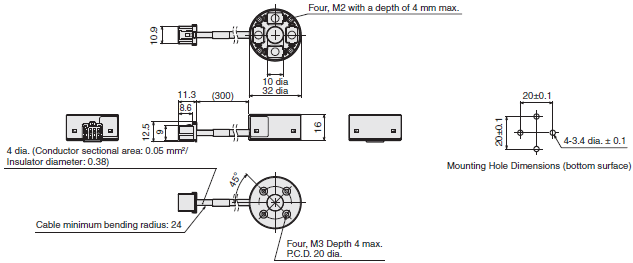

FL-DR32W(-H)

FL-DR50W(-H)

FL-DR90W(-H)

Camera-mount Lighting Controller for FL Series
FL-TCC Series
Lighting Controller

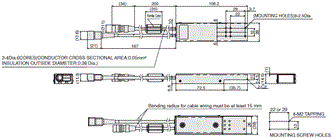

FL-TCC1

Options

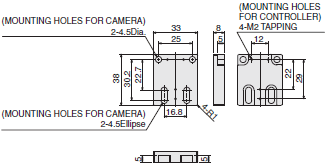

Camera Mounting Spacer
FL-TCC1-XSP (sold separately)

Camera Mounting Attachment
FL-TCC1-XAT (sold separately)

Digital Lighting Controller for FL series
FL-STC Series

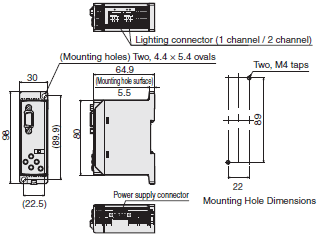

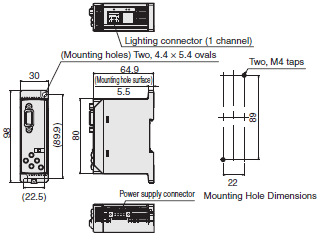

FL-STC10/15

FL-STC20/25

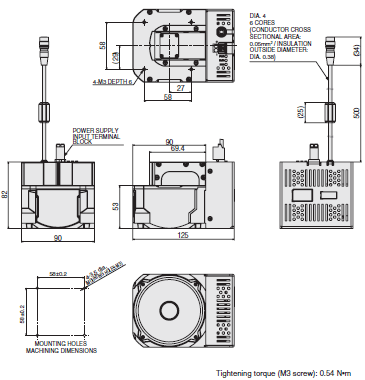

Lighting Controller for Photometoric Stereo Lights

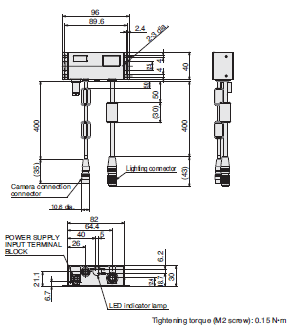

FL-TCC1PS Series

Camera mount plate (provided)

Options for FL series
Cable/Diffusion Plate/Mounting Bracket

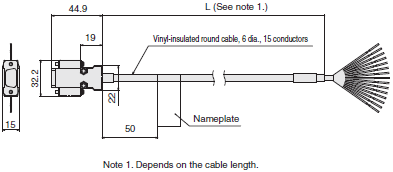

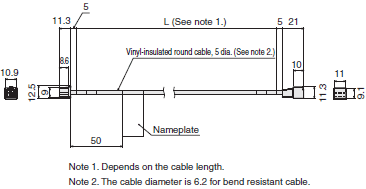

Cable
Extension Cable for High-brightness LED Lights

Parallel Cable for High-brightness LED Lights

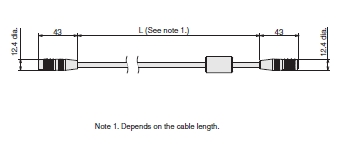

Extension Cable for Photometoric Stereo Lights

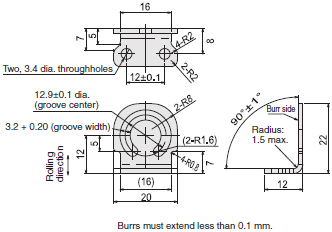

Mounting Bracket

Bracket material: SUS

last update: December 6, 2018

OMRON FL Series lineup
FL Series Lighting for Image Processing/Lineup
last update: December 6, 2018
MDMC Light
FL-MD Series

Model Color Weight (g)
FL-MD90MC RGB full color 800
FL-MD180MC RGB full color 3000

Note: Refer to Catalog for LED Characteristics

Photometoric Stereo Light
FL-PS Series

Model Color Lighting controller Weight
(g)
FL-STC[] FL-TCC[] FL-TCC1PS
FL-PS90W White × × ○ 200
FL-PS140W White × × ○ 350
FL-PS260W White × × ○ 800

Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

Bar Light
FL-BR Series

Model Color Type Controller Weight
(g) Options
FL-
STC[] FL-
TCC[] FL-
TCC1PS Diffusion
Plate Polarization
Plate
FL-BR5020W WHITE Wide Area Model ○ ○ × 40 ○ ×
FL-BR5020W-H WHITE High-brightness Model
FL-BR9120W WHITE Wide Area Model ○ ○ × 70 ○ ×
FL-BR9120W-H WHITE High-brightness Model
FL-BR13120W WHITE Wide Area Model ○ ○ × 100 ○ ×
FL-BR13120W-H WHITE High-brightness Model

Note: Refer to Catalog for LED Characteristics.
         The color of white LEDs can vary due to intrinsic characteristics. Confirm suitability for the application in advance.
○: Applicable ×: Not applicable

Direct Ring Light
FL-DR Series

Model Color Type Controller Weight
(g) Options
FL-
STC[] FL-
TCC[] FL-
TCC1PS Diffusion
Plate Polarization
Plate
FL-DR32W WHITE Wide Area Model ○ ○ × 25 ○ ○
FL-DR32W-H WHITE High-brightness Model
FL-DR50W WHITE Wide Area Model ○ ○ × 30 ○ ○
FL-DR50W-H WHITE High-brightness Model
FL-DR90W WHITE Wide Area Model ○ ○ × 70 ○ ○
FL-DR90W-H WHITE High-brightness Model 80

Note: Refer to Catalog for LED Characteristics.
         The color of white LEDs can vary due to intrinsic characteristics. Confirm suitability for the application in advance.
○: Applicable ×: Not applicable

Camera-mount Lighting Controller for FL Series
FL-TCC Series

Item Model Weight
Lighting Controller FL-TCC1 Approx. 110 g
Camera Mounting Spacer FL-TCC1-XSP Approx. 10 g
Camera Mounting Attachment FL-TCC1-XAT Approx. 20 g

Digital Lighting Controller for FL series
FL-STC Series

Type Model I/O specification Input voltage
One-channel models FL-STC10 NPN 24 VDC
FL-STC15 PNP
Two-channel models FL-STC20 NPN
FL-STC25 PNP

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

Model
FL-TCC1PS

Options for FL series
Cable/Diffusion Plate/Mounting Bracket
Cable

Type Cable Type Model Cable Length Weight (g)
For high-brightness
LED lights Extension Cable,
Standard Cable

FL-XC1 1 Approx. 50
FL-XC2 2 Approx. 80
FL-XC3 3 Approx. 120
FL-XC5 5 Approx. 190
FL-XC10 10 Approx. 400
FL-XC25 25 Approx. 1000
Extension Cable,
Bend resistant
Cable

FL-XC1R 1 Approx. 60
FL-XC2R 2 Approx. 100
FL-XC3R 3 Approx. 150
FL-XC5R 5 Approx. 240
FL-XC10R 10 Approx. 500
FL-XC25R 25 Approx. 1200
Parallel Cable FL-XCP2 2 Approx. 180
For photometoric
stereo lights Extension Cable
between Camera
and Lighting Controller
FL-XC05PS 0.5 Approx. 100
FL-XC1PS 1 Approx. 150

Diffusion Plate
Diffusion Plate

Type Model Dimensions (mm)
Bar Lighting FL-BR5020DF 49.8 × 18 × 4
FL-BR9120DF 90.6 × 18 × 4
FL-BR13120DF 131.4 × 18 × 4

Type Model Outer diameter/Inner diameter/Thickness (mm)
Direct Ring Lighting FL-DR32DF 32 dia./10 dia./4
FL-DR50DF 50 dia./28 dia./4
FL-DR90DF 90 dia./50 dia./4

Polarization Plate

Type Model Outer diameter/Inner diameter/Thickness (mm)
Direct Ring Lighting FL-DR32PL 32 dia./10 dia./2
FL-DR50PL 50 dia./28 dia./2
FL-DR90PL 90 dia./50 dia./2

Mounting Bracket

Type Model
Bar Lighting * FL-XBK1

* One set includes two pieces.
Four mounting screws (M3 × 6 mm) are also included.

last update: December 6, 2018

OMRON FL Series catalog
FL Series Lighting for Image Processing/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

Vision Accessory Catalog Q198-E1-09
[54080KB] Dec 06, 201820181206 Vision Accessory Catalog

OMRON FL Series specification
FL Series Lighting for Image Processing/Specifications
last update: August 1, 2018
MDMC Light
FL-MD Series

Model FL-MD90MC FL-MD180M
Applicable controller FH series
Applicable camera FH-S series, FZ-S series
Lighting color
(peak wavelength) R: Red (Typ.635nm), G: Green (Typ.525nm), B: Blue (Typ.465nm)
Light source LED
LED safety W,B: Risk Group 2, R,G: Risk Group 1 W,G,B: Risk Group 2, R: Risk Group 1
Power supply voltage 24 VDC±10% (including ripple)
Recommended power supply S8VK-G12024 (manufactured by OMRON, 24 VDC, 5 A, 120 W)
Current consumption 1.5 A max. 3.0 A max.
Drive method Constant voltage method
Lighting method Trigger lighting
Luminance control method Duty light adjustment: PWM frequency of 200 kHz, light adjustment of 128 levels
(configured with image sensor controller)
Trigger lighting Lighting in synchronization with trigger input timing from the controller
(configured with image sensor controller).
Lighting duration setting Auto setting in accordance with shutter speed.
Lighting time control Set with image sensor controller or set in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit) Cable length: 500 mm
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance 10 to 150 Hz, (0.35mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Material Case: Aluminum, PC, PMMA Cable: PVC
Weight Approx. 0.8 kg Approx. 3.0 kg
Accessories Instruction Sheet (This Sheet), Compliance Sheet, 24 V power supply terminal block (male)

Note:
1. Turn ON the power of this product and Image Sensor Controller at the same time or this product first.
2. This lighting complied with the EN standard (EN61326-1)
(Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2))
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Photometoric Stereo Light
FL-PS Series

Model FL-PS90W FL-PS140W FL-PS260W
Applicable controllers FL-TCC1PS
Lighting color W: White
Light source LED
LED safety Risk group 2
Power consumption 32W 47W 61W
Ambient temperature Operating: 0 to 40°C Storage: -15 to 60°C (with no icing nor no condensation)
Ambient humidity Operating and storage: 35% to 85% (no condensation)
Degree of protection IP20(IEC60529)
Vibration resistance
(destructive) 10 to 150 Hz, (0.35mm double amplitude) 80 min. each in X, Y, and Z directions
Shock resistance
(destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum, PMMA
Weight Approx. 200g Approx. 350 Approx. 800g
Accessories INSTRUCTION SHEET (THIS SHEET), Compliance Sheet

Bar Light
FL-BR Series

Model Wide Area
Model High-
brightness
Model Wide Area
Model High-
brightness
Model Wide Area
Model High-
brightness
Model
FL-
BR5020W FL-
BR5020W-H FL-
BR9120W FL-
BR9120W-H FL-
BR13120W FL-
BR13120W-H
Light source White LEDs
Vibration resistance 10 to 150 Hz (Double amplitude: 0.7 mm), 80 min each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 directions
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases.
Degree of protection IEC60259 IP20
Weight Approx. 40 g Approx. 70 g Approx. 100 g
Materials Case: Aluminum; Cover, side parts, and lens: PC; Cable: Heat resistant polyvinyl chloride;
Connector: Thermoplastic resin with glass
LED safety Risk Group 2 (IEC 62471)
Accessories Instruction sheet

The color of white LEDs can vary due to intrinsic characteristics.
Confirm suitability for the application in advance.

Direct Ring Light
FL-DR Series

Model Wide Area
Model High-
brightness
Model Wide Area
Model High-
brightness
Model Wide Area
Model High-
brightness
Model
FL-DR32W FL-DR32W-H FL-DR50W FL-DR50W-H FL-DR90W FL-DR90W-H
Light source White LEDs
Vibration resistance 10 to 150 Hz (Double amplitude: 0.7 mm), 80 min each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 directions
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases.
Degree of protection IEC60259 IP20
Weight Approx. 25 g Approx. 30 g Approx. 70 g Approx. 80 g
Materials Case and Lens: PC, Cable: Heat resistant polyvinyl chloride,
Connector: Thermoplastic resin with glass
LED safety Risk Group 2 (IEC 62471)
Accessories Instruction sheet

The color of white LEDs can vary due to intrinsic characteristics.
Confirm suitability for the application in advance.

Camera-mount Lighting Controller for FL Series
FL-TCC Series
Lighting Controller

Product type Lighting Controller
Model FL-TCC1
Input voltage Supplied from applicable camera.
Applicable camera FH-S/SC/S02/SC02/S04/SC04, FZ-S/SC/S2M/SC2M/S5M2/SC5M2/SH/SHC/SF/
SFC/SP/SPC, FQ-MS series and others.
Applicable controller FH series, FZ5 series, FZ4 series and others.
Power consumption 10 W, 0.9 A max. (including the lighting section)
Number of output channels 1
Applicable light FL-[] series
Luminance
control
method Functions PWM frequency: 100 kHz, Light adjustment: 255 levels (set with the Controller)
Trigger lighting Lighting ON synchronized with trigger input timing from the Controller.
(Auto setting in accordance with the shutter speed.)
Trigger lighting
delay time Ton: 30 μs max. (Trigger ready μs)
Toff: 10 μs max.
External interface Dedicated communication connector
Ambient temperature Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Vibration resistance 10 to 55 Hz, (0.7 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: SECC, Cable: PVC
Degree of protection IP20 (IEC60529)
Weight Approx. 110 g
Accessories Instruction sheet, Insulation sheet, Mounting screw (M2 ✕ 6 mm) ✕ 4
Applicable standards EN61326-1 *

* Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
   Also, the following condition is applied to the immunity test of this product.
   There are case that Lighting brightness fluctuate Max 10%.

Digital Lighting Controller for FL series
FL-STC Series

Product type One-channel models Two-channel models
I/O type NPN PNP NPN PNP
Model FL-STC10 FL-STC15 FL-STC20 FL-STC25
Power supply voltage 24 VDC±10% (including ripple)
Power consumption 36 W, 1.5 A max. (including the lighting
section) 72 W, 3 A max. (including the lighting
section)
Number of output channels 1 2
Applicable light FL-[] Series
Luminance
control
method CONTINUOUS
mode While the Strobe Controller power source is ON, light is continuously emitted.
PWM frequency: 100 kHz, Light adjustment: 400 levels
EXTERNAL
TRIGGER mode Lighting in synchronization with an external trigger input.
Lighting duration: Continuous while the trigger is input, or 0.1 to 99.9 ms (set in 0.1-ms
increments)
PWM frequency: 100 kHz, Light adjustment: 400 levels
STOROBE
mode Lighting in synchronization with the external trigger input, but twice brighter than
EXTERNAL TRIGGER mode.
Lighting pulse width: 0.01 to 5 ms (light adjustment: 500 levels equivalent)
Luminance
adjustment Key Luminance control method and adjustment value: Slide switch and cross key setting
I/O Luminance adjustment value: 9-bit binary input control
External interface Parallel I/O connector (D-sub 15-pin), Terminal block (external trigger input with 2
terminals, power source voltage input with 2 terminals)
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Vibration resistance 10 to 150 Hz (0.7 mm double amplitude), 80 min each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 direction (up/down, left/right, forward/backward)
Materials Case: PC
Degree of protection IEC60529 IP20
Weight Approx. 100 g
Accessories Instruction sheet,Terminal block connector
Applicable standards EN61326-1 *

* Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
   Also, the following condition is applied to the immunity test of this product.
   There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

Model FL-TCC1PS
Applicable image
sensor controller FH series (Ver.6.00 or higher)
Applicable camera FH-S series, FZ-S series
Applicable lighting FL-PS series
Number of connected
lightings 1
Power supply voltage * 24 VDC±10% (including ripple)
Recommended
power supply S8VK-G12024
(manufactured by OMRON, 24 VDC, 5 A 120 W)
Current consumption 3.0 A max.
Drive method Constant voltage method
Luminance control
method Duty light adjustment: light adjustment of 255 levels
(configured with image sensor controller)
Trigger lighting Lighting in synchronization with trigger input timing from the controller
(configured with image sensor controller).
Lighting duration setting Auto setting in accordance with shutter speed.
Lighting time control Set with image sensor controller or set in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit) 400 mm
Lighting connection cable (directly connected with the main unit) 400 mm
Ambient temperature Operating: 0 to 40°C Storage: -15 to +60°C
(with no icing nor no condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance 10 to 150 Hz, (0.35mm double amplitude)
80 min. each in X, Y, and Z directions
Shock resistance 150 m/s² 3 times each in 6 directions
(up/down, left/right, forward/backward)
Material Case: Alminum, Cable: PVC, Camera Mount Plate: POM
Weight Approx. 200 g
Accessories Instruction Sheet (this Sheet), 24 V power supply terminal block (male),
Compliance Sheet, mounting screws
(M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)

Note:
1. When FL-PS260W is used in the length of the power supply line at least 15m, adjust the power voltage to become 24-26.4 V.
2. When FL-PS260W is used in the length of the power supply line at least 15m, adjust the power voltage to become 24-26.4 V.
3. This lighting complied with the EN standard (EN61326-1)
(Electromagnetic environment : Industrial electromagnetic environment (EN/IEC 61326-1 Table 2))
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

last update: August 1, 2018

NO. FL Series

TYPE:Vision Sensors / Machine Vision Systems Lighting System Copyright Statement

DATE:2021-06-12

Associated products:
FLV Series Light Units/Features 3Z4S-LT Series Lighting System/Features

Model	Color	Weight (g)
FL-MD90MC	RGB full color	800
FL-MD180MC	RGB full color	3000

Model	Color	Lighting controller	Weight (g)
FL-STC[]	FL-TCC[]	FL-TCC1PS
FL-PS90W	White	×	×	○	200
FL-PS140W	White	×	×	○	350
FL-PS260W	White	×	×	○	800

Model	Color	Type	Controller	Weight (g)	Options
FL- STC[]	FL- TCC[]	FL- TCC1PS	Diffusion Plate	Polarization Plate
FL-BR5020W	WHITE	Wide Area Model	○	○	×	40	○	×
FL-BR5020W-H	WHITE	High-brightness Model
FL-BR9120W	WHITE	Wide Area Model	○	○	×	70	○	×
FL-BR9120W-H	WHITE	High-brightness Model
FL-BR13120W	WHITE	Wide Area Model	○	○	×	100	○	×
FL-BR13120W-H	WHITE	High-brightness Model

Model	Color	Type	Controller	Weight (g)	Options
FL- STC[]	FL- TCC[]	FL- TCC1PS	Diffusion Plate	Polarization Plate
FL-DR32W	WHITE	Wide Area Model	○	○	×	25	○	○
FL-DR32W-H	WHITE	High-brightness Model
FL-DR50W	WHITE	Wide Area Model	○	○	×	30	○	○
FL-DR50W-H	WHITE	High-brightness Model
FL-DR90W	WHITE	Wide Area Model	○	○	×	70	○	○
FL-DR90W-H	WHITE	High-brightness Model	80

Item	Model	Weight
Lighting Controller	FL-TCC1	Approx. 110 g
Camera Mounting Spacer	FL-TCC1-XSP	Approx. 10 g
Camera Mounting Attachment	FL-TCC1-XAT	Approx. 20 g

Type	Model	I/O specification	Input voltage
One-channel models	FL-STC10	NPN	24 VDC
FL-STC15	PNP
Two-channel models	FL-STC20	NPN
FL-STC25	PNP

Model
FL-TCC1PS

Type	Cable Type	Model	Cable Length	Weight (g)
For high-brightness LED lights	Extension Cable, Standard Cable	FL-XC1	1	Approx. 50
FL-XC2	2	Approx. 80
FL-XC3	3	Approx. 120
FL-XC5	5	Approx. 190
FL-XC10	10	Approx. 400
FL-XC25	25	Approx. 1000
Extension Cable, Bend resistant Cable	FL-XC1R	1	Approx. 60
FL-XC2R	2	Approx. 100
FL-XC3R	3	Approx. 150
FL-XC5R	5	Approx. 240
FL-XC10R	10	Approx. 500
FL-XC25R	25	Approx. 1200
Parallel Cable	FL-XCP2	2	Approx. 180
For photometoric stereo lights	Extension Cable between Camera and Lighting Controller	FL-XC05PS	0.5	Approx. 100
FL-XC1PS	1	Approx. 150

Type	Model	Dimensions (mm)
Bar Lighting	FL-BR5020DF	49.8 × 18 × 4
FL-BR9120DF	90.6 × 18 × 4
FL-BR13120DF	131.4 × 18 × 4

Type	Model	Outer diameter/Inner diameter/Thickness (mm)
Direct Ring Lighting	FL-DR32DF	32 dia./10 dia./4
FL-DR50DF	50 dia./28 dia./4
FL-DR90DF	90 dia./50 dia./4

Type	Model	Outer diameter/Inner diameter/Thickness (mm)
Direct Ring Lighting	FL-DR32PL	32 dia./10 dia./2
FL-DR50PL	50 dia./28 dia./2
FL-DR90PL	90 dia./50 dia./2

Type	Model
Bar Lighting *	FL-XBK1

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
Vision Accessory Catalog	Q198-E1-09 [54080KB]	Dec 06, 201820181206	Vision Accessory Catalog

Model	FL-MD90MC	FL-MD180M
Applicable controller	FH series
Applicable camera	FH-S series, FZ-S series
Lighting color (peak wavelength)	R: Red (Typ.635nm), G: Green (Typ.525nm), B: Blue (Typ.465nm)
Light source	LED
LED safety	W,B: Risk Group 2, R,G: Risk Group 1	W,G,B: Risk Group 2, R: Risk Group 1
Power supply voltage	24 VDC±10% (including ripple)
Recommended power supply	S8VK-G12024 (manufactured by OMRON, 24 VDC, 5 A, 120 W)
Current consumption	1.5 A max.	3.0 A max.
Drive method	Constant voltage method
Lighting method	Trigger lighting
Luminance control method	Duty light adjustment: PWM frequency of 200 kHz, light adjustment of 128 levels (configured with image sensor controller)
Trigger lighting	Lighting in synchronization with trigger input timing from the controller (configured with image sensor controller).
Lighting duration setting	Auto setting in accordance with shutter speed.
Lighting time control	Set with image sensor controller or set in accordance with shutter speed.
External interface	Camera connection cable (directly connected with the main unit) Cable length: 500 mm
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance	10 to 150 Hz, (0.35mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Material	Case: Aluminum, PC, PMMA Cable: PVC
Weight	Approx. 0.8 kg	Approx. 3.0 kg
Accessories	Instruction Sheet (This Sheet), Compliance Sheet, 24 V power supply terminal block (male)

Model	FL-PS90W	FL-PS140W	FL-PS260W
Applicable controllers	FL-TCC1PS
Lighting color	W: White
Light source	LED
LED safety	Risk group 2
Power consumption	32W	47W	61W
Ambient temperature	Operating: 0 to 40°C Storage: -15 to 60°C (with no icing nor no condensation)
Ambient humidity	Operating and storage: 35% to 85% (no condensation)
Degree of protection	IP20(IEC60529)
Vibration resistance (destructive)	10 to 150 Hz, (0.35mm double amplitude) 80 min. each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: Aluminum, PMMA
Weight	Approx. 200g	Approx. 350	Approx. 800g
Accessories	INSTRUCTION SHEET (THIS SHEET), Compliance Sheet

Model	Wide Area Model	High- brightness Model	Wide Area Model	High- brightness Model	Wide Area Model	High- brightness Model
FL- BR5020W	FL- BR5020W-H	FL- BR9120W	FL- BR9120W-H	FL- BR13120W	FL- BR13120W-H
Light source	White LEDs
Vibration resistance	10 to 150 Hz (Double amplitude: 0.7 mm), 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 directions
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases.
Degree of protection	IEC60259 IP20
Weight	Approx. 40 g	Approx. 70 g	Approx. 100 g
Materials	Case: Aluminum; Cover, side parts, and lens: PC; Cable: Heat resistant polyvinyl chloride; Connector: Thermoplastic resin with glass
LED safety	Risk Group 2 (IEC 62471)
Accessories	Instruction sheet

Model	Wide Area Model	High- brightness Model	Wide Area Model	High- brightness Model	Wide Area Model	High- brightness Model
FL-DR32W	FL-DR32W-H	FL-DR50W	FL-DR50W-H	FL-DR90W	FL-DR90W-H
Light source	White LEDs
Vibration resistance	10 to 150 Hz (Double amplitude: 0.7 mm), 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 directions
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases.
Degree of protection	IEC60259 IP20
Weight	Approx. 25 g	Approx. 30 g	Approx. 70 g	Approx. 80 g
Materials	Case and Lens: PC, Cable: Heat resistant polyvinyl chloride, Connector: Thermoplastic resin with glass
LED safety	Risk Group 2 (IEC 62471)
Accessories	Instruction sheet

Product type	Lighting Controller
Model	FL-TCC1
Input voltage	Supplied from applicable camera.
Applicable camera	FH-S/SC/S02/SC02/S04/SC04, FZ-S/SC/S2M/SC2M/S5M2/SC5M2/SH/SHC/SF/ SFC/SP/SPC, FQ-MS series and others.
Applicable controller	FH series, FZ5 series, FZ4 series and others.
Power consumption	10 W, 0.9 A max. (including the lighting section)
Number of output channels	1
Applicable light	FL-[] series
Luminance control method	Functions	PWM frequency: 100 kHz, Light adjustment: 255 levels (set with the Controller)
Trigger lighting	Lighting ON synchronized with trigger input timing from the Controller. (Auto setting in accordance with the shutter speed.)
Trigger lighting delay time	Ton: 30 μs max. (Trigger ready μs) Toff: 10 μs max.
External interface	Dedicated communication connector
Ambient temperature	Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Vibration resistance	10 to 55 Hz, (0.7 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials	Case: SECC, Cable: PVC
Degree of protection	IP20 (IEC60529)
Weight	Approx. 110 g
Accessories	Instruction sheet, Insulation sheet, Mounting screw (M2 ✕ 6 mm) ✕ 4
Applicable standards	EN61326-1 *

Product type	One-channel models	Two-channel models
I/O type	NPN	PNP	NPN	PNP
Model	FL-STC10	FL-STC15	FL-STC20	FL-STC25
Power supply voltage	24 VDC±10% (including ripple)
Power consumption	36 W, 1.5 A max. (including the lighting section)	72 W, 3 A max. (including the lighting section)
Number of output channels	1	2
Applicable light	FL-[] Series
Luminance control method	CONTINUOUS mode	While the Strobe Controller power source is ON, light is continuously emitted. PWM frequency: 100 kHz, Light adjustment: 400 levels
EXTERNAL TRIGGER mode	Lighting in synchronization with an external trigger input. Lighting duration: Continuous while the trigger is input, or 0.1 to 99.9 ms (set in 0.1-ms increments) PWM frequency: 100 kHz, Light adjustment: 400 levels
STOROBE mode	Lighting in synchronization with the external trigger input, but twice brighter than EXTERNAL TRIGGER mode. Lighting pulse width: 0.01 to 5 ms (light adjustment: 500 levels equivalent)
Luminance adjustment	Key	Luminance control method and adjustment value: Slide switch and cross key setting
I/O	Luminance adjustment value: 9-bit binary input control
External interface	Parallel I/O connector (D-sub 15-pin), Terminal block (external trigger input with 2 terminals, power source voltage input with 2 terminals)
Ambient temperature	Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity	Operating/storage: 35% to 85% (with no condensation)
Vibration resistance	10 to 150 Hz (0.7 mm double amplitude), 80 min each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 direction (up/down, left/right, forward/backward)
Materials	Case: PC
Degree of protection	IEC60529 IP20
Weight	Approx. 100 g
Accessories	Instruction sheet,Terminal block connector
Applicable standards	EN61326-1 *

Model	FL-TCC1PS
Applicable image sensor controller	FH series (Ver.6.00 or higher)
Applicable camera	FH-S series, FZ-S series
Applicable lighting	FL-PS series
Number of connected lightings	1
Power supply voltage *	24 VDC±10% (including ripple)
Recommended power supply	S8VK-G12024 (manufactured by OMRON, 24 VDC, 5 A 120 W)
Current consumption	3.0 A max.
Drive method	Constant voltage method
Luminance control method	Duty light adjustment: light adjustment of 255 levels (configured with image sensor controller)
Trigger lighting	Lighting in synchronization with trigger input timing from the controller (configured with image sensor controller).
Lighting duration setting	Auto setting in accordance with shutter speed.
Lighting time control	Set with image sensor controller or set in accordance with shutter speed.
External interface	Camera connection cable (directly connected with the main unit) 400 mm Lighting connection cable (directly connected with the main unit) 400 mm
Ambient temperature	Operating: 0 to 40°C Storage: -15 to +60°C (with no icing nor no condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Degree of protection	IP20 (IEC60529)
Vibration resistance	10 to 150 Hz, (0.35mm double amplitude) 80 min. each in X, Y, and Z directions
Shock resistance	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Material	Case: Alminum, Cable: PVC, Camera Mount Plate: POM
Weight	Approx. 200 g
Accessories	Instruction Sheet (this Sheet), 24 V power supply terminal block (male), Compliance Sheet, mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat head screw x 4)

Return to OMRON

OMRON FL SeriesSensors/ Vision Sensors / Machine Vision Systems/Lighting System

OMRON FL Series Dimensions

MDMC LightFL-MD Series

Illumination Structure

Applications

Photometoric Stereo LightFL-PS Series

Illumination Structure

Applications

Bar LightFL-BR Series

Wiring

Mounting and Adjustment

Illumination Structure

Lighting Intensity Distribution Characteristics

Applications

Direct Ring LightFL-DR Series

Illumination Structure

Lighting Intensity Distribution Characteristics

Applications

Camera-mount Lighting Controller for FL SeriesFL-TCC Series

Digital Lighting Controller for FL seriesFL-STC Series

Easy Control and Adjustment of the Lighting

Connect to a Remote Control Panel

Mount to a DIN Rail underneath the Line or in the Gap between Tables

Lighting Control without Programming

Intuitive Digital Light Controls

Lighting Controller for Photometoric Stereo LightsFL-TCC1PS Series

Purchase the OMRON Lighting System Please fill in the following

OMRON FL Series dimension

MDMC LightFL-MD Series

FL-MD90MC

FL-MD180MC

Photometoric Stereo LightFL-PS Series

FL-PS90W

FL-PS140W

FL-PS260W

Bar LightFL-BR Series

FL-BR5020W(-H)

FL-BR9120W(-H)

FL-BR13120W(-H)

Direct Ring LightFL-DR Series

FL-DR32W(-H)

FL-DR50W(-H)

FL-DR90W(-H)

Camera-mount Lighting Controller for FL SeriesFL-TCC Series

Lighting Controller

Options

Digital Lighting Controller for FL seriesFL-STC Series

FL-STC10/15

FL-STC20/25

Lighting Controller for Photometoric Stereo LightsFL-TCC1PS Series

Camera mount plate (provided)

Options for FL seriesCable/Diffusion Plate/Mounting Bracket

Cable

Extension Cable for High-brightness LED Lights

Parallel Cable for High-brightness LED Lights

Extension Cable for Photometoric Stereo Lights

Mounting Bracket

OMRON FL Series lineup

MDMC LightFL-MD Series

Photometoric Stereo LightFL-PS Series

Bar LightFL-BR Series

Direct Ring LightFL-DR Series

Camera-mount Lighting Controller for FL SeriesFL-TCC Series

Digital Lighting Controller for FL seriesFL-STC Series

Lighting Controller for Photometoric Stereo LightsFL-TCC1PS Series

Options for FL seriesCable/Diffusion Plate/Mounting Bracket

Cable

Diffusion Plate

Diffusion Plate

Polarization Plate

Mounting Bracket

OMRON FL Series catalog

English

Global Edition

OMRON FL Series specification

MDMC LightFL-MD Series

Photometoric Stereo LightFL-PS Series

Bar LightFL-BR Series

Direct Ring LightFL-DR Series

Camera-mount Lighting Controller for FL SeriesFL-TCC Series

MDMC Light
FL-MD Series

Photometoric Stereo Light
FL-PS Series

Bar Light
FL-BR Series

Direct Ring Light
FL-DR Series

Camera-mount Lighting Controller for FL Series
FL-TCC Series

Digital Lighting Controller for FL series
FL-STC Series

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

MDMC Light
FL-MD Series

Photometoric Stereo Light
FL-PS Series

Bar Light
FL-BR Series

Direct Ring Light
FL-DR Series

Camera-mount Lighting Controller for FL Series
FL-TCC Series

Digital Lighting Controller for FL series
FL-STC Series

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

Options for FL series
Cable/Diffusion Plate/Mounting Bracket

MDMC Light
FL-MD Series

Photometoric Stereo Light
FL-PS Series

Bar Light
FL-BR Series

Direct Ring Light
FL-DR Series

Camera-mount Lighting Controller for FL Series
FL-TCC Series

Digital Lighting Controller for FL series
FL-STC Series

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series

Options for FL series
Cable/Diffusion Plate/Mounting Bracket

MDMC Light
FL-MD Series

Photometoric Stereo Light
FL-PS Series

Bar Light
FL-BR Series

Direct Ring Light
FL-DR Series

Camera-mount Lighting Controller for FL Series
FL-TCC Series

Digital Lighting Controller for FL series
FL-STC Series

Lighting Controller for Photometoric Stereo Lights
FL-TCC1PS Series
