last update: January 10, 2014

• Long electrical life and high speed switching

• Large plug-in terminals for reliable connection

• G3RV-D (DC load) models can manage resistive loads of 100 μA to 3.0 A

• LED indicator for visible operation checking

• Convenient quick electrical connections possible with G3RV push-in models and cross bar connectors

• Low power consumption for energy savings

• G3RV is cUL listed when correct relay is matched with the G3RV Socket

last update: January 10, 2014

Purchase the OMRON Socket / Plug-in Type Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3RV Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3RV We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3RVRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

R87F / R87T AC Axial Fans/Features
E2C-EDA High Precision Positioning Inductive Proximity Sensor/Features
TL-LP / LY Long-distance Proximity Sensor/Features
H3RN-[]-B Solid-state timer/Features
NX-TS NX-series Temperature Input Unit/Features

OMRON G3RV specification
G3RV Solid State Relays/Specifications
last update: January 10, 2014
Ratings (at an Ambient Temperature of 25°C)
Input
G3RV-SL700/500-A Series

Rated
voltage Rated current Must operate voltage Must release voltage Input voltage
AC DC % of rated voltage
50 Hz 60 Hz
12 VDC --- --- 15 mA 10.8 V 1 V ±10%
24 VDC --- --- 12 mA 21.6 V
24 VAC/DC 20 mA 21 mA 11 mA 21.6 V
48 VAC/DC 10 mA 11 mA 6 mA 43.2 V
110 VAC 7.5 mA 8.2 mA --- 99 V
230 VAC 7.3 mA 8.6 mA --- 207 V

G3RV-SL700/500-AL Series

Rated
voltage Rated current Must operate voltage Must release voltage Input voltage
AC DC % of rated voltage
50 Hz 60 Hz
12 VDC --- --- 15 mA 10.8 V 1 V ±10%
24 VDC --- --- 12 mA 21.6 V
24 VAC/DC 20 mA 21 mA 11 mA 21.6 V
48 VAC/DC 10 mA 11 mA 6 mA 43.2 V
110 VAC 7.5 mA 8.2 mA --- 99 V
230 VAC 7.3 mA 8.6 mA --- 207 V

G3RV-SL700/500-D Series

Rated
voltage Rated current Must operate voltage Must release voltage Input voltage
AC DC % of rated voltage
50 Hz 60 Hz
12 VDC --- --- 8 mA 10.8 V 1 V ±10%
24 VDC --- --- 4.5 mA 21.6 V
24 VAC/DC 10.7 mA 11.1 mA 4.3 mA 21.6 V
48 VAC/DC 9.6 mA 10.2 mA 6 mA 43.2 V
110 VAC 6.8 mA 7.5 mA --- 99 V
230 VAC 6.8 mA 8.1 mA --- 207 V

Output

Item G3RV-SL700/500-A(L) G3RV-SL700/500-D
Rated load voltage AC 100 to 240 V (50/60 Hz) DC 5 to 24 V
Load voltage range AC 75 to 264 V (50/60 Hz) DC 3 to 26.4 V
Load current 0.1 to 2 A (Ta=40°C) 100 µA to 3 A (Ta=40°C)
Inrush current 30 A (60 Hz/1 cycle) 30 A (60 Hz/1 cycle)
Permissible I²t; Joule Integral
(Reference value) 15 A 2 s 9 A 2 s
Application load capacity 400 W (Output voltage: AC 200 V) 72 W (Output voltage: DC 24 V)

Characteristics

Item G3RV-SL700/500-A G3RV-SL700/500-AL G3RV-SL700/500-D
Operate time 1/2 of load power source
cycle + 1 ms max. 1 ms max. 6 ms max.
Release time 40 ms max. 20 ms max. 60 ms max.
Output ON voltage drop 1.6 V rms max. 0.9 V max.
Leakage current 5 mA max. (at 200 VAC 50/60 Hz) 10 µA max. (at 24VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength AC2500V 50/60 Hz for 1 min between input and output
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.7-mm single amplitude
Shock resistance 300m/s²
Ambient temperature Storage: -30 to +100°C (with no icing or condensation)
Operating: -30 to +55°C (with no icing or condensation)
Ambient humidity 45 to 85%RH
Weight Approx. 38 g
Pollution degree 2
Degree of protection according
to IEC 60529 IP20
Rated Impulse Withstand Voltage 4.0 kV/III
Load category LC-A DC-12
Overload Current Profile 1.5Ie 1.1Ue
5 s ON, 10 s OFF, 10 cycles
Rated insulation Voltage 240 V

Approved Standards
UL 508 (File No. E64562)

Model Input ratings Contact ratings
G3RV-SL700/500-D Series 12, 24 VDC
24, 48 VAC/DC
110, 230 VAC 24 VDC 3 A (Resistive Load) at 25°C
G3RV-SL700/500-A(L) Series 12, 24 VDC
24, 48 VAC/DC
110, 230 VAC

IEC/TUV (EN 62314)

Input ratings Contact ratings
12, 24 VDC
24, 48 VAC/DC
110, 230 VAC 24 VDC 3 A (Resistive Load)
12, 24 VDC
24, 48 VAC/DC
110, 230 VAC

Accessories
PLC Interface (for G2RV-SL700 & G3RV-SL700 series only)

Input Rated voltage 30 VAC/VDC max.
Current capacity 0.5 A per channel
2.0 A total current, power supply terminal
Characteristics Ambient temperature Operating: 0 to 55°C
Storage: - 20 to 85°C
Overvoltage category III
Pollution degree 2

Cross bars

Max current
(EN60947-7-1 section 8.3.3/1991) 32 A
Max. Voltage 400 VAC
Max. Voltage
when cutting Cross-bar without using separation plate or end-bracket 250 VAC

last update: January 10, 2014

OMRON G3RV lineup
G3RV Solid State Relays/Lineup
last update: January 10, 2014

Classification Enclosure rating Input voltage Type of connection Contact form
SPST
Plug-in terminals General-purpose Unsealed AC/DC Screw terminals G3RV-SL700
Push-in terminals G3RV-SL500

SSR and Socket Combinations

Input voltage Screw terminals Push-in terminals
12 VDC G3RV-SL700-D 12VDC G3RV-SL500-D 12VDC
G3RV-SL700-A(L) 12VDC G3RV-SL500-A(L) 12VDC
24 VDC G3RV-SL700-D 24VDC G3RV-SL500-D 24VDC
G3RV-SL700-A(L) 24VDC G3RV-SL500-A(L) 24VDC
24 VAC/DC G3RV-SL700-D 24VAC/DC G3RV-SL500-D 24VAC/DC
G3RV-SL700-A(L) 24VAC/DC G3RV-SL500-A(L) 24VAC/DC
48 VAC/DC G3RV-SL700-D 48VAC/DC G3RV-SL500-D 48VAC/DC
G3RV-SL700-A(L) 48VAC/DC G3RV-SL500-A(L) 48VAC/DC
110 VAC G3RV-SL700-D 110VAC G3RV-SL500-D 110VAC
G3RV-SL700-A(L) 110VAC G3RV-SL500-A(L) 110VAC
230 VAC G3RV-SL700-D 230VAC G3RV-SL500-D 230VAC
G3RV-SL700-A(L) 230VAC G3RV-SL500-A(L) 230VAC

Accessories
PLC Interface (for G2RV-SL700 & G3RV-SL700 series only)

Model number Description Connection
P2RVC-8-O-F PLC Output Interface for 8x
G2RV-SL700 & G3RV-SL700 series
PNP - type Ribbon cable connector
10 Pole, IEC603/1

SSR for Maintenance (Replacement SSRs)

Isolation Move-
ment
indi-
cation Rated
input
voltage
(Socket) Out-
put
(SSR) Zero
cross
func-
tion Rated
output
load * Model Number Replacement for
Phototriac Yes
(Green) DC 12 V AC Yes 2 A at
100 to
240
VAC G3RV-202S DC12 G3RV-SL700/500-A DC12
DC 24 V G3RV-202S DC24 G3RV-SL700/500-A DC24
AC/DC 24 V G3RV-SL700/500-A AC/DC24
AC/DC 48 V G3RV-SL700/500-A AC/DC48
AC 110 V G3RV-202S DC48 G3RV-SL700/500-A AC110
AC 230 V G3RV-SL700/500-A AC230
DC 12 V No G3RV-202SL DC12 G3RV-SL700/500-AL DC12
DC 24 V G3RV-202SL DC24 G3RV-SL700/500-AL DC12
AC/DC 24 V G3RV-SL700/500-AL AC/DC24
AC/DC 48 V G3RV-SL700/500-AL AC/DC48
AC 110 V G3RV-202SL DC48 G3RV-SL700/500-AL AC110
AC 230 V G3RV-SL700/500-AL AC230
Photocoupler DC 12 V DC --- 3 A at
5 to
24 VDC G3RV-D03SL DC12 G3RV-SL700/500-D DC12
DC 24 V G3RV-D03SL DC24 G3RV-SL700/500-D DC24
AC/DC 24 V G3RV-SL700/500-D AC/DC24
AC/DC 48 V G3RV-D03SL DC48 G3RV-SL700/500-D AC/DC48
AC 110 V G3RV-SL700/500-D AC110
AC 230 V G3RV-SL700/500-D AC230

* different by ambient temperature.
Please refer to Data Sheet of characteristic data "■ Load current derating curves" for the details.

Cross bars

Model number Poles Quantity Color
P2RVM-020[] 2 60 pcs/box (minimum order) Red (R)
Blue (S)
Black (B)
P2RVM-030[] 3 60 pcs/box (minimum order)
P2RVM-040[] 4 60 pcs/box (minimum order)
P2RVM-100[] 10 20 pcs/box (minimum order)
P2RVM-200[] 20 20 pcs/box (minimum order)

[] select color: R = Red, S = Blue, B = Black

Plastic Labels for G2RV/G3RV Sockets

Model number Box quantity Color
R99-15 for G2RV 5 sheets × 120 labels = 600 labels (minimum order) White

Labels (Stickers) for G2RV/G3RV Sockets

Model number Box quantity Color
R99-16 for G2RV 10 sheets × 484 labels = 4,840 labels (minimum order) White

Separating Plates

Model number Quantity Description
P2RV-S 50 plates Provides isolation between adjacent relays to achieve 400 V isolation.

last update: January 10, 2014

OMRON G3RV dimension
G3RV Solid State Relays/Dimensions
last update: January 10, 2014
Complete Unit

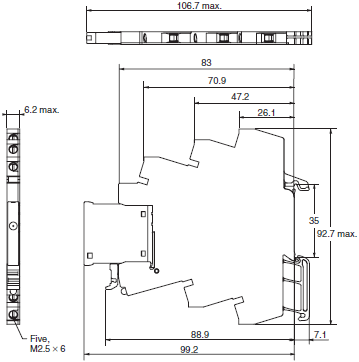

G3RV-SL700

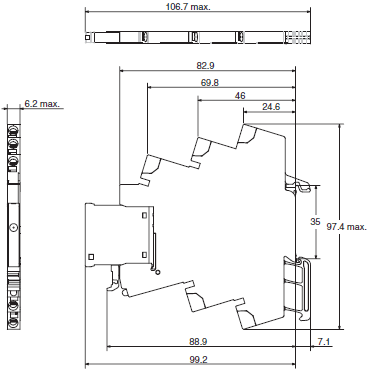

G3RV-SL500

Solid State Relay

G3RV-D03SL
G3RV-202S(L)

last update: January 10, 2014

OMRON G3RV catalog
G3RV Solid State Relays/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3RV Data Sheet J180-E1-02
[1182KB] Jul 01, 201020100701 G3RV Data Sheet

G2RV/G3RV Series Catalog J204-E1-01
[14234KB] Jun 02, 201620160602 G2RV/G3RV Series Catalog

NO. G3RV

TYPE:Solid-state Relays Socket / Plug-in Type Copyright Statement

DATE:2021-06-08

Associated products:
G3R-I/O I/O Solid State Relays/Features G9H Hybrid Power Relay/Features

Rated voltage	Rated current	Must operate voltage	Must release voltage	Input voltage
AC	DC	% of rated voltage
50 Hz	60 Hz
12 VDC	---	---	15 mA	10.8 V	1 V	±10%
24 VDC	---	---	12 mA	21.6 V
24 VAC/DC	20 mA	21 mA	11 mA	21.6 V
48 VAC/DC	10 mA	11 mA	6 mA	43.2 V
110 VAC	7.5 mA	8.2 mA	---	99 V
230 VAC	7.3 mA	8.6 mA	---	207 V

Rated voltage	Rated current	Must operate voltage	Must release voltage	Input voltage
AC	DC	% of rated voltage
50 Hz	60 Hz
12 VDC	---	---	15 mA	10.8 V	1 V	±10%
24 VDC	---	---	12 mA	21.6 V
24 VAC/DC	20 mA	21 mA	11 mA	21.6 V
48 VAC/DC	10 mA	11 mA	6 mA	43.2 V
110 VAC	7.5 mA	8.2 mA	---	99 V
230 VAC	7.3 mA	8.6 mA	---	207 V

Rated voltage	Rated current	Must operate voltage	Must release voltage	Input voltage
AC	DC	% of rated voltage
50 Hz	60 Hz
12 VDC	---	---	8 mA	10.8 V	1 V	±10%
24 VDC	---	---	4.5 mA	21.6 V
24 VAC/DC	10.7 mA	11.1 mA	4.3 mA	21.6 V
48 VAC/DC	9.6 mA	10.2 mA	6 mA	43.2 V
110 VAC	6.8 mA	7.5 mA	---	99 V
230 VAC	6.8 mA	8.1 mA	---	207 V

Item	G3RV-SL700/500-A(L)	G3RV-SL700/500-D
Rated load voltage	AC 100 to 240 V (50/60 Hz)	DC 5 to 24 V
Load voltage range	AC 75 to 264 V (50/60 Hz)	DC 3 to 26.4 V
Load current	0.1 to 2 A (Ta=40°C)	100 µA to 3 A (Ta=40°C)
Inrush current	30 A (60 Hz/1 cycle)	30 A (60 Hz/1 cycle)
Permissible I²t; Joule Integral (Reference value)	15 A 2 s	9 A 2 s
Application load capacity	400 W (Output voltage: AC 200 V)	72 W (Output voltage: DC 24 V)

Item	G3RV-SL700/500-A	G3RV-SL700/500-AL	G3RV-SL700/500-D
Operate time	1/2 of load power source cycle + 1 ms max.	1 ms max.	6 ms max.
Release time	40 ms max.	20 ms max.	60 ms max.
Output ON voltage drop	1.6 V rms max.	0.9 V max.
Leakage current	5 mA max. (at 200 VAC 50/60 Hz)	10 µA max. (at 24VDC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	AC2500V 50/60 Hz for 1 min between input and output
Vibration resistance	Malfunction: 10 to 55 to 10 Hz, 0.7-mm single amplitude
Shock resistance	300m/s²
Ambient temperature	Storage: -30 to +100°C (with no icing or condensation) Operating: -30 to +55°C (with no icing or condensation)
Ambient humidity	45 to 85%RH
Weight	Approx. 38 g
Pollution degree	2
Degree of protection according to IEC 60529	IP20
Rated Impulse Withstand Voltage	4.0 kV/III
Load category	LC-A	DC-12
Overload Current Profile	1.5Ie 1.1Ue 5 s ON, 10 s OFF, 10 cycles
Rated insulation Voltage	240 V

Model	Input ratings	Contact ratings
G3RV-SL700/500-D Series	12, 24 VDC 24, 48 VAC/DC 110, 230 VAC	24 VDC 3 A (Resistive Load) at 25°C
G3RV-SL700/500-A(L) Series	12, 24 VDC 24, 48 VAC/DC 110, 230 VAC

Input ratings	Contact ratings
12, 24 VDC 24, 48 VAC/DC 110, 230 VAC	24 VDC 3 A (Resistive Load)
12, 24 VDC 24, 48 VAC/DC 110, 230 VAC

Input	Rated voltage	30 VAC/VDC max.
Current capacity	0.5 A per channel
2.0 A total current, power supply terminal
Characteristics	Ambient temperature	Operating: 0 to 55°C Storage: - 20 to 85°C
Overvoltage category	III
Pollution degree	2

Max current (EN60947-7-1 section 8.3.3/1991)	32 A
Max. Voltage	400 VAC
Max. Voltage when cutting Cross-bar without using separation plate or end-bracket	250 VAC

Classification	Enclosure rating	Input voltage	Type of connection	Contact form
SPST
Plug-in terminals	General-purpose	Unsealed	AC/DC	Screw terminals	G3RV-SL700
Push-in terminals	G3RV-SL500

Input voltage	Screw terminals	Push-in terminals
12 VDC	G3RV-SL700-D 12VDC	G3RV-SL500-D 12VDC
G3RV-SL700-A(L) 12VDC	G3RV-SL500-A(L) 12VDC
24 VDC	G3RV-SL700-D 24VDC	G3RV-SL500-D 24VDC
G3RV-SL700-A(L) 24VDC	G3RV-SL500-A(L) 24VDC
24 VAC/DC	G3RV-SL700-D 24VAC/DC	G3RV-SL500-D 24VAC/DC
G3RV-SL700-A(L) 24VAC/DC	G3RV-SL500-A(L) 24VAC/DC
48 VAC/DC	G3RV-SL700-D 48VAC/DC	G3RV-SL500-D 48VAC/DC
G3RV-SL700-A(L) 48VAC/DC	G3RV-SL500-A(L) 48VAC/DC
110 VAC	G3RV-SL700-D 110VAC	G3RV-SL500-D 110VAC
G3RV-SL700-A(L) 110VAC	G3RV-SL500-A(L) 110VAC
230 VAC	G3RV-SL700-D 230VAC	G3RV-SL500-D 230VAC
G3RV-SL700-A(L) 230VAC	G3RV-SL500-A(L) 230VAC

Model number	Description	Connection
P2RVC-8-O-F	PLC Output Interface for 8x G2RV-SL700 & G3RV-SL700 series PNP - type	Ribbon cable connector 10 Pole, IEC603/1

Isolation	Move- ment indi- cation	Rated input voltage (Socket)	Out- put (SSR)	Zero cross func- tion	Rated output load *	Model Number	Replacement for
Phototriac	Yes (Green)	DC 12 V	AC	Yes	2 A at 100 to 240 VAC	G3RV-202S DC12	G3RV-SL700/500-A DC12
DC 24 V	G3RV-202S DC24	G3RV-SL700/500-A DC24
AC/DC 24 V	G3RV-SL700/500-A AC/DC24
AC/DC 48 V	G3RV-SL700/500-A AC/DC48
AC 110 V	G3RV-202S DC48	G3RV-SL700/500-A AC110
AC 230 V	G3RV-SL700/500-A AC230
DC 12 V	No	G3RV-202SL DC12	G3RV-SL700/500-AL DC12
DC 24 V	G3RV-202SL DC24	G3RV-SL700/500-AL DC12
AC/DC 24 V	G3RV-SL700/500-AL AC/DC24
AC/DC 48 V	G3RV-SL700/500-AL AC/DC48
AC 110 V	G3RV-202SL DC48	G3RV-SL700/500-AL AC110
AC 230 V	G3RV-SL700/500-AL AC230
Photocoupler	DC 12 V	DC	---	3 A at 5 to 24 VDC	G3RV-D03SL DC12	G3RV-SL700/500-D DC12
DC 24 V	G3RV-D03SL DC24	G3RV-SL700/500-D DC24
AC/DC 24 V	G3RV-SL700/500-D AC/DC24
AC/DC 48 V	G3RV-D03SL DC48	G3RV-SL700/500-D AC/DC48
AC 110 V	G3RV-SL700/500-D AC110
AC 230 V	G3RV-SL700/500-D AC230

Model number	Poles	Quantity	Color
P2RVM-020[]	2	60 pcs/box (minimum order)	Red (R) Blue (S) Black (B)
P2RVM-030[]	3	60 pcs/box (minimum order)
P2RVM-040[]	4	60 pcs/box (minimum order)
P2RVM-100[]	10	20 pcs/box (minimum order)
P2RVM-200[]	20	20 pcs/box (minimum order)

Model number	Box quantity	Color
R99-15 for G2RV	5 sheets × 120 labels = 600 labels (minimum order)	White

Model number	Box quantity	Color
R99-16 for G2RV	10 sheets × 484 labels = 4,840 labels (minimum order)	White

Model number	Quantity	Description
P2RV-S	50 plates	Provides isolation between adjacent relays to achieve 400 V isolation.
