• Ideal for level control of any conductive liquid.

• Compact plug-in controller for single- or two-point control of conductive liquid level.

• 24/110/120/220/230/240 VAC operation possible.

• Easy installation on DIN rail.

• Low voltage (AC) electrodes.

• Full surge protection.

last update: August 5, 2015

Purchase the OMRON Floatless Level Controllers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON 61F-GP-N2 Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 61F-GP-N2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 61F-GP-N2Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

HS-360X Series Handheld DPM Scanner/Features
SGE / SCC Safety Edge/Edge Controller/Features
A22NS / A22NW Selector Switches/Features
E5AN-HT, E5EN-HT Programmable Temperature Controller (Digital Controller) (96 x 96 mm and 48 x 96...
GX-ID16[]2 / OD16[]2 / MD16[]2 Digital I/O Terminal 3-tier Terminal Block Type/Features

OMRON 61F-GP-N2 catalog
61F-GP-N2 Conductive Level Controller/Catalog

Catalog

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

61F-GP-N2 Data Sheet -
[628KB] Aug 04, 201520150804 61F-GP-N2 Data Sheet

OMRON 61F-GP-N2 specification
61F-GP-N2 Conductive Level Controller/Specifications
last update: August 05, 2015

Supply voltage 24, 110, 120, 220, 230, 240 VAC; 50/60 Hz
Operating voltage range 85% to 110% of rated voltage
Interelectrode voltage * 8 VAC
Power consumption Approx. 3.2 VA
Operate resistance Approx. 4 KΩ min. Between electrode E1 and E3
Release resistance Approx. 15 KΩ max. Between electrode E2 and E3
Response time Operate: 80 ms max., Release: 160 ms max.
Control output 10 A, 250 VAC (at 40°C)
3 A, 250 VAC (at 55°C)
Insulation resistance 100 MΩ max. (at 500 VDC) between power terminals and electrode terminals, and
between electrode terminals and contact terminals
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min., between power terminals and electrode terminals, and
between electrode terminals and contact terminals
Ambient temperature Operating: -10°C to 55°C
Ambient humidity Operating: 45% to 85%
Life expectancy Mechanical: 10,000,000 operations min.
Weight Approx. 190 g
Approved standards UL508, CSA C22.2 No.14,
EN61010-1, EN61326-1 Industrial electromagnetic environment

*　Secondary voltage of transformer

last update: August 05, 2015

OMRON 61F-GP-N2 dimension
61F-GP-N2 Conductive Level Controller/Dimensions
last update: January 08, 2014
61F-GP-N2

Electrode Holders

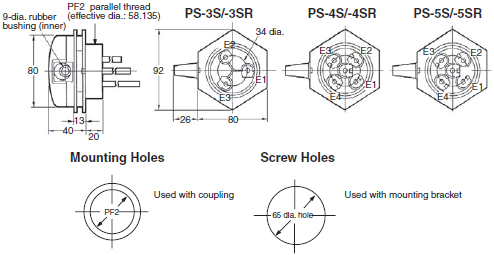

PS-3S

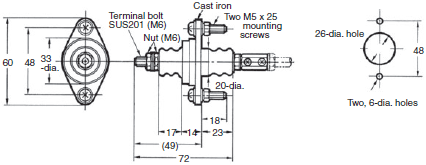

PS-31

* Standard holder construction includes three integral 300 mm length　electrodes. However, a type having 1,000 mm length electrodes is　available on request.

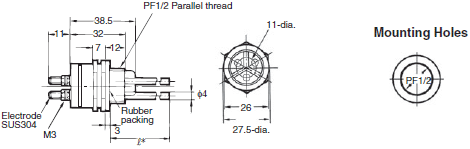

BF-1

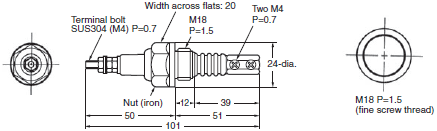

BS-1(S)

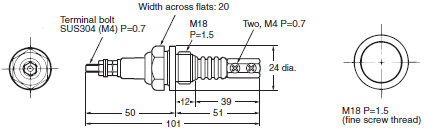

BS-1
