OMRON E3NC-L Dimensions

/Images/l_3163-25-161486-198x198.jpg

last update: March 14, 2013

once with a workpiece.
Press once without a workpiece.

once without a workpiece.
Place workpiece in desired position and press for at least 3 seconds.

High-speed Workpieces
Full Auto Tuning

You can adjust to moving workpieces without stopping the line.

for at least 7 seconds without a workpiece. When , appears on the green digital display, send a workpiece pass the Sensor. Release your finger after the workpiece passes.

Easy, Dependable Setup for Detection of Minute Moving Workpieces
Solution Viewer (PAT.P)

The passing time and difference in incident level are displayed when a workpiece passes. The display of the differences in incident level lets you determine if the threshold is the best. The display of the passing time lets you determine if the response time is best so that you can achieve reliable operation.

last update: March 14, 2013

Purchase the OMRON Separate Amplifier Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E3NC-L Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3NC-L We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3NC-LSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NT-AL001 RS-232C/RS-422A Adapter/Features
FHV7 Series Smart Camera/Features
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
E5AC-800 Digital Temperature Controller (Simple Type) (96 × 96 mm)/Features
eCobra 800 Lite / Standard / Pro SCARA Robots/Features

OMRON E3NC-L dimension
E3NC-L Compact Smart Laser Sensor/Dimensions
last update: August 22, 2013

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

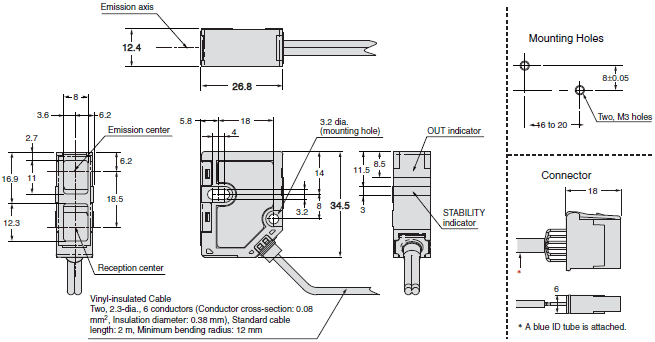

Sensor Heads

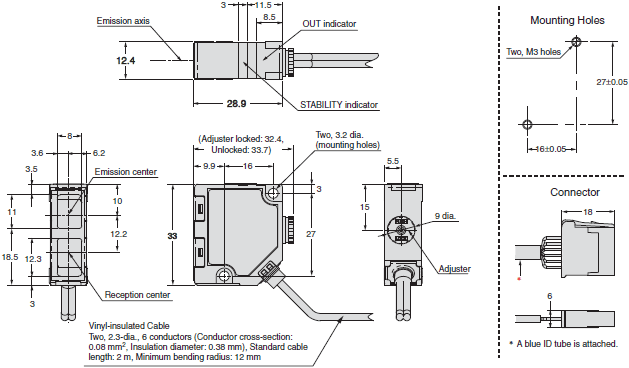

E3C-LH02

E3NC-LH01

Amplifier Units

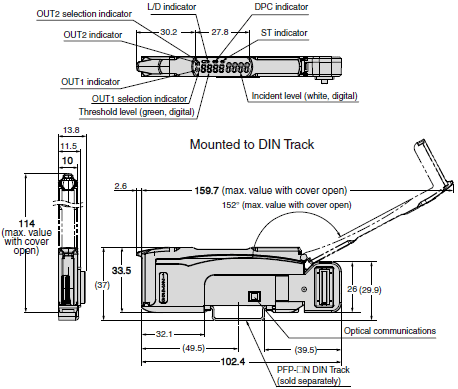

Pre-wired Amplifier Units
E3NC-LA21
E3NC-LA51

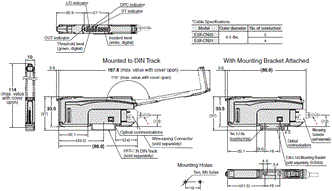

Amplifier Units with Wire-saving Connectors
E3NC-LA7
E3NC-LA9

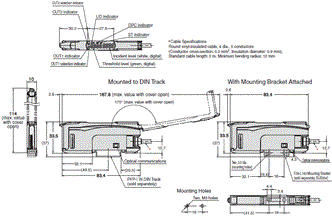

Amplifier Units with M8 Connectors
E3NC-LA24
E3NC-LA54

Amplifier Unit with Connector for Sensor Communications Unit
E3NC-LA0

Accessories (Sold Separately)
Sensor Head Mounting Brackets

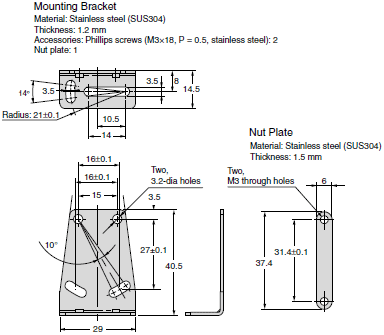

E39-L185 (for E3NC-LH02)

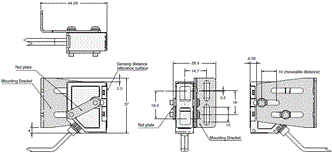

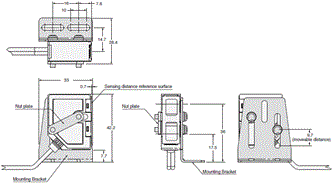

With E39-L185 Mounting Bracket Attached

* When adjusted, the adjuster extends 0.8 mm from the Mounting Bracket surface.

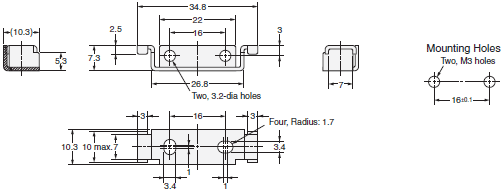

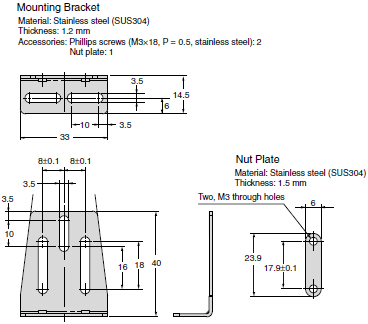

E39-L186 (for E3NC-LH01)

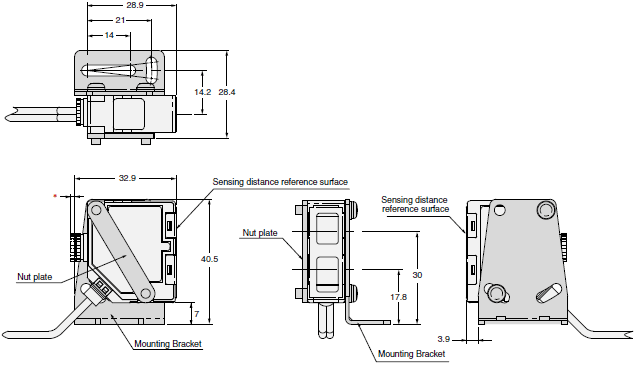

With E39-L186 Mounting Bracket Attached for Bottom Mounting

With E39-L186 Mounting Bracket Attached for Back Mounting

Wire-saving Connectors

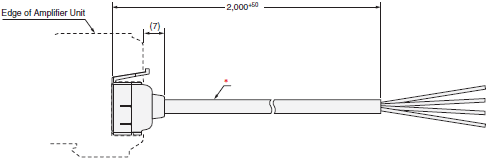

Master Connector
E3X-CN21

* 4-dia. cable with 4 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm²(AWG24), Insulation
diameter: 1.1 mm)

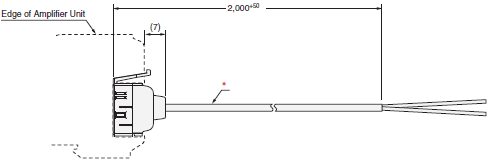

Slave Connector
E3X-CN22

* 4-dia. cable with 2 conductors, Standard cable length: 2 m (Conductor cross-section: 0.2 mm² (AWG24), Insulation
diameter: 1.1 mm)

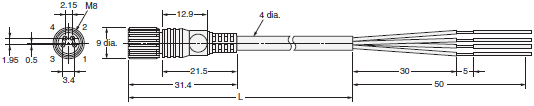

Sensor I/O Connectors
Straight
XS3F-M421-40[]-A

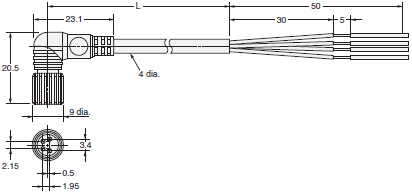

L-shaped
XS3F-M422-40[]-A

Amplifier Unit Mounting Bracket
E39-L143

Material: Stainless steel (SUS304)

DIN Track
PFP-100N
PFP-50N

Material: Aluminum
*Dimensions in parentheses are for the PFP-50N.

PFP-100N2

Material: Aluminum

End Plate
PFP-M

Materials: Iron, zinc plating

last update: August 22, 2013

OMRON E3NC-L specification
E3NC-L Compact Smart Laser Sensor/Specifications
last update: August 06, 2013
Sensor Heads

Sensing method Diffuse-reflective Limited-reflective
Model E3NC-LH02 E3NC-LH01
Light source (wavelength) *1 Visible semiconductor laser diode (660 nm), 1.35 mW (average output:
315 μW) (JIS Class 1, IEC/EN Class 1, and FDA Class 1)
Sensing
distance
*2 Giga-power mode (GIGA) 1,200 mm 70±15 mm
Standard mode (Stnd) 750 mm
High-speed mode (HS) 250 mm
Super-high-speed mode (SHS) 200 mm
Spot diameter *3 Approx. 0.8 mm (at distances up to
300 mm) Approx. 0.1 mm (at distances up to
70 mm)
Differential distance *4 10% of sensing distance
Indicators OUT indicator (orange) and STABILITY indicator (green)
Ambient illumination Illumination on received light surface: 10,000 lx max. of incandescent
light, 20,000 lx max. of sunlight
Ambient temperature range Operating: -10 to 55°C; Storage: -25 to 70°C (with no icing or
condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude or 100 m/s² for 2 hours
each in X, Y, and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection IEC IP65 (E3NC-LH02: Applies only when adjuster is locked.)
Connecting method Pre-wired connector (standard length: 2 m)
Materials Case Polybutylene terephthalate (PBT)
Lens Methacrylic resin
Cable PVC
Weight (packed state/Sensor Head only) Approx. 115 g/approx. 65 g
Accessories Instruction Manual

*1. These Sensors are classified as Class 1 laser devices under IEC 60825-1 and the regulations of Laser Notice No. 50
for FDA certification.
CDRH (Center for Devices and Radiological Health) registration has been completed. (Accession Number:1220690)
*2. The values were measured using the OMRON standard sensing object (white paper).
*3. Defined as 1/e2 (13.5%) of the central light intensity at the measurement distance.
The spot diameter is sometimes influenced by the ambient conditions of the workpiece, such as light that leaks from
the main beam, if the reflection factor of the area surrounding the workpiece is higher than that of the workpiece.
*4. Measured at the rated sensing distance.

Amplifier Units

Type Standard models Model for Sensor
Communications Unit
NPN output E3NC-LA21 E3NC-LA7 E3NC-LA24 E3NC-LA0
PNP output E3NC-LA51 E3NC-LA9 E3NC-LA54
Connecting method Pre-wired Wire-saving
Connector M8
Connector Connector for Sensor
Communications Unit
Inputs/
outputs Outputs 2 outputs 1 output --- *1
External inputs 1 input
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p)
Power consumption *2 At Power Supply Voltage of 24 VDC
Normal mode: 1,560mW max. (Current consumption: 65mA max.)
Power saving eco mode: 1,200 mW max. (Current consumption: 50 mA
max.)
Control outputs *3 Load power supply voltage: 30 VDC max.,
open-collector output
Load current:
Groups of 1 to 3 Amplifier Units: 100 mA max.,
Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max. ---
External inputs Refer to *4. ---
Indicators 7-segment displays (Sub digital display: green, Main digital display:
white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC
indicator (green), and OUT selection indicator (orange, only on models
with 2 outputs)
Protection circuits Power supply reverse polarity protection,
output short-circuit protection, and output
reverse polarity protection Power supply reverse
polarity protection and
output short-circuit
protection
Response
time Super-high-speed mode
(SHS) *5 Operate or reset: 80 μs
High-speed mode (HS) Operate or reset: 250 μs
Standard mode (Stnd) Operate or reset: 1 ms
Giga-power mode (GIGA) Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum
sensitivity tuning, power tuning, or percentage tuning (-99% to +99%)),
or manual adjustment.
No. of Units
for mutual
interference
prevention Super-high-speed mode
(SHS) *5 0
High-speed mode (HS) 2
Standard mode (Stnd) 2
Giga-power mode (GIGA) 4
Functions Dynamic power control
(DPC) Provided
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay
+ OFF-delay timer: 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting settings *6 Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode Select from OFF (digital displays lit) or ECO (digital displays not lit).
Bank switching Select from banks 1 to 4.
Power tuning Select from ON or OFF.
Output 1 Select from Normal Detection Mode or Area Detection Mode.
Output 2 Select from
normal
detection
mode, alarm
output mode,
or error
output mode. --- Select from normal
detection mode, alarm
output mode, or error
output mode.
External input Select from input OFF, tuning, power tuning,
laser OFF, zero reset, or bank switching. ---
Hysteresis width Select from standard setting or user setting.
Maximum connectable Units 30
Ambient temperature range Operating:
Groups of 1 or 2 Amplifier Units:
-25 to 55°C,
Groups of 3 to 10 Amplifier Units:
-25 to 50°C,
Groups of 11 to 16 Amplifier Units:
-25 to 45°C,
Groups of 17 to 30 Amplifier Units:
-25 to 40°C
Storage: -30 to 70°C (with no icing or
condensation) Operating:
Groups of 1 or 2 Amplifier
Units: 0 to 55°C,
Groups of 3 to 10
Amplifier Units: 0 to
50°C,
Groups of 11 to 16
Amplifier Units: 0 to
45°C,
Groups of 17 to 30
Amplifier Units: 0 to
40°C,
Storage: -30 to 70°C
(with no icing or
condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y,
and Z directions
Shock resistance (destruction) 500 m/s² for 3 times each in X, Y, and Z
directions 150m/s² for 3 times each
in X, Y, and Z directions
Weight (packed state/Amplifier Unit
only) Approx. 115 g/
approx. 75 g Approx. 60 g/
approx. 20 g Approx. 65 g/approx. 25 g
Materials Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable PVC
Accessories Instruction Manual

*1. Two sensor outputs are allocated in the programmable logic controller PLC I/O table.
PLC operation via Communications Unit enables reading detected values and changing settings.
*2. At Power Supply Voltage of 10 to 30 VDC.
Normal mode: 1,650 mW max. (Current consumption: 55 mA max. at 30 VDC, 115 mA max. at 10 VDC)
Power saving eco mode: 1,350 mW max. (Current consumption: 45 mA max. at 30 VDC, 80 mA max. at 10 VDC)
*3. The total for both outputs of a model with 2 outputs is 100 mA max. (Residual voltage: Load current of less than 10
mA: 1 V max., Load current of 10 to 100 mA: 2 V max.).
*4. The following details apply to the input.

Contact input (relay or switch) Non-contact input (transistor) Input time
NPN ON: Shorted to 0 V (Sourcing current: 1 mA
max.).
OFF: Open or shorted to Vcc. ON: 1.5 V max. (Sourcing current: 1 mA max.)
OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1
mA max.) ON: 9 ms min.
OFF: 9 ms min.
PNP ON: Shorted to Vcc (Sinking current: 3 mA
max.).
OFF: Open or shorted to 0 V. ON: Vcc - 1.5 V to Vcc (Sinking current: 3 mA
max.)
OFF: 1.5 V max. (Leakage current: 0.1 mA max.)

*5. The mutual interference prevention function is disabled if the detection mode is set to super-high-speed mode.
*6. The bank is not reset by the user reset function or saved by the user save function.

last update: August 06, 2013

OMRON E3NC-L lineup
E3NC-L Compact Smart Laser Sensor/Lineup
last update: August 22, 2013
Sensor Heads

Sensing method Appearance Focus Model
Diffuse-reflective Variable spot E3NC-LH02 2M
Limited-reflective Spot E3NC-LH01 2M

Amplifier Units

Connecting method Appearance Inputs/outputs Model
NPN output PNP output
Pre-wired (2 m) 2 outputs + 1 input E3NC-LA21 2M E3NC-LA51 2M
Wire-saving Connector 1 output + 1 input E3NC-LA7 E3NC-LA9
M8 Connector 1 output + 1 input E3NC-LA24 E3NC-LA54
Connector for Sensor
Communications Unit * --- E3NC-LA0

* A Sensor Communications Unit is required if you want to use the Amplifier Unit on a network.

Accessories (Sold Separately)
Sensor Head Accessories
Sensor Head Mounting Brackets

A Mounting Bracket is not provided with the Sensor Head. It must be ordered separately as required.

Applicable Sensor Head Appearance Model Quantity Contents
E3NC-LH02 E39-L185 1 Mounting Bracket: 1
Nut plate: 1
Phillips screws (M3×18): 2
E3NC-LH01 E39-L186 1

Amplifier Unit Accessories
Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Connectors are not provided with the Amplifier Unit and must be ordered separately.
* Protective stickers are provided.

Type Appearance Cable
length No. of
conductors Model
Master Connector 2 m 4 E3X-CN21
Slave Connector 2 E3X-CN22

Sensor I/O Connectors (Required for models for M8 Connectors.)

Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately.

Size Cable Appearance Cable type Model
M8 Standard cable Straight 2 m 4-wire XS3F-M421-402-A
5 m XS3F-M421-405-A
L-shaped 2 m XS3F-M422-402-A
5 m XS3F-M422-405-A

Amplifier Unit Mounting Bracket

A Mounting Bracket is not provided with the Amplifier Unit. It must be ordered separately as required.

Appearance Model Quantity
E39-L143 1

DIN Track

A DIN Track is not provided with the Amplifier Unit. It must be ordered separately as required.

Appearance Type Model Quantity
Shallow type, total length: 1 m PFP-100N 1
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m PFP-100N2

End Plate

Two End Plates are provided with the Sensor Communications Unit.
End Plates are not provided with the Amplifier Unit. They must be ordered separately as required.

Appearance Model Quantity
PFP-M 1

Related Products
Sensor Communications Units

Type Appearance Model
Sensor Communications Unit for EtherCAT E3NW-ECT
Sensor Communications Unit for CompoNet *1 E3NW-CRT
Sensor Communications Unit for CC-Link *1 E3NW-CCL
Distributed Sensor Unit *2 E3NW-DS

*1. Refer to your OMRON website for details.
*2. The Distributed Sensor Unit can be connected to any of the Sensor Communications Units.

EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
CompoNet is a registered trademark of the ODVA.
CC-Link is a registered trademark of Mitsubishi Electric Corporation. The trademark is managed by the CC-Link Partner Association.

last update: August 22, 2013

OMRON E3NC-L cad
E3NC-L Compact Smart Laser Sensor/CAD

CAD

If you Login / Signup, you can download the CAD data.

Product Format Product Description CAD Download

E3NC-LA21 Amplifier Unit , Pre-Wired Type , NPN Transistor Output 2D / 3D

E3NC-LA24 Amplifier Unit , M8 Connector Type , NPN Transistor Output 2D / 3D

E3NC-LA51 Amplifier Unit , Pre-Wired Type , PNP Transistor Output 2D / 3D

E3NC-LA54 Amplifier Unit , M8 Connector Type , PNP Transistor Output 2D / 3D

E3NC-LA0 Amplifier Unit , Connector for Sensor Communications Unit Type , 2 Output 2D / 3D

E3NC-LA7 Amplifier Unit , Wire-Saving Connector Type , NPN Transistor Output 2D / 3D

E3NC-LA9 Amplifier Unit , Wire-Saving Connector Type , PNP Transistor Output 2D / 3D

E3NC-LH01 Limited Reflective Type , Sensing Distance 70±15mm 2D / 3D

E3NC-LH02 Diffuse-Reflective Type , Variable Spot 2D / 3D

E3NC-LH03 2m Retroreflective Type , Spot Focus , Cable Length 2m 2D / 3D

E3NC-LH03 5m Retroreflective Type , Spot Focus , Cable Length 5m (with Ferrite Core) 2D / 3D

E3NW-CCL Sensor Communication Unit , CC-Link 2D / 3D

E3NW-CRT Sensor Communication Unit , CompoNet 2D / 3D

E3NW-DS Distributed Sensor Unit 2D / 3D

E3NW-ECT Sensor Communication Unit , EtherCAT 2D / 3D

E3X-CN21 Wire-Saving Connector , Master Connector , 4-Wire , 2m 2D / 3D

E3X-CN22 Wire-Saving Connector , Slave Connector , 2-Wire , 2m 2D / 3D

E39-L143 Mounting Bracket 2D / 3D

E39-L185 Mounting Bracket , For E3NC-LH02 2D / 3D

E39-L186 Mounting Bracket , For E3NC-LH01 2D / 3D

E39-L190 Mounting Bracket , For E3NC-LH03 2D / 3D

E39-P51 Lens Attachment , for E3NC-LH03 2D / 3D

E39-P52 Lens Attachment , for E3NC-LH02 2D / 3D

E39-R21 Reflector , H30mm x W50mm 2D / 3D

E39-R22 Reflector , H40mm x W55mm 2D / 3D

E39-RS10 Reflector , H25mm x W25mm 2D / 3D

E39-RS11 Reflector , H50mm x W50mm 2D / 3D

PFP-100N Supporting Rail , 1000mm 2D / 3D

PFP-100N2 Supporting Rail , 1000mm 深型 2D / 3D

PFP-50N Supporting Rail , 500mm 2D / 3D

PFP-M End Plate 2D / 3D

NO. E3NC-L

TYPE:Photoelectric Sensors Separate Amplifier Copyright Statement

DATE:2021-06-12

Associated products:
E3C-VS / VM Small Spot/Mark (Separate Amplifier)/Features E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features

Sensing method	Diffuse-reflective	Limited-reflective
Model	E3NC-LH02	E3NC-LH01
*Light source (wavelength) 1**	Visible semiconductor laser diode (660 nm), 1.35 mW (average output: 315 μW) (JIS Class 1, IEC/EN Class 1, and FDA Class 1)
Sensing distance *2	Giga-power mode (GIGA)	1,200 mm	70±15 mm
Standard mode (Stnd)	750 mm
High-speed mode (HS)	250 mm
Super-high-speed mode (SHS)	200 mm
*Spot diameter 3**	Approx. 0.8 mm (at distances up to 300 mm)	Approx. 0.1 mm (at distances up to 70 mm)
*Differential distance 4**	10% of sensing distance
Indicators	OUT indicator (orange) and STABILITY indicator (green)
Ambient illumination	Illumination on received light surface: 10,000 lx max. of incandescent light, 20,000 lx max. of sunlight
Ambient temperature range	Operating: -10 to 55°C; Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude or 100 m/s² for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection	IEC IP65 (E3NC-LH02: Applies only when adjuster is locked.)
Connecting method	Pre-wired connector (standard length: 2 m)
Materials	Case	Polybutylene terephthalate (PBT)
Lens	Methacrylic resin
Cable	PVC
Weight (packed state/Sensor Head only)	Approx. 115 g/approx. 65 g
Accessories	Instruction Manual

Type	Standard models	Model for Sensor Communications Unit
	NPN output	E3NC-LA21	E3NC-LA7	E3NC-LA24	E3NC-LA0
PNP output	E3NC-LA51	E3NC-LA9	E3NC-LA54
Connecting method	Pre-wired	Wire-saving Connector	M8 Connector	Connector for Sensor Communications Unit
Inputs/ outputs	Outputs	2 outputs	1 output	--- *1
External inputs	1 input
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)
*Power consumption 2**	At Power Supply Voltage of 24 VDC Normal mode: 1,560mW max. (Current consumption: 65mA max.) Power saving eco mode: 1,200 mW max. (Current consumption: 50 mA max.)
*Control outputs 3**	Load power supply voltage: 30 VDC max., open-collector output Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max. (Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.) OFF current: 0.1 mA max.	---
External inputs	Refer to *4.	---
Indicators	7-segment displays (Sub digital display: green, Main digital display: white) Display direction: Switchable between normal and reversed. OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits	Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection	Power supply reverse polarity protection and output short-circuit protection
Response time	Super-high-speed mode (SHS) *5	Operate or reset: 80 μs
High-speed mode (HS)	Operate or reset: 250 μs
Standard mode (Stnd)	Operate or reset: 1 ms
Giga-power mode (GIGA)	Operate or reset: 16 ms
Sensitivity adjustment	Smart Tuning (2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning (-99% to +99%)), or manual adjustment.
No. of Units for mutual interference prevention	Super-high-speed mode (SHS) *5	0
High-speed mode (HS)	2
Standard mode (Stnd)	2
Giga-power mode (GIGA)	4
Functions	Dynamic power control (DPC)	Provided
Timer	Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms
Zero reset	Negative values can be displayed. (Threshold value is shifted.)
*Resetting settings 6**	Select from initial reset (factory defaults) or user reset (saved settings).
Eco mode	Select from OFF (digital displays lit) or ECO (digital displays not lit).
Bank switching	Select from banks 1 to 4.
Power tuning	Select from ON or OFF.
Output 1	Select from Normal Detection Mode or Area Detection Mode.
Output 2	Select from normal detection mode, alarm output mode, or error output mode.	---	Select from normal detection mode, alarm output mode, or error output mode.
External input	Select from input OFF, tuning, power tuning, laser OFF, zero reset, or bank switching.	---
Hysteresis width	Select from standard setting or user setting.
Maximum connectable Units	30
Ambient temperature range	Operating: Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C, Groups of 11 to 16 Amplifier Units: -25 to 45°C, Groups of 17 to 30 Amplifier Units: -25 to 40°C Storage: -30 to 70°C (with no icing or condensation)	Operating: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C, Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units: 0 to 40°C, Storage: -30 to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	500 m/s² for 3 times each in X, Y, and Z directions	150m/s² for 3 times each in X, Y, and Z directions
Weight (packed state/Amplifier Unit only)	Approx. 115 g/ approx. 75 g	Approx. 60 g/ approx. 20 g	Approx. 65 g/approx. 25 g
Materials	Case	Polycarbonate (PC)
Cover	Polycarbonate (PC)
Cable	PVC
Accessories	Instruction Manual

	Contact input (relay or switch)	Non-contact input (transistor)	Input time
NPN	ON: Shorted to 0 V (Sourcing current: 1 mA max.). OFF: Open or shorted to Vcc.	ON: 1.5 V max. (Sourcing current: 1 mA max.) OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1 mA max.)	ON: 9 ms min. OFF: 9 ms min.
PNP	ON: Shorted to Vcc (Sinking current: 3 mA max.). OFF: Open or shorted to 0 V.	ON: Vcc - 1.5 V to Vcc (Sinking current: 3 mA max.) OFF: 1.5 V max. (Leakage current: 0.1 mA max.)

Sensing method	Appearance	Focus	Model
Diffuse-reflective		Variable spot	E3NC-LH02 2M
Limited-reflective		Spot	E3NC-LH01 2M

Connecting method	Appearance	Inputs/outputs	Model
NPN output	PNP output
Pre-wired (2 m)		2 outputs + 1 input	E3NC-LA21 2M	E3NC-LA51 2M
Wire-saving Connector		1 output + 1 input	E3NC-LA7	E3NC-LA9
M8 Connector		1 output + 1 input	E3NC-LA24	E3NC-LA54
Connector for Sensor Communications Unit *		---	E3NC-LA0

Applicable Sensor Head	Appearance	Model	Quantity	Contents
E3NC-LH02		E39-L185	1	Mounting Bracket: 1 Nut plate: 1 Phillips screws (M3×18): 2
E3NC-LH01		E39-L186	1

Type	Appearance	Cable length	No. of conductors	Model
Master Connector		2 m	4	E3X-CN21
Slave Connector		2	E3X-CN22

Size	Cable	Appearance	Cable type	Model
M8	Standard cable	Straight		2 m	4-wire	XS3F-M421-402-A
5 m	XS3F-M421-405-A
L-shaped		2 m	XS3F-M422-402-A
5 m	XS3F-M422-405-A

Appearance	Model	Quantity
	E39-L143	1

Appearance	Type	Model	Quantity
	Shallow type, total length: 1 m	PFP-100N	1
Shallow type, total length: 0.5 m	PFP-50N
Deep type, total length: 1 m	PFP-100N2

Appearance	Model	Quantity
	PFP-M	1

Type	Appearance	Model
Sensor Communications Unit for EtherCAT		E3NW-ECT
Sensor Communications Unit for CompoNet *1		E3NW-CRT
Sensor Communications Unit for CC-Link *1		E3NW-CCL
Distributed Sensor Unit *2		E3NW-DS

Product Format	Product Description	CAD Download
E3NC-LA21	Amplifier Unit , Pre-Wired Type , NPN Transistor Output	2D / 3D
E3NC-LA24	Amplifier Unit , M8 Connector Type , NPN Transistor Output	2D / 3D
E3NC-LA51	Amplifier Unit , Pre-Wired Type , PNP Transistor Output	2D / 3D
E3NC-LA54	Amplifier Unit , M8 Connector Type , PNP Transistor Output	2D / 3D
E3NC-LA0	Amplifier Unit , Connector for Sensor Communications Unit Type , 2 Output	2D / 3D
E3NC-LA7	Amplifier Unit , Wire-Saving Connector Type , NPN Transistor Output	2D / 3D
E3NC-LA9	Amplifier Unit , Wire-Saving Connector Type , PNP Transistor Output	2D / 3D
E3NC-LH01	Limited Reflective Type , Sensing Distance 70±15mm	2D / 3D
E3NC-LH02	Diffuse-Reflective Type , Variable Spot	2D / 3D
E3NC-LH03 2m	Retroreflective Type , Spot Focus , Cable Length 2m	2D / 3D
E3NC-LH03 5m	Retroreflective Type , Spot Focus , Cable Length 5m (with Ferrite Core)	2D / 3D
E3NW-CCL	Sensor Communication Unit , CC-Link	2D / 3D
E3NW-CRT	Sensor Communication Unit , CompoNet	2D / 3D
E3NW-DS	Distributed Sensor Unit	2D / 3D
E3NW-ECT	Sensor Communication Unit , EtherCAT	2D / 3D
E3X-CN21	Wire-Saving Connector , Master Connector , 4-Wire , 2m	2D / 3D
E3X-CN22	Wire-Saving Connector , Slave Connector , 2-Wire , 2m	2D / 3D
E39-L143	Mounting Bracket	2D / 3D
E39-L185	Mounting Bracket , For E3NC-LH02	2D / 3D
E39-L186	Mounting Bracket , For E3NC-LH01	2D / 3D
E39-L190	Mounting Bracket , For E3NC-LH03	2D / 3D
E39-P51	Lens Attachment , for E3NC-LH03	2D / 3D
E39-P52	Lens Attachment , for E3NC-LH02	2D / 3D
E39-R21	Reflector , H30mm x W50mm	2D / 3D
E39-R22	Reflector , H40mm x W55mm	2D / 3D
E39-RS10	Reflector , H25mm x W25mm	2D / 3D
E39-RS11	Reflector , H50mm x W50mm	2D / 3D
PFP-100N	Supporting Rail , 1000mm	2D / 3D
PFP-100N2	Supporting Rail , 1000mm 深型	2D / 3D
PFP-50N	Supporting Rail , 500mm	2D / 3D
PFP-M	End Plate	2D / 3D

Return to OMRON

OMRON E3NC-LSensors/ Photoelectric Sensors/Separate Amplifier

OMRON E3NC-L Dimensions

High-speed WorkpiecesFull Auto Tuning

Purchase the OMRON Separate Amplifier Please fill in the following

OMRON E3NC-L dimension

Sensor Heads

E3C-LH02

E3NC-LH01

Amplifier Units

Pre-wired Amplifier UnitsE3NC-LA21E3NC-LA51

Amplifier Units with Wire-saving ConnectorsE3NC-LA7E3NC-LA9

Amplifier Units with M8 ConnectorsE3NC-LA24E3NC-LA54

Amplifier Unit with Connector for Sensor Communications UnitE3NC-LA0

Accessories (Sold Separately)

Sensor Head Mounting BracketsE39-L185 (for E3NC-LH02)

With E39-L185 Mounting Bracket Attached

E39-L186 (for E3NC-LH01)

With E39-L186 Mounting Bracket Attached for Bottom Mounting

With E39-L186 Mounting Bracket Attached for Back Mounting

Wire-saving Connectors

Master ConnectorE3X-CN21

Slave ConnectorE3X-CN22

Sensor I/O Connectors

StraightXS3F-M421-40[]-A

L-shapedXS3F-M422-40[]-A

Amplifier Unit Mounting BracketE39-L143

DIN TrackPFP-100NPFP-50N

PFP-100N2

End PlatePFP-M

OMRON E3NC-L specification

Sensor Heads

Amplifier Units

OMRON E3NC-L lineup

Sensor Heads

Amplifier Units

Accessories (Sold Separately)

Sensor Head Accessories

Sensor Head Mounting Brackets

Amplifier Unit Accessories

Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Sensor I/O Connectors (Required for models for M8 Connectors.)

Amplifier Unit Mounting Bracket

DIN Track

End Plate

Related Products

Sensor Communications Units

OMRON E3NC-L cad

High-speed Workpieces
Full Auto Tuning

Pre-wired Amplifier Units
E3NC-LA21
E3NC-LA51

Amplifier Units with Wire-saving Connectors
E3NC-LA7
E3NC-LA9

Amplifier Units with M8 Connectors
E3NC-LA24
E3NC-LA54

Amplifier Unit with Connector for Sensor Communications Unit
E3NC-LA0

Sensor Head Mounting Brackets
E39-L185 (for E3NC-LH02)

Master Connector
E3X-CN21

Slave Connector
E3X-CN22

Straight
XS3F-M421-40[]-A

L-shaped
XS3F-M422-40[]-A

Amplifier Unit Mounting Bracket
E39-L143

DIN Track
PFP-100N
PFP-50N

End Plate
PFP-M
