last update: July 04, 2013

A new generation in global applications

We asked our customers: "What do you – as a proximity sensor user - really want in a sensor?" Some people wanted reliability in extreme conditions. But most simply wanted reliable performance in standard industrial environments.
These people also wanted attractive pricing, without compromising quality. So we put to work our 50-year heritage in proximity sensors: a heritage that has seen 200 million Omron proximity sensors shipped to satisfied customers across the globe. We put this heritage to work as well as our understanding of customer needs. The result is the new E2B sensor range: designed to give you quality, reliability and value-for-money.

Perfect fit for standard environments

The new E2B proximity sensors promise the perfect fit to your particular needs. With the wide range of models in the E2B family, you can choose the one that exactly meets your needs. For example, we have four different sizes: M8, M12, M18 and M30, each one with single or double sensing distances, shielded and unshielded. There's also a choice of short and long bodies, two connecting methods and four output types. With this range to choose from, you’re certain to find the perfect fit.

Time and cost savings

For standard conditions you can easily select E2B sensors because they have an easy-to-read code without complex codification. They also have a bright circular LED indicator, so you can quickly determine their operating status. These two features reduce the effort in machine maintenance, so you will save time and money.

360-degree indication

Easy visibility for 360° even in dark locations so you can mount the sensor in any direction.

The ideal solution for standard industrial environments

Pay only for what you need

Most industrial applications are conducted in a standard environment, in a normal temperature range, without extremes such as high oil- or water-pressure, or strong electromagnetic fields, or constant high mechanical stresses. This makes E2B the ideal solution for the vast majority of applications. It’s perfectly reliable for normal conditions. What’s more, you get just what you need without paying for unnecessary extreme robustness.
For example, in the machine-tool industry, E2B sensors are ideal for detecting tool positions or line encoders. For packaging machines they can be used for detecting the positions of welded or pressed elements.

IP67

We have performed not only a specified test for rating the degree of protection (IP67) for catalogs, but also tests with oil mist which appears onsite. Simulation tests has been performed with attachment of high concentration of oil mist.

Global deliveries and support

Our global network of 150 bases located in 40 countries ensure that we can support you with products and services without delay. This global product and service availability is especially important to those customers who manufacture machines in America for use in Asia, for example.

last update: July 04, 2013

Purchase the OMRON Cylindrical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E2B Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2BSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

CJ1W-NC[]81 / []82 CJ-series Position Control Units with EtherCAT interface/Features
F3W-E Picking Sensor/Features
E5ED / E5ED-B Digital Temperature Controller (48 x 96 mm)/Features
CS1W-DRM21-V1 CS-series DeviceNet Unit/Features
XS5[]R Oil-resistant Connectors/Features

OMRON E2B dimension
E2B Cylindrical Proximity Sensor/Dimensions
last update: April 01, 2014

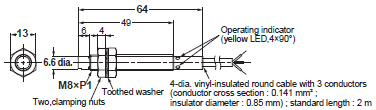

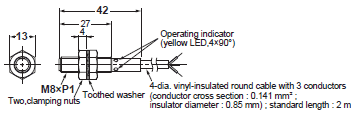

M8 Size
Short Body
Pre-wired Models (Shielded)
E2B-S08KS01-WP-[][]/E2B-S08KS02-WP-[][]

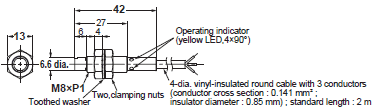

Pre-wired Models (Unshielded)
E2B-S08KN02-WP-[][]/E2B-S08KN04-WP-[][]

Long Body
Pre-wired Models (Shielded)
E2B-S08LS01-WP-[][]/E2B-S08LS02-WP-[][]

Pre-wired Models (Unshielded)
E2B-S08LN02-WP-[][]/E2B-S08LN04-WP-[][]

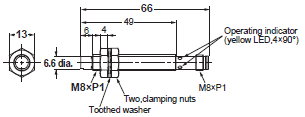

Short Body
Connector Models (Shielded)
E2B-S08KS01-MC-[][]/E2B-S08KS02-MC-[][]

Connector Models (Unshielded)
E2B-S08KN02-MC-[][]/E2B-S08KN04-MC-[][]

Long Body
Connector Models (Shielded)
E2B-S08LS01-MC-[][]/E2B-S08LS02-MC-[][]

Connector Models (Unshielded)
E2B-S08LN02-MC-[][]/E2B-S08LN04-MC-[][]

Mounting Hole Cutout Dimensions

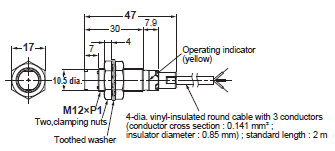

M12 Size

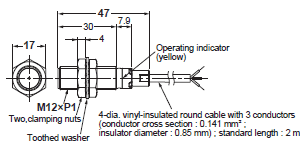

Short Body
Pre-wired Models (Shielded)
E2B-M12KS02-WP-[][]/E2B-M12KS04-WP-[][]

Pre-wired Models (Unshielded)
E2B-M12KN05-WP-[][]/E2B-M12KN08-WP-[][]

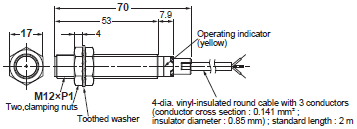

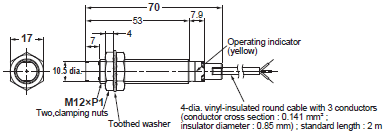

Long Body
Pre-wired Models (Shielded)
E2B-M12LS02-WP-[][]/E2B-M12LS04-WP-[][]

Pre-wired Models (Unshielded)
E2B-M12LN05-WP-[][]/E2B-M12LN08-WP-[][]

Short Body
Connector Models (Shielded)
E2B-M12KS02-M1-[][]/E2B-M12KS04-M1-[][]

Connector Models (Unshielded)
E2B-M12KN05-M1-[][]/E2B-M12KN08-M1-[][]

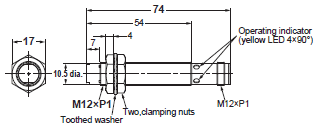

Long Body
Connector Models (Shielded)
E2B-M12LS02-M1-[][]/E2B-M12LS04-M1-[][]

Connector Models (Unshielded)
E2B-M12LN05-M1-[][]/E2B-M12LN08-M1-[][]

Mounting Hole Cutout Dimensions

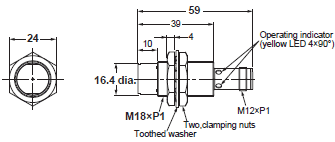

M18 Size
Short Body

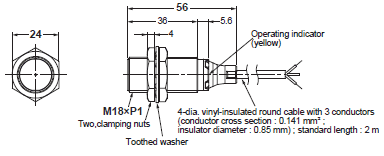

Pre-wired Models (Shielded)
E2B-M18KS05-WP-[][]/E2B-M18KS08-WP-[][]

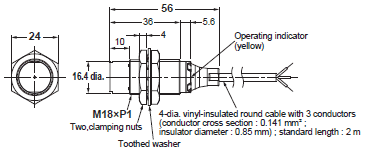

Pre-wired Models (Unshielded)
E2B-M18KN10-WP-[][]/E2B-M18KN16-WP-[][]

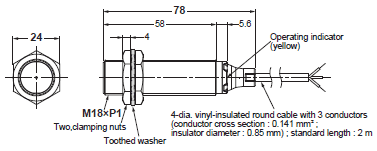

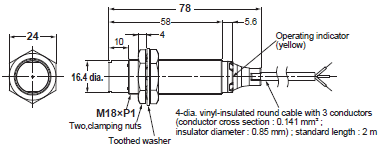

Long Body
Pre-wired Models (Shielded)
E2B-M18LS05-WP-[][]/E2B-M18LS08-WP-[][]

Pre-wired Models (Unshielded)
E2B-M18LN10-WP-[][]/E2B-M18LN16-WP-[][]

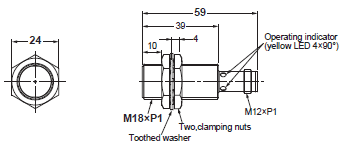

Short Body
Connector Models (Shielded)
E2B-M18KS05-M1-[][]/E2B-M18KS08-M1-[][]

Connector Models (Unshielded)
E2B-M18KN10-M1-[][]/E2B-M18KN16-M1-[][]

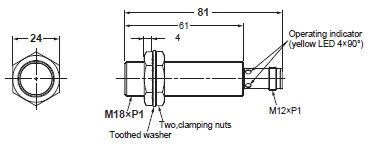

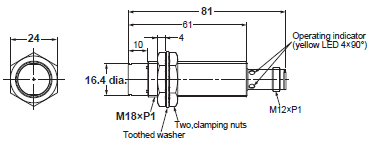

Long Body
Connector Models (Shielded)
E2B-M18LS05-M1-[][]/E2B-M18LS08-M1-[][]

Connector Models (Unshielded)
E2B-M18LN10-M1-[][]/E2B-M18LN16-M1-[][]

Mounting Hole Cutout Dimensions

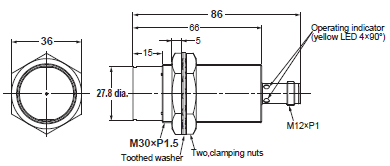

M30 Size

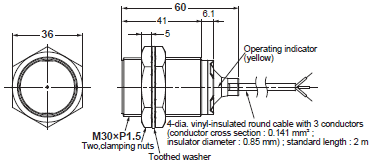

Short Body

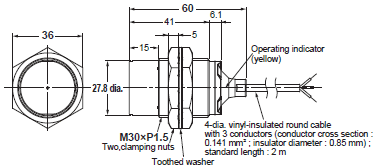

Pre-wired Models (Shielded)
E2B-M30KS10-WP-[][]/E2B-M30KS15-WP-[][]

Pre-wired Models (Unshielded)
E2B-M30KN20-WP-[][]

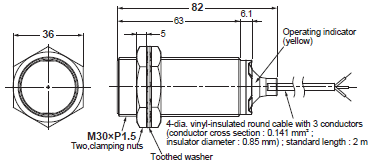

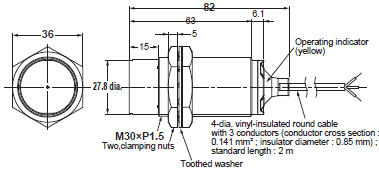

Long Body
Pre-wired Models (Shielded)
E2B-M30LS10-WP-[][]/E2B-M30LS15-WP-[][]

Pre-wired Models (Unshielded)
E2B-M30LN20-WP-[][]/E2B-M30LN30-WP-[][]

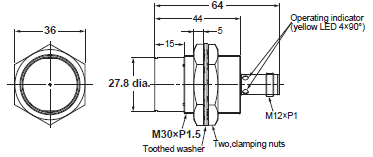

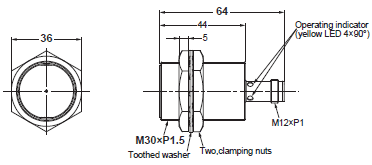

Short Body
Connector Models (Shielded)
E2B-M30KS10-M1-[][]/E2B-M30KS15-M1-[][]

Connector Models (Unshielded)
E2B-M30KN20-M1-[][]

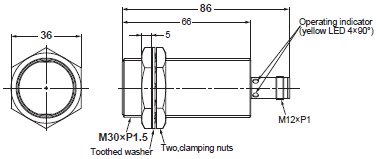

Long Body
Connector Models (Shielded)
E2B-M30LS10-M1-[][]/E2B-M30LS15-M1-[][]

Connector Models (Unshielded)
E2B-M30LN20-M1-[][]/E2B-M30LN30-M1-[][]

Mounting Hole Cutout Dimensions

Accessories (Order Separately)
Sensor I/O Connectors

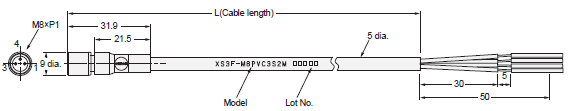

M8 Connector (3 pin)
PVC Type
Straight
XS3F-M8PVC3S2M (L = 2 m)
XS3F-M8PVC3S5M (L = 5 m)

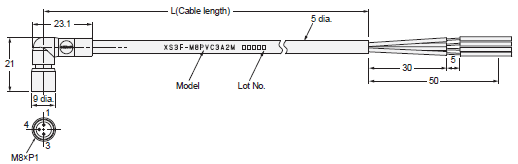

Right-angle
XS3F-M8PVC3A2M (L = 2 m)
XS3F-M8PVC3A5M (L = 5 m)

PVC Robot Type

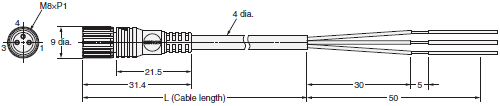

Straight
XS3F-M321-302-R (L = 2 m)
XS3F-M321-305-R (L = 5 m)

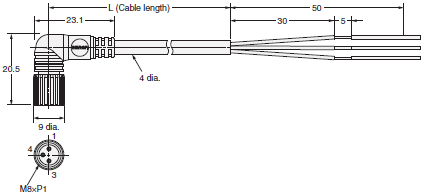

Right-angle
XS3F-M322-302-R (L = 2 m)
XS3F-M322-305-R (L = 5 m)

Pin arrangement

M12 Connector (4 pin)
PVC Type
Straight
XS2F-M12PVC4S2M (L = 2 m)
XS2F-M12PVC4S5M (L = 5 m)

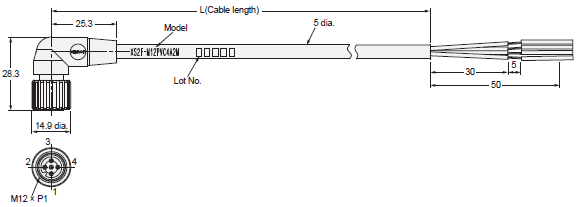

Right-angle
XS2F-M12PVC4A2M (L = 2 m)
XS2F-M12PVC4A5M (L = 5 m)

PVC Robot Type
Straight
XS2F-D421-D80-F (L = 2 m)
XS2F-D421-G80-F (L = 5 m)

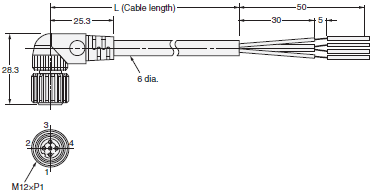

Right-angle
XS2F-D422-D80-F (L = 2 m)
XS2F-D422-G80-F (L = 5 m)

Pin arrangement

last update: April 01, 2014

OMRON E2B specification
E2B Cylindrical Proximity Sensor/Specifications
last update: April 01, 2014

Size M8
Sensing distance Single Double
Type Shielded Unshielded Shielded Unshielded
Model E2B-S08[]S01 E2B-S08[]N02 E2B-S08[]S02 E2B-S08[]N04
Sensing distance 1.5 mm ± 10% 2 mm ± 10% 2 mm ± 10% 4 mm ± 10%
Setting distance 0 to 1.2 mm 0 to 1.6 mm 0 to 1.6 mm 0 to 3.2 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
(mild steel ST37) 8 × 8 × 1 mm 8 × 8 × 1 mm 8 × 8 × 1 mm 12 × 12 × 1 mm
Response frequency *1 2,000 Hz 1,000 Hz 1,500 Hz 1,000 Hz
Power supply voltage 10 to 30 VDC. (including 10% ripple (p-p))
Current consumption 10 mA max.
Output type -B models: PNP open collector
-C models: NPN open collector
Control
output Load current *2 200 mA max. (30 VDC max.)
Residual voltage 2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator Operation indicator (Yellow LED)
Operation mode (with sensing
object approaching) -B1/-C1 models: NO
-B2/-C2 models: NC
Protection circuit Output reverse polarity protection, Power source circuit reverse polarity protection,
Surge suppressor, Short-circuit protection
Ambient air temperature Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence *2 ±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C
±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity Operation and Storage: 35 to 95%
Voltage influence ±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance 500 m/s² , 10 times each in X, Y and Z directions
Standard and listings (1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connector models (M8-3pin)
Weight
(packaged) Pre-wired model Short body: Approx. 65 g, Long body: Approx. 65 g
Connector model Short body: Approx. 20 g, Long body: Approx. 20 g
Material Case Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).)
Sensing surface PBT
Cable Standard cable is 4 mm dia. PVC.
Clamping nut Brass-nickel plated
Toothed washer Zinc-plated iron

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object between sensing objects, and a setting distance of half the sensing
distance.
*2. When using any model of M8 size at an ambient temperature between -25°C and 60°C, use a load current of 200 mA
max., at an ambient temperature between 60°C and 70°C, use a load current of 100 mA max.

Size M12
Sensing distance Single Double
Type Shielded Unshielded Shielded Unshielded
Model E2B-M12[]S02 E2B-M12[]N05 E2B-M12[]S04 E2B-M12[]N08
Sensing distance 2 mm ± 10% 5 mm ± 10% 4 mm ± 10% 8 mm ± 10%
Setting distance 0 to 1.6 mm 0 to 4 mm 0 to 3.2 mm 0 to 6.4 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
(mild steel ST37) 12 × 12 × 1 mm 15 × 15 × 1 mm 12 × 12 × 1 mm 24 × 24 × 1 mm
Response frequency *1 1,500 Hz 800 Hz 1,000 Hz 800 Hz
Power supply voltage 10 to 30 VDC. (including 10% ripple (p-p))
Current consumption 10 mA max.
Output type -B models: PNP open collector
-C models: NPN open collector
Control
output Load current 200 mA max. (30 VDC max.)
Residual voltage 2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator Operation indicator (Yellow LED)
Operation mode (with sensing
object approaching) -B1/-C1 models: NO
-B2/-C2 models: NC
Protection circuit Output reverse polarity protection, Power source circuit reverse polarity protection,
Surge suppressor, Short-circuit protection
Ambient air temperature Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C
±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity Operation and Storage: 35 to 95%
Voltage influence ±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance 1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings (1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connector models (M12-4pin)
Weight
(packaged) Pre-wired model Short body: Approx. 75 g, Long body: Approx. 80 g *2
Connector model Short body: Approx. 35 g, Long body: Approx. 40 g
Material Case Brass-nickel plated
Sensing surface PBT
Cable Standard cable is 4 mm dia. PVC.
Clamping nut Brass-nickel plated
Toothed washer Zinc-plated iron

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
   distance of twice the standard sensing object between sensing objects, and a setting distance of half the sensing
   distance.
*2. In case of ‘WP’ cable type.

Size M18
Sensing distance Single Double
Type Shielded Unshielded Shielded Unshielded
Model E2B-M18[]S05 E2B-M18[]N10 E2B-M18[]S08 E2B-M18[]N16
Sensing distance 5 mm ± 10% 10 mm ± 10% 8 mm ± 10% 16 mm ± 10%
Setting distance 0 to 4 mm 0 to 8 mm 0 to 6.4 mm 0 to 12.8 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
(mild steel ST37) 18 × 18 × 1 mm 30 × 30 × 1 mm 24 × 24 × 1 mm 48 × 48 × 1 mm
Response frequency *1 600 Hz 400 Hz 500 Hz 400 Hz
Power supply voltage 10 to 30 VDC. (including 10% ripple (p-p))
Current consumption 10 mA max.
Output type -B models: PNP open collector
-C models: NPN open collector
Control
output Load current 200 mA max. (30 VDC max.)
Residual voltage 2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator Operation indicator (Yellow LED)
Operation mode (with sensing
object approaching) -B1/-C1 models: NO
-B2/-C2 models: NC
Protection circuit Output reverse polarity protection, Power source circuit reverse polarity protection,
Surge suppressor, Short-circuit protection
Ambient air temperature Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C
±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity Operation and Storage: 35 to 95%
Voltage influence ±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance 1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings (1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connector models (M12-4pin)
Weight
(packaged) Pre-wired model Short body: Approx. 95 g, Long body: Approx. 110 g *2
Connector model Short body: Approx. 60 g, Long body: Approx. 80 g
Material Case Brass-nickel plated
Sensing surface PBT
Cable Standard cable is 4 mm dia. PVC.
Clamping nut Brass-nickel plated
Toothed washer Zinc-plated iron

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
   distance of twice the standard sensing object between sensing objects, and a setting distance of half the sensing
   distance.
*2. In case of ‘WP’ cable type.

Size M30
Sensing distance Single Double
Type Shielded Unshielded Shielded Unshielded
Model E2B-M30[]S10 E2B-M30[]N20 E2B-M30[]S15 E2B-M30[]N30
Sensing distance 10 mm ± 10% 20 mm ± 10% 15 mm ± 10% 30 mm ± 10%
Setting distance 0 to 8 mm 0 to 16 mm 0 to 11.25 mm 0 to 22.5 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
(mild steel ST37) 30 × 30 × 1 mm 60 × 60 × 1 mm 45 × 45 × 1 mm 90 × 90 × 1 mm
Response frequency *1 400 Hz 100 Hz 250 Hz 100 Hz
Power supply voltage 10 to 30 VDC. (including 10% ripple (p-p))
Current consumption 10 mA max.
Output type -B models: PNP open collector
-C models: NPN open collector
Control
output Load current 200 mA max. (30 VDC max.)
Residual voltage 2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator Operation indicator (Yellow LED)
Operation mode (with sensing
object approaching) -B1/-C1 models: NO
-B2/-C2 models: NC
Protection circuit Output reverse polarity protection, Power source circuit reverse polarity protection,
Surge suppressor, Short-circuit protection
Ambient air temperature Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C
±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity Operation and Storage: 35 to 95%
Voltage influence ±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance 1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings (1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connector models (M12-4pin)
Weight
(packaged) Pre-wired model Short body: Approx. 160 g, Long body: Approx. 210 g *2
Connector model Short body: Approx. 140 g, Long body: Approx. 160 g
Material Case Brass-nickel plated
Sensing surface PBT
Cable Standard cable is 4 mm dia. PVC.
Clamping nut Brass-nickel plated
Toothed washer Zinc-plated iron

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
   distance of twice the standard sensing object between sensing objects, and a setting distance of half the sensing
   distance.
*2. In case of ‘WP’ cable type.

last update: April 01, 2014

OMRON E2B catalog
E2B Cylindrical Proximity Sensor/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E2B Catalog D118-E1-01
[7549KB] Nov 22, 201320131122 E2B Catalog

E2B Data Sheet D116-E1-02
[6523KB] Mar 24, 201420140324 E2B Data Sheet

OMRON E2B lineup
E2B Cylindrical Proximity Sensor/Lineup
last update: December 02, 2013

Size Sensing
distance Con-
necting
method
*1 Body
length Output
config-
uration Operation mode NO Operation mode NC
M8
(Stain-
less
steel)
*2 Single Shielded 1.5 mm Pre-
wired Short PNP E2B-S08KS01-WP-B1 2M E2B-S08KS01-WP-B2 2M
NPN E2B-S08KS01-WP-C1 2M E2B-S08KS01-WP-C2 2M
Long PNP E2B-S08LS01-WP-B1 2M E2B-S08LS01-WP-B2 2M
NPN E2B-S08LS01-WP-C1 2M E2B-S08LS01-WP-C2 2M
M8
Con-
nector
(3-pin) Short PNP E2B-S08KS01-MC-B1 E2B-S08KS01-MC-B2
NPN E2B-S08KS01-MC-C1 E2B-S08KS01-MC-C2
Long PNP E2B-S08LS01-MC-B1 E2B-S08LS01-MC-B2
NPN E2B-S08LS01-MC-C1 E2B-S08LS01-MC-C2
Unshielded 2 mm Pre-
wired Short PNP E2B-S08KN02-WP-B1 2M E2B-S08KN02-WP-B2 2M
NPN E2B-S08KN02-WP-C1 2M E2B-S08KN02-WP-C2 2M
Long PNP E2B-S08LN02-WP-B1 2M E2B-S08LN02-WP-B2 2M
NPN E2B-S08LN02-WP-C1 2M E2B-S08LN02-WP-C2 2M
M8
Con-
nector
(3-pin) Short PNP E2B-S08KN02-MC-B1 E2B-S08KN02-MC-B2
NPN E2B-S08KN02-MC-C1 E2B-S08KN02-MC-C2
Long PNP E2B-S08LN02-MC-B1 E2B-S08LN02-MC-B2
NPN E2B-S08LN02-MC-C1 E2B-S08LN02-MC-C2
Double Shielded 2 mm Pre-
wired Short PNP E2B-S08KS02-WP-B1 2M E2B-S08KS02-WP-B2 2M
NPN E2B-S08KS02-WP-C1 2M E2B-S08KS02-WP-C2 2M
Long PNP E2B-S08LS02-WP-B1 2M E2B-S08LS02-WP-B2 2M
NPN E2B-S08LS02-WP-C1 2M E2B-S08LS02-WP-C2 2M
M8
Con-
nector
(3-pin) Short PNP E2B-S08KS02-MC-B1 E2B-S08KS02-MC-B2
NPN E2B-S08KS02-MC-C1 E2B-S08KS02-MC-C2
Long PNP E2B-S08LS02-MC-B1 E2B-S08LS02-MC-B2
NPN E2B-S08LS02-MC-C1 E2B-S08LS02-MC-C2
Unshielded 4 mm Pre-
wired Short PNP E2B-S08KN04-WP-B1 2M E2B-S08KN04-WP-B2 2M
NPN E2B-S08KN04-WP-C1 2M E2B-S08KN04-WP-C2 2M
Long PNP E2B-S08LN04-WP-B1 2M E2B-S08LN04-WP-B2 2M
NPN E2B-S08LN04-WP-C1 2M E2B-S08LN04-WP-C2 2M
M8
Con-
nector
(3-pin) Short PNP E2B-S08KN04-MC-B1 E2B-S08KN04-MC-B2
NPN E2B-S08KN04-MC-C1 E2B-S08KN04-MC-C2
Long PNP E2B-S08LN04-MC-B1 E2B-S08LN04-MC-B2
NPN E2B-S08LN04-MC-C1 E2B-S08LN04-MC-C2

*1. Pre-wired Models are available in the cable lengths of 2 m and 5 m.
*2. Material specifications for stainless steel housing case: 1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).

Size Sensing
distance Con-
necting
method
*1 Body
length Output
config-
uration Operation mode NO Operation mode NC
M12
(Brass) Single Shielded 2 mm Pre-
wired Short PNP E2B-M12KS02-WP-B1 2M E2B-M12KS02-WP-B2 2M
NPN E2B-M12KS02-WP-C1 2M E2B-M12KS02-WP-C2 2M
Long PNP E2B-M12LS02-WP-B1 2M E2B-M12LS02-WP-B2 2M
NPN E2B-M12LS02-WP-C1 2M E2B-M12LS02-WP-C2 2M
M12
Con-
nector Short PNP E2B-M12KS02-M1-B1 E2B-M12KS02-M1-B2
NPN E2B-M12KS02-M1-C1 E2B-M12KS02-M1-C2
Long PNP E2B-M12LS02-M1-B1 E2B-M12LS02-M1-B2
NPN E2B-M12LS02-M1-C1 E2B-M12LS02-M1-C2
Unshielded 5 mm Pre-
wired Short PNP E2B-M12KN05-WP-B1 2M E2B-M12KN05-WP-B2 2M
NPN E2B-M12KN05-WP-C1 2M E2B-M12KN05-WP-C2 2M
Long PNP E2B-M12LN05-WP-B1 2M E2B-M12LN05-WP-B2 2M
NPN E2B-M12LN05-WP-C1 2M E2B-M12LN05-WP-C2 2M
M12
Con-
nector Short PNP E2B-M12KN05-M1-B1 E2B-M12KN05-M1-B2
NPN E2B-M12KN05-M1-C1 E2B-M12KN05-M1-C2
Long PNP E2B-M12LN05-M1-B1 E2B-M12LN05-M1-B2
NPN E2B-M12LN05-M1-C1 E2B-M12LN05-M1-C2
Double Shielded
*2 4 mm Pre-
wired Short PNP E2B-M12KS04-WP-B1 2M E2B-M12KS04-WP-B2 2M
NPN E2B-M12KS04-WP-C1 2M E2B-M12KS04-WP-C2 2M
Long PNP E2B-M12LS04-WP-B1 2M E2B-M12LS04-WP-B2 2M
NPN E2B-M12LS04-WP-C1 2M E2B-M12LS04-WP-C2 2M
M12
Con-
nector Short PNP E2B-M12KS04-M1-B1 E2B-M12KS04-M1-B2
NPN E2B-M12KS04-M1-C1 E2B-M12KS04-M1-C2
Long PNP E2B-M12LS04-M1-B1 E2B-M12LS04-M1-B2
NPN E2B-M12LS04-M1-C1 E2B-M12LS04-M1-C2
Unshielded 8 mm Pre-
wired Short PNP E2B-M12KN08-WP-B1 2M E2B-M12KN08-WP-B2 2M
NPN E2B-M12KN08-WP-C1 2M E2B-M12KN08-WP-C2 2M
Long PNP E2B-M12LN08-WP-B1 2M E2B-M12LN08-WP-B2 2M
NPN E2B-M12LN08-WP-C1 2M E2B-M12LN08-WP-C2 2M
M12
Con-
nector Short PNP E2B-M12KN08-M1-B1 E2B-M12KN08-M1-B2
NPN E2B-M12KN08-M1-C1 E2B-M12KN08-M1-C2
Long PNP E2B-M12LN08-M1-B1 E2B-M12LN08-M1-B2
NPN E2B-M12LN08-M1-C1 E2B-M12LN08-M1-C2

*1. Pre-wired Models are available in the cable lengths of 2 m and 5 m.
*2. There are restrictions that apply to Shielded sensors.
Please refer to "Effects of Surrounding Metal" on Catalog.

Size Sensing
distance Con-
necting
method
*1 Body
length Output
config-
uration Operation mode NO Operation mode NC
M18
(Brass) Single Shielded 5 mm Pre-
wired Short PNP E2B-M18KS05-WP-B1 2M E2B-M18KS05-WP-B2 2M
NPN E2B-M18KS05-WP-C1 2M E2B-M18KS05-WP-C2 2M
Long PNP E2B-M18LS05-WP-B1 2M E2B-M18LS05-WP-B2 2M
NPN E2B-M18LS05-WP-C1 2M E2B-M18LS05-WP-C2 2M
M12
Con-
nector Short PNP E2B-M18KS05-M1-B1 E2B-M18KS05-M1-B2
NPN E2B-M18KS05-M1-C1 E2B-M18KS05-M1-C2
Long PNP E2B-M18LS05-M1-B1 E2B-M18LS05-M1-B2
NPN E2B-M18LS05-M1-C1 E2B-M18LS05-M1-C2
Unshielded 10 mm Pre-
wired Short PNP E2B-M18KN10-WP-B1 2M E2B-M18KN10-WP-B2 2M
NPN E2B-M18KN10-WP-C1 2M E2B-M18KN10-WP-C2 2M
Long PNP E2B-M18LN10-WP-B1 2M E2B-M18LN10-WP-B2 2M
NPN E2B-M18LN10-WP-C1 2M E2B-M18LN10-WP-C2 2M
M12
Con-
nector Short PNP E2B-M18KN10-M1-B1 E2B-M18KN10-M1-B2
NPN E2B-M18KN10-M1-C1 E2B-M18KN10-M1-C2
Long PNP E2B-M18LN10-M1-B1 E2B-M18LN10-M1-B2
NPN E2B-M18LN10-M1-C1 E2B-M18LN10-M1-C2
Double Shielded
*2 8 mm Pre-
wired Short PNP E2B-M18KS08-WP-B1 2M E2B-M18KS08-WP-B2 2M
NPN E2B-M18KS08-WP-C1 2M E2B-M18KS08-WP-C2 2M
Long PNP E2B-M18LS08-WP-B1 2M E2B-M18LS08-WP-B2 2M
NPN E2B-M18LS08-WP-C1 2M E2B-M18LS08-WP-C2 2M
M12
Con-
nector Short PNP E2B-M18KS08-M1-B1 E2B-M18KS08-M1-B2
NPN E2B-M18KS08-M1-C1 E2B-M18KS08-M1-C2
Long PNP E2B-M18LS08-M1-B1 E2B-M18LS08-M1-B2
NPN E2B-M18LS08-M1-C1 E2B-M18LS08-M1-C2
Unshielded 16 mm Pre-
wired Short PNP E2B-M18KN16-WP-B1 2M E2B-M18KN16-WP-B2 2M
NPN E2B-M18KN16-WP-C1 2M E2B-M18KN16-WP-C2 2M
Long PNP E2B-M18LN16-WP-B1 2M E2B-M18LN16-WP-B2 2M
NPN E2B-M18LN16-WP-C1 2M E2B-M18LN16-WP-C2 2M
M12
Con-
nector Short PNP E2B-M18KN16-M1-B1 E2B-M18KN16-M1-B2
NPN E2B-M18KN16-M1-C1 E2B-M18KN16-M1-C2
Long PNP E2B-M18LN16-M1-B1 E2B-M18LN16-M1-B2
NPN E2B-M18LN16-M1-C1 E2B-M18LN16-M1-C2

*1. Pre-wired Models are available in the cable lengths of 2 m and 5 m.
*2. There are restrictions that apply to Shielded sensors.
Please refer to "Effects of Surrounding Metal" on Catalog.

Size Sensing
distance Con-
necting
method
*1 Body
length Output
config-
uration Operation mode NO Operation mode NC
M30
(Brass) Single Shielded 10 mm Pre-
wired Short PNP E2B-M30KS10-WP-B1 2M E2B-M30KS10-WP-B2 2M
NPN E2B-M30KS10-WP-C1 2M E2B-M30KS10-WP-C2 2M
Long PNP E2B-M30LS10-WP-B1 2M E2B-M30LS10-WP-B2 2M
NPN E2B-M30LS10-WP-C1 2M E2B-M30LS10-WP-C2 2M
M12
Con-
nector Short PNP E2B-M30KS10-M1-B1 E2B-M30KS10-M1-B2
NPN E2B-M30KS10-M1-C1 E2B-M30KS10-M1-C2
Long PNP E2B-M30LS10-M1-B1 E2B-M30LS10-M1-B2
NPN E2B-M30LS10-M1-C1 E2B-M30LS10-M1-C2
Unshielded 20 mm Pre-
wired Short PNP E2B-M30KN20-WP-B1 2M E2B-M30KN20-WP-B2 2M
NPN E2B-M30KN20-WP-C1 2M E2B-M30KN20-WP-C2 2M
Long PNP E2B-M30LN20-WP-B1 2M E2B-M30LN20-WP-B2 2M
NPN E2B-M30LN20-WP-C1 2M E2B-M30LN20-WP-C2 2M
M12
Con-
nector Short PNP E2B-M30KN20-M1-B1 E2B-M30KN20-M1-B2
NPN E2B-M30KN20-M1-C1 E2B-M30KN20-M1-C2
Long PNP E2B-M30LN20-M1-B1 E2B-M30LN20-M1-B2
NPN E2B-M30LN20-M1-C1 E2B-M30LN20-M1-C2
Double Shielded
*2 15 mm Pre-
wired Short PNP E2B-M30KS15-WP-B1 2M E2B-M30KS15-WP-B2 2M
NPN E2B-M30KS15-WP-C1 2M E2B-M30KS15-WP-C2 2M
Long PNP E2B-M30LS15-WP-B1 2M E2B-M30LS15-WP-B2 2M
NPN E2B-M30LS15-WP-C1 2M E2B-M30LS15-WP-C2 2M
M12
Con-
nector Short PNP E2B-M30KS15-M1-B1 E2B-M30KS15-M1-B2
NPN E2B-M30KS15-M1-C1 E2B-M30KS15-M1-C2
Long PNP E2B-M30LS15-M1-B1 E2B-M30LS15-M1-B2
NPN E2B-M30LS15-M1-C1 E2B-M30LS15-M1-C2
Unshielded 30 mm Pre-
wired Long PNP E2B-M30LN30-WP-B1 2M E2B-M30LN30-WP-B2 2M
NPN E2B-M30LN30-WP-C1 2M E2B-M30LN30-WP-C2 2M
M12
Con-
nector Long PNP E2B-M30LN30-M1-B1 E2B-M30LN30-M1-B2
NPN E2B-M30LN30-M1-C1 E2B-M30LN30-M1-C2

*1. Pre-wired Models are available in the cable lengths of 2 m and 5 m.
*2. There are restrictions that apply to Shielded sensors.
Please refer to "Effects of Surrounding Metal" on Catalog.

Accessories (Order Separately)
Sensor I/O Connectors

Size Cable Shape Cores Cable length (m) Model
M8 (3-pin) PVC Straight 3 2 XS3F-M8PVC3S2M
5 XS3F-M8PVC3S5M
Right-angle 2 XS3F-M8PVC3A2M
5 XS3F-M8PVC3A5M
PVC Robot Straight 2 XS3F-M321-302-R
5 XS3F-M321-305-R
Right-angle 2 XS3F-M322-302-R
5 XS3F-M322-305-R
M12 (4-pin) PVC Straight 4 2 XS2F-M12PVC4S2M
5 XS2F-M12PVC4S5M
Right-angle 2 XS2F-M12PVC4A2M
5 XS2F-M12PVC4A5M
PVC Robot Straight 2 XS2F-D421-D80-F
5 XS2F-D421-G80-F
Right-angle 2 XS2F-D422-D80-F
5 XS2F-D422-G80-F

last update: December 02, 2013

NO. E2B

TYPE:Proximity Sensors Cylindrical Copyright Statement

DATE:2021-06-08

Associated products:
E2EQ-[]-IL[] IO-Link Proximity Sensor (Spatter-resistant Models)/Features E2E (Small-diameter) Small-diameter Proximity Sensor/Features

Size	M8
Sensing distance	Single	Double
Type	Shielded	Unshielded	Shielded	Unshielded
Model	E2B-S08[]S01	E2B-S08[]N02	E2B-S08[]S02	E2B-S08[]N04
Sensing distance	1.5 mm ± 10%	2 mm ± 10%	2 mm ± 10%	4 mm ± 10%
Setting distance	0 to 1.2 mm	0 to 1.6 mm	0 to 1.6 mm	0 to 3.2 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object (mild steel ST37)	8 × 8 × 1 mm	8 × 8 × 1 mm	8 × 8 × 1 mm	12 × 12 × 1 mm
*Response frequency 1**	2,000 Hz	1,000 Hz	1,500 Hz	1,000 Hz
Power supply voltage	10 to 30 VDC. (including 10% ripple (p-p))
Current consumption	10 mA max.
Output type	-B models: PNP open collector -C models: NPN open collector
Control output	*Load current 2**	200 mA max. (30 VDC max.)
Residual voltage	2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator	Operation indicator (Yellow LED)
Operation mode (with sensing object approaching)	-B1/-C1 models: NO -B2/-C2 models: NC
Protection circuit	Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection
Ambient air temperature	Operation and storage: -25 to 70°C (with no icing or condensation)
*Temperature influence 2**	±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity	Operation and Storage: 35 to 95%
Voltage influence	±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	500 m/s² , 10 times each in X, Y and Z directions
Standard and listings	(1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method	Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connector models (M8-3pin)
Weight (packaged)	Pre-wired model	Short body: Approx. 65 g, Long body: Approx. 65 g
Connector model	Short body: Approx. 20 g, Long body: Approx. 20 g
Material	Case	Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).)
Sensing surface	PBT
Cable	Standard cable is 4 mm dia. PVC.
Clamping nut	Brass-nickel plated
Toothed washer	Zinc-plated iron

Size	M12
Sensing distance	Single	Double
Type	Shielded	Unshielded	Shielded	Unshielded
Model	E2B-M12[]S02	E2B-M12[]N05	E2B-M12[]S04	E2B-M12[]N08
Sensing distance	2 mm ± 10%	5 mm ± 10%	4 mm ± 10%	8 mm ± 10%
Setting distance	0 to 1.6 mm	0 to 4 mm	0 to 3.2 mm	0 to 6.4 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object (mild steel ST37)	12 × 12 × 1 mm	15 × 15 × 1 mm	12 × 12 × 1 mm	24 × 24 × 1 mm
*Response frequency 1**	1,500 Hz	800 Hz	1,000 Hz	800 Hz
Power supply voltage	10 to 30 VDC. (including 10% ripple (p-p))
Current consumption	10 mA max.
Output type	-B models: PNP open collector -C models: NPN open collector
Control output	Load current	200 mA max. (30 VDC max.)
Residual voltage	2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator	Operation indicator (Yellow LED)
Operation mode (with sensing object approaching)	-B1/-C1 models: NO -B2/-C2 models: NC
Protection circuit	Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection
Ambient air temperature	Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity	Operation and Storage: 35 to 95%
Voltage influence	±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings	(1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method	Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connector models (M12-4pin)
Weight (packaged)	Pre-wired model	Short body: Approx. 75 g, Long body: Approx. 80 g *2
Connector model	Short body: Approx. 35 g, Long body: Approx. 40 g
Material	Case	Brass-nickel plated
Sensing surface	PBT
Cable	Standard cable is 4 mm dia. PVC.
Clamping nut	Brass-nickel plated
Toothed washer	Zinc-plated iron

Size	M18
Sensing distance	Single	Double
Type	Shielded	Unshielded	Shielded	Unshielded
Model	E2B-M18[]S05	E2B-M18[]N10	E2B-M18[]S08	E2B-M18[]N16
Sensing distance	5 mm ± 10%	10 mm ± 10%	8 mm ± 10%	16 mm ± 10%
Setting distance	0 to 4 mm	0 to 8 mm	0 to 6.4 mm	0 to 12.8 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object (mild steel ST37)	18 × 18 × 1 mm	30 × 30 × 1 mm	24 × 24 × 1 mm	48 × 48 × 1 mm
*Response frequency 1**	600 Hz	400 Hz	500 Hz	400 Hz
Power supply voltage	10 to 30 VDC. (including 10% ripple (p-p))
Current consumption	10 mA max.
Output type	-B models: PNP open collector -C models: NPN open collector
Control output	Load current	200 mA max. (30 VDC max.)
Residual voltage	2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator	Operation indicator (Yellow LED)
Operation mode (with sensing object approaching)	-B1/-C1 models: NO -B2/-C2 models: NC
Protection circuit	Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection
Ambient air temperature	Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity	Operation and Storage: 35 to 95%
Voltage influence	±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings	(1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method	Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connector models (M12-4pin)
Weight (packaged)	Pre-wired model	Short body: Approx. 95 g, Long body: Approx. 110 g *2
Connector model	Short body: Approx. 60 g, Long body: Approx. 80 g
Material	Case	Brass-nickel plated
Sensing surface	PBT
Cable	Standard cable is 4 mm dia. PVC.
Clamping nut	Brass-nickel plated
Toothed washer	Zinc-plated iron

Size	M30
Sensing distance	Single	Double
Type	Shielded	Unshielded	Shielded	Unshielded
Model	E2B-M30[]S10	E2B-M30[]N20	E2B-M30[]S15	E2B-M30[]N30
Sensing distance	10 mm ± 10%	20 mm ± 10%	15 mm ± 10%	30 mm ± 10%
Setting distance	0 to 8 mm	0 to 16 mm	0 to 11.25 mm	0 to 22.5 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object (mild steel ST37)	30 × 30 × 1 mm	60 × 60 × 1 mm	45 × 45 × 1 mm	90 × 90 × 1 mm
*Response frequency 1**	400 Hz	100 Hz	250 Hz	100 Hz
Power supply voltage	10 to 30 VDC. (including 10% ripple (p-p))
Current consumption	10 mA max.
Output type	-B models: PNP open collector -C models: NPN open collector
Control output	Load current	200 mA max. (30 VDC max.)
Residual voltage	2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator	Operation indicator (Yellow LED)
Operation mode (with sensing object approaching)	-B1/-C1 models: NO -B2/-C2 models: NC
Protection circuit	Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection
Ambient air temperature	Operation and storage: -25 to 70°C (with no icing or condensation)
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -10 to 55°C ±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Ambient humidity	Operation and Storage: 35 to 95%
Voltage influence	±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance	1,000 m/s² , 10 times each in X, Y and Z directions
Standard and listings	(1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
Connecting method	Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m). Connector models (M12-4pin)
Weight (packaged)	Pre-wired model	Short body: Approx. 160 g, Long body: Approx. 210 g *2
Connector model	Short body: Approx. 140 g, Long body: Approx. 160 g
Material	Case	Brass-nickel plated
Sensing surface	PBT
Cable	Standard cable is 4 mm dia. PVC.
Clamping nut	Brass-nickel plated
Toothed washer	Zinc-plated iron

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E2B Catalog	D118-E1-01 [7549KB]	Nov 22, 201320131122	E2B Catalog
E2B Data Sheet	D116-E1-02 [6523KB]	Mar 24, 201420140324	E2B Data Sheet

Size	Sensing distance	Con- necting method *1	Body length	Output config- uration	Operation mode NO	Operation mode NC
M8 (Stain- less steel) *2	Single	Shielded	1.5 mm	Pre- wired	Short	PNP	E2B-S08KS01-WP-B1 2M	E2B-S08KS01-WP-B2 2M
NPN	E2B-S08KS01-WP-C1 2M	E2B-S08KS01-WP-C2 2M
Long	PNP	E2B-S08LS01-WP-B1 2M	E2B-S08LS01-WP-B2 2M
NPN	E2B-S08LS01-WP-C1 2M	E2B-S08LS01-WP-C2 2M
M8 Con- nector (3-pin)	Short	PNP	E2B-S08KS01-MC-B1	E2B-S08KS01-MC-B2
NPN	E2B-S08KS01-MC-C1	E2B-S08KS01-MC-C2
Long	PNP	E2B-S08LS01-MC-B1	E2B-S08LS01-MC-B2
NPN	E2B-S08LS01-MC-C1	E2B-S08LS01-MC-C2
Unshielded	2 mm	Pre- wired	Short	PNP	E2B-S08KN02-WP-B1 2M	E2B-S08KN02-WP-B2 2M
NPN	E2B-S08KN02-WP-C1 2M	E2B-S08KN02-WP-C2 2M
Long	PNP	E2B-S08LN02-WP-B1 2M	E2B-S08LN02-WP-B2 2M
NPN	E2B-S08LN02-WP-C1 2M	E2B-S08LN02-WP-C2 2M
M8 Con- nector (3-pin)	Short	PNP	E2B-S08KN02-MC-B1	E2B-S08KN02-MC-B2
NPN	E2B-S08KN02-MC-C1	E2B-S08KN02-MC-C2
Long	PNP	E2B-S08LN02-MC-B1	E2B-S08LN02-MC-B2
NPN	E2B-S08LN02-MC-C1	E2B-S08LN02-MC-C2
Double	Shielded	2 mm	Pre- wired	Short	PNP	E2B-S08KS02-WP-B1 2M	E2B-S08KS02-WP-B2 2M
NPN	E2B-S08KS02-WP-C1 2M	E2B-S08KS02-WP-C2 2M
Long	PNP	E2B-S08LS02-WP-B1 2M	E2B-S08LS02-WP-B2 2M
NPN	E2B-S08LS02-WP-C1 2M	E2B-S08LS02-WP-C2 2M
M8 Con- nector (3-pin)	Short	PNP	E2B-S08KS02-MC-B1	E2B-S08KS02-MC-B2
NPN	E2B-S08KS02-MC-C1	E2B-S08KS02-MC-C2
Long	PNP	E2B-S08LS02-MC-B1	E2B-S08LS02-MC-B2
NPN	E2B-S08LS02-MC-C1	E2B-S08LS02-MC-C2
Unshielded	4 mm	Pre- wired	Short	PNP	E2B-S08KN04-WP-B1 2M	E2B-S08KN04-WP-B2 2M
NPN	E2B-S08KN04-WP-C1 2M	E2B-S08KN04-WP-C2 2M
Long	PNP	E2B-S08LN04-WP-B1 2M	E2B-S08LN04-WP-B2 2M
NPN	E2B-S08LN04-WP-C1 2M	E2B-S08LN04-WP-C2 2M
M8 Con- nector (3-pin)	Short	PNP	E2B-S08KN04-MC-B1	E2B-S08KN04-MC-B2
NPN	E2B-S08KN04-MC-C1	E2B-S08KN04-MC-C2
Long	PNP	E2B-S08LN04-MC-B1	E2B-S08LN04-MC-B2
NPN	E2B-S08LN04-MC-C1	E2B-S08LN04-MC-C2

Size	Sensing distance	Con- necting method *1	Body length	Output config- uration	Operation mode NO	Operation mode NC
M12 (Brass)	Single	Shielded	2 mm	Pre- wired	Short	PNP	E2B-M12KS02-WP-B1 2M	E2B-M12KS02-WP-B2 2M
NPN	E2B-M12KS02-WP-C1 2M	E2B-M12KS02-WP-C2 2M
Long	PNP	E2B-M12LS02-WP-B1 2M	E2B-M12LS02-WP-B2 2M
NPN	E2B-M12LS02-WP-C1 2M	E2B-M12LS02-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M12KS02-M1-B1	E2B-M12KS02-M1-B2
NPN	E2B-M12KS02-M1-C1	E2B-M12KS02-M1-C2
Long	PNP	E2B-M12LS02-M1-B1	E2B-M12LS02-M1-B2
NPN	E2B-M12LS02-M1-C1	E2B-M12LS02-M1-C2
Unshielded	5 mm	Pre- wired	Short	PNP	E2B-M12KN05-WP-B1 2M	E2B-M12KN05-WP-B2 2M
NPN	E2B-M12KN05-WP-C1 2M	E2B-M12KN05-WP-C2 2M
Long	PNP	E2B-M12LN05-WP-B1 2M	E2B-M12LN05-WP-B2 2M
NPN	E2B-M12LN05-WP-C1 2M	E2B-M12LN05-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M12KN05-M1-B1	E2B-M12KN05-M1-B2
NPN	E2B-M12KN05-M1-C1	E2B-M12KN05-M1-C2
Long	PNP	E2B-M12LN05-M1-B1	E2B-M12LN05-M1-B2
NPN	E2B-M12LN05-M1-C1	E2B-M12LN05-M1-C2
Double	Shielded *2	4 mm	Pre- wired	Short	PNP	E2B-M12KS04-WP-B1 2M	E2B-M12KS04-WP-B2 2M
NPN	E2B-M12KS04-WP-C1 2M	E2B-M12KS04-WP-C2 2M
Long	PNP	E2B-M12LS04-WP-B1 2M	E2B-M12LS04-WP-B2 2M
NPN	E2B-M12LS04-WP-C1 2M	E2B-M12LS04-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M12KS04-M1-B1	E2B-M12KS04-M1-B2
NPN	E2B-M12KS04-M1-C1	E2B-M12KS04-M1-C2
Long	PNP	E2B-M12LS04-M1-B1	E2B-M12LS04-M1-B2
NPN	E2B-M12LS04-M1-C1	E2B-M12LS04-M1-C2
Unshielded	8 mm	Pre- wired	Short	PNP	E2B-M12KN08-WP-B1 2M	E2B-M12KN08-WP-B2 2M
NPN	E2B-M12KN08-WP-C1 2M	E2B-M12KN08-WP-C2 2M
Long	PNP	E2B-M12LN08-WP-B1 2M	E2B-M12LN08-WP-B2 2M
NPN	E2B-M12LN08-WP-C1 2M	E2B-M12LN08-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M12KN08-M1-B1	E2B-M12KN08-M1-B2
NPN	E2B-M12KN08-M1-C1	E2B-M12KN08-M1-C2
Long	PNP	E2B-M12LN08-M1-B1	E2B-M12LN08-M1-B2
NPN	E2B-M12LN08-M1-C1	E2B-M12LN08-M1-C2

Size	Sensing distance	Con- necting method *1	Body length	Output config- uration	Operation mode NO	Operation mode NC
M18 (Brass)	Single	Shielded	5 mm	Pre- wired	Short	PNP	E2B-M18KS05-WP-B1 2M	E2B-M18KS05-WP-B2 2M
NPN	E2B-M18KS05-WP-C1 2M	E2B-M18KS05-WP-C2 2M
Long	PNP	E2B-M18LS05-WP-B1 2M	E2B-M18LS05-WP-B2 2M
NPN	E2B-M18LS05-WP-C1 2M	E2B-M18LS05-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M18KS05-M1-B1	E2B-M18KS05-M1-B2
NPN	E2B-M18KS05-M1-C1	E2B-M18KS05-M1-C2
Long	PNP	E2B-M18LS05-M1-B1	E2B-M18LS05-M1-B2
NPN	E2B-M18LS05-M1-C1	E2B-M18LS05-M1-C2
Unshielded	10 mm	Pre- wired	Short	PNP	E2B-M18KN10-WP-B1 2M	E2B-M18KN10-WP-B2 2M
NPN	E2B-M18KN10-WP-C1 2M	E2B-M18KN10-WP-C2 2M
Long	PNP	E2B-M18LN10-WP-B1 2M	E2B-M18LN10-WP-B2 2M
NPN	E2B-M18LN10-WP-C1 2M	E2B-M18LN10-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M18KN10-M1-B1	E2B-M18KN10-M1-B2
NPN	E2B-M18KN10-M1-C1	E2B-M18KN10-M1-C2
Long	PNP	E2B-M18LN10-M1-B1	E2B-M18LN10-M1-B2
NPN	E2B-M18LN10-M1-C1	E2B-M18LN10-M1-C2
Double	Shielded *2	8 mm	Pre- wired	Short	PNP	E2B-M18KS08-WP-B1 2M	E2B-M18KS08-WP-B2 2M
NPN	E2B-M18KS08-WP-C1 2M	E2B-M18KS08-WP-C2 2M
Long	PNP	E2B-M18LS08-WP-B1 2M	E2B-M18LS08-WP-B2 2M
NPN	E2B-M18LS08-WP-C1 2M	E2B-M18LS08-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M18KS08-M1-B1	E2B-M18KS08-M1-B2
NPN	E2B-M18KS08-M1-C1	E2B-M18KS08-M1-C2
Long	PNP	E2B-M18LS08-M1-B1	E2B-M18LS08-M1-B2
NPN	E2B-M18LS08-M1-C1	E2B-M18LS08-M1-C2
Unshielded	16 mm	Pre- wired	Short	PNP	E2B-M18KN16-WP-B1 2M	E2B-M18KN16-WP-B2 2M
NPN	E2B-M18KN16-WP-C1 2M	E2B-M18KN16-WP-C2 2M
Long	PNP	E2B-M18LN16-WP-B1 2M	E2B-M18LN16-WP-B2 2M
NPN	E2B-M18LN16-WP-C1 2M	E2B-M18LN16-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M18KN16-M1-B1	E2B-M18KN16-M1-B2
NPN	E2B-M18KN16-M1-C1	E2B-M18KN16-M1-C2
Long	PNP	E2B-M18LN16-M1-B1	E2B-M18LN16-M1-B2
NPN	E2B-M18LN16-M1-C1	E2B-M18LN16-M1-C2

Size	Sensing distance	Con- necting method *1	Body length	Output config- uration	Operation mode NO	Operation mode NC
M30 (Brass)	Single	Shielded	10 mm	Pre- wired	Short	PNP	E2B-M30KS10-WP-B1 2M	E2B-M30KS10-WP-B2 2M
NPN	E2B-M30KS10-WP-C1 2M	E2B-M30KS10-WP-C2 2M
Long	PNP	E2B-M30LS10-WP-B1 2M	E2B-M30LS10-WP-B2 2M
NPN	E2B-M30LS10-WP-C1 2M	E2B-M30LS10-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M30KS10-M1-B1	E2B-M30KS10-M1-B2
NPN	E2B-M30KS10-M1-C1	E2B-M30KS10-M1-C2
Long	PNP	E2B-M30LS10-M1-B1	E2B-M30LS10-M1-B2
NPN	E2B-M30LS10-M1-C1	E2B-M30LS10-M1-C2
Unshielded	20 mm	Pre- wired	Short	PNP	E2B-M30KN20-WP-B1 2M	E2B-M30KN20-WP-B2 2M
NPN	E2B-M30KN20-WP-C1 2M	E2B-M30KN20-WP-C2 2M
Long	PNP	E2B-M30LN20-WP-B1 2M	E2B-M30LN20-WP-B2 2M
NPN	E2B-M30LN20-WP-C1 2M	E2B-M30LN20-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M30KN20-M1-B1	E2B-M30KN20-M1-B2
NPN	E2B-M30KN20-M1-C1	E2B-M30KN20-M1-C2
Long	PNP	E2B-M30LN20-M1-B1	E2B-M30LN20-M1-B2
NPN	E2B-M30LN20-M1-C1	E2B-M30LN20-M1-C2
Double	Shielded *2	15 mm	Pre- wired	Short	PNP	E2B-M30KS15-WP-B1 2M	E2B-M30KS15-WP-B2 2M
NPN	E2B-M30KS15-WP-C1 2M	E2B-M30KS15-WP-C2 2M
Long	PNP	E2B-M30LS15-WP-B1 2M	E2B-M30LS15-WP-B2 2M
NPN	E2B-M30LS15-WP-C1 2M	E2B-M30LS15-WP-C2 2M
M12 Con- nector	Short	PNP	E2B-M30KS15-M1-B1	E2B-M30KS15-M1-B2
NPN	E2B-M30KS15-M1-C1	E2B-M30KS15-M1-C2
Long	PNP	E2B-M30LS15-M1-B1	E2B-M30LS15-M1-B2
NPN	E2B-M30LS15-M1-C1	E2B-M30LS15-M1-C2
Unshielded	30 mm	Pre- wired	Long	PNP	E2B-M30LN30-WP-B1 2M	E2B-M30LN30-WP-B2 2M
NPN	E2B-M30LN30-WP-C1 2M	E2B-M30LN30-WP-C2 2M
M12 Con- nector	Long	PNP	E2B-M30LN30-M1-B1	E2B-M30LN30-M1-B2
NPN	E2B-M30LN30-M1-C1	E2B-M30LN30-M1-C2

Size	Cable	Shape	Cores	Cable length (m)	Model
M8 (3-pin)	PVC	Straight	3	2	XS3F-M8PVC3S2M
5	XS3F-M8PVC3S5M
Right-angle	2	XS3F-M8PVC3A2M
5	XS3F-M8PVC3A5M
PVC Robot	Straight	2	XS3F-M321-302-R
5	XS3F-M321-305-R
Right-angle	2	XS3F-M322-302-R
5	XS3F-M322-305-R
M12 (4-pin)	PVC	Straight	4	2	XS2F-M12PVC4S2M
5	XS2F-M12PVC4S5M
Right-angle	2	XS2F-M12PVC4A2M
5	XS2F-M12PVC4A5M
PVC Robot	Straight	2	XS2F-D421-D80-F
5	XS2F-D421-G80-F
Right-angle	2	XS2F-D422-D80-F
5	XS2F-D422-G80-F

Return to OMRON

OMRON E2BSensors/ Proximity Sensors/Cylindrical

OMRON E2B Dimensions

A new generation in global applications

Perfect fit for standard environments

Time and cost savings

360-degree indication

The ideal solution for standard industrial environments

Pay only for what you need

IP67

Global deliveries and support

Purchase the OMRON Cylindrical Please fill in the following

OMRON E2B dimension

M8 Size

Short Body

Pre-wired Models (Shielded)E2B-S08KS01-WP-[][]/E2B-S08KS02-WP-[][]

Pre-wired Models (Unshielded)E2B-S08KN02-WP-[][]/E2B-S08KN04-WP-[][]

Long Body

Pre-wired Models (Shielded)E2B-S08LS01-WP-[][]/E2B-S08LS02-WP-[][]

Pre-wired Models (Unshielded)E2B-S08LN02-WP-[][]/E2B-S08LN04-WP-[][]

Short Body

Connector Models (Shielded)E2B-S08KS01-MC-[][]/E2B-S08KS02-MC-[][]

Connector Models (Unshielded)E2B-S08KN02-MC-[][]/E2B-S08KN04-MC-[][]

Long Body

Connector Models (Shielded)E2B-S08LS01-MC-[][]/E2B-S08LS02-MC-[][]

Connector Models (Unshielded)E2B-S08LN02-MC-[][]/E2B-S08LN04-MC-[][]

Mounting Hole Cutout Dimensions

M12 Size

Short Body

Pre-wired Models (Shielded)E2B-M12KS02-WP-[][]/E2B-M12KS04-WP-[][]

Pre-wired Models (Unshielded)E2B-M12KN05-WP-[][]/E2B-M12KN08-WP-[][]

Long Body

Pre-wired Models (Shielded)E2B-M12LS02-WP-[][]/E2B-M12LS04-WP-[][]

Pre-wired Models (Unshielded)E2B-M12LN05-WP-[][]/E2B-M12LN08-WP-[][]

Short Body

Connector Models (Shielded)E2B-M12KS02-M1-[][]/E2B-M12KS04-M1-[][]

Connector Models (Unshielded)E2B-M12KN05-M1-[][]/E2B-M12KN08-M1-[][]

Long Body

Connector Models (Shielded)E2B-M12LS02-M1-[][]/E2B-M12LS04-M1-[][]

Connector Models (Unshielded)E2B-M12LN05-M1-[][]/E2B-M12LN08-M1-[][]

Mounting Hole Cutout Dimensions

M18 Size

Short Body

Pre-wired Models (Shielded)E2B-M18KS05-WP-[][]/E2B-M18KS08-WP-[][]

Pre-wired Models (Unshielded)E2B-M18KN10-WP-[][]/E2B-M18KN16-WP-[][]

Long Body

Pre-wired Models (Shielded)E2B-M18LS05-WP-[][]/E2B-M18LS08-WP-[][]

Pre-wired Models (Unshielded)E2B-M18LN10-WP-[][]/E2B-M18LN16-WP-[][]

Short Body

Connector Models (Shielded)E2B-M18KS05-M1-[][]/E2B-M18KS08-M1-[][]

Connector Models (Unshielded)E2B-M18KN10-M1-[][]/E2B-M18KN16-M1-[][]

Long Body

Connector Models (Shielded)E2B-M18LS05-M1-[][]/E2B-M18LS08-M1-[][]

Connector Models (Unshielded)E2B-M18LN10-M1-[][]/E2B-M18LN16-M1-[][]

Mounting Hole Cutout Dimensions

M30 Size

Short Body

Pre-wired Models (Shielded)E2B-M30KS10-WP-[][]/E2B-M30KS15-WP-[][]

Pre-wired Models (Unshielded)E2B-M30KN20-WP-[][]

Long Body

Pre-wired Models (Shielded)E2B-M30LS10-WP-[][]/E2B-M30LS15-WP-[][]

Pre-wired Models (Unshielded)E2B-M30LN20-WP-[][]/E2B-M30LN30-WP-[][]

Short Body

Connector Models (Shielded)E2B-M30KS10-M1-[][]/E2B-M30KS15-M1-[][]

Connector Models (Unshielded)E2B-M30KN20-M1-[][]

Long Body

Connector Models (Shielded)E2B-M30LS10-M1-[][]/E2B-M30LS15-M1-[][]

Connector Models (Unshielded)E2B-M30LN20-M1-[][]/E2B-M30LN30-M1-[][]

Mounting Hole Cutout Dimensions

Accessories (Order Separately)

Sensor I/O Connectors

M8 Connector (3 pin)

PVC Type

StraightXS3F-M8PVC3S2M (L = 2 m)XS3F-M8PVC3S5M (L = 5 m)

Right-angleXS3F-M8PVC3A2M (L = 2 m)XS3F-M8PVC3A5M (L = 5 m)

PVC Robot Type

StraightXS3F-M321-302-R (L = 2 m)XS3F-M321-305-R (L = 5 m)

Right-angleXS3F-M322-302-R (L = 2 m)XS3F-M322-305-R (L = 5 m)

Pin arrangement

M12 Connector (4 pin)

PVC Type

Pre-wired Models (Shielded)
E2B-S08KS01-WP-[][]/E2B-S08KS02-WP-[][]

Pre-wired Models (Unshielded)
E2B-S08KN02-WP-[][]/E2B-S08KN04-WP-[][]

Pre-wired Models (Shielded)
E2B-S08LS01-WP-[][]/E2B-S08LS02-WP-[][]

Pre-wired Models (Unshielded)
E2B-S08LN02-WP-[][]/E2B-S08LN04-WP-[][]

Connector Models (Shielded)
E2B-S08KS01-MC-[][]/E2B-S08KS02-MC-[][]

Connector Models (Unshielded)
E2B-S08KN02-MC-[][]/E2B-S08KN04-MC-[][]

Connector Models (Shielded)
E2B-S08LS01-MC-[][]/E2B-S08LS02-MC-[][]

Connector Models (Unshielded)
E2B-S08LN02-MC-[][]/E2B-S08LN04-MC-[][]

Pre-wired Models (Shielded)
E2B-M12KS02-WP-[][]/E2B-M12KS04-WP-[][]

Pre-wired Models (Unshielded)
E2B-M12KN05-WP-[][]/E2B-M12KN08-WP-[][]

Pre-wired Models (Shielded)
E2B-M12LS02-WP-[][]/E2B-M12LS04-WP-[][]

Pre-wired Models (Unshielded)
E2B-M12LN05-WP-[][]/E2B-M12LN08-WP-[][]

Connector Models (Shielded)
E2B-M12KS02-M1-[][]/E2B-M12KS04-M1-[][]

Connector Models (Unshielded)
E2B-M12KN05-M1-[][]/E2B-M12KN08-M1-[][]

Connector Models (Shielded)
E2B-M12LS02-M1-[][]/E2B-M12LS04-M1-[][]

Connector Models (Unshielded)
E2B-M12LN05-M1-[][]/E2B-M12LN08-M1-[][]

Pre-wired Models (Shielded)
E2B-M18KS05-WP-[][]/E2B-M18KS08-WP-[][]

Pre-wired Models (Unshielded)
E2B-M18KN10-WP-[][]/E2B-M18KN16-WP-[][]

Pre-wired Models (Shielded)
E2B-M18LS05-WP-[][]/E2B-M18LS08-WP-[][]

Pre-wired Models (Unshielded)
E2B-M18LN10-WP-[][]/E2B-M18LN16-WP-[][]

Connector Models (Shielded)
E2B-M18KS05-M1-[][]/E2B-M18KS08-M1-[][]

Connector Models (Unshielded)
E2B-M18KN10-M1-[][]/E2B-M18KN16-M1-[][]

Connector Models (Shielded)
E2B-M18LS05-M1-[][]/E2B-M18LS08-M1-[][]

Connector Models (Unshielded)
E2B-M18LN10-M1-[][]/E2B-M18LN16-M1-[][]

Pre-wired Models (Shielded)
E2B-M30KS10-WP-[][]/E2B-M30KS15-WP-[][]

Pre-wired Models (Unshielded)
E2B-M30KN20-WP-[][]

Pre-wired Models (Shielded)
E2B-M30LS10-WP-[][]/E2B-M30LS15-WP-[][]

Pre-wired Models (Unshielded)
E2B-M30LN20-WP-[][]/E2B-M30LN30-WP-[][]

Connector Models (Shielded)
E2B-M30KS10-M1-[][]/E2B-M30KS15-M1-[][]

Connector Models (Unshielded)
E2B-M30KN20-M1-[][]

Connector Models (Shielded)
E2B-M30LS10-M1-[][]/E2B-M30LS15-M1-[][]

Connector Models (Unshielded)
E2B-M30LN20-M1-[][]/E2B-M30LN30-M1-[][]

Straight
XS3F-M8PVC3S2M (L = 2 m)
XS3F-M8PVC3S5M (L = 5 m)

Right-angle
XS3F-M8PVC3A2M (L = 2 m)
XS3F-M8PVC3A5M (L = 5 m)

Straight
XS3F-M321-302-R (L = 2 m)
XS3F-M321-305-R (L = 5 m)

Right-angle
XS3F-M322-302-R (L = 2 m)
XS3F-M322-305-R (L = 5 m)

Straight
XS2F-M12PVC4S2M (L = 2 m)
XS2F-M12PVC4S5M (L = 5 m)

Right-angle
XS2F-M12PVC4A2M (L = 2 m)
XS2F-M12PVC4A5M (L = 5 m)

Straight
XS2F-D421-D80-F (L = 2 m)
XS2F-D421-G80-F (L = 5 m)

Right-angle
XS2F-D422-D80-F (L = 2 m)
XS2F-D422-G80-F (L = 5 m)
