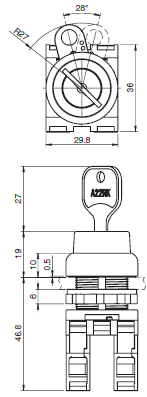

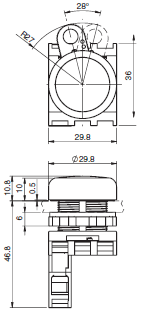

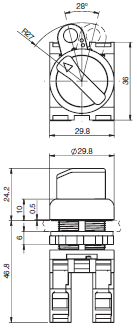

OMRON A22R/M22R Dimensions

/Images/l_3326-25-213308-198x198.jpg

last update: February 07, 2014

Responds with high grade
illumination to various needs

1. Shining Metal Ring

Provides shining and robust metal ring.

A22R/M22R Features 2

2. Soft to the touch

Gentle design for human.

A22R/M22R Features 3

3. Additional unit type

Switch unit can be added.

A22R/M22R Features 4

4. Compact size

The body length under a panel decreased by 15% compare with our former products.

A22R/M22R Features 5

last update: February 07, 2014

Purchase the OMRON φ22(φ25) Type Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON A22R/M22R Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22R/M22R We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22R/M22RSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V400-H Handheld 2D Code Reader/Features
E8F2 Digital Pressure Sensor/Features
E2EF Proximity Sensor with All-stainless Housing/Features
D4C Enclosed Switch/Features
3G8F7-DRM21-E DeviceNet Board (PCI Board)/Features

OMRON A22R/M22R catalog

A22R/M22R Pushbutton Switches / Indicators/Catalog

  • Catalog

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
A22R/M22R Catalog A190-E1-01
[4747KB] 		Jan 13, 201520150113 A22R/M22R Catalog


OMRON A22R/M22R specification

A22R/M22R Pushbutton Switches / Indicators/Specifications

last update: February 07, 2014

Specifications

Approved standards

Switch unit

UL, cULUL 508/CSA C22.2 No.14
File No. E76675
6A 240VAC/10A 120VAC
ENEN60947-5-1 (low voltage directive) 3A 240VAC (AC-15)
CCCGB/14048.5-2001
3A 240VAC/1.5A 24VDC

Lamp unit

UL, cULUL 508/CSA C22.2 No.14
File No. E76675
24VAC/DC MAX

Voltage-reduction unit

UL, cULUL 508/CSA C22.2 No.14
File No. E76675
220VAC
CCCGB/14048.5-2001
220VAC

Indicator

UL, cULUL 508/CSA C22.2 No.14
File No. E76675
12A: 12VAC/DC
24A: 24VAC/DC
T2: 220VAC
CCCGB/14048.5-2001
T2: 220VAC

Ratings

Contacts

Rated current
(A)		Rated voltage
(V)		Inductive load
Rated current (A)Power facfor
1024030.4

Rated current values are determined according to the testing conditions. The above ratings were obtained by conducting tests under the following conditions:
Ambient temperature: 20+/- 2ºC
Ambient humidity: 65+/-5%RH
Operating frequency: 30 operations/minute

LED (For pushbutton unit)

Operating voltageCurrent consumption
AC/DC 6V±5%20mA
AC/DC 12V±5%20mA
AC/DC 24V±5%20mA

LED (For indicator unit)

Operating voltageCurrent consumption
AC/DC 12V±5%20mA
AC/DC 24V±5%20mA

Voltage reduction unit (For pushbutton and indicator units)

Operating voltageCurrent consumption
AC 200V(190 to 230V)20mA

Characteristics

Environment

Ambient temperature*1Non-lighted type: -20 to +60ºC
Lighted type: -20 to +50ºC
Ambient humidity-35 to 85%RH
Storage temperature*1-40 to +70ºC
Protective code*2IP65
Vibration resistance10 to 55Hz, Double amplitude 1.5mm
Shock resistanceNon-lighted type: 1,000m/s2
Lighted type: 600m/s2

*1: With no icing or condensation
*2: Protection against dust or water from the front of a mounting panel side

Operation

OperationSlow action
Operating
frequency		MechanicalMomentary operation: 60 operations/minute max.
ElectricalKnob-type and Key-type selector: 30 operations/minute max.
Mechanical durabilityMomentary switch:3,000,000 operations
Alternate, Key/Knob Selector switches: 300,000 operations

Electrical Characteristics (Switch block)

Insulation resistance100MΩ Minimum (At 500VDC)
Dielectric strengthBetween terminals of same polarity: AC2,500V 50/60Hz for 1 minute
Between terminals of different polarity: AC2,500V 50/60Hz for 1 minute
RatingAC-15, A600, Ue=240V, Ie=3A
Rated insulation voltageUi=600V, Pollution degree: 3
Conditional short-circuit current10A, IEC60209-1
Electrical durability500,000 operations Minimum (at AC 240V, 3A, cosø=0.4)

Characteristics

Operating character istics

Pushbutton switch (1a1b)

Total Travel Force (TTF)29.4N Maximum
Total Travel (TT)5.5mm Maximum

Knob-type selector switch (1a1b)

Total Travel Force (TTF)Manual reset: 0.34N·m Maximum *
Auto-reset
2-notch: 0.25N·m *
3-notch: 0.34N·m *
Total Travel (TT)2-notch: approx. 90 degree (3-notch: approx.45 degree)
Releasing Force (RF)Manual reset: 0.34N·m Maximum *

* Rotation torque for knob type/key type selector switches.

Key-type selector switch (1a1b)

Total Travel Force (TTF)Manual reset: 0.34N·m Maximum *
Auto-reset
2-notch: 0.25N·m *
3-notch: 0.34N·m *
Total Travel (TT)2-notch: approx. 90 degree (3-notch: approx.45 degree)
Releasing Force (RF)Manual reset: 0.34N·m Maximum *

* Rotation torque for knob type/key type selector switches.

last update: February 07, 2014


OMRON A22R/M22R lineup

A22R/M22R Pushbutton Switches / Indicators/Lineup

last update: February 07, 2014

Assembled Models

Pushbutton Switches

Non-lighted/Lighted

AppearancePushbutton
shape		Pushbutton
color		Contact
form		Part No.
A22R-F[]-[][]3326_lu_1_1Round/FlatWhite1aA22R-FW-10[]
Black1aA22R-FB-10[]
Green1aA22R-FG-10[]
Red1aA22R-FR-10[]
Yellow1aA22R-FY-10[]
Blue1aA22R-FA-10[]
Black1bA22R-FB-01[]
Red1bA22R-FR-01[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate
A22R-T[]-[][]3326_lu_1_2ProjectionWhite1aA22R-TW-10[]
Black1aA22R-TB-10[]
Green1aA22R-TG-10[]
Red1aA22R-TR-01[]
Yellow1aA22R-TY-10[]
Blue1aA22R-TA-10[]
Black1bA22R-TB-01[]
Red1bA22R-TR-01[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate
A22RL-T[]-[]-[][]3326_lu_1_3Projection
AC, DC 24V		White1aA22RL-TW-24A-10[]
Green1aA22RL-TG-24A-10[]
Red1aA22RL-TR-24A-10[]
Yellow1aA22RL-TY-24A-10[]
Blue1aA22RL-TA-24A-10[]
Projection
AC 220V		White1aA22RL-TW-T2-10[]
Green1aA22RL-TG-T2-10[]
Red1aA22RL-TR-T2-10[]
Yellow1aA22RL-TY-T2-10[]
Blue1aA22RL-TA-T2-10[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate

Selector Switches

Non-lighted/Lighted

AppearanceNumber
of notch		Knob
position		Knob
color		Contact
form		Part No.
A22RS-2[]-[]3326_lu_2_12 notches3326_lu_2_5Black1aA22RS-2M-10
Black1a1bA22RS-2M-11
3326_lu_2_6Black1aA22RS-2A-10
Black1a1bA22RS-2A-11
A22RS-3[]-[]3326_lu_2_23 notches3326_lu_2_7Black2aA22RS-3M-20
3326_lu_2_8Black2aA22RS-3A-20
* These Non-lighted types provide black knobs.
A22RW-2[][]-[]-[]3326_lu_2_32 notches
AC, DC 24V		3326_lu_2_5Green1aA22RW-2MG-24A-10
Red1a1bA22RW-2MR-24A-11
3326_lu_2_6Yellow1aA22RW-2AY-24A-10
Blue1a1bA22RW-2AA-24A-11
A22RW-3[][]-[]-[]3326_lu_2_43 notches
AC, DC 24V		3326_lu_2_7Green2aA22RW-3MG-24A-20
Red2aA22RW-3MR-24A-20
3326_lu_2_8Yellow2aA22RW-3AY-24A-20
Blue2aA22RW-3AA-24A-20

Key Selector

AppearanceNumber
of notch		Key
position		Contact
form		Part No.
A22RK-2[]-[]3326_lu_3_12 notches3326_lu_3_31aA22RK-2ML-10
1a1bA22RK-2ML-11
3326_lu_3_41aA22RK-2M-10
1a1bA22RK-2M-11
3326_lu_3_51aA22RK-2AL-10
1a1bA22RK-2AL-11
○: key release position
A22RK-3[]-[]3326_lu_3_23 notches3326_lu_3_62aA22RK-3ML-20
3326_lu_3_72aA22RK-3M-20
3326_lu_3_82aA22RK-3MC-20
3326_lu_3_92aA22RK-3AC-20
○: key release position

Indicator

All-in-one type

AppearanceLED ratingIndicator
color		Part No.
M22R-E[]-[]3326_lu_4_1AC, DC 24VWhiteM22R-EW-24A
GreenM22R-EG-24A
RedM22R-ER-24A
YellowM22R-EY-24A
BlueM22R-EA-24A
AC 220VWhiteM22R-EW-T2
GreenM22R-EG-T2
RedM22R-ER-T2
YellowM22R-EY-T2
BlueM22R-EA-T2

Individual Unit

Pushbutton unit

Non-lighted/Lighted

AppearancePushbutton
shape		Pushbutton
color		Part No.
A22R-F[]-[]3326_lu_5_1Round/FlatWhiteA22R-FW-[]
BlackA22R-FB-[]
GreenA22R-FG-[]
RedA22R-FR-[]
YellowA22R-FY-[]
BlueA22R-FA-[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate
A22R-T[]-[]3326_lu_5_2ProjectionWhiteA22R-TW-[]
BlackA22R-TB-[]
GreenA22R-TG-[]
RedA22R-TR-[]
YellowA22R-TY-[]
BlueA22R-TA-[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate
A22RL-T[]-[]3326_lu_5_3Projection
Lighted type		WhiteA22RL-TW-[]
GreenA22RL-TG-[]
RedA22RL-TR-[]
YellowA22RL-TY-[]
BlueA22RL-TA-[]
Insert one of the following letters into the box [].
M: Momentary
A: Alternate

Selector unit

Non-lighted/Lighted

AppearanceNumber
of notch		Knob
position		Knob
color		Part No.
A22RS-2[]3326_lu_6_12 notches3326_lu_2_5BlackA22RS-2M
3326_lu_2_6BlackA22RS-2A
A22RS-3[]3326_lu_6_23 notches3326_lu_2_7BlackA22RS-3M
3326_lu_2_8BlackA22RS-3A
* These Non-lighted types provide black knobs.
A22RW-2[]3326_lu_6_32 notches
Lighted
Type		3326_lu_2_5GreenA22RW-2MG
RedA22RW-2MR
YellowA22RW-2MY
BlueA22RW-2MA
3326_lu_2_6GreenA22RW-2AG
RedA22RW-2AR
YellowA22RW-2AY
BlueA22RW-2AA
A22RW-3[]3326_lu_6_43 notches
Lighted
Type		3326_lu_2_7GreenA22RW-3MG
RedA22RW-3MR
YellowA22RW-3MY
3326_lu_2_8BlueA22RW-3AA
GreenA22RW-3AG
RedA22RW-3AR

Key Selector

AppearanceNumber
of notch		Key
position		Part No.
A22RK-2[]3326_lu_7_12 notches3326_lu_3_3A22RK-2ML
3326_lu_3_4A22RK-2M
3326_lu_3_5A22RK-2AL
○: key release position
A22RK-3[]3326_lu_7_23 notches3326_lu_3_6A22RK-3ML
3326_lu_3_7A22RK-3M
3326_lu_3_8A22RK-3MC
3326_lu_3_9A22RK-3AC
○: key release position

Switch unit

For Lighted type

AppearanceTypeContact formPart No.
A22RL-[]M-[]3326_lu_8_1Standard1aA22RL-10M
1bA22RL-01M
2aA22RL-20M
2bA22RL-02M
1a1bA22RL-11M
AC 220V1aA22RL-10M-T2
1bA22RL-01M-T2
2aA22RL-20M-T2
2bA22RL-02M-T2
1a1bA22RL-11M-T2

For Non-lighted type

AppearanceTypeContact formPart No.
A22R-[]M3326_lu_9_1Socket1aA22R-10M
1bA22R-01M
2aA22R-20M
1a1bA22RL-11M
2bA22RL-02M

Switch / Lamp units

Switch unit

AppearanceUnitContact formPart No.
A22R-[]3326_lu_10_1Contact
block		1aA22R-10
1bA22R-01
* Additional one block can be mountet to make 2a, 2b, or 1a1b.

Lamp socket

AppearanceUnitRatingPart No.
A22R-[]3326_lu_11_1Lamp socketWithout voltage
reduction unit
AC/DC6V, AC/DC12V,
AC/DC24V		A22R-TN
With voltage
reduction unit
AC220V		A22R-T2

Mounting plate

AppearanceUnitPart No.
A22R-32003326_lu_12_1Mounting plateA22R-3200

Lamp unit

LED

AppearanceLED operating
voltage		Lighting colorPart No.
A22R-[][]3326_lu_13_1LED
AC/DC6V		WhiteA22R-6AW
GreenA22R-6AG
RedA22R-6AR
YellowA22R-6AY
BlueA22R-6AA
LED
AC/DC12V		WhiteA22R-12AW
GreenA22R-12AG
RedA22R-12AR
YellowA22R-12AY
BlueA22R-12AA
LED
AC/DC24V		WhiteA22R-24AW
GreenA22R-24AG
RedA22R-24AR
YellowA22R-24AY
BlueA22R-24AA

Accessories / Tools

Items

Accessories

ItemAppearanceClassificationPart No.Remarks
Legend
Plate
Frames		Standard
size		3326_lu_14_1With Snap-in Legend
Plate (without text)		WhiteA22Z-3321Snap-in Legend Plate is acrylic.
RedA22Z-3322
BlackA22Z-3323
Without Snap-in Legend PlateA22Z-3320
Large
size		3326_lu_14_2With Snap-in Legend
Plate (without text)		WhiteA22Z-3331Snap-in Legend plate is acrylic.
RedA22Z-3332
BlackA22Z-3333
Without Snap-in Legend PlateA22Z-3330
Lock Ring3326_lu_14_3RoundA22Z-3360The Lock Ring is used when more secure lock feature is required.
Sealing Caps3326_lu_14_4For flat modelsA22Z-3600FUsed to prevent dust or water from entering the Operation Unit
(Pushbutton, etc.).
Color: opaque
Material: silicon
For projection modelsA22Z-3600T
Hole plug3326_lu_14_5RoundA22Z-3530Can be plugged into pre-cut panel holes for future expansion.
The color is black.
Control Boxes3326_lu_14_6One holeA22Z-B101Material: Polycarbonate resin.
Two holesA22Z-B102
Three holesA22Z-B103
Connectors3326_lu_14_7Applicable
diameter
(mm)		ø7~9A22Z-3500-1Plastic connector used to extend a cable from the Switch Box.
(See page 30)
ø9~11A22Z-3500-2
Legend
Plates		Standard
size		3326_lu_14_8Without
text		BlackA22Z-3443BAttached to the Standard
Plate Frame.
Material: Acrylic.
WhiteA22Z-3443R
RedA22Z-3443W
TransparentA22Z-3443C
With textWhite text
on red
background		○A22Z-3443R-2
STOPA22Z-3443R-4
White text
on black
background		│A22Z-3443B-1
STARTA22Z-3443B-3
ONA22Z-3443B-5
OFFA22Z-3443B-6
UPA22Z-3443B-7
DOWNA22Z-3443B-8
POWER ONA22Z-3443B-9
OFF-ONA22Z-3443B-10
Large
size		3326_lu_14_9Without
text		BlackA22Z-3453BAttached to the Large-size
Legend Plate Frame.
Material: Acrylic.
RedA22Z-3453R
WhiteA22Z-3453W
TransparentA22Z-3453C
Character Films3326_lu_14_10No print (Round)A22Z-3460After printing on a film, affix to the indicator Plate of the Lighted Pushbotton Switch.
(The back is coated with adhesive.)
Character
Print
(Round)		│A22Z-3460-1
○A22Z-3460-2
STARTA22Z-3460-3
STOPA22Z-3460-4

Tools

ItemAppearancePart No.Remarks
Lamp Extractor3326_lu_15_1A22Z-3901Rubber tool used to easily replace Lamps.
Tightening wrench3326_lu_15_2A22Z-3905Tool used to tighten nuts from the back of the panel.

last update: February 07, 2014


OMRON A22R/M22R dimension

A22R/M22R Pushbutton Switches / Indicators/Dimensions

last update: February 10, 2014

Pushbutton Switches

Non-lighted/Lighted

A22R-F[]-[][]

A22R/M22R Dimensions 2

A22R-T[]-[][]

A22R/M22R Dimensions 3

A22RL-T[]-[]-[][]

A22R/M22R Dimensions 4

Selector Switches

Non-lighted/Lighted

A22RS-2[]-[]
A22RS-3[]-[]

A22R/M22R Dimensions 6

A22RW-2[][]-[]-[]
A22RW-3[][]-[]-[]

A22R/M22R Dimensions 7

Key Selector

A22RK-2[]-[]
A22RK-3[]-[]

A22R/M22R Dimensions 8

Indicator

All-in-one type

M22R-E[]-[]

A22R/M22R Dimensions 10

Pushbutton unit

Non-lighted/Lighted

A22R-F[]-[]

A22R/M22R Dimensions 12

A22R-T[]-[]

A22R/M22R Dimensions 13

A22RL-T[]-[]

A22R/M22R Dimensions 14

Selector unit

Non-lighted/Lighted

A22RS-2[]
A22RS-3[]

A22R/M22R Dimensions 16

A22RW-2[]
A22RW-3[]

A22R/M22R Dimensions 17

Key Selector

A22RK-2[]
A22RK-3[]

A22R/M22R Dimensions 18

Switch unit

For Lighted type

A22RL-[]M-[]

A22R/M22R Dimensions 20

For Non-lighted type

A22R-[]M

A22R/M22R Dimensions 21

Switch / Lamp units

Switch unit

A22R-[]

A22R/M22R Dimensions 23

Lamp socket

A22R-[]

A22R/M22R Dimensions 24

Mounting plate

A22R-3200

A22R/M22R Dimensions 26

Lamp unit

LED

A22R-[][]

A22R/M22R Dimensions 28

last update: February 10, 2014


Return to OMRON
