last update: November 6, 2012

• Pressure status can be checked at a glance from the digital display and bar display.

• Measurement pressure prevents incorrect outputs due to momentary pressure changes. (*)

• Perform automatic teaching simply by teaching pressure values for good and bad products.

• Industry’s smallest models at just 28 × 28 × 29 mm.

* Only in hysteresis mode.

last update: November 6, 2012

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E8F2 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E8F2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E8F2Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

WS02-SGWC1 / CPLC1 FA Communications Software/Features
E6H-C Hollow-shaft Encoder with Diameter of 40 mm/Features
E69-[] Rotary Encoders Accessories/Features
D4NL Guard Lock Safety-door Switch/Features
H3CR-A Solid-state Multi-functional Timers/Features

OMRON E8F2 catalog
E8F2 Digital Pressure Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E8F2 Data Sheet -
[513KB] Aug 25, 201520150825 E8F2 Data Sheet

OMRON E8F2 dimension
E8F2 Digital Pressure Sensor/Dimensions
last update: September 24, 2012

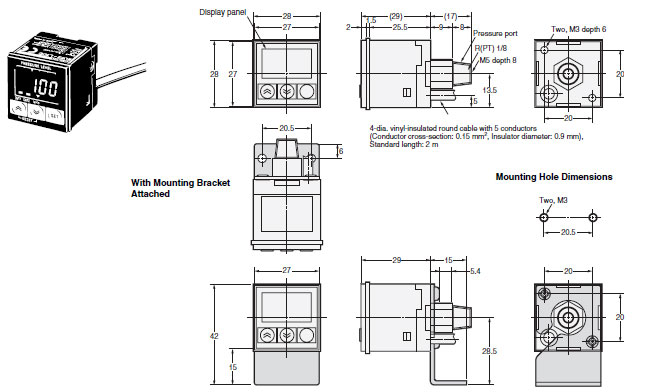

Sensors
E8F2

Accessories (Order Separately)

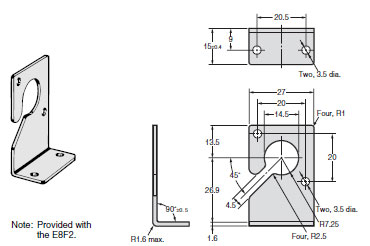

Mounting Bracket
E89-F3

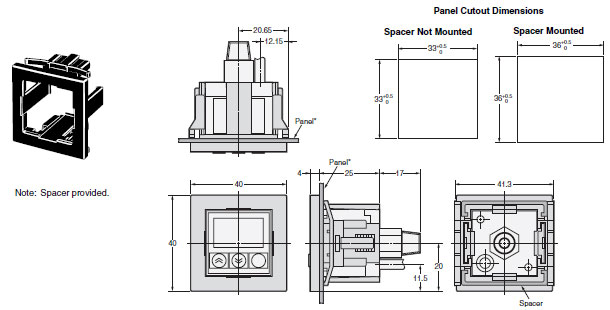

Panel-mounting Bracket
E89-F4

* Applicable panel thickness: 1.2 to 4 mm
Note: The spacer can be removed from the Panel-mounting Bracket.
The panel cutout dimensions can be adjusted as shown above by attaching or detaching the spacer.

last update: September 24, 2012

OMRON E8F2 specification
E8F2 Digital Pressure Sensor/Specifications
last update: September 01, 2015
Sensor

Model NPN output E8F2-A01C E8F2-B10C E8F2-AN0C
PNP output E8F2-A01B E8F2-B10B E8F2-AN0B
Power supply voltage 12 to 24 VDC±10% with a ripple (p-p) of 10% max.
Current consumption 70 mA max. * 1
Pressure type Gauge pressure
Rated pressure range 0 to 100 kPa 0 to 1 MPa 0 to -101 kPa
Pressure setting range 0 to 100 kPa 0 to 1 MPa 0 to -101 kPa
Withstand pressure 400 kPa 1.5 MPa 400 kPa
Applicable fluid Non-corrosive gas and non-flammable gas
Operating mode Hysteresis mode, window mode, and automatic teaching mode
Repeat accuracy
(ON/OFF output) ±1%FS max.
Linearity (linear output) ±1%FS max.
Response time
(ON/OFF output) 5 ms max.
Linear output 1 to 5 V ±5% F.S. with an output impedance of 1 kΩ and a permissible resistive load of 500 kΩ.
ON/OFF outputs NO or NC open collector (depending on whether the output configuration is NPN or PNP)
ON/OFF
outputs Load current 30 mA max.
Output applied voltage 30 VDC max.
Residual voltage NPN open collector output: 1 V max. with 30 mA load current
PNP open collector output: 2 V max. with 30 mA load current
Display * 2 3.5-digit red LED
Green LED bar indicator
The orange LED is lit for two independent outputs with output transistor turned ON.
Green unit indicator
Display accuracy ±3%FS±1 digit max.
Protection circuits Reverse polarity protection, load short-circuit protection
Ambient temperature range Operating: 0 to 55°C
Storage: - 10 to 60°C (with no icing)
Ambient humidity range Operating/Storage: 35% to 85% (with no condensation)
Temperature influence ±3%FS max.
Voltage influence ±1.5%FS max.
Insulation resistance 100 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 1 min
Vibration resistance Destruction: 10 to 500 Hz, 1.0-mm double amplitude or 150 m/s², three times each for 11 min in the X, Y, and Z directions
Shock resistance Destruction: 300 m/s² 3 times each in the X, Y, and Z directions
Degree of protection IP50 (IEC)
Pressure port R (PT) 1/8 taper screw and M5 female screw
Connection method Pre-wired (standard length: 2 m)
Cable Approved by UL
Weight (packed state) Approx. 110 g
Material Pressure port Aluminum die-cast
Case Heat-resistive ABS
Accessories Mounting Bracket, Instruction manual

*1. The current consumption is approximately 43 mA in energy-saving mode.
*2. Display Example of Digital Indicator

Model Setting unit
kPa
Applied pressure Digital display
E8F2-A01C 100
E8F2-B10C 1000
E8F2-AN0C -101

Note: The period ( ) in the display indicates the decimal point.
Its position will not change unless the setting unit is changed.

last update: September 01, 2015

OMRON E8F2 lineup
E8F2 Digital Pressure Sensor/Lineup
last update: September 24, 2012
Sensors

Pressure range ON/OFF output Linear output Model

NPN output PNP output

Positive pressure 0 to 100 kPa Open collector
(two independent outputs) 1 to 5 V E8F2-A01C E8F2-A01B

0 to 1 MPa E8F2-B10C E8F2-B10B

Negative pressure 0 to -101 kPa E8F2-AN0C E8F2-AN0B

Accessories (Order Separately)

Appearance Name Model Remarks

Mounting Bracket E89-F3 Provided with the E8F2.

Panel-mounting Bracket E89-F4 Spacer provided.

last update: September 24, 2012
