OMRON 3Z4S-LE VS-L / M42-10 Series Dimensions
/Images/l_3366-25-214505-198x198.jpglast update: August 1, 2018
• Wide variety of lenses with focal lengths ranging from 18 to 100 mm.
• Hexagon socket head cap screws for focus and aperture lock screws can be tightened more than finger tight. This ensures vibration resistance even when large diameter lenses are used.
last update: August 1, 2018
Purchase the OMRON Lens Please fill in the following
If you have just landed here, this product OMRON 3Z4S-LE VS-L / M42-10 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 3Z4S-LE VS-L / M42-10 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 3Z4S-LE VS-L / M42-10 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G6D-F4B / G3DZ-F4B Terminal Relay/Features
LD Series Mobile Robots/Features
H3DT-G Star-delta Timer/Features
CJ1W-PRM21 PROFIBUS-DP Master unit/Features
CS1W-PPS01 SYSMAC CS-series Process Analog I/O Units/Features
OMRON 3Z4S-LE VS-L / M42-10 Series dimension
3Z4S-LE VS-L / M42-10 Series Lens for M42-mount Cameras/Dimensionslast update: April 01, 2014

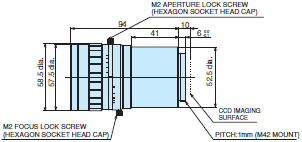

VS-L1828/M42-10
VS-L2526/M42-10

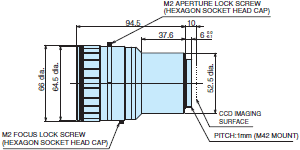

VS-L3528/M42-10
