Compact and easy-to-install units with safety outputs Helps increase your productivity, from installation to maintenance
Omron's new G9SE series of safety relay units offers an easy approach for various simple safety applications. The G9SE saves mounting space, lowers installation cost with Push-In Plus terminal block, and reduces operational cost with intuitive diagnostic indicators.
Slim design to save mounting space
The slim design of only 17.5 or 22.5 mm saves space in the control panel.
Applicable safety standards
EN ISO 13849-1: PLe/Safety Category 4
IEC 62061: SIL3
EN81-1/-2/-20/50
For various safety input devices
wide variety of safety input devices such as emergency stop switches, door switches, and light curtains can be
connected.
OFF-delayed safety output models are also available.
Simple wiring using Push-In Plus terminal block
Easy and reliable installation and maintenance
When the conventional model with terminals on the top and bottom of the unit is installed in a small control panel, it is difficult to secure sufficient space for wiring. The Push-In Plus terminal block on the front of the G9SE make installation easier and much quicker.
Faster troubleshooting with status indicators
The indicators of conventional safety relay units only indicate the operating status of the internal relays (K1/K2), and it is difficult to check the operation or connection of safety input devices. The new intuitive LED indicators of the G9SE show the operating status of safety inputs and outputs, enabling faster and more accurate troubleshooting when the equipment stops.
last update: January 22, 2018
Purchase the OMRON Safety Relay Units Please fill in the following
If you have just landed here, this product OMRON G9SE Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G9SE We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G9SESafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
F03-16SF / 16SFC Liquid Leakage Sensing Band/Features
A22NK Key-type Selector Switches/Features
VAQ Pushbutton Switch (Cylindrical 10.5-dia.)/Features
CK3M-CPU1[]1 Programmable Multi-Axis Controller CK3M-series CPU Unit/Features
V680 Series RFID System/Features

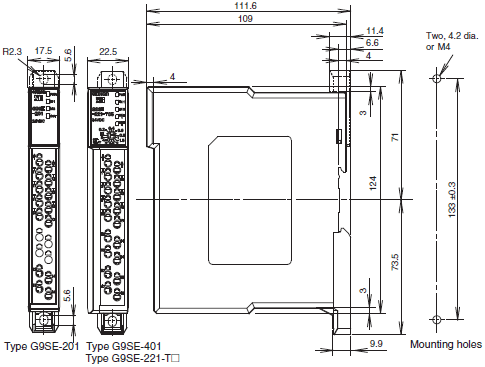

OMRON G9SE dimension
G9SE Safety Relay Unit/Dimensionslast update: February 2, 2015
(Unit: mm)
G9SE
last update: February 2, 2015
OMRON G9SE catalog
G9SE Safety Relay Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G9SE Series Catalog | J198-E1-03 [3014KB] | Jul 12, 201820180712 | G9SE Series Catalog |
OMRON G9SE lineup
G9SE Safety Relay Unit/Lineuplast update: February 2, 2015
| Safety outputs | Auxiliary outputs *3 | Max. OFF-delay time *1 | Rated voltage | Model | |
|---|---|---|---|---|---|
| Instantaneous | OFF-delayed *2 | ||||
| DPST-NO | - | 1 (Solid-state) | - | 24 VDC | G9SE-201 |
| 4PST-NO | G9SE-401 | ||||
| DPST-NO | DPST-NO | 5 s | G9SE-221-T05 | ||
| DPST-NO | DPST-NO | 30 s | G9SE-221-T30 | ||
*1 The OFF-delay time can be set in 16 steps as follows:
T05: 0/0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/1/1.5/2/2.5/3/4/5 s
T30: 0/1/2/4/5/6/7/8/9/10/12/14/16/20/25/30 s
*2 The OFF-delayed output becomes an instantaneous output by setting the OFF-delay time to 0 s.
*3 PNP transistor output
last update: February 2, 2015
OMRON G9SE specification
G9SE Safety Relay Unit/Specificationslast update: March 2, 2015
Ratings
Power Input
| Model | G9SE-201 | G9SE-401 | G9SE-221-T[] |
|---|---|---|---|
| Rated supply voltage | 24 VDC | ||
| Operating voltage range | -15% to 10% of rated supply voltage | ||
| Rated power consumption *1 | 3 W max. | 4 W max. | |
Outputs
| Model | G9SE-201 | G9SE-401 | G9SE-221-T[] |
|---|---|---|---|
| Safety output OFF-delayed Safety output | Contact output 250 VAC 5 A 30 VDC 5 A (resistive load) | ||
| Auxiliary output | PNP transistor output Load current: 100 mA DC max. | ||
Characteristics
| Model | G9SE-201 | G9SE-401 | G9SE-221-T[] | ||
|---|---|---|---|---|---|
| Operating time (OFF to ON state) *2 | 100 ms Max. *3 | ||||
| Response time (ON to OFF state) *4 | 15 ms Max. | ||||
| Accuracy of OFF-delay time | - | Within plus or minus 10% of the set value | |||
| Inputs | Input current | 5 mA Min. | |||
| ON voltage | 11 VDC Min. | ||||
| OFF voltage | 5 VDC Max. | ||||
| OFF current | 1 mA Max. | ||||
| Maximum cable length | 100 m Max. | ||||
| Reset input time | 250 ms Min. | ||||
| Contact outputs | Contact resistance *5 | 100 mΩ | |||
| Mechanical durability | 5,000,000 operations Min. | ||||
| Electrical durability | 50,000 operations Min. | ||||
| Switching specification Inductive load (IEC/EN60947-5-1) | AC15: 240 VAC 2 A DC13: 24 VDC 1.5 A | ||||
| Minimum applicable load | 24 VDC 4 mA | ||||
| Conditional short-circuit current (IEC/EN60947-5-1) | 100A *6 | ||||
| Pollution degree | 2 | ||||
| Over voltage category (IEC/EN60664-1) | Safety output: Class III, the others: Class II | ||||
| Insulation specification | Impulse withstand voltage (IEC/ EN60947-5-1) | Between input and output | 6 kV | ||
| Between different poles of output | 6 kV (between 13-14/23-24 and 33-34/43-44 (37-38/47-48)) 4 kV (between 13-14 and 23-24, between 33-34 (37-38) and 43-44 (47-48)) | ||||
| Dielectric strength | Between input and output | 2,200 VDC | |||
| Between different poles of output | 1,500 VAC | ||||
| Insulation resistance | 100 MΩ | ||||
| Vibration resistance *7 | Frequency: 10 to 55 to 10 Hz Amplitude: 0.35 mm half amplitude (0.7 mm double amplitude) | ||||
| Mechanical shock re- sistance *7 | Destruction | 300 m/s2 | |||
| Malfunction | 100 m/s2 | ||||
| Surrounding Air Temperature | -10 to 55°C (No freezing or condensation) | ||||
| Ambient humidity | 25% to 85%RH | ||||
| Degree of protection | IP20 | ||||
| Weight | approx. 150 g | approx. 180 g | |||
*1 Power consumption of loads not included.
*2 The operating time is the time it takes for the safety contact to close after the safety inputs and feedback-reset input
are turned ON. Not includes bounce time.
*3 This is in normal operation. When executing non-regular self-diagnosis for Safety output circuit, G9SE operating time
become 500 ms max..
*4 The response time is the time it takes for the safety main contact to open after the safety input is turned OFF. Includes
bouncetime.
*5 This is initial value using the voltage-drop method with 1A at 5VDC.
*6 Use for each contact output an 8A fuse that conforms to IEC 60127 as a short-circuit protection device. This fuse is not
included with the G9SE.
*7 Condition: G9SE is mounted to mounting surface with screw and the screw mounting attachment. In the case of DIN
rail mounting, mount DIN rail with G9SE to the place without big vibration. (Amplitude guideline: Less than 0.15 mm
half amplitude (0.3 mm double amplitude))
last update: March 2, 2015
