OMRON E3S-DB Dimensions
/Images/l_3455-25-237401-198x198.jpglast update: July 6, 2018
Stably Detect Various Types of Transparent Workpieces Easier to Set Up and Use
High detection capabilities for stable detection of a wide range of transparent workpieces in the food and packaging industries, including glass bottles, PET bottles, films, and trays.
You can increase equipment operating rates and reduce commissioning and maintenance work.
Improved Equipment Operating Rates
Prevent Intermittent Line Stoppage and Shorten Cycle Time with High Detection Capabilities
Increase Operating Efficiency for Transparent Bottle Detection
This Is How [New technology]
Double-slit Optical Design
Increase Operating Efficiency to Detect Loose Shrinkwrapping
This Is How
P-opaquing function
This uses double refraction to cut out polarized components with OMRON's unique polarization filter.
Shorten Cycle Time for Transparent Bottle Detection
This Is How
Narrow beam diameter of minimum 2.5 mm
The E3S-DB has a response time of 0.5 ms for a pitch of 5 mm, so detection is possible at a conveyor speed of up to 4 m/s.
(With the E3S-DB[][]2(T) and a sensing distance of 200 mm.)
Reduced Work
Easy Setup and Operation; Reduced Commissioning and Maintenance Work
Large Reductions in Adjustment Time for Sensitivity and Threshold
Visualization Reduces Work in Changeovers and Installation
Visible Spot
The visible spot in the Reflector lets you easily adjust the height of the optical axis for detecting different height of workpieces and reduces time required for adjustment.
Indicators That Are Easy to See from Any Angle
Large, easy-to-see light and stability indicators let you easily check operation from any angle.
High Usability
Reliable Resistance to Water and Detergents, and Ease of Use
Reliable Structure That Resists Water and Detergents
IP69K Water Resistance
Withstands harsh environments with high temperatures and high water pressures.
IP69K Degree of Protection
IP69K is defined in DIN 40050 Part 9 of the German standards for protection against high temperatures and high water pressures.
Resistance to Detergents Certified by Ecolab
Third-party certification has been received from the Ecolab company in Europe for applications in water-washed environments.
Simple Wiring with Movable Connectors and Cables
Connectors and cables can be rotated and run vertically or horizontally for well organized wiring.
Information Printed on Sensor Eliminates the Need for Manuals Onsite
Smart Teaching and wiring information is printed on the Sensor to eliminate the need for manuals onsite.
last update: July 6, 2018
Purchase the OMRON Built-in Amplifier Please fill in the following
If you have just landed here, this product OMRON E3S-DB Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3S-DB We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3S-DBSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
OS32C Safety Laser Scanner/Features
FZ-LES Series Lens for FZ-series Small Cameras/Features
D40Z Compact non-contact Door Switch/Features
WS02-CFSC1-E Network Configurator/Features
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Features
OMRON E3S-DB dimension
E3S-DB Transparent Object Detection Photoelectric Sensor/Dimensionslast update: June 01, 2015
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

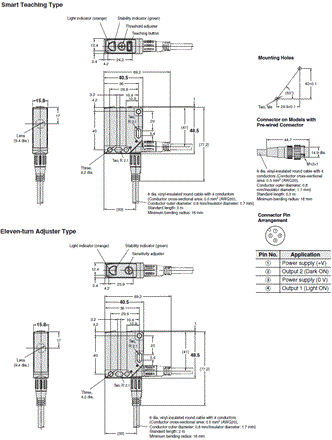

Sensors
Pre-wired Models
E3S-DBN1[](T)
E3S-DBP1[](T)
Models with Pre-wired Connector
E3S-DBN3[](T)
E3S-DBP3[](T)
Models with M12 Connector
E3S-DBN2[](T)
E3S-DBP2[](T)
Accessories (Sold Separately)
Reflector
E39-R1S/E39-R1K*
Materials: Reflective surface: Acrylic, Rear surface: ABS
* E39-R1K only
Coating on reflective surface
Special Polarizing Reflector
E39-RP1
Materials: Reflective surface: Acrylic, Rear surface: ABS
Reflector
E39-R21
Materials: Reflective surface: Methacrylic resin (PMMA),
Rear surface: Polybutylene terephthalate (PBT)
E39-R8
Materials: Reflective surface: Acrylic, Rear surface: ABS
E39-RS10
Materials: Reflective surface: Methacrylic resin (PMMA)
E39-RS11
Materials: Reflective surface: Methacrylic resin (PMMA)
Mounting Brackets

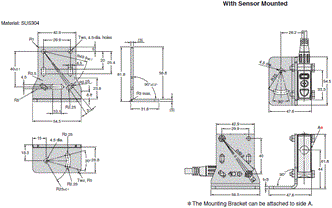

E39-L192

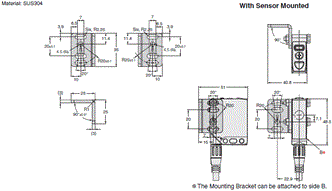

E39-L193
last update: June 01, 2015
OMRON E3S-DB lineup
E3S-DB Transparent Object Detection Photoelectric Sensor/Lineuplast update: September 10, 2015
Sensors
| Sensing method | Appear- ance | Sensitivity adjustment | Connection method | Sensing distance (Red light) *2 | Model | |
|---|---|---|---|---|---|---|
| NPN output | PNP output | |||||
| Retro- reflective (with MSR function) | *1 | Smart Teaching | Pre-wired (2 m) | 3.5 m (with E39-R8) | E3S-DBN11 2M | E3S-DBP11 2M |
| Connector (M12) | E3S-DBN21 | E3S-DBP21 | ||||
| M12 Smartclick prewired connector (0.3 m) | E3S-DBN31 0.3M | E3S-DBP31 0.3M | ||||
| Pre-wired (2 m) | Narrow beam 0.5 m (with E39-R21) | E3S-DBN12 2M | E3S-DBP12 2M | |||
| Connector (M12) | E3S-DBN22 | E3S-DBP22 | ||||
| M12 Smartclick prewired connector (0.3 m) | E3S-DBN32 0.3M | E3S-DBP32 0.3M | ||||
| Eleven-turn adjuster | Pre-wired (2 m) | 3.5 m (with E39-R8) | E3S-DBN11T 2M | E3S-DBP11T 2M | ||
| Connector (M12) | E3S-DBN21T | E3S-DBP21T | ||||
| M12 Smartclick prewired connector (0.3 m) | E3S-DBN31T 0.3M | E3S-DBP31T 0.3M | ||||
| Pre-wired (2 m) | Narrow beam 0.5 m (with E39-R21) | E3S-DBN12T 2M | E3S-DBP12T 2M | |||
| Connector (M12) | E3S-DBN22T | E3S-DBP22T | ||||
| M12 Smartclick prewired connector (0.3 m) | E3S-DBN32T 0.3M | E3S-DBP32T 0.3M | ||||
*1. A Reflector is not included with the Sensor. Select a Reflector (sold separately) according to the application.
*2. There is no close-range dead zone between the Sensor and Reflector.
Accessories (Sold Separately)
Sensor I/O Connectors (Connector on One End)
(A Connector is required for a Sensor with a connector or pre-wired connector.)
Connectors are not provided with the Sensors. Be sure to order a Connector separately.
| Size | Cable specifications | Appearance | Cable length | Model |
|---|---|---|---|---|
| *1 M12 (4 pins) | Fire-retardant robot cable | Straight *2 | 2 m | XS2F-D421-D80-F |
| 5 m | XS2F-D421-G80-F | |||
Straight *2 | 2 m | XS5F-D421-D80-F | ||
| 5 m | XS5F-D421-G80-F |
*1 Refer to your OMRON website for details on the XS2 and XS5.
*2 The connectors will not rotate after they are connected.
Reflectors
(A Reflector is required for each Retro-reflective Sensor.)
Reflectors are not provided with the Sensors. Be sure to order a Reflector separately.
| Appearance | Sensing distance * (reference value) | Model | Quantity | Applicable Sensors | Remarks |
|---|---|---|---|---|---|
 | 3.5 m | E39-R1S | 1 | E3S-DB[][]1(T) | Standard model |
| 2 m | E39-R1K | E3S-DB[][]1(T) | Non-fogging reflective plate | ||
 | 3 m | E39-RP1 | E3S-DB[][]1(T) | Special Polarizing Reflector | |
 | 0.5 m (rated value) | E39-R21 | E3S-DB[][]2(T) | Narrow-beam Reflector | |
 | 3.5 m (rated value) | E39-R8 | E3S-DB[][]1(T) | Standard model | |
 | 1.5 m | E39-RS10 | E3S-DB[][]1(T) | Sheets | |
| 0.5 m | E3S-DB[][]2(T) | ||||
 | 2.5 m | E39-RS11 | E3S-DB[][]1(T) | ||
| 0.5 m | E3S-DB[][]2(T) |
Note: 1. If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator lights
properly when you install the Sensor.
2. Refer to Engineering Data (Reference Value) on Data Sheet for details.
* There is no close-range dead zone between the Sensor and Reflector.
Mounting Brackets
A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.
| Type | Appearance | Model | Quantity |
|---|---|---|---|
| Bottom-mounting |  | E39-L192 | 1 |
| Side-mounting |  | E39-L193 |
Note: For details, refer to the Mounting Brackets on E39-L/E39-S/E39-R which can be accessed from your OMRON website.
last update: September 10, 2015
OMRON E3S-DB specification
E3S-DB Transparent Object Detection Photoelectric Sensor/Specificationslast update: September 10, 2015
| Sensing method | Retro-reflective (with MSR function) | ||||
|---|---|---|---|---|---|
| Model | NPN output | E3S-DBN[]1 | E3S-DBN[]1T | E3S-DBN[]2 | E3S-DBN[]2T |
| PNP output | E3S-DBP[]1 | E3S-DBP[]1T | E3S-DBP[]2 | E3S-DBP[]2T | |
| Sensing distance | 0 to 3.5 m (with E39-R8) | 0 to 0.5 m (with E39-R21) | |||
| Spot diameter (reference value) *1 | 6-mm dia. (at sensing distance of 250 mm) | 2.5-mm dia. (at sensing distance of 200 mm) | |||
| Light source (wavelength) | Red LED (624 nm) | ||||
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||||
| Power consumption | 720 mW max. (current consumption: 30 mA max. at power supply voltage of 24 VDC) | ||||
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model.) | ||||
| Indicators | Light indicator (orange) and stability indicator (green) | ||||
| Protection circuits | Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention | ||||
| Response time | Operate or reset: 0.5 ms max. | ||||
| Sensitivity adjustment | Smart Teaching | Eleven-turn adjuster | Smart Teaching | Eleven-turn adjuster | |
| Smart Teaching lock function | Provided. | --- | Provided. | --- | |
| Automatic compensation (AC3) | Provided (OFF by default). | --- | Provided (OFF by default). | --- | |
| Ambient illumination | (Receiver side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | ||||
| Ambient temperature range | Operating: -25 to 60°C, Storage: -40 to 70°C (with no icing or condensation) | ||||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | ||||
| Insulation resistance | 20 MΩ min. (at 500 VDC) | ||||
| Dielectric strength | 1,000 VAC at 50/60 Hz for 1 minute | ||||
| Vibration resistance | Destruction: 10 to 55 Hz with double amplitude of 1.5 mm for 2 hours each in X, Y, and Z directions | ||||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | ||||
| Degree of protection *2 | IEC IP67, DIN 40050-9 IP69K | ||||
| Connection method | Pre-wired cable (standard cable length: 2 m) Connector (M12, 4 pins) Pre-wired connector (standard cable length: 0.3 m/M12, 4 pins) | ||||
| Weight (packed state/ Sensor only) | Pre-wired models | Approx. 80 g/approx. 60 g | |||
| Models with connector | Approx. 60 g/approx. 40 g | ||||
| Models with pre-wired connector | Approx. 180 g/approx. 160 g | ||||
| Materials | Case | Polybutylene terephthalate (PBT)/ABS | |||
| Lens | Methacrylic resin (PMMA) | ||||
| Indicators | Methacrylic resin (PMMA) | ||||
| Sensitivity adjuster and Threshold adjuster | Polyester elastomer | ||||
| Cable | Polyvinyl chloride (PVC) | ||||
| Accessories | Instruction manual | ||||
*1. Refer to Emission Spot Diameter vs. Distance in Engineering Data (Reference Value) on Data Sheet for details.
*2. IP69K Degree of Protection Specification
IP69K is a protection standard against high temperature and high-pressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min.
The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.
last update: September 10, 2015
OMRON E3S-DB catalog
E3S-DB Transparent Object Detection Photoelectric Sensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E3S-DB Data Sheet | E439-E1-01 [2457KB] | Sep 09, 201520150909 | E3S-DB Data Sheet |
| E3S-DB Catalog | E440-E1-01 [3186KB] | Jul 06, 201820180706 | E3S-DB Catalog |
