• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.

• Ideal for the thermal input devices of Temperature Controllers.

• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.

last update: April 1, 2016

Purchase the OMRON Input Equipments Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E52 with Ferrule (General purpose Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 with Ferrule (General purpose Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 with Ferrule (General purpose Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G7S-[]-E Relays with Forcibly Guided Contacts/Features
D5F High-precision Optical Switch/Features
ES1-N Infrared Thermosensor/Features
DeviceNet Peripheral Devices DeviceNet Peripheral Devices/Features
KM1 Multi-circuit Smart Power Monitor/Features

OMRON E52 with Ferrule (General purpose Models) catalog
E52 with Ferrule (General purpose Models) Temperature Sensor with Ferrule (General purpose Models)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E52 Data Sheet -
[7536KB] Feb 08, 201820180208 E52 Data Sheet

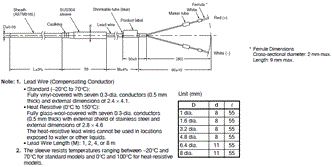

OMRON E52 with Ferrule (General purpose Models) dimension
