OMRON DeviceNet Peripheral Devices specification

last update: December 08, 2016

General-purpose Peripheral Devices

Peripheral Devices for DeviceNet Communications

General-purpose Models (T-branch Taps)

Rated current	Between main lines: 8 A (power supply line) and 2 A (signal line)
	Between main and branch lines: 3 A (power supply line) and 1 A (signal line)
Insulation resistance	100 M Ω min. (at 500 VDC)
Dielectric strength	500 VAC for 1 min, leakage current: 1 mA max.
Ambient operating temperature	0°C to 55°C

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Type	Connectors with Cables DCA1-5CN[][][]1	T-branch Connector DCN2-1	Assembling-type Connector XS2[]-D5S7	Connectors with Terminating Resistor DRS2-[]
Rated current	3 A
Rated voltage	125 VDC
Contact resistance (connector)	40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient operating temperature	-20°C to 65°C *
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s	---
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s2, whichever is smaller

* Use the robot cable within a temperature range between 0°C and 65°C to prevent the wires inside the cable from being
  broken when bending it.

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

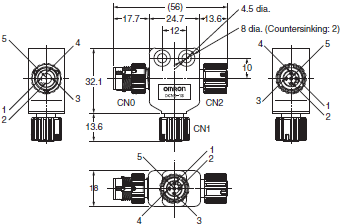

Type	Connectors with Cables DCA1-5CS[][][]1	T-branch Connector DCN2-1S	Connectors with Terminating Resistor DRS2-[]S	Branch Relay Box DCN2-S[]C5H
Rated current	3 A
Rated voltage	125 VDC
Contact resistance (connector)	40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)			1,000 VAC for 60 seconds
Ambient operating temperature	-20°C to 65°C *
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s	---
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s2, whichever is smaller
Lock strength	Pulling: 100 N/15 s, Rotating: 1 N·m/15 s
Lock force	0.1 to 0.25 N·m

* Use the robot cable within a temperature range between 0°C and 65°C to prevent the wires inside the cable from being
  broken when bending it.

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Type	Connectors with Thick Cables DCA2- 5CN[][][]1	Connectors with Thin Cables DCA1- 5CN[][]W5	T-branch Connector DCN3-11	T-branch Connector DCN3-12	Connectors with Terminating Resistor DRS3-1	Panel Mounting Connector DCA2- 5CNC5P1	Panel Mounting Connector XS4M- D521-1
Rated current	8 A	3 A	8 A	3 A *1	8 A
Rated voltage	125 VDC
Contact resistance (connector)	30 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient operating temperature	-20°C to 65°C *2
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s		--			98 N for 15 s	--
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s2, whichever is smaller

*1. The rated current between thick wires is 8 A.
*2. Use the robot cable within a temperature range between 0 °C and 65 °C to prevent the wires inside the cable from being
      broken when bending it.

last update: December 08, 2016

OMRON DeviceNet Peripheral Devices lineup

last update: August 3, 2018

General-purpose Peripheral Devices

Peripheral Devices for DeviceNet Communications

General-purpose Models

Product		Appearance	Model	Specifications

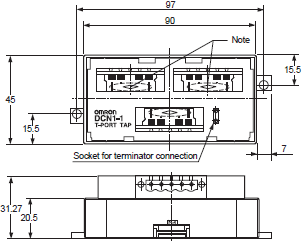

T-branch Tap for 1 branch line			DCN1-1NC	Cable wiring direction: Toward top Cable lock direction: From top Connector screw direction: From top	Provided with 3 parallel connectors with clamps (XW4G-05C1-H1-D), standard terminating resistor
			DCN1-1C	Cable wiring direction: Toward side Cable screw direction: From top Connector screw direction: From side	Provided with 3 parallel connectors with screws (XW4B-05C1-H1-D), standard terminating resistor
			DCN1-2C	Cable wiring direction: Toward top Cable screw direction: From side Connector screw direction: From top
			DCN1-2R	Cable wiring direction: Toward side Cable screw direction: From top Connector screw direction: From top	Provided with 3 orthogonal connectors with screws (XW4B-05C1-V1R-D), standard terminating resistor

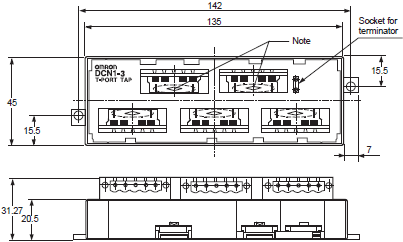

T-branch Tap for 3 branch lines			DCN1-3NC	Cable wiring direction: Toward top Cable lock direction: From top Connector screw direction: From top	Provided with 5 parallel clamp connectors with screws (XW4G-05C1-H1-D), standard terminating resistor
			DCN1-3C	Cable wiring direction: Toward side Cable screw direction: From top Connector screw direction: From side	Provided with 5 parallel connectors with screws (XW4B-05C1-H1-D), standard terminating resistor
			DCN1-4C	Cable wiring direction: Toward top Cable screw direction: From side Connector screw direction: From top
			DCN1-4R	Cable wiring direction: Toward side Cable screw direction: From top Connector screw direction: From top	Provided with 5 orthogonal clamp connectors with screws (XW4B-05C1-V1R-D), standard terminating resistor

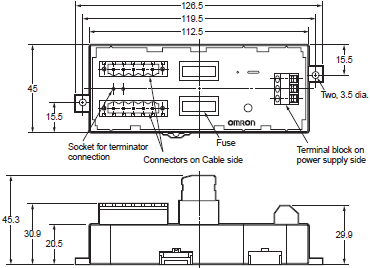

Power Supply Tap			DCN1-1P	Tap provided with 2 connectors, standard terminating resistor, and fuse
Connectors			XW4G-05C1-H1-D	Parallel clamp connector with screws Connector insertion and wiring both performed horizontally.
			XW4G-05C4-TF-D	Parallel multi-branching clamp connector with screws Connector insertion and wiring performed in same direction.
			XW4B-05C1-H1-D	Parallel connector with screws Connector insertion and wiring performed in same direction.
			XW4B-05C4-T-D	Parallel, screw-less, multi-branching connector Connector insertion and wiring performed in same direction.
			XW4B-05C4-TF-D	Parallel, multi-branching connector with screws Connector insertion and wiring performed in same direction.
			XW4B-05C1-V1R-D	Orthogonal connector with screws Connector insertion and wiring performed at a right angle.
DeviceNet Standard Cables	Thin Cables		DCA1-5C10(-B)	Outer diameter: 7.00 mm Length: 100 m DCA1-5C10-B: Cable color: Blue DCA1-5C10: Cable color: Gray
	Thick Cables		DCA2-5C10(-B)	Outer diameter: 11.6 mm Length: 100 m DCA2-5C10-B: Cable color: Blue DCA2-5C10: Cable color: Gray

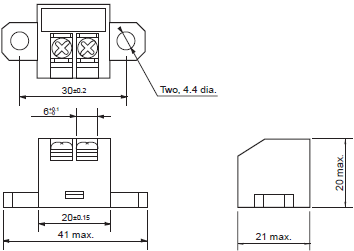

Terminal-block Terminator			DRS1-T	Resistance of 121 Ω

Peripheral Devices for Flat Cables

Product	Appearance	Model	Specifications
Conversion Connector for Standard Thin Cable and Flat Cable		DCN4-BR4D	Used as a set with a DCN4-TR4 when Thin Cable is branched on a branch line.
Power Supply Terminal Block with Terminating Resistance for Flat Cable		DCN4-TP4D	Can be used to supply communications power from terminals when Flat Cable is used.
Flat Connector Socket		DCN4-TR4	Used as a set with a DCN4-BR4 Flat Connector Plug in the following applications. • Extending the trunk line • T-branching the trunk line into branch lines
			Used alone in the following applications. • Connecting a DCN4-TM4 Terminating Resistor to the trunk line
Flat Connector Plug		DCN4-BR4	Used as a set with a DCN4-TR4 Flat Connector Socket in the following applications. • Extending the trunk line • T-branching the trunk line into branch lines
Terminating Resistor		DCN4-TM4	Connector terminating resistor for flat cable. Attached to the DCN4-TR4 Flat Connector Socket at the end of the trunk line.
Flat Cable		DCA4-4F10	Four-core flat cable (UL 2555) Length: 100 m Conductor diameters: 0.75 mm2 x 2, 0.5 mm2 x 2
Simple Manual Crimp Tool		DWT-A01	This is the crimping tool for the following connectors: • DCN4-TR4(-1) Flat Connector Socket • DCN4-BR4 Flat Connector Plug • DCN4-BR4D Conversion Connector for Standard Thin Cable and Flat Cable

I/O Peripheral Devices

I/O Connectors for Connector Terminals

MIL Connectors

Applicable Connectors

Type		Model	Remarks
Flat Cable Pressure-welded Connectors		XG4M-4030-T
Pressure-welded Connectors with Loose Wires	Socket	XG5M-4032-N	Corresponding to 24 AWG
		XG5M-4035-N	Corresponding to 28 to 26 AWG
	Semicover	XG5S-2001
	Hood Cover *	XG5S-4022

* DeviceNet connectors for multi-drop wiring cannot be used with the Hood Cover.

Cable Models

Type	Model	Connected device	Applicable models
Cable with Connectors (1:2)	XW2Z-RI[][]-[][]-D1	G7TC/G70D/G70A	DRT2-ID32ML
	XW2Z-RM[][]-[][]-D1		DRT2-MD32ML
	XW2Z-RO[][]-[][]-D1		DRT2-OD32ML/ DRT1-OD32ML-1
	XW2Z-RI[][]-[][]-D2		DRT2-ID32ML-1
	XW2Z-RM[][]-[][]-D2		DRT2-MD32ML-1
Cable with Connector (1:1)	XW2Z-C[][]K	--	All models
Cable with Loose Wires with Crimp Terminals	XW2Z-RY[]00C-D1
Cable with Loose Wires	XW2Z-RA[]00C-D1

Applicable Cables with Connectors

Cables with Connectors (1-to-2 Connection)/XW2Z-R[][]-[]-D[]

Appearance	Cable length (mm)			Model
		(A)	(B)
		500	250	XW2Z-RI50-25-D1
		750	500	XW2Z-RI75-50-D1
		500	250	XW2Z-RO50-25-D1
		750	500	XW2Z-RO75-50-D1
		500	250	XW2Z-RM50-25-D1
		750	500	XW2Z-RM75-50-D1
		500	250	XW2Z-RI50-25-D2
		750	500	XW2Z-RI75-50-D2
		500	250	XW2Z-RM50-25-D2
		750	500	XW2Z-RM75-50-D2

Cables with Connectors (1-to-1 Connection)/XW2Z-C[][]K

Appearance	Cable length (mm)		Model
		250	XW2Z-C25K
		500	XW2Z-C50K

Cables with Crimp Terminals (at the End of Loose Wires)/XW2Z-RY[]C-D1

Appearance	Cable length (mm)		Model
		1,000	XW2Z-RY100C-D1
		2,000	XW2Z-RY200C-D1
		5,000	XW2Z-RY500C-D1

Cables with Loose Wires/XW2Z-RA[]C

Appearance	Cable length (mm)		Model
		2,000	XW2Z-RA200C-D1
		5,000	XW2Z-RA500C-D1

I/O Connectors for MULTIPLE I/O TERMINALs

Applicable Connectors

Type			Model	Remarks	Connectable model
Molex connector	Crimped terminals	Housing	50-57-9403		Digital I/O Units GT1-ID16MX(-1)/ GT1-OD16MX(-1) Analog I/O Units GT1-AD08MX/ GT1-DA04MX
		Chain terminal	16-02-0069	Corresponding to 24 to 30 AWG
			16-02-0086	Corresponding to 22 to 24 AWG
		Loose terminal	16-02-0096	Corresponding to 24 to 30 AWG
			16-02-0102	Corresponding to 22 to 24 AWG
		Press-fit tool	57036-5000	Corresponding to 22 to 26 AWG
			57037-5000	Corresponding to 24to 30 AWG
Fujitsu connector (16 points)	Soldered terminals		FCN361J024-AU
	Pressure-welded terminals		FCN367J024-AU/F
	Crimped terminals		FCN363J024-AU
Fujitsu connector (32 points)	Soldered terminals		FCN361J040-AU		Digital I/O Units GT1-ID32ML(-1)/ GT1-OD32ML(-1)
	Pressure-welded terminals		FCN367J040-AU/F
	Crimped terminals		FCN363J040-AU
OMRON D-sub connector	Pulg		XM3A-2521		Digital I/O Units GT1-ID16DS(-1)/ GT1-OD16DS(-1)
	Hood		XM2S-2513	#4-40UNC inch screws

Applicable Cables with Connectors (Fujitsu Connectors)

I/O classification	Model	Connectable model
Digital input, 16 points	XW2Z-[][][]A	Digital I/O Units GT1-ID16ML(-1)
	XW2Z-R[]C
Digital output, 16 points	XW2Z-[][][]A	Digital I/O Units GT1-OD16ML(-1)
	XW2Z-R[]C
Digital input, 32 points	XW2Z-[][][]B	Digital I/O Units GT1-ID32ML(-1)
	XW2Z-RI[]C[]
Digital output, 32 points	XW2Z-[][][]B	Digital I/O Units GT1-OD32ML(-1)
	XW2Z-RO[]C[]

Cables with Connectors (1-to1 Connection)/XW2Z-R[]C

For Digital Input/Output (16 Points)

Appearance	Cable length (mm)		Model
		1,000	XW2Z-R100C
		1,500	XW2Z-R150C
		2,000	XW2Z-R200C
		3,000	XW2Z-R300C
		5,000	XW2Z-R500C

Cables with Connectors (1-to-2 Connection)/XW2Z-RO[]C-[], XW2Z-RI[]C-[]

For Digital Input/Output (32 Points)

Appearance	Cable length (mm)			Model
		(A)	(B)	Input	Output
		1,000	750	XW2Z-RI100C-75	XW2Z-RO100C-75
		1,500	1,250	XW2Z-RI150C-125	XW2Z-RO150C-125
		2,000	1,750	XW2Z-RI200C-175	XW2Z-RO200C-175
		3,000	2,750	XW2Z-RI300C-275	XW2Z-RO300C-275
		5,000	4,750	XW2Z-RI500C-475	XW2Z-RO500C-475

For Digital Input/Output (16 Points)

Appearance	Cable length (mm)		Model
		500	XW2Z-050A
		1,000	XW2Z-100A
		1,500	XW2Z-150A
		2,000	XW2Z-200A
		3,000	XW2Z-300A
		5,000	XW2Z-500A

For Digital Input/Output (32 Points)

Appearance	Cable length (mm)		Model
		500	XW2Z-050B
		1,000	XW2Z-100B
		1,500	XW2Z-150B
		2,000	XW2Z-200B
		3,000	XW2Z-300B
		5,000	XW2Z-500B

I/O Connector for Programmable Slaves

Applicable Connector Terminal Conversion Units

Applicable cable	Connected product	Connector Products (Connector-Terminal Block Conversion Units) Connecting method
XW2Z-[][][]A	XW2R-J20G-T	Phillips screw M3
	XW2R-E20G-T	Slotted screw M3
	XW2R-P20G-T	Push-in spring

Applicable Cables with Connectors

Cables with Connectors/XW2Z
For Digital Input/Output (16 Points)

Appearance	Cable length (mm)		Model
		500	XW2Z-050A
		1,000	XW2Z-100A
		1,500	XW2Z-150A
		2,000	XW2Z-200A
		3,000	XW2Z-300A
		5,000	XW2Z-500A

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Product	Appearance		Model	Specifications
Sealed Assembling-type Connector (male)			XS2G-D5S7	For communications (plug)
Sealed Assembling-type Connector (female)			XS2C-D5S7	For communications (socket)

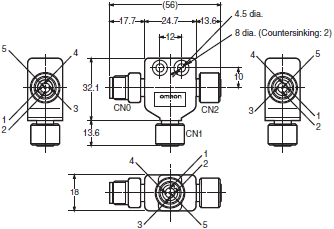

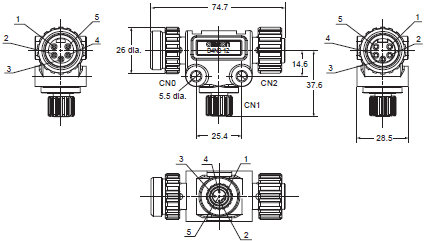

Sealed T-branch Connector			DCN2-1	For 1 branch line
Sealed Connector with Terminating Resistor			DRS2-1	Plug
			DRS2-2	Socket

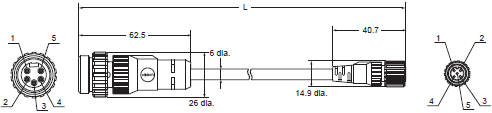

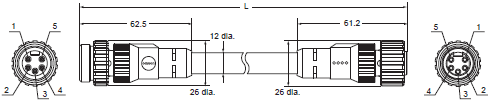

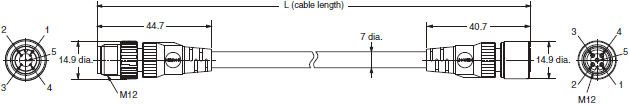

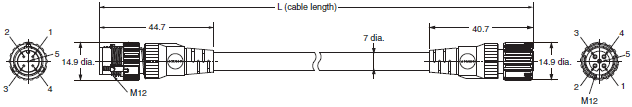

Cables with Sealed Connectors *			DCA1-5CNC5W1	Length (L): 0.5 m	Cable with connectors on both ends
			DCA1-5CN01W1	Length (L): 1 m
			DCA1-5CN02W1	Length (L): 2 m
			DCA1-5CN03W1	Length (L): 3 m
			DCA1-5CN05W1	Length (L): 5 m
			DCA1-5CN10W1	Length (L): 10 m

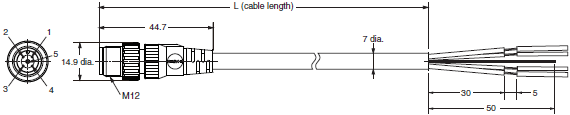

			DCA1-5CNC5F1	Length (L): 0.5 m	Cable with connector on one end (socket)
			DCA1-5CN01F1	Length (L): 1 m
			DCA1-5CN02F1	Length (L): 2 m
			DCA1-5CN03F1	Length (L): 3 m
			DCA1-5CN05F1	Length (L): 5 m
			DCA1-5CN10F1	Length (L): 10 m

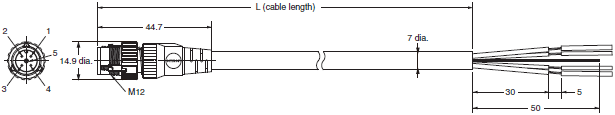

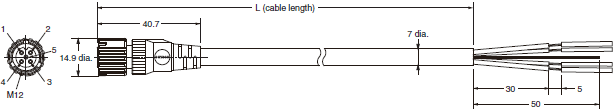

			DCA1-5CNC5H1	Length (L): 0.5 m	Cable with connector on one end (plug)
			DCA1-5CN01H1	Length (L): 1 m
			DCA1-5CN02H1	Length (L): 2 m
			DCA1-5CN03H1	Length (L): 3 m
			DCA1-5CN05H1	Length (L): 5 m
			DCA1-5CN10H1	Length (L): 10 m

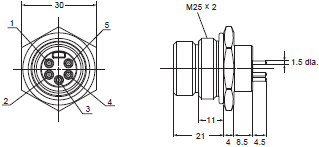

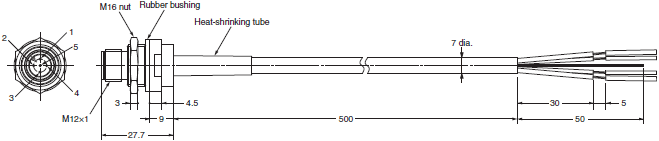

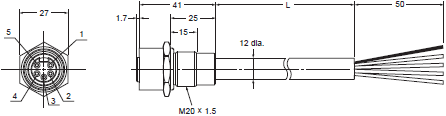

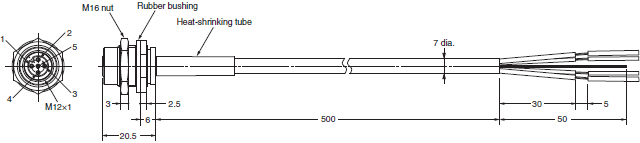

Shielded Panel-mounting Connectors (female)			DCA1-5CNC5P1	Panel-mounting connector (socket) with 0.5-m cable
			XS2P-D522-2	Panel-mounting connector socket
Shielded Panel-mounting Connectors (male)			DCA1-5CNC5M1	Panel-mounting connector (plug) with 0.5-m cable
			XS2M-D524-4	Panel-mounting connector (plug) with solder-cup terminals
Waterproof cover (for socket)			XS2Z-22	Used to cover an unused connector section
Dust cover (for socket)			XS2Z-15

* Robot cable type connectors with shielded cables (DCA1-5CN[][][]1-R) are also available. Contact your OMRON sales
  representative for details.

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Product	Appearance		Model	Specifications
Sealed T-branch Connector			DCN2-1S	For 1 branch line
Sealed Assembling type Connector (female)			DRS2-1S	Plug
			DRS2-2S	Socket
Connectors with Shielded Cables *			DCA1-5CSC5W1	Length (L): 0.5 m	Cable with connectors on both ends
			DCA1-5CS01W1	Length (L): 1 m
			DCA1-5CS02W1	Length (L): 2 m
			DCA1-5CS03W1	Length (L): 3 m
			DCA1-5CS05W1	Length (L): 5 m
			DCA1-5CS10W1	Length (L): 10 m
			DCA1-5CSC5F1	Length (L): 0.5 m	Cable with connector on one end (socket)
			DCA1-5CS01F1	Length (L): 1 m
			DCA1-5CS02F1	Length (L): 2 m
			DCA1-5CS03F1	Length (L): 3 m
			DCA1-5CS05F1	Length (L): 5 m
			DCA1-5CS10F1	Length (L): 10 m
			DCA1-5CSC5H1	Length (L): 0.5 m	Cable with connector on one end (plug)
			DCA1-5CS01H1	Length (L): 1 m
			DCA1-5CS02H1	Length (L): 2 m
			DCA1-5CS03H1	Length (L): 3 m
			DCA1-5CS05H1	Length (L): 5 m
			DCA1-5CS10H1	Length (L): 10 m
Shielded Branch Relay Box			DCN2-S4C5H1	4 ports, 0.5-m cable
			DCN2-S8C5H1	8 ports, 0.5-m cable

* Robot cable type connectors with shielded cables (DCA1-5CN[][][]1-R) are also available. Contact your OMRON sales
   representative for details.

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Product	Appearance		Model	Specifications
Sealed T-branch Connector			DCN3-11	T-branch Connector
			DCN3-12	T-branch Connector (Branch connector is M12.)
Sealed Connector with Terminating Resistor			DRS3-1	Plug
Cables with Sealed Connectors			DCA2-5CN01W1	Length (L): 1 m	Cable with connectors on both ends
			DCA2-5CN02W1	Length (L): 2 m
			DCA2-5CN05W1	Length (L): 5 m
			DCA2-5CN10W1	Length (L): 10 m
			DCA2-5CN01F1	Length (L): 1 m	Cable with connector on one end (socket)
			DCA2-5CN02F1	Length (L): 2 m
			DCA2-5CN05F1	Length (L): 5 m
			DCA2-5CN10F1	Length (L): 10 m
			DCA2-5CN01H1	Length (L): 1 m	Cable with connector on one end (plug)
			DCA2-5CN02H1	Length (L): 2 m
			DCA2-5CN05H1	Length (L): 5 m
			DCA2-5CN10H1	Length (L): 10 m
			DCA1-5CN01W5	Length (L): 1 m	Cable with connectors on both ends Thin cable M12 socket
			DCA1-5CN02W5	Length (L): 2 m
			DCA1-5CN05W5	Length (L): 5 m
			DCA1-5CN10W5	Length (L): 10 m
Panel-mounting Connector (female)			DCA2-5CNC5P1	Panel-mounting connector (socket) with 0.5-m cable
Panel-mounting Connector (male)			DCA2-5CNC5M1	Panel-mounting connector (plug) with 0.5-m cable
Panel-mounting Connector (male)			XS4M-D521-1	Panel-mounting connector (plug) DIP terminals
Waterproof Cap (for Plug)	--		XS4Z-11	Used to cover an unused connector section.
Waterproof Cap (for Socket)	--		XS4Z-12

I/O Peripheral Devices

Applicable Connectors

Assembly Connector Plugs for M12 Microconnectors

Appearance	Applicable cable diameter (mm)	Cable direction	Number of poles	Connection method
				Crimping	Soldering	Screws
	For 6 dia. (5 to 6 dia.)	Straight	4	XS2G-D4C1	XS2G-D421	XS2G-D4S1
		L-shaped		--	XS2G-D422	XS2G-D4S2
	For 4 dia. (4 to 5 dia.)	Straight		XS2G-D4C3	XS2G-D423	XS2G-D4S3
		L-shaped		--	XS2G-D424	XS2G-D4S4
	For 3 dia. (3 to 4 dia.)	Straight		XS2G-D4C5	XS2G-D425	XS2G-D4S5
		L-shaped		--	XS2G-D426	XS2G-D4S6
	For 7 dia. (6 to 7 dia.)	Straight		--	--	XS2G-D4S9
	For 8 dia. (7 to 8 dia.)					XS2G-D4S7

Smart click Assembly Connector Plugs for M12 Microconnectors

Appearance	Applicable cable diameter (mm)	Cable direction	Number of poles	Connection method
				Crimping	Soldering	Screws
	For 6 dia. (5 to 6 dia.)	Straight	4	XS5G-D4C1	XS5G-D421	XS5G-D4S1
		L-shaped		--	XS5G-D422	XS5G-D4S2
	For 4 dia. (4 to 5 dia.)	Straight		XS5G-D4C3	XS5G-D423	XS5G-D4S3
		L-shaped		--	XS5G-D424	XS5G-D4S4
	For 3 dia. (3 to 4 dia.)	Straight		XS5G-D4C5	XS5G-D425	XS5G-D4S5
		L-shaped		--	XS5G-D426	XS5G-D4S6
	For 7 dia. (6 to 7 dia.)	Straight		--	--	XS5G-D4S9
	For 8 dia. (7 to 8 dia.)					XS5G-D4S7

Applicable Cables with Connectors

Cables with Connector (Socket/Plug) on Both Ends (M12 Microconnectors for Power Supply and I/O)

Appearance	Cable direction	Number of core wires	Cable length (m)	Screw-type Connectors	Smart click Connectors
	Straight/Straight	4	1	XS2W-D421-C81-F	XS5W-D421-C81-F
			2	XS2W-D421-D81-F	XS5W-D421-D81-F
			5	XS2W-D421-G81-F	XS5W-D421-G81-F
	L-shaped/L-shaped		2	XS2W-D422-D81-F	XS5W-D422-D81-F
			5	XS2W-D422-G81-F	XS5W-D422-G81-F
	Straight/L-shaped		2	XS2W-D423-D81-F	XS5W-D423-D81-F
			5	XS2W-D423-G81-F	XS5W-D423-G81-F
	L-shaped/Straight		2	XS2W-D424-D81-F	XS5W-D424-D81-F
			5	XS2W-D424-G81-F	XS5W-D424-G81-F

Cables with connector plug on One End (M12 Microconnectors for I/O)

Appearance	Cable direction	Number of core wires	Cable length (m)	Screw-type Connectors	Smart click Connectors
	Straight	3	0.3	XS2H-D421-AC0-F	XS5H-D421-AC0-F
		4		XS2H-D421-A80-F	XS5H-D421-A80-F
		3	1	XS2H-D421-CC0-F	XS5H-D421-CC0-F
		4		XS2H-D421-C80-F	XS5H-D421-C80-F

Plugs and Sockets on Y-shaped Joints (M12 Microconnectors for I/O)

Appearance	Cable	Connector	DC models
			Cable length (m)	Screw-type Connectors	Screw-type Connectors
	With cable	Connectors on both ends	0.5	XS2R-D426-B11-F	XS5R-D426-B11-F
			1	XS2R-D426-C11-F	XS5R-D426-C11-F
			2	XS2R-D426-D11-F	XS5R-D426-D11-F
			3	XS2R-D426-E11-F	XS5R-D426-E11-F
		Connector on one end	2	XS2R-D426-D10-F	XS5R-D426-D10-F
			5	XS2R-D426-G10-F	XS5R-D426-G10-F
	Without cable	Connectors on both ends	--	XS2R-D426-1	XS5R-D426-1

Note 1: Use is supported only for Environment-resistive Terminals (DRT2-[]D16C(L)(-1)).
Note 2: Connecting two XS2G assembly connectors (screw-type) side by side to the Y-branch connectors (CN1 and CN2) of
            a Y-shaped joint is not possible. Use crimped terminals or soldered terminals.

Connector Cover for M12 Microconnectors

Appearance	Product	Model	Application
	Waterproof cover (socket)	XS2Z-22	For covering unused I/O connectors

Power Supply Peripheral Devices

Applicable Cables with Connectors

Power Supply Connectors (7/8-16UN Miniconnectors)

Appearance	Product	Cable length L (mm)	Model
		1	XS4W-D421-101-A
		2	XS4W-D421-102-A
		5	XS4W-D421-105-A
		10	XS4W-D421-110-A
		1	XS4F-D421-101-A
		2	XS4F-D421-102-A
		5	XS4F-D421-105-A
		10	XS4F-D421-110-A
		1	XS4H-D421-101-A
		2	XS4H-D421-102-A
		5	XS4H-D421-105-A
		10	XS4H-D421-110-A
	T-branch Connector	--	XS4R-D424-5
	Panel mounting connector socket Cable: 50 cm	--	XS4P-D421-1C5-A
	Panel mounting connector plug DIP terminals	--	XS4M-D421-1
--	Waterproofing Cap for Plug	--	XS4Z-11
--	Waterproofing Cap for Socket	--	XS4Z-12

last update: August 3, 2018

OMRON DeviceNet Peripheral Devices dimension

last update: July 6, 2018

(Unit: mm)

General-purpose Peripheral Devices

Peripheral Devices for DeviceNet Communications

General-purpose Models

T-branch Tap for 1 branch line
DCN1-1NC
(With Three Branching Connectors)

T-branch Tap for 1 branch line
DCN1-1C
(With Three Branching Connectors)

Note: When connecting a branch line to the main line, connect the main line to the connector marked with an asterisk
          because the resistance between the asterisks is minimal.

T-branch Tap for 3 branch lines
DCN1-3NC
(With Five Branching Connectors)

T-branch Tap for 3 branch lines
DCN1-3C
(With Five Branching Connectors)

Note: When connecting a branch line to the main line, connect the main line to the connector marked with an asterisk
          because the resistance between the asterisked portion is minimal.

Power Supply Tap
DCN1-1P
(With Two Branching Connectors)

DRS1-T
(Terminal-block Terminator)

Flat Cable

Conversion Connector for Standard Thin Cable and Flat Cable
DCN4-BR4D

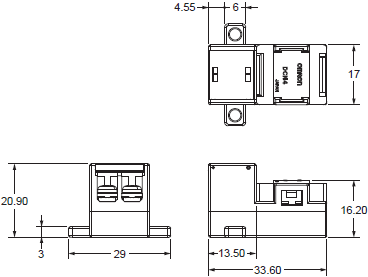

Power Supply Terminal Block with Terminating Resistance for Flat Cable
DCN4-TP4D

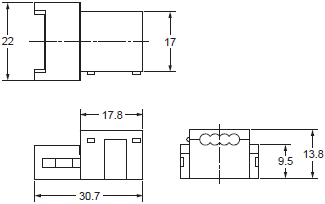

Flat Connector Socket
DCN4-TR4

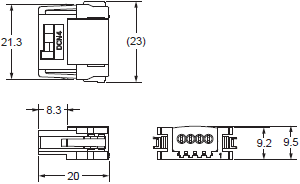

Flat Connector Plug
DCN4-BR4

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Cables with Connectors on Both Ends
DCA1-5CN[][]W1

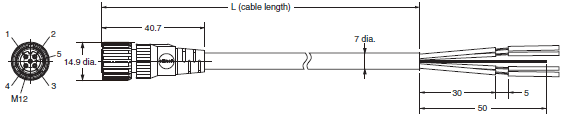

Cables with Connector on Single End (Socket)
DCA1-5CN[][]F1

Cables with Connector on Single End (Plug)
DCA1-5CN[][]H1

T-branch Connector
DCN2-1

Connectors with Terminating Resistance
DRS2-1 (Plug)
DRS2-2 (Socket)

Note: The diagram shows the DRS2-1 (plug).

Panel-mounting Connector (Socket) with 0.5 m Cable
DCA1-5CNC5P1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2P-D522-2

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA1-5CNC5M1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2M-D524-4

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Cables with Connectors on Both Ends
DCA1-5CS[][]W1

Cables with Connector on Single End (Socket)
DCA1-5CS[][]F1

Cables with Connector on Single End (Plug)
DCA1-5CS[][]H1

T-branch Connector
DCN2-1S

Connectors with Terminating Resistance
DRS2-1S (Plug)
DRS2-2S (Socket)

Note: The diagram shows the DRS2-1 (plug).

Shielded Branch Relay Box with Four Ports
DCN2-S4C5H1

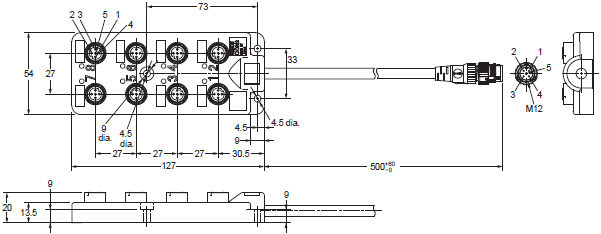

Shielded Branch Relay Box with Eight Ports
DCN2-S8C5H1

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Thick Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA2-5CN[][]W1

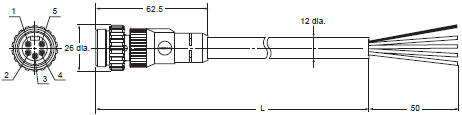

Thick Cable with Connector Socket on One End (5 Conductors for Communications)
DCA2-5CN[][]F1

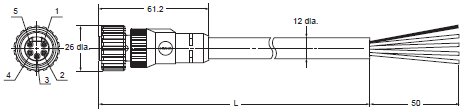

Thick Cable with Connector Plug on One End (5 Conductors for Communications)
DCA2-5CN[][]H1

Thin Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA1-5CN[][]W5

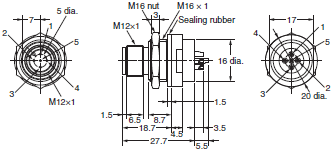

Thin Cable with Panel-mounting Connector Socket on One End (5 Conductors for Communications)
DCA2-5CNC5P1

Note: rubber seal and nut for panel mounting are included.

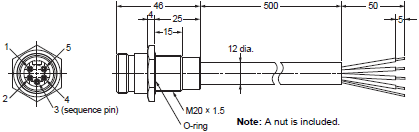

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA2-5CNC5M1

Note: nut is included.

T-branch Connector (5 Conductors for Communications, Thick Wire Branch Line)
DCN3-11

T-branch Connector (5 Conductors for Communications, Thin Wire Branch Line)
DCN3-12

Connector (Plug) with Terminating Resistance
DRS3-1

Panel-mounting Connector (5 Pins for Communications)
XS4M-D521-1

Note: A rubber seal and nut for panel mounting are included.

last update: July 6, 2018

OMRON DeviceNet Peripheral Devices catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
DeviceNet Catalog	Q102-E1-14 [30569KB]	Aug 03, 201820180803	DeviceNet Catalog
XW2Z-R Data Sheet	G126-E1-02 [2435KB]	Apr 03, 201720170403	XW2Z-R Data Sheet

• NO. DeviceNet Peripheral Devices
• TYPE:Networks DeviceNet Peripheral Devices
• DATE:2021-06-08
• Associated products:
  DCN4-[][]4D Flat Cable Connector/Features DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Features
