OMRON EE-SPW311 / 411 dimension

last update: October 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

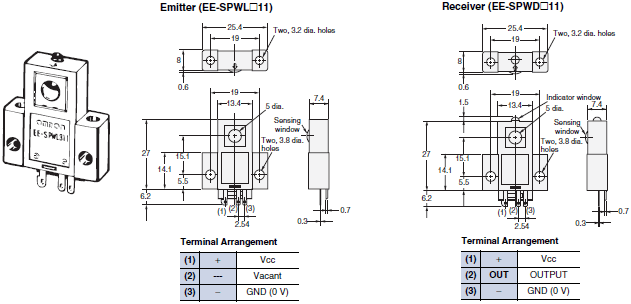

Sensors

EE-SPW311
EE-SPW411

Accessories (Included)

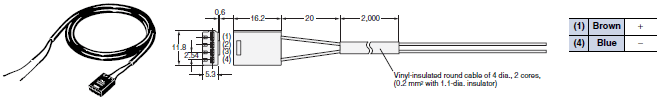

Connector with Cable for Emitter
EE-1006L

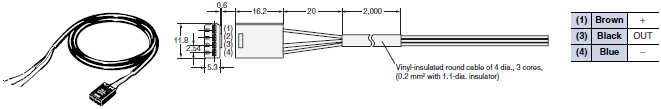

Connector with Cable for Receiver
EE-1006D

Note: These cables can also be ordered separately.

last update: October 12, 2012

OMRON EE-SPW311 / 411 lineup

last update: September 23, 2012

Sensors

Appearance	Sensing method	Sensing distance	Output type	Output configuration	Model
	Through-beam type	1 m	NPN output	Dark-ON	EE-SPW311
				Light-ON	EE-SPW411

* Both an EE-1006L Connector with Cable for the Emitter and an EE-1006D Connector with Cable for the Receiver are
    included with the Photomicrosensor.
    Refer to Accessories when using non-standard connectors, including Robot Cables and PNP Adapters.

last update: September 23, 2012

OMRON EE-SPW311 / 411 specification

last update: September 24, 2012

Models		EE-SPW311, EE-SPW411
Sensing distance		1 m
Sensing object		Opaque: 5 mm dia. min.
Directional angle		5 to 20 °
Light source		GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm
Indicator *1		Light indicator (red)
Supply voltage		5 ( -5%) to 24 (+10%) VDC, ripple (p-p): 5% max.
Current consumption		Emitter: 20 mA max., Receiver: 20 mA max.
Control output		NPN open collector: Load power supply voltage: 5 to 24 VDC Load current: 100 mA max. OFF current: 0.5 mA max. 100 mA load current with a residual voltage of 0.8 V max. 10 mA load current with a residual voltage of 0.4 V max.
Response frequency *2		100 Hz min.
Ambient illumination		3,000 lx max. with incandescent light on the surface of the receiver
Ambient temperature range		Operating: - 10 to +55 ° C Storage: - 25 to +65 ° C
Ambient humidity range		Operating: 5% to 85% Storage: 5% to 95%
Vibration resistance		Destruction: 200 to 2,000 Hz (peak acceleration: 100 m/s2) 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC IP60
Connecting method		Special connector (soldering not possible)
Weight (packaged)		Approx. 8.8 g
Material	Case	Polybutylene phthalate (PBT)
	Lens	Polycarbonate
Accessories		EE-1006L/D Connectors with Cables, Instruction Manual

*1. The indicator is a GaP red LED (peak wavelength: 700 nm).
*2. The response frequency was measured by detecting the following rotating disk.

last update: September 24, 2012

OMRON EE-SPW311 / 411 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
EE-SPW311/SPW411 Data Sheet	- [334KB]	Dec 18, 201320131218	EE-SPW311/SPW411 Data Sheet
