OMRON G70V lineup

last update: April 9, 2018

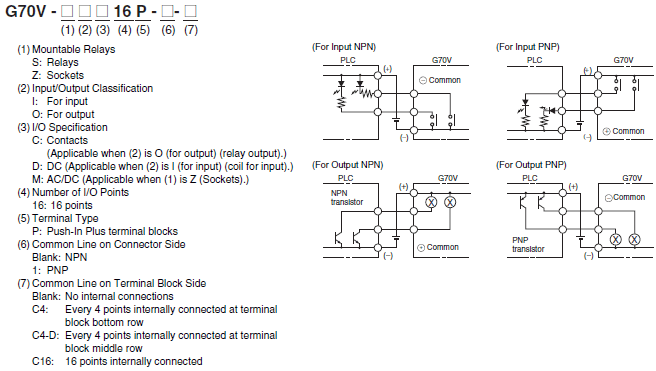

Model Number Legend

Ordering Information

I/O Relay Terminal

Terminals	Classifi cation	Points	Common Line		Rated voltage	Model
			Terminal Block Side	Connector Side
Push-In Plus terminal blocks	Input *1	16	No internal connections	NPN (- common)	24 VDC	G70V-SID16P
				PNP (+ common)		G70V-SID16P-1
			16 points internally connected	NPN (- common)		G70V-SID16P-C16
				PNP (+ common)		G70V-SID16P-1-C16
	Output *2		No internal connections	NPN (+ common)		G70V-SOC16P
				PNP (- common)		G70V-SOC16P-1
			Every 4 points internally connected at terminal block bottom row	NPN (+ common)		G70V-SOC16P-C4
				PNP (- common)		G70V-SOC16P-1-C4

*1. Mountable Relays: G2RV-1-S-AP-G DC21V.
*2. Mountable Relays: G2RV-1-S-G DC21V.

I/O Terminal Sockets

Applicable I/O Relay Terminal	Classification	Common Line		Model
		Terminal Block Side	Connector Side
G70V-SID16P	Input	No internal connections	NPN (- common)	G70V-ZID16P
G70V-SID16P-1			PNP (+ common)	G70V-ZID16P-1
G70V-SID16P-C16		16 points internally connected	NPN (- common)	G70V-ZID16P-C16
G70V-SID16P-1-C16			PNP (+ common)	G70V-ZID16P-1-C16
G70V-SOC16P	Output	No internal connections	NPN (+ common)	G70V-ZOM16P
G70V-SOC16P-1			PNP (- common)	G70V-ZOM16P-1
G70V-SOC16P-C4		Every 4 points internally connected at terminal block bottom row	NPN (+ common)	G70V-ZOM16P-C4
G70V-SOC16P-1-C4			PNP (- common)	G70V-ZOM16P-1-C4
--- *		Every 4 points internally connected at terminal block middle row	PNP (- common)	G70V-ZOM16P-1-C4-D

Note: Relays are not mounted to the G70V-ZID/ZOM16P(-1) I/O Terminal Sockets. Combine the I/O Terminal Sockets with Slim I/O Relays or Slim I/O SSRs.
* The G70V-ZOM16P-1-C4-D does not come with SSRs. Use Slim I/O SSRs (for DC: G3RV-D03SL).

Options (Order Separately)

Mountable Relays

Applicable I/O Relay Terminal	Classification	Type			Model
G70V-SID16P(-1)(-C16) G70V-ZID16P(-1)(-C16)	Input	Slim I/O Relays *1			G2RV-1-S-AP-G DC21
G70V-SOC16P(-1)(-C4) G70V-ZOM16P(-1)(-C4)	Output	Slim I/O Relays	No Latching Lever *2		G2RV-1-S-G DC21
			Latching Lever		G2RV-1-SI-G DC21
		Slim I/O SSRs	For AC	Zero cross function	G3RV-202S DC24
				No zero cross function	G3RV-202SL DC24
			For DC		G3RV-D03SL DC24
G70V-ZOM16P-1-C4-D *3	Output	Slim I/O SSRs	For DC		G3RV-D03SL DC24

Note: To use Slim I/O SSRs, either remove the Slim I/O Relays to mount them or order a I/O Terminal Sockets and I/O SSRs separately and combine them.
*1. G2RV-1-S-AP-G Slim I/O Relays are mounted to G70V-SID16P(-1)(-C16) I/O Relay Terminals as a standard feature.
*2. G2RV-1-S-G Slim I/O Relays are mounted to G70V-SOC16P(-1)(-C4) I/O Relay Terminals as a standard feature.
*3. The G70V-ZOM16P-1-C4-D does not come with SSRs. Use Slim I/O SSRs (for DC: G3RV-D03SL).
When ordering, designate the rated voltage.

Cables for I/O Relay Terminals XW2Z-R

Labels

Appearance	Model	Minimum order (sheet) (quantity per sheet)
	XW5Z-P2.5LB2	5 (1 sheet / 72 pieces)

Accessories for DIN Track Mounting

Appearance	Name		Model	Minimum order (quantity)
	DIN Tracks	1 m	PFP-100N	1
		0.5 m	PFP-50N
	End Plate		PFP-M *	10
	Spacer		PFP-S *

* These products must be ordered in sets of 10.

last update: April 9, 2018

OMRON G70V catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
G70V Data Sheet	J215-E1-03 [5864KB]	May 07, 201820180507	G70V Data Sheet
Push-In Plus Terminal Block Series Pamphlet	J213-E1-05 [7147KB]	Nov 01, 201820181101	Push-In Plus Terminal Block Series Pamphlet
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building
XW2Z-R Data Sheet	G126-E1-02 [2435KB]	Apr 03, 201720170403	XW2Z-R Data Sheet
G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations	J217-E1-02 [1206KB]	Jun 01, 201820180601	G70[]/G7TC Table of I/O Relay Terminal and connectable device combinations

OMRON G70V specification

last update: April 9, 2018

Specifications

Coil Ratings (Common to Input/Output per Relay)

Rated voltage (V)	Rated current (mA)	Coil resistance (Ω)	Must operate of rated voltage	Must release of rated voltage	Maximum voltage of rated voltage	Power consumption (mW)
24 VDC	13.3	1575	80% max.	10% min.	110%	Approx. 280

Note:
1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±15% for coil resistance.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. The value for maximum voltage is the maximum value within the allowable voltage fluctuation range for the relay coil’s operating power supply. Continuous operation at this voltage is not within product specifications.
4. The rated current includes the current for the indicators on the I/O Relay Terminal.

Contact Ratings (G2RV-1-S-G I/O Relay)

Item	For input	For output
	Resistive load (cosφ=1)	Resistive load (cosφ=1)	Inductive load (cosφ=0.4 L/R=7 ms)
Rated load	50 mA at 30 VAC 50 mA at 36 VDC	6 A at 250 VAC 6 A at 30 VDC	2.5 A at 250 VAC 2 A at 30 VDC
Rated carry current	50 mA	6 A/point, 10 A/common
Max. switching voltage	30 VAC, 36 VDC	250 VAC, 125 VDC
Max. switching current	50 mA	6 A/point, 10 A/common
Maximum switching capacity	---	1,500 VA 180 W	500 VA 60 W
Error rate (reference value) *	1 mA at 100 mVDC	10 mA at 5 VDC
Electrical endurance	5,000,000 operations min.	NO contacts: 70,000 operations min. NC contacts: 50,000 operations min.
Mechanical endurance	5,000,000 operations min.	5,000,000 operations min.

* The above values are for a switching frequency of 120 operations/min.

Characteristics

Item		G70V-SID16P(-1)(-C16) (Input, DC coil)	G70V-SOC16P(-1)(-C4) (output, DC coil)
Contact form		SPST-NO × 16	SPDT × 16
Contact material		Ag alloy + Au plating	Ag alloy
Contact resistance *1		150 mΩ max.
Must Operate time *2		20 ms max.
Release time *2		40 ms max.
Max. switching frequency	Mechanical limit	18,000 operations/h
	At rated load	1,800 operations/h (under rated load)
Insulation resistance		100 MΩ min.
Dielectric strength		Between coil and contacts: 2,500 VAC for 1 min
Vibration resistance		100 m/s2
Shock resistance		100 m/s2, 3 times each in 6 directions along 3 axes
Noise immunity		Noise level: 1.5 kV; pulse width: 100 ns to 1 μs
Ambient operating temperature		-40 to 55°C (with no icing or condensation)
Ambient operating humidity		35% to 85%
LED color	Power supply	Green
	I/O	Yellow
Weight		Approx. 350 g	Approx. 370 g

Note: The above values are initial values.
*1. Measurement: 1 A at 5 VDC.
*2. Ambient temperature: 23°C.

Approved Standards

The rated values for safety standard certification are not the same as individually defined performance values. Always check the specifications before use.

UL standard certification (File No. E95399)

Type	Model	Ratings	Standard number	Category	Listed/ Recognized	Contact ratings
I/O Relay Terminal	G70V-SID16P(-1)	24V DC	USL: UL 61010-1-12 CNL: UL 61010-2-201	NRAQ, NRAQ7	Listed	24V DC
	G70V-SID16P(-1)-C16
	G70V-SOC16P(-1)					250V AC / 30V DC Resistive 4A at 40°C
	G70V-SOC16P(-1)-C4
I/O Terminal Sockets	G70V-ZID16P(-1)				Recognized	24V DC
	G70V-ZID16P(-1)-C16
	G70V-ZOM16P(-1)					250V AC / 30V DC Resistive 4A at 40°C
	G70V-ZOM16P(-1)-C4
	G70V-ZOM16P-1-C4-D

Note:
1. USL refers to certification in the US, and CNL refers to certification in Canada.
2. cULus certification has been obtained in Canada. (CAN/CSA-C22.2 No. 61010-2-201)

TÜV Rheinland certification (Certification No. R50327604)

Type	Model	Ratings	Standard number	Operating coil	Contact ratings
I/O Relay Terminal	G70V-SID16P(-1)	24V DC	EN 61810-1	24V DC	24V DC 0.05A L/R=0ms
	G70V-SID16P(-1)-C16
	G70V-SOC16P(-1)				single load: 250V AC 6A cos(phi)=1 16 loads: 250V AC 3A cos(phi)=1 16 loads: 30V DC 3A L/R=0ms 16 loads: 250V AC 5A cos(phi)=1 (Ta=+25°C) 16 loads: 30V DC 5A L/R=0ms (Ta=+25°C)
	G70V-SOC16P(-1)-C4				250V AC / 30V DC 16 loads: 5A (Ta=+25°C) 16 loads: 3A (Ta=+55°C) 1 load: 6A Resistive load total max. 10A common line
I/O Terminal Sockets	G70V-ZID16P(-1)	24V DC	EN 61810-1	24V DC	24V DC 0.05A L/R=0ms
	G70V-ZID16P(-1)-C16
	G70V-ZOM16P(-1)				single load: 250V AC 6A cos(phi)=1 16 loads: 250V AC 3A cos(phi)=1 16 loads: 30V DC 3A L/R=0ms 16 loads: 250V AC 5A cos(phi)=1 (Ta=+25°C) 16 loads: 30V DC 5A L/R=0ms (Ta=+25°C)
	G70V-ZOM16P(-1)-C4				250V AC / 30V DC 16 loads: 5A (Ta=+25°C) 16 loads: 3A (Ta=+55°C) 1 load: 6A Resistive load total max. 10A common line
	G70V-ZOM16P-1-C4-D

CE Marking Compliance

Model	EMC Directive	Low Voltage Directive	Machinery Directive
G70V	Not applicable	❍	Not applicable

Note:
1. The Safety Category refers to the maximum applicable category selected when constructing control system safety components. The category does not apply to individual components.
2. Details and other information on conformity levels are issued as part of the "EU Declaration of Conformity." Please contact your OMRON representative for more information.

last update: April 9, 2018

OMRON G70V dimension

last update: April 9, 2018

(Unit: mm)

Main unit

I/O Relay Terminals and I/O Terminal Sockets

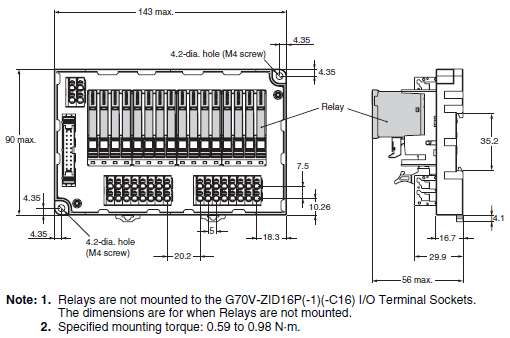

For Inputs

G70V-SID16P
G70V-SID16P-1
G70V-ZID16P
G70V-ZID16P-1
G70V-SID16P-C16
G70V-SID16P-1-C16
G70V-ZID16P-C16
G70V-ZID16P-1-C16

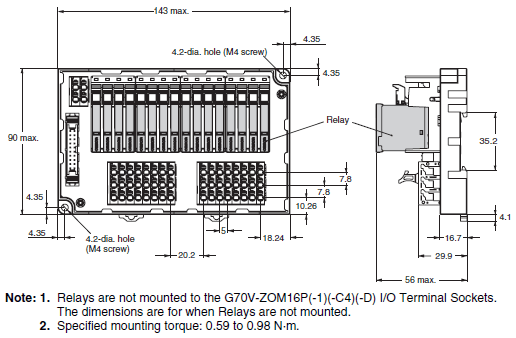

For Outputs

G70V-SOC16P
G70V-SOC16P-1
G70V-ZOM16P
G70V-ZOM16P-1
G70V-SOC16P-C4
G70V-SOC16P-1-C4
G70V-ZOM16P-C4
G70V-ZOM16P-1-C4
G70V-ZOM16P-1-C4-D

Options (Order Separately)

Mountable Relays

Slim I/O Relays

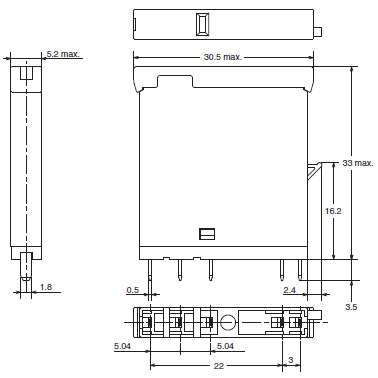

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

Slim I/O Relays

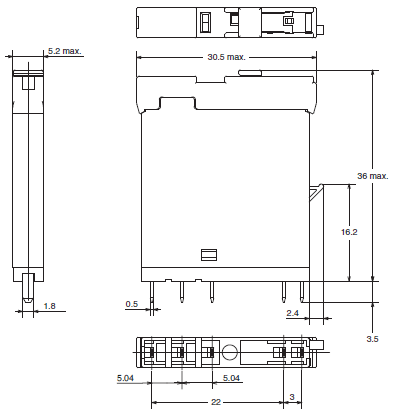

Models with latching lever (test switch)
G2RV-1-SI-G

Slim I/O SSRs

G3RV-D03SL
G3RV-202S
G3RV-202SL

Parts for Rail Mounting

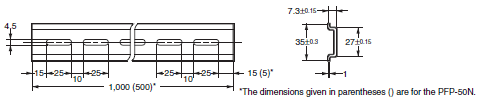

DIN Track

PFP-100N
PFP-50N

End Plate

PFP-M

Spacer

PFP-S

last update: April 9, 2018
