OMRON R88M-1[] / R88D-1SN[]-ECT Motion / Drives
last update: September 3, 2018
Designed to meet the machine requirements, the 1S servo technology optimizes the full cycle, through the machine design, installation and commissioning tasks and finally to the maintenance once in production. In addition to the traditional motion solution, the 1S servo offers high resolution multi-turn encoder without battery backup, safety network built-in and improved loop control allowing accurate and higher machine productivity.
Cabinet size reduction:
• Compact servo drive with same height throughout the whole power range
• Power range from 50 W to 3 kW - 100/200/400V
• 23 bit high resolution encoder
• 350% momentary maximum torque (200 V, 750 W max.)
• Battery-free absolute multi-turn encoder
• Improved loop control for low overshoot and quick settling time
• Safety function built-in:
• Hardwired Safe Torque Off:
EN ISO 13849-1(Cat.3 PLe), EN61508(SIL3), EN62061(SIL3), EN61800-5-2(STO)
• Safety over EtherCAT(FSoE):
EN ISO 13849-1(Cat.3 PLd), EN61508(SIL2), EN62061(SIL2), EN61800-5-2(STO)
• No battery, no maintenance
• No need for homing sequence improving machine uptime
• 23 bit high resolution encoder as standard
• Absolute multi-turn encoder design without mechanics: 16 bits, 65536 turns
• Compact and smaller motor size
*Performance comparison with previous Omron products based on Omron investigation in March 2016.
• Faster machine speed keeping same accuracy
• Accurate profile generation in the controller
• The 23 bit high resolution encoder in combination with the improved loop control provide an accurate following profile
• Simplified safety installation
• Reduction of safety devices
• Safety function built-in: Fail Safe over EtherCAT (FSoE) Safe Torque Off
• Safety approval: EN ISO 13849-1(Cat.3 PLd), EN61508(SIL2), EN62061(SIL2), EN61800-5-2(STO)
• Troubleshooter integrated with Sysmac Studio
• Simplified servo setup: Direct use of servo sizing calculation
• Open standard IEC 61131-3 programming
• Standard PLCopen Function Blocks for Motion and Safety
• Sysmac Library for fast engineering and optimized machine availability
• Application libraries
• Optimized productivity
• Predictive maintenance
• Reduced downtime
Sysmac is an integrated automation platform dedicated to providing complete control and management of your automation plant. At the core of this platform, the Machine Controller series offers synchronous control of all machine devices and advanced functionality such as motion, robotics and database connectivity. This multidisciplinary concept allows you to simplify solution architecture, reduce programming and optimize productivity.
• One single tool for logic sequence, motion, safety, robotics, vision and HMI
• Fully compliant with open standard IEC 61131-3
• PLCopen Function Blocks for Motion and Safety
• Supports Ladder, Structured Text and In-Line ST programming with a rich instruction set
• CAM editor for easy programming of complex motion profiles
• Database Connectivity Function Block library
The Sysmac Library is a collection of software functional components that can be used in programs for the NJ/NX Machine Automation Controllers.
Please download it from following URL and install to Sysmac Studio.
http://www.ia.omron.com/sysmac_library/
• EtherCAT 1S Series Library: The EtherCAT 1S Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON 1S-series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive.
last update: September 3, 2018
If you have just landed here, this product OMRON R88M-1[] / R88D-1SN[]-ECT Motion / Drives,Motion / Drives is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Motion / Drives at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the R88M-1[] / R88D-1SN[]-ECT We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON R88M-1[] / R88D-1SN[]-ECTMotion / Drives tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NYP Industrial PC Platform NY-series Industrial Panel PC/Features
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Features
CK3M-CPU1[]1 Programmable Multi-Axis Controller CK3M-series CPU Unit/Features
CJ1 CJ1 Overview/Features
VT-X700-E / -L High-speed automated X-ray CT inspection system/Features
last update: September 3, 2018
Item | Specifications | ||
---|---|---|---|
Operating ambient temperature and humidity | 0 to 55°C, 90% max. (with no condensation) | ||
Storage ambient temperature and humidity | -20 to 65°C, 90% max. (with no condensation) | ||
Operating and storage atmosphere | No corrosive gases | ||
Operating altitude | 1,000 m max. | ||
Vibration resistance | 10 to 60 Hz and at an acceleration of 5.88 m/s2 or less (Not to be run continuously at the resonance frequency) | ||
Insulation resistance | Between power supply terminals/power terminals and PE terminals: 0.5 MΩ min. (at 500 VDC) | ||
Dielectric strength | Between power supply terminals/power terminals and PE terminals: 1,500 VAC for 1 min (at 50/60 Hz) | ||
Protective structure | IP20 (Built into IP54 panel) | ||
International standard | EU Directives | EMC Directive | EN 61800-3 second environment, C3 category (EN61326-3-1; Functional Safety) |
Low Voltage Directive | EN 61800-5-1 | ||
Machinery Directive | EN ISO 13849-1 (Cat.3), EN 61508, EN 62061, EN 61800-5-2 | ||
UL standards | UL 61800-5-1 | ||
CSA standards | CSA C22.2 No. 274 | ||
Korean Radio Regulations (KC) | Compliant | ||
Australian EMC Labelling Requirements (RCM) | Compliant |
Note: The above items reflect individual evaluation testing. The results may differ under compound conditions.
The detail of Machinery Directive is as follows:
The STO function via safety input signals: EN ISO 13849-1 (Cat3 PLe), EN 61508 (SIL3), EN 62061 (SIL3), EN 61800-5-2 (STO)
The STO function via EtherCAT communications: EN ISO 13849-1 (Cat.3 PLd), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)
Disconnect all connections to the Servo Drive before attempting a megger test (insulation resistance measurement) on a Servo Drive. Not doing so may result in the Servo Drive failure.
Do not perform a dielectric strength test on the Servo Drive. Internal elements may be damaged.
Servo Drive model (R88D-) | 1SN01L-ECT | 1SN02L-ECT | 1SN04L-ECT | ||
---|---|---|---|---|---|
Item | 100 W | 200 W | 400 W | ||
Input | Main circuit | Power supply voltage | Single-phase 100 to 120 VAC (85 to 132 V) *1 Rise time 500 ms max. *2 | ||
Frequency | 50/60 Hz (47.5 to 63 Hz) *1 | ||||
Control circuit | Power supply voltage | 24 VDC (21.6 to 26.4 V) | |||
Current consumption *3 | 600 mA | ||||
Rated input current [A (rms)] (Main circuit power supply voltage: 120 VAC) | Single-phase | 2.9 | 4.9 | 8.4 | |
3-phase | --- | --- | --- | ||
Output | Rated current [A (rms)] | 1.5 | 2.5 | 4.8 | |
Maximum current [A (rms)] | 4.7 | 8.4 | 14.7 | ||
Heat value [W] | Main circuit *4 | 14.8 | 23.4 | 33.1 | |
Control circuit | 11 | 11 | 13.2 | ||
Applicable Servomotor rated output [W] | 100 | 200 | 400 | ||
3,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1M05030S 1M10030S | 1M20030S | 1M40030S | |
Hold time at momentary power interruption (Main circuit power supply voltage: 100 VAC) | 10 ms (Load condition: rated output) *5 | ||||
Weight [kg] | 1.2 | 1.5 | 1.9 |
*1. The values outside parentheses indicate the rated value, and the values inside parentheses indicate the range of
acceptable variation.
*2. If the power supply is turned ON slowly, a Regeneration Circuit Error Detected during Power ON (Error No. 14.02) may
occur. Check that the power supply has a capacity sufficiently greater than the total capacity of the Servo Drive and the
peripheral devices.
*3. Select a DC power supply in consideration of the current values that are specified in the current consumption.
The rated current value that is printed on the product nameplate is a condition to apply the 1S-series product for the
UL/Low Voltage Directive.
Therefore, you do not need to consider it when you select a DC power supply for each model.
*4. This is the maximum heating value in applicable Servomotors.
Refer to the table on the page 14 for the Heating Values of Applicable Servomotors.
*5. The control power supply is not specified here as long as a DC power supply that meets the following conditions is used.
Reinforced insulation or double insulation, and the output hold time of 10 ms or more.
Servo Drive model (R88D-) | 1SN01H-ECT | 1SN02H-ECT | 1SN04H-ECT | 1SN08H-ECT | ||
---|---|---|---|---|---|---|
Item | 100 W | 200 W | 400 W | 750 W | ||
Input | Main circuit | Power supply voltage | Single-phase and 3-phase 200 to 240 VAC (170 to 252 V) *1 Rise time 500 ms max. *2 | |||
Frequency | 50/60 Hz (47.5 to 63 Hz) *1 | |||||
Control circuit | Power supply voltage | 24 VDC (21.6 to 26.4 V) | ||||
Current consumption *3 | 600 mA | |||||
Rated current [A (rms)] (Main circuit power supply voltage: 240 VAC) | Single-phase | 1.8 | 2.7 | 4.6 | 7.3 | |
3-phase | 1.0 | 1.5 | 2.7 | 4.0 | ||
Output | Rated current [A (rms)] | 0.8 | 1.5 | 2.5 | 4.6 | |
Maximum current [A (rms)] | 3.1 | 5.6 | 9.1 | 16.9 | ||
Heat value [W] | Main circuit *4 | 15.7/15.3 *5 | 15.2/14.6 *5 | 22.4/22.4 *5 | 40/39.7 *5 | |
Control circuit | 11 | 11 | 11 | 13.2 | ||
Applicable Servomotor rated output [W] | 100 | 200 | 400 | 750 | ||
3,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1M05030T 1M10030T | 1M20030T | 1M40030T | 1M75030T | |
2,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | --- | --- | --- | --- | |
1,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | --- | --- | --- | --- | |
Hold time at momentary power interruption (Main circuit power supply voltage: 200 VAC) | 10 ms (Load condition: rated output) *6 | |||||
Weight [kg] | 1.2 | 1.2 | 1.5 | 2.0 |
Servo Drive model (R88D-) | 1SN10H-ECT | 1SN15H-ECT | 1SN20H-ECT | 1SN30H-ECT | ||
---|---|---|---|---|---|---|
Item | 1 kW | 1.5 kW | 2 kW | 3 kW | ||
Input | Main circuit | Power supply voltage | 3-phase 200 to 240 VAC (170 to 252 V) *1 | Single-phase and 3-phase 200 to 240 VAC (170 to 252 V) *1 | 3-phase 200 to 240 VAC (170 to 252 V) *1 | |
Rise time 500 ms max. *2 | ||||||
Frequency | 50/60 Hz (47.5 to 63 Hz) *1 | |||||
Control circuit | Power supply voltage | 24 VDC (21.6 to 26.4 V) | ||||
Current consumption *3 | 600 mA | 900 mA | ||||
Rated current [A (rms)] (Main circuit power supply voltage: 240 VAC) | Single-phase | --- | 15.7 | --- | --- | |
3-phase | 5.8 | 9.0 | 13.0 | 15.9 | ||
Output | Rated current [A (rms)] | 7.7 | 9.7 | 16.2 | 22.3 | |
Maximum current [A (rms)] | 16.9 | 28.4 | 41.0 | 54.7 | ||
Heat value [W] | Main circuit *4 | 46.5 | 85.5/85.5 *5 | 128.9 | 167.5 | |
Control circuit | 13.2 | 20.4 | 20.4 | 20.4 | ||
Applicable Servomotor rated output [W] | 1,000 | 1,500 | 2,000 | 3,000 | ||
3,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1L1K030T | 1L1K530T | 1L2K030T | 1L3K030T | |
2,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1M1K020T | 1M1K520T | 1M2K020T | 1M3K020T | |
1,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1M90010T | --- | 1M2K010T | 1M3K010T | |
Hold time at momentary power interruption (Main circuit power supply voltage: 200 VAC) | 10 ms (Load condition: rated output) *6 | |||||
Weight [kg] | 2.0 | 3.4 | 3.4 | 3.4 |
*1. The values outside parentheses indicate the rated value, and the values inside parentheses indicate the range of
acceptable variation.
*2. If the power supply is turned ON slowly, a Regeneration Circuit Error Detected during Power ON (Error No. 14.02) may
occur. Check that the power supply has a capacity sufficiently greater than the total capacity of the Servo Drive and the
peripheral devices.
*3. Select a DC power supply in consideration of the current values that are specified in the current consumption.
The rated current value that is printed on the product nameplate is a condition to apply the 1S-series product for the
UL/Low Voltage Directive.
Therefore, you do not need to consider it when you select a DC power supply for each model.
*4. This is the maximum heating value in applicable Servomotors.
Refer to the table below for the heating value of each applicable Servomotor.
*5. The first value is for single-phase input power and the second value is for 3-phase input power.
*6. The control power supply is not specified here as long as a DC power supply that meets the following conditions is used.
Reinforced insulation or double insulation, and the output hold time of 10 ms or more.
Use a neutral grounded 400 VAC 3-phase power supply for the 400 VAC input models in order to satisfy the conditions to obtain the standards.
Servo Drive model (R88D-) | 1SN06F-ECT | 1SN10F-ECT | 1SN15F-ECT | 1SN20F-ECT | 1SN30F-ECT | ||
---|---|---|---|---|---|---|---|
Item | 600 W | 1 kW | 1.5 kW | 2 kW | 3 kW | ||
Input | Main circuit | Power supply voltage | 3-phase 380 to 480 VAC (323 to 504 V) *1 Rise time 500 ms max. *2 | ||||
Frequency | 50/60 Hz (47.5 to 63 Hz) *1 | ||||||
Control circuit | Power supply voltage | 24 VDC (21.6 to 26.4 V) | |||||
Current consumption *3 | 900 mA | ||||||
Rated current [A (rms)] (Main circuit power supply voltage: 480 VAC) | 3-phase | 2.4 | 3.1 | 4.3 | 6.5 | 8.4 | |
Output | Rated current [A (rms)] | 1.8 | 4.1 | 4.7 | 7.8 | 11.3 | |
Maximum current [A (rms)] | 5.5 | 9.6 | 14.1 | 19.8 | 28.3 | ||
Heat value [W] | Main circuit *4 | 20.2 | 52.1 | 77.5 | 106.8 | 143.3 | |
Control circuit | 20.4 | 20.4 | 20.4 | 20.4 | 20.4 | ||
Applicable Servomotor rated output [W] | 600 | 1,000 | 1,500 | 2,000 | 3,000 | ||
3,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | --- | 1L75030C 1L1K030C | 1L1K530C | 1L2K030C | 1L3K030C | |
2,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | 1M40020C 1M60020C | 1M1K020C | 1M1K520C | 1M2K020C | 1M3K020C | |
1,000-r/min Servomotor (R88M-) | Batteryless 23-bit ABS | -- | 1M90010C | --- | 1M2K010C | 1M3K010C | |
Hold time at momentary power interruption (Main circuit power supply voltage: 400 VAC) | 10 ms (Load condition: rated output) *5 | ||||||
Weight [kg] | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
*1. The values outside parentheses indicate the rated value, and the values inside parentheses indicate the range of
acceptable variation.
*2. If the power supply is turned ON slowly, a Regeneration Circuit Error Detected during Power ON (Error No. 14.02) may
occur. Check that the power supply has a capacity sufficiently greater than the total capacity of the Servo Drive and the
peripheral devices.
*3. Select a DC power supply in consideration of the current values that are specified in the current consumption.
The rated current value that is printed on the product nameplate is a condition to apply the 1S-series product for the
UL/Low Voltage Directive.
Therefore, you do not need to consider it when you select a DC power supply for each model.
*4. This is the maximum heating value in applicable Servomotors.
Refer to the table below for the heating value of each applicable Servomotor.
*5. The control power supply is not specified here as long as a DC power supply that meets the following conditions is used.
Reinforced insulation or double insulation, and the output hold time of 10 ms or more.
Servo Drive model | Servomotor model | Main circuit heat value [W] |
---|---|---|
R88D-1SN01L-ECT | R88M-1M05030S-[] | 11.2 |
R88M-1M10030S-[] | 14.8 | |
R88D-1SN01H-ECT | R88M-1M05030T-[] | 13.2/13.2 * |
R88M-1M10030T-[] | 15.7/15.3 * | |
R88D-1SN10H-ECT | R88M-1L1K030T-[] | 46.5 |
R88M-1M1K020T-[] | 37.7 | |
R88M-1M90010T-[] | 42.9 | |
R88D-1SN15H-ECT | R88M-1L1K530T-[] | 85.5/85.5 * |
R88M-1M1K520T-[] | 84/84 * | |
R88D-1SN20H-ECT | R88M-1L2K030T-[] | 128.9 |
R88M-1M2K020T-[] | 91.3 | |
R88M-1M2K010T-[] | 109.1 | |
R88D-1SN30H-ECT | R88M-1L3K030T-[] | 167.5 |
R88M-1M3K020T-[] | 125.5 | |
R88M-1M3K010T-[] | 156.7 | |
R88D-1SN06F-ECT | R88M-1M40020C-[] | 14.4 |
R88M-1M60020C-[] | 20.2 | |
R88D-1SN10F-ECT | R88M-1L75030C-[] | 51.1 |
R88M-1L1K030C-[] | 52.1 | |
R88M-1M1K020C-[] | 33.4 | |
R88M-1M90010C-[] | 40.2 | |
R88D-1SN15F-ECT | R88M-1L1K530C-[] | 77.5 |
R88M-1M1K520C-[] | 47.9 | |
R88D-1SN20F-ECT | R88M-1L2K030C-[] | 106.8 |
R88M-1M2K020C-[] | 65.7 | |
R88M-1M2K010C-[] | 79.6 | |
R88D-1SN30F-ECT | R88M-1L3K030C-[] | 143.3 |
R88M-1M3K020C-[] | 96.5 | |
R88M-1M3K010C-[] | 115.5 |
* The first value is for single-phase input power and the second value is for 3-phase input power.
Item | Specifications |
---|---|
Communications standard | IEC 61158 Type 12, IEC 61800-7 CiA 402 Drive Profile |
Physical layer | 100BASE-TX (IEEE802.3) |
Connectors | RJ45 × 2 (shielded) ECAT IN: EtherCAT input ECAT OUT: EtherCAT output |
Communications media | Recommended media: Twisted-pair cable, which is doubly shielded by the aluminum tape and braid, with Ethernet Category 5 (100BASE-TX) or higher |
Communications distance | Distance between nodes: 100 m max. |
Process data | Fixed PDO mapping Variable PDO mapping |
Mailbox (CoE) | Emergency messages, SDO requests, SDO responses, and SDO information |
Synchronization mode and communications cycle | DC Mode (Synchronous with Sync0 Event) Communications cycle: 125 μs, 250 μs, 500 μs, 750 μs, 1 to 10 ms (in 0.25 ms increments) Free Run Mode |
Indicators | ECAT-L/A IN (Link/Activity IN) × 1 ECAT-L/A OUT (Link/Activity OUT) × 1 ECAT-RUN × 1 ECAT-ERR × 1 |
CiA 402 Drive Profile | • Cyclic synchronous position mode • Cyclic synchronous velocity mode • Cyclic synchronous torque mode • Profile position mode • Profile velocity mode • Homing mode • Touch probe function • Torque limit function |
1S-series Servo Drive | Corresponding version | ||
---|---|---|---|
Model | Unit version | NJ/NX-series CPU Unit | Sysmac Studio |
R88D-1SN[]-ECT | Version 1.0 | NJ: Version 1.11 or later NX: Version 1.11 or later | Version 1.16 or higher |
Version 1.1 | NJ: Version 1.11 or later NX: Version 1.11 or later | Version 1.18 or higher | |
Version 1.2 | NJ: Version 1.11 or later NX: Version 1.11 or later | Version 1.22 or higher |
Function | Addition/change | Unit version | |
---|---|---|---|
Adjustment Function | Multiple Drives Tuning Function | Addition | Ver.1.1 |
Object | Machine - Inertia Ratio (3001-01 hex) | Change | Ver.1.1 |
TDF Position Control - Command Following Gain Selection (3120-10 hex) | Addition | Ver.1.1 | |
TDF Position Control - Command Following Gain 2 (3120-11 hex) | Addition | Ver.1.1 | |
TDF Velocity Control - Command Following Gain Selection (3121-10 hex) | Addition | Ver.1.1 | |
TDF Velocity Control - Command Following Gain 2 (3121-11 hex) | Addition | Ver.1.1 | |
Command Dividing Function - Interpolation Method Selection in csp (3041-10 hex) | Addition | Ver.1.2 | |
Runaway Detection (3B71 hex) | Addition | Ver.1.1 | |
Function Output - Physical Outputs (4602-F1 hex) | Change | Ver.1.2 | |
External Brake Interlock Relay Output (4663 hex) | Addition | Ver.1.2 | |
Digital outputs - Physical Outputs (60FE - 01 hex) | Change | Ver.1.2 | |
Error detection function | Runaway Detection | Addition | Ver.1.1 |
Synchronization Error | Change | Ver.1.1 | |
Regeneration Circuit Error Detected during Power ON | Addition | Ver.1.2 | |
Applied Functions | Brake Interlock | Addition | Ver.1.2 |
Item | Specifications | ||
---|---|---|---|
Operating ambient temperature and humidity | 0 to 40°C 20% to 90% (with no condensation) | ||
Storage ambient temperature and humidity | -20 to 65°C 20% to 90% (with no condensation) | ||
Operating and storage atmosphere | No corrosive gases | ||
Vibration resistance * | Acceleration of 49 m/s2 24.5 m/s2 max. in X, Y, and Z directions when the motor is stopped | ||
Impact resistance | Acceleration of 98 m/s2 max. 3 times each in X, Y, and Z directions | ||
Insulation resistance | Between power terminals and FG terminals: 10 MΩ min. (at 500 VDC Megger) | ||
Dielectric strength | Between power terminals and FG terminals: 1,500 VAC for 1 min (voltage 100 V, 200 V) Between power terminals and FG terminals: 1,800 VAC for 1 min (voltage 400 V) Between brake terminal and FG terminals: 1,000 VAC for 1 min | ||
Insulation class | Class F | ||
Protective structure | IP67 (except for the through-shaft part and connector pins) IP20 if you use a 30-meter or longer encoder cable. | ||
International standard | EU Directives | Low Voltage Directive | EN 60034-1/-5 |
UL standards | UL 1004-1/-6 | ||
CSA standards | CSA C22.2 No.100 (with cUL mark) |
* The amplitude may be increased by machine resonance. As a guideline, 80% of the specified value must not be exceeded.
Note:
1. Do not use the cable when it is laying in oil or water.
2. Do not expose the cable outlet or connections to stress due to bending or its own weight.
Item | Specifications |
---|---|
Encoder system | Optical batteryless absolute encoder |
Resolution per rotation | 23 bits |
Multi-rotation data hold | 16 bits |
Power supply voltage | 5 VDC±10% |
Current consumption | 230 mA max. |
Output signal | Serial communications |
Output interface | RS485 compliant |
Note: It is possible to use an absolute encoder as an incremental encoder.
Refer to the AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (Cat.No.I586) for details.
Model (R88M-) | 100 VAC | |||||
---|---|---|---|---|---|---|
Item | Unit | 1M05030S | 1M10030S | 1M20030S | 1M40030S | |
Rated output *1 *2 | W | 50 | 100 | 200 | 400 | |
Rated torque *1 *2 | N·m | 0.159 | 0.318 | 0.637 | 1.27 | |
Rated rotation speed *1 *2 | r/min | 3,000 | ||||
Maximum rotation speed | r/min | 6,000 | ||||
Momentary maximum torque *1 | N·m | 0.48 | 0.95 | 1.91 | 3.8 | |
Rated current *1 *2 | A (rms) | 1.20 | 1.50 | 2.50 | 4.8 | |
Momentary maximum current *1 | A (rms) | 4.00 | 4.70 | 8.40 | 14.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 0.0418 | 0.0890 | 0.2232 | 0.4452 |
With brake | × 10-4kg·m2 | 0.0496 | 0.0968 | 0.2832 | 0.5052 | |
Applicable load inertia | × 10-4kg·m2 | 0.810 | 1.62 | 4.80 | 8.40 | |
Torque constant *1 | N·m/ A (rms) | 0.14 | 0.24 | 0.28 | 0.30 | |
Power rate *1 *3 | kW/s | 6.7 | 11.9 | 18.5 | 36.6 | |
Mechanical time constant *3 | ms | 1.7 | 1.1 | 0.76 | 0.61 | |
Electrical time constant | ms | 0.67 | 0.84 | 2.4 | 2.4 | |
Allowable radial load *4 | N | 68 | 68 | 245 | 245 | |
Allowable thrust load *4 | N | 58 | 58 | 88 | 88 | |
Weight | Without brake | kg | 0.35 | 0.52 | 1.0 | 1.4 |
With brake | kg | 0.59 | 0.77 | 1.3 | 1.9 | |
Radiator plate dimensions (material) | mm | 250 × 250 × t6 (aluminum) | ||||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | |||
Current consumption (at 20°C) | A | 0.27 | 0.27 | 0.32 | 0.32 | |
Static friction torque | N·m | 0.32 min. | 0.32 min. | 1.37 min. | 1.37 min. | |
Attraction time | ms | 25 max. | 25 max. | 30 max. | 30 max. | |
Release time *6 | ms | 15 max. | 15 max. | 20 max. | 20 max. | |
Backlash | ° | 1.2 max. | 1.2 max. | 1.2 max. | 1.2 max. | |
Allowable braking work | J | 9 | 9 | 60 | 60 | |
Allowable total work | J | 9000 | 9,000 | 60,000 | 60,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | ||||
Brake lifetime (acceleration/deceleration) | --- | 10 million times min. | ||||
Insulation class | --- | Class F |
For models with an oil seal, the following derating is used due to increase in friction torque.
Model (R88M-) | 1M05030S-O/-OS2/ -BO/-BOS2 | 1M10030S-O/-OS2/ -BO/-BOS2 | 1M20030S-O/-OS2/ -BO/-BOS2 | 1M40030S-O/-OS2/ -BO/ -BOS2 | |
---|---|---|---|---|---|
Item | Unit | ||||
Derating rate | % | 90 | 95 | 95 | 80 |
Rated output | W | 45 | 95 | 190 | 320 |
Rated current | A (rms) | 1.20 | 1.50 | 2.50 | 4.0 |
Model (R88M-) | 200 VAC | ||||||
---|---|---|---|---|---|---|---|
Item | Unit | 1M05030T | 1M10030T | 1M20030T | 1M40030T | 1M75030T | |
Rated output *1 *2 | W | 50 | 100 | 200 | 400 | 750 | |
Rated torque *1 *2 | N·m | 0.159 | 0.318 | 0.637 | 1.27 | 2.39 | |
Rated rotation speed *1 *2 | r/min | 3,000 | |||||
Maximum rotation speed | r/min | 6,000 | |||||
Momentary maximum torque *1 | N·m | 0.56 | 1.11 | 2.2 | 4.5 | 8.4 | |
Rated current *1 *2 | A (rms) | 0.67 | 0.84 | 1.5 | 2.5 | 4.6 | |
Momentary maximum current *1 | A (rms) | 2.60 | 3.10 | 5.6 | 9.1 | 16.9 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 0.0418 | 0.0890 | 0.2232 | 0.4452 | 1.8242 |
With brake | × 10-4kg·m2 | 0.0496 | 0.0968 | 0.2832 | 0.5052 | 2.0742 | |
Applicable load inertia | × 10-4kg·m2 | 0.810 | 1.62 | 4.80 | 8.40 | 19.4 | |
Torque constant *1 | N·m/ A (rms) | 0.25 | 0.42 | 0.48 | 0.56 | 0.59 | |
Power rate *1 *3 | kW/s | 6.7 | 11.9 | 18.5 | 36.6 | 31.4 | |
Mechanical time constant *3 | ms | 1.7 | 1.2 | 0.78 | 0.56 | 0.66 | |
Electrical time constant | ms | 0.67 | 0.83 | 2.4 | 2.6 | 3.3 | |
Allowable radial load *4 | N | 68 | 68 | 245 | 245 | 490 | |
Allowable thrust load *4 | N | 58 | 58 | 88 | 88 | 196 | |
Weight | Without brake | kg | 0.35 | 0.52 | 1.0 | 1.4 | 2.9 |
With brake | kg | 0.59 | 0.77 | 1.3 | 1.9 | 3.9 | |
Radiator plate dimensions (material) | mm | 250 × 250 × t6 (aluminum) | |||||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||||
Current consumption (at 20°C) | A | 0.27 | 0.27 | 0.32 | 0.32 | 0.37 | |
Static friction torque | N·m | 0.32 min. | 0.32 min. | 1.37 min. | 1.37 min. | 2.55 min. | |
Attraction time | ms | 25 max. | 25 max. | 30 max. | 30 max. | 40 max. | |
Release time *6 | ms | 15 max. | 15 max. | 20 max. | 20 max. | 35 max. | |
Backlash | ° | 1.2 max. | 1.2 max. | 1.2 max. | 1.2 max. | 1.0 max. | |
Allowable braking work | J | 9 | 9 | 60 | 60 | 250 | |
Allowable total work | J | 9000 | 9,000 | 60,000 | 60,000 | 250,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||||
Insulation class | --- | Class F |
For models with an oil seal, the following derating is used due to increase in friction torque.
Model (R88M-) | 1M05030T-O/ -OS2/-BO/ -BOS2 | 1M10030T-O/ -OS2/-BO/ -BOS2 | 1M20030T-O/ -OS2/-BO/ -BOS2 | 1M40030T-O/ -OS2/-BO/ -BOS2 | 1M75030T-O/ -OS2/-BO/ -BOS2 | |
---|---|---|---|---|---|---|
Item | Unit | |||||
Derating rate | % | 90 | 95 | 95 | 80 | 90 |
Rated output | W | 45 | 95 | 190 | 320 | 675 |
Rated current | A (rms) | 0.67 | 0.84 | 1.5 | 2.1 | 4.2 |
Model (R88M-) | 200 VAC | |||||
---|---|---|---|---|---|---|
Item | Unit | 1L1K030T | 1L1K530T | 1L2K030T | 1L3K030T | |
Rated output *1 *2 | W | 1,000 | 1,500 | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 3.18 | 4.77 | 6.37 | 9.55 | |
Rated rotation speed *1 *2 | r/min | 3,000 | ||||
Maximum rotation speed | r/min | 5,000 | ||||
Momentary maximum torque *1 | N·m | 9.55 | 14.3 | 19.1 | 28.7 | |
Rated current *1 *2 | A (rms) | 5.2 | 8.8 | 12.5 | 17.1 | |
Momentary maximum current *1 | A (rms) | 16.9 | 28.4 | 41.0 | 54.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 2.1042 | 2.1042 | 2.4042 | 6.8122 |
With brake | × 10-4kg·m2 | 2.5542 | 2.5542 | 2.8542 | 7.3122 | |
Applicable load inertia | × 10-4kg·m2 | 35.3 | 47.6 | 60.2 | 118 | |
Torque constant *1 | N·m/ A (rms) | 0.67 | 0.58 | 0.56 | 0.64 | |
Power rate *1 *3 | kW/s | 48 | 108 | 169 | 134 | |
Mechanical time constant *3 | ms | 0.58 | 0.58 | 0.50 | 0.47 | |
Electrical time constant | ms | 5.9 | 6.1 | 6.4 | 11 | |
Allowable radial load *4 | N | 490 | ||||
Allowable thrust load *4 | N | 196 | ||||
Weight | Without brake | kg | 5.7 | 5.7 | 6.4 | 11.5 |
With brake | kg | 7.4 | 7.4 | 8.1 | 12.5 | |
Radiator plate dimensions (material) | mm | 400 × 400 × t20 (aluminum) | 470 × 470 × t20 (aluminum) | |||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | |||
Current consumption (at 20°C) | A | 0.70 | 0.70 | 0.70 | 0.66 | |
Static friction torque | N·m | 9.3 min. | 9.3 min. | 9.3 min. | 12.0 min. | |
Attraction time | ms | 100 max. | 100 max. | 100 max. | 100 max. | |
Release time *6 | ms | 30 max. | 30 max. | 30 max. | 30 max. | |
Backlash | ° | 1.0 max. | 1.0 max. | 1.0 max. | 0.8 max. | |
Allowable braking work | J | 500 | 500 | 500 | 1,000 | |
Allowable total work | J | 900,000 | 900,000 | 900,000 | 3,000,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | ||||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | ||||
Insulation class | --- | Class F |
Model (R88M-) | 400 VAC | ||||
---|---|---|---|---|---|
Item | Unit | 1L75030C | 1L1K030C | 1L1K530C | |
Rated output *1 *2 | W | 750 | 1,000 | 1,500 | |
Rated torque *1 *2 | N·m | 2.39 | 3.18 | 4.77 | |
Rated rotation speed *1 *2 | r/min | 3,000 | |||
Maximum rotation speed | r/min | 5,000 | |||
Momentary maximum torque *1 | N·m | 7.16 | 9.55 | 14.3 | |
Rated current *1 *2 | A (rms) | 3.0 | 3.0 | 4.5 | |
Momentary maximum current *1 | A (rms) | 9.6 | 9.6 | 14.1 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 1.3042 | 2.1042 | 2.1042 |
With brake | × 10-4kg·m2 | 1.7542 | 2.5542 | 2.5542 | |
Applicable load inertia | × 10-4kg·m2 | 38.6 | 35.3 | 47.6 | |
Torque constant *1 | N·m/ A (rms) | 0.91 | 1.17 | 1.17 | |
Power rate *1 *3 | kW/s | 44 | 48 | 108 | |
Mechanical time constant *3 | ms | 1.09 | 0.6 | 0.58 | |
Electrical time constant | ms | 4.3 | 5.9 | 5.9 | |
Allowable radial load *4 | N | 490 | |||
Allowable thrust load *4 | N | 196 | |||
Weight | Without brake | kg | 4.1 | 5.7 | 5.7 |
With brake | kg | 5.8 | 7.4 | 7.4 | |
Radiator plate dimensions (material) | mm | 305 × 305 × t20 (aluminum) | 400 × 400 × t20 (aluminum) | ||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||
Current consumption (at 20°C) | A | 0.70 | 0.70 | 0.70 | |
Static friction torque | N·m | 9.3 min. | 9.3 min. | 9.3 min. | |
Attraction time | ms | 100 max. | 100 max. | 100 max. | |
Release time *6 | ms | 30 max. | 30 max. | 30 max. | |
Backlash | ° | 1.0 max. | 1.0 max. | 1.0 max. | |
Allowable braking work | J | 500 | 500 | 500 | |
Allowable total work | J | 900,000 | 900,000 | 900,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||
Insulation class | --- | Class F |
Model (R88M-) | 400 VAC | |||
---|---|---|---|---|
Item | Unit | 1L2K030C | 1L3K030C | |
Rated output *1 *2 | W | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 6.37 | 9.55 | |
Rated rotation speed *1 *2 | r/min | 3,000 | ||
Maximum rotation speed | r/min | 5,000 | ||
Momentary maximum torque *1 | N·m | 19.1 | 28.7 | |
Rated current *1 *2 | A (rms) | 6.3 | 8.7 | |
Momentary maximum current *1 | A (rms) | 19.8 | 27.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 2.4042 | 6.8122 |
With brake | × 10-4kg·m2 | 2.8542 | 7.3122 | |
Applicable load inertia | × 10-4kg·m2 | 60.2 | 118 | |
Torque constant *1 | N·m/ A (rms) | 1.15 | 1.23 | |
Power rate *1 *3 | kW/s | 169 | 134 | |
Mechanical time constant *3 | ms | 0.52 | 0.49 | |
Electrical time constant | ms | 6.3 | 11 | |
Allowable radial load *4 | N | 490 | ||
Allowable thrust load *4 | N | 196 | ||
Weight | Without brake | kg | 6.4 | 11.5 |
With brake | kg | 8.1 | 12.5 | |
Radiator plate dimensions (material) | mm | 470 × 470 × t20 (aluminum) | ||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | |
Current consumption (at 20°C) | A | 0.70 | 0.66 | |
Static friction torque | N·m | 9.3 min. | 12 min. | |
Attraction time | ms | 100 max. | 100 max. | |
Release time *6 | ms | 30 max. | 30 max. | |
Backlash | ° | 1.0 max. | 0.8 max. | |
Allowable braking work | J | 500 | 1,000 | |
Allowable total work | J | 900,000 | 3,000,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | ||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | ||
Insulation class | --- | Class F |
*1. This is a typical value for when the Servomotor is used at a normal temperature (20°C, 65%) in combination with a Servo Drive.
*2. The rated values are the values with which continuous operation is possible at an ambient temperature of 40°C when the Servomotor is horizontally installed on a specified radiator plate.
*3. This value is for models without options.
*4. The allowable radial and thrust loads are the values determined for a limit of 20,000 hours at normal operating temperatures.
The allowable radial loads are applied as shown in the following diagram.
*5. This is a non-excitation brake. It is released when excitation voltage is applied.
*6. This value is a reference value.

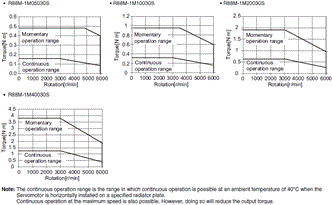

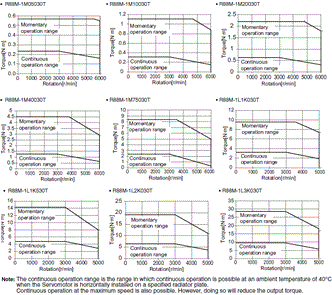

The following graphs show the characteristics with a 3-m standard cable and a 100 VAC input.
The following graphs show the characteristics with a 3-m standard cable and a 3-phase 200-VAC or single-phase 220-VAC input.
The following graphs show the characteristics with a 3-m standard cable and a 400 VAC input.
Model (R88M-) | 200 VAC | |||||
---|---|---|---|---|---|---|
Item | Unit | 1M1K020T | 1M1K520T | 1M2K020T | 1M3K020T | |
Rated output *1 *2 | W | 1,000 | 1,500 | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 4.77 | 7.16 | 9.55 | 14.3 | |
Rated rotation speed *1 *2 | r/min | 2,000 | ||||
Maximum rotation speed | r/min | 3,000 | ||||
Momentary maximum torque *1 | N·m | 14.3 | 21.5 | 28.7 | 43.0 | |
Rated current *1 *2 | A (rms) | 5.2 | 8.6 | 11.3 | 15.7 | |
Momentary maximum current *1 | A (rms) | 16.9 | 28.4 | 40.6 | 54.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 6.0042 | 9.0042 | 12.2042 | 15.3122 |
With brake | × 10-4kg·m2 | 6.5042 | 9.5042 | 12.7042 | 17.4122 | |
Applicable load inertia | × 10-4kg·m2 | 59.0 | 79.9 | 100 | 142 | |
Torque constant *1 | N·m/ A (rms) | 0.93 | 0.83 | 0.85 | 0.93 | |
Power rate *1 *3 | kW/s | 38 | 57 | 75 | 134 | |
Mechanical time constant *3 | ms | 0.94 | 0.78 | 0.81 | 0.80 | |
Electrical time constant | ms | 13 | 15 | 14 | 19 | |
Allowable radial load *4 | N | 490 | 784 | |||
Allowable thrust load *4 | N | 196 | 343 | |||
Weight | Without brake | kg | 6.6 | 8.5 | 10 | 12 |
With brake | kg | 8.6 | 10.5 | 12 | 15 | |
Radiator plate dimensions (material) | mm | 400 × 400 × t20 (aluminum) | 470 × 470 × t20 (aluminum) | |||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | |||
Current consumption (at 20°C) | A | 0.51 | 0.51 | 0.66 | 0.60 | |
Static friction torque | N·m | 9.0 min. | 9.0 min. | 12 min. | 16 min. | |
Attraction time | ms | 100 max. | 100 max. | 100 max. | 150 max. | |
Release time *6 | ms | 30 max. | 30 max. | 30 max. | 50 max. | |
Backlash | ° | 0.6 max. | 0.6 max. | 0.6 max. | 0.6 max. | |
Allowable braking work | J | 1,000 | 1,000 | 1,000 | 350 | |
Allowable total work | J | 3,000,000 | 3,000,000 | 3,000,000 | 1,000,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | ||||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | ||||
Insulation class | --- | Class F |
Model (R88M-) | 400 VAC | ||||
---|---|---|---|---|---|
Item | Unit | 1M40020C | 1M60020C | 1M1K020C | |
Rated output *1 *2 | W | 400 | 600 | 1,000 | |
Rated torque *1 *2 | N·m | 1.91 | 2.86 | 4.77 | |
Rated rotation speed *1 *2 | r/min | 2,000 | |||
Maximum rotation speed | r/min | 3,000 | |||
Momentary maximum torque *1 | N·m | 5.73 | 8.59 | 14.3 | |
Rated current *1 *2 | A (rms) | 1.1 | 1.6 | 2.9 | |
Momentary maximum current *1 | A (rms) | 3.9 | 5.5 | 9.4 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 2.5042 | 3.9042 | 6.0042 |
With brake | × 10-4kg·m2 | 2.8472 | 4.2472 | 6.5042 | |
Applicable load inertia | × 10-4kg·m2 | 19.0 | 23.5 | 59.0 | |
Torque constant *1 | N·m/ A (rms) | 1.75 | 1.84 | 1.69 | |
Power rate *1 *3 | kW/s | 14.6 | 21.0 | 38 | |
Mechanical time constant *3 | ms | 1.57 | 1.21 | 0.94 | |
Electrical time constant | ms | 6.8 | 7.8 | 13 | |
Allowable radial load *4 | N | 490 | |||
Allowable thrust load *4 | N | 196 | |||
Weight | Without brake | kg | 3.9 | 4.7 | 6.6 |
With brake | kg | 4.8 | 5.8 | 8.6 | |
Radiator plate dimensions (material) | mm | 305 × 305 × t12 (aluminum) | 400 × 400 × t20 (aluminum) | ||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||
Current consumption (at 20°C) | A | 0.30 | 0.30 | 0.51 | |
Static friction torque | N·m | 3.92 min. | 3.92 min. | 9.0 min. | |
Attraction time | ms | 40 max. | 40 max. | 100 max. | |
Release time *6 | ms | 25 max. | 25 max. | 30 max. | |
Backlash | ° | 1.0 max. | 1.0 max. | 0.6 max. | |
Allowable braking work | J | 330 | 330 | 1,000 | |
Allowable total work | J | 330,000 | 330,000 | 3,000,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||
Insulation class | --- | Class F |
Model (R88M-) | 400 VAC | ||||
---|---|---|---|---|---|
Item | Unit | 1M1K520C | 1M2K020C | 1M3K020C | |
Rated output *1 *2 | W | 1,500 | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 7.16 | 9.55 | 14.3 | |
Rated rotation speed *1 *2 | r/min | 2,000 | |||
Maximum rotation speed | r/min | 3,000 | |||
Momentary maximum torque *1 | N·m | 21.5 | 28.7 | 43.0 | |
Rated current *1 *2 | A (rms) | 4.1 | 5.7 | 8.6 | |
Momentary maximum current *1 | A (rms) | 13.5 | 19.8 | 28.3 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 9.0042 | 12.2042 | 15.3122 |
With brake | × 10-4kg·m2 | 9.5042 | 12.7042 | 17.4122 | |
Applicable load inertia | × 10-4kg·m2 | 79.9 | 100 | 142 | |
Torque constant *1 | N·m/ A (rms) | 1.75 | 1.75 | 1.74 | |
Power rate *1 *3 | kW/s | 57 | 75 | 134 | |
Mechanical time constant *3 | ms | 0.85 | 0.80 | 0.76 | |
Electrical time constant | ms | 13 | 14 | 20 | |
Allowable radial load *4 | N | 490 | 784 | ||
Allowable thrust load *4 | N | 196 | 343 | ||
Weight | Without brake | kg | 8.5 | 10 | 12 |
With brake | kg | 10.5 | 12 | 15 | |
Radiator plate dimensions (material) | mm | 470 × 470 × t20 (aluminum) | |||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||
Current consumption (at 20°C) | A | 0.51 | 0.66 | 0.60 | |
Static friction torque | N·m | 9.0 min. | 12 min. | 16 min. | |
Attraction time | ms | 100 max. | 100 max. | 150 max. | |
Release time *6 | ms | 30 max. | 30 max. | 50 max. | |
Backlash | ° | 0.6 max. | 0.6 max. | 0.6 max. | |
Allowable braking work | J | 1,000 | 1,000 | 350 | |
Allowable total work | J | 3,000,000 | 3,000,000 | 1,000,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||
Insulation class | --- | Class F |
*1. This is a typical value for when the Servomotor is used at a normal temperature (20°C, 65%) in combination with a Servo Drive.
*2. The rated values are the values with which continuous operation is possible at an ambient temperature of 40°C when the Servomotor is horizontally installed on a specified radiator plate.
*3. This value is for models without options.
*4. The allowable radial and thrust loads are the values determined for a limit of 20,000 hours at normal operating temperatures.
The allowable radial loads are applied as shown in the following diagram
*5. This is a non-excitation brake. It is released when excitation voltage is applied.
*6. This value is a reference value.

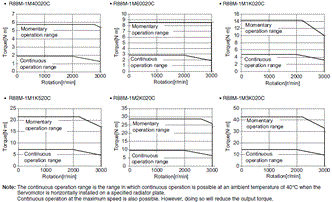

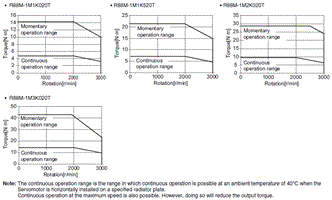

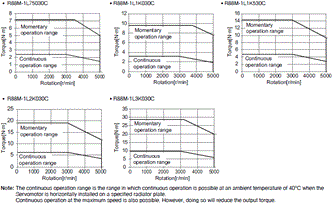

The following graphs show the characteristics with a 3-m standard cable and a 3-phase 200-VAC or single-phase 220-VAC input.

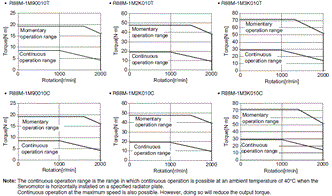

The following graphs show the characteristics with a 3-m standard cable and a 400 VAC input.
Model (R88M-) | 200 VAC | ||||
---|---|---|---|---|---|
Item | Unit | 1M90010T | 1M2K010T | 1M3K010T | |
Rated output *1 *2 | W | 900 | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 8.59 | 19.1 | 28.7 | |
Rated rotation speed *1 *2 | r/min | 1,000 | |||
Maximum rotation speed | r/min | 2,000 | |||
Momentary maximum torque *1 | N·m | 19.3 | 47.7 | 71.7 | |
Rated current *1 *2 | A (rms) | 6.7 | 14.4 | 21.2 | |
Momentary maximum current *1 | A (rms) | 16.9 | 40.6 | 54.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 9.0042 | 40.0122 | 68.0122 |
With brake | × 10-4kg·m2 | 9.5042 | 45.1122 | 73.1122 | |
Applicable load inertia | × 10-4kg·m2 | 79.9 | 314 | 492 | |
Torque constant *1 | N·m/ A (rms) | 1.28 | 1.45 | 1.51 | |
Power rate *1 *3 | kW/s | 82 | 91 | 121 | |
Mechanical time constant *3 | ms | 0.77 | 1.0 | 0.83 | |
Electrical time constant | ms | 15 | 18 | 22 | |
Allowable radial load *4 | N | 686 | 1,176 | 1,470 | |
Allowable thrust load *4 | N | 196 | 490 | ||
Weight | Without brake | kg | 8.5 | 18 | 28 |
With brake | kg | 10.5 | 22 | 33 | |
Radiator plate dimensions (material) | mm | 470 × 470 × t20 (aluminum) | 540 × 540 × t20 (aluminum) | ||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||
Current consumption (at 20°C) | A | 0.51 | 1.2 | 1.0 | |
Static friction torque | N·m | 9.0 min. | 22 min. | 42 min. | |
Attraction time | ms | 100 max. | 120 max. | 150 max. | |
Release time *6 | ms | 30 max. | 50 max. | 60 max. | |
Backlash | ° | 0.6 max. | 0.8 max. | 0.8 max. | |
Allowable braking work | J | 1,000 | 1,400 | 1,400 | |
Allowable total work | J | 3,000,000 | 4,600,000 | 4,600,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||
Insulation class | --- | Class F |
Model (R88M-) | 400 VAC | ||||
---|---|---|---|---|---|
Item | Unit | 1M90010C | 1M2K010C | 1M3K010C | |
Rated output *1 *2 | W | 900 | 2,000 | 3,000 | |
Rated torque *1 *2 | N·m | 8.59 | 19.1 | 28.7 | |
Rated rotation speed *1 *2 | r/min | 1,000 | |||
Maximum rotation speed | r/min | 2,000 | |||
Momentary maximum torque *1 | N·m | 19.3 | 47.7 | 71.7 | |
Rated current *1 *2 | A (rms) | 3.6 | 7.1 | 10.6 | |
Momentary maximum current *1 | A (rms) | 9.0 | 19.5 | 27.7 | |
Rotor inertia | Without brake | × 10-4kg·m2 | 9.0042 | 40.0122 | 68.0122 |
With brake | × 10-4kg·m2 | 9.5042 | 45.1122 | 73.1122 | |
Applicable load inertia | × 10-4kg·m2 | 79.9 | 314 | 492 | |
Torque constant *1 | N·m/ A (rms) | 2.41 | 3.00 | 2.97 | |
Power rate *1 *3 | kW/s | 82 | 91 | 121 | |
Mechanical time constant *3 | ms | 0.88 | 1.2 | 0.92 | |
Electrical time constant | ms | 13 | 16 | 19 | |
Allowable radial load *4 | N | 686 | 1,176 | 1,470 | |
Allowable thrust load *4 | N | 196 | 490 | ||
Weight | Without brake | kg | 8.5 | 18 | 28 |
With brake | kg | 10.5 | 22 | 33 | |
Radiator plate dimensions (material) | mm | 470 × 470 × t20 (aluminum) | 540 × 540 × t20 (aluminum) | ||
Brake specifi- cations | Excitation voltage *5 | V | 24 VDC±10% | ||
Current consumption (at 20°C) | A | 0.51 | 1.2 | 1.0 | |
Static friction torque | N·m | 9.0 min. | 22 min. | 42 min. | |
Attraction time | ms | 100 max. | 120 max. | 150 max. | |
Release time *6 | ms | 30 max. | 50 max. | 60 max. | |
Backlash | ° | 0.6 max. | 0.8 max. | 0.8 max. | |
Allowable braking work | J | 1,000 | 1,400 | 1,400 | |
Allowable total work | J | 3,000,000 | 4,600,000 | 4,600,000 | |
Allowable angular acceleration | rad/s2 | 10,000 max. | |||
Brake lifetime (acceleration/ deceleration) | --- | 10 million times min. | |||
Insulation class | --- | Class F |
*1. This is a typical value for when the Servomotor is used at a normal temperature (20°C, 65%) in combination with a Servo Drive.
*2. The rated values are the values with which continuous operation is possible at an ambient temperature of 40°C when the Servomotor is horizontally installed on a specified radiator plate.
*3. This value is for models without options.
*4. The allowable radial and thrust loads are the values determined for a limit of 20,000 hours at normal operating temperatures.
The allowable radial loads are applied as shown in the following diagram.
*5. This is a non-excitation brake. It is released when excitation voltage is applied.
*6. This value is a reference value.
The following graphs show the characteristics with a 3-m standard cable and a 3-phase 200-VAC or single-phase 220/400-VAC input.

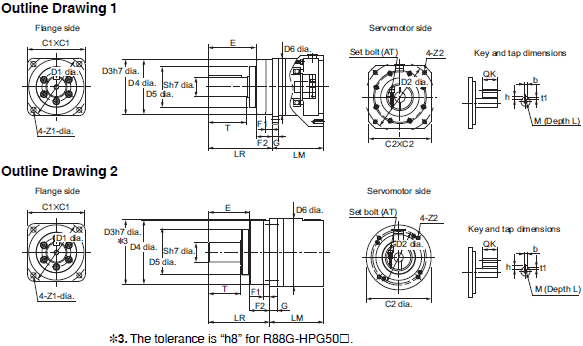

Servomotor rated output | Reduction ratio | Model | Rated rotation speed | Rated torque | Efficiency | Momentary maximum rotation speed | Momentary maximum torque |
---|---|---|---|---|---|---|---|
r/min | N·m | % | r/min | N·m | |||
50 W (100 V) | 1/21 | R88G-HPG14A21100B[] | 142 | 2.1 | 62.6 | 285 | 8.4 |
1/33 | R88G-HPG14A33050B[] | 90 | 3.6 | 68.4 | 181 | 13.4 | |
1/45 | R88G-HPG14A45050B[] | 66 | 4.9 | 68.4 | 133 | 18.3 | |
50 W (200 V) | 1/21 | R88G-HPG14A21100B[] | 142 | 2.1 | 62.6 | 285 | 9.9 |
1/33 | R88G-HPG14A33050B[] | 90 | 3.6 | 68.4 | 181 | 15.9 | |
1/45 | R88G-HPG14A45050B[] | 66 | 4.9 | 68.4 | 133 | 21.7 | |
100 W (100 V) | 1/5 | R88G-HPG11B05100B[] | 600 | 1.2 | 77.0 | 1200 | 4.2 |
1/11 | R88G-HPG14A11100B[] | 272 | 2.5 | 72.1 | 545 | 9.0 | |
1/21 | R88G-HPG14A21100B[] | 142 | 5.2 | 77.8 | 285 | 17.5 | |
1/33 | R88G-HPG20A33100B[] | 90 | 6.8 | 65.2 | 181 | 26.9 | |
1/45 | R88G-HPG20A45100B[] | 66 | 9.8 | 68.2 | 133 | 37.1 | |
100 W (200 V) | 1/5 | R88G-HPG11B05100B[] | 600 | 1.2 | 77.0 | 1200 | 4.9 |
1/11 | R88G-HPG14A11100B[] | 272 | 2.5 | 72.1 | 545 | 10.6 | |
1/21 | R88G-HPG14A21100B[] | 142 | 5.2 | 77.8 | 285 | 20.7 | |
1/33 | R88G-HPG20A33100B[] | 90 | 6.8 | 65.2 | 181 | 31.9 | |
1/45 | R88G-HPG20A45100B[] | 66 | 9.8 | 68.2 | 133 | 44.0 | |
200 W (100 V) | 1/5 | R88G-HPG14A05200B[] | 600 | 2.4 | 75.4 | 1200 | 8.3 |
1/11 | R88G-HPG14A11200B[] | 272 | 5.8 | 82.6 | 545 | 18.8 | |
1/21 | R88G-HPG20A21200B[] | 142 | 10.2 | 76.2 | 285 | 35.9 | |
1/33 | R88G-HPG20A33200B[] | 90 | 17.0 | 80.6 | 181 | 57.3 | |
1/45 | R88G-HPG20A45200B[] | 66 | 23.5 | 82.1 | 133 | 78.5 | |
200 W (200 V) | 1/5 | R88G-HPG14A05200B[] | 600 | 2.4 | 75.4 | 1200 | 9.7 |
1/11 | R88G-HPG14A11200B[] | 272 | 5.8 | 82.6 | 545 | 21.8 | |
1/21 | R88G-HPG20A21200B[] | 142 | 10.2 | 76.2 | 285 | 41.7 | |
1/33 | R88G-HPG20A33200B[] | 90 | 17.0 | 80.6 | 181 | 66.5 | |
1/45 | R88G-HPG20A45200B[] | 66 | 23.5 | 82.1 | 133 | 91.1 | |
400 W (100 V) | 1/5 | R88G-HPG14A05400B[] | 600 | 5.3 | 84.2 | 1200 | 17.1 |
1/11 | R88G-HPG20A11400B[] | 272 | 11.4 | 81.6 | 545 | 38.1 | |
1/21 | R88G-HPG20A21400B[] | 142 | 23.0 | 86.1 | 285 | 74.0 | |
1/33 | R88G-HPG32A33400B[] | 90 | 33.8 | 80.7 | 181 | 114.0 | |
1/45 | R88G-HPG32A45400B[] | 66 | 46.6 | 81.5 | 133 | 155.9 | |
400 W (200 V) | 1/5 | R88G-HPG14A05400B[] | 600 | 5.3 | 84.2 | 1200 | 20.4 |
1/11 | R88G-HPG20A11400B[] | 272 | 11.4 | 81.6 | 545 | 45.5 | |
1/21 | R88G-HPG20A21400B[] | 142 | 23.0 | 86.1 | 285 | 88.1 | |
1/33 | R88G-HPG32A33400B[] | 90 | 33.8 | 80.7 | 181 | 136.2 | |
1/45 | R88G-HPG32A45400B[] | 66 | 46.6 | 81.5 | 133 | 186.1 | |
750 W (200 V) | 1/5 | R88G-HPG20A05750B[] | 600 | 9.9 | 82.9 | 1200 | 38.7 |
1/11 | R88G-HPG20A11750B[] | 272 | 20.0 *1 | 87.2 | 545 | 86.7 | |
1/21 | R88G-HPG32A21750B[] | 142 | 42.1 | 84.0 | 285 | 163.3 | |
1/33 | R88G-HPG32A33750B[] | 90 | 69.3 | 87.9 | 181 | 259.7 | |
1/45 | R88G-HPG32A45750B[] | 66 | 94.9 | 88.3 | 133 | 299.0 *2 | |
750 W (400 V) | 1/5 | R88G-HPG32A052K0B[] | 600 | 7.7 | 64.3 | 1000 | 30.6 |
1/11 | R88G-HPG32A112K0B[] | 272 | 20.5 | 78.0 | 454 | 70.9 | |
1/21 | R88G-HPG32A211K5B[] | 142 | 42.1 | 84.0 | 238 | 138.3 | |
1/33 | R88G-HPG32A33600SB[] | 90 | 69.3 | 87.9 | 151 | 220.4 | |
1/45 | R88G-HPG50A451K5B[] | 66 | 92.0 | 85.5 | 111 | 298.0 | |
1 kW | 1/5 | R88G-HPG32A052K0B[] | 600 | 11.5 | 72.2 | 1000 | 42.0 |
1/11 | R88G-HPG32A112K0B[] | 272 | 28.9 | 82.5 | 454 | 96.1 | |
1/21 | R88G-HPG32A211K5B[] | 142 | 58.1 | 86.9 | 238 | 186.5 | |
1/33 | R88G-HPG50A332K0B[] | 90 | 90.9 | 86.7 | 151 | 292.7 | |
1/45 | R88G-HPG50A451K5B[] | 66 | 126.1 | 88.1 | 111 | 401.3 | |
1.5 kW | 1/5 | R88G-HPG32A052K0B[] | 600 | 19.1 | 80.1 | 1000 | 64.8 |
1/11 | R88G-HPG32A112K0B[] | 272 | 45.7 | 87.0 | 454 | 146.3 | |
1/21 | R88G-HPG32A211K5B[] | 142 | 90.1 | 90.0 | 238 | 282.2 | |
1/33 | R88G-HPG50A332K0B[] | 90 | 141.3 | 89.8 | 151 | 443.2 | |
1/45 | R88G-HPG50A451K5B[] | 66 | 194.8 | 90.8 | 111 | 606.5 | |
2 kW | 1/5 | R88G-HPG32A052K0B[] | 600 | 26.8 | 84.1 | 1000 | 87.9 |
1/11 | R88G-HPG32A112K0B[] | 272 | 62.5 | 89.3 | 454 | 197.0 | |
1/21 | R88G-HPG50A212K0B[] | 142 | 119.0 | 89.0 | 238 | 375.7 | |
1/33 | R88G-HPG50A332K0B[] | 90 | 192.0 | 91.3 | 151 | 595.3 | |
3 kW | 1/5 | R88G-HPG32A053K0B[] | 600 | 42.0 | 88.1 | 1000 | 134.0 |
1/11 | R88G-HPG50A113K0B[] | 272 | 93.9 | 89.3 | 454 | 296.1 | |
1/21 | R88G-HPG50A213K0B[] | 142 | 183.1 | 91.3 | 238 | 569.2 |
Servomotor rated output | Reduction ratio | Model | Decelerator inertia | Allowable radial load | Allowable thrust load | Weight |
---|---|---|---|---|---|---|
× 10-4 kg·m2 | N | N | kg | |||
50 W (100 V) | 1/21 | R88G-HPG14A21100B[] | 0.05 | 340 | 1358 | 1.0 |
1/33 | R88G-HPG14A33050B[] | 0.044 | 389 | 1555 | 1.0 | |
1/45 | R88G-HPG14A45050B[] | 0.044 | 427 | 1707 | 1.0 | |
50 W (200 V) | 1/21 | R88G-HPG14A21100B[] | 0.05 | 340 | 1358 | 1.0 |
1/33 | R88G-HPG14A33050B[] | 0.044 | 389 | 1555 | 1.0 | |
1/45 | R88G-HPG14A45050B[] | 0.044 | 427 | 1707 | 1.0 | |
100 W (100 V) | 1/5 | R88G-HPG11B05100B[] | 0.005 | 135 | 538 | 0.3 |
1/11 | R88G-HPG14A11100B[] | 0.06 | 280 | 1119 | 1.0 | |
1/21 | R88G-HPG14A21100B[] | 0.05 | 340 | 1358 | 1.0 | |
1/33 | R88G-HPG20A33100B[] | 0.065 | 916 | 3226 | 2.4 | |
1/45 | R88G-HPG20A45100B[] | 0.063 | 1006 | 3541 | 2.4 | |
100 W (200 V) | 1/5 | R88G-HPG11B05100B[] | 0.005 | 135 | 538 | 0.3 |
1/11 | R88G-HPG14A11100B[] | 0.06 | 280 | 1119 | 1.0 | |
1/21 | R88G-HPG14A21100B[] | 0.05 | 340 | 1358 | 1.0 | |
1/33 | R88G-HPG20A33100B[] | 0.065 | 916 | 3226 | 2.4 | |
1/45 | R88G-HPG20A45100B[] | 0.063 | 1006 | 3541 | 2.4 | |
200 W (100 V) | 1/5 | R88G-HPG14A05200B[] | 0.207 | 221 | 883 | 1.0 |
1/11 | R88G-HPG14A11200B[] | 0.197 | 280 | 1119 | 1.1 | |
1/21 | R88G-HPG20A21200B[] | 0.49 | 800 | 2817 | 2.9 | |
1/33 | R88G-HPG20A33200B[] | 0.45 | 916 | 3226 | 2.9 | |
1/45 | R88G-HPG20A45200B[] | 0.45 | 1006 | 3541 | 2.9 | |
200 W (200 V) | 1/5 | R88G-HPG14A05200B[] | 0.207 | 221 | 883 | 1.0 |
1/11 | R88G-HPG14A11200B[] | 0.197 | 280 | 1119 | 1.1 | |
1/21 | R88G-HPG20A21200B[] | 0.49 | 800 | 2817 | 2.9 | |
1/33 | R88G-HPG20A33200B[] | 0.45 | 916 | 3226 | 2.9 | |
1/45 | R88G-HPG20A45200B[] | 0.45 | 1006 | 3541 | 2.9 | |
400 W (100 V) | 1/5 | R88G-HPG14A05400B[] | 0.207 | 221 | 883 | 1.1 |
1/11 | R88G-HPG20A11400B[] | 0.57 | 659 | 2320 | 2.9 | |
1/21 | R88G-HPG20A21400B[] | 0.49 | 800 | 2817 | 2.9 | |
1/33 | R88G-HPG32A33400B[] | 0.62 | 1565 | 6240 | 7.5 | |
1/45 | R88G-HPG32A45400B[] | 0.61 | 1718 | 6848 | 7.5 | |
400 W (200 V) | 1/5 | R88G-HPG14A05400B[] | 0.207 | 221 | 883 | 1.1 |
1/11 | R88G-HPG20A11400B[] | 0.57 | 659 | 2320 | 2.9 | |
1/21 | R88G-HPG20A21400B[] | 0.49 | 800 | 2817 | 2.9 | |
1/33 | R88G-HPG32A33400B[] | 0.62 | 1565 | 6240 | 7.5 | |
1/45 | R88G-HPG32A45400B[] | 0.61 | 1718 | 6848 | 7.5 | |
750 W (200 V) | 1/5 | R88G-HPG20A05750B[] | 0.68 | 520 | 1832 | 2.9 |
1/11 | R88G-HPG20A11750B[] | 0.6 | 659 | 2320 | 3.1 | |
1/21 | R88G-HPG32A21750B[] | 3.0 | 1367 | 5448 | 7.8 | |
1/33 | R88G-HPG32A33750B[] | 2.7 | 1565 | 6240 | 7.8 | |
1/45 | R88G-HPG32A45750B[] | 2.7 | 1718 | 6848 | 7.8 | |
750 W (400 V) | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG32A211K5B[] | 3.0 | 1367 | 5448 | 7.9 | |
1/33 | R88G-HPG32A33600SB[] | 2.7 | 1565 | 6240 | 7.9 | |
1/45 | R88G-HPG50A451K5B[] | 4.7 | 4538 | 15694 | 19.0 | |
1 kW | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG32A211K5B[] | 3.0 | 1367 | 5448 | 7.9 | |
1/33 | R88G-HPG50A332K0B[] | 4.8 | 4135 | 14300 | 19.0 | |
1/45 | R88G-HPG50A451K5B[] | 4.7 | 4538 | 15694 | 19.0 | |
1.5 kW | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG32A211K5B[] | 3.0 | 1367 | 5448 | 7.9 | |
1/33 | R88G-HPG50A332K0B[] | 4.8 | 4135 | 14300 | 19.0 | |
1/45 | R88G-HPG50A451K5B[] | 4.7 | 4538 | 15694 | 19.0 | |
2 kW | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG50A212K0B[] | 5.8 | 3611 | 12486 | 19.0 | |
1/33 | R88G-HPG50A332K0B[] | 4.8 | 4135 | 14300 | 19.0 | |
3 kW | 1/5 | R88G-HPG32A053K0B[] | 3.8 | 889 | 3542 | 7.3 |
1/11 | R88G-HPG50A113K0B[] | 7.7 | 2974 | 10285 | 19.0 | |
1/21 | R88G-HPG50A213K0B[] | 5.8 | 3611 | 12486 | 19.0 |
*1. The value is the allowable continuous output torque of the Decelerator. Take care so that this value is not exceeded.
*2. The value is the maximum allowable torque of the Decelerator. Take care so that this value is not exceeded.
Note:
1. The Decelerator inertia is the Servomotor shaft conversion value.
2. The protective structure rating of the Servomotor with the Decelerator is IP44.
3. The Allowable radial load column shows the values obtained at the center of the shaft (T/2).
4. The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the model number.
5. Take care so that the surface temperature of the Decelerator does not exceed 70°C.
Servomotor rated output | Reduction ratio | Model | Rated rotation speed | Rated torque | Efficiency | Momentary maximum rotation speed | Momentary maximum torque |
---|---|---|---|---|---|---|---|
r/min | N·m | % | r/min | N·m | |||
400 W | 1/5 | R88G-HPG32A052K0B[] | 400 | 6.5 | 68.4 | 600 | 24.9 |
1/11 | R88G-HPG32A112K0B[] | 181 | 16.8 | 79.9 | 272 | 57.1 | |
1/21 | R88G-HPG32A211K5B[] | 95 | 34.0 | 84.9 | 142 | 111.1 | |
1/33 | R88G-HPG32A33600SB[] | 60 | 55.6 | 88.2 | 90 | 176.6 | |
1/45 | R88G-HPG32A45400SB[] | 44 | 76.0 | 88.5 | 66 | 241.1 | |
600 W | 1/5 | R88G-HPG32A052K0B[] | 400 | 11.1 | 77.6 | 600 | 38.6 |
1/11 | R88G-HPG32A112K0B[] | 181 | 26.8 | 85.3 | 272 | 87.3 | |
1/21 | R88G-HPG32A211K5B[] | 95 | 53.2 | 88.6 | 142 | 168.7 | |
1/33 | R88G-HPG32A33600SB[] | 60 | 85.7 | 90.8 | 90 | 267.2 | |
1/45 | R88G-HPG50A451K5B[] | 44 | 115.1 | 89.4 | 66 | 362.6 | |
1 kW | 1/5 | R88G-HPG32A053K0B[] | 400 | 20.3 | 85.0 | 600 | 66.0 |
1/11 | R88G-HPG32A112K0SB[] | 181 | 47.0 | 89.6 | 272 | 147.6 | |
1/21 | R88G-HPG32A211K0SB[] | 95 | 91.7 | 91.5 | 142 | 283.8 | |
1/33 | R88G-HPG50A332K0SB[] | 60 | 143.9 | 91.4 | 90 | 445.8 | |
1/45 | R88G-HPG50A451K0SB[] | 44 | 197.6 | 92.1 | 66 | 609.3 | |
1.5 kW | 1/5 | R88G-HPG32A053K0B[] | 400 | 31.7 | 88.7 | 600 | 100.6 |
1/11 | R88G-HPG32A112K0SB[] | 181 | 72.2 | 91.7 | 272 | 223.7 | |
1/21 | R88G-HPG50A213K0B[] | 95 | 137.6 | 91.5 | 142 | 426.7 | |
1/33 | R88G-HPG50A332K0SB[] | 60 | 219.6 | 92.9 | 90 | 673.9 | |
2 kW | 1/5 | R88G-HPG32A053K0B[] | 400 | 43.2 | 90.5 | 600 | 135.1 |
1/11 | R88G-HPG32A112K0SB[] | 181 | 97.5 | 92.8 | 272 | 299.7 | |
1/21 | R88G-HPG50A213K0B[] | 95 | 185.8 | 92.7 | 142 | 571.9 | |
1/33 | R88G-HPG50A332K0SB[] | 60 | 270.0 *1 | 93.5 | 90 | 849.0 *2 | |
3 kW | 1/5 | R88G-HPG32A054K0B[] | 400 | 66.0 | 92.3 | 600 | 203.8 |
1/11 | R88G-HPG50A115K0B[] | 181 | 146.1 | 92.9 | 272 | 449.2 | |
1/21 | R88G-HPG50A213K0SB[] | 95 | 260.0 *1 | 93.6 | 142 | 849.0 *2 | |
1/25 | R88G-HPG65A253K0SB[] | 80 | 322.9 | 90.3 | 120 | 1011.7 |
Servomotor rated output | Reduction ratio | Model | Decelerator inertia | Allowable radial load | Allowable thrust load | Weight |
---|---|---|---|---|---|---|
× 10-4 kg·m2 | N | N | kg | |||
400 W | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG32A211K5B[] | 3.0 | 1367 | 5448 | 7.9 | |
1/33 | R88G-HPG32A33600SB[] | 2.7 | 1565 | 6240 | 7.9 | |
1/45 | R88G-HPG32A45400SB[] | 2.7 | 1718 | 6848 | 7.9 | |
600 W | 1/5 | R88G-HPG32A052K0B[] | 3.8 | 889 | 3542 | 7.4 |
1/11 | R88G-HPG32A112K0B[] | 3.4 | 1126 | 4488 | 7.9 | |
1/21 | R88G-HPG32A211K5B[] | 3.0 | 1367 | 5448 | 7.9 | |
1/33 | R88G-HPG32A33600SB[] | 2.7 | 1565 | 6240 | 7.9 | |
1/45 | R88G-HPG50A451K5B[] | 4.7 | 4538 | 15694 | 19.0 | |
1 kW | 1/5 | R88G-HPG32A053K0B[] | 3.8 | 889 | 3542 | 7.3 |
1/11 | R88G-HPG32A112K0SB[] | 3.4 | 1126 | 4488 | 7.8 | |
1/21 | R88G-HPG32A211K0SB[] | 2.9 | 1367 | 5448 | 7.8 | |
1/33 | R88G-HPG50A332K0SB[] | 4.7 | 4135 | 14300 | 19.0 | |
1/45 | R88G-HPG50A451K0SB[] | 4.7 | 4538 | 15694 | 19.0 | |
1.5 kW | 1/5 | R88G-HPG32A053K0B[] | 3.8 | 889 | 3542 | 7.3 |
1/11 | R88G-HPG32A112K0SB[] | 3.4 | 1126 | 4488 | 7.8 | |
1/21 | R88G-HPG50A213K0B[] | 5.8 | 3611 | 12486 | 19.0 | |
1/33 | R88G-HPG50A332K0SB[] | 4.7 | 4135 | 14300 | 19.0 | |
2 kW | 1/5 | R88G-HPG32A053K0B[] | 3.8 | 889 | 3542 | 7.3 |
1/11 | R88G-HPG32A112K0SB[] | 3.4 | 1126 | 4488 | 7.8 | |
1/21 | R88G-HPG50A213K0B[] | 5.8 | 3611 | 12486 | 19.0 | |
1/33 | R88G-HPG50A332K0SB[] | 4.7 | 4135 | 14300 | 19.0 | |
3 kW | 1/5 | R88G-HPG32A054K0B[] | 3.8 | 889 | 3542 | 7.9 |
1/11 | R88G-HPG50A115K0B[] | 8.8 | 2974 | 10285 | 19.1 | |
1/21 | R88G-HPG50A213K0SB[] | 6.9 | 3611 | 12486 | 19.1 | |
1/25 | R88G-HPG65A253K0SB[] | 14 | 7846 | 28654 | 52.0 |
*1. The value is the allowable continuous output torque of the Decelerator. Take care so that this value is not exceeded.
*2. The value is the maximum allowable torque of the Decelerator. Take care so that this value is not exceeded.
Note:
1. The Decelerator inertia is the Servomotor shaft conversion value.
2. The protective structure rating of the Servomotor with the Decelerator is IP44.
3. The Allowable radial load column shows the values obtained at the center of the shaft (T/2).
4. The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the model number.
5. Take care so that the surface temperature of the Decelerator does not exceed 70°C.
Servomotor rated output | Reduction ratio | Model | Rated rotation speed | Rated torque | Efficiency | Momentary maximum rotation speed | Momentary maximum torque |
---|---|---|---|---|---|---|---|
r/min | N·m | % | r/min | N·m | |||
900 W | 1/5 | R88G-HPG32A05900TB[] | 200 | 39.8 | 92.6 | 400 | 91.2 |
1/11 | R88G-HPG32A11900TB[] | 90 | 88.7 | 93.9 | 181 | 201.8 | |
1/21 | R88G-HPG50A21900TB[] | 47 | 169.2 | 93.8 | 95 | 385.1 | |
1/33 | R88G-HPG50A33900TB[] | 30 | 267.5 | 94.4 | 60 | 606.8 | |
2 kW | 1/5 | R88G-HPG32A052K0TB[] | 200 | 90.2 | 94.5 | 400 | 227.5 |
1/11 | R88G-HPG50A112K0TB[] | 90 | 198.9 | 94.7 | 181 | 500.9 | |
1/21 | R88G-HPG50A212K0TB[] | 47 | 320.1 *1 | 94.8 | 95 | 849.0 *2 | |
1/25 | R88G-HPG65A255K0SB[] | 40 | 446.7 | 93.6 | 80 | 1133.1 | |
3 kW | 1/5 | R88G-HPG50A055K0SB[] | 200 | 135.4 | 94.4 | 400 | 341.8 |
1/11 | R88G-HPG50A115K0SB[] | 90 | 246.2 *1 | 94.9 | 181 | 754.4 | |
1/20 | R88G-HPG65A205K0SB[] | 50 | 540.4 | 94.2 | 100 | 1366.0 | |
1/25 | R88G-HPG65A255K0SB[] | 40 | 677.1 | 94.4 | 80 | 1709.1 |
Servomotor rated output | Reduction ratio | Model | Decelerator inertia | Allowable radial load | Allowable thrust load | Weight |
---|---|---|---|---|---|---|
× 10-4 kg·m2 | N | N | kg | |||
900 W | 1/5 | R88G-HPG32A05900TB[] | 3.8 | 889 | 3542 | 7.9 |
1/11 | R88G-HPG32A11900TB[] | 3.4 | 1126 | 4488 | 8.4 | |
1/21 | R88G-HPG50A21900TB[] | 7.0 | 3611 | 12486 | 19.1 | |
1/33 | R88G-HPG50A33900TB[] | 5.9 | 4135 | 14300 | 19.1 | |
2 kW | 1/5 | R88G-HPG32A052K0TB[] | 5.2 | 889 | 3542 | 8.90 |
1/11 | R88G-HPG50A112K0TB[] | 8.4 | 2974 | 10285 | 20.1 | |
1/21 | R88G-HPG50A212K0TB[] | 6.5 | 3611 | 12486 | 20.1 | |
1/25 | R88G-HPG65A255K0SB[] | 14 | 7846 | 28654 | 55.4 | |
3 kW | 1/5 | R88G-HPG50A055K0SB[] | 11 | 2347 | 8118 | 22.0 |
1/11 | R88G-HPG50A115K0SB[] | 8.4 | 2974 | 10285 | 23.5 | |
1/20 | R88G-HPG65A205K0SB[] | 14 | 7338 | 26799 | 55.4 | |
1/25 | R88G-HPG65A255K0SB[] | 14 | 7846 | 28654 | 55.4 |
*1. The value is the allowable continuous output torque of the Decelerator. Take care so that this value is not exceeded.
*2. The value is the maximum allowable torque of the Decelerator. Take care so that this value is not exceeded.
Note:
1. The Decelerator inertia is the Servomotor shaft conversion value.
2. The protective structure rating of the Servomotor with the Decelerator is IP44.
3. The Allowable radial load column shows the values obtained at the center of the shaft (T/2).
4. The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the model number.
5. Take care so that the surface temperature of the Decelerator does not exceed 70°C.
Servomotor rated output | Reduction ratio | Model | Rated rotation speed | Rated torque | Efficiency | Momentary maximum rotation speed | Momentary maximum torque |
---|---|---|---|---|---|---|---|
r/min | N·m | % | r/min | N·m | |||
50 W (100 V) | 1/5 | R88G-VRXF05B100CJ | 600 | 0.65 | 82 | 1200 | 1.97 |
1/9 | R88G-VRXF09B100CJ | 333 | 1.17 | 82 | 666 | 3.54 | |
1/15 | R88G-VRXF15B100CJ | 200 | 1.84 | 77 | 400 | 5.54 | |
1/25 | R88G-VRXF25B100CJ | 120 | 3.06 | 77 | 240 | 9.24 | |
50 W (200 V) | 1/5 | R88G-VRXF05B100CJ | 600 | 0.65 | 82 | 1200 | 2.30 |
1/9 | R88G-VRXF09B100CJ | 333 | 1.17 | 82 | 666 | 4.13 | |
1/15 | R88G-VRXF15B100CJ | 200 | 1.84 | 77 | 400 | 6.47 | |
1/25 | R88G-VRXF25B100CJ | 120 | 3.06 | 77 | 240 | 10.78 | |
100 W (100 V) | 1/5 | R88G-VRXF05B100CJ | 600 | 1.43 | 90 | 1200 | 4.28 |
1/9 | R88G-VRXF09B100CJ | 333 | 2.58 | 90 | 667 | 7.70 | |
1/15 | R88G-VRXF15B100CJ | 200 | 4.10 | 86 | 400 | 12.26 | |
1/25 | R88G-VRXF25B100CJ | 120 | 6.84 | 86 | 240 | 20.43 | |
100 W (200 V) | 1/5 | R88G-VRXF05B100CJ | 600 | 1.43 | 90 | 1200 | 5.00 |
1/9 | R88G-VRXF09B100CJ | 333 | 2.58 | 90 | 667 | 8.99 | |
1/15 | R88G-VRXF15B100CJ | 200 | 4.10 | 86 | 400 | 14.32 | |
1/25 | R88G-VRXF25B100CJ | 120 | 6.84 | 86 | 240 | 23.87 | |
200 W (100 V) | 1/5 | R88G-VRXF05B200CJ | 600 | 2.93 | 92 | 1200 | 8.79 |
1/9 | R88G-VRXF09C200CJ | 333 | 4.76 | 83 | 667 | 14.27 | |
1/15 | R88G-VRXF15C200CJ | 200 | 8.22 | 86 | 400 | 24.64 | |
1/25 | R88G-VRXF25C200CJ | 120 | 13.70 | 86 | 240 | 41.07 | |
200 W (200 V) | 1/5 | R88G-VRXF05B200CJ | 600 | 2.93 | 92 | 1200 | 10.12 |
1/9 | R88G-VRXF09C200CJ | 333 | 4.76 | 83 | 667 | 16.43 | |
1/15 | R88G-VRXF15C200CJ | 200 | 8.22 | 86 | 400 | 28.38 | |
1/25 | R88G-VRXF25C200CJ | 120 | 13.70 | 86 | 240 | 47.30 | |
400 W (100 V) | 1/5 | R88G-VRXF05C400CJ | 600 | 5.59 | 88 | 1200 | 16.72 |
1/9 | R88G-VRXF09C400CJ | 333 | 10.06 | 88 | 667 | 30.10 | |
1/15 | R88G-VRXF15C400CJ | 200 | 16.95 | 89 | 400 | 50.73 | |
1/25 | R88G-VRXF25C400CJ | 120 | 28.26 | 89 | 240 | 84.55 | |
400 W (200 V) | 1/5 | R88G-VRXF05C400CJ | 600 | 5.59 | 88 | 1200 | 19.80 |
1/9 | R88G-VRXF09C400CJ | 333 | 10.06 | 88 | 667 | 35.64 | |
1/15 | R88G-VRXF15C400CJ | 200 | 16.95 | 89 | 400 | 60.08 | |
1/25 | R88G-VRXF25C400CJ | 120 | 28.26 | 89 | 240 | 100.13 | |
750 W (200 V) | 1/5 | R88G-VRXF05C750CJ | 600 | 10.99 | 92 | 1200 | 38.64 |
1/9 | R88G-VRXF09D750CJ | 333 | 19.57 | 91 | 667 | 68.80 | |
1/15 | R88G-VRXF15D750CJ | 200 | 31.91 | 89 | 400 | 112.14 | |
1/25 | R88G-VRXF25D750CJ | 120 | 53.18 | 89 | 240 | 186.90 |
Servomotor rated output | Reduction ratio | Model | Decelerator inertia | Allowable radial load | Allowable thrust load | Weight |
---|---|---|---|---|---|---|
× 10-4kg·m2 | N | N | kg | |||
50 W (100 V) | 1/5 | R88G-VRXF05B100CJ | 0.060 | 392 | 196 | 0.55 |
1/9 | R88G-VRXF09B100CJ | 0.050 | 441 | 220 | 0.55 | |
1/15 | R88G-VRXF15B100CJ | 0.053 | 588 | 294 | 0.70 | |
1/25 | R88G-VRXF25B100CJ | 0.051 | 686 | 343 | 0.70 | |
50 W (200 V) | 1/5 | R88G-VRXF05B100CJ | 0.060 | 392 | 196 | 0.55 |
1/9 | R88G-VRXF09B100CJ | 0.050 | 441 | 220 | 0.55 | |
1/15 | R88G-VRXF15B100CJ | 0.053 | 588 | 294 | 0.70 | |
1/25 | R88G-VRXF25B100CJ | 0.051 | 686 | 343 | 0.70 | |
100 W (100 V) | 1/5 | R88G-VRXF05B100CJ | 0.060 | 392 | 196 | 0.55 |
1/9 | R88G-VRXF09B100CJ | 0.050 | 441 | 220 | 0.55 | |
1/15 | R88G-VRXF15B100CJ | 0.053 | 588 | 294 | 0.70 | |
1/25 | R88G-VRXF25B100CJ | 0.051 | 686 | 343 | 0.70 | |
100 W (200 V) | 1/5 | R88G-VRXF05B100CJ | 0.060 | 392 | 196 | 0.55 |
1/9 | R88G-VRXF09B100CJ | 0.050 | 441 | 220 | 0.55 | |
1/15 | R88G-VRXF15B100CJ | 0.053 | 588 | 294 | 0.70 | |
1/25 | R88G-VRXF25B100CJ | 0.051 | 686 | 343 | 0.70 | |
200 W (100 V) | 1/5 | R88G-VRXF05B200CJ | 0.147 | 392 | 196 | 0.72 |
1/9 | R88G-VRXF09C200CJ | 0.237 | 931 | 465 | 1.70 | |
1/15 | R88G-VRXF15C200CJ | 0.302 | 1176 | 588 | 2.10 | |
1/25 | R88G-VRXF25C200CJ | 0.293 | 1323 | 661 | 2.10 | |
200 W (200 V) | 1/5 | R88G-VRXF05B200CJ | 0.147 | 392 | 196 | 0.72 |
1/9 | R88G-VRXF09C200CJ | 0.237 | 931 | 465 | 1.70 | |
1/15 | R88G-VRXF15C200CJ | 0.302 | 1176 | 588 | 2.10 | |
1/25 | R88G-VRXF25C200CJ | 0.293 | 1323 | 661 | 2.10 | |
400 W (100 V) | 1/5 | R88G-VRXF05C400CJ | 0.370 | 784 | 392 | 1.70 |
1/9 | R88G-VRXF09C400CJ | 0.237 | 931 | 465 | 1.70 | |
1/15 | R88G-VRXF15C400CJ | 0.302 | 1176 | 588 | 2.10 | |
1/25 | R88G-VRXF25C400CJ | 0.293 | 1323 | 661 | 2.10 | |
400 W (200 V) | 1/5 | R88G-VRXF05C400CJ | 0.370 | 784 | 392 | 1.70 |
1/9 | R88G-VRXF09C400CJ | 0.237 | 931 | 465 | 1.70 | |
1/15 | R88G-VRXF15C400CJ | 0.302 | 1176 | 588 | 2.10 | |
1/25 | R88G-VRXF25C400CJ | 0.293 | 1323 | 661 | 2.10 | |
750 W (200 V) | 1/5 | R88G-VRXF05C750CJ | 0.817 | 784 | 392 | 2.10 |
1/9 | R88G-VRXF09D750CJ | 0.755 | 1176 | 588 | 3.40 | |
1/15 | R88G-VRXF15D750CJ | 0.686 | 1372 | 686 | 3.80 | |
1/25 | R88G-VRXF25D750CJ | 0.658 | 1617 | 808 | 3.80 |
Note:
1. The Decelerator inertia is the Servomotor shaft conversion value.
2. The protective structure rating of the Servomotor combined with the Decelerator is IP44. (Excluding decelerator and servo motor connecting parts.)
3. The Allowable radial load column shows the values obtained at the center of the shaft (T/2).
4. The standard shaft type is a shaft with key and tap. (The key is temporarily assembled to the shaft.)
5. Take care so that the surface temperature of the Decelerator does not exceed 90°C.
last update: September 3, 2018
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | I821-E1-06 [16436KB] | Dec 10, 201820181210 | 1S Series Catalog |
![]() | I826-E1-01 [1213KB] | Apr 03, 201720170403 | AC Servo System 1S Series Multi-axis setup and tuning FLYER |
last update: December 10, 2018

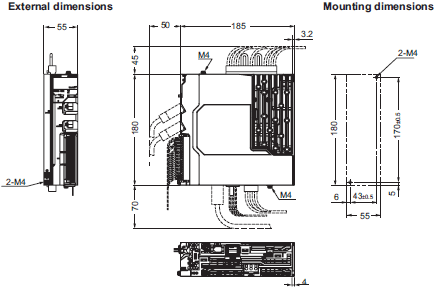

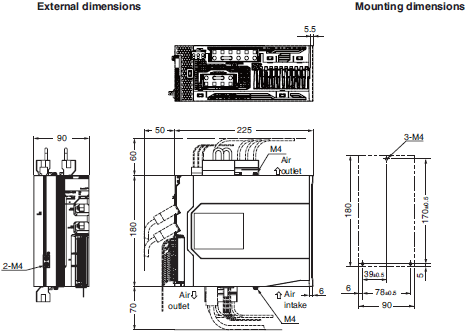

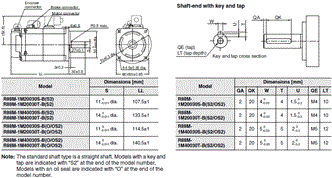

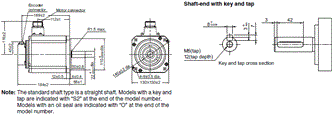

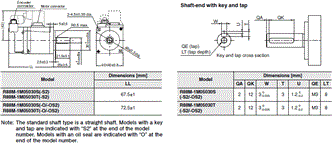

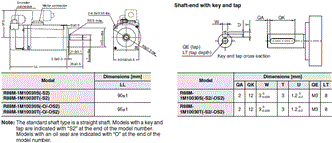

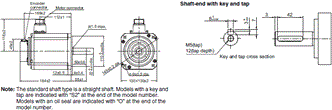

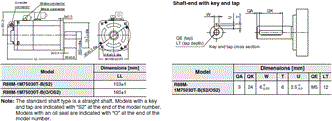

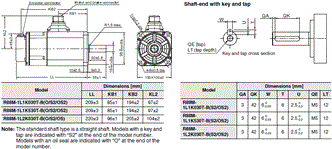

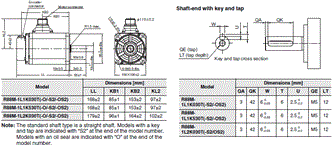

Power supply voltage | Rated output | Model |
---|---|---|
Single-phase 100 VAC | 100 W | R88D-1SN01L-ECT |
200 W | R88D-1SN02L-ECT | |
400 W | R88D-1SN04L-ECT | |
Single-phase/3-phase 200 VAC | 100 W | R88D-1SN01H-ECT |
200 W | R88D-1SN02H-ECT | |
400 W | R88D-1SN04H-ECT | |
750 W | R88D-1SN08H-ECT | |
1.5 kW | R88D-1SN15H-ECT | |
3-phase 200 VAC | 1 kW | R88D-1SN10H-ECT |
2 kW | R88D-1SN20H-ECT | |
3 kW | R88D-1SN30H-ECT | |
3-phase 400 VAC | 600 W | R88D-1SN06F-ECT |
1 kW | R88D-1SN10F-ECT | |
1.5 kW | R88D-1SN15F-ECT | |
2 kW | R88D-1SN20F-ECT | |
3 kW | R88D-1SN30F-ECT |
Specifications | Model | |||
---|---|---|---|---|
Without oil seal | ||||
Straight shaft | With key and tap | |||
Without brake | 100 VAC | 50 W | R88M-1M05030S | R88M-1M05030S-S2 |
100 W | R88M-1M10030S | R88M-1M10030S-S2 | ||
200 W | R88M-1M20030S | R88M-1M20030S-S2 | ||
400 W | R88M-1M40030S | R88M-1M40030S-S2 | ||
200 VAC | 50 W | R88M-1M05030T | R88M-1M05030T-S2 | |
100 W | R88M-1M10030T | R88M-1M10030T-S2 | ||
200 W | R88M-1M20030T | R88M-1M20030T-S2 | ||
400 W | R88M-1M40030T | R88M-1M40030T-S2 | ||
750 W | R88M-1M75030T | R88M-1M75030T-S2 | ||
1 kW | R88M-1L1K030T | R88M-1L1K030T-S2 | ||
1.5 kW | R88M-1L1K530T | R88M-1L1K530T-S2 | ||
2 kW | R88M-1L2K030T | R88M-1L2K030T-S2 | ||
3 kW | R88M-1L3K030T | R88M-1L3K030T-S2 | ||
400 VAC | 750 W | R88M-1L75030C | R88M-1L75030C-S2 | |
1 kW | R88M-1L1K030C | R88M-1L1K030C-S2 | ||
1.5 kW | R88M-1L1K530C | R88M-1L1K530C-S2 | ||
2 kW | R88M-1L2K030C | R88M-1L2K030C-S2 | ||
3 kW | R88M-1L3K030C | R88M-1L3K030C-S2 | ||
With brake | 100 VAC | 50 W | R88M-1M05030S-B | R88M-1M05030S-BS2 |
100 W | R88M-1M10030S-B | R88M-1M10030S-BS2 | ||
200 W | R88M-1M20030S-B | R88M-1M20030S-BS2 | ||
400 W | R88M-1M40030S-B | R88M-1M40030S-BS2 | ||
200 VAC | 50 W | R88M-1M05030T-B | R88M-1M05030T-BS2 | |
100 W | R88M-1M10030T-B | R88M-1M10030T-BS2 | ||
200 W | R88M-1M20030T-B | R88M-1M20030T-BS2 | ||
400 W | R88M-1M40030T-B | R88M-1M40030T-BS2 | ||
750 W | R88M-1M75030T-B | R88M-1M75030T-BS2 | ||
1 kW | R88M-1L1K030T-B | R88M-1L1K030T-BS2 | ||
1.5 kW | R88M-1L1K530T-B | R88M-1L1K530T-BS2 | ||
2 kW | R88M-1L2K030T-B | R88M-1L2K030T-BS2 | ||
3 kW | R88M-1L3K030T-B | R88M-1L3K030T-BS2 | ||
400 VAC | 750 W | R88M-1L75030C-B | R88M-1L75030C-BS2 | |
1 kW | R88M-1L1K030C-B | R88M-1L1K030C-BS2 | ||
1.5 kW | R88M-1L1K530C-B | R88M-1L1K530C-BS2 | ||
2 kW | R88M-1L2K030C-B | R88M-1L2K030C-BS2 | ||
3 kW | R88M-1L3K030C-B | R88M-1L3K030C-BS2 |
Specifications | Model | |||
---|---|---|---|---|
With oil seal | ||||
Straight shaft | With key and tap | |||
Without brake | 100 VAC | 50 W | R88M-1M05030S-O | R88M-1M05030S-OS2 |
100 W | R88M-1M10030S-O | R88M-1M10030S-OS2 | ||
200 W | R88M-1M20030S-O | R88M-1M20030S-OS2 | ||
400 W | R88M-1M40030S-O | R88M-1M40030S-OS2 | ||
200 VAC | 50 W | R88M-1M05030T-O | R88M-1M05030T-OS2 | |
100 W | R88M-1M10030T-O | R88M-1M10030T-OS2 | ||
200 W | R88M-1M20030T-O | R88M-1M20030T-OS2 | ||
400 W | R88M-1M40030T-O | R88M-1M40030T-OS2 | ||
750 W | R88M-1M75030T-O | R88M-1M75030T-OS2 | ||
1 kW | R88M-1L1K030T-O | R88M-1L1K030T-OS2 | ||
1.5 kW | R88M-1L1K530T-O | R88M-1L1K530T-OS2 | ||
2 kW | R88M-1L2K030T-O | R88M-1L2K030T-OS2 | ||
3 kW | R88M-1L3K030T-O | R88M-1L3K030T-OS2 | ||
400 VAC | 750 W | R88M-1L75030C-O | R88M-1L75030C-OS2 | |
1 kW | R88M-1L1K030C-O | R88M-1L1K030C-OS2 | ||
1.5 kW | R88M-1L1K530C-O | R88M-1L1K530C-OS2 | ||
2 kW | R88M-1L2K030C-O | R88M-1L2K030C-OS2 | ||
3 kW | R88M-1L3K030C-O | R88M-1L3K030C-OS2 | ||
With brake | 100 VAC | 50 W | R88M-1M05030S-BO | R88M-1M05030S-BOS2 |
100 W | R88M-1M10030S-BO | R88M-1M10030S-BOS2 | ||
200 W | R88M-1M20030S-BO | R88M-1M20030S-BOS2 | ||
400 W | R88M-1M40030S-BO | R88M-1M40030S-BOS2 | ||
200 VAC | 50 W | R88M-1M05030T-BO | R88M-1M05030T-BOS2 | |
100 W | R88M-1M10030T-BO | R88M-1M10030T-BOS2 | ||
200W | R88M-1M20030T-BO | R88M-1M20030T-BOS2 | ||
400 W | R88M-1M40030T-BO | R88M-1M40030T-BOS2 | ||
750 W | R88M-1M75030T-BO | R88M-1M75030T-BOS2 | ||
1 kW | R88M-1L1K030T-BO | R88M-1L1K030T-BOS2 | ||
1.5 kW | R88M-1L1K530T-BO | R88M-1L1K530T-BOS2 | ||
2 kW | R88M-1L2K030T-BO | R88M-1L2K030T-BOS2 | ||
3 kW | R88M-1L3K030T-BO | R88M-1L3K030T-BOS2 | ||
400 VAC | 750 W | R88M-1L75030C-BO | R88M-1L75030C-BOS2 | |
1 kW | R88M-1L1K030C-BO | R88M-1L1K030C-BOS2 | ||
1.5 kW | R88M-1L1K530C-BO | R88M-1L1K530C-BOS2 | ||
2 kW | R88M-1L2K030C-BO | R88M-1L2K030C-BOS2 | ||
3 kW | R88M-1L3K030C-BO | R88M-1L3K030C-BOS2 |

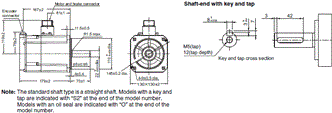

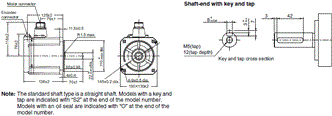

Specifications | Model | |||
---|---|---|---|---|
Without oil seal | ||||
Straight shaft | With key and tap | |||

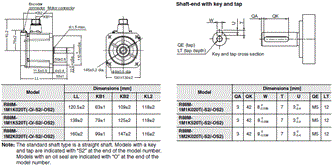

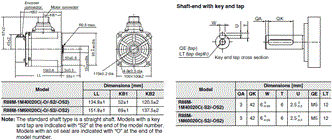

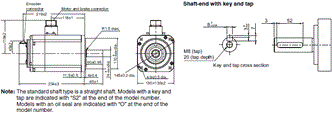

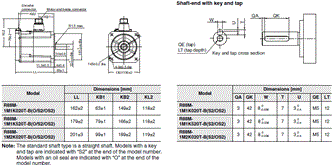

Without brake | 200 VAC | 1 kW | R88M-1M1K020T | R88M-1M1K020T-S2 |
1.5 kW | R88M-1M1K520T | R88M-1M1K520T-S2 | ||
2 kW | R88M-1M2K020T | R88M-1M2K020T-S2 | ||
3 kW | R88M-1M3K020T | R88M-1M3K020T-S2 | ||

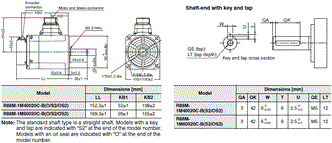

400 VAC | 400 W | R88M-1M40020C | R88M-1M40020C-S2 | |
600 W | R88M-1M60020C | R88M-1M60020C-S2 | ||

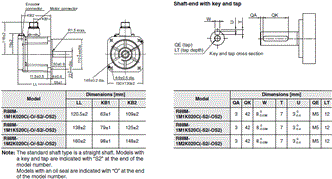

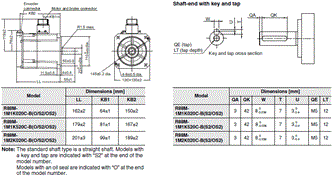

1 kW | R88M-1M1K020C | R88M-1M1K020C-S2 | ||
1.5 kW | R88M-1M1K520C | R88M-1M1K520C-S2 | ||
2 kW | R88M-1M2K020C | R88M-1M2K020C-S2 | ||

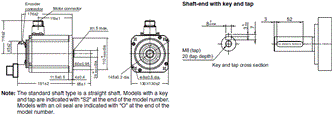

3 kW | R88M-1M3K020C | R88M-1M3K020C-S2 | ||
With brake | 200 VAC | 1 kW | R88M-1M1K020T-B | R88M-1M1K020T-BS2 |
1.5 kW | R88M-1M1K520T-B | R88M-1M1K520T-BS2 | ||
2 kW | R88M-1M2K020T-B | R88M-1M2K020T-BS2 | ||
3 kW | R88M-1M3K020T-B | R88M-1M3K020T-BS2 | ||
400 VAC | 400 W | R88M-1M40020C-B | R88M-1M40020C-BS2 | |
600 W | R88M-1M60020C-B | R88M-1M60020C-BS2 | ||
1 kW | R88M-1M1K020C-B | R88M-1M1K020C-BS2 | ||
1.5 kW | R88M-1M1K520C-B | R88M-1M1K520C-BS2 | ||
2 kW | R88M-1M2K020C-B | R88M-1M2K020C-BS2 | ||
3 kW | R88M-1M3K020C-B | R88M-1M3K020C-BS2 |
Specifications | Model | |||
---|---|---|---|---|
With oil seal | ||||
Straight shaft | With key and tap | |||
Without brake | 200 VAC | 1 kW | R88M-1M1K020T-O | R88M-1M1K020T-OS2 |
1.5 kW | R88M-1M1K520T-O | R88M-1M1K520T-OS2 | ||
2 kW | R88M-1M2K020T-O | R88M-1M2K020T-OS2 | ||
3 kW | R88M-1M3K020T-O | R88M-1M3K020T-OS2 | ||
400 VAC | 400 W | R88M-1M40020C-O | R88M-1M40020C-OS2 | |
600 W | R88M-1M60020C-O | R88M-1M60020C-OS2 | ||
1 kW | R88M-1M1K020C-O | R88M-1M1K020C-OS2 | ||
1.5 kW | R88M-1M1K520C-O | R88M-1M1K520C-OS2 | ||
2 kW | R88M-1M2K020C-O | R88M-1M2K020C-OS2 | ||
3 kW | R88M-1M3K020C-O | R88M-1M3K020C-OS2 | ||
With brake | 200 VAC | 1 kW | R88M-1M1K020T-BO | R88M-1M1K020T-BOS2 |
1.5 kW | R88M-1M1K520T-BO | R88M-1M1K520T-BOS2 | ||
2 kW | R88M-1M2K020T-BO | R88M-1M2K020T-BOS2 | ||
3 kW | R88M-1M3K020T-BO | R88M-1M3K020T-BOS2 | ||
400 VAC | 400 W | R88M-1M40020C-BO | R88M-1M40020C-BOS2 | |
600 W | R88M-1M60020C-BO | R88M-1M60020C-BOS2 | ||
1 kW | R88M-1M1K020C-BO | R88M-1M1K020C-BOS2 | ||
1.5 kW | R88M-1M1K520C-BO | R88M-1M1K520C-BOS2 | ||
2 kW | R88M-1M2K020C-BO | R88M-1M2K020C-BOS2 | ||
3 kW | R88M-1M3K020C-BO | R88M-1M3K020C-BOS2 |

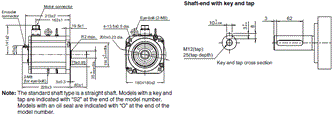

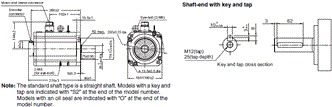

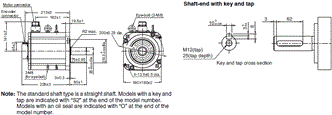

Specifications | Model | |||
---|---|---|---|---|
Without oil seal | ||||
Straight shaft | With key and tap | |||

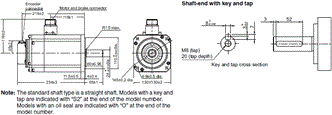

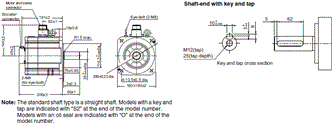

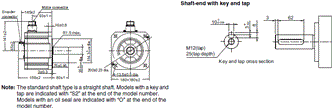

Without brake | 200 VAC | 900 W | R88M-1M90010T | R88M-1M90010T-S2 |
2 kW | R88M-1M2K010T | R88M-1M2K010T-S2 | ||
3 kW | R88M-1M3K010T | R88M-1M3K010T-S2 | ||
400 VAC | 900 W | R88M-1M90010C | R88M-1M90010C-S2 | |
2 kW | R88M-1M2K010C | R88M-1M2K010C-S2 | ||
3 kW | R88M-1M3K010C | R88M-1M3K010C-S2 | ||
With brake | 200 VAC | 900 W | R88M-1M90010T-B | R88M-1M90010T-BS2 |
2 kW | R88M-1M2K010T-B | R88M-1M2K010T-BS2 | ||
3 kW | R88M-1M3K010T-B | R88M-1M3K010T-BS2 | ||
400 VAC | 900 W | R88M-1M90010C-B | R88M-1M90010C-BS2 | |
2 kW | R88M-1M2K010C-B | R88M-1M2K010C-BS2 | ||
3 kW | R88M-1M3K010C-B | R88M-1M3K010C-BS2 |
Specifications | Model | |||
---|---|---|---|---|
With oil seal | ||||
Straight shaft | With key and tap | |||
Without brake | 200 VAC | 900 W | R88M-1M90010T-O | R88M-1M90010T-OS2 |
2 kW | R88M-1M2K010T-O | R88M-1M2K010T-OS2 | ||
3 kW | R88M-1M3K010T-O | R88M-1M3K010T-OS2 | ||
400 VAC | 900 W | R88M-1M90010C-O | R88M-1M90010C-OS2 | |
2 kW | R88M-1M2K010C-O | R88M-1M2K010C-OS2 | ||
3 kW | R88M-1M3K010C-O | R88M-1M3K010C-OS2 | ||
With brake | 200 VAC | 900 W | R88M-1M90010T-BO | R88M-1M90010T-BOS2 |
2 kW | R88M-1M2K010T-BO | R88M-1M2K010T-BOS2 | ||
3 kW | R88M-1M3K010T-BO | R88M-1M3K010T-BOS2 | ||
400 VAC | 900 W | R88M-1M90010C-BO | R88M-1M90010C-BOS2 | |
2 kW | R88M-1M2K010C-BO | R88M-1M2K010C-BOS2 | ||
3 kW | R88M-1M3K010C-BO | R88M-1M3K010C-BOS2 |

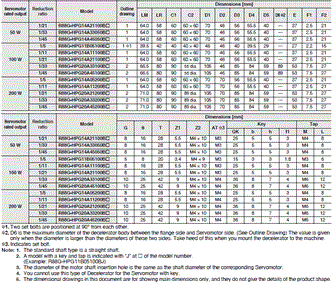

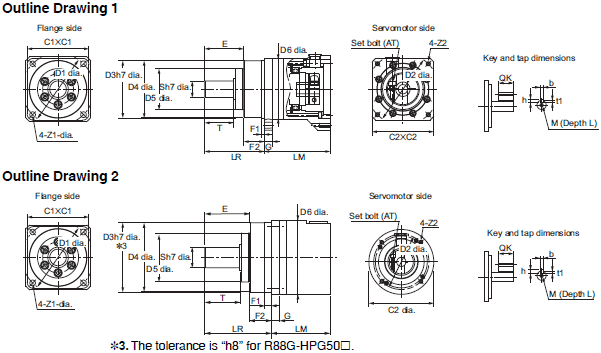

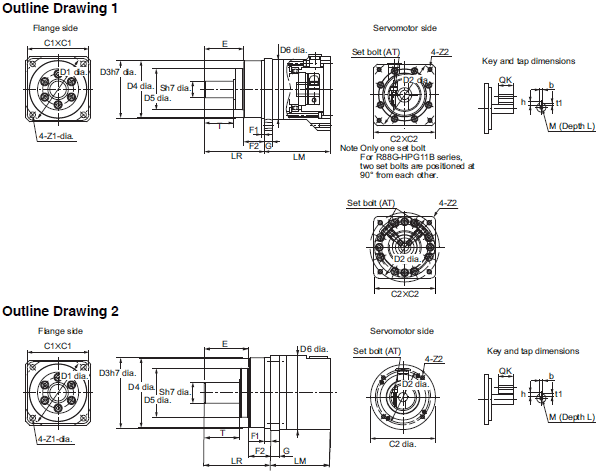

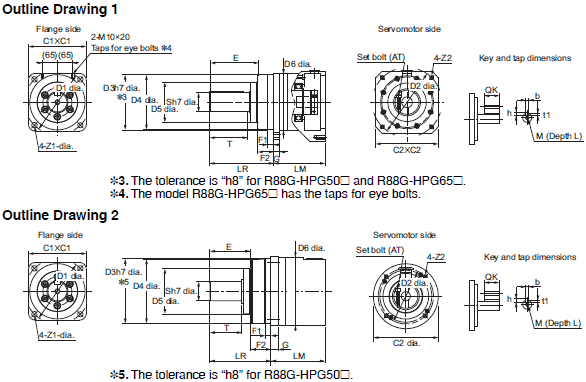

Servomotor rated output | Reduction ratio | Model (Straight shaft) * |
---|---|---|
50 W | 1/21 | R88G-HPG14A21100B[] |
1/33 | R88G-HPG14A33050B[] | |
1/45 | R88G-HPG14A45050B[] | |
100 W | 1/5 | R88G-HPG11B05100B[] |
1/11 | R88G-HPG14A11100B[] | |
1/21 | R88G-HPG14A21100B[] | |
1/33 | R88G-HPG20A33100B[] | |
1/45 | R88G-HPG20A45100B[] | |
200 W | 1/5 | R88G-HPG14A05200B[] |
1/11 | R88G-HPG14A11200B[] | |
1/21 | R88G-HPG20A21200B[] | |
1/33 | R88G-HPG20A33200B[] | |
1/45 | R88G-HPG20A45200B[] | |
400 W | 1/5 | R88G-HPG14A05400B[] |
1/11 | R88G-HPG20A11400B[] | |
1/21 | R88G-HPG20A21400B[] | |
1/33 | R88G-HPG32A33400B[] | |
1/45 | R88G-HPG32A45400B[] | |
750 W (200 V) | 1/5 | R88G-HPG20A05750B[] |
1/11 | R88G-HPG20A11750B[] | |
1/21 | R88G-HPG32A21750B[] | |
1/33 | R88G-HPG32A33750B[] | |
1/45 | R88G-HPG32A45750B[] | |
750 W (400 V) | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG32A211K5B[] | |
1/33 | R88G-HPG32A33600SB[] | |
1/45 | R88G-HPG50A451K5B[] | |
1 kW | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG32A211K5B[] | |
1/33 | R88G-HPG50A332K0B[] | |
1/45 | R88G-HPG50A451K5B[] | |
1.5 kW | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG32A211K5B[] | |
1/33 | R88G-HPG50A332K0B[] | |
1/45 | R88G-HPG50A451K5B[] | |
2 kW | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG50A212K0B[] | |
1/33 | R88G-HPG50A332K0B[] | |
3 kW | 1/5 | R88G-HPG32A053K0B[] |
1/11 | R88G-HPG50A113K0B[] | |
1/21 | R88G-HPG50A213K0B[] |
* The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the Decelerator model number.
e.g. R88G-HPG11B05100BJ

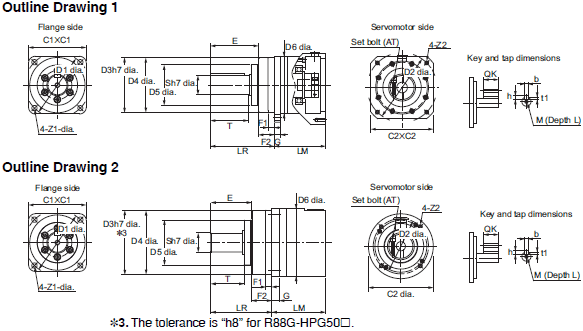

Servomotor rated output | Reduction ratio | Model (Straight shaft) * |
---|---|---|
400 W | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG32A211K5B[] | |
1/33 | R88G-HPG32A33600SB[] | |
1/45 | R88G-HPG32A45400SB[] | |
600 W | 1/5 | R88G-HPG32A052K0B[] |
1/11 | R88G-HPG32A112K0B[] | |
1/21 | R88G-HPG32A211K5B[] | |
1/33 | R88G-HPG32A33600SB[] | |
1/45 | R88G-HPG50A451K5B[] | |
1 kW | 1/5 | R88G-HPG32A053K0B[] |
1/11 | R88G-HPG32A112K0SB[] | |
1/21 | R88G-HPG32A211K0SB[] | |
1/33 | R88G-HPG50A332K0SB[] | |
1/45 | R88G-HPG50A451K0SB[] | |
1.5 kW | 1/5 | R88G-HPG32A053K0B[] |
1/11 | R88G-HPG32A112K0SB[] | |
1/21 | R88G-HPG50A213K0B[] | |
1/33 | R88G-HPG50A332K0SB[] | |
2 kW | 1/5 | R88G-HPG32A053K0B[] |
1/11 | R88G-HPG32A112K0SB[] | |
1/21 | R88G-HPG50A213K0B[] | |
1/33 | R88G-HPG50A332K0SB[] | |
3 kW | 1/5 | R88G-HPG32A054K0B[] |
1/11 | R88G-HPG50A115K0B[] | |
1/21 | R88G-HPG50A213K0SB[] | |
1/25 | R88G-HPG65A253K0SB[] |
* The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the Decelerator model number.
e.g. R88G-HPG11B05100BJ
Servomotor rated output | Reduction ratio | Model (Straight shaft) * |
---|---|---|
900 W | 1/5 | R88G-HPG32A05900TB[] |
1/11 | R88G-HPG32A11900TB[] | |
1/21 | R88G-HPG50A21900TB[] | |
1/33 | R88G-HPG50A33900TB[] | |
2 kW | 1/5 | R88G-HPG32A052K0TB[] |
1/11 | R88G-HPG50A112K0TB[] | |
1/21 | R88G-HPG50A212K0TB[] | |
1/25 | R88G-HPG65A255K0SB[] | |
3 kW | 1/5 | R88G-HPG50A055K0SB[] |
1/11 | R88G-HPG50A115K0SB[] | |
1/20 | R88G-HPG65A205K0SB[] | |
1/25 | R88G-HPG65A255K0SB[] |
* The standard shaft type is a straight shaft. A model with a key and tap is indicated with “J” at [] of the Decelerator model number.
e.g. R88G-HPG11B05100BJ
Servomotor rated output | Reduction ratio | Model |
---|---|---|
50 W | 1/5 | R88G-VRXF05B100CJ |
1/9 | R88G-VRXF09B100CJ | |
1/15 | R88G-VRXF15B100CJ | |
1/25 | R88G-VRXF25B100CJ | |
100 W | 1/5 | R88G-VRXF05B100CJ |
1/9 | R88G-VRXF09B100CJ | |
1/15 | R88G-VRXF15B100CJ | |
1/25 | R88G-VRXF25B100CJ | |
200 W | 1/5 | R88G-VRXF05B200CJ |
1/9 | R88G-VRXF09C200CJ | |
1/15 | R88G-VRXF15C200CJ | |
1/25 | R88G-VRXF25C200CJ | |
400 W | 1/5 | R88G-VRXF05C400CJ |
1/9 | R88G-VRXF09C400CJ | |
1/15 | R88G-VRXF15C400CJ | |
1/25 | R88G-VRXF25C400CJ | |
750 W (200 V) | 1/5 | R88G-VRXF05C750CJ |
1/9 | R88G-VRXF09D750CJ | |
1/15 | R88G-VRXF15D750CJ | |
1/25 | R88G-VRXF25D750CJ |
Applicable Servomotor | Model | ||
---|---|---|---|
100 V 200 V | 3,000-r/min Servomotors of 50W, 100 W, 200 W, 400 W, and 750 W | 3 m | R88A-CR1A003C |
5 m | R88A-CR1A005C | ||
10 m | R88A-CR1A010C | ||
15 m | R88A-CR1A015C | ||
20 m | R88A-CR1A020C | ||
30 m | R88A-CR1A030C | ||
40 m | R88A-CR1A040C | ||
50 m | R88A-CR1A050C | ||
200 V 400 V | 200 V: 3,000-r/min Servomotors of 1 kW or more 2,000-r/min Servomotors 1,000-r/min Servomotors 400 V: 3,000-r/min Servomotors 2,000-r/min Servomotors 1,000-r/min Servomotors | 3 m | R88A-CR1B003N |
5 m | R88A-CR1B005N | ||
10 m | R88A-CR1B010N | ||
15 m | R88A-CR1B015N | ||
20 m | R88A-CR1B020N | ||
30 m | R88A-CR1B030N | ||
40 m | R88A-CR1B040N | ||
50 m | R88A-CR1B050N |
Applicable Servomotor | Model | ||
---|---|---|---|
100 V 200 V | 3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W * | 3 m | R88A-CA1A003B |
5 m | R88A-CA1A005B | ||
10 m | R88A-CA1A010B | ||
15 m | R88A-CA1A015B | ||
20 m | R88A-CA1A020B | ||
30 m | R88A-CA1A030B | ||
40 m | R88A-CA1A040B | ||
50 m | R88A-CA1A050B |
* The Servomotors of 50 W are exempt from the applicable Servomotors. Use these combinations with caution.
Applicable Servomotor | Without brake wire | With brake wire | ||
---|---|---|---|---|
Model | Model | |||
100 V 200 V | 3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W * | 3 m | R88A-CA1A003S | --- |
5 m | R88A-CA1A005S | --- | ||
10 m | R88A-CA1A010S | --- | ||
15 m | R88A-CA1A015S | --- | ||
20 m | R88A-CA1A020S | --- | ||
30 m | R88A-CA1A030S | --- | ||
40 m | R88A-CA1A040S | --- | ||
50 m | R88A-CA1A050S | --- | ||
200 V | 3,000-r/min Servomotors of 1 kW 2,000-r/min Servomotors of 1 kW 1,000-r/min Servomotors of 900 W | 3 m | R88A-CA1B003S | R88A-CA1B003B |
5 m | R88A-CA1B005S | R88A-CA1B005B | ||
10 m | R88A-CA1B010S | R88A-CA1B010B | ||
15 m | R88A-CA1B015S | R88A-CA1B015B | ||
20 m | R88A-CA1B020S | R88A-CA1B020B | ||
30 m | R88A-CA1B030S | R88A-CA1B030B | ||
40 m | R88A-CA1B040S | R88A-CA1B040B | ||
50 m | R88A-CA1B050S | R88A-CA1B050B | ||
200V | 3,000-r/min Servomotors of 1.5 kW 2,000-r/min Servomotors of 1.5 kW | 3 m | R88A-CA1C003S | R88A-CA1C003B |
5 m | R88A-CA1C005S | R88A-CA1C005B | ||
10 m | R88A-CA1C010S | R88A-CA1C010B | ||
15 m | R88A-CA1C015S | R88A-CA1C015B | ||
20 m | R88A-CA1C020S | R88A-CA1C020B | ||
30 m | R88A-CA1C030S | R88A-CA1C030B | ||
40 m | R88A-CA1C040S | R88A-CA1C040B | ||
50 m | R88A-CA1C050S | R88A-CA1C050B | ||
400 V | 3,000-r/min Servomotors of 750 W, 1 kW, 1.5 kW, and 2 kW 2,000-r/min Servomotors of 400 W, 600 W, 1 kW, 1.5 kW, and 2 kW 1,000-r/min Servomotors of 900 W | 3 m | R88A-CA1C003S | R88A-CA1D003B |
5 m | R88A-CA1C005S | R88A-CA1D005B | ||
10 m | R88A-CA1C010S | R88A-CA1D010B | ||
15 m | R88A-CA1C015S | R88A-CA1D015B | ||
20 m | R88A-CA1C020S | R88A-CA1D020B | ||
30 m | R88A-CA1C030S | R88A-CA1D030B | ||
40 m | R88A-CA1C040S | R88A-CA1D040B | ||
50 m | R88A-CA1C050S | R88A-CA1D050B | ||
200 V 400 V | 3,000-r/min Servomotors of 2 kW (200 V) and 3 kW (200 V/400 V) 2,000-r/min Servomotors of 2 kW (200 V) and 3 kW (200 V/400 V) 1,000-r/min Servomotors of 2 kW (200 V/400 V) and 3 kW (400 V) | 3 m | R88A-CA1E003S | R88A-CA1E003B |
5 m | R88A-CA1E005S | R88A-CA1E005B | ||
10 m | R88A-CA1E010S | R88A-CA1E010B | ||
15 m | R88A-CA1E015S | R88A-CA1E015B | ||
20 m | R88A-CA1E020S | R88A-CA1E020B | ||
30 m | R88A-CA1E030S | R88A-CA1E030B | ||
40 m | R88A-CA1E040S | R88A-CA1E040B | ||
50 m | R88A-CA1E050S | R88A-CA1E050B | ||
200 V | 1,000-r/min Servomotors of 3 kW | 3 m | R88A-CA1F003S | R88A-CA1F003B |
5 m | R88A-CA1F005S | R88A-CA1F005B | ||
10 m | R88A-CA1F010S | R88A-CA1F010B | ||
15 m | R88A-CA1F015S | R88A-CA1F015B | ||
20 m | R88A-CA1F020S | R88A-CA1F020B | ||
30 m | R88A-CA1F030S | R88A-CA1F030B | ||
40 m | R88A-CA1F040S | R88A-CA1F040B | ||
50 m | R88A-CA1F050S | R88A-CA1F050B |
* The Servomotors of 50 W are exempt from the applicable Servomotors. Use these combinations with caution.
Applicable Servomotor | Model | ||
---|---|---|---|
100 V 200 V | 3,000-r/min Servomotors of 50W, 100 W, 200 W, 400 W, and 750 W | 3 m | R88A-CR1A003CF |
5 m | R88A-CR1A005CF | ||
10 m | R88A-CR1A010CF | ||
15 m | R88A-CR1A015CF | ||
20 m | R88A-CR1A020CF | ||
30 m | R88A-CR1A030CF | ||
40 m | R88A-CR1A040CF | ||
50 m | R88A-CR1A050CF | ||
200 V 400 V | 200 V: 3,000-r/min Servomotors of 1 kW or more For 2,000-r/min Servomotors For 1,000-r/min Servomotors 400 V: 3,000-r/min Servomotors 2,000-r/min Servomotors 1,000-r/min Servomotors | 3 m | R88A-CR1B003NF |
5 m | R88A-CR1B005NF | ||
10 m | R88A-CR1B010NF | ||
15 m | R88A-CR1B015NF | ||
20 m | R88A-CR1B020NF | ||
30 m | R88A-CR1B030NF | ||
40 m | R88A-CR1B040NF | ||
50 m | R88A-CR1B050NF |
Applicable Servomotor | Model | ||
---|---|---|---|
100 V 200 V | 3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W * | 3 m | R88A-CA1A003BF |
5 m | R88A-CA1A005BF | ||
10 m | R88A-CA1A010BF | ||
15 m | R88A-CA1A015BF | ||
20 m | R88A-CA1A020BF | ||
30 m | R88A-CA1A030BF | ||
40 m | R88A-CA1A040BF | ||
50 m | R88A-CA1A050BF |
* The Servomotors of 50 W are exempt from the applicable Servomotors. Use these combinations with caution.
Applicable Servomotor | Without brake wire | With brake wire | ||
---|---|---|---|---|
Model | Model | |||
100 V 200 V | 3,000-r/min Servomotors of 100 W, 200 W, 400 W, and 750 W * | 3 m | R88A-CA1A003SF | --- |
5 m | R88A-CA1A005SF | --- | ||
10 m | R88A-CA1A010SF | --- | ||
15 m | R88A-CA1A015SF | --- | ||
20 m | R88A-CA1A020SF | --- | ||
30 m | R88A-CA1A030SF | --- | ||
40 m | R88A-CA1A040SF | --- | ||
50 m | R88A-CA1A050SF | --- | ||
200 V | 3,000-r/min Servomotors of 1 kW 2,000-r/min Servomotors of 1 kW 1,000-r/min Servomotors of 900 W | 3 m | R88A-CA1B003SF | R88A-CA1B003BF |
5 m | R88A-CA1B005SF | R88A-CA1B005BF | ||
10 m | R88A-CA1B010SF | R88A-CA1B010BF | ||
15 m | R88A-CA1B015SF | R88A-CA1B015BF | ||
20 m | R88A-CA1B020SF | R88A-CA1B020BF | ||
30 m | R88A-CA1B030SF | R88A-CA1B030BF | ||
40 m | R88A-CA1B040SF | R88A-CA1B040BF | ||
50 m | R88A-CA1B050SF | R88A-CA1B050BF | ||
200 V | 3,000-r/min Servomotors of 1.5 kW 2,000-r/min Servomotors of 1.5 kW | 3 m | R88A-CA1C003SF | R88A-CA1C003BF |
5 m | R88A-CA1C005SF | R88A-CA1C005BF | ||
10 m | R88A-CA1C010SF | R88A-CA1C010BF | ||
15 m | R88A-CA1C015SF | R88A-CA1C015BF | ||
20 m | R88A-CA1C020SF | R88A-CA1C020BF | ||
30 m | R88A-CA1C030SF | R88A-CA1C030BF | ||
40 m | R88A-CA1C040SF | R88A-CA1C040BF | ||
50 m | R88A-CA1C050SF | R88A-CA1C050BF | ||
400 V | 3,000-r/min Servomotors of 750 W, 1 kW, 1.5 kW, and 2 kW 2,000-r/min Servomotors of 400 W, 600 W, 1 kW, 1.5 kW, and 2 kW 1,000-r/min Servomotors of 900 W | 3 m | R88A-CA1C003SF | R88A-CA1D003BF |
5 m | R88A-CA1C005SF | R88A-CA1D005BF | ||
10 m | R88A-CA1C010SF | R88A-CA1D010BF | ||
15 m | R88A-CA1C015SF | R88A-CA1D015BF | ||
20 m | R88A-CA1C020SF | R88A-CA1D020BF | ||
30 m | R88A-CA1C030SF | R88A-CA1D030BF | ||
40 m | R88A-CA1C040SF | R88A-CA1D040BF | ||
50 m | R88A-CA1C050SF | R88A-CA1D050BF | ||
200 V 400 V | 3,000-r/min Servomotors of 2 kW (200 V) and 3 kW (200 V/400 V) 2,000-r/min Servomotors of 2 kW (200 V) and 3 kW (200 V/400 V) 1,000-r/min Servomotors of 2 kW (200 V/400 V) and 3 kW (400 V) | 3 m | R88A-CA1E003SF | R88A-CA1E003BF |
5 m | R88A-CA1E005SF | R88A-CA1E005BF | ||
10 m | R88A-CA1E010SF | R88A-CA1E010BF | ||
15 m | R88A-CA1E015SF | R88A-CA1E015BF | ||
20 m | R88A-CA1E020SF | R88A-CA1E020BF | ||
30 m | R88A-CA1E030SF | R88A-CA1E030BF | ||
40 m | R88A-CA1E040SF | R88A-CA1E040BF | ||
50 m | R88A-CA1E050SF | R88A-CA1E050BF | ||
200 V | The Servomotors of 50 W are exempt from the applicable Servomotors. Use these combinatio | 3 m | R88A-CA1F003SF | R88A-CA1F003BF |
5 m | R88A-CA1F005SF | R88A-CA1F005BF | ||
10 m | R88A-CA1F010SF | R88A-CA1F010BF | ||
15 m | R88A-CA1F015SF | R88A-CA1F015BF | ||
20 m | R88A-CA1F020SF | R88A-CA1F020BF | ||
30 m | R88A-CA1F030SF | R88A-CA1F030BF | ||
40 m | R88A-CA1F040SF | R88A-CA1F040BF | ||
50 m | R88A-CA1F050SF | R88A-CA1F050BF |
* The Servomotors of 50 W are exempt from the applicable Servomotors. Use these combination.
When you use the brake cable with cable on non-load side such as R88A-CA1A[][][]BFR, use it in combination with the motor power cable with cable on non-load side such as R88A-CA1A[][][]SFR.
Applicable Servomotor | Model | ||
---|---|---|---|
100 V 200 V | 3000-r/min Servomotors of 50 W, 200 W, 400 W, 750 W * | 3 m | R88A-CA1A003BFR |
5 m | R88A-CA1A005BFR | ||
10 m | R88A-CA1A010BFR | ||
15 m | R88A-CA1A015BFR | ||
20 m | R88A-CA1A020BFR |
* The Servomotors of 100 W are exempt from the applicable Servomotors. Use these combinations with caution.
When you use the motor power cable with cable on non-load side such as R88A-CA1A[][][]SFR and the brake cable together, use the brake cable with cable on non-load side such as R88A-CA1A[][][]BFR.
Applicable Servomotor | Without brake wire | With brake wire | ||
---|---|---|---|---|
Model | Model | |||
100 V 200 V | 3000-r/min Servomotors of 50 W, 200 W, 400 W, 750 W * | 3 m | R88A-CA1A003SFR | --- |
5 m | R88A-CA1A005SFR | --- | ||
10 m | R88A-CA1A010SFR | --- | ||
15 m | R88A-CA1A015SFR | --- | ||
20 m | R88A-CA1A020SFR | --- |
* The Servomotors of 100 W are exempt from the applicable Servomotors. Use these combinations with caution.
Use a straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.
Item | Appearance | Recommended manufacturer | Cable length [m] | Model |
---|---|---|---|---|
Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs type *1 Wire gauge and number of pairs: AWG26, 4-pair cable Cable sheath material: LSZH *2 Cable color: Yellow *3 | ![]() | OMRON | 0.3 | XS6W-6LSZH8SS30CM-Y |
0.5 | XS6W-6LSZH8SS50CM-Y | |||
1 | XS6W-6LSZH8SS100CM-Y | |||
2 | XS6W-6LSZH8SS200CM-Y | |||
3 | XS6W-6LSZH8SS300CM-Y | |||
5 | XS6W-6LSZH8SS500CM-Y | |||
Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs type *1 Wire gauge and number of pairs: AWG22, 2-pair cable Cable color: Light blue | ![]() | OMRON | 0.3 | XS5W-T421-AMD-K |
0.5 | XS5W-T421-BMD-K | |||
1 | XS5W-T421-CMD-K | |||
2 | XS5W-T421-DMD-K | |||
5 | XS5W-T421-GMD-K | |||
10 | XS5W-T421-JMD-K | |||
Cable with Connectors on Both Ends (M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair cable Cable color: Black | ![]() | OMRON | 0.5 | XS5W-T421-BM2-SS |
1 | XS5W-T421-CM2-SS | |||
2 | XS5W-T421-DM2-SS | |||
3 | XS5W-T421-EM2-SS | |||
5 | XS5W-T421-GM2-SS | |||
10 | XS5W-T421-JM2-SS | |||
Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair cable Cable color: Black | ![]() | OMRON | 0.5 | XS5W-T421-BMC-SS |
1 | XS5W-T421-CMC-SS | |||
2 | XS5W-T421-DMC-SS | |||
3 | XS5W-T421-EMC-SS | |||
5 | XS5W-T421-GMC-SS | |||
10 | XS5W-T421-JMC-SS |
*1. Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available.
For details, refer to Cat.No.G019.
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use. Although
the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cables colors are available in blue, yellow, or Green.
*4. For details, contact your OMRON representative.
Item | Appearance | Recommended manufacturer | Model |
---|---|---|---|
Cables | --- | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 × 4P CP * |
--- | Kuramo Electric Co. | KETH-SB * | |
--- | SWCC Showa Cable Systems Co. | FAE-5004 * | |
RJ45 Connectors | --- | Panduit Corporation | MPS588-C * |
* We recommend you to use above cable and connector together.
Item | Appearance | Recommended manufacturer | Model |
---|---|---|---|
Cables | --- | Kuramo Electric Co. | KETH-PSB-OMR *1 |
--- | JMACS Japan Co., Ltd. | PNET/B *1 | |
RJ45 Assembly Connector | ![]() | OMRON | XS6G-T421-1 *1 |
* We recommend you to use above cable and connector together.
One of each of servo drive side connectors (except the encoder connector) are included with the R88D-1SN[]-ECT AC Servo Drive.
All connecters are also available separately for maintenance.
Name and applications | Model |
---|---|
Main circuit connector (CNA) *1 For R88D-1SN01L-ECT/-1SN02L-ECT/-1SN04L-ECT/-1SN01H-ECT/-1SN02H-ECT/ -1SN04H-ECT/-1SN08H-ECT/-1SN10H-ECT | R88A-CN102P *4 |
Main circuit connector A (CNA) *2 For R88D-1SN15H-ECT/-1SN20H-ECT/-1SN30H-ECT/-1SN06F-ECT/-1SN10F-ECT/ -1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT | R88A-CN103P *4 |
Main circuit connector B (CNB) *2 For R88D-1SN15H-ECT/-1SN20H-ECT/-1SN30H-ECT/-1SN06F-ECT/-1SN10F-ECT/ -1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT | R88A-CN104P *4 |
Motor connector (CNC) For R88D-1SN01L-ECT/-1SN02L-ECT/-1SN04L-ECT/-1SN01H-ECT/-1SN02H-ECT/ -1SN04H-ECT/-1SN08H-ECT/-1SN10H-ECT | R88A-CN101A *4 |
Motor connector (CNC) For R88D-1SN15H-ECT/-1SN20H-ECT/-1SN30H-ECT/-1SN06F-ECT/-1SN10F-ECT/ -1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT | R88A-CN102A *4 |
Control power supply connector (CND) For R88D-1SN15H-ECT/-1SN20H-ECT/-1SN30H-ECT/-1SN06F-ECT/-1SN10F-ECT/ -1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT | R88A-CN101P *4 |
Control I/O connector (CN1) *3 | R88A-CN101C |
Encoder connector (CN2) | R88A-CN101R |
Brake interlock connector (CN12) | R88A-CN101B |
*1. Two short-circuit wires are connected to the connector.
*2. One short-circuit wire is connected to the connector.
*3. Four short-circuit wires are connected to the connector.
*4. One opener is included.
Name and applications | Model | ||
---|---|---|---|
Encoder connector | 100 V, 200 V | For 3,000 r/min (50 to 750 W) | R88A-CNK02R |
100 V, 200 V | For 3,000 r/min (1 to 3 kW), 2,000 r/min, 1,000 r/min | R88A-CN104R | |
400 V | For 3,000 r/min, 2,000 r/min, 1,000 r/min | ||
Power connector (For 750 W max.) * | R88A-CN111A | ||
Brake connector (For 750 W max.) | R88A-CN111B |
* This connector is used for power cables with cable on load side such as R88A-CA1A[][][]S and R88A-CA1A[]SF. This
connector cannot be used for power cables with cable on non-load side such as R88A-CA1A[]SFR.
Applicable Servo Drive | Specifications | Model |
---|---|---|
R88D-1SN01L-ECT/-1SN02L-ECT | Regeneration process capacity: 24 W, 15 Ω | R88A-RR12015 |
R88D-1SN01H-ECT/-1SN02H-ECT | Regeneration process capacity: 24 W, 25 Ω | R88A-RR12025 |
R88D-1SN20H-ECT/-1SN30H-ECT | Regeneration process capacity: 60 W, 10 Ω | R88A-RR30010 |
R88D-1SN04L-ECT | Regeneration process capacity: 60 W, 12 Ω | R88A-RR30012 |
R88D-1SN01L-ECT/-1SN02L-ECT | Regeneration process capacity: 60 W, 15 Ω | R88A-RR30015 |
R88D-1SN15H-ECT | Regeneration process capacity: 60 W, 17 Ω | R88A-RR30017 |
R88D-1SN08H-ECT/-1SN10H-ECT/-1SN20F-ECT */ -1SN30F-ECT * | Regeneration process capacity: 60 W, 20 Ω | R88A-RR30020 |
R88D-1SN01H-ECT/-1SN02H-ECT/-1SN04H-ECT | Regeneration process capacity: 60 W, 25 Ω | R88A-RR30025 |
R88D-1SN06F-ECT */-1SN10F-ECT */-1SN15F-ECT * | Regeneration process capacity: 60 W, 33 Ω | R88A-RR30033 |
* Use two series-connected External Regeneration Resistors for this model.
Applicable Servo Drive | Specifications | Model |
---|---|---|
R88D-1SN20H-ECT/-1SN30H-ECT | Regeneration process capacity: 640 W, 10 Ω | R88A-RR1K610 |
R88D-1SN15H-ECT | Regeneration process capacity: 640 W, 17 Ω | R88A-RR1K617 |
R88D-1SN08H-ECT/-1SN10H-ECT/-1SN20F-ECT */ -1SN30F-ECT * | Regeneration process capacity: 640 W, 20 Ω | R88A-RR1K620 |
R88D-1SN20F-ECT/-1SN30F-ECT | Regeneration process capacity: 640 W, 40 Ω | R88A-RR1K640 |
R88D-1SN06F-ECT/-1SN10F-ECT/-1SN15F-ECT | Regeneration process capacity: 640 W, 66 Ω | R88A-RR1K666 |
* Use two series-connected External Regeneration Resistance Units for this model.
Applicable Servomotor | Model |
---|---|
R88D-1SN01L-ECT/-1SN01H-ECT/-1SN02H-ECT | R88A-PD2002 |
R88D-1SN02L-ECT/-1SN04H-ECT | R88A-PD2004 |
R88D-1SN04L-ECT/-1SN08H-ECT | R88A-PD2007 |
R88D-1SN10H-ECT/-1SN15H-ECT | R88A-PD2015 |
R88D-1SN20H-ECT | R88A-PD2022 |
R88D-1SN30H-ECT | R88A-PD2037 |
R88D-1SN06F-ECT | R88A-PD4007 |
R88D-1SN10F-ECT/-1SN15F-ECT | R88A-PD4015 |
R88D-1SN20F-ECT | R88A-PD4022 |
R88D-1SN30F-ECT | R88A-PD4037 |
Applicable Servo Drive | Model |
---|---|
R88D-1SN01L-ECT/-1SN01H-ECT/-1SN02H-ECT (Single-phase input) | R88A-FI1S103 |
R88D-1SN02L-ECT/-1SN04H-ECT (Single-phase input) | R88A-FI1S105 |
R88D-1SN04L-ECT/-1SN08H-ECT (Single-phase input) | R88A-FI1S109 |
R88D-1SN15H-ECT (Single-phase input) | R88A-FI1S116 |
R88D-1SN01H-ECT/-1SN02H-ECT (3-phase input) | R88A-FI1S202 |
R88A-FI1S203 | |
R88D-1SN04H-ECT (3-phase input) | R88A-FI1S203 |
R88D-1SN08H-ECT (3-phase input)/-1SN10H-ECT | R88A-FI1S208 |
R88D-1SN15H-ECT (3-phase input)/-1SN20H-ECT/-1SN30H-ECT | R88A-FI1S216 |
R88D-1SN06F-ECT/-1SN10F-ECT-1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT | R88A-FI1S309 |
Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.
Product name | Specifications | Model | ||
---|---|---|---|---|
Number of licenses | Media | |||
Sysmac Studio Standard Edition Ver.1.[][] *1 | The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCat Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) The Sysmac Studio Standard Edition DVD includes Support Software to set up EtherNet/IP Units, DeviceNet slaves, Serial Communications Units, and Support Software for creating screens on HMIs (CX-Designer). For details, refer to your OMRON website. | --- (Media only) | DVD | SYSMAC-SE200D |
1 license *2 | --- | SYSMAC-SE201L | ||
Sysmac Studio Drive Edition Ver.1.[][] | Sysmac Studio Drive Edition is a limited license that provides selected functions required for 1S/G5 series Servo settings. This product is a license only. You need the Sysmac Studio Standard Edition DVD media to install it. With Drive Edition, you can use only the setup functions for 1S, G5-series Servo System | 1 license | --- | SYSMAC-DE001L |
*1 The 1S series is supported by Sysmac Studio version 1.16 or higher.
*2 Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
Sysmac Library is POU Libraries (Function Block and Function) provided for NJ/NX-series Controller.
Please download it from following URL and install to Sysmac Studio.
http://www.ia.omron.com/sysmac_library/
Product | Specifications | Model |
---|---|---|
EtherCAT 1S Series Library | The EtherCAT 1S Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON 1S-series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive. | SYSMAC-XR011 |
last update: December 10, 2018
last update: September 3, 2018
(Unit: mm)
Single-phase 100 VAC: R88D-1SN01L-ECT (100 W)
Single-phase/3-phase 200 VAC: R88D-1SN01H-ECT/-1SN02H-ECT (100 to 200 W)
Single-phase 100 VAC: R88D-1SN02L-ECT (200 W)
Single-phase/3-phase 200 VAC: R88D-1SN04H-ECT (400 W)
Single-phase 100 VAC: R88D-1SN04L-ECT (400 W)
Single-phase/3-phase 200 VAC: R88D-1SN08H-ECT (750 W)

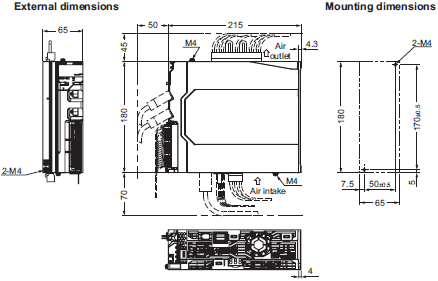

3-phase 200 VAC: R88D-1SN10H-ECT (1 kW)
Single-phase/3-phase 200 VAC: R88D-1SN15H-ECT (1.5 kW)
3-phase 200 VAC: R88D-1SN20H-ECT/-1SN30H-ECT (2 to 3 kW)
3-phase 400 VAC: R88D-1SN06F-ECT/-1SN10F-ECT/-1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT (600 W to 3 kW)

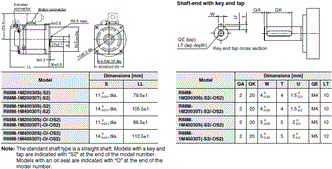

50 W (without Brake)
R88M-1M05030S(-O/-S2/-OS2)
R88M-1M05030T(-O/-S2/-OS2)
50 W (with Brake)
R88M-1M05030S-B(O/S2/OS2)
R88M-1M05030T-B(O/S2/OS2)
100 W (without Brake)
R88M-1M10030S(-O/-S2/-OS2)
R88M-1M10030T(-O/-S2/-OS2)

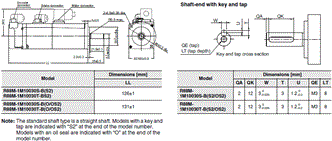

100 W (with Brake)
R88M-1M10030S-B(O/S2/OS2)
R88M-1M10030T-B(O/S2/OS2)
200 W/400 W (without Brake)
R88M-1M20030S(-O/-S2/-OS2)/R88M-1M20030T(-O/-S2/-OS2)
R88M-1M40030S(-O/-S2/-OS2)/R88M-1M40030T(-O/-S2/-OS2)
200 W/400 W (with Brake)
R88M-1M20030S-B(O/S2/OS2)/R88M-1M20030T-B(O/S2/OS2)
R88M-1M40030S-B(O/S2/OS2)/R88M-1M40030T-B(O/S2/OS2)
750 W (without Brake)
R88M-1M75030T(-O/-S2/-OS2)
750 W (with Brake)
R88M-1M75030T-B(O/S2/OS2)
1 kW/1.5 kW/2 kW (without Brake)
R88M-1L1K030T(-O/-S2/-OS2)/R88M-1L1K530T(-O/-S2/-OS2)/
R88M-1L2K030T(-O/-S2/-OS2)
1 kW/1.5 kW/2 kW (with Brake)
R88M-1L1K030T-B(O/S2/OS2)/R88M-1L1K530T-B(O/S2/OS2)/
R88M-1L2K030T-B(O/S2/OS2)

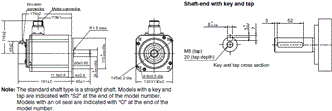

3 kW (without Brake)
R88M-1L3K030T(-O/-S2/-OS2)

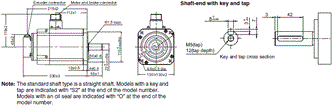

3 kW (with Brake)
R88M-1L3K030T-B(O/S2/OS2)
750 W/1 kW/1.5 kW/2 kW (without Brake)
R88M-1L75030C(-O/-S2/-OS2)/R88M-1L1K030C(-O/-S2/-OS2)
R88M-1L1K530C(-O/-S2/-OS2)/R88M-1L2K030C(-O/-S2/-OS2)

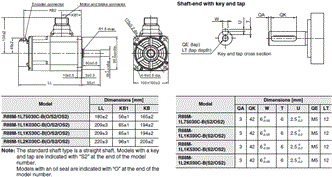

750 W/1 kW/1.5 kW/2 kW (with Brake)
R88M-1L75030C-B(O/S2/OS2)/R88M-1L1K030C-B(O/S2/OS2)
R88M-1L1K530C-B(O/S2/OS2)/R88M-1L2K030C-B(O/S2/OS2)
3 kW (without Brake)
R88M-1L3K030C(-O/-S2/-OS2)

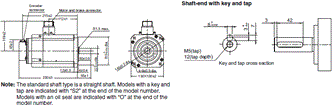

3 kW (with Brake)
R88M-1L3K030C-B(O/S2/OS2)
1 kW/1.5 kW/2 kW (without Brake)
R88M-1M1K020T(-O/-S2/-OS2)
R88M-1M1K520T(-O/-S2/-OS2)
R88M-1M2K020T(-O/-S2/-OS2)
1 kW/1.5 kW/2 kW (with Brake)
R88M-1M1K020T-B (O/S2/OS2)
R88M-1M1K520T-B(O/S2/OS2)
R88M-1M2K020T-B(O/S2/OS2)
3 kW (without Brake)
R88M-1M3K020T(-O/-S2/-OS2)
3 kW (with Brake)
R88M-1M3K020T-B(O/S2/OS2)
400 W/600 W (without Brake)
R88M-1M40020C(-O/-S2/-OS2)/R88M-1M60020C(-O/-S2/-OS2)
400 W/600 W (with Brake)
R88M-1M40020C-B(O/S2/OS2)/R88M-1M60020C-B(O/S2/OS2)
1 kW/1.5 kW/2 kW (without Brake)
R88M-1M1K020C(-O/-S2/-OS2)
R88M-1M1K520C(-O/-S2/-OS2)
R88M-1M2K020C(-O/-S2/-OS2)
1 kW/1.5 kW/2 kW (with Brake)
R88M-1M1K020C-B(O/S2/OS2)
R88M-1M1K520C-B(O/S2/OS2)
R88M-1M2K020C-B(O/S2/OS2)
3 kW (without Brake)
R88M-1M3K020C(-O/-S2/-OS2)
3 kW (with Brake)
R88M-1M3K020C-B(O/S2/OS2)
900 W (without Brake)
R88M-1M90010T(-O/-S2/-OS2)
900 W (with Brake)
R88M-1M90010T-B(O/S2/OS2)
2 kW (without Brake)
R88M-1M2K010T(-O/-S2/-OS2)
2 kW (with Brake)
R88M-1M2K010T-B(O/S2/OS2)
3 kW (without Brake)
R88M-1M3K010T(-O/-S2/-OS2)
3 kW (with Brake)
R88M-1M3K010T-B(O/S2/OS2)
900 W (without Brake)
R88M-1M90010C(-O/-S2/-OS2)
900 W (with Brake)
R88M-1M90010C-B(O/S2/OS2)

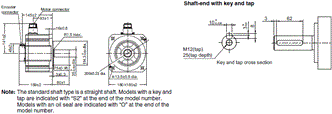

2 kW (without Brake)
R88M-1M2K010C(-O/-S2/-OS2)

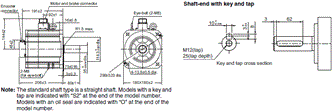

2 kW (with Brake)
R88M-1M2K010C-B(O/S2/OS2)
3 kW (without Brake)
R88M-1M3K010C(-O/-S2/-OS2)
3 kW (with Brake)
R88M-1M3K010C-B(O/S2/OS2)
last update: September 3, 2018
