OMRON NYP lineup

last update: November 1, 2018

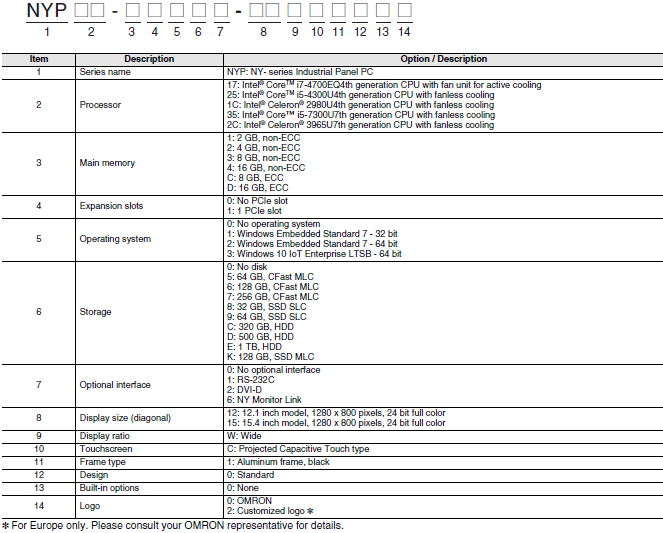

Model Number Structure

The purpose of this model number legend is to provide understanding of the meaning of specifications from the model number.
Models are not available for all combinations of code numbers.

NY-series Industrial PC Platform

Recommended models

The industrial Panel PC has extended configuration possibilities to meet your requirements, below an overview of the most used and recommended models. Selecting one of the models below will bring the benefit of faster delivery times.
In case your preferred model is not listed below, please contact your Omron representative to discuss the possibilities.

Product name	Specifications						Model
	Dis- play size	Operating system	CPU type	RAM memory (non- ECC type)	Storage size	Inter- face option
Industrial Panel PC	12.1 Inch	Windows 10 IoT Enterprise LTSB - 64 bit	Intel® Core™ i7-4700EQ	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP17-313K1-12WC1000
			Intel® Core™ i5-4300U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP25-313K1-12WC1000
			Intel® Core™ i5-4300U	8 GB	64 GB SSD type (SLC)	RS- 232C	NYP25-31391-12WC1000
			Intel®Celeron™ 2980U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP1C-313K1-12WC1000
		Windows Embedded Standard 7 - 64 bit	Intel® Celeron™ 2980U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP1C-312K1-12WC1000
	15.4 inch	Windows 10 IoT Enterprise LTSB - 64 bit	Intel® Core™ i7-4700EQ	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP17-313K1-15WC1000
			Intel® Core™ i5-4300U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP25-313K1-15WC1000
			Intel® Core™ i5-4300U	8 GB	64 GB SSD type (SLC)	RS- 232C	NYP25-31391-15WC1000
			Intel® Celeron™ 2980U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP1C-313K1-15WC1000
		Windows Embedded Standard 7 - 64 bit	Intel® Celeron™ 2980U	8 GB	128 GB SSD type (MLC)	RS- 232C	NYP1C-312K1-15WC1000

Accessories

Optional Hardware

Product name	Specifications	Model
SD Memory Cards	Card type: SD Card Capacity: 2 GB Format: FAT16	HMC-SD291
	Card type: SDHC Card Capacity: 4 GB Format: FAT32	HMC-SD491
USB Flash Drives	Capacity: 2 GB	FZ-MEM2G
	Capacity: 8 GB	FZ-MEM8G
Storage Devices *1	Storage type: HDD Capacity: 320 GB	NY000-AH00
	Storage type: HDD Capacity: 500 GB	NY000-AH01
	Storage type: HDD Capacity: 1 TB	NY000-AH02
	Storage type: SSD SLC Capacity: 32 GB	NY000-AS00
	Storage type: SSD SLC (Apacer) Capacity: 64 GB	NY000-AS01
	Storage type: SSD MLC (Apacer) Capacity: 128 GB	NY000-AS02 *3
	Storage type: SSD SLC (Hagiwara) Capacity: 64 GB	NY000-AS03
	Storage type: SSD MLC (Innodisk) Capacity: 128 GB	NY000-AS04
	Storage type: SSD MLC Capacity: 500 GB	NY000-AS05
	Storage type: CFast MLC Capacity: 64 GB	NY000-AT00
	Storage type: CFast MLC Capacity: 128 GB	NY000-AT01
	Storage type: CFast MLC Capacity: 256 GB	NY000-AT02
USB Type-A to USB Type-B Cables	Cable length: 2 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 2M
	Cable length: 5 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 5M
DVI Cables	Cable length: 2 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 2M
	Cable length: 5 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 5M
Power Supply	• Output voltage: 24 VDC • Push-In Plus terminal blocks	S8VK-S[][][]24
UPS *2	Output voltage during backup operation: 24 VDC ± 5%	S8BA
UPS Communication Cable	Cable length: 2 m Signals for • Signal output (BL, TR, BU, WB) • Remote ON/OFF input • UPS Stop Signal input (BS)	S8BW-C02

*1. CFast Storage can be used only with the NYP35-[]0, NYP2C-[]0. Please contact your Omron representative to discuss
      the possibilities.
*2. Revision number 04 or later.
*3. Orders for NY000-AS02 will be accepted until the end of November 2018.

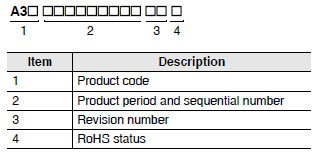

The revision number of the UPS can be retrieved from the serial number label on the product and the product packaging.

Spare Parts

The following spare parts for the Industrial Panel PC are available.

Product name	Specifications	Model
Battery	One battery is supplied with the Industrial Panel PC. The battery supplies power to the real-time clock. The battery is located inside the Industrial Panel PC. Service life: 5 years at 25°C	CJ1W-BAT01 *
Fan Unit	The Fan Unit is available for the Industrial Panel PC that has active cooling. Service life: 70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity. Shelf life: 6 months This is the storage limitation with no power supplied.	NY000-AF00
Accessory Kit	Replacement kit containing all accesories supplied with Industrial Panel PC. • Power connector • I/O connector • Drive bracket for drive installation • 4 mounting screws for drive installation • PCIe Card support for PCIe Card installation • PCIe Card clip for PCIe Card installation	NY000-AK00

* Only for models with replaceable battery.

Installed Support Software

Item	Specifications
Industrial PC Support Utility	The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving problems of the Industrial Panel PC. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Tray Utility	The Industrial PC Tray Utility is a software utility that provides information about the current state of the Industrial PC, its related devices, and associated software. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC System API	The Industrial PC System API allows programmers to create programs that can retrieve information or set an indicator status of the Industrial Panel PC. The API makes use of the included IPC System Service to manage the hardware. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Utility	The Industrial Monitor Utility provides a user interface to control settings and display details of connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Brightness Utility	The Industrial Monitor Brightness Utility is a small software utility that allows you to control the brightness of the screen backlight of all connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor API	The Industrial Monitor API allows programmers to create applications that can control the hardware features and retrieve information from connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Rescue Disk Creator	The Industrial PC Rescue Disk Creator creates a USB Rescue Disk which can be used to back-up and restore the Omron IPC Operating System. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.

last update: November 1, 2018

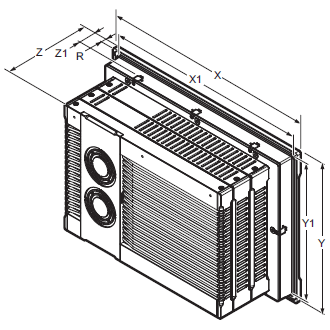

OMRON NYP dimension

last update: June 1, 2018

(Unit: mm)

last update: June 1, 2018

OMRON NYP catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
NYP Data Sheet	- [1420KB]	Nov 01, 201820181101	NYP Data Sheet
Industrial PC Platform Catalog	P118-E1-06 [24126KB]	Jun 01, 201820180601	Industrial PC Platform Catalog
Industrial PC Platform NY Monitor Link Catalog	P126-E1-01 [1281KB]	Dec 11, 201720171211	Industrial PC Platform NY Monitor Link Catalog
FA Controller Catalog	P090-E1-07 [18214KB]	Aug 20, 201820180820	FA Controller Catalog

OMRON NYP specification

last update: November 1, 2018

Performance Specifications

Item				NYP17-[][][][][]	NYP25-[][][][][]	NYP1C-[][][][][]
Main system	CPU	CPU type		Intel® Core™ i7-4700EQ	Intel® Core™ i5-4300U	Intel® Celeron® Processor 2980U
		Cores/Threads		4 / 8	2 / 4	2 / 2
		CPU base frequency		2.4 GHz	1.9 GHz	1.6 GHz
		Maximum turbo frequency		3.4 GHz	2.9 GHz	-
		Cache		6 MB	3 MB	2 MB
		Cooling details		Requires active cooling (fan)	Passive cooling (fanless)
	Memory	Memory size *3		4, 8 or 16 GB	2, 4 or 8 GB	2, 4, or 8 GB
		Memory type		DDR3L (non ECC)
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® HD Graphics. Up to two independent screens.
				Intel® HD Graphics 4600	Intel® HD Graphics 4400	Intel® HD Graphics
	Watchdog			Yes
Operating system	Windows OS			Windows Embedded Standard 7 - 32 bit Windows Embedded Standard 7 - 64 bit Windows 10 IoT Enterprise LTSB - 64 bit
Storage devices	Drives *3	Hard disk drive		• 320 GB, 500 GB, 1 TB Serial ATA 3.0	• 320 GB Serial ATA 3.0
		Solid state drive	SLC type	• 32 GB and 64 GB Serial ATA 3.1
			MLC type	• 128 GB Serial ATA 3.1
	Drive bays (HDD/SSD) *1			2	2	1
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs (Power ON/OFF Input and UPS Mode Input) and 1 output (Power Status Output)
	USB2.0 Type-A	Number of ports		2
		Maximum current		500 mA
		Maximum cable length		5 m
	USB3.0 Type-A	Number of ports		2
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet connectors	Number of ports		3
		Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	DVI-I connector	Video interface		Digital or analog	Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
Optional connector (select one per system)	RS-232C			Standard DSUB9 connector (Non-Isolated)
	DVI-D	Video interface		Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
PCIe Card Slot	Configuration			X4 (4 lanes) up to Gen 3	X1 (1 lane) up to Gen 2
	Card height			Standard height cards, 4.20 inches (106.7 mm) *2
	Card length			Half length cards, 6.6 inches (167.65 mm)
Battery	Model			CJ1W-BAT01
	Service life			5 years at 25°C
Fan unit	Model			NY000-AF00	No fan unit
	Service life			70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity	-
LED				PWR, ERR, HDD, RUN

Item				NYP35- []1[][][]	NYP2C- []1[][][]	NYP35- []0[][][]	NYP2C- []0[][][]
Main system	CPU	CPU type		Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U
		Cores/Threads		2 / 4	2 / 2	2 / 4	2 / 2
		CPU base frequency		2.6 GHz	2.2 GHz	2.6 GHz	2.2 GHz
		Maximum turbo frequency		3.5 GHz	-	3.5 GHz	-
		Cache		3 MB	2 MB	3 MB	2 MB
		Cooling details		Passive cooling (fanless)		Passive cooling (fanless)
	Memory	Memory size *3		4 or 8 GB	4 or 8 GB	8 or 16 GB	4 or 8 GB
		Memory type		DDR4 (non ECC)		DDR4 (non ECC)
	Trusted platform module (TPM)			Available
	Graphics controller			Intel® HD Graphics. Up to two independent screens.		Intel® HD Graphics. Up to two independent screens.
				Intel® HD Graphics 620	Intel® HD Graphics 610	Intel® HD Graphics 620	Intel® HD Graphics 610
	Watchdog			Yes
Operating system	Windows OS			Windows 10 IoT Enterprise - 64 bit		Windows 10 IoT Enterprise - 64 bit
Storage devices	Drives *3	Hard disk drive		• 320 GB Serial ATA 3.0		N/A
		Solid state drive	SLC type	• 64 GB Serial ATA 3.1		N/A
			MLC type	• 128 GB Serial ATA 3.1		• 64 GB, 128 GB, 256 GB Serial ATA 3.1
	Drive bays (HDD/SSD) *1			2	2	CFast slot	CFast slot
Con- nectors	Power connector			24 VDC
	I/O connector			2 inputs (Power ON/OFF Input and UPS Mode Input) and 1 output (Power Status Output)
	USB2.0 Type-A	Number of ports		2
		Maximum current		500 mA
		Maximum cable length		5 m
	USB3.0 Type-A	Number of ports		2
		Maximum current		900 mA
		Maximum cable length		3 m
	Ethernet connectors	Number of ports		3
		Physical layer		10BASE-T, 100BASE-TX or 1000BASE-T
	DVI-I connector	Video interface		Digital only
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz
		Maximum DVI cable length		Dependent upon connected monitor type and resolution
Optional connector (select one per system)	RS-232C			Standard DSUB9 connector (Non- Isolated)		N/A
	DVI-D	Video interface		Digital only		N/A
		Resolution		Up to 1,920 x 1,200 pixels at 60 Hz		N/A
		Maximum DVI cable length		Dependent upon connected monitor type and resolution		N/A
	NY Monitor Link	Video interface		Digital only
		Resolution		1,280 x 800 pixels at 60 Hz
		Connector type		RJ45
		Cable shielding, type and max. length		S/FTP, Cat.6A, 100 m
		USB data throughput		280 Mbps max.
PCIe Card Slot	Configuration			X2 (2 lanes) up to Gen 3		N/A
	Card height			Standard height cards, 4.20 inches (106.7 mm) *2		N/A
	Card length			Half length cards, 6.6 inches (167.65 mm)		N/A
Battery	Model			Non replaceable battery
	Service life			10 years at 40°C
Fan unit	Model			No fan unit
	Service life			-
LED				PWR, ERR, HDD, RUN

*1. Depending on the model one or two drives are supported.
*2. Low profile cards, 2.536 inches (64.4 mm) are not supported.
*3. Not all combinations are possible or standard available. Please contact your Omron representative to discuss the
      possibilities.

Display Specifications

Item			Specifications
			12.1 Inch models	15.4 Inch models
Display	Display panel *1	Display device	TFT LCD
		Screen size	12.1 inches	15.4 inches
		Surface treatment	Anti glare treatment
		Surface hardness	Mohs scale: 5 -6
		Resolution	1,280 ✕ 800 pixels at 60 Hz (horizontal ✕ vertical)
		Colors	16,770,000 colors
		Effective display area	261 ✕ 163 mm (horizontal ✕ vertical)	331 ✕ 207 mm (horizontal ✕ vertical)
		View angles	Left: 60°, Right: 60°, Top: 60°, Bottom: 60°
		Life	50,000 hours min. *2
		Brightness adjustment	200 levels *3
	Touch	Technology	Projected capacitive
		Touch resolution	Touch accuracy 1.5% (4-5 mm)
		Multitouch	Up to 5 simultaneous touches
		Features	Water detection *4, hand palm rejection *5, gloves *6
		Life	50,000,000 operations min.
		EMC	Correct touchscreen operation is possible within allowable EMC immunity conditions

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark
     pixels fall within the following standard range: light and dark pixels 10 or less. (There must not be 3 consecutive light/
     dark pixels.)
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity.
     The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very dark, it causes flickering or the screen will be too dark to use.
*4. If water is detected the touch functionality will not be available.
*5. If a palm is detected that specific area is neglected.
*6. The touchscreen can be operated when wearing gloves. Check correct usage of the gloves before using them.

Electrical Specifications

Item			NYP17-[][][][][]	NYP25-[][][][][]	NYP1C-[][][][][]
CPU type			Intel® Core™ i7-4700EQ CPU	Intel® Core™ i5-4300U CPU	Intel® Celeron® 2980U CPU
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			5 years at 25°C (for battery CJ1W-BAT01)
Fan life			8 years of continuous operation at 40°C	-	-
Power consumption *			-
	Maximum power consumption including drives and expansions		132 W	93 W	84 W
	Maximum power consumption excluding drives and expansions		99 W	70 W	63 W
	Drives		-
		HDD 320 GB	2 W
		HDD 500 GB	2 W
		HDD 1 TB	2 W
		SSD SLC 32 GB	2 W
		SSD SLC 64 GB	2 W
		SSD MLC 128 GB	2 W
		SSD MLC 500 GB	3 W
		CFast MLC 64 GB	-
		CFast MLC 128 GB	-
		CFast MLC 256 GB	-
	Expansions		-
		USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
		PCIe	15 W max.	5 W max.	5 W max.

Item			NYP35-[]1[][][]	NYP2C-[]1[][][]	NYP35-[]0[][][]	NYP2C-[]0[][][]
CPU type			Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U
Rated power supply voltage			24 VDC, non-isolated
Allowable power supply voltage range			20.4 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
RTC accuracy			At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life			100,000 operations
Battery life			10 years at 40°C
Fan life			-	-	-	-
Power consumption *			-
	Maximum power consumption including drives and expansions		84 W	66 W	76 W	58 W
	Maximum power consumption excluding drives and expansions		61 W	43 W	61 W	43 W
	Drives		-
		HDD 320 GB	2 W		-
		HDD 500 GB	2 W		-
		HDD 1 TB	2 W		-
		SSD SLC 32 GB	2 W		-
		SSD SLC 64 GB	2 W		-
		SSD MLC 128 GB	2 W		-
		SSD MLC 500 GB	3 W		-
		CFast MLC 64 GB	-		1 W
		CFast MLC 128 GB	-		1 W
		CFast MLC 256 GB	-		1 W
	Expansions		-
		USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
		PCIe	5 W max.	5 W max.	-	-

Note: Refer to the Industrial Panel PC User’s Manual (W555) for detail.
* The total power consumption is the sum of the power consumption of all items that are installed in your Industrial Box
   PC.
  To guarantee S8BA UPS operation in combination with our IPC, the specified combination of UPS and power-supply must
  be used.

Item	Minimum power requirements
Power supply	240 W	120 W
UPS	120 W	120 W

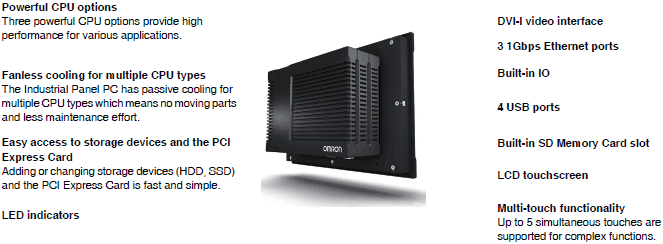

Components and functions

The intent behind our IPC platform is to empower engineers to become unstoppable in developing machines and factories that are better, faster and safer by giving them the freedom and flexibility to explore the opportunities provided by modern IT. In line with Omron’s traditional quality standards, the Industrial Panel PC is designed to meet the demands of industrial users for maximum robustness and reliability.

Environmental Specifications

Item		Specifications
operation environment	Ambient operating temperature *1	0 to 55°C
	Ambient storage temperature *1	-20 to 70°C
	Ambient operating humidity *1	10% to 90% with no condensation
	Ambient storage humidity *1	10% to 90% with no condensation
	Operating atmosphere	No corrosive gases
	Altitude	2,000 m max.
	Noise resistance (during operation)	Conforms to IEC61000-4-4, 2kV (power lines)
	Vibration resistance (during operation)	The vibration resistance depends on the storage device(s): • For a Panel PC with only SSD storage devices: 5 to 8.4 Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 10 times each in X, Y and Z directions. Conforms to IEC 60068-2-6. • For a Panel PC with one or more HDD storage devices the Panel PC must be installed in a vibration free environment. *2
	Shock resistance (during operation)	Conforms to IEC 60068-2-27. 147 m/s2, 3 times in each X, Y and Z directions
	Installation method	Mount on panel
	Degree of protection	Front of Monitor: IP65 *3
	Pollution degree	2 or less: Conforms to JIS B3502 and IEC 61131-2.
Applicable standards *4		EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive KC Registration, RCM, cULus, EAC

*1. The allowed ambient operating temperature and ambient humidity depend on product type, CPU type, mounting
     orientation, and storage device type.
*2. A Panel PC with one or more HDD storage devices should not be used in applications subject to vibration.
    Examples of applications subject to vibration:
    • AGV (Automated Guided Vehicles)
    • Rail vehicle
    • Stacker crane
    • Elevator
    • Tableting machine
    • Connector pin assembling machine
    • Bending machine
    Ensure your Panel PC with HDD does not vibrate. When in doubt use a Panel PC with SSD storage devices.
*3. The Panel PC may not operate properly in locations subjected to oil splashes for extended periods of time.
*4. Contact your OMRON representative for the most recent applicable standards for each model.

Storage Device Specifications

Item	Specifications
Model	NY000-AS00	NY000-AS01	NY000-AS02 *1	NY000-AS03	NY000-AS04	NY000-AS05
Capacity	32 GB	64 GB	128 GB	64 GB	128 GB	500 GB
Type	SSD (SLC)		SSD (MLC)	SSD (SLC)	SSD (MLC)	SSD (MLC)
S.M.A.R.T. support	Yes
Rotation speed	-	-	-	-	-	-
Interface	Serial ATA 3.1
Sustained standard read speed	Up to 160 MB/s	Up to 160 MB/s	Up to 430 MB/s	Up to 500 MB/s	Up to 530 MB/s	Up to 415 MB/s
Sustained standard write speed	Up to 145 MB/s	Up to 150 MB/s	Up to 190 MB/s	Up to 370 MB/s	Up to 190 MB/s	Up to 200 MB/s
Operating temperature	0 to 70°C
Operating humidity	10% to 95% (with no condensation)			10% to 85% (with no condensation)	10% to 95% (with no condensation)
Storage temperature	-40 to 100°C		-40 to 85°C	-40 to 90°C	-40 to 95°C	-55 to 95°C
Storage humidity	10% to 95% (with no condensation)
Life	1,500 TB written	3,000 TB written	114 TB written	1900 TB written	208 TB written	154 TB written

Item	Specifications
Model	NY000-AH00 *2	NY000-AH01 *2	NY000-AH02 *2	NY000-AT00	NY000-AT01	NY000-AT02
Capacity	320 GB	500 GB	1 TB	64 GB	128 GB	256 GB
Type	HDD	HDD	HDD	CFast (MLC)	CFast (MLC)	CFast (MLC)
S.M.A.R.T. support	Yes
Rotation speed	5,400 r/min			-	-	-
Interface	Serial ATA 3.0			Serial ATA 3.1
Sustained standard read speed	-	-	-	Up to 530 MB/s	Up to 530 MB/s	Up to 530 MB/s
Sustained standard write speed	-	-	-	Up to 100 MB/s	Up to 190 MB/s	Up to 210 MB/s
Operating temperature	5 to 55°C	5 to 55°C	0 to 60°C	-40 to 85°C
Operating humidity	• 10% to 95% (with no condensation) • 29°C wet-bulb temperature max.			10% to 95% (with no condensation)
Storage temperature	-40 to 65°C			-55 to 95°C
Storage humidity	• 8% to 90% (with no condensation) • 40°C wet-bulb temperature max.			10% to 95% (with no condensation)
Life	Approximately 5 years or 20,000 powered-ON hours (whichever comes first) under the following conditions: • 25°C at 101.3 kPa • Less than 333 powered-ON hours/month *3 • Less than 20% operation while powered-ON *4 • Less than 1.30 x 106seeks/month		Average Annualized Failure Rate (AFR): 0.50% Under the following conditions: • Case Temperature 40°C • Power on Hours (POH) ≤ 3120	125 TB written	208 TB written	417 TB written

*1. Orders for NY000-AS02 will be accepted until the end of November 2018.
*2. For a Panel PC with an HDD: this device can only be installed in a vibration free environment only. (NYP)
*3. Powered-ON hours include sleep and standby modes.
*4. Operation includes seeking, writing, and reading functions.

last update: November 1, 2018

• NO. NYP
• TYPE:Industrial PC Platform Copyright Statement Copyright Statement
• DATE:2021-06-09
• Associated products:
  NYB Industrial PC Platform NY-series Industrial Box PC/Features NYM Industrial PC Platform NY-series Industrial Monitor/Features
