OMRON E2E / E2EQ NEXT Series dimension

• DC 3-Wire PREMIUM Model
• DC 3-Wire BASIC Model
• DC 2-wire

last update: January 15, 2019

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

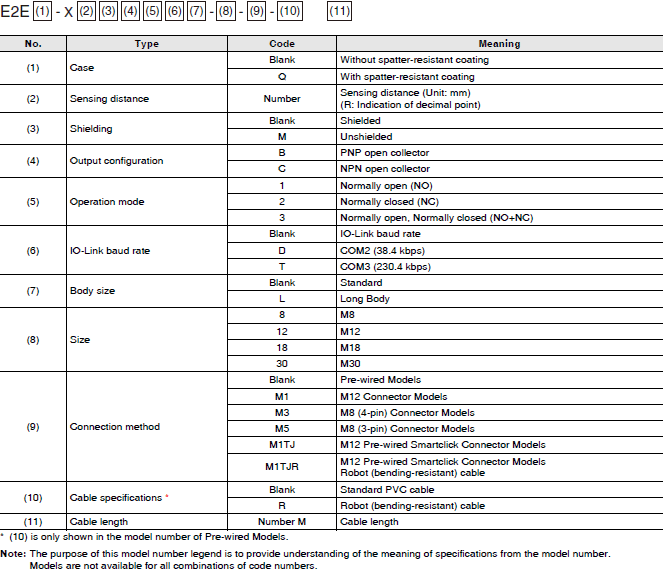

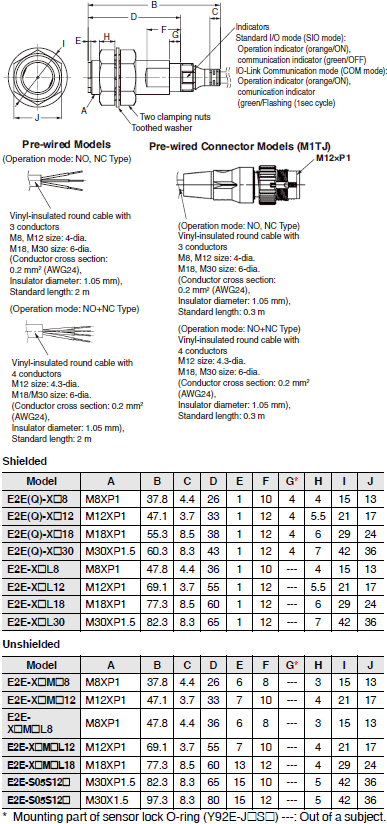

DC 3-Wire PREMIUM Model

E2E/E2EQ NEXT Series (Quadruple distance/Triple distance/Spatter-resistant, Triple distance model)

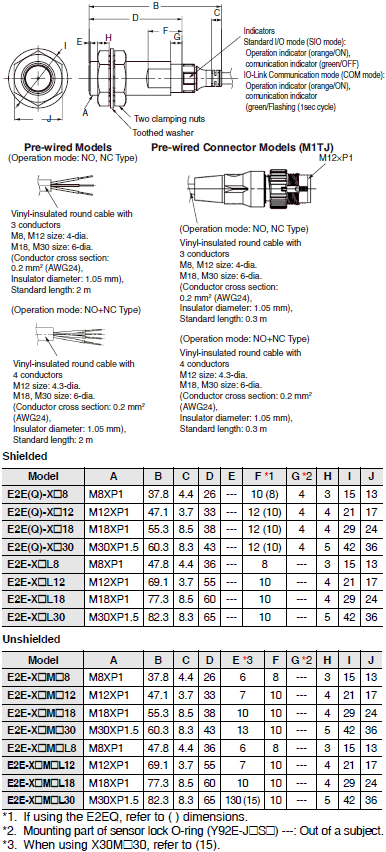

Pre-wired Model/Pre-wired Connector Model
Shielded/Unshielded

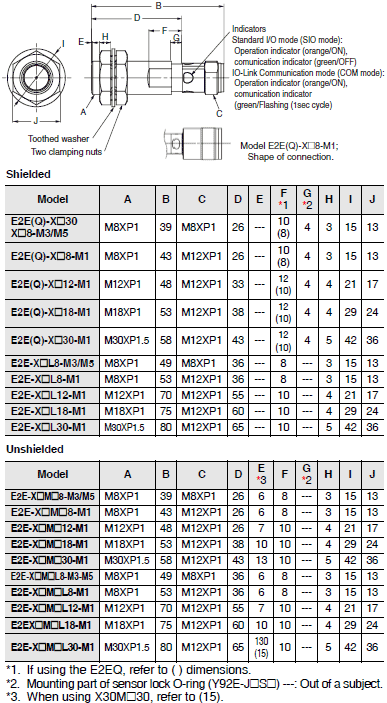

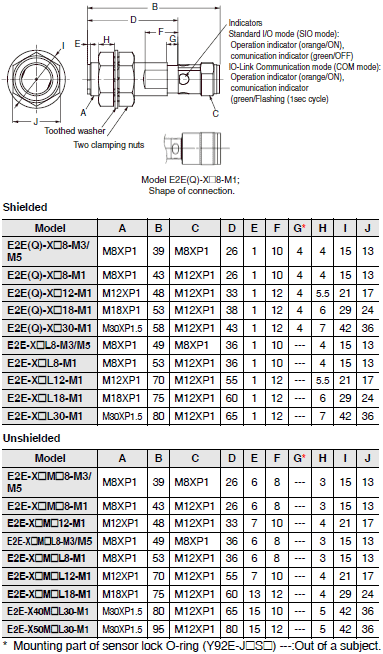

Connector Models
(M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Shielded/Unshielded

DC 3-Wire BASIC Model

E2E/E2EQ NEXT Series (Double distance/Single distance/Spatter-resistant, Double distance/Single distance model)

Pre-wired Model/Pre-wired Connector Model
Shielded/Unshielded

Connector Models
(M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Shielded/Unshielded

Accessories (Sold Separately)

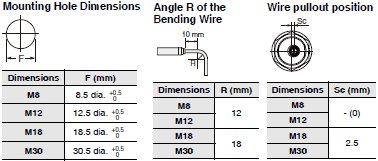

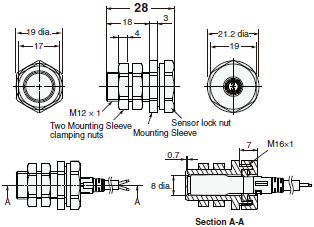

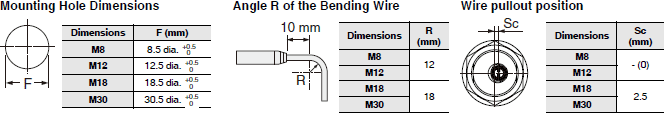

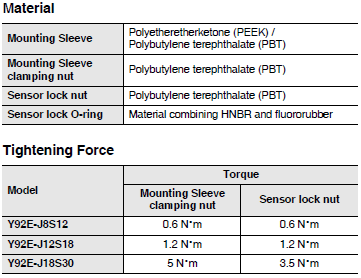

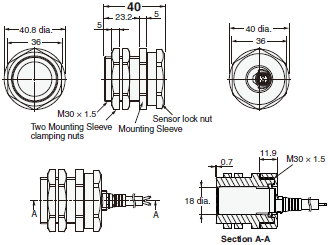

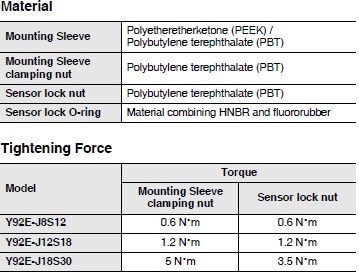

e-jig (Mounting Sleeves)

Y92E-J8S12

Y92E-J12S18

Y92E-J18S30

DC 2-wire

E2E NEXT Series (Triple distance model)

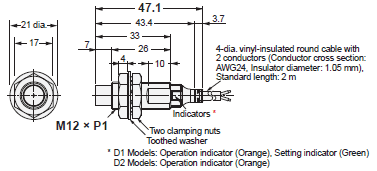

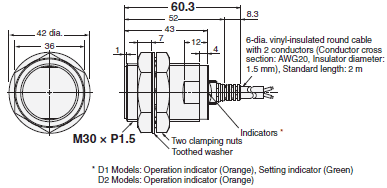

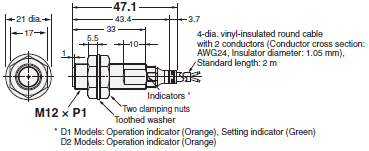

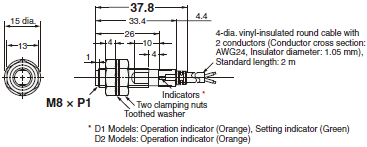

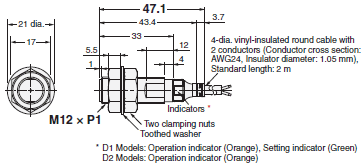

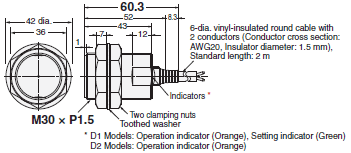

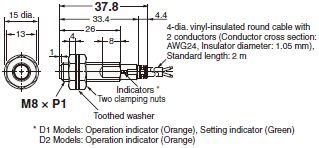

Pre-wired Models Shielded

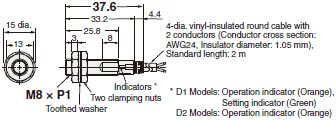

E2E-X3D[]8

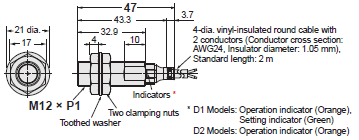

E2E-X7D[]12

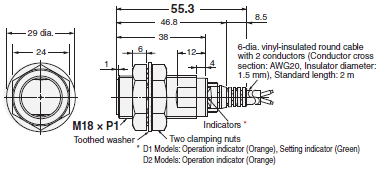

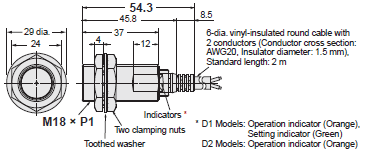

E2E-X11D[]18

E2E-X20D[]30

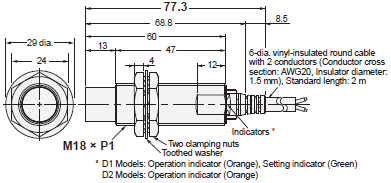

Pre-wired Models Unshielded

E2E-X6MD[]8

E2E-X10MD[]12

E2E-X20MD[]L18

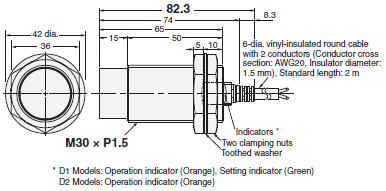

E2E-X40MD[]L30

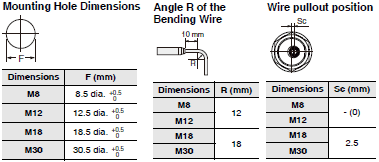

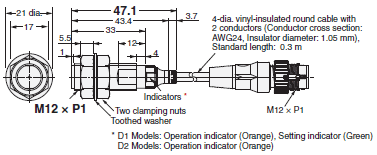

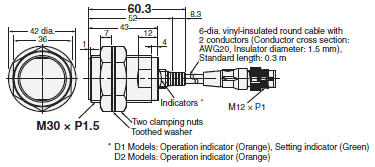

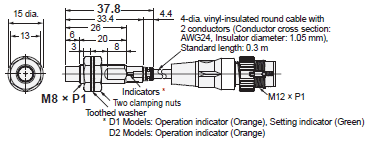

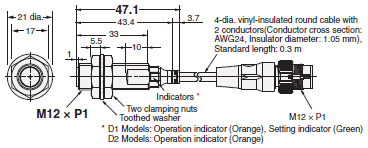

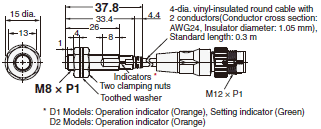

Pre-wired Connector Models Shielded

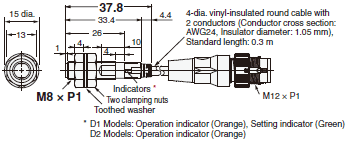

E2E-X3D[]8-M1TGJ

E2E-X7D[]12-M1TGJ

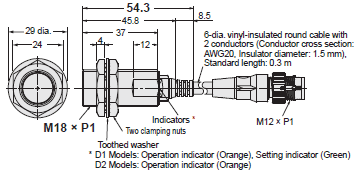

E2E-X11D[]18-M1TGJ

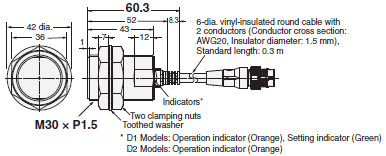

E2E-X20D[]30-M1TGJ

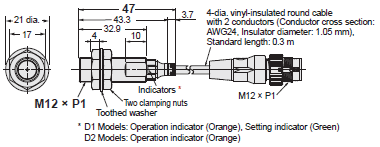

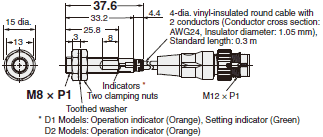

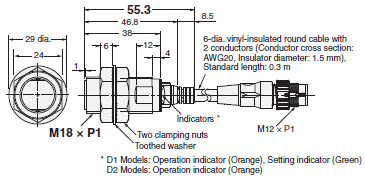

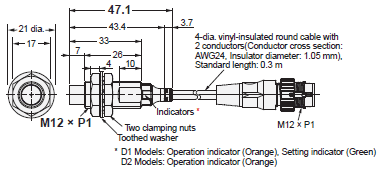

Pre-wired Connector Models Unshielded

E2E-X6MD[]8-M1TGJ

E2E-X10MD[]12-M1TGJ

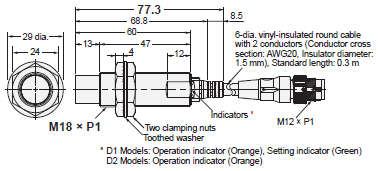

E2E-X20MD[]L18-M1TGJ

E2E-X40MD[]L30-M1TGJ

E2EQ NEXT Series (Spatter-resistant Triple distance model)

Pre-wired Models Shielded

E2EQ-X3D[]8

E2EQ-X7D[]12

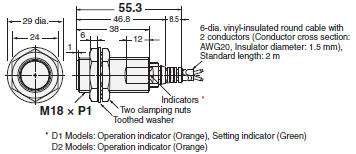

E2EQ-X11D[]18

E2EQ-X20D[]30

Pre-wired Connector Models Shielded

E2EQ-X3D[]8-M1TGJ

E2EQ-X7D[]12-M1TGJ

E2EQ-X11D[]18-M1TGJ

E2EQ-X20D[]30-M1TGJ

E2E NEXT Series (Single distance model)

Pre-wired Models Shielded

E2E-X1R5D[]

E2E-X2R5D[]

E2E-X5D[]

Pre-wired Connector Models Shielded

E2E-X1R5D[]-M1TGJ

E2E-X2R5D[]-M1TGJ

E2E-X5D[]-M1TGJ

Accessories (Sold Separately)

e-jig (Mounting Sleeves)

Y92E-J8S12

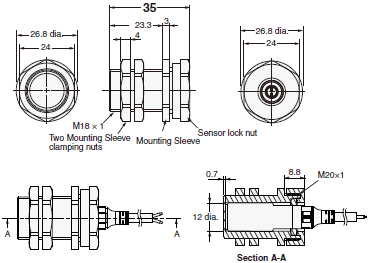

Y92E-J12S18

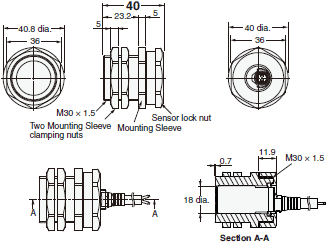

Y92E-J18S30

last update: January 15, 2019

OMRON E2E / E2EQ NEXT Series specification

• DC 3-wire PREMIUM Model
• DC 3-wire BASIC Model
• DC 2-wire

last update: January 15, 2019

DC 3-wire PREMIUM Model

E2E NEXT Series (Quadruple/Triple distance model)

DC 3-wire

Shielded

Types		Quadruple distance model
Size		M8	M12	M18	M30
Model		E2E-X4[]8	E2E-X9[]12	E2E-X14[]18	E2E-X23[]30
Sensing distance		4 mm±10%	9 mm±10%	14 mm±10%	23 mm±10%
Setting distance		0 to 3 mm	0 to 6.8 mm	0 to 10.6 mm	0 to 17.6 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron, 27 × 27 × 1 mm	Iron, 42 × 42 × 1 mm	Iron, 69 × 69 × 1 mm
Response frequency *1		700 Hz	700 Hz	350 Hz	200 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max.
Output configuration		B[] Models: PNP open collector, C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 50 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating: -25 to 60°C Storage: -25 to 70°C (with no icing or condensation)	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		-15% to 25% max. of sensing distance at 23°C in the temperature range of -25 to 60°C	±15% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241: 2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight*4 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 180 g	Approx. 260 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 115 g	Approx. 200 g
	Connector	Approx. 40 g *5	Approx. 55 g	Approx. 95 g	Approx. 180 g
Materials	Case	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions*2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver 1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

Types		Triple distance model
Size		M8	M12	M18	M30
Model		E2E-X3[]8	E2E-X6[]12	E2E-X12[]18	E2E-X22[]30
Sensing distance		3 mm±10%	6 mm±10%	12 mm±10%	22 mm±10%
Setting distance		0 to 2.4 mm	0 to 4.8 mm	0 to 9.6 mm	0 to 16.8 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 9 × 9 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 36 × 36 × 1 mm	Iron, 66 × 66 × 1 mm
Response frequency *1		1,000 Hz	800 Hz	500 Hz	200 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max.	1-output models: 16 mA max., 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector, C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed)	1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 100 mA max.	1-output models: 10 to 30 VDC, Class 2, 100 mA max., 2-output models: 10 to 30 VDC, Class 2, 50 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241: 2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight*4 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 180 g	Approx. 260 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 115 g	Approx. 200 g
	Connector	Approx. 40 g *5	Approx. 55 g	Approx. 95 g	Approx. 180 g
Materials	Case	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions*2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver 1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
      2-year oil resistance indicates the median value of the product design and the oil-resistance performance criterion result
      (=Typical value).
      The Pre-wired Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5
       NEXT series correctly.
      The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired Models.
*4. Weight of the standard body-sized model.
*5. Both M8 connectors and M12 connectors are available.

DC 3-wire

Unshielded

Types		Quadruple distance model
Size		M8	M12	M18	M30
Model		E2E-X8M[]8	E2E-X16M[]12	E2E-X30M[]18	E2E-X50M[]30
Sensing distance		8 mm±10%	16 mm±10%	30 mm±10%	50 mm±10%
Setting distance		0 to 6 mm	0 to 12.2 mm	0 to 23 mm	0 to 38.2 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 24 × 24 × 1 mm	Iron, 48 × 48 × 1 mm	Iron, 90 × 90 × 1 mm	Iron, 150 × 150 × 1 mm
Response frequency *1		500 Hz	400 Hz	200 Hz	100 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 50 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241: 2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight*4 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 190 g	Approx. 310 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 125 g	Approx. 250 g
	Connector	Approx. 40 g *5	Approx. 55 g	Approx. 105 g	Approx. 230 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions*2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

Types		Triple distance model
Size		M8	M12	M18	M30
Model		E2E-X6M[]8	E2E-X10M[]12	E2E-X20M[]18	E2E-X40M[]30
Sensing distance		6 mm±10%	10 mm±10%	20 mm±10%	40 mm±10%
Setting distance		0 to 4.8 mm	0 to 8 mm	0 to 16 mm	0 to 32 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 60 × 60 × 1 mm	Iron, 120 × 120 × 1 mm
Response frequency *1		800 Hz	400 Hz	200 Hz	100 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max.	1-output models: 16 mA max., 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed)	1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 100 mA max.	1-output models: 10 to 30 VDC, Class 2, 100 mA max., 2-output models: 10 to 30 VDC, Class 2, 50 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241: 2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight*4 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 190 g	Approx. 280 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 125 g	Approx. 220 g
	Connector	Approx. 40 g *5	Approx. 55 g	Approx. 105 g	Approx. 200 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions*2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards. 2-year oil
      resistance indicates the median value of the product design and the oil-resistance performance criterion result (=Typical
      value). Actual performance can be expected to decline after two years on average from shipment. The Pre-wired
      Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5 NEXT series
      correctly. The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired
      Models.
*4. Weight of the standard body-sized model.
*5. Both M8 connectors and M12 connectors are available.

E2EQ NEXT Series (Spatter-resistant Triple distance model)

DC 3-wire

Shielded

Types		Triple distance Models
Size		M8	M12	M18	M30
Model		E2EQ-X3[]8	E2EQ-X6[]12	E2EQ-X12[]18	E2EQ-X22[]30
Sensing distance		3 mm±10%	6 mm±10%	12 mm±10%	22 mm±10%
Setting distance		0 to 2.4 mm	0 to 4.8 mm	0 to 9.6 mm	0 to 16.8 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 9 × 9 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 36 × 36 × 1 mm	Iron, 66 × 66 × 1 mm
Response frequency *1		1,000 Hz	800 Hz	500 Hz	200 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max.	1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector, C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed)	1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 100 mA max.	1-output models: 10 to 30 VDC, Class 2, 100 mA max.,, 2-output models: 10 to 30 VDC, Class 2, 50 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529: IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529: IP67
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models
Weight *3 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 180 g	Approx. 260 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 115 g	Approx. 200 g
	Connector	Approx. 40 g	Approx. 55 g	Approx. 95 g	Approx. 180 g
Materials	Case	Fluororesin coating (Base material: brass)
	Sensing surface	Fluorine resin
	Clamping nuts	Fluororesin coating (Base material: brass)
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver 1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Weight of the standard body-sized model.

DC 3-wire BASIC Model

E2E NEXT Series (Double/Single distance model)

DC 3-wire

Shielded

Types		Double distance
Size		M8	M12	M18	M30
Model		E2E-X2[]8	E2E-X4[]12	E2E-X8[]18	E2E-X15[]30
Sensing distance		2 mm±10%	4 mm±10%	8 mm±10%	15 mm±10%
Setting distance		0 to 1.6 mm	0 to 3.2 mm	0 to 6.4 mm	0 to 12 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 24 × 24 × 1 mm	Iron, 45 × 45 × 1 mm
Response frequency *1		1,500 Hz	1,000 Hz	500 Hz	250 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed) *3
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight *5 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 240 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 170 g
	Connector	Approx. 40 g *6	Approx. 55 g	Approx. 85 g	Approx. 160 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

Types		Single distance
Size		M8	M12	M18	M30
Model		E2E-X1R5[]8	E2E-X2[]12	E2E-X5[]18	E2E-X10[]30
Sensing distance		1.5 mm±10%	2 mm±10%	5 mm±10%	10 mm±10%
Setting distance		0 to 1.2 mm	0 to 1.6 mm	0 to 4 mm	0 to 8 mm
Differential travel		10% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm
Response frequency *1		2,000 Hz	1,500 Hz	600 Hz	400 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed) *3
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) Connector Models: IEC 60529: IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight *5 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 240 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 170 g
	Connector	Approx. 40 g *6	Approx. 55 g	Approx. 85 g	Approx. 160 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Dual-output specification for the M8-size models is only applicable to long-size M12 Connector models.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards. 2-year oil
      resistance indicates the median value of the product design and the oil-resistance performance criterion result (=Typical
      value). Actual performance can be expected to decline after two years on average from shipment. The Pre-wired
      Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5 NEXT series
      correctly. The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired
      Models.
*5. Weight of the standard body-sized model.
*6. Both M8 connectors and M12 connectors are available.

DC 3-wire

Unshielded

Types		Double distance model
Size		M8	M12	M18	M30
Model		E2E-X4M[]8	E2E-X8M[]12	E2E-X16M[]18	E2E-X30M[]30
Sensing distance		4 mm±10%	8 mm±10%	16 mm±10%	30 mm±10%
Setting distance		0 to 3.2 mm	0 to 6.4 mm	0 to 12.8 mm	0 to 24 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron, 24 × 24 × 1 mm	Iron, 48 × 48 × 1 mm	Iron, 90 × 90 × 1 mm
Response frequency *1		1,000 Hz	800 Hz	400 Hz	100 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C3): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed) *3
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight *5 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 280 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 220 g
	Connector	Approx. 40 g *6	Approx. 55 g	Approx. 85 g	Approx. 200 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver 1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

Types		Single distance model
Size		M8	M12	M18	M30
Model		E2E-X2M[]8	E2E-X5M[]12	E2E-X10M[]18	E2E-X18M[]30
Sensing distance		2 mm±10%	5 mm±10%	10 mm±10%	18 mm±10%
Setting distance		0 to 1.6 mm	0 to 4 mm	0 to 8 mm	0 to 14.4 mm
Differential travel		10% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 15 × 15 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *1		1,000 Hz	800 Hz	400 Hz	100 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C3): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed) *3
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (under load current of 200 mA with cable length of 2 m), 2-output models: 2 V max. (under load current of 100 mA with cable length of 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K, JIS C 0920 Annex 1: IP67G, Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) Connector Models: IEC 60529:IP67, ISO 20653 (old standard: DIN 40050 PART9): IP69K
Connection method		Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m) and Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)
Weight *5 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 240 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 170 g
	Connector	Approx. 40 g *6	Approx. 55 g	Approx. 85 g	Approx. 160 g
Materials	Case	Stainless (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalat (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver 1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Dual-output specification for the M8-size models is only applicable to long-size M12 Connector models.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards. 2-year oil
      resistance indicates the median value of the product design and the oil-resistance performance criterion result (=Typical
      value). Actual performance can be expected to decline after two years on average from shipment. The Pre-wired
      Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5 NEXT series
      correctly. The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired
      Models.
*5. Weight of the standard body-sized model.
*6. Both M8 connectors and M12 connectors are available.

E2E Q NEXT Series (Spatter-resistant Double distance/Single distance model)

DC 3-wire

Shielded

Types		Double distance
Size		M8	M12	M18	M30
Model		E2EQ-X2[]8	E2EQ-X4[]12	E2EQ-X8[]18	E2EQ-X15[]30
Sensing distance		2 mm±10%	4 mm±10%	8 mm±10%	15 mm±10%
Setting distance		0 to 1.6 mm	0 to 3.2 mm	0 to 6.4 mm	0 to 12 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 24 × 24 × 1 mm	Iron, 45 × 45 × 1 mm
Response frequency *1		1,500 Hz	1,000 Hz	500 Hz	250 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector, C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529 IP67
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models
Weight *3 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 240 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 170 g
	Connector	Approx. 40 g	Approx. 55 g	Approx. 85 g	Approx. 160 g
Materials	Case	Fluororesin coating (Base material: SUS303)	Fluororesin coating (Base material: brass)
	Sensing surface	Fluorine resin
	Clamping nuts	Fluororesin coating (Base material: brass)
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

Types		Single distance
Size		M8	M12	M18	M30
Model		E2EQ-X1R5[]8	E2EQ-X2[]12	E2EQ-X5[]18	E2EQ-X10[]30
Sensing distance		1.5 mm±10%	2 mm±10%	5 mm±10%	10 mm±10%
Setting distance		0 to 1.2 mm	0 to 1.6 mm	0 to 4 mm	0 to 8 mm
Differential travel		10% max. of sensing distance
Detectable object		Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm
Response frequency *1		2,000 Hz	1,500 Hz	600 Hz	400 Hz
Power supply voltage		10 to 30 VDC (including 10% ripple (p-p)), Class 2
Current consumption		1-output models: 16 mA max. 2-output models: 20 mA max.
Output configuration		B[] Models: PNP open collector, C[] Models: NPN open collector
Operation mode (with sensing object approaching)		1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed)
Control output	Load current	1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max.	1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max.
	Residual voltage	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m)	1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator *2		In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Protection circuits		Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection
Ambient temperature range		Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C.
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529 IP67
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models
Weight *3 (packed state)	Pre-wired	Approx. 85 g	Approx. 95 g	Approx. 170 g	Approx. 240 g
	M12 Pre-wired Smartclick Connector	Approx. 55 g	Approx. 70 g	Approx. 105 g	Approx. 170 g
	Connector	Approx. 40 g	Approx. 55 g	Approx. 85 g	Approx. 160 g
Materials	Case	Fluororesin coating (Base material: SUS303)	Fluororesin coating (Base material: brass)
	Sensing surface	Fluorine resin
	Clamping nuts	Fluororesin coating (Base material: brass)
	Toothed washers	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Main IO-Link functions *2		Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset
IO-Link Commun- ication specifica- tions *2	IO-Link specification	Ver1.1
	Baud rate	COM2 (38.4 kbps), COM3 (230.4 kbps)
	Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
	Minimum cycle time	COM2: 2.3 ms, COM3: 0.4 ms
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
      distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Weight of the standard body-sized model.

DC 2-wire

E2E NEXT Series (Triple distance model)

DC 2-wire

Size		M8		M12
Shielded		Shielded	Unshielded	Shielded	Unshielded
Model		E2E-X3D[]	E2E-X6MD[]	E2E-X7D[]	E2E-X10MD[]
Sensing distance		3 mm ±10%	6 mm ±10%	7 mm ±10%	10 mm ±10%
Setting distance *1		0 to 2.4 mm	0 to 4.8 mm	0 to 5.6 mm	0 to 8 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 9 × 9 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 21 × 21 × 1 mm	Iron, 30 × 30 × 1 mm
Response frequency *2		350 Hz	250 Hz	350 Hz	200 Hz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	Polarity: 3 V max. (Load current: 100 mA, Cable length: 2 m) No polarity: 5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator		D1 Models: Operation indicator (orange), Setting indicator (green) D2 Models: Operation indicator (orange)
Operation mode		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions		1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models/Pre-wired Connector Models: IP67 (IEC 60529), IP67G *3 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35 °C max.) and ISO 20653 (old standard: DIN 40050 PART9) IP69K
Connecting method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m)
Weight (packed state)	Pre-wired Models	Approx. 60 g		Approx. 70 g
	Pre-wired Connector Models	Approx. 30 g		Approx. 40 g
Materials	Case	Nickel-plated brass	Stainless steel (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalate (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washer	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Accessories		Instruction manual, Clamping nuts, Toothed washer

Size		M18		M30
Shielded		Shielded	Unshielded	Shielded	Unshielded
Model		E2E-X11D[]	E2E-X20MD[]	E2E-X20D[]	E2E-X40MD[]
Sensing distance		11 mm ±10%	20 mm ±10%	20 mm ±10%	40 mm ±10%
Setting distance *1		0 to 8.8 mm	0 to 16 mm	0 to 16 mm	0 to 32 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 33 × 33 × 1 mm	Iron, 60 × 60 × 1 mm	Iron, 60 × 60 × 1 mm	Iron, 120 × 120 × 1 mm
Response frequency *2		250 Hz	200 Hz	200 Hz	50 Hz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	Polarity: 3 V max. (Load current: 100 mA, Cable length: 2 m) No polarity: 5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator		D1 Models: Operation indicator (orange), Setting indicator (green) D2 Models: Operation indicator (orange)
Operation mode		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C	±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models/Pre-wired Connector Models: IP67 (IEC 60529), IP67G *3 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35 °C max.) and ISO 20653 (old standard: DIN 40050 PART9) IP69K
Connecting method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m)
Weight (packed state)	Pre-wired Models	Approx. 130 g	Approx. 150 g	Approx. 180 g	Approx. 210 g
	Pre-wired Connector Models	Approx. 70 g	Approx. 90 g	Approx.110 g	Approx. 140 g
Materials	Case	Nickel-plated brass
	Sensing surface	Polybutylene terephthalate (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washer	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance
      of twice the standard sensing object, and a set distance of half the sensing distance.
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
      The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance
      to oil.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
      2-year oil resistance indicates the median value of the product design and the oil-resistance performance criterion result
      (=Typical value).
      The Pre-wired Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5
      NEXT series correctly.
      The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired Models.

E2EQ NEXT Series (Spatter-resistant Triple distance model)

DC 2-wire

Size		M8	M12	M18	M30
Shielded		Shielded
Model		E2EQ-X3D[]	E2EQ-X7D[]	E2EQ-X11D[]	E2EQ-X20D[]
Sensing distance		3 mm ±10%	7 mm ±10%	11 mm ±10%	20 mm ±10%
Setting distance *1		0 to 2.4 mm	0 to 5.6 mm	0 to 8.8 mm	0 to 16 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 9 × 9 × 1 mm	Iron, 21 × 21 × 1 mm	Iron, 33 × 33 × 1 mm	Iron, 60 × 60 × 1 mm
Response frequency *2		250 Hz	250 Hz	250 Hz	200 Hz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	Polarity: 3 V max. (Load current: 100 mA, Cable length: 2 m) No polarity: 5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator		D1 Models: Operation indicator (orange), Setting indicator (green) D2 Models: Operation indicator (orange)
Operation mode		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C		±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models/Pre-wired Connector Models: IP67 (IEC 60529) and IP67G *3 (JIS C 0920 Annex 1)
Connecting method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m)
Weight (packed state)	Pre-wired Models	Approx. 60 g	Approx. 70 g	Approx. 150 g	Approx. 210 g
	Pre-wired Connector Models	Approx. 30 g	Approx. 40 g	Approx. 90 g	Approx. 140 g
Materials	Case	Fluororesin coating (Base material: brass)
	Sensing surface	Fluororesin
	Clamping nuts	Fluororesin coating (Base material: brass)
	Toothed washer	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance
      of twice the standard sensing object, and a set distance of half the sensing distance.
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
      The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance
      to oil.

E2E NEXT Series (Single distance model)

DC 2-wire

Size		M8	M12	M18
Shielded		Shielded
Model		E2E-X1R5D[]	E2E-X2R5D[]	E2E-X5D[]
Sensing distance		1.5 mm ±10%	2.5 mm ±10%	5 mm ±10%
Setting distance *1		0 to 1.2 mm	0 to 2 mm	0 to 4 mm
Differential travel		10% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 10 × 10 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm
Response frequency *2		250 Hz	250 Hz	250 Hz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	Polarity: 3 V max. (Load current: 100 mA, Cable length: 2 m) No polarity: 5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicator		D1 Models: Operation indicator (orange), Setting indicator (green) D2 Models: Operation indicator (orange)
Operation mode		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		Pre-wired Models/Pre-wired Connector Models: IP67 (IEC 60529), IP67G *3 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35°C max.) and ISO 20653 (old standard: DIN 40050 PART9) IP69K
Connecting method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m)
Weight (packed state)	Pre-wired Models	Approx. 60 g	Approx. 70 g	Approx. 130 g
	Pre-wired Connector Models	Approx. 30 g	Approx. 40 g	Approx. 70 g
Materials	Case	Stainless steel (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalate (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washer	Zinc-plated iron
	Cable	Vinyl chloride (PVC)
Accessories		Instruction manual, Clamping nuts, Toothed washer

*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance
      of twice the standard.
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
      The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance
      to oil.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
      2-year oil resistance indicates the median value of the product design and the oil-resistance performance criterion result
      (=Typical value).
      The Pre-wired Connector Model verifies 2 years of oil resistance when mating with Round Oil-resistant Connectors XS5
      NEXT series correctly.
      The degree of protection is not satisfied with the part where cable wires are uncovered for the Pre-wired Models.

last update: January 15, 2019

OMRON E2E / E2EQ NEXT Series lineup

• DC 3-wire PREMIUM Model
• DC 3-wire BASIC Model
• DC 2-wire

last update: January 15, 2019

DC 3-wire PREMIUM Model

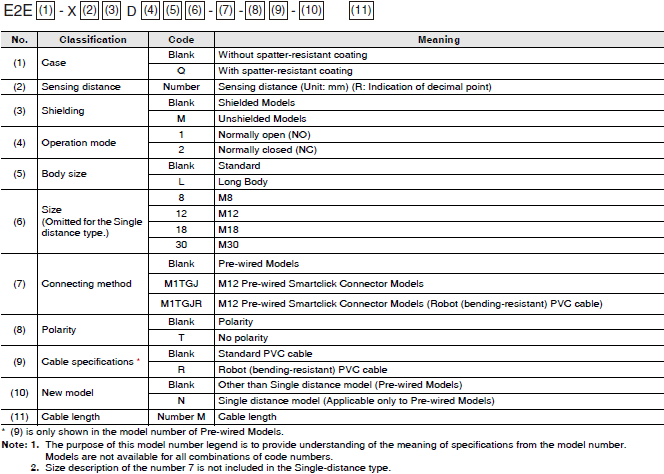

E2E/E2EQ NEXT Series Model Number Legend

E2E NEXT Series (Quadruple distance model)

DC 3-wire

Shielded *1

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (4 mm)	Pre-wired (2 m) *2	38 mm *3	NO	E2E-X4B1D8 2M **	E2E-X4C18 2M
			NC	E2E-X4B28 2M	E2E-X4C28 2M
		48 mm	NO	E2E-X4B1DL8 2M **	E2E-X4C1L8 2M
			NC	E2E-X4B2L8 2M	E2E-X4C2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *4	NO	E2E-X4B1D8-M1TJ 0.3M **	E2E-X4C18-M1TJ 0.3M
			NC	E2E-X4B28-M1TJ 0.3M	E2E-X4C28-M1TJ 0.3M
		48 mm	NO	E2E-X4B1DL8-M1TJ 0.3M **	E2E-X4C1L8-M1TJ 0.3M
			NC	E2E-X4B2L8-M1TJ 0.3M	E2E-X4C2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X4B1D8-M1 **	E2E-X4C18-M1
			NC	E2E-X4B28-M1	E2E-X4C28-M1
		53 mm	NO	E2E-X4B1DL8-M1 **	E2E-X4C1L8-M1
			NC	E2E-X4B2L8-M1	E2E-X4C2L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X4B1D8-M3 **	E2E-X4C18-M3
			NC	E2E-X4B28-M3	E2E-X4C28-M3
		49 mm	NO	E2E-X4B1DL8-M3 **	E2E-X4C1L8-M3
			NC	E2E-X4B2L8-M3	E2E-X4C2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X4B1D8-M5 **	E2E-X4C18-M5
			NC	E2E-X4B28-M5	E2E-X4C28-M5
		49 mm	NO	E2E-X4B1DL8-M5 **	E2E-X4C1L8-M5
			NC	E2E-X4B2L8-M5	E2E-X4C2L8-M5
M12 (9 mm)	Pre-wired (2 m) *2	47 mm *3	NO	E2E-X9B1D12 2M **	E2E-X9C112 2M
			NC	E2E-X9B212 2M	E2E-X9C212 2M
		69 mm	NO	E2E-X9B1DL12 2M **	E2E-X9C1L12 2M
			NC	E2E-X9B2L12 2M	E2E-X9C2L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *4	NO	E2E-X9B1D12-M1TJ 0.3M **	E2E-X9C112-M1TJ 0.3M
			NC	E2E-X9B212-M1TJ 0.3M	E2E-X9C212-M1TJ 0.3M
		69 mm	NO	E2E-X9B1DL12-M1TJ 0.3M **	E2E-X9C1L12-M1TJ 0.3M
			NC	E2E-X9B2L12-M1TJ 0.3M	E2E-X9C2L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X9B1D12-M1 **	E2E-X9C112-M1
			NC	E2E-X9B212-M1	E2E-X9C212-M1
		70 mm	NO	E2E-X9B1DL12-M1 **	E2E-X9C1L12-M1
			NC	E2E-X9B2L12-M1	E2E-X9C2L12-M1
M18 (14 mm)	Pre-wired (2 m) *2	55 mm *3	NO	E2E-X14B1D18 2M **	E2E-X14C118 2M
			NC	E2E-X14B218 2M	E2E-X14C218 2M
		77 mm	NO	E2E-X14B1DL18 2M **	E2E-X14C1L18 2M
			NC	E2E-X14B2L18 2M	E2E-X14C2L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *4	NO	E2E-X14B1D18-M1TJ 0.3M **	E2E-X14C118-M1TJ 0.3M
			NC	E2E-X14B218-M1TJ 0.3M	E2E-X14C218-M1TJ 0.3M
		77 mm	NO	E2E-X14B1DL18-M1TJ 0.3M **	E2E-X14C1L18-M1TJ 0.3M
			NC	E2E-X14B2L18-M1TJ 0.3M	E2E-X14C2L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X14B1D18-M1 **	E2E-X14C118-M1
			NC	E2E-X14B218-M1	E2E-X14C218-M1
		75 mm	NO	E2E-X14B1DL18-M1 **	E2E-X14C1L18-M1
			NC	E2E-X14B2L18-M1	E2E-X14C2L18-M1
M30 (23 mm)	Pre-wired (2 m) *2	60 mm *2	NO	E2E-X23B1D30 2M **	E2E-X23C130 2M
			NC	E2E-X23B230 2M	E2E-X23C230 2M
		82 mm	NO	E2E-X23B1DL30 2M **	E2E-X23C1L30 2M
			NC	E2E-X23B2L30 2M	E2E-X23C2L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm *4	NO	E2E-X23B1D30-M1TJ 0.3M **	E2E-X23C130-M1TJ 0.3M
			NC	E2E-X23B230-M1TJ 0.3M	E2E-X23C230-M1TJ 0.3M
		82 mm	NO	E2E-X23B1DL30-M1TJ 0.3M **	E2E-X23C1L30-M1TJ 0.3M
			NC	E2E-X23B2L30-M1TJ 0.3M	E2E-X23C2L30-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2E-X23B1D30-M1 **	E2E-X23C130-M1
			NC	E2E-X23B230-M1	E2E-X23C230-M1
		80 mm	NO	E2E-X23B1DL30-M1 **	E2E-X23C1L30-M1
			NC	E2E-X23B2L30-M1	E2E-X23C2L30-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-X9B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
     E2E-X9B1D12-R 2M/E2E-X9B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with "R" in the model
      number. (Example: E2E-X9B1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X9B1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

DC 3-wire

Unshielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (8 mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X8MB1D8 2M **	E2E-X8MC18 2M
			NC	E2E-X8MB28 2M	E2E-X8MC28 2M
		48 mm	NO	E2E-X8MB1DL8 2M **	E2E-X8MC1L8 2M
			NC	E2E-X8MB2L8 2M	E2E-X8MC2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X8MB1D8-M1TJ 0.3M **	E2E-X8MC18-M1TJ 0.3M
			NC	E2E-X8MB28-M1TJ 0.3M	E2E-X8MC28-M1TJ 0.3M
		48 mm	NO	E2E-X8MB1DL8-M1TJ 0.3M **	E2E-X8MC1L8-M1TJ 0.3M
			NC	E2E-X8MB2L8-M1TJ 0.3M	E2E-X8MC2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X8MB1D8-M1 **	E2E-X8MC18-M1
			NC	E2E-X8MB28-M1	E2E-X8MC28-M1
		53 mm	NO	E2E-X8MB1DL8-M1 **	E2E-X8MC1L8-M1
			NC	E2E-X8MB2L8-M1	E2E-X8MC2L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X8MB1D8-M3 **	E2E-X8MC18-M3
			NC	E2E-X8MB28-M3	E2E-X8MC28-M3
		49 mm	NO	E2E-X8MB1DL8-M3 **	E2E-X8MC1L8-M3
			NC	E2E-X8MB2L8-M3	E2E-X8MC2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X8MB1D8-M5 **	E2E-X8MC18-M5
			NC	E2E-X8MB28-M5	E2E-X8MC28-M5
		49 mm	NO	E2E-X8MB1DL8-M5 **	E2E-X8MC1L8-M5
			NC	E2E-X8MB2L8-M5	E2E-X8MC2L8-M5
M12 (16 mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X16MB1D12 2M **	E2E-X16MC112 2M
			NC	E2E-X16MB212 2M	E2E-X16MC212 2M
		69 mm	NO	E2E-X16MB1DL12 2M **	E2E-X16MC1L12 2M
			NC	E2E-X16MB2L12 2M	E2E-X16MC2L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X16MB1D12-M1TJ 0.3M **	E2E-X16MC112-M1TJ 0.3M
			NC	E2E-X16MB212-M1TJ 0.3M	E2E-X16MC212-M1TJ 0.3M
		69 mm	NO	E2E-X16MB1DL12-M1TJ 0.3M **	E2E-X16MC1L12-M1TJ 0.3M
			NC	E2E-X16MB2L12-M1TJ 0.3M	E2E-X16MC2L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X16MB1D12-M1 **	E2E-X16MC112-M1
			NC	E2E-X16MB212-M1	E2E-X16MC212-M1
		70 mm	NO	E2E-X16MB1DL12-M1 **	E2E-X16MC1L12-M1
			NC	E2E-X16MB2L12-M1	E2E-X16MC2L12-M1
M18 (30 mm)	Pre-wired (2 m) *1	77 mm *2	NO	E2E-X30MB1DL18 2M **	E2E-X30MC1L18 2M
			NC	E2E-X30MB2L18 2M	E2E-X30MC2L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	77 mm *3	NO	E2E-X30MB1DL18-M1TJ 0.3M **	E2E-X30MC1L18-M1TJ 0.3M
			NC	E2E-X30MB2L18-M1TJ 0.3M	E2E-X30MC2L18-M1TJ 0.3M
	M12 Connector	75 mm	NO	E2E-X30MB1DL18-M1 **	E2E-X30MC1L18-M1
			NC	E2E-X30MB2L18-M1	E2E-X30MC2L18-M1
M30 (50 mm)	Pre-wired (2 m) *1	97 mm *2	NO	E2E-X50MB1DL30 2M **	E2E-X50MC1L30 2M
			NC	E2E-X50MB2L30 2M	E2E-X50MC2L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	97 mm *3	NO	E2E-X50MB1DL30-M1TJ 0.3M **	E2E-X50MC1L30-M1TJ 0.3M
			NC	E2E-X50MB2L30-M1TJ 0.3M	E2E-X50MC2L30-M1TJ 0.3M
	M12 Connector	95 mm	NO	E2E-X50MB1DL30-M1 **	E2E-X50MC1L30-M1
			NC	E2E-X50MB2L30-M1	E2E-X50MC2L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X16MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X16MB1D12-R 2M/E2E-X16MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X16MB1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X16MB1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

E2E NEXT Series (Triple distance model)

DC 3-wire

Shielded *1

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (3 mm)	Pre-wired (2 m) *2	38 mm *3	NO	E2E-X3B1D8 2M **	E2E-X3C18 2M
			NC	E2E-X3B28 2M	E2E-X3C28 2M
		48 mm	NO	E2E-X3B1DL8 2M **	E2E-X3C1L8 2M
			NC	E2E-X3B2L8 2M	E2E-X3C2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *4	NO	E2E-X3B1D8-M1TJ 0.3M **	E2E-X3C18-M1TJ 0.3M
			NC	E2E-X3B28-M1TJ 0.3M	E2E-X3C28-M1TJ 0.3M
		48 mm	NO	E2E-X3B1DL8-M1TJ 0.3M **	E2E-X3C1L8-M1TJ 0.3M
			NC	E2E-X3B2L8-M1TJ 0.3M	E2E-X3C2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X3B1D8-M1 **	E2E-X3C18-M1
			NC	E2E-X3B28-M1	E2E-X3C28-M1
		53 mm	NO	E2E-X3B1DL8-M1 **	E2E-X3C1L8-M1
			NC	E2E-X3B2L8-M1	E2E-X3C2L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X3B1D8-M3 **	E2E-X3C18-M3
			NC	E2E-X3B28-M3	E2E-X3C28-M3
		49 mm	NO	E2E-X3B1DL8-M3 **	E2E-X3C1L8-M3
			NC	E2E-X3B2L8-M3	E2E-X3C2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X3B1D8-M5 **	E2E-X3C18-M5
			NC	E2E-X3B28-M5	E2E-X3C28-M5
		49 mm	NO	E2E-X3B1DL8-M5 **	E2E-X3C1L8-M5
			NC	E2E-X3B2L8-M5	E2E-X3C2L8-M5
M12 (6 mm)	Pre-wired (2 m) *2	47 mm *3	NO	E2E-X6B1D12 2M **	E2E-X6C112 2M
			NC	E2E-X6B212 2M	E2E-X6C212 2M
			NO+NC	E2E-X6B3D12 2M **	E2E-X6C312 2M
		69 mm	NO	E2E-X6B1DL12 2M **	E2E-X6C1L12 2M
			NC	E2E-X6B2L12 2M	E2E-X6C2L12 2M
			NO+NC	E2E-X6B3DL12 2M **	E2E-X6C3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *4	NO	E2E-X6B1D12-M1TJ 0.3M **	E2E-X6C112-M1TJ 0.3M
			NC	E2E-X6B212-M1TJ 0.3M	E2E-X6C212-M1TJ 0.3M
			NO+NC	E2E-X6B3D12-M1TJ 0.3M **	E2E-X6C312-M1TJ 0.3M
		69 mm	NO	E2E-X6B1DL12-M1TJ 0.3M **	E2E-X6C1L12-M1TJ 0.3M
			NC	E2E-X6B2L12-M1TJ 0.3M	E2E-X6C2L12-M1TJ 0.3M
			NO+NC	E2E-X6B3DL12-M1TJ 0.3M **	E2E-X6C3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X6B1D12-M1 **	E2E-X6C112-M1
			NC	E2E-X6B212-M1	E2E-X6C212-M1
			NO+NC	E2E-X6B3D12-M1 **	E2E-X6C312-M1
		70 mm	NO	E2E-X6B1DL12-M1 **	E2E-X6C1L12-M1
			NC	E2E-X6B2L12-M1	E2E-X6C2L12-M1
			NO+NC	E2E-X6B3DL12-M1 **	E2E-X6C3L12-M1
M18 (12 mm)	Pre-wired (2 m) *2	55 mm *3	NO	E2E-X12B1D18 2M **	E2E-X12C118 2M
			NC	E2E-X12B218 2M	E2E-X12C218 2M
			NO+NC	E2E-X12B3D18 2M **	E2E-X12C318 2M
		77 mm	NO	E2E-X12B1DL18 2M **	E2E-X12C1L18 2M
			NC	E2E-X12B2L18 2M	E2E-X12C2L18 2M
			NO+NC	E2E-X12B3DL18 2M **	E2E-X12C3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *4	NO	E2E-X12B1D18-M1TJ 0.3M **	E2E-X12C118-M1TJ 0.3M
			NC	E2E-X12B218-M1TJ 0.3M	E2E-X12C218-M1TJ 0.3M
			NO+NC	E2E-X12B3D18-M1TJ 0.3M **	E2E-X12C318-M1TJ 0.3M
		77 mm	NO	E2E-X12B1DL18-M1TJ 0.3M **	E2E-X12C1L18-M1TJ 0.3M
			NC	E2E-X12B2L18-M1TJ 0.3M	E2E-X12C2L18-M1TJ 0.3M
			NO+NC	E2E-X12B3DL18-M1TJ 0.3M **	E2E-X12C3L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X12B1D18-M1 **	E2E-X12C118-M1
			NC	E2E-X12B218-M1	E2E-X12C218-M1
			NO+NC	E2E-X12B3D18-M1 **	E2E-X12C318-M1
		75 mm	NO	E2E-X12B1DL18-M1 **	E2E-X12C1L18-M1
			NC	E2E-X12B2L18-M1	E2E-X12C2L18-M1
			NO+NC	E2E-X12B3DL18-M1 **	E2E-X12C3L18-M1
M30 (22 mm)	Pre-wired (2 m) *2	60 mm *3	NO	E2E-X22B1D30 2M **	E2E-X22C130 2M
			NC	E2E-X22B230 2M	E2E-X22C230 2M
			NO+NC	E2E-X22B3D30 2M **	E2E-X22C330 2M
		82 mm	NO	E2E-X22B1DL30 2M **	E2E-X22C1L30 2M
			NC	E2E-X22B2L30 2M	E2E-X22C2L30 2M
			NO+NC	E2E-X22B3DL30 2M **	E2E-X22C3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm *4	NO	E2E-X22B1D30-M1TJ 0.3M **	E2E-X22C130-M1TJ 0.3M
			NC	E2E-X22B230-M1TJ 0.3M	E2E-X22C230-M1TJ 0.3M
			NO+NC	E2E-X22B3D30-M1TJ 0.3M **	E2E-X22C330-M1TJ 0.3M
		82 mm	NO	E2E-X22B1DL30-M1TJ 0.3M **	E2E-X22C1L30-M1TJ 0.3M
			NC	E2E-X22B2L30-M1TJ 0.3M	E2E-X22C2L30-M1TJ 0.3M
			NO+NC	E2E-X22B3DL30-M1TJ 0.3M **	E2E-X22C3L30-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2E-X22B1D30-M1 **	E2E-X22C130-M1
			NC	E2E-X22B230-M1	E2E-X22C230-M1
			NO+NC	E2E-X22B3D30-M1 **	E2E-X22C330-M1
		80 mm	NO	E2E-X22B1DL30-M1 **	E2E-X22C1L30-M1
			NC	E2E-X22B2L30-M1	E2E-X22C2L30-M1
			NO+NC	E2E-X22B3DL30-M1 **	E2E-X22C3L30-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2E-X6B1D12 5M)
*3. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X6B1D12-R 2M/E2E-X6B1D12-R 5M)
*4. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X6B1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X6B1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

DC 3-wire

Unshielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (6 mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X6MB1D8 2M **	E2E-X6MC18 2M
			NC	E2E-X6MB28 2M	E2E-X6MC28 2M
		48 mm	NO	E2E-X6MB1DL8 2M **	E2E-X6MC1L8 2M
			NC	E2E-X6MB2L8 2M	E2E-X6MC2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X6MB1D8-M1TJ 0.3M **	E2E-X6MC18-M1TJ 0.3M
			NC	E2E-X6MB28-M1TJ 0.3M	E2E-X6MC28-M1TJ 0.3M
		48 mm	NO	E2E-X6MB1DL8-M1TJ 0.3M **	E2E-X6MC1L8-M1TJ 0.3M
			NC	E2E-X6MB2L8-M1TJ 0.3M	E2E-X6MC2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X6MB1D8-M1 **	E2E-X6MC18-M1
			NC	E2E-X6MB28-M1	E2E-X6MC28-M1
		53 mm	NO	E2E-X6MB1DL8-M1 **	E2E-X6MC1L8-M1
			NC	E2E-X6MB2L8-M1	E2E-X6MC2L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X6MB1D8-M3 **	E2E-X6MC18-M3
			NC	E2E-X6MB28-M3	E2E-X6MC28-M3
		49 mm	NO	E2E-X6MB1DL8-M3 **	E2E-X6MC1L8-M3
			NC	E2E-X6MB2L8-M3	E2E-X6MC2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X6MB1D8-M5 **	E2E-X6MC18-M5
			NC	E2E-X6MB28-M5	E2E-X6MC28-M5
		49 mm	NO	E2E-X6MB1DL8-M5 **	E2E-X6MC1L8-M5
			NC	E2E-X6MB2L8-M5	E2E-X6MC2L8-M5
M12 (10 mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X10MB1D12 2M **	E2E-X10MC112 2M
			NC	E2E-X10MB212 2M	E2E-X10MC212 2M
			NO+NC	E2E-X10MB3D12 2M **	E2E-X10MC312 2M
		69 mm	NO	E2E-X10MB1DL12 2M **	E2E-X10MC1L12 2M
			NC	E2E-X10MB2L12 2M	E2E-X10MC2L12 2M
			NO+NC	E2E-X10MB3DL12 2M **	E2E-X10MC3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X10MB1D12-M1TJ 0.3M **	E2E-X10MC112-M1TJ 0.3M
			NC	E2E-X10MB212-M1TJ 0.3M	E2E-X10MC212-M1TJ 0.3M
			NO+NC	E2E-X10MB3D12-M1TJ 0.3M **	E2E-X10MC312-M1TJ 0.3M
		69 mm	NO	E2E-X10MB1DL12-M1TJ 0.3M **	E2E-X10MC1L12-M1TJ 0.3M
			NC	E2E-X10MB2L12-M1TJ 0.3M	E2E-X10MC2L12-M1TJ 0.3M
			NO+NC	E2E-X10MB3DL12-M1TJ 0.3M **	E2E-X10MC3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X10MB1D12-M1 **	E2E-X10MC112-M1
			NC	E2E-X10MB212-M1	E2E-X10MC212-M1
			NO+NC	E2E-X10MB3D12-M1 **	E2E-X10MC312-M1
		70 mm	NO	E2E-X10MB1DL12-M1 **	E2E-X10MC1L12-M1
			NC	E2E-X10MB2L12-M1	E2E-X10MC2L12-M1
			NO+NC	E2E-X10MB3DL12-M1 **	E2E-X10MC3L12-M1
M18 (20 mm)	Pre-wired (2 m) *1	77 mm *2	NO	E2E-X20MB1DL18 2M **	E2E-X20MC1L18 2M
			NC	E2E-X20MB2L18 2M	E2E-X20MC2L18 2M
			NO+NC	E2E-X20MB3DL18 2M **	E2E-X20MC3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	77 mm *3	NO	E2E-X20MB1DL18-M1TJ 0.3M **	E2E-X20MC1L18-M1TJ 0.3M
			NC	E2E-X20MB2L18-M1TJ 0.3M	E2E-X20MC2L18-M1TJ 0.3M
			NO+NC	E2E-X20MB3DL18-M1TJ 0.3M **	E2E-X20MC3L18-M1TJ 0.3M
	M12 Connector	75 mm	NO	E2E-X20MB1DL18-M1 **	E2E-X20MC1L18-M1
			NC	E2E-X20MB2L18-M1	E2E-X20MC2L18-M1
			NO+NC	E2E-X20MB3DL18-M1 **	E2E-X20MC3L18-M1
M30 (40 mm)	Pre-wired (2 m) *1	82 mm *2	NO	E2E-X40MB1DL30 2M **	E2E-X40MC1L30 2M
			NC	E2E-X40MB2L30 2M	E2E-X40MC2L30 2M
			NO+NC	E2E-X40MB3DL30 2M **	E2E-X40MC3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	82 mm *3	NO	E2E-X40MB1DL30-M1TJ 0.3M **	E2E-X40MC1L30-M1TJ 0.3M
			NC	E2E-X40MB2L30-M1TJ 0.3M	E2E-X40MC2L30-M1TJ 0.3M
			NO+NC	E2E-X40MB3DL30-M1TJ 0.3M **	E2E-X40MC3L30-M1TJ 0.3M
	M12 Connector	80 mm	NO	E2E-X40MB1DL30-M1 **	E2E-X40MC1L30-M1
			NC	E2E-X40MB2L30-M1	E2E-X40MC2L30-M1
			NO+NC	E2E-X40MB3DL30-M1 **	E2E-X40MC3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X10MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X10MB1D12-R 2M/E2E-X10MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X10MB1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X10MB1T12 2M).
            Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

E2EQ NEXT Series (Spatter-resistant Triple distance model)

DC 3-wire

Shielded *1

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (3 mm)	Pre-wired (2 m) *2	38 mm	NO	E2EQ-X3B1D8 2M **	E2EQ-X3C18 2M
			NC	E2EQ-X3B28 2M	E2EQ-X3C28 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm	NO	E2EQ-X3B1D8-M1TJ 0.3M **	E2EQ-X3C18-M1TJ 0.3M
			NC	E2EQ-X3B28-M1TJ 0.3M	E2EQ-X3C28-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2EQ-X3B1D8-M1 **	E2EQ-X3C18-M1
			NC	E2EQ-X3B28-M1	E2EQ-X3C28-M1
M12 (6 mm)	Pre-wired (2 m) *2	47 mm	NO	E2EQ-X6B1D12 2M **	E2EQ-X6C112 2M
			NC	E2EQ-X6B212 2M	E2EQ-X6C212 2M
			NO+NC	E2EQ-X6B3D12 2M **	E2EQ-X6C312 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm	NO	E2EQ-X6B1D12-M1TJ 0.3M **	E2EQ-X6C112-M1TJ 0.3M
			NC	E2EQ-X6B212-M1TJ 0.3M	E2EQ-X6C212-M1TJ 0.3M
			NO+NC	E2EQ-X6B3D12-M1TJ 0.3M **	E2EQ-X6C312-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2EQ-X6B1D12-M1 **	E2EQ-X6C112-M1
			NC	E2EQ-X6B212-M1	E2EQ-X6C212-M1
			NO+NC	E2EQ-X6B3D12-M1 **	E2EQ-X6C312-M1
M18 (12 mm)	Pre-wired (2 m) *2	55 mm	NO	E2EQ-X12B1D18 2M **	E2EQ-X12C118 2M
			NC	E2EQ-X12B218 2M	E2EQ-X12C218 2M
			NO+NC	E2EQ-X12B3D18 2M **	E2EQ-X12C318 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm	NO	E2EQ-X12B1D18-M1TJ 0.3M **	E2EQ-X12C118-M1TJ 0.3M
			NC	E2EQ-X12B218-M1TJ 0.3M	E2EQ-X12C218-M1TJ 0.3M
			NO+NC	E2EQ-X12B3D18-M1TJ 0.3M **	E2EQ-X12C318-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2EQ-X12B1D18-M1 **	E2EQ-X12C118-M1
			NC	E2EQ-X12B218-M1	E2EQ-X12C218-M1
			NO+NC	E2EQ-X12B3D18-M1 **	E2EQ-X12C318-M1
M30 (22 mm)	Pre-wired (2 m) *2	60 mm	NO	E2EQ-X22B1D30 2M **	E2EQ-X22C130 2M
			NC	E2EQ-X22B230 2M	E2EQ-X22C230 2M
			NO+NC	E2EQ-X22B3D30 2M **	E2EQ-X22C330 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm	NO	E2EQ-X22B1D30-M1TJ 0.3M **	E2EQ-X22C130-M1TJ 0.3M
			NC	E2EQ-X22B230-M1TJ 0.3M	E2EQ-X22C230-M1TJ 0.3M
			NO+NC	E2EQ-X22B3D30-M1TJ 0.3M **	E2EQ-X22C330-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2EQ-X22B1D30-M1 **	E2EQ-X22C130-M1
			NC	E2EQ-X22B230-M1	E2EQ-X22C230-M1
			NO+NC	E2EQ-X22B3D30-M1 **	E2EQ-X22C330-M1

*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2EQ-X6B1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

DC 3-wire BASIC Model

E2E/E2EQ NEXT Series Model Number Legend

E2E NEXT Series (Double distance model)

DC 3-wire

Shielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (2 mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X2B1D8 2M **	E2E-X2C18 2M
			NC	E2E-X2B28 2M	E2E-X2C28 2M
		48 mm	NO	E2E-X2B1DL8 2M **	E2E-X2C1L8 2M
			NC	E2E-X2B2L8 2M	E2E-X2C2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X2B1D8-M1TJ 0.3M **	E2E-X2C18-M1TJ 0.3M
			NC	E2E-X2B28-M1TJ 0.3M	E2E-X2C28-M1TJ 0.3M
		48 mm	NO	E2E-X2B1DL8-M1TJ 0.3M **	E2E-X2C1L8-M1TJ 0.3M
			NC	E2E-X2B2L8-M1TJ 0.3M	E2E-X2C2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X2B1D8-M1 **	E2E-X2C18-M1
			NC	E2E-X2B28-M1	E2E-X2C28-M1
		53 mm	NO	E2E-X2B1DL8-M1 **	E2E-X2C1L8-M1
			NC	E2E-X2B2L8-M1	E2E-X2C2L8-M1
			NO+NC	E2E-X2B3DL8-M1 **	E2E-X2C3L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X2B1D8-M3 **	E2E-X2C18-M3
			NC	E2E-X2B28-M3	E2E-X2C28-M3
		49 mm	NO	E2E-X2B1DL8-M3 **	E2E-X2C1L8-M3
			NC	E2E-X2B2L8-M3	E2E-X2C2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X2B1D8-M5 **	E2E-X2C18-M5
			NC	E2E-X2B28-M5	E2E-X2C28-M5
		49 mm	NO	E2E-X2B1DL8-M5 **	E2E-X2C1L8-M5
			NC	E2E-X2B2L8-M5	E2E-X2C2L8-M5
M12 (4 mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X4B1D12 2M **	E2E-X4C112 2M
			NC	E2E-X4B212 2M	E2E-X4C212 2M
			NO+NC	E2E-X4B3D12 2M **	E2E-X4C312 2M
		69 mm	NO	E2E-X4B1DL12 2M **	E2E-X4C1L12 2M
			NC	E2E-X4B2L12 2M	E2E-X4C2L12 2M
			NO+NC	E2E-X4B3DL12 2M **	E2E-X4C3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X4B1D12-M1TJ 0.3M **	E2E-X4C112-M1TJ 0.3M
			NC	E2E-X4B212-M1TJ 0.3M	E2E-X4C212-M1TJ 0.3M
			NO+NC	E2E-X4B3D12-M1TJ 0.3M **	E2E-X4C312-M1TJ 0.3M
		69 mm	NO	E2E-X4B1DL12-M1TJ 0.3M **	E2E-X4C1L12-M1TJ 0.3M
			NC	E2E-X4B2L12-M1TJ 0.3M	E2E-X4C2L12-M1TJ 0.3M
			NO+NC	E2E-X4B3DL12-M1TJ 0.3M **	E2E-X4C3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X4B1D12-M1 **	E2E-X4C112-M1
			NC	E2E-X4B212-M1	E2E-X4C212-M1
			NO+NC	E2E-X4B3D12-M1 **	E2E-X4C312-M1
		70 mm	NO	E2E-X4B1DL12-M1 **	E2E-X4C1L12-M1
			NC	E2E-X4B2L12-M1	E2E-X4C2L12-M1
			NO+NC	E2E-X4B3DL12-M1 **	E2E-X4C3L12-M1
M18 (8 mm)	Pre-wired (2 m) *1	55 mm *2	NO	E2E-X8B1D18 2M **	E2E-X8C118 2M
			NC	E2E-X8B218 2M	E2E-X8C218 2M
			NO+NC	E2E-X8B3D18 2M **	E2E-X8C318 2M
		77 mm	NO	E2E-X8B1DL18 2M **	E2E-X8C1L18 2M
			NC	E2E-X8B2L18 2M	E2E-X8C2L18 2M
			NO+NC	E2E-X8B3DL18 2M **	E2E-X8C3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *3	NO	E2E-X8B1D18-M1TJ 0.3M **	E2E-X8C118-M1TJ 0.3M
			NC	E2E-X8B218-M1TJ 0.3M	E2E-X8C218-M1TJ 0.3M
			NO+NC	E2E-X8B3D18-M1TJ 0.3M **	E2E-X8C318-M1TJ 0.3M
		77 mm	NO	E2E-X8B1DL18-M1TJ 0.3M **	E2E-X8C1L18-M1TJ 0.3M
			NC	E2E-X8B2L18-M1TJ 0.3M	E2E-X8C2L18-M1TJ 0.3M
			NO+NC	E2E-X8B3DL18-M1TJ 0.3M **	E2E-X8C3L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X8B1D18-M1 **	E2E-X8C118-M1
			NC	E2E-X8B218-M1	E2E-X8C218-M1
			NO+NC	E2E-X8B3D18-M1 **	E2E-X8C318-M1
		75 mm	NO	E2E-X8B1DL18-M1 **	E2E-X8C1L18-M1
			NC	E2E-X8B2L18-M1	E2E-X8C2L18-M1
			NO+NC	E2E-X8B3DL18-M1 **	E2E-X8C3L18-M1
M30 (15 mm)	Pre-wired (2 m) *1	60 mm *2	NO	E2E-X15B1D30 2M **	E2E-X15C130 2M
			NC	E2E-X15B230 2M	E2E-X15C230 2M
			NO+NC	E2E-X15B3D30 2M **	E2E-X15C330 2M
		82 mm	NO	E2E-X15B1DL30 2M **	E2E-X15C1L30 2M
			NC	E2E-X15B2L30 2M	E2E-X15C2L30 2M
			NO+NC	E2E-X15B3DL30 2M **	E2E-X15C3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm *3	NO	E2E-X15B1D30-M1TJ 0.3M **	E2E-X15C130-M1TJ 0.3M
			NC	E2E-X15B230-M1TJ 0.3M	E2E-X15C230-M1TJ 0.3M
			NO+NC	E2E-X15B3D30-M1TJ 0.3M **	E2E-X15C330-M1TJ 0.3M
		82 mm	NO	E2E-X15B1DL30-M1TJ 0.3M **	E2E-X15C1L30-M1TJ 0.3M
			NC	E2E-X15B2L30-M1TJ 0.3M	E2E-X15C2L30-M1TJ 0.3M
			NO+NC	E2E-X15B3DL30-M1TJ 0.3M **	E2E-X15C3L30-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2E-X15B1D30-M1 **	E2E-X15C130-M1
			NC	E2E-X15B230-M1	E2E-X15C230-M1
			NO+NC	E2E-X15B3D30-M1 **	E2E-X15C330-M1
		80 mm	NO	E2E-X15B1DL30-M1 **	E2E-X15C1L30-M1
			NC	E2E-X15B2L30-M1	E2E-X15C2L30-M1
			NO+NC	E2E-X15B3DL30-M1 **	E2E-X15C3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X2B1D8 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X2B1D8-R 2M/E2E-X2B1D8-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X4B1T12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X2B1T8 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

DC 3-wire

Unshielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (4 mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X4MB1D8 2M **	E2E-X4MC18 2M
			NC	E2E-X4MB28 2M	E2E-X4MC28 2M
		48 mm	NO	E2E-X4MB1DL8 2M **	E2E-X4MC1L8 2M
			NC	E2E-X4MB2L8 2M	E2E-X4MC2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X4MB1D8-M1TJ 0.3M **	E2E-X4MC18-M1TJ 0.3M
			NC	E2E-X4MB28-M1TJ 0.3M	E2E-X4MC28-M1TJ 0.3M
		48 mm	NO	E2E-X4MB1DL8-M1TJ 0.3M **	E2E-X4MC1L8-M1TJ 0.3M
			NC	E2E-X4MB2L8-M1TJ 0.3M	E2E-X4MC2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X4MB1D8-M1 **	E2E-X4MC18-M1
			NC	E2E-X4MB28-M1	E2E-X4MC28-M1
		53 mm	NO	E2E-X4MB1DL8-M1 **	E2E-X4MC1L8-M1
			NC	E2E-X4MB2L8-M1	E2E-X4MC2L8-M1
			NO+NC	E2E-X4MB3DL8-M1 **	E2E-X4MC3L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X4MB1D8-M3 **	E2E-X4MC18-M3
			NC	E2E-X4MB28-M3	E2E-X4MC28-M3
		49 mm	NO	E2E-X4MB1DL8-M3 **	E2E-X4MC1L8-M3
			NC	E2E-X4MB2L8-M3	E2E-X4MC2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X4MB1D8-M5 **	E2E-X4MC18-M5
			NC	E2E-X4MB28-M5	E2E-X4MC28-M5
		49 mm	NO	E2E-X4MB1DL8-M5 **	E2E-X4MC1L8-M5
			NC	E2E-X4MB2L8-M5	E2E-X4MC2L8-M5
M12 (8 mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X8MB1D12 2M **	E2E-X8MC112 2M
			NC	E2E-X8MB212 2M	E2E-X8MC212 2M
			NO+NC	E2E-X8MB3D12 2M **	E2E-X8MC312 2M
		69 mm	NO	E2E-X8MB1DL12 2M **	E2E-X8MC1L12 2M
			NC	E2E-X8MB2L12 2M	E2E-X8MC2L12 2M
			NO+NC	E2E-X8MB3DL12 2M **	E2E-X8MC3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X8MB1D12-M1TJ 0.3M **	E2E-X8MC112-M1TJ 0.3M
			NC	E2E-X8MB212-M1TJ 0.3M	E2E-X8MC212-M1TJ 0.3M
			NO+NC	E2E-X8MB3D12-M1TJ 0.3M **	E2E-X8MC312-M1TJ 0.3M
		69 mm	NO	E2E-X8MB1DL12-M1TJ 0.3M **	E2E-X8MC1L12-M1TJ 0.3M
			NC	E2E-X8MB2L12-M1TJ 0.3M	E2E-X8MC2L12-M1TJ 0.3M
			NO+NC	E2E-X8MB3DL12-M1TJ 0.3M **	E2E-X8MC3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X8MB1D12-M1 **	E2E-X8MC112-M1
			NC	E2E-X8MB212-M1	E2E-X8MC212-M1
			NO+NC	E2E-X8MB3D12-M1 **	E2E-X8MC312-M1
		70 mm	NO	E2E-X8MB1DL12-M1 **	E2E-X8MC1L12-M1
			NC	E2E-X8MB2L12-M1	E2E-X8MC2L12-M1
			NO+NC	E2E-X8MB3DL12-M1 **	E2E-X8MC3L12-M1
M18 (16 mm)	Pre-wired (2 m) *1	55 mm *2	NO	E2E-X16MB1D18 2M **	E2E-X16MC118 2M
			NC	E2E-X16MB218 2M	E2E-X16MC218 2M
			NO+NC	E2E-X16MB3D18 2M **	E2E-X16MC318 2M
		77 mm	NO	E2E-X16MB1DL18 2M **	E2E-X16MC1L18 2M
			NC	E2E-X16MB2L18 2M	E2E-X16MC2L18 2M
			NO+NC	E2E-X16MB3DL18 2M **	E2E-X16MC3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *3	NO	E2E-X16MB1D18-M1TJ 0.3M **	E2E-X16MC118-M1TJ 0.3M
			NC	E2E-X16MB218-M1TJ 0.3M	E2E-X16MC218-M1TJ 0.3M
			NO+NC	E2E-X16MB3D18-M1TJ 0.3M **	E2E-X16MC318-M1TJ 0.3M
		77 mm	NO	E2E-X16MB1DL18-M1TJ 0.3M **	E2E-X16MC1L18-M1TJ 0.3M
			NC	E2E-X16MB2L18-M1TJ 0.3M	E2E-X16MC2L18-M1TJ 0.3M
			NO+NC	E2E-X16MB3DL18-M1TJ 0.3M **	E2E-X16MC3L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X16MB1D18-M1 **	E2E-X16MC118-M1
			NC	E2E-X16MB218-M1	E2E-X16MC218-M1
			NO+NC	E2E-X16MB3D18-M1 **	E2E-X16MC318-M1
		75 mm	NO	E2E-X16MB1DL18-M1 **	E2E-X16MC1L18-M1
			NC	E2E-X16MB2L18-M1	E2E-X16MC2L18-M1
			NO+NC	E2E-X16MB3DL18-M1 **	E2E-X16MC3L18-M1
M30 (30 mm)	Pre-wired (2 m) *1	82 mm *2	NO	E2E-X30MB1DL30 2M **	E2E-X30MC1L30 2M
			NC	E2E-X30MB2L30 2M	E2E-X30MC2L30 2M
			NO+NC	E2E-X30MB3DL30 2M **	E2E-X30MC3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	82 mm *3	NO	E2E-X30MB1DL30-M1TJ 0.3M **	E2E-X30MC1L30-M1TJ 0.3M
			NC	E2E-X30MB2L30-M1TJ 0.3M	E2E-X30MC2L30-M1TJ 0.3M
			NO+NC	E2E-X30MB3DL30-M1TJ 0.3M **	E2E-X30MC3L30-M1TJ 0.3M
	M12 Connector	80 mm	NO	E2E-X30MB1DL30-M1	E2E-X30MC1L30-M1
			NC	E2E-X30MB2L30-M1	E2E-X30MC2L30-M1
			NO+NC	E2E-X30MB3DL30-M1 **	E2E-X30MC3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X8MB1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X8MB1D12-R 2M/E2E-X8MB1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X8MB1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X8MB1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

E2E NEXT Series (Single distance model)

DC 3-wire

Shielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (1.5 mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X1R5B1D8 2M **	E2E-X1R5C18 2M
			NC	E2E-X1R5B28 2M	E2E-X1R5C28 2M
		48 mm	NO	E2E-X1R5B1DL8 2M **	E2E-X1R5C1L8 2M
			NC	E2E-X1R5B2L8 2M	E2E-X1R5C2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X1R5B1D8-M1TJ 0.3M **	E2E-X1R5C18-M1TJ 0.3M
			NC	E2E-X1R5B28-M1TJ 0.3M	E2E-X1R5C28-M1TJ 0.3M
		48 mm	NO	E2E-X1R5B1DL8-M1TJ 0.3M **	E2E-X1R5C1L8-M1TJ 0.3M
			NC	E2E-X1R5B2L8-M1TJ 0.3M	E2E-X1R5C2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X1R5B1D8-M1 **	E2E-X1R5C18-M1
			NC	E2E-X1R5B28-M1	E2E-X1R5C28-M1
		53 mm	NO	E2E-X1R5B1DL8-M1 **	E2E-X1R5C1L8-M1
			NC	E2E-X1R5B2L8-M1	E2E-X1R5C2L8-M1
			NO+NC	E2E-X1R5B3DL8-M1 **	E2E-X1R5C3L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X1R5B1D8-M3 **	E2E-X1R5C18-M3
			NC	E2E-X1R5B28-M3	E2E-X1R5C28-M3
		49 mm	NO	E2E-X1R5B1DL8-M3 **	E2E-X1R5C1L8-M3
			NC	E2E-X1R5B2L8-M3	E2E-X1R5C2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X1R5B1D8-M5 **	E2E-X1R5C18-M5
			NC	E2E-X1R5B28-M5	E2E-X1R5C28-M5
		49 mm	NO	E2E-X1R5B1DL8-M5 **	E2E-X1R5C1L8-M5
			NC	E2E-X1R5B2L8-M5	E2E-X1R5C2L8-M5
M12 (2 mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X2B1D12 2M **	E2E-X2C112 2M
			NC	E2E-X2B212 2M	E2E-X2C212 2M
			NO+NC	E2E-X2B3D12 2M **	E2E-X2C312 2M
		69 mm	NO	E2E-X2B1DL12 2M **	E2E-X2C1L12 2M
			NC	E2E-X2B2L12 2M	E2E-X2C2L12 2M
			NO+NC	E2E-X2B3DL12 2M **	E2E-X2C3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X2B1D12-M1TJ 0.3M **	E2E-X2C112-M1TJ 0.3M
			NC	E2E-X2B212-M1TJ 0.3M	E2E-X2C212-M1TJ 0.3M
			NO+NC	E2E-X2B3D12-M1TJ 0.3M **	E2E-X2C312-M1TJ 0.3M
		69 mm	NO	E2E-X2B1DL12-M1TJ 0.3M **	E2E-X2C1L12-M1TJ 0.3M
			NC	E2E-X2B2L12-M1TJ 0.3M	E2E-X2C2L12-M1TJ 0.3M
			NO+NC	E2E-X2B3DL12-M1TJ 0.3M **	E2E-X2C3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X2B1D12-M1 **	E2E-X2C112-M1
			NC	E2E-X2B212-M1	E2E-X2C212-M1
			NO+NC	E2E-X2B3D12-M1 **	E2E-X2C312-M1
		70 mm	NO	E2E-X2B1DL12-M1 **	E2E-X2C1L12-M1
			NC	E2E-X2B2L12-M1	E2E-X2C2L12-M1
			NO+NC	E2E-X2B3DL12-M1 **	E2E-X2C3L12-M1
M18 (5 mm)	Pre-wired (2 m) *1	55 mm *2	NO	E2E-X5B1D18 2M **	E2E-X5C118 2M
			NC	E2E-X5B218 2M	E2E-X5C218 2M
			NO+NC	E2E-X5B3D18 2M **	E2E-X5C318 2M
		77 mm	NO	E2E-X5B1DL18 2M **	E2E-X5C1L18 2M
			NC	E2E-X5B2L18 2M	E2E-X5C2L18 2M
			NO+NC	E2E-X5B3DL18 2M **	E2E-X5C3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *3	NO	E2E-X5B1D18-M1TJ 0.3M **	E2E-X5C118-M1TJ 0.3M
			NC	E2E-X5B218-M1TJ 0.3M	E2E-X5C218-M1TJ 0.3M
			NO+NC	E2E-X5B3D18-M1TJ 0.3M **	E2E-X5C318-M1TJ 0.3M
		77 mm	NO	E2E-X5B1DL18-M1TJ 0.3M **	E2E-X5C1L18-M1TJ 0.3M
			NC	E2E-X5B2L18-M1TJ 0.3M	E2E-X5C2L18-M1TJ 0.3M
			NO+NC	E2E-X5B3DL18-M1TJ 0.3M **	E2E-X5C3L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X5B1D18-M1 **	E2E-X5C118-M1
			NC	E2E-X5B218-M1	E2E-X5C218-M1
			NO+NC	E2E-X5B3D18-M1 **	E2E-X5C318-M1
		75 mm	NO	E2E-X5B1DL18-M1 **	E2E-X5C1L18-M1
			NC	E2E-X5B2L18-M1	E2E-X5C2L18-M1
			NO+NC	E2E-X5B3DL18-M1 **	E2E-X5C3L18-M1
M30 (10 mm)	Pre-wired (2 m) *1	60 mm *2	NO	E2E-X10B1D30 2M **	E2E-X10C130 2M
			NC	E2E-X10B230 2M	E2E-X10C230 2M
			NO+NC	E2E-X10B3D30 2M **	E2E-X10C330 2M
		82 mm	NO	E2E-X10B1DL30 2M **	E2E-X10C1L30 2M
			NC	E2E-X10B2L30 2M	E2E-X10C2L30 2M
			NO+NC	E2E-X10B3DL30 2M **	E2E-X10C3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm *3	NO	E2E-X10B1D30-M1TJ 0.3M **	E2E-X10C130-M1TJ 0.3M
			NC	E2E-X10B230-M1TJ 0.3M	E2E-X10C230-M1TJ 0.3M
			NO+NC	E2E-X10B3D30-M1TJ 0.3M **	E2E-X10C330-M1TJ 0.3M
		82 mm	NO	E2E-X10B1DL30-M1TJ 0.3M **	E2E-X10C1L30-M1TJ 0.3M
			NC	E2E-X10B2L30-M1TJ 0.3M	E2E-X10C2L30-M1TJ 0.3M
			NO+NC	E2E-X10B3DL30-M1TJ 0.3M **	E2E-X10C3L30-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2E-X10B1D30-M1 **	E2E-X10C130-M1
			NC	E2E-X10B230-M1	E2E-X10C230-M1
			NO+NC	E2E-X10B3D30-M1 **	E2E-X10C330-M1
		80 mm	NO	E2E-X10B1DL30-M1 **	E2E-X10C1L30-M1
			NC	E2E-X10B2L30-M1	E2E-X10C2L30-M1
			NO+NC	E2E-X10B3DL30-M1 **	E2E-X10C3L30-M1

*1. Models with 5-m cable length are also available (Example: E2E-X2B1D12 5M)
*2. Models with 2-m and 5-m robot (bending-resistant) cables are also available with "-R" in the model number. (Example:
      E2E-X2B1D12-R 2M/E2E-X2B1D12-R 5M)
*3. Models with M12 Smartclick connector model robot (bending-resistant) cables are also available with R" in the model
      number. (Example: E2E-X2B1D12-M1TJR 0.3M)
Note: 1. Models in ** are equipped with IO-Link (COM2). For IO-Link (COM3), select a model number with the format of
             "E2E-X[][][]T[]" (Example: E2E-X2B1T12 2M).
             Operation mode NO can be changed to NC via IO-Link communications.
         2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.

DC 3-wire

Unshielded

Size (Sensing distance)	Connection method	Body size	Operation mode	Model
				PNP	NPN
M8 (2mm)	Pre-wired (2 m) *1	38 mm *2	NO	E2E-X2MB1D8 2M **	E2E-X2MC18 2M
			NC	E2E-X2MB28 2M	E2E-X2MC28 2M
		48 mm	NO	E2E-X2MB1DL8 2M **	E2E-X2MC1L8 2M
			NC	E2E-X2MB2L8 2M	E2E-X2MC2L8 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	38 mm *3	NO	E2E-X2MB1D8-M1TJ 0.3M **	E2E-X2MC18-M1TJ 0.3M
			NC	E2E-X2MB28-M1TJ 0.3M	E2E-X2MC28-M1TJ 0.3M
		48 mm	NO	E2E-X2MB1DL8-M1TJ 0.3M **	E2E-X2MC1L8-M1TJ 0.3M
			NC	E2E-X2MB2L8-M1TJ 0.3M	E2E-X2MC2L8-M1TJ 0.3M
	M12 Connector	43 mm	NO	E2E-X2MB1D8-M1 **	E2E-X2MC18-M1
			NC	E2E-X2MB28-M1	E2E-X2MC28-M1
		53 mm	NO	E2E-X2MB1DL8-M1 **	E2E-X2MC1L8-M1
			NC	E2E-X2MB2L8-M1	E2E-X2MC2L8-M1
			NO+NC	E2E-X2MB3DL8-M1 **	E2E-X2MC3L8-M1
	M8 Connector (4-pin)	39 mm	NO	E2E-X2MB1D8-M3 **	E2E-X2MC18-M3
			NC	E2E-X2MB28-M3	E2E-X2MC28-M3
		49 mm	NO	E2E-X2MB1DL8-M3 **	E2E-X2MC1L8-M3
			NC	E2E-X2MB2L8-M3	E2E-X2MC2L8-M3
	M8 Connector (3-pin)	39 mm	NO	E2E-X2MB1D8-M5 **	E2E-X2MC18-M5
			NC	E2E-X2MB28-M5	E2E-X2MC28-M5
		49 mm	NO	E2E-X2MB1DL8-M5 **	E2E-X2MC1L8-M5
			NC	E2E-X2MB2L8-M5	E2E-X2MC2L8-M5
M12 (5mm)	Pre-wired (2 m) *1	47 mm *2	NO	E2E-X5MB1D12 2M **	E2E-X5MC112 2M
			NC	E2E-X5MB212 2M	E2E-X5MC212 2M
			NO+NC	E2E-X5MB3D12 2M **	E2E-X5MC312 2M
		69 mm	NO	E2E-X5MB1DL12 2M **	E2E-X5MC1L12 2M
			NC	E2E-X5MB2L12 2M	E2E-X5MC2L12 2M
			NO+NC	E2E-X5MB3DL12 2M **	E2E-X5MC3L12 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	47 mm *3	NO	E2E-X5MB1D12-M1TJ 0.3M **	E2E-X5MC112-M1TJ 0.3M
			NC	E2E-X5MB212-M1TJ 0.3M	E2E-X5MC212-M1TJ 0.3M
			NO+NC	E2E-X5MB3D12-M1TJ 0.3M **	E2E-X5MC312-M1TJ 0.3M
		69 mm	NO	E2E-X5MB1DL12-M1TJ 0.3M **	E2E-X5MC1L12-M1TJ 0.3M
			NC	E2E-X5MB2L12-M1TJ 0.3M	E2E-X5MC2L12-M1TJ 0.3M
			NO+NC	E2E-X5MB3DL12-M1TJ 0.3M **	E2E-X5MC3L12-M1TJ 0.3M
	M12 Connector	48 mm	NO	E2E-X5MB1D12-M1 **	E2E-X5MC112-M1
			NC	E2E-X5MB212-M1	E2E-X5MC212-M1
			NO+NC	E2E-X5MB3D12-M1 **	E2E-X5MC312-M1
		70 mm	NO	E2E-X5MB1DL12-M1 **	E2E-X5MC1L12-M1
			NC	E2E-X5MB2L12-M1	E2E-X5MC2L12-M1
			NO+NC	E2E-X5MB3DL12-M1 **	E2E-X5MC3L12-M1
M18 (10mm)	Pre-wired (2 m) *1	55 mm *2	NO	E2E-X10MB1D18 2M **	E2E-X10MC118 2M
			NC	E2E-X10MB218 2M	E2E-X10MC218 2M
			NO+NC	E2E-X10MB3D18 2M **	E2E-X10MC318 2M
		77 mm	NO	E2E-X10MB1DL18 2M **	E2E-X10MC1L18 2M
			NC	E2E-X10MB2L18 2M	E2E-X10MC2L18 2M
			NO+NC	E2E-X10MB3DL18 2M **	E2E-X10MC3L18 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	55 mm *3	NO	E2E-X10MB1D18-M1TJ 0.3M **	E2E-X10MC118-M1TJ 0.3M
			NC	E2E-X10MB218-M1TJ 0.3M	E2E-X10MC218-M1TJ 0.3M
			NO+NC	E2E-X10MB3D18-M1TJ 0.3M **	E2E-X10MC318-M1TJ 0.3M
		77 mm	NO	E2E-X10MB1DL18-M1TJ 0.3M **	E2E-X10MC1L18-M1TJ 0.3M
			NC	E2E-X10MB2L18-M1TJ 0.3M	E2E-X10MC2L18-M1TJ 0.3M
			NO+NC	E2E-X10MB3DL18-M1TJ 0.3M **	E2E-X10MC3L18-M1TJ 0.3M
	M12 Connector	53 mm	NO	E2E-X10MB1D18-M1 **	E2E-X10MC118-M1
			NC	E2E-X10MB218-M1	E2E-X10MC218-M1
			NO+NC	E2E-X10MB3D18-M1 **	E2E-X10MC318-M1
		75 mm	NO	E2E-X10MB1DL18-M1 **	E2E-X10MC1L18-M1
			NC	E2E-X10MB2L18-M1	E2E-X10MC2L18-M1
			NO+NC	E2E-X10MB3DL18-M1 **	E2E-X10MC3L18-M1
M30 (18mm)	Pre-wired (2 m) *1	60 mm *2	NO	E2E-X18MB1D30 2M **	E2E-X18MC130 2M
			NC	E2E-X18MB230 2M	E2E-X18MC230 2M
			NO+NC	E2E-X18MB3D30 2M **	E2E-X18MC330 2M
		82 mm	NO	E2E-X18MB1DL30 2M **	E2E-X18MC1L30 2M
			NC	E2E-X18MB2L30 2M	E2E-X18MC2L30 2M
			NO+NC	E2E-X18MB3DL30 2M **	E2E-X18MC3L30 2M
	M12 Pre-wired Smartclick Connector (0.3 m)	60 mm *3	NO	E2E-X18MB1D30-M1TJ 0.3M **	E2E-X18MC130-M1TJ 0.3M
			NC	E2E-X18MB230-M1TJ 0.3M	E2E-X18MC230-M1TJ 0.3M
			NO+NC	E2E-X18MB3D30-M1TJ 0.3M **	E2E-X18MC330-M1TJ 0.3M
		82 mm	NO	E2E-X18MB1DL30-M1TJ 0.3M **	E2E-X18MC1L30-M1TJ 0.3M
			NC	E2E-X18MB2L30-M1TJ 0.3M	E2E-X18MC2L30-M1TJ 0.3M
			NO+NC	E2E-X18MB3DL30-M1TJ 0.3M **	E2E-X18MC3L30-M1TJ 0.3M
	M12 Connector	58 mm	NO	E2E-X18MB1D30-M1 **	E2E-X18MC130-M1
			NC	E2E-X18MB230-M1	E2E-X18MC230-M1
			NO+NC	E2E-X18MB3D30-M1 **	E2E-X18MC330-M1
		80 mm	NO	E2E-X18MB1DL30-M1 **	E2E-X18MC1L30-M1
			NC	E2E-X18MB2L30-M1	E2E-X18MC2L30-M1
			NO+NC	E2E-X18MB3DL30-M1 **	E2E-X18MC3L30-M1
