In-line full inspection coverage
The VT-X750 improves upon previous Omron 3D-CT technology making it the fastest X-Ray inspection system to date *1.
The automated inspection logic has been improved for many parts such as IC heal fillets, stacked devices (PoP), through hole components, press-fit connectors, and other bottom terminated parts.
Increasing automated inspection speed and expanding inspection logic enables full, in-line inspection coverage by 3D-CT method.
*1. By an internal investigation in October, 2017.
Visualize solder joint strength
OMRON’s unique 3D-CT reconstruction algorithms provide excellent solder shape recognition and defect detection.
Quantitative analysis allows for an automated inspection process which minimizes the risk of escapes while providing fast and repeatable operation.
Design constraint free
Dense and dual sided board design can provide challenges for X-Ray inspection.
However, Omron's 3D-CT technology can overcome such design restraints.
Reduce radiation exposure
High speed imaging technology
The VT-X750 provides the shortest X-ray exposure time without sacrificing inspection image quality.
X-ray source at the bottom
By locating the X-ray source under the board, both exposure and dosage is physically reduced to the more important devices mounted on the top.
Low energy-cut filter
Standard equipped filter reduces X-ray exposure further minimizing damage concerns to memory products.
Operation safety
Ultratrace leakage dose
Exposure dosage to operator is less than 0.18 mSv *2 per a year. This is less than one-tenth compared with that from natural environment.
*2. Teaching operation for one hour per day.0.5μSv/h x 1h/day x 365days = 0.183mSv
OMRON’s safety components
The VT-X750 complies with CE, SEMI S2/S8 and other safety standards by utilizing OMRON’s latest generation of safety controller and light curtain products.
X-ray shielding box, made in Japan
The machine shielding quality is ensured through three surveys (twice at the factory in Japan and once on site).
Zero down time
To achieve “Zero down time” during the SMT production process, OMRON supports machine operation globally by preventative maintenance, emergency support and machine monitor with remote access.
Remote Support
Monitor the machine's status and eliminate production down time.
Global Support
More than 30 locations.
last update: October 23, 2017
Purchase the OMRON PCB Inspection System Please fill in the following
If you have just landed here, this product OMRON VT-X750 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the VT-X750 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON VT-X750Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
LVS-9580 Series Code Verification System/Features
E3NX-CA Color Fiber Amplifier Unit/Features
CJ1W-CT021 CJ-series High-speed Counter Unit/Features
CS1W-CRM21 CS-series CompoNet Master Units/Features
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Features
OMRON VT-X750 catalog
VT-X750 High-speed automated X-ray CT inspection system/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 VT-X750 Catalog | Q331-E1-02 [3630KB] | Nov 01, 201720171101 | VT-X750 Catalog |
OMRON VT-X750 dimension

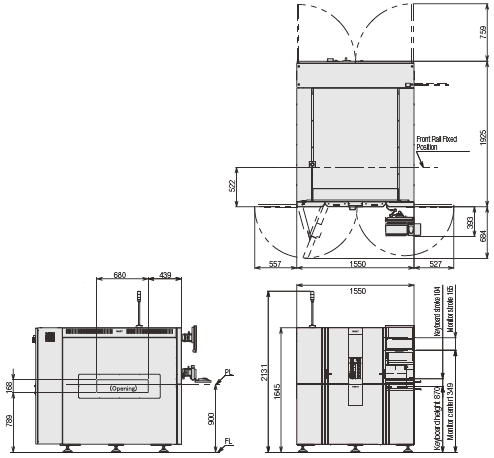

VT-X750 High-speed automated X-ray CT inspection system/Dimensionslast update: October 23, 2017
