• Shape-compatible with mechanical relays.

• Certified by UL, CSA, and VDE (models numbers with a suffix of “-VD”).

• Plug-in type, same size as MK Power Relays.

• Operation indicator provided to confirm input.

• DC Output model available with 3 to 125-VDC load voltage range for high-voltage applications.

last update: December 19, 2013

Purchase the OMRON Socket / Plug-in Type Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3B / G3BD Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3B / G3BD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3B / G3BDRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G6B-4[][]ND Terminal Relay/Features
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Features
DeviceNet Multi-vendor Network/Features
XW2E Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common/Featu...

OMRON G3B / G3BD dimension
G3B / G3BD Solid State Relays G3[]-VD/Dimensions
last update: November 12, 2012

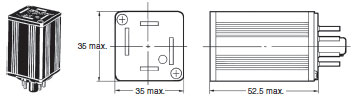

G3B-VD
