• I/O connectors for easier wiring.

• Easy connections via connectors (no special tools required).

• Compatible with e-CON connectors from other companies.

last update: October 10, 2013

Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON XW2N Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2N We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2NPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NYP Industrial PC Platform NY-series Industrial Panel PC/Features
E3S-DB Transparent Object Detection Photoelectric Sensor/Features
FJ Series (Camera and Software Vision Package) PC Vision System/Features
G3J Simple Solid State Contactors/Features
CJ1W-CT021 CJ-series High-speed Counter Unit/Features

OMRON XW2N specification

XW2N Connector-Terminal Block Conversion Unit with 16-input e-CON Terminal Block with Common/Specifications

last update: October 10, 2013

Rated current0.5 A/input, 4 A/common
Rated voltage24 VDC
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength500 VAC for 1 min
Ambient operating temperature-10 to 55°C
Applicable wires
(power supply terminals)		Applicable wire sizes *AWG24 to AWG16 (core cross-sectional area: 0.2 to 1.5 mm2);
Stripped length9.5 to 10.5 mm

*These are the applicable sizes for the terminal block. Refer to information on the applicable connector for input connector wire sizes.

last update: October 10, 2013


OMRON XW2N dimension

XW2N Connector-Terminal Block Conversion Unit with 16-input e-CON Terminal Block with Common/Dimensions

last update: October 10, 2013

(Unit: mm)

XW2N-20G8-IN16

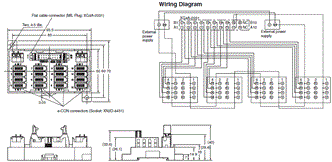

XW2N Dimensions 2
