last update: October 08, 2015

Easy Connection

Simple system configuration

Connect with just one cable via built-in Ethernet

One Connection

Embedded Ethernet I/F realizes just one connection to the system without any network converter. Wiring work can be reduced.

Easy Programming

3 types of industrial Ethernet protocols enable to connect any type of PLC with easy programming.

Easy System Expansion

Multiple Reader/Writers can be easily connected by using a Switching HUB. System design and system expansion can be configured easily.

[Plus+] The Connection Procedure Manual for OMRON NJ Series and CJ Series is available.

Note : Contact your OMRON sales representative for the Connection Procedure Manual.

Easy Installation

Easy to find the best installation location

Communication Diagnostic via LED status indicators

Visualized Communications Status

On-site operators can easily check the communications status with the indicators of the Reader/Writer.
The indicators using easy-to-see high-brightness LED can be easily seen from a distance.

Diagnosis of Communications

The Reader/Writer measures the communications signal and ambient noise levels to diagnose its stability,then indicates in LED and report to Host System.Easily and quickly checks the proper installation of the system, and helps to reduce startup time. This can be used for preventing errors during operation.

Note
1. Communication Diagnostic is disabled in the default settings.
2. The communication time is longer when enabling Communication Diagnostic.
　　For details, refer to the User's Manual (Cat. No. Z339 or Z353).

Interrogation Zone Extended Mode

Can control multiple Reader/Writers by sending just one command.
The Reader/Writers installed on both sides of the conveyor can access the RF Tags
on the pallets even if the pallets are not placed with the same orientation.

Easy Operation

No special software nor expert RFID knowledge required

Operate via web browser on your computer

WEB Browser I/F

Enable all parameter settings, execute RF Tag communications, and check the operation log anywhere by just connecting the computer.

Easy Troubleshooting

Up to 2000 communication results are stored and guidance for the “Warning” results is provided.
Can be quickly recovered from trouble without expert knowledge.

List

Latest 2,048 communication results are logged and checked.

Graph

Diagnostic results can be shown by the graph.
Analysis time to identify the cause of unstable communication can be reduced by checking the time-series signal and noise levels.
The results can be output to CSV files.

[Plus+] Four Language Support

Select from four languages: English, Chinese, Korean and Japanese.

V680S Series RF Tag

Contributes to shorter set-up time and more stable operation

Versatile selection, IPx9K support, and longer communication range

Easy to Select Suitable RF Tag for Your Application

V680S RF Tag series offers 8 kinds of full combinations based on Communication Range, Mounting Materials, Memory Sizes.
Making it Easy to find the suitable RF Tag for your application.

Durable to High-temperature Wash Down : IP68 + IPx9K*1 Support

RF Tag is molded by PPS resin which has superior oil and chemical resistance specification. It can be washed-down by a steam cleaner without removing from the pallet.

*1. IPx9K is a protection standard regarding high temperature and high-pressure water.

Longer Communication Range*2

V680S series RF Tags are optimally designed to be used with V680S series Reader/Writers. Communication Range are up to 30% longer than those of existing models. This enables more flexible system design.

Combination Examples

*2. When using some combinations of V680S series RF Tag and V680S series Reader/Writer.

last update: October 08, 2015

Purchase the OMRON HF Band RFID (13.56MHz) Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON V680S Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the V680S Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON V680S SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G70D-VSOC16 / VFOM16 Relay Terminal (Vertical Type)/Features
NS-NSRCL1 / 3 / 10 Machine Monitoring Software NS-Runtime/Features
R87F / R87T AC Axial Fans/Features
VB Multiple Limit Switch/Features
G9B Stepping Relay Unit/Features

OMRON V680S Series dimension
V680S Series RFID System/Dimensions
last update: April 01, 2016

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Reader/Writer
EtherNet/IP, PROFINET

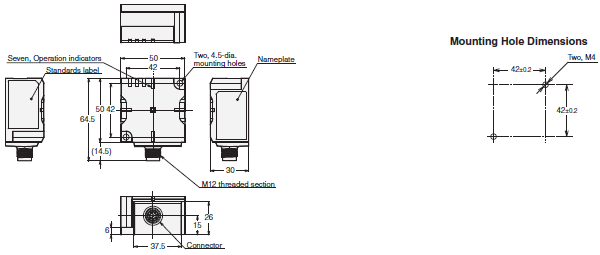

V680S-HMD63-EIP
V680S-HMD63-PNT

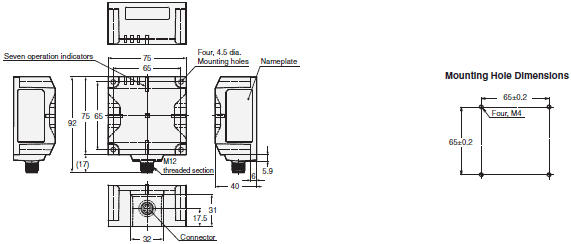

V680S-HMD64-EIP
V680S-HMD64-PNT

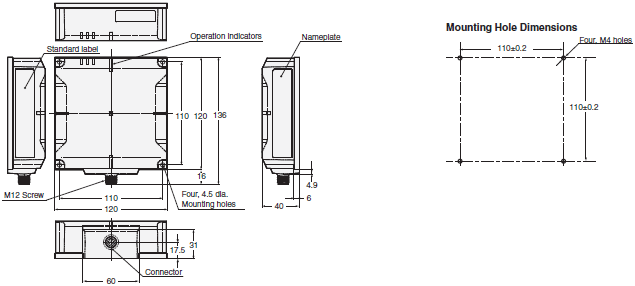

V680S-HMD66-EIP
V680S-HMD66-PNT

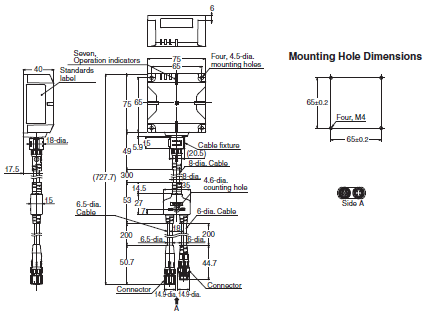

Modbus TCP

V680S-HMD63-ETN

V680S-HMD64-ETN

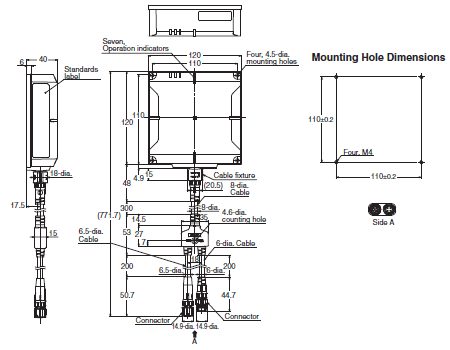

V680S-HMD66-ETN

RF Tag

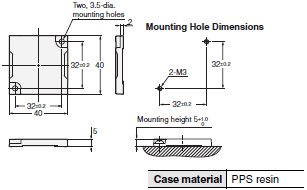

V680S-D2KF67/-D2KF67M
V680S-D8KF67/-D8KF67M

V680S-D2KF68/-D2KF68M
V680S-D8KF68/-D8KF68M

V680-D1KP54T

V680-D1KP66T/-D1KP66MT

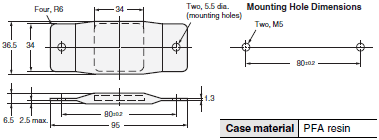

V680-D1KP66T-SP

V680-D1KP58HTN

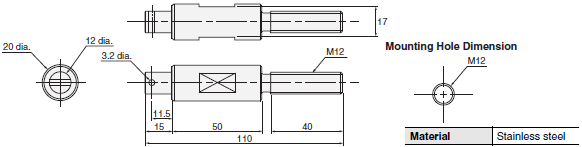

RF Tag Attachment

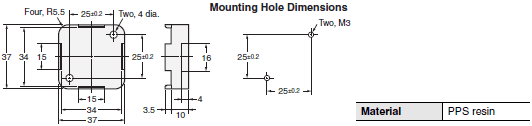

V680-D1KP66T Attachment
V600-A86

V680-D1KP58HTN AttachmentV680-A80

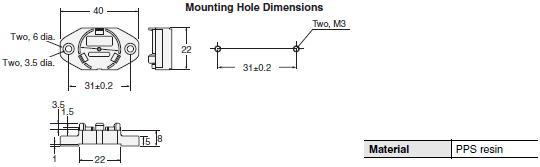

V680-D1KP54T Attachment
V700-A80

Cable for Modbus TCP

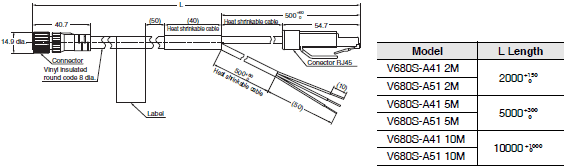

V680S-A41 []M/V680S-A51 []M *
Special connector --- RJ45

* V680S-A51 []M is Flexible cables. Cable color is black.

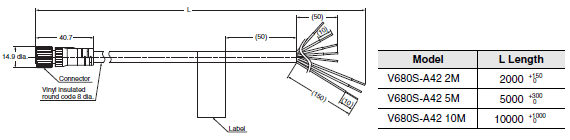

V680S-A42 []M
Special connector --- Loose wires

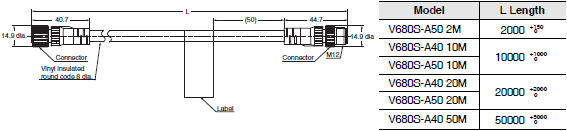

Extension Cable for Modbus TCP

V680S-A40 []M/V680S-A50 []M *
Special connector --- Special connector

* V680S-A51 []M is Flexible cables. Cable color is black.

Recommended Ethernet Cable for EtherNet/IP and PROFINET

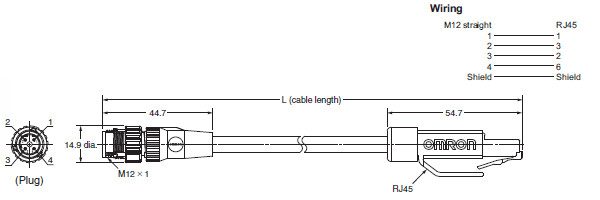

Cable with Plugs on Both Ends (M12 Straight/RJ45) Wiring
XS5W-T421-[]MC-K

Cable with Plugs on Both Ends (M12 Right-angle/RJ45)
XS5W-T422-[]MC-K

Note: For details, refer to the Industrial Ethernet Connectors Catalog (Cat.No.G019).

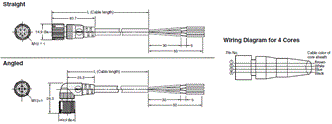

Recommended Power Cable for EtherNet/IP and PROFINET
XS5F-D42[]-[]80-[]

Note:
1. Fire-retardant,Robot cable (XS5F-D42[]-[]80-F) have warm gray covers.
2. For details, refer to the Industrial Connectors Catalog (Cat. No. X082).

last update: April 01, 2016

OMRON V680S Series catalog
V680S Series RFID System/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

V680S Series Catalog Q196-E1-04
[10823KB] Apr 03, 201720170403 V680S Series Catalog

OMRON V680S Series lineup
V680S Series RFID System/Lineup
last update: April 3, 2017
Reader/Writer

Appearance Size Network Model
50 × 50 × 30 mm EtherNet/IP V680S-HMD63-EIP
PROFINET V680S-HMD63-PNT
75 × 75 × 40 mm EtherNet/IP V680S-HMD64-EIP
PROFINET V680S-HMD64-PNT
120 × 120 × 40 mm EtherNet/IP V680S-HMD66-EIP
PROFINET V680S-HMD66-PNT
50 × 50 × 30 mm Modbus TCP (TCP/IP) V680S-HMD63-ETN
75 × 75 × 40 mm V680S-HMD64-ETN
120 × 120 × 40 mm V680S-HMD66-ETN

RF Tag
V680S-series

Type Memory
capacity Appearance Size Installation Model
Battery-less 2 K bytes 40 × 40 × 5 mm For flush mounting on
metallic surface V680S-D2KF67M
For flush mounting on
nonmetallic surface V680S-D2KF67
86 × 54 × 10 mm For flush mounting on
metallic surface V680S-D2KF68M
For flush mounting on
nonmetallic surface V680S-D2KF68
8 K bytes 40 × 40 × 5 mm For flush mounting on
metallic surface V680S-D8KF67M *
For flush mounting on
nonmetallic surface V680S-D8KF67 *
86 × 54 × 10 mm For flush mounting on
metallic surface V680S-D8KF68M *
For flush mounting on
nonmetallic surface V680S-D8KF68 *

* V680S-D8KF6[]M/V680S-D8KF6[] can be used with V680S series Reader/Writer version 2.00 or higher.

V680-series

Type Memory
capacity Appearance Size Installation Model
Battery-less 1 K bytes 20 dia. × 2.7 mm For flush mounting on
nonmetallic surface V680-D1KP54T
34 × 34 × 3.5 mm For flush mounting on
metallic surface V680-D1KP66MT
For flush mounting on
nonmetallic surface V680-D1KP66T
Environment-
resistant type
Battery-less 95 × 36.5 × 6.5 mm For flush mounting on
nonmetallic surface V680-D1KP66T-SP
High-
temperature
type
Battery-less 80 dia. × t10 mm For mounting with
special attachment V680-D1KP58HTN

Note: V680 series 8K-byte RF Tag can communicate with V680S series Reader/Writer.
For details, contact your OMRON representative.

RF Tag Attachment

Type Appearance Model
For the V680-D1KP66T V600-A86
For the V680-D1KP58HTN V680-A80
For the V680-D1KP54T V700-A80

Cable
Recommended Ethernet Cable for EtherNet/IP and PROFINET (Connection between Host Device and Reader/Writer)

Use STP (shielded twisted-pair) cable of category 5 or higher.

Item Cable length (m) * Model
Wire Gauge and
Number of Pairs:
AWG22, 2-pair Cable Rugged type
Cable with Connectors
on Both Ends
(M12 Straight/RJ45)
0.3 XS5W-T421-AMC-K
0.5 XS5W-T421-BMC-K
1 XS5W-T421-CMC-K
2 XS5W-T421-DMC-K
5 XS5W-T421-GMC-K
10 XS5W-T421-JMC-K
Rugged type
Cable with Connectors
on Both Ends
(M12 Right-angle/RJ45)
0.3 XS5W-T422-AMC-K
0.5 XS5W-T422-BMC-K
1 XS5W-T422-CMC-K
2 XS5W-T422-DMC-K
5 XS5W-T422-GMC-K
10 XS5W-T422-JMC-K

* Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15m are available.
Note: For details, refer to the Industrial Ethernet Connectors Catalog (Cat.No.G019).

Recommended Power Cable for EtherNet/IP and PROFINET (Connection between Power Supply and Reader/Writer)
XS5F-D42[]-[]80-[]

Cable
specifications Cable length
L (m) Cable outer
diameter (mm) Straight Connectors Angled Connectors Minimum
order
Model
Fire-retardant,
Robot cable 1 6 XS5F-D421-C80-F XS5F-D422-C80-F 10
2 XS5F-D421-D80-F XS5F-D422-D80-F 5
3 XS5F-D421-E80-F XS5F-D422-E80-F
5 XS5F-D421-G80-F XS5F-D422-G80-F
10 XS5F-D421-J80-F XS5F-D422-J80-F 1

Note: For details, refer to the Industrial Connectors Catalog (Cat. No. X082).

Cable for Modbus TCP (Connection between Host Device and Reader/Writer)

Type Appearance Length Model
Special connector --- RJ45 2 m V680S-A41 2M
5 m V680S-A41 5M
10 m V680S-A41 10M
Special connector --- RJ45
(Flexible cables) 2 m V680S-A51 2M
5 m V680S-A51 5M
10 m V680S-A51 10M
Special connector --- Loose wires 2 m V680S-A42 2M
5 m V680S-A42 5M
10 m V680S-A42 10M

Extension Cable for Modbus TCP (Connection between Host Device and Reader/Writer)

Type Appearance Length Model
Special connector --- Special connector 10 m V680S-A40 10M
20 m V680S-A40 20M
50 m V680S-A40 50M
Special connector --- Special connector
(Flexible cables) 2 m V680S-A50 2M
10 m V680S-A50 10M
20 m V680S-A50 20M

Note: 1. The extension cable can be used for the Reader/Writer for Modbus TCP V680S-HMD6[]-ETN.
2. The cable can be extended up to 60 m by using an extension cable. Only one extension cable can be used.

Industrial Switching Hubs (Recommended Hubs)

Type Appearance Specifications Model
Functions No. of ports Failure detection
Industrial
Switching
Hubs Quality of Service (QoS):
EtherNet/IP control data priority
Failure detection:
Broadcast storm and LSI error detection
10/100BASE-TX, Auto-Negotiation 3 No W4S1-03B
5 No W4S1-05B
5 Yes W4S1-05C

last update: April 3, 2017

OMRON V680S Series specification
V680S Series RFID System/Specifications
last update: April 01, 2015
Reader/Writer
EtherNet/IP, PROFINET

Model V680S-HMD63-EIP
V680S-HMD63-PNT V680S-HMD64-EIP
V680S-HMD64-PNT V680S-HMD66-EIP
V680S-HMD66-PNT
Dimensions 50W × 50H × 30D
(excluding protruding parts and cables) 75W × 75H × 40D
(excluding protruding parts and cables) 120W × 120H × 40D
(excluding protruding parts and cables)
Power supply voltage 24 VDC (-15% to +10%)
Consumption current 0.2A max.
Ambient operating temperature -10 to +55 °C (with no icing)
Ambient operating humidity 25% to 85% (with no condensation)
Ambient storage temperature -25 to 70 °C (with no icing)
Ambient storage humidity 25% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between cable terminals and case
Vibration resistance No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude,
acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right,
and forward/backward) for 11 minutes each
Shock resistance No abnormality after application of 500 m/s², 3 times each in 6 directions (Total: 18 times)
Degree of protection IP67 (IEC 60529: 2001)
Oil resistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) *
Materials Case: PBT resin, Filled resin: Urethane resin
Mass Approx. 240g Approx. 390g Approx. 760g
Installation method Reader/Writer: Two M4 screws
(Use a screw of 12 mm or more in length.)
Branch cable joint: One M4 screws Four M4 screws
(Use a screw of 12 mm or more in length.)
Host device communications
interface Ethernet 10BASE-T/100BASE-TX
Host device communications
protocol EtherNet/IP, PROFINET
Accessories Instruction Sheet, Description of Regulations and Standard, IP address label

* Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Note: The 0.5 m cable with two M12 connectors is attached to the Reader/Writer. The cable cannot be removed.

Modbus TCP

Model V680S-HMD63-ETN V680S-HMD64-ETN V680S-HMD66-ETN
Dimensions 50W × 50H × 30D
(excluding protruding parts) 75W × 75H × 40D
(excluding protruding parts) 120W × 120H × 40D
(excluding protruding parts)
Power supply voltage 24 VDC ( - 15% to + 10%)
Consumption current 0.2A max.
Ambient operating temperature - 10 to + 55 °C (with no icing)
Ambient operating humidity 25% to 85% (with no condensation)
Ambient storage temperature - 25 to 70 °C (with no icing)
Ambient storage humidity 25% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between cable terminals and case
Vibration resistance No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude,
acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right,
and forward/backward) for 11 minutes each
Shock resistance No abnormality after application of 500 m/s², 3 times each in 6 directions (Total: 18 times)
Degree of protection IP67 (IEC 60529: 2001)
Oil resistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) *1
Materials Case: PBT resin, Filled resin: Urethane resin
Mass Approx. 120g Approx. 270g Approx. 640g
Installation method Two M4 screws
(Use a screw of 12 mm or more in length.) Four M4 screws
(Use a screw of 12 mm or more in length.)
Host device communications
interface Ethernet 10BASE-T/100BASE-TX
Host device communications
protocol MODBUS TCP
Accessories Instruction sheet, Description of Regulations and Standard, IP address label, Ferrite core *2

*1 Oil resistance has been tested using a specific oil as defined in the OMRON test method.
*2 Provided only with the V680S-HMD66-ETN.

RF Tag
V680S-series
RF Tag (2K-byte Memory)

Model V680S-D2KF67 V680S-D2KF67M V680S-D2KF68 V680S-D2KF68M
Memory capacity 2,000 bytes (user area)
Memory type FRAM
Data Retention 10 years after writing (85 °C or less)
Memory life One trillion writes for each block (85 °C or less), Access frequency *1: One trillion accesses
Ambient operating
temperature -20 to 85 °C (with no icing)
Ambient storage
temperature -40 to 125 °C (with no icing)
Ambient operating
humidity 35% to 85%
Degree of protection IP68 (IEC 60529:2001),
Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *2.
IPX9K (DIN 40 050)
Vibration resistance No abnormality after application of
10 to 2,000 Hz, 1.5-mm double amplitude,
acceleration: 150 m/s², 10 sweeps
each in X, Y, and Z directions
for 15 minutes each No abnormality after application of
10 to 500 Hz, 1.5-mm double amplitude,
acceleration: 100 m/s², 10 sweeps
each in X, Y, and Z directions
for 11 minutes each
Shock resistance No abnormality after application of 500 m/s²,
3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 40 × 40 × 5 mm (W × H × D) 86 × 54 × 10 mm (W × H × D)
Materials PPS resin
Weight Approx. 11.5 g Approx. 12 g Approx. 44 g Approx. 46 g
Metal countermeasures None Provided None Provided

*1 The number of accesses is the total number of reads and writes.
*2 Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Note: For details, refer to the User’s Manual (Cat. No. Z339).

RF Tag (8K-byte Memory)

Model V680S-D8KF67 V680S-D8KF67M V680S-D8KF68 V680S-D8KF68M
Memory capacity 8,192 bytes (user area)
Memory type FRAM
Data Retention 10 years after writing (85 °C or less)
Memory life One trillion writes for each block (85 °C or less), Access frequency *1: One trillion accesses
Ambient operating
temperature -20 to 85 °C (with no icing)
Ambient storage
temperature -40 to 125 °C (with no icing)
Ambient operating
humidity 35% to 85%
Degree of protection IP68 (IEC 60529:2001),
Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *2.
IPX9K (DIN 40 050)
Vibration resistance No abnormality after application of
10 to 2,000 Hz, 1.5-mm double amplitude,
acceleration: 150 m/s², 10 sweeps
each in X, Y, and Z directions
for 15 minutes each No abnormality after application of
10 to 500 Hz, 1.5-mm double amplitude,
acceleration: 100 m/s², 10 sweeps
each in X, Y, and Z directions
for 11 minutes each
Shock resistance No abnormality after application of 500 m/s²,
3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 40 × 40 × 5 mm (W × H × D) 86 × 54 × 10 mm (W × H × D)
Materials PPS resin
Weight Approx. 11.5 g Approx. 12 g Approx. 44 g Approx. 46 g
Metal countermeasures None Provided None Provided

*1 The number of accesses is the total number of reads and writes.
*2 Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Note: For details, refer to the User’s Manual (Cat. No. Z339).

V680-series
RF Tag (1K-byte Memory)

Model V680-D1KP54T V680-D1KP66T V680-D1KP66MT V680-D1KP66T-SP
Memory capacity 1,000 bytes (user area)
Memory type EEPROM
Data retention time 10 years after writing (85 °C or less),
0.5 year after writing (85 °C to 125 °C)
Total data retention at high temperatures exceeding 125 °C is
10 hours *1 10 years after writing
(85 °C or less)
Write endurance 100,000 writes for each block (25 °C)
Ambient operating
temperature
(during transmission) - 25 to 85 °C (with no icing) During RF Tag
communications:
-25 to 70 °C (with no icing)
Not during RF Tag
communications:
-40 to 110 °C (with no icing)
Ambient storage
temperature
(during data backup) - 40 to 125 °C (with no icing)
Heat resistance:
1,000 thermal cycles each of 30 minutes at - 10 °C/150 °C,
High temperature storage: 1,000 hours at 150 °C *2
200 thermal cycles each of 30 minutes at - 10 °C/180 °C,
High temperature storage: 200 hours at 180 °C *3 - 40 to 110 °C
(with no icing)
Ambient operating
humidity 35 to 95%
Degree of protection IP67 (IEC 60529:2001)
Oil resistance equivalent
to IP67G (JIS C 0920:
2003, Appendix 1) *4 IP68 (IEC 60529:2001)
Oil resistance equivalent to IP67G
(JIS C 0920:2003, Appendix 1) *4 IP67
Vibration resistance No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude,
acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions (Total:
18 times)
Appearance 20 dia. × 2.7 mm 34 × 34 × 3.5 mm 95 × 36.5 × 6.5 mm
(excluding protruding
parts)
Materials PPS resin Exterior: PFA fluororesin
RF Tag filling: PPS resin
Weight Approx. 2 g Approx. 6 g Approx. 7.5 g Approx. 20 g
Metal
countermeasures None None Provided None

*1 After storing data at high temperatures, rewrite the data even if changes are not required. High temperatures are those exceeding 125 °C up to 180 °C.
*2 150 °C heat resistance: The heat resistance has been checked at 150 °C for up to 1,000 hours, and thermal shock has been checked through testing 1,000 thermal cycles each of 30 minutes at −10/150 °C. (Test samples: 22, defects: 0)
*3 180 °C heat resistance: The heat resistance has been checked at 180 °C for up to 200 hours, and thermal shock has been checked through testing 200 thermal cycles each of 30 minutes at −10 °C/180 °C. (Test samples: 22, defects: 0)
*4 Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Note: For details, refer to the User's Manual (Cat. No. Z339).

RF Tag (1K-byte Memory with High-temperature Capability)

Model V680-D1KP58HTN
Memory capacity 1,000 bytes (user area)
Memory type EEPROM
Data Retention 10 years after writing (85 °C or less), 0.5 year after writing (85 °C to 125 °C)
Total data retention at high temperatures exceeding 125 °C is 10 hours *1
Write Endurance 100,000 writes for each block (25 °C)
Ambient operating temperature
(during transmission) - 25 to 85 °C (with no icing)
Ambient storage temperature
(during data backup) -40 to 250 °C (with no icing) *2
(Data retention: -40 to 125 °C)
1. 2,000 cycles of 30 minutes each between room temperature and 200 °C
2. 500 hours at 250 °C
Ambient storage humidity No restrictions.
Degree of protection IP67 (IEC 60529:2001)
Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *3
Vibration resistance No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude,
acceleration: 150 m/s²,
10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions
(Total: 18 times)
Materials PPS resin
Weight Approx. 70 g

*1 After storing data at high temperatures, rewrite the data even if changes are not required. High temperatures are those exceeding 125 °C up　to 250 °C.
*2 Storing RF Tags under high temperatures or under heat cycles will adversely affect the performance of the internal parts and the service life　of the RF Tags. The RF Tag were placed in the following high temperatures and then evaluated in-house. It was confirmed that no problems　occurred.
　　　1. 2,000 cycles of 30 minutes each between room temperature and 200 °C.
　　　2. 500 hours at 250 °C.
*3 Oil resistance has been tested using a specific oil as defined in the OMRON test method.
Note: For details, refer to the User's Manual (Cat. No. Z339, Z353 or Z354).

last update: April 01, 2015

NO. V680S Series

TYPE:RFID Systems HF Band RFID (13.56MHz) Copyright Statement

DATE:2021-06-10

Associated products:
W4S1 Industrial Switching Hubs/Features S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
V680S Series Catalog	Q196-E1-04 [10823KB]	Apr 03, 201720170403	V680S Series Catalog

Appearance	Size	Network	Model
	50 × 50 × 30 mm	EtherNet/IP	V680S-HMD63-EIP
PROFINET	V680S-HMD63-PNT
	75 × 75 × 40 mm	EtherNet/IP	V680S-HMD64-EIP
PROFINET	V680S-HMD64-PNT
	120 × 120 × 40 mm	EtherNet/IP	V680S-HMD66-EIP
PROFINET	V680S-HMD66-PNT
	50 × 50 × 30 mm	Modbus TCP (TCP/IP)	V680S-HMD63-ETN
	75 × 75 × 40 mm	V680S-HMD64-ETN
	120 × 120 × 40 mm	V680S-HMD66-ETN

Type	Memory capacity	Appearance	Size	Installation	Model
Battery-less	2 K bytes		40 × 40 × 5 mm	For flush mounting on metallic surface	V680S-D2KF67M
For flush mounting on nonmetallic surface	V680S-D2KF67
	86 × 54 × 10 mm	For flush mounting on metallic surface	V680S-D2KF68M
For flush mounting on nonmetallic surface	V680S-D2KF68
8 K bytes		40 × 40 × 5 mm	For flush mounting on metallic surface	V680S-D8KF67M *
For flush mounting on nonmetallic surface	V680S-D8KF67 *
	86 × 54 × 10 mm	For flush mounting on metallic surface	V680S-D8KF68M *
For flush mounting on nonmetallic surface	V680S-D8KF68 *

Type	Memory capacity	Appearance	Size	Installation	Model
Battery-less	1 K bytes		20 dia. × 2.7 mm	For flush mounting on nonmetallic surface	V680-D1KP54T
	34 × 34 × 3.5 mm	For flush mounting on metallic surface	V680-D1KP66MT
For flush mounting on nonmetallic surface	V680-D1KP66T
Environment- resistant type Battery-less		95 × 36.5 × 6.5 mm	For flush mounting on nonmetallic surface	V680-D1KP66T-SP
High- temperature type Battery-less		80 dia. × t10 mm	For mounting with special attachment	V680-D1KP58HTN

Type	Appearance	Model
For the V680-D1KP66T		V600-A86
For the V680-D1KP58HTN		V680-A80
For the V680-D1KP54T		V700-A80

Item	Cable length (m) *	Model
Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	Rugged type Cable with Connectors on Both Ends (M12 Straight/RJ45)	0.3	XS5W-T421-AMC-K
0.5	XS5W-T421-BMC-K
1	XS5W-T421-CMC-K
2	XS5W-T421-DMC-K
5	XS5W-T421-GMC-K
10	XS5W-T421-JMC-K
Rugged type Cable with Connectors on Both Ends (M12 Right-angle/RJ45)	0.3	XS5W-T422-AMC-K
0.5	XS5W-T422-BMC-K
1	XS5W-T422-CMC-K
2	XS5W-T422-DMC-K
5	XS5W-T422-GMC-K
10	XS5W-T422-JMC-K

Cable specifications	Cable length L (m)	Cable outer diameter (mm)	Straight Connectors	Angled Connectors	Minimum order
Model
Fire-retardant, Robot cable	1	6	XS5F-D421-C80-F	XS5F-D422-C80-F	10
2	XS5F-D421-D80-F	XS5F-D422-D80-F	5
3	XS5F-D421-E80-F	XS5F-D422-E80-F
5	XS5F-D421-G80-F	XS5F-D422-G80-F
10	XS5F-D421-J80-F	XS5F-D422-J80-F	1

Type	Appearance	Length	Model
Special connector --- RJ45		2 m	V680S-A41 2M
5 m	V680S-A41 5M
10 m	V680S-A41 10M
Special connector --- RJ45 (Flexible cables)		2 m	V680S-A51 2M
5 m	V680S-A51 5M
10 m	V680S-A51 10M
Special connector --- Loose wires		2 m	V680S-A42 2M
5 m	V680S-A42 5M
10 m	V680S-A42 10M

Type	Appearance	Length	Model
Special connector --- Special connector		10 m	V680S-A40 10M
20 m	V680S-A40 20M
50 m	V680S-A40 50M
Special connector --- Special connector (Flexible cables)		2 m	V680S-A50 2M
10 m	V680S-A50 10M
20 m	V680S-A50 20M

Type	Appearance	Specifications	Model
Functions	No. of ports	Failure detection
Industrial Switching Hubs		Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation	3	No	W4S1-03B
	5	No	W4S1-05B
5	Yes	W4S1-05C

Model	V680S-HMD63-EIP V680S-HMD63-PNT	V680S-HMD64-EIP V680S-HMD64-PNT	V680S-HMD66-EIP V680S-HMD66-PNT
Dimensions	50W × 50H × 30D (excluding protruding parts and cables)	75W × 75H × 40D (excluding protruding parts and cables)	120W × 120H × 40D (excluding protruding parts and cables)
Power supply voltage	24 VDC (-15% to +10%)
Consumption current	0.2A max.
Ambient operating temperature	-10 to +55 °C (with no icing)
Ambient operating humidity	25% to 85% (with no condensation)
Ambient storage temperature	-25 to 70 °C (with no icing)
Ambient storage humidity	25% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between cable terminals and case
Vibration resistance	No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in 6 directions (Total: 18 times)
Degree of protection	IP67 (IEC 60529: 2001) Oil resistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) *
Materials	Case: PBT resin, Filled resin: Urethane resin
Mass	Approx. 240g	Approx. 390g	Approx. 760g
Installation method	Reader/Writer: Two M4 screws (Use a screw of 12 mm or more in length.) Branch cable joint: One M4 screws	Four M4 screws (Use a screw of 12 mm or more in length.)
Host device communications interface	Ethernet 10BASE-T/100BASE-TX
Host device communications protocol	EtherNet/IP, PROFINET
Accessories	Instruction Sheet, Description of Regulations and Standard, IP address label

Model	V680S-HMD63-ETN	V680S-HMD64-ETN	V680S-HMD66-ETN
Dimensions	50W × 50H × 30D (excluding protruding parts)	75W × 75H × 40D (excluding protruding parts)	120W × 120H × 40D (excluding protruding parts)
Power supply voltage	24 VDC ( - 15% to + 10%)
Consumption current	0.2A max.
Ambient operating temperature	- 10 to + 55 °C (with no icing)
Ambient operating humidity	25% to 85% (with no condensation)
Ambient storage temperature	- 25 to 70 °C (with no icing)
Ambient storage humidity	25% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between cable terminals and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between cable terminals and case
Vibration resistance	No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps in each of 3 axis directions (up/down, left/right, and forward/backward) for 11 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in 6 directions (Total: 18 times)
Degree of protection	IP67 (IEC 60529: 2001) Oil resistance equivalent to IP67F (JIS C 0920: 2003, Appendix 1) *1
Materials	Case: PBT resin, Filled resin: Urethane resin
Mass	Approx. 120g	Approx. 270g	Approx. 640g
Installation method	Two M4 screws (Use a screw of 12 mm or more in length.)	Four M4 screws (Use a screw of 12 mm or more in length.)
Host device communications interface	Ethernet 10BASE-T/100BASE-TX
Host device communications protocol	MODBUS TCP
Accessories	Instruction sheet, Description of Regulations and Standard, IP address label, Ferrite core *2

Model	V680S-D2KF67	V680S-D2KF67M	V680S-D2KF68	V680S-D2KF68M
Memory capacity	2,000 bytes (user area)
Memory type	FRAM
Data Retention	10 years after writing (85 °C or less)
Memory life	One trillion writes for each block (85 °C or less), Access frequency *1: One trillion accesses
Ambient operating temperature	-20 to 85 °C (with no icing)
Ambient storage temperature	-40 to 125 °C (with no icing)
Ambient operating humidity	35% to 85%
Degree of protection	IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *2. IPX9K (DIN 40 050)
Vibration resistance	No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each	No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps each in X, Y, and Z directions for 11 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions	40 × 40 × 5 mm (W × H × D)	86 × 54 × 10 mm (W × H × D)
Materials	PPS resin
Weight	Approx. 11.5 g	Approx. 12 g	Approx. 44 g	Approx. 46 g
Metal countermeasures	None	Provided	None	Provided

Model	V680S-D8KF67	V680S-D8KF67M	V680S-D8KF68	V680S-D8KF68M
Memory capacity	8,192 bytes (user area)
Memory type	FRAM
Data Retention	10 years after writing (85 °C or less)
Memory life	One trillion writes for each block (85 °C or less), Access frequency *1: One trillion accesses
Ambient operating temperature	-20 to 85 °C (with no icing)
Ambient storage temperature	-40 to 125 °C (with no icing)
Ambient operating humidity	35% to 85%
Degree of protection	IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *2. IPX9K (DIN 40 050)
Vibration resistance	No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each	No abnormality after application of 10 to 500 Hz, 1.5-mm double amplitude, acceleration: 100 m/s², 10 sweeps each in X, Y, and Z directions for 11 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions	40 × 40 × 5 mm (W × H × D)	86 × 54 × 10 mm (W × H × D)
Materials	PPS resin
Weight	Approx. 11.5 g	Approx. 12 g	Approx. 44 g	Approx. 46 g
Metal countermeasures	None	Provided	None	Provided

Model	V680-D1KP54T	V680-D1KP66T	V680-D1KP66MT	V680-D1KP66T-SP
Memory capacity	1,000 bytes (user area)
Memory type	EEPROM
Data retention time	10 years after writing (85 °C or less), 0.5 year after writing (85 °C to 125 °C) Total data retention at high temperatures exceeding 125 °C is 10 hours *1	10 years after writing (85 °C or less)
Write endurance	100,000 writes for each block (25 °C)
Ambient operating temperature (during transmission)	- 25 to 85 °C (with no icing)	During RF Tag communications: -25 to 70 °C (with no icing) Not during RF Tag communications: -40 to 110 °C (with no icing)
Ambient storage temperature (during data backup)	- 40 to 125 °C (with no icing) Heat resistance: 1,000 thermal cycles each of 30 minutes at - 10 °C/150 °C, High temperature storage: 1,000 hours at 150 °C 2 200 thermal cycles each of 30 minutes at - 10 °C/180 °C, High temperature storage: 200 hours at 180 °C 3	- 40 to 110 °C (with no icing)
Ambient operating humidity	35 to 95%
Degree of protection	IP67 (IEC 60529:2001) Oil resistance equivalent to IP67G (JIS C 0920: 2003, Appendix 1) *4	IP68 (IEC 60529:2001) Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *4	IP67
Vibration resistance	No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times)
Appearance	20 dia. × 2.7 mm	34 × 34 × 3.5 mm	95 × 36.5 × 6.5 mm (excluding protruding parts)
Materials	PPS resin	Exterior: PFA fluororesin RF Tag filling: PPS resin
Weight	Approx. 2 g	Approx. 6 g	Approx. 7.5 g	Approx. 20 g
Metal countermeasures	None	None	Provided	None

Model	V680-D1KP58HTN
Memory capacity	1,000 bytes (user area)
Memory type	EEPROM
Data Retention	10 years after writing (85 °C or less), 0.5 year after writing (85 °C to 125 °C) Total data retention at high temperatures exceeding 125 °C is 10 hours *1
Write Endurance	100,000 writes for each block (25 °C)
Ambient operating temperature (during transmission)	- 25 to 85 °C (with no icing)
Ambient storage temperature (during data backup)	-40 to 250 °C (with no icing) *2 (Data retention: -40 to 125 °C) 1. 2,000 cycles of 30 minutes each between room temperature and 200 °C 2. 500 hours at 250 °C
Ambient storage humidity	No restrictions.
Degree of protection	IP67 (IEC 60529:2001) Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1) *3
Vibration resistance	No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s², 10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance	No abnormality after application of 500 m/s², 3 times each in X, Y, and Z directions (Total: 18 times)
Materials	PPS resin
Weight	Approx. 70 g

Return to OMRON
