OMRON S8VK-C Dimensions
/Images/l_3201-25-172620-198x198.jpglast update: March 03, 2014
Compact power supplies…
Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous series safe, reliable, and easy to install, the new S8VK series is even tougher, more compact and easier to use.
Omron is a world leader in the development and manufacture of industrial power supplies.
We launched our first compact product, the S82K, in 1987 and our S8VS compact series has been an automatic choice with customers since 2002.
To ensure that we provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R.
…that make a world of difference!
Three compelling reasons why the S8VK is the right power supply for you:
Resistant in tough environments
Omron is confident that the quality of the S8VK will exceed your high expectations. Its robust design and construction withstand harsh environments and provide stable operation over a wide operating temperature range. Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
Easy and fast installation
The S8VK series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.
The most compact class on the market
Designed with space saving in mind, the S8VK series is our most compact power-supply range ever and the most compact class on today’s market.
Resistant in tough environments
Wherever the S8VK is installed within the range of the S8VK derating curve, it will give the same reliable performance for the duration of its service life. The wide operating temperature range of between -40°C to 70°C (S8VK-G/T/R) guarantees stable operation in any environment where other power supplies may be found lacking. But its robust design advantages don't end there because the S8VK also offers high resistance to the vibration transmitted by machinery in close proximity, this is due to the vibration-resistant DIN-rail mounting clip.
Easy and fast installation
Making your life easier
Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! In addition, the S8VK features a double set of DC output terminals (three for the negative terminal), which means you also spend less time and effort on wiring.
Long-life guaranteed
Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
The most compact class on the market
Designed with downsizing in mind
Omron knows that size is important for machine designers, which is why we have applied our developed technology using thermal simulation for the design of the S8VK. This enabled the S8VK compact size body. This gives a high power density in a compact package. And the S8VK has an even sleeker exterior than any previous models.
last update: March 03, 2014
Purchase the OMRON Switch mode power supplies Please fill in the following
If you have just landed here, this product OMRON S8VK-C Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VK-C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VK-CPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A7BS / A7BL Thumbwheel Switch/Features
J7MN Motor Protection Circuit Breaker (MPCB)/Features
ZX-T Smart Sensors High-Precision Contact Type/Features
G3J Simple Solid State Contactors/Features
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Features
OMRON S8VK-C specification
S8VK-C Switch Mode Power Supply (60/120/240/480-W Models)/Specificationslast update: May 22, 2014
Ratings, Characteristics, and Functions
| Power ratings | 60 W | 120 W | 240 W | 480 W | ||
|---|---|---|---|---|---|---|
| Output voltage | 24 V | 24 V | 24 V | 24 V | ||
| Efficiency (Typical) | 230 VAC input | 88% | 88% | 87% | 91% | |
| Input | Voltage *1 | 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6 | ||||
| Frequency *1 | 50/60 Hz (47 to 450 Hz) | 50/60 Hz (47 to 63 Hz) | ||||
| Current (Typical) | 115 VAC input | 1.0 A | 2.2 A | 2.5 A | 4.8 A | |
| 230 VAC input | 0.7 A | 1.4 A | 1.3 A | 2.4 A | ||
| Power factor (Typical) | 230 VAC input | 0.44 | 0.45 | 0.92 | 0.97 | |
| Harmonic current emissions | --- | Conforms to EN61000-3-2 | ||||
| Leakage current (Typical) | 115 VAC input | 0.19 mA | 0.19 mA | 0.24 mA | 0.26 mA | |
| 230 VAC input | 0.34 mA | 0.36 mA | 0.54 mA | 0.65 mA | ||
| Inrush current (Typical) *2 | 115 VAC input | 16 A | ||||
| 230 VAC input | 32 A | |||||
| Output | Voltage adjustment range *3 | -10% to 15% (with V.ADJ) (guaranteed) | ||||
| Ripple at 20 MHz (Typical) *4 | 230 VAC input | 70 mV | 120 mV | 150 mV | 130 mV | |
| Input variation influence | 0.5% max. (at 85 to 264 VAC input, 100% load) | |||||
| Load variation Influence (Rated Input voltage) | 1.5% max., at 0% to 100% load | |||||
| Temperature variation influence | 0.05%/°C max. | |||||
| Start up time (Typical) *2 | 115 VAC input | 530 ms | 800 ms | 790 ms | 770 ms | |
| 230 VAC input | 410 ms | 760 ms | 750 ms | 670 ms | ||
| Hold time (Typical) *2 | 115 VAC input | 24 ms | 27 ms | 34 ms | 21 ms | |
| 230 VAC input | 117 ms | 128 ms | 36 ms | 22 ms | ||
| Additional functions | Overload protection *2 | 105% to 160% of rated load current | ||||
| Overvoltage protection *2 | Yes *5 | |||||
| Parallel operation | No | |||||
| Series operation | Possible for up to two Power Supplies (with external diode) | |||||
| Others | Ambient operating temperature | -25 to 60°C (Refer to Engineering Data) | ||||
| Storage temperature | -25 to 65°C | |||||
| Ambient operating humidity | 20% to 90% (Storage humidity: 10% to 95%) | |||||
| Dielectric strength (detection current: 20 mA) | 3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal) | |||||
| Insulation resistance | 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC | |||||
| Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions | |||||
| 10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W, 3 G max for 480 W) for 80 min. each in X, Y, and Z directions | ||||||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||||
| Output indicatior | Yes (color: green), lighting from 80% to 90% or more of rated voltage | |||||
| EMI | Conducted Emission | Conforms to EN61204-3 EN55011 Class A and based on FCC Class A | ||||
| Radiated Emission | Conforms to EN61204-3 EN55011 Class A | |||||
| EMS | Conforms to EN61204-3 high severity levels | |||||
| Approved Standards | UL Listed: UL508 (Listing) UL UR: UL60950-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.60950-1 EN/VDE: EN50178, EN60950-1 | |||||
| Fulfilled Standards | SELV (EN60950-1/EN50178/UL60950-1) EN50274 for Terminal parts | |||||
| Degree of protection | IP20 by EN/IEC60529 | |||||
| SEMI | F47-0706 (200 to 240 VAC) | |||||
| Weight | 260 g | 580 g | 940 g | 1,550 g | ||
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the
rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment
range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that
the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 60°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standard for a DC Input
The following safety standards apply to a DC input: UL 60950-1,
cUR (CSA C22.2 No.60950-1), EN 50178, EN60950-1.
For a DC input, safety is ensured by external fuse.
Select an external fuse the meets the following conditions.
S8VK-C06024: 350 VDC min, 6A
S8VK-C12024: 350 VDC min, 8A
S8VK-C24024: 350 VDC min, 8A
S8VK-C48024: 350 VDC min, 12A
last update: May 22, 2014
OMRON S8VK-C catalog
S8VK-C Switch Mode Power Supply (60/120/240/480-W Models)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 S8VK-C Data Sheet | T058-E1-01 [4365KB] | Nov 05, 201520151105 | S8VK-C Data Sheet |
| S8VK Catalog | T057-E1-05 [6711KB] | Mar 10, 201420140310 | S8VK Catalog |
OMRON S8VK-C dimension
S8VK-C Switch Mode Power Supply (60/120/240/480-W Models)/Dimensionslast update: November 05, 2015

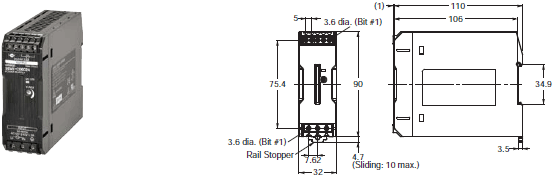

S8VK-C06024 (60 W)

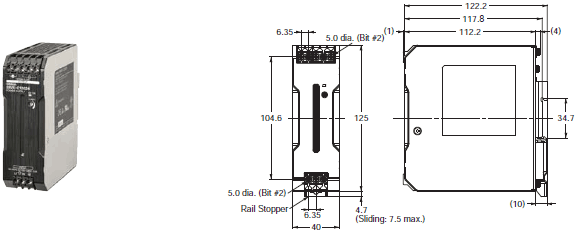

S8VK-C12024 (120 W)

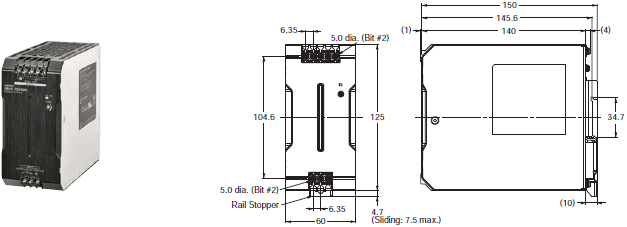

S8VK-C24024 (240 W)

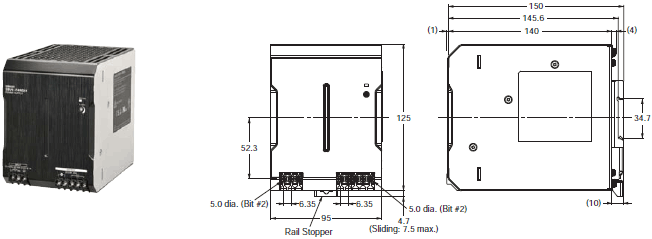

S8VK-C48024 (480 W)
DIN Rail (Order Separately)

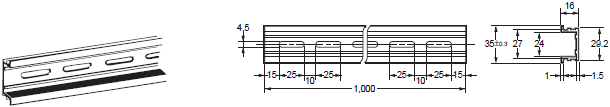

Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2

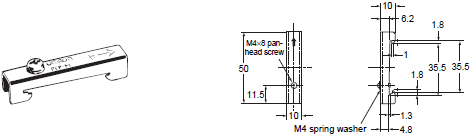

End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
filings may result from aluminum abrasion.
Mounting Brackets
last update: November 05, 2015
OMRON S8VK-C lineup
S8VK-C Switch Mode Power Supply (60/120/240/480-W Models)/Lineuplast update: May 22, 2014
Note: For details on normal stock models, contact your nearest OMRON representative.
| Power ratings | Input voltage | Output Voltage | Output current *1 | Model number |
|---|---|---|---|---|
| 60 W | Single phase 100 to 240 VAC 90 to 350 VDC | 24 V | 2.5 A | S8VK-C06024 |
| 120 W | 24 V | 5 A | S8VK-C12024 | |
| 240 W | 24 V | 10 A | S8VK-C24024 | |
| 480 W | 24 V | 20 A | S8VK-C48024 |
*1. For rated output current of DC input, refer to Derating Curve on catalog Page 4.
Mounting Brackets
| Name | Model |
|---|---|

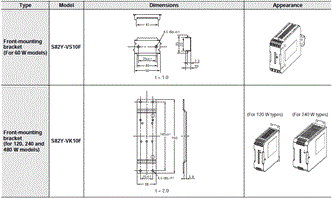

| Front-mounting bracket (for 60 W models) | S82Y-VS10F |
| Front-mounting bracket (for 120, 240 and 480 W models) | S82Y-VK10F |

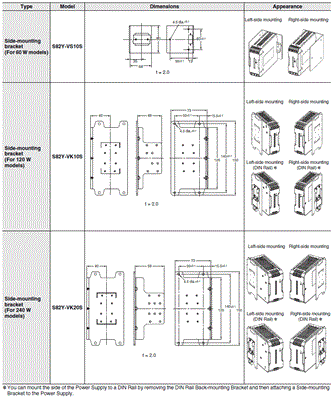

| Side-mounting bracket (for 60 W models) | S82Y-VS10S |
| Side-mounting bracket (for 120 W models) | S82Y-VK10S |
| Side-mounting bracket (for 240 W models) | S82Y-VK20S |
