OMRON M2P (Super Luminosity Type) specification
M2P (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Specificationslast update: October 15, 2013
LED and Incandescent Lamp Ratings and Characteristics
Ratings and characteristics are the same as those for the A3P Lighted Pushbutton Switches. Refer to the A3P datasheet.
Approved Standard Ratings
UL (File No. E41515), CSA (File No. LR45258)
LED: 24 VDC max.
Incandescent lamp: 28 VAC/VDC,1.2 W max.
Note:
Certification has been obtained for the Indicator.
For detailed information on individual products that have received certification, consult your supplier.
last update: October 15, 2013
OMRON M2P (Super Luminosity Type) catalog
M2P (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 M2P Data Sheet | A230-E1-01 [683KB] | Oct 03, 201320131003 | M2P Data Sheet |
OMRON M2P (Super Luminosity Type) lineup
M2P (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Lineuplast update: October 15, 2013
Ordering as a Set
The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket.
M2PJ (Rectangular) Single-screen Models
| Case color | Black | Light gray | |
|---|---|---|---|
| Lighting method | |||
| Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | M2PJ-90A11-05A(1) | M2PJ-90A12-05A(1) |
| 12 VAC/DC | M2PJ-90A11-12A(1) | M2PJ-90A12-12A(1) | |
| 24 VAC/DC | M2PJ-90A11-24A(1) | M2PJ-90A12-24A(1) | |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
M2PA (Square) Single-screen Models
| Case color | Black | Light gray | |
|---|---|---|---|
| Lighting method | |||
| Bullet Shape LEDs R, O, G, W, Y, A or PW | 5 VDC | M2PA-90A11-05A(1) | M2PA-90A12-05A(1) |
| 12 VAC/DC | M2PA-90A11-12A(1) | M2PA-90A12-12A(1) | |
| 24 VAC/DC | M2PA-90A11-24A(1) | M2PA-90A12-24A(1) | |
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
M2PT (Round) Single-screen Models
| Case color | Light gray | Lamp holder color symbol | |
|---|---|---|---|
| Lighting method | |||
| LED lamp | 5 VDC | M2PT-90A12-05S(1) | R, O, G, W, Y, A or PW |
| 12 VAC/DC | M2PT-90A12-12S(1) | ||
| 24 VAC/DC | M2PT-90A12-24S(1) | ||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White, (Y) = Yellow, (A) = Blue, (PW) = Pure White.
Accessories, Parts, and Tools
The accessories, parts, and tools are the same as those for the A3P Lighted Pushbutton Switches. Refer to the A3P datasheet.
last update: October 15, 2013
OMRON M2P (Super Luminosity Type) dimension
M2P (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Dimensionslast update: October 15, 2013

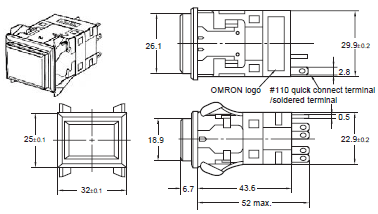

M2PJ (Rectangular) Models

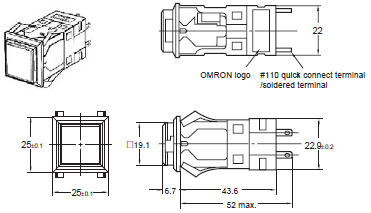

M2PA (Square) Models

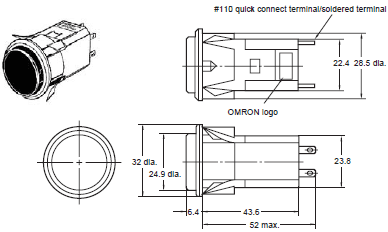

M2PT (Round) Models
Panel Cutout

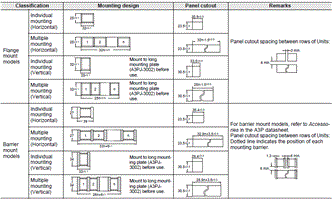

M2PJ (Rectangular) Models
Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. Mount the panel before mounting the Switch Guard.
4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.
M2PA (Square) Models
Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.

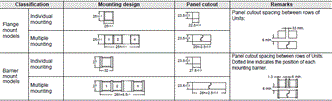

M2PT (Round) Models
Note:
1. Recommended panel thickness: 1 to 5 mm
2. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating
last update: October 15, 2013
