E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Dimensions
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Lineup
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Catalog
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Specifications
Purchase the OMRON E2E-[]-IL[] Cylindrical

OMRON E2E-[]-IL[] Dimensions

/Images/l_3543-25-262129-198x198.jpg

last update: July 17, 2018

Downtime can be reduced.

Notifies you of faulty parts and such phenomena in the Sensor in real time.

The frequency of sudden failure can be decreased.

Condition monitoring of sensors and equipment to prevent troubles.

The efficiency of changeover can be improved.

The batch check for individual sensor IDs significantly decreases commissioning time.

Standard Sensor for detecting ferrous metals.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (1)] Reduction of Sudden Stops by Grasping the Flow Rate Simultaneously with the Temperature of Cooling Water and Hydraulic Oil Circulating in Equipment

Existing problems

While the presence or absence of cooling water is checked by means of the ON/OFF-based pressure sensor, it is unable to detect any drop in the flow rate of the cooling water or any rise in the cooling water temperature. For that reason,

∙ The transformer is not cooled, and gets overheated, potentially leading to sudden stops of the equipment and the entire line.

∙ The tip may be deformed, causing defective products.

With an IO-Link IoT Flow Sensor

The flow rate and simultaneously the temperature of the circulation system are measured, substantially reducing sudden error.

Simultaneous monitoring of the flow rate and temperature changes, and informing of those changes, enable you to carry out predictive maintenance and reduce defective products.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (2)] The Proximity Sensor Indicates an Excessive Proximity to the Sensing Object. Understand the Changes in Equipment Condition in Advance and Reduce Sudden Stops

Existing problems

The detection position changes due to wear and vibration in the equipment’s mechanical parts and as a result, false detection and collision with the sensor have a negative impact on the equipment...

With an IO-Link Proximity Sensor

You are notified of excessive remoteness or proximity, and the occurrence of sudden defects is greatly reduced

Constantly monitoring the position of the sensing object and notifying of excessive remoteness or proximity can be used for predictive maintenance of the equipment.

[To those in charge of maintenance “Condition monitoring” for predictive maintenance (3)] Understand Unstable Situations in the Incident Level of the Photoelectric Sensor in Advance and Reduce Sudden Stops

Existing problems

∙ In a conveyance process operating for 24 hours, dust or dirt accumulated on the detection surface of the photoelectric sensor, leading to a decline in the light incident level that causes the sensor to make false detection and the equipment to stop...

∙ Water drops stick to the sensing surface of the reflective sensor causing reflected light to enter...

With an IO-Link Photoelectric Sensor

A light incident level monitor prevents false detection

With a response time of 1 ms, Photoelectric Sensor’s light incident level is output for monitoring. It is output when the light incident level exceeds the instability detection threshold, so you can check the site before false detection occurs and perform predictive maintenance.

[To those in charge of maintenance “Abnormality detection” for the shortest recovery] Detects Wiring Cable Disconnections and Errors and Improves Equipment Operation Rate Through Quick Maintenance

Existing problems

∙ An abnormality was displayed on the abnormality display screen, but upon going to look at the equipment, no external error was detected and the cause of the stop was not understood...

∙ Those responsible for maintenance investigated the cause of the abnormality from the activity of the stopped equipment, but because the maintenance person relied on the skill he or she has to identify the abnormality and replace the failed sensor, stoppages from 2 hours to several days occur...

With an IO-Link Sensor

Abnormal area and phenomenon of sensors are reported in real time

When an abnormality occurs in a sensor, because you can see where the abnormality occurred and the factors estimated for it, you can go to where the abnormality occurred and recover the equipment in the shortest amount of time.
Also with wire disconnection detection, not only output wires, but also power lines can be detected unconditionally.

Easy replacement of IO-Link sensors with Non-IO-Link sensors

You need a quick recovery but you have only Non-IO-Link sensors with no IO-Link sensors in stock. You probably think in such a case, the control program needs modifications, and requires additional time for the recovery.
With IO-Link Master, since the IO-Link ON/OFF data and the data for Non-IO-Link sensors are located in the same memory, replacement with Non-IO-Link sensors can be carried out without any modification of the control program, resulting in a reduction of the equipment downtime.

[To those in charge of production engineering “Individual identification” for the reduction of man-hours] Improving System Commissioning and Changeover Efficiency by Checking Identifications in Batches

Existing problems

∙ During system start-up or changeover, operators had to perform the I/O check for each of the thousands of sensors installed on the line, and it took an enormous amount of time...

∙ When a sensor is installed wrong or an error occurs, wasteful work occurred that would normally be unnecessary...

With an IO-Link Sensor

Without going to the site, you can check individual sensor identifications in batches, resulting in a sharp reduction of commissioning time

By checking the sensor identification (manufacturer/sensor type/model number), you can easily check mistakes such as misconnected or unconnected sensors and installation mistakes.
Also, because it is possible to program multiple sensors at once using the command language used only for the controller, it is also possible to reduce commissioning time sharply.

[Omron’s IO-Link Compliant Equipment] Masters and Sensors Can Be Chosen to Match Your Situation

For the connection of IO-Link Sensors and IO-Link Masters, two types are available: a screw-less clamp terminal block and an M12 connector.
In addition, NX-ILM400 IO-Link Master with screw-less clamp terminal block is connectable not only to EtherCAT, but also to EtherNet/IP communication coupler units, and you can choose between them according to the system configuration.

last update: July 17, 2018

Purchase the OMRON Cylindrical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E2E-[]-IL[] Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2E-[]-IL[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2E-[]-IL[]Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NB Series Programmable Terminals/Features
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
F03-16PE / 16PT / 15 / 16PS Sensing Band/Liquid Leakage Point Sensor/Features
G9B Stepping Relay Unit/Features
DRT2-[]D32ML(-1) / []D16ML(-1) MIL Connector Terminals with Transistors/Features

OMRON E2E-[]-IL[] dimension
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Dimensions
last update: October 2, 2017

(Unit: mm)

Pre-wired Models
E2E-X3B4-IL[]

*1. 4-dia. vinyl-insulated round cable with 3 conductors
      (Conductor cross section: 0.3 mm², Insulator diameter: 1.3 mm), Standard length: 2 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

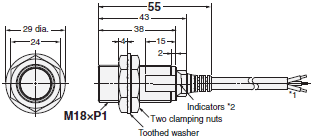

E2E-X7B4-IL[]

*1. 6-dia. vinyl-insulated round cable with 3 conductors
      (Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

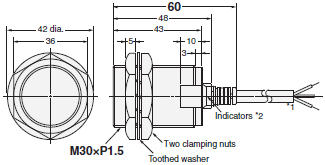

E2E-X10B4-IL[]

*1. 6-dia. vinyl-insulated round cable with 3 conductors
      (Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

Pre-wired Connector Models

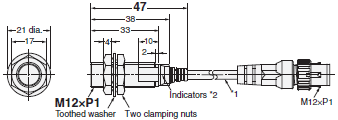

E2E-X3B4-M1TJ-IL[]

*1. 4-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

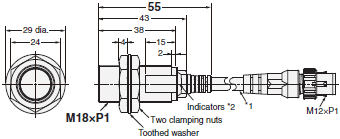

E2E-X7B4-M1TJ-IL[]

*1. 6-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

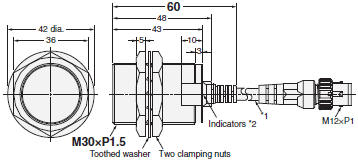

E2E-X10B4-M1TJ-IL[]

*1. 6-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

Mounting Hole Dimensions

last update: October 2, 2017

OMRON E2E-[]-IL[] lineup
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Lineup
last update: September 12, 2016
Sensors
DC 3-wire IO-Link Models

Appearance Sensing
distance Connection method Pin
arrangement IO-Link
baud rate Model
PNP
Shielded
M12 3 mm Pre-wired Models
(2 m) -- COM2 (38.4 kbps) E2E-X3B4-IL2 2M
COM3 (230.4 kbps) E2E-X3B4-IL3 2M
M12 Pre-wired
Smartclick Connector
Models (0.3 m) 1: +V
3: 0 V
4: C/Q output COM2 (38.4 kbps) E2E-X3B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps) E2E-X3B4-M1TJ-IL3 0.3M
M18 7 mm Pre-wired Models
(2 m) -- COM2 (38.4 kbps) E2E-X7B4-IL2 2M
COM3 (230.4 kbps) E2E-X7B4-IL3 2M
M12 Pre-wired
Smartclick Connector
Models (0.3 m) 1: +V
3: 0 V
4: C/Q output COM2 (38.4 kbps) E2E-X7B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps) E2E-X7B4-M1TJ-IL3 0.3M
M30 10 mm Pre-wired Models
(2 m) -- COM2 (38.4 kbps) E2E-X10B4-IL2 2M
COM3 (230.4 kbps) E2E-X10B4-IL3 2M
M12 Pre-wired
Smartclick Connector
Models (0.3 m) 1: +V
3: 0 V
4: C/Q output COM2 (38.4 kbps) E2E-X10B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps) E2E-X10B4-M1TJ-IL3 0.3M

Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).

Accessories (Sold Separately)
Sensor I/O Connectors
(Models with Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Type Appearance Cable length Sensor I/O Connector
model number Applicable Proximity Sensor
model number
Socket on one
cable end Straight
2 m XS5F-D421-D80-F E2E-X[]B4-M1TJ-IL[]
5 m XS5F-D421-G80-F
L-shape
2 m XS5F-D422-D80-F
5 m XS5F-D422-G80-F
Socket and plug
on cable ends * Straight/straight
2 m XS5W-D421-D81-F
5 m XS5W-D421-G81-F
L-shape/L-shape
2 m XS5W-D422-D81-F
5 m XS5W-D422-G81-F

Note: Refer to Sensor I/O Connector/Sensor Controller for details.
* There are also straight type/L-shape type combinations available.

last update: September 12, 2016

OMRON E2E-[]-IL[] catalog
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

IO-Link Series Catalog Y229-E1-02
[28505KB] Jul 17, 201820180717 IO-Link Series Catalog

OMRON E2E-[]-IL[] specification
E2E-[]-IL[] IO-Link Proximity Sensor (Standard Models)/Specifications
last update: September 12, 2016
DC 3-wire IO-Link Models (E2E-X[]B4-IL[])

Item Size M12 M18 M30
Shielded Shielded
Model E2E-X3B4-IL[] E2E-X7B4-IL[] E2E-X10B4-IL[]
Sensing distance 3 mm ±10% 7 mm ±10% 10 mm ±10%
Set distance *1 0 to 2.4 mm 0 to 5.6 mm 0 to 8 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal
(The sensing distance decreases with non-ferrous metal. Refer to Engineering
Data on Catalog.)
Standard sensing object Iron, 12 × 12 × 1 mm Iron, 18 × 18 × 1 mm Iron, 30 × 30 × 1 mm
Response frequency *2 1 kHz 0.5 kHz 0.4 kHz
Power supply voltage 10 to 30 VDC (including 10% ripple (p-p))
Current consumption 20 mA max.
Control output Load current 100 mA max.
Residual voltage 2 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators *1 In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability
indicator (green, lit)
In the IO-Link mode: Operation indicator (orange, lit) and communication indicator
(green, blinking at 1 s intervals)
Operation mode PNP NO/NC switching type (Factory setting: NO)
Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits Power supply reverse polarity protection, output reverse polarity protection, surge
suppressor, and output short-circuit protection
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant *3
Connection method Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models
(Standard cable length: 0.3 m)
Materials Case Nickel-plated brass
Sensing surface PBT
Clamping nuts Nickel-plated brass
Toothed washer Zinc-plated iron
Main IO-Link functions Operation mode switching between NO and NC, self diagnosis enabling, excessive
proximity judgment distance selecting, timer function of the control output and
timer time selecting, instability output (IO-Link mode) ON delay timer time selecting
function, monitor output, operating hours read-out, and initial reset
Communication
specifications IO-Link
specification Ver 1.1
Baud rate -IL3: COM3 (230.4 kbps), -IL2: COM2 (38.4 kbps)
Data length PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
Minimum cycle
time -IL3 (COM3): 1 ms, -IL2 (COM2): 2.3 ms
Accessories Instruction manual

Note: Please contact your OMRON sales representative regarding the IO-Link setup file (IODD file).
*1. In the Standard I/O mode (SIO mode), use the product in a range that the green stability indication lamp is lit. (Although the lamp is turned off when the object detected has approached excessively, the detection performance is stable.)
In the IO-Link mode, use the product in a range that the Byte1_bit4 for instability detection is zero. (Although the Byte1_bit5 for excessive proximity detection is one if the object detected has approached excessively, the detection performance is stable.) Please contact your OMRON sales representative regarding assignment of data.
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*3. Oil resistance in-house standard: Performance with respect to water insoluble oil.
(Test at below)

Oil resistance test

After the test time elapses, the characteristics below are checked for problems.
(1) Visual appearance (no damage that affects product characteristics)
(2) Operation check (ON/OFF) (3) Insulation resistance (50 MΩ min. at 500 VDC)
(4) Dielectric strength (500 VAC, 1 min.)
(5) Water resistance (IP67)

last update: September 12, 2016

NO. E2E-[]-IL[]

TYPE:Proximity Sensors Cylindrical Copyright Statement

DATE:2021-06-09

Associated products:
E2ER / E2ERZ Oil-resistant Proximity Sensors/Features E2EQ-[]-IL[] IO-Link Proximity Sensor (Spatter-resistant Models)/Features

Appearance	Sensing distance	Connection method	Pin arrangement	IO-Link baud rate	Model
PNP
Shielded	M12	3 mm	Pre-wired Models (2 m)	--	COM2 (38.4 kbps)	E2E-X3B4-IL2 2M
COM3 (230.4 kbps)	E2E-X3B4-IL3 2M
M12 Pre-wired Smartclick Connector Models (0.3 m)	1: +V 3: 0 V 4: C/Q output	COM2 (38.4 kbps)	E2E-X3B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps)	E2E-X3B4-M1TJ-IL3 0.3M
M18	7 mm	Pre-wired Models (2 m)	--	COM2 (38.4 kbps)	E2E-X7B4-IL2 2M
COM3 (230.4 kbps)	E2E-X7B4-IL3 2M
M12 Pre-wired Smartclick Connector Models (0.3 m)	1: +V 3: 0 V 4: C/Q output	COM2 (38.4 kbps)	E2E-X7B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps)	E2E-X7B4-M1TJ-IL3 0.3M
M30	10 mm	Pre-wired Models (2 m)	--	COM2 (38.4 kbps)	E2E-X10B4-IL2 2M
COM3 (230.4 kbps)	E2E-X10B4-IL3 2M
M12 Pre-wired Smartclick Connector Models (0.3 m)	1: +V 3: 0 V 4: C/Q output	COM2 (38.4 kbps)	E2E-X10B4-M1TJ-IL2 0.3M
COM3 (230.4 kbps)	E2E-X10B4-M1TJ-IL3 0.3M

Type	Appearance	Cable length	Sensor I/O Connector model number	Applicable Proximity Sensor model number
Socket on one cable end	Straight	2 m	XS5F-D421-D80-F	E2E-X[]B4-M1TJ-IL[]
5 m	XS5F-D421-G80-F
L-shape	2 m	XS5F-D422-D80-F
5 m	XS5F-D422-G80-F
Socket and plug on cable ends *	Straight/straight	2 m	XS5W-D421-D81-F
5 m	XS5W-D421-G81-F
L-shape/L-shape	2 m	XS5W-D422-D81-F
5 m	XS5W-D422-G81-F

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
IO-Link Series Catalog	Y229-E1-02 [28505KB]	Jul 17, 201820180717	IO-Link Series Catalog

Item	Size	M12	M18	M30
Shielded	Shielded
Model	E2E-X3B4-IL[]	E2E-X7B4-IL[]	E2E-X10B4-IL[]
Sensing distance	3 mm ±10%	7 mm ±10%	10 mm ±10%
*Set distance 1**	0 to 2.4 mm	0 to 5.6 mm	0 to 8 mm
Differential travel	10% max. of sensing distance
Detectable object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object	Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm
*Response frequency 2**	1 kHz	0.5 kHz	0.4 kHz
Power supply voltage	10 to 30 VDC (including 10% ripple (p-p))
Current consumption	20 mA max.
Control output	Load current	100 mA max.
Residual voltage	2 V max. (Load current: 100 mA, Cable length: 2 m)
*Indicators 1**	In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability indicator (green, lit) In the IO-Link mode: Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)
Operation mode	PNP NO/NC switching type (Factory setting: NO) Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits	Power supply reverse polarity protection, output reverse polarity protection, surge suppressor, and output short-circuit protection
Ambient temperature range	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67, in-house standards: oil-resistant *3
Connection method	Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m)
Materials	Case	Nickel-plated brass
Sensing surface	PBT
Clamping nuts	Nickel-plated brass
Toothed washer	Zinc-plated iron
Main IO-Link functions	Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, and initial reset
Communication specifications	IO-Link specification	Ver 1.1
Baud rate	-IL3: COM3 (230.4 kbps), -IL2: COM2 (38.4 kbps)
Data length	PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)
Minimum cycle time	-IL3 (COM3): 1 ms, -IL2 (COM2): 2.3 ms
Accessories	Instruction manual

Return to OMRON
