OMRON E3Z lineup

last update: May 10, 2017

Sensors

Sensing method	Appearance		Connection method	Sensing distance	Model
					NPN output	PNP output
Through- beam (Emitter + Receiver) *3			Pre-wired (2 m)	15 m (Infrared light)	E3Z-T61 2M *4 *5 Emitter E3Z-T61-L 2M Receiver E3Z-T61-D 2M	E3Z-T81 2M *4 *5 Emitter E3Z-T81-L 2M Receiver E3Z-T81-D 2M
			Standard M8 connector		E3Z-T66 Emitter E3Z-T66-L Receiver E3Z-T66-D	E3Z-T86 Emitter E3Z-T86-L Receiver E3Z-T86-D
			Pre-wired (2 m)	10 m (Red light)	E3Z-T61A 2M *4 Emitter E3Z-T61-A-L 2M Receiver E3Z-T61-A-D 2M	E3Z-T81A 2M *4M Emitter E3Z-T81-A-L 2M Receiver E3Z-T81-A-D 2M
			Standard M8 connector		E3Z-T66A Emitter E3Z-T66-A-L Receiver E3Z-T66-A-D	E3Z-T86A Emitter E3Z-T86-A-L Receiver E3Z-T86-A-D
			Pre-wired (2 m)	30 m (Infrared light)	E3Z-T62 2M *4 Emitter E3Z-T62-L 2M Receiver E3Z-T62-D 2M	E3Z-T82 2M Emitter E3Z-T82-L 2M Receiver E3Z-T82-D 2M
			Standard M8 connector		E3Z-T67 Emitter E3Z-T67-L Receiver E3Z-T67-D	E3Z-T87 Emitter E3Z-T87-L Receiver E3Z-T87-D
Retro- reflective with MSR function	*1		Pre-wired (2 m)	4 m (100 mm) *2 (Red light)	E3Z-R61 2M *4 *5	E3Z-R81 2M *4 *5
			Standard M8 connector		E3Z-R66	E3Z-R86
Diffuse- reflective			Pre-wired (2 m)	5 to 100 mm (wide view) (Infrared light)	E3Z-D61 2M *4	E3Z-D81 2M *4 *5
			Standard M8 connector		E3Z-D66	E3Z-D86
			Pre-wired (2 m)	1 m (Infrared light) (Red light)	E3Z-D62 2M *4 *5	E3Z-D82 2M *4 *5
			Standard M8 connector		E3Z-D67	E3Z-D87
			Pre-wired (2 m)	90±30 mm (narrow beam) (Red light)	E3Z-L61 2M *4 *5	E3Z-L81 2M *4 *5
			Standard M8 connector		E3Z-L66	E3Z-L86
Distance- settable			Pre-wired (2 m)	20 to 40 mm (BGS min setting) (Red light) 20 to 200 mm (BGS max setting) (Red light) 40 min. Incident threshold (FGS min setting) (Red light) 200 min. Incident threshold (FGS max setting) (Red light)	E3Z-LS61 2M *4	E3Z-LS81 2M *4
			Standard M8 connector		E3Z-LS66	E3Z-LS86
			Pre-wired (2 m)	2 to 20 mm (BGS min setting) (Red light) 2 to 80 mm (BGS max setting) (Red light)	E3Z-LS63 2M	E3Z-LS83 2M *5
			Standard M8 connector		E3Z-LS68	E3Z-LS88
Slit-type Through- beam		1 axis	Pre-wired (2 m)	25 mm (Infrared light)	E3Z-G61 2M *4 *5	E3Z-G81 2M *4 *5
		2 axes	Pre-wired (2 m)		E3Z-G62 2M *4	E3Z-G82 2M *4
		1 axis	Pre-wired M8 connector		E3Z-G61-M3J	E3Z-G81-M3J
		2 axes			E3Z-G62-M3J	E3Z-G82-M3J
Limited- reflective for transparent glasses			Pre-wired (2 m)	30±20 mm (Red light)	E3Z-L63 2M	E3Z-L83 2M
			Standard M8 connector		E3Z-L68	E3Z-J88
Retro- reflective without MSR function for clear, plastic bottles	*1		Pre-wired (2 m)	500 mm (80 mm) *2 (Red light)	E3Z-B61 2M	E3Z-B81 2M *4
			Standard M8 connector		E3Z-B66	E3Z-B86
			Pre-wired (2 m)	2 m (500 mm) *2 (Red light)	E3Z-B62 2M *4	E3Z-B82 2M *4
			Standard M8 connector		E3Z-B67	E3Z-B87

*1. The Reflector is sold separately. Select the Reflector model most suited to the application.
*2. The sensing distance specified is possible when the E39-R1S is used. Values in parentheses indicate the minimum
       required distance between the Sensor and Reflector.
*3. Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver.
*4. M12 Standard Pre-wired Connector Models are also availavble.
       When ordering, add "-M1J 0.3M" to the end of the model number (e.g., E3Z-T61-M1J 0.3M).
       The cable is 0.3 m long.
*5. M12 Pre-wired Smartclick Connector Models are also availavble.
       When ordering, add "-M1TJ 0.3M" to the end of the model number (e.g., E3Z-T61-M1TJ 0.3M).
       The cable is 0.3 m long.

Oil-resistive Sensors

Sensing method	Appearance	Connection method	Sensing distance	Model
				NPN output	PNP output
Through- beam (Emitter + Receiver) *3		Pre-wired (2 m)	15 m (Infrared light)	E3Z-T61K 2M *4 Emitter E3Z-T61K-L 2M Receiver E3Z-T61K-D 2M	E3Z-T81K 2M *4 Emitter E3Z-T81K-L 2M Receiver E3Z-T81K-D 2M
		Pre-wired M8 connector		E3Z-T61K-M3J 0.3M Emitter E3Z-T61K-L-M3J 2M Receiver E3Z-T61K-D-M3J 2M	E3Z-T81K-M3J 0.3M Emitter E3Z-T81K-L-M3J 2M Receiver E3Z-T81K-D-M3J 2M
Retro- reflective with MSR function	*1	Pre-wired (2 m)	3 m (150 mm) (Red light) *2	E3Z-R61K 2M *4	E3Z-R81K 2M
		Pre-wired M8 connector		E3Z-R61K-M3J 0.3M	E3Z-R81K-M3J 0.3M
Diffuse- reflective		Pre-wired (2 m)	5 to 100 mm (wide view) (Infrared light)	E3Z-D61K 2M *4	E3Z-D81K 2M
		Pre-wired M8 connector		E3Z-D61K-M3J 0.3M	E3Z-D81K-M3J 0.3M
		Pre-wired (2 m)	1 m (Infrared light)	E3Z-D62K 2M *4	E3Z-D82K 2M
		Pre-wired M8 connector		E3Z-D62K-M3J 0.3M	E3Z-D82K-M3J 0.3M

*1. The Reflector is sold separately. Select the Reflector model most suited to the application.
*2. The sensing distance specified is possible when the E39-R1S is used. Values in parentheses indicate the minimum
       required distance between the Sensor and Reflector.
*3. Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver.
*4. M12 Standard Pre-wired Connector Models are also availavble.
       When ordering, add "-M1J 0.3M" to the end of the model number (e.g., E3Z-T61-M1J 0.3M).
       The cable is 0.3 m long.

Accessories (Order Separately)

Slit

(A Slit is not provided with Through-beam Sensors) Order a Slit separately if required.

Slit width	Sensing distance		Minimum detectable object (Reference value)	Model	Contents
	E3Z-T[][]	E3Z-T[][]A
0.5-mm dia.	50 mm	35 mm	0.2-mm dia.	E39-S65A	One set (contains Slits for both the Emitter and Receiver)
1-mm dia.	200 mm	150 mm	0.4-mm dia.	E39-S65B
2-mm dia.	800 mm	550 mm	0.7-mm dia.	E39-S65C
0.5 × 10 mm	1 m	700 mm	0.2-mm dia.	E39-S65D
1 × 10 mm	2.2 m	1.5 m	0.5-mm dia.	E39-S65E
2 × 10 mm	5 m	3.5 m	0.8-mm dia.	E39-S65F

Reflectors

(Reflector required for Retroreflective Sensors) A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.

Name	Sensing distance (typical) *					Model	Quantity	Remarks
	E3Z-R		E3Z- R[]K	E3Z- B[]1/ -B[]6	E3Z- B[]2/ -B[]7
	Rated value (sensing distance of 15 m)	Reference value (sensing distance of 10 m)	Rated value	Rated value	Rated value
Reflector	3 m (100 mm)	---	2 m (100 mm)	---	---	E39-R1	1	Retro- reflective models are not provided with Reflectors. The MSR function is enabled.
	4 m (100 mm)	---	3 m (150 mm)	500 mm (80 mm)	2 m (500 mm)	E39-R1S	1
	---	5 m (100 mm)	---	---	---	E39-R2	1
	---	2.5 m (100 mm)	---	---	---	E39-R9	1
	---	3.5 m(100 mm)	---	---	---	E39-R10	1
Fog Preventive Coating	---	3 m (100 mm)	---	500 mm (80 mm)	2 m (500 mm)	E39-R1K	1
Small Reflector	---	1.5 m (50 mm)	---	---	---	E39-R3	1
Tape Reflector	---	700 mm (150 mm)	---	---	---	E39-RS1	1
	---	1.1 m (150 mm)	---	---	---	E39-RS2	1
	---	1.4 m (150 mm)	---	---	---	E39-RS3	1

Note: 1. If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator
              lights properly when you install the Sensor.
          2. Refer to Reflectors on E39-L/E39-S/E39-R for details.
* Values in parentheses indicates the minimum required distance between the Sensor and Reflector.

Mutual Interference Protection Filter

A Filter is not provided with the Sensor (for the through-beam E3Z-T[][]A). Order a Filter separately if required.

Sensing distance	Appearance/ Dimensions	Model	Quantity	Remarks
3 m		E39-E11	Two sets each for the Emitter and Receiver (total of four pieces)	Can be used with the E3Z-T[][]A Through-beam models. The arrow indicates the direction of polarized light. Mutual interference can be prevented by altering the direction of polarized light from or to adjacent Emitters and Receivers.

Note: The polarization directions of the Filters are offset by 90º to prevent interference. When you install the Emitter and
          Receiver, install them at the same angle to maintain this offset.

Mounting Brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

Appearance	Model (material)	Quantity	Remarks
	E39-L153 (SUS304) *1	1	Mounting Brackets
	E39-L104 (SUS304) *1	1
	E39-L43 (SUS304) *2	1	Horizontal Mounting Brackets
	E39-L142 (SUS304) *2	1	Horizontal Protective Cover Bracket
	E39-L44 (SUS304)	1	Rear Mounting Bracket
	E39-L98 (SUS304) *2	1	Metal Protective Cover Bracket
	E39-L150 (SUS304)	1	(Sensor adjuster) Easily mounted to the aluminum frame rails of conveyors and easily adjusted. For left to right adjustment
	E39-L151 (SUS304)	1
	E39-L144 (SUS304) *2	1	Compact Protective Cover Bracket (For E3Z only)

Note: 1. When using Through-beam models, order one bracket for the Receiver and one for the Emitter.
            2. Refer to Mounting Brackets on E39-L/E39-S/E39-R for details.
*1. Cannot be used for Standard Connector models with mounting surface on the bottom. In that case, use Pre-wired Connector models.
*2. Cannot be used for Standard Connector models.

Sensor I/O Connectors (Sockets on One Cable End)

(Models for Connectors and Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Size	Cable	Appearance		Cable type		Model
M8	Standard	Straight *2		2 m	4-wire	XS3F-M421-402-A
				5 m		XS3F-M421-405-A
		L-shaped *2 *3		2 m		XS3F-M422-402-A
				5 m		XS3F-M422-405-A
	PUR (Polyurethane) cable *1	Straight *2		2 m		XS3F-M421-402-L
				5 m		XS3F-M421-405-L
		L-shaped *2 *3		2 m		XS3F-M422-402-L
				5 m		XS3F-M422-405-L
	Vibration-proof robot cable	Straight *2		2 m		XS3F-M421-402-R
				5 m		XS3F-M421-405-R
		L-shaped *2 *3		2 m		XS3F-M422-402-R
				5 m		XS3F-M422-405-R

Note: 1. When using Through-beam models, order one connector for the Receiver and one for the Emitter.
            2. Refer to Introduction to Sensor I/O Connectors/Sensor Controllers for details.
*1. The Sensor can be used in low-temperature environments (−25°C to −40°C). Do not use the Sensor in locations that are subject to oil.
*2. The connector will not rotate after connecting.
*3. The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.

last update: May 10, 2017

OMRON E3Z dimension

last update: November 15, 2012

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Through-beam*

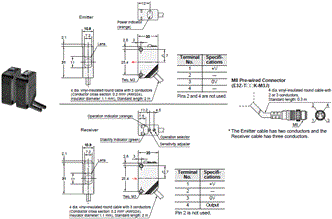

Pre-wired Models
E3Z-T61(K), E3Z-T81(K)
E3Z-T61A, E3Z-T81A
E3Z-T62, E3Z-T82

Through-beam*
Connector Models
E3Z-T66, E3Z-T86
E3Z-T66A, E3Z-T86A
E3Z-T67, E3Z-T87

* Models numbers for Through-beam Sensors (E3Z-T[][]) are for sets that include both the Emitter and Receiver.
    The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-T61-L 2M), the
    model number of the Receiver, by adding "-D" (example: E3Z-T61-D 2M.) Refer to Lineup to confirm model numbers
    for Emitter and Receivers.

Retro-reflective Models
Pre-wired Models
E3Z-R61(K), E3Z-B61
E3Z-R81(K), E3Z-B81
E3Z-D61(K), E3Z-B62
E3Z-D81(K), E3Z-B82
E3Z-D62(K), E3Z-L63
E3Z-D82(K), E3Z-L83
E3Z-L61, E3Z-L81

Retro-reflective Models
Connector Models
E3Z-R66, E3Z-B66
E3Z-R86, E3Z-B86
E3Z-D66, E3Z-B67
E3Z-D86, E3Z-B87
E3Z-D67, E3Z-L68
E3Z-D87, E3Z-L88
E3Z-L66, E3Z-L86

Note: The lens for the E3Z-D[]1/D[]6/L[][]/B[][] is red. The lens for the E3Z-D[]2/D[]7 is black.

Accessories (Order Separately)

Slits

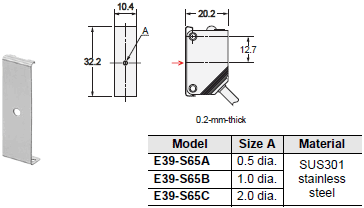

E39-S65A, E39-S65B, E39-S65C

Slits

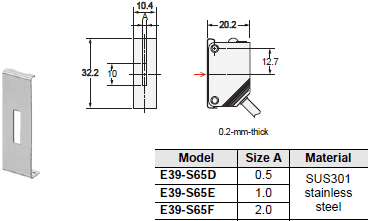

E39-S65D, E39-S65E, E39-S65F

Slits

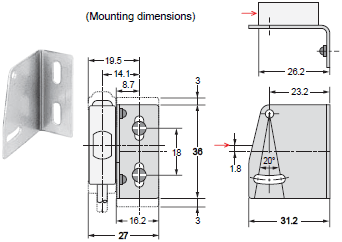

E39-L44

Slits
E39-L44

last update: November 15, 2012

OMRON E3Z specification

last update: October 28, 2015

Sensing method			Through-beam			Retro- reflective with MSR function	Diffuse-reflective		(Narrow- beam Models)
Model	NPN output	Pre-wired	E3Z-T61	E3Z-T62	E3Z-T61A	E3Z-R61	E3Z-D61	E3Z-D62	E3Z-L61
		Connector (M8)	E3Z-T66	E3Z-T67	E3Z-T66A	E3Z-R66	E3Z-D66	E3Z-D67	E3Z-L66
	PNP output	Pre-wired	E3Z-T81	E3Z-T82	E3Z-T81A	E3Z-R81	E3Z-D81	E3Z-D82	E3Z-L81
		Connector (M8)	E3Z-T86	E3Z-T87	E3Z-T86A	E3Z-R86	E3Z-D86	E3Z-D87	E3Z-L86
Sensing distance			15 m	30 m	10 m	4 m (100 mm) *1 (when using E39-R1S) 3 m (100 mm) *1 (when using E39-R1)	100 mm (white paper: 100 × 100 mm)	1 m (white paper: 300 × 300 mm)	90 + 30 mm (white paper, 100 x 100 mm)
Spot diameter (reference value)			---						(2.5 dia. And sensing distance of 90 mm)
Standard sensing object			Opaque: 12-mm dia. min.			Opaque: 75-mm dia. min.	---
Minimum detectable object (reference value)			---						0.1 mm (copper wire)
Differential travel			---				20% max. of setting distance		Refer to Engineering data on Catalog.
Directional angle			Both emitter and receiver: 3 to 15°			2 to 10°	---
Light source (wavelength)			Infrared LED (870 nm)		Red LED (660 nm)	Red LED (660 nm)	Infrared LED (860 nm)		Red LED (650 nm)
Current consumption			35 mA max. (Emitter: 15 mA max., Receiver: 20 mA max.)			30 mA max.
Protection circuits			Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection			Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention, and Reversed output polarity protection
Response time			Operate or reset: 1 ms max.	Operate or reset: 2 ms max.	Operate or reset: 1 ms max.
Degree of protection			IEC, IP67
Connection method			Pre-wired cable (standard length: 2 m and 0.5 m), Connector (M8)
Weight (packed state)	Pre-wired cable (2 m)		Approx. 120 g			Approx. 65 g
	Connector		Approx. 30 g			Approx. 20 g
Material	Case		PBT (polybutylene terephthalate)
	Lens		Modified polyarylate			Methacrylic resin	Modified polyarylate

Sensing method		Retro-reflective for clear, plastic bottles (without MSR function)
Model	NPN output	E3Z-B61	E3Z-B66	E3Z-B62	E3Z-B67
	PNP output	E3Z-B81	E3Z-B86	E3Z-B82	E3Z-B87
Sensing distance		500 mm (80 mm) *1 (using E39-R1S)		2 m (500 mm) *1 *2 (using E39-R1S)
Standard sensing object		Opaque materials, 75mm dia. min. (Standard detectable object:glass Cylinder 15mm dia. thickness 1.1mm length 50mm, and the transmission factor 92% or less in wave length 660nm)
Light source (wavelength)		Red LED (660 nm)
Current consumption		30 mA max.
Protection circuits		Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention, and Reversed output polarity protection
Response time		Operate or reset: 1 ms max.
Degree of protection		IEC, IP67
Connection method		Pre-wired cable (standard length: 2 m and 0.5 m)	Connector (M8, 4 pins)	Pre-wired cable (standard length: 2 m and 0.5 m)	Connector (M8, 4 pins)
Weight (packed state)	Pre-wired cable (2 m)	Approx. 65 g
	Standard Connector	Approx. 20 g
Material	Case	PBT (polybutylene terephthalate)
	Lens	Modified polyarylate

Sensing method		Transparent glass Limited-reflective (for transparent object detection )
Model	NPN output	E3Z-L63	E3Z-L68
	PNP output	E3Z-L83	E3Z-L88
Sensing distance		30±20 mm (transparent glasses 100 × 100 mm)
Spot diameter (reference value)		2-mm dia. min. (at sensing distance of 30 mm)
Minimum detectable object (reference value)		0.1 mm dia. (copper wire)
Light source (wavelength)		Red LED (660 nm)
Current consumption		30 mA max.
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention, Reverse output polarity protection
Response time		Operate or reset: 1 ms max.
Degree of protection		IEC, IP67
Connection method		Pre-wired (standard length: 2 m)	M8 connector
Weight (packed state)	Pre-wired cable (2 m)	Approx. 65 g
	Standard Connector	Approx. 20 g
Material	Case	PBT (polybutylene terephthalate)
	Lens	Modified polyarylate

Oil-resistant

Sensing method			Through-beam	Retro-reflective	Diffuse-reflective
Model	NPN output	Pre-wired Models	E3Z-T61K	E3Z-R61K	E3Z-D61K	E3Z-D62K
		M8 Pre-wired connector	E3Z-T61K-M3J	E3Z-R61K-M3J	E3Z-D61K- M3J	E3Z-D62K- M3J
	PNP output	Pre-wired Models	E3Z-T81K	E3Z-R81K	E3Z-D81K	E3Z-D82K
		M8 Pre-wired connector	E3Z-T81K-M3J	E3Z-R81K-M3J	E3Z-D81K- M3J	E3Z-D82K- M3J
Sensing distance			15 m	3 m (150 mm) * (when using E39-R1S) 2 m (100 mm) * (when using E39-R1)	100 mm (white paper: 100 × 100 mm)	1 m (white paper: 300 × 300 mm)
Standard sensing object			Opaque: 12-mm dia. min.	Opaque: 75-mm dia. min.	---
Differential travel			---		20% max. of setting distance
Directional angle			Both emitter and receiver: 3 to 15 °	2 to 10 °	---
Light source (wavelength)			Infrared LED (870 nm)	Red LED (660 nm)	Infrared LED (860 nm)
Current consumption			35 mA max. (Emitter: 15 mA max., Receiver: 20 mA max.)	30 mA max.
Protection circuits			Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection	Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention, and Reversed output polarity protection
Response time			Operate or reset: 1 ms max.
Degree of protection			IP67 (IEC), Oil resistant models: IP67 (IEC) (in-house standards: oilproof), excluding cables and connectors
Connection method			Pre-wired cable (standard length: 2 m), M8 Pre-wired Connector
Weight (packed state)	Pre-wired cable (2 m)		Approx. 120 g	Approx. 65 g
	Connector (M8, 4 pins)		Approx. 50 g	Approx. 30 g
Material	Case		PBT (polybutylene terephthalate)
	Lens		Modified polyarylate	Methacrylic resin	Modified polyarylate

* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Common

Power supply voltage	12 to 24 VDC±10%, ripple (p-p): 10% max.
Control output	Load power supply voltage: 26.4 VDC max., Load current: 100 mA max. Residual voltage: Load current of less than 10 mA: 1 V max. Load current of 10 to 100 mA: 2 V max. Open collector output (NPN/PNP depending on model) Light-ON/Dark-ON selectable
Sensitivity adjustment	One-turn adjuster
Ambient illumination (Receiver side)	Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature range	Operating: -25 to 55°C, Some connector models: -40°C to 55°C * (with no icing or condensation) Storage: - 40 to 70 °C (with no icing or condensation)
Ambient humidity range	Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance	20 MΩ min. at 500 VDC
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Indicator	Operation indicator (orange) Stability indicator (green) Through-beam Emitter has power indicator (orange) only.
Accessories	Instruction manual (Neither Reflectors nor Mounting Brackets are provided with any of the above models.)

* The ambient temperature range during operation for connector models depends on the model. For the E3Z-T66/T86/
    R66/R86, the range is −40°C to 55°C. For the E3Z-D66/D86/D67/D87, the range is −30°C to 55°C. For other connector
    models, the range is −25°C to −55°C.
    The sensing distance for Retro-reflective Models (E3Z-R66/R86) between −40°C to −25°C, however, will be as follows
    (not the values in the table): With E39-R1S: 3 m (100 mm), With E39-R1: 2 m (100 mm).
    Also, use the XS3F-M42[]-4[][]-L Sensor I/O Connector (PUR cable) for applications between −25°C to −40°C. (Refer
    to Catalog.)

last update: October 28, 2015

OMRON E3Z catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E3Z Data Sheet	- [2886KB]	Feb 15, 201820180215	E3Z Data Sheet
E3Z Operating Procedures	- [510KB]	Jun 01, 201720170601	E3Z Operating Procedures

• NO. E3Z
• TYPE:Photoelectric Sensors Built-in Amplifier Copyright Statement
• DATE:2021-06-08
• Associated products:
  E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Features E3ZM-V Color Mark Detection Compact Photoelectric Sensor/Features
