last update: April 21, 2017

• Repeat accuracy of ±1% FS (setting resolution: 0.01 kPa), high-precision pressure control available.

• Compact design (31 × 30 × 30 mm) saves mounting space.

• Easy-to-read red LED indicator.

• Analog current output models available (E8Y-A[]Y).

• Pressure port Rc (PT) 1/8 models available (-R).

• EN and UL approved.

last update: April 21, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E8Y Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E8Y We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E8YSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3X-DRT21 / SRT21 / CIF11 Communications Units for E3X-DA-N-series Fiber Amplifiers/Features
E2EH Proximity Sensor Ideal for High Temperatures and Cleaning Processes/Features
EE-SPX301 / 401, EE-SPY30 / 40 Slot-type Reflective Photomicrosensor/Features
ZAP Pushbutton Switch (Cylindrical 30-dia.)/Features
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Features

OMRON E8Y specification
E8Y Differential Pressure Sensor/Specifications
last update: December 20, 2013
Ratings

Model E8Y-AR2C E8Y-AR5C E8Y-A2C
E8Y-A2C-R E8Y-A5B
E8Y-A5C
E8Y-A5C-R E8Y-AR2Y E8Y-A2Y
E8Y-A2Y-R E8Y-A5Y
E8Y-A5Y-R
Power supply voltage 12 to 24 VDC ±10% with a ripple (p-p) of 10% max.
Current consumption 50 mA max. 75 mA max.
Pressure type Differential pressure
Rated pressure range 0 to 200 Pa 0 to 500 Pa 0 to 2.00 kPa 0 to 5.00 kPa 0 to 200 Pa 0 to 2.00 kPa 0 to 5.00 kPa
Withstand pressure 5 kPa 50 kPa 5 kPa 5 kPa
Applicable fluid Non-corrosive gas and non-flammable gas
Linear
output Output current --- --- --- --- 4 to 20 mA
Permissible load
resistance --- --- --- --- 0 to 250 Ω
Precision --- --- --- --- ±2.5%FS ±1.0%FS
Linearity --- --- --- --- ±2.5%FS ±1.0%FS
Digital
output Output form NPN open collector (NO/NC) *
Load current 100 mA
Output applied
voltage 30 VDC max.
Residual voltage 1.0 V max. with a load current of 100 mA or 0.4 V max. with a load current of 16 mA
Repeat accuracy ±2.5%FS ±1.0%FS ±2.5%FS ±1.0%FS
Display Display 3-digit 7-segment red LED
Indicator lamp Orange LED indicator (OUT1: lit when digital output is ON)
Orange LED indicator (OUT2: lit when digital output is ON)
Response speed 0.5 s max.
Display accuracy ±1.0%FS
Setting resolution 1 Pa 0.01 kPa 1 Pa 0.01 kPa
Protection circuits Reverse polarity protection, load short-circuit protection
Ambient temperature Operating: -10 to 55°C (with no icing)
Ambient humidity Operating: 25% to 85% (with no condensation)
Storage temperature -25 to 65°C
Accessories Mounting Brackets (A and B), Instruction manual

* The E8Y-A5B provides a PNP open-collector (NO/NC) output.

Specifications

Temperature influence E8Y-A2C/A5C: ±3%FS max.
E8Y-AR5C: ±6%FS max.
E8Y-AR2C: ±10%FS max.
Humidity influence E8Y-A2C/A5C: ±3%FS max.
E8Y-AR5C: ±6%FS max.
E8Y-AR2C: ±10%FS max.
Degree of protection IP40 (IEC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Insulation resistance 100 MΩ min. (at 500 VDC) between current-carrying parts and case
Vibration resistance Destruction: 10 to 150 Hz, 0.75-mm single amplitude or 100 m/s², 4 times each for 8 min in X, Y and Z directions
Shock resistance Destruction: 300 m/s² 3 times each in X, Y and Z directions
Pressure port 4.5-dia resin pipe or Rc (PT) 1/8 taper screw (-R type)
Cable Vinyl-insulated round cable 4 dia., Standard length: 2 m
Weight Approx. 80 g

last update: December 20, 2013

OMRON E8Y dimension
E8Y Differential Pressure Sensor/Dimensions
last update: December 20, 2013

(Unit: mm)

Sensors

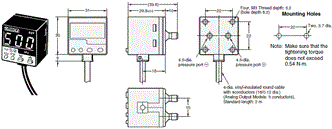

Standard Port Type (Pressure Port: 4.5 dia.)

E8Y-AR5C
E8Y-AR2C
E8Y-A2C
E8Y-A5C
E8Y-A5B
E8Y-AR2Y
E8Y-A2Y
E8Y-A5Y

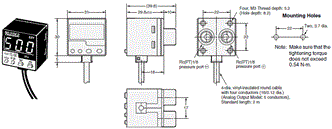

Die-case Port Type (Pressure port: Rc(PT)1/8)

E8Y-A2C-R
E8Y-A5C-R
E8Y-A2Y-R
E8Y-A5Y-R

Accessories (Provided)

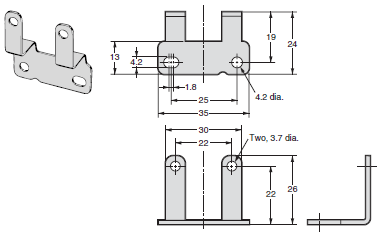

Mounting Bracket A

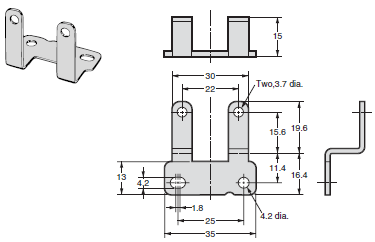

Mounting Bracket B

last update: December 20, 2013

OMRON E8Y catalog
E8Y Differential Pressure Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E8Y Data Sheet X800-E1-02
[224KB] Apr 26, 200520050426 E8Y Data Sheet

OMRON E8Y lineup
E8Y Differential Pressure Sensor/Lineup
last update: December 20, 2013
Sensors

Pressure range * Digital output Linear output Model
0 to 200 Pa NPN open collector --- E8Y-AR2C
0 to 500 Pa E8Y-AR5C
0 to 2.00 kPa E8Y-A2C
0 to 5.00 kPa E8Y-A5C
0 to 200 Pa 4 to 20 mA E8Y-AR2Y
0 to 2.00 kPa E8Y-A2Y
0 to 5.00 kPa E8Y-A5Y
0 to 5.00 kPa PNP open collector E8Y-A5B

Note: Order the optional E89-Y1 Panel-mounting Bracket.
A model number ending in -R indicates the pressure port is die-cast for Rc (PT) 1/8 models.

Accessories (Order Separately)
Panel Attachment Parts Set (For []36 and []45 Models)

Model
E89-Y1 *

* Includes the cover, guide, frame, and holder.

last update: December 20, 2013

NO. E8Y

TYPE:Pressure Sensors / Flow Sensors Copyright Statement Copyright Statement

DATE:2021-06-07

Associated products:
E8F2 Digital Pressure Sensor/Features E9NC-AA / VA IoT Status Monitoring Amplifier/Features

Model	E8Y-AR2C	E8Y-AR5C	E8Y-A2C E8Y-A2C-R	E8Y-A5B E8Y-A5C E8Y-A5C-R	E8Y-AR2Y	E8Y-A2Y E8Y-A2Y-R	E8Y-A5Y E8Y-A5Y-R
Power supply voltage	12 to 24 VDC ±10% with a ripple (p-p) of 10% max.
Current consumption	50 mA max.	75 mA max.
Pressure type	Differential pressure
Rated pressure range	0 to 200 Pa	0 to 500 Pa	0 to 2.00 kPa	0 to 5.00 kPa	0 to 200 Pa	0 to 2.00 kPa	0 to 5.00 kPa
Withstand pressure	5 kPa	50 kPa	5 kPa	5 kPa
Applicable fluid	Non-corrosive gas and non-flammable gas
Linear output	Output current	---	---	---	---	4 to 20 mA
Permissible load resistance	---	---	---	---	0 to 250 Ω
Precision	---	---	---	---	±2.5%FS	±1.0%FS
Linearity	---	---	---	---	±2.5%FS	±1.0%FS
Digital output	Output form	NPN open collector (NO/NC) *
Load current	100 mA
Output applied voltage	30 VDC max.
Residual voltage	1.0 V max. with a load current of 100 mA or 0.4 V max. with a load current of 16 mA
Repeat accuracy	±2.5%FS	±1.0%FS	±2.5%FS	±1.0%FS
Display	Display	3-digit 7-segment red LED
Indicator lamp	Orange LED indicator (OUT1: lit when digital output is ON) Orange LED indicator (OUT2: lit when digital output is ON)
Response speed	0.5 s max.
Display accuracy	±1.0%FS
Setting resolution	1 Pa	0.01 kPa	1 Pa	0.01 kPa
Protection circuits	Reverse polarity protection, load short-circuit protection
Ambient temperature	Operating: -10 to 55°C (with no icing)
Ambient humidity	Operating: 25% to 85% (with no condensation)
Storage temperature	-25 to 65°C
Accessories	Mounting Brackets (A and B), Instruction manual

Temperature influence	E8Y-A2C/A5C: ±3%FS max. E8Y-AR5C: ±6%FS max. E8Y-AR2C: ±10%FS max.
Humidity influence	E8Y-A2C/A5C: ±3%FS max. E8Y-AR5C: ±6%FS max. E8Y-AR2C: ±10%FS max.
Degree of protection	IP40 (IEC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 minute
Insulation resistance	100 MΩ min. (at 500 VDC) between current-carrying parts and case
Vibration resistance	Destruction: 10 to 150 Hz, 0.75-mm single amplitude or 100 m/s², 4 times each for 8 min in X, Y and Z directions
Shock resistance	Destruction: 300 m/s² 3 times each in X, Y and Z directions
Pressure port	4.5-dia resin pipe or Rc (PT) 1/8 taper screw (-R type)
Cable	Vinyl-insulated round cable 4 dia., Standard length: 2 m
Weight	Approx. 80 g

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E8Y Data Sheet	X800-E1-02 [224KB]	Apr 26, 200520050426	E8Y Data Sheet

Pressure range *	Digital output	Linear output	Model
0 to 200 Pa	NPN open collector	---	E8Y-AR2C
0 to 500 Pa	E8Y-AR5C
0 to 2.00 kPa	E8Y-A2C
0 to 5.00 kPa	E8Y-A5C
0 to 200 Pa	4 to 20 mA	E8Y-AR2Y
0 to 2.00 kPa	E8Y-A2Y
0 to 5.00 kPa	E8Y-A5Y
0 to 5.00 kPa	PNP open collector		E8Y-A5B

Model
E89-Y1 *
